RDB-100 Manual Pipe & Tube Rotary Draw Bender Ø1/2" - Ø1" NB Pipe Capacity, Ø6.35 - Ø44.45mm OD Roun

BAILEIGH RDB-100 Manual Pipe & Tube Rotary Draw Bender Ø1/2" - Ø1" NB Pipe Capacity, Ø6.35 - Ø44.45mm OD Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8070

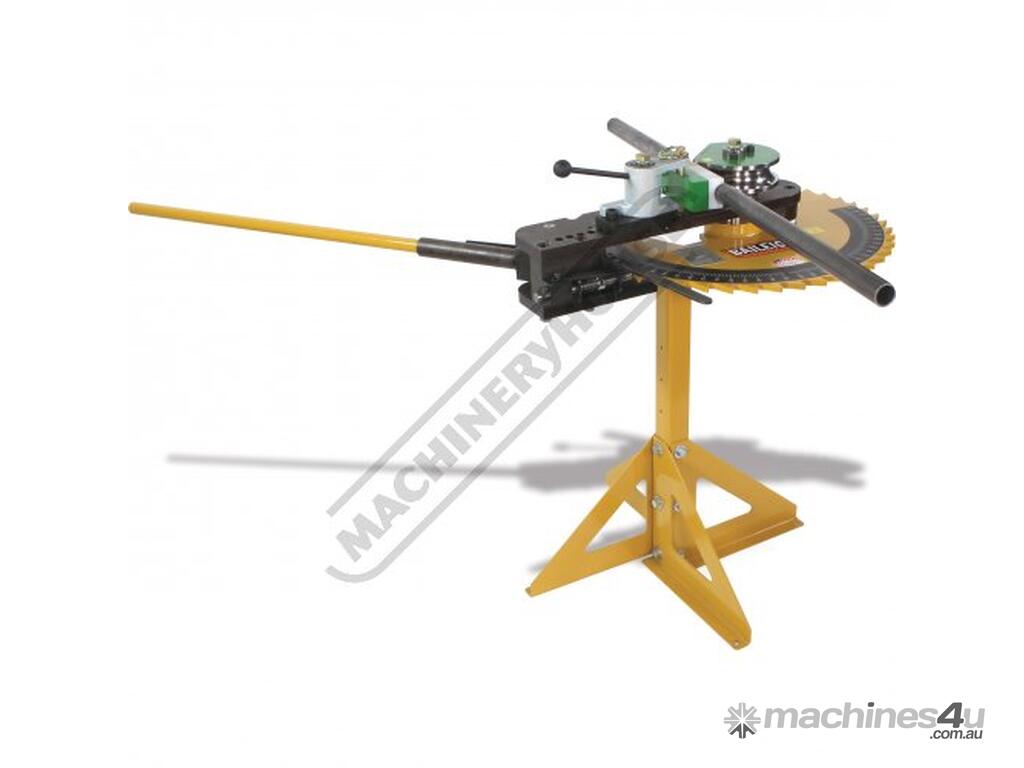

NOTE: Image shown with Optional Tooling.

For the fabricator who needs to bend lower production runs, this manual tubing bender maintains a high standard of professional-looking bends.

Recommended for: Projects using thin wall tubing.

Features:
Bends up to Ø44.45mm OD tubing with a maximum wall thickness of 2.41mm and 1" NB (9/64" schedule 40) pipe
Large-diameter indexing allows you to bend up to 206° (180° plus spring-back) without having to re-index and re-pin—unlike most other manual tube benders on the market

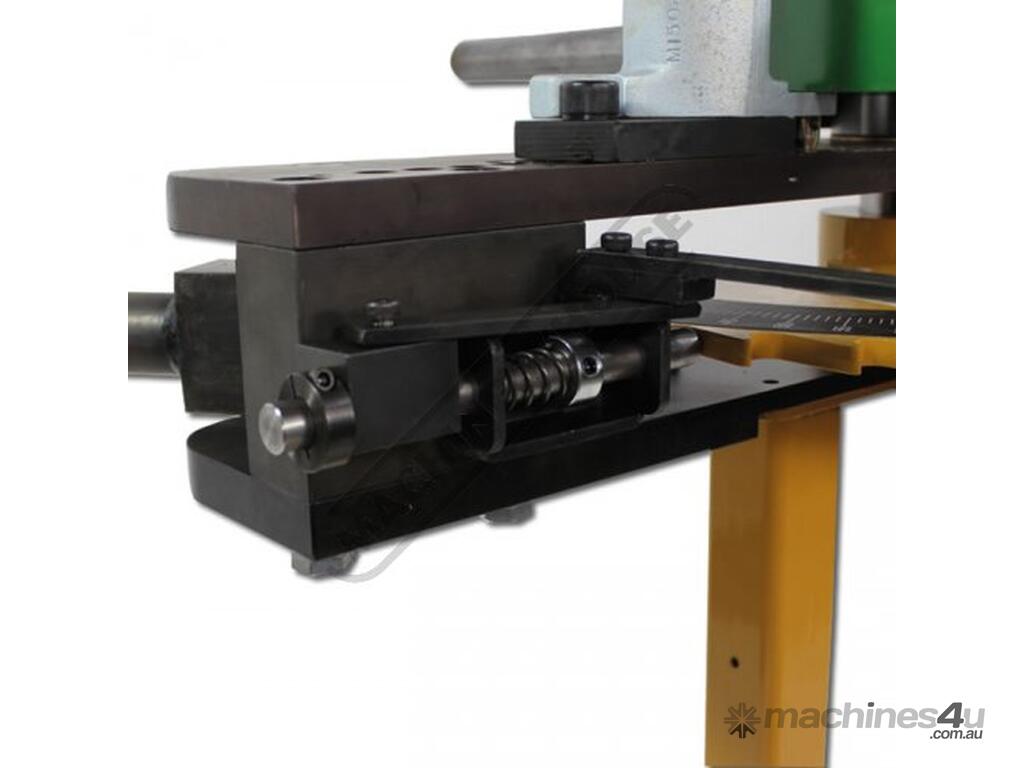

Quick-release counter die system lets you easily load and unload the material

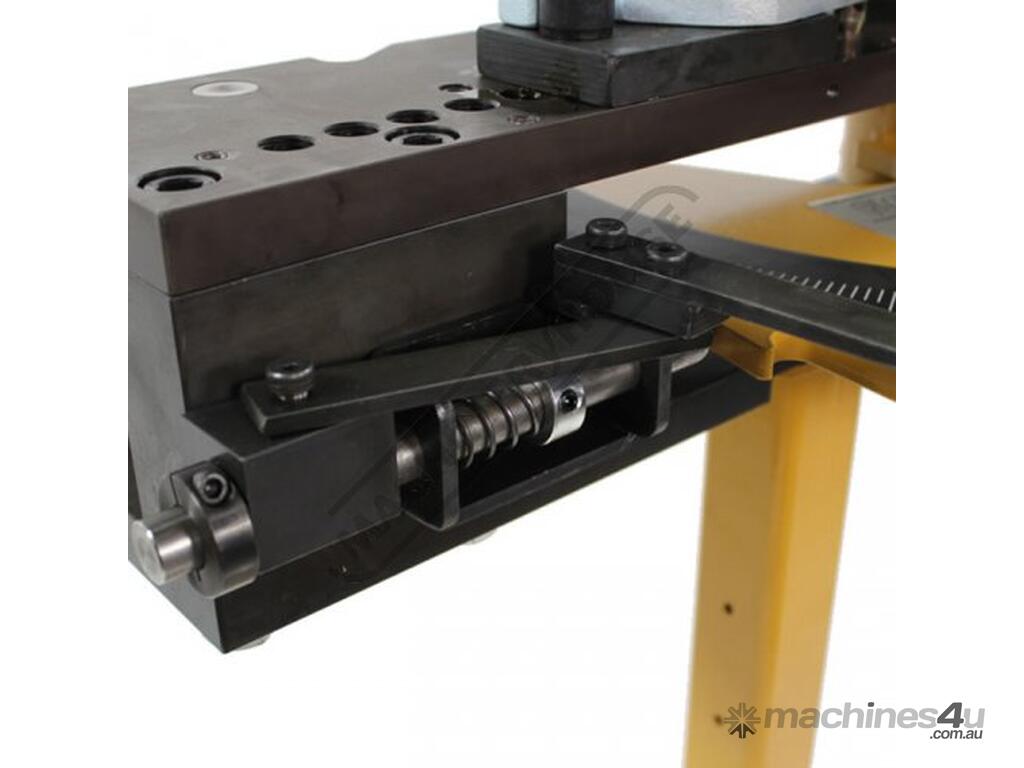

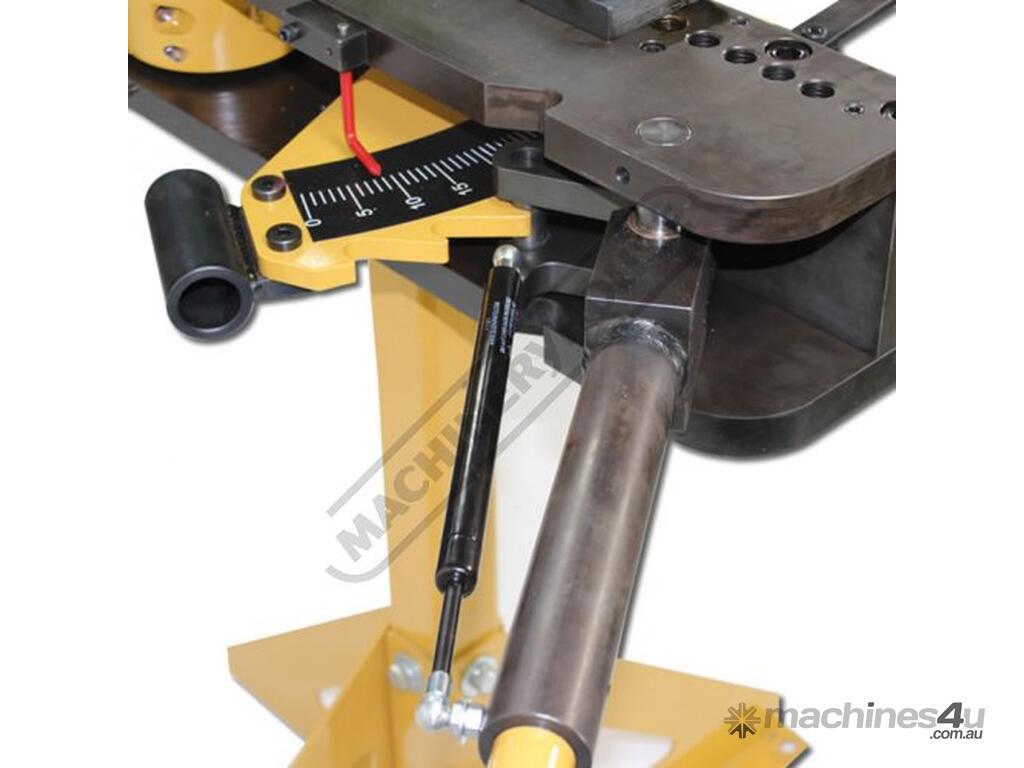

Tension springback mechanism holds position as the bend mechanism grabs the next tooth on the index wheel

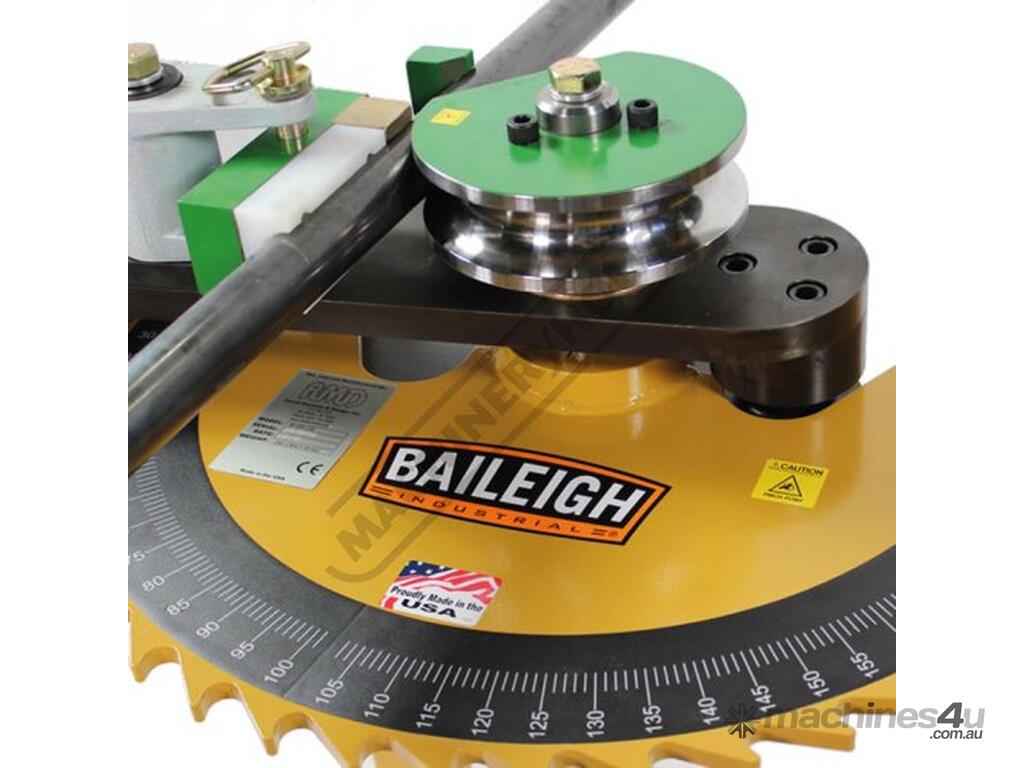

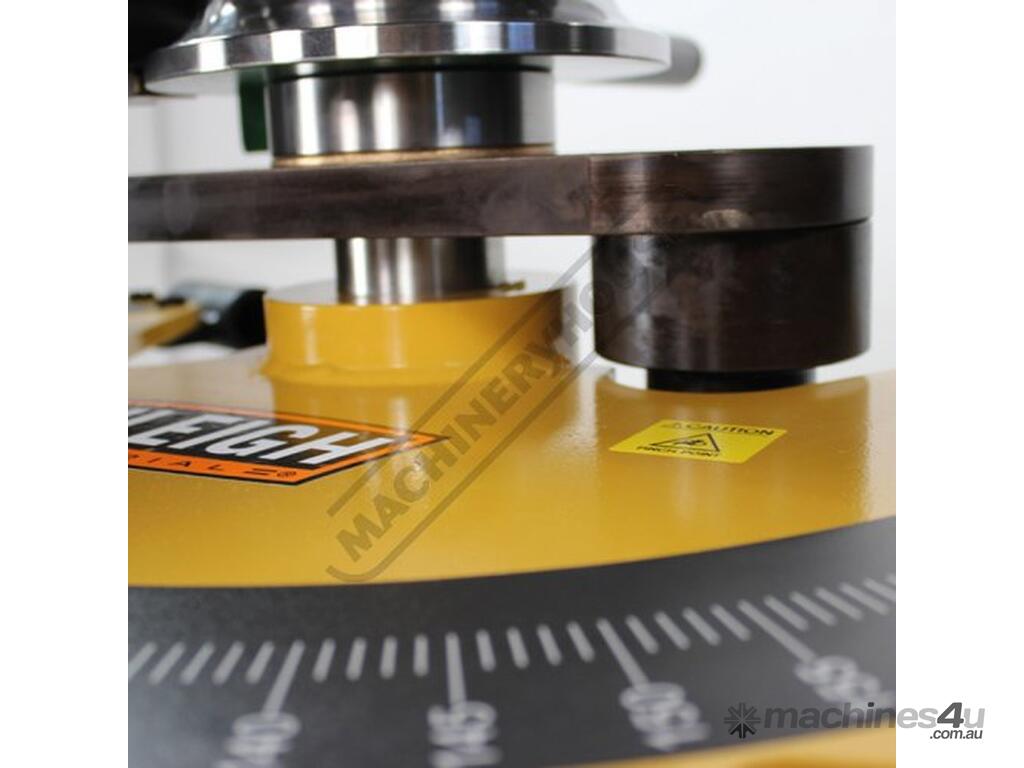

Degree scale displays your bend angle for fast reference

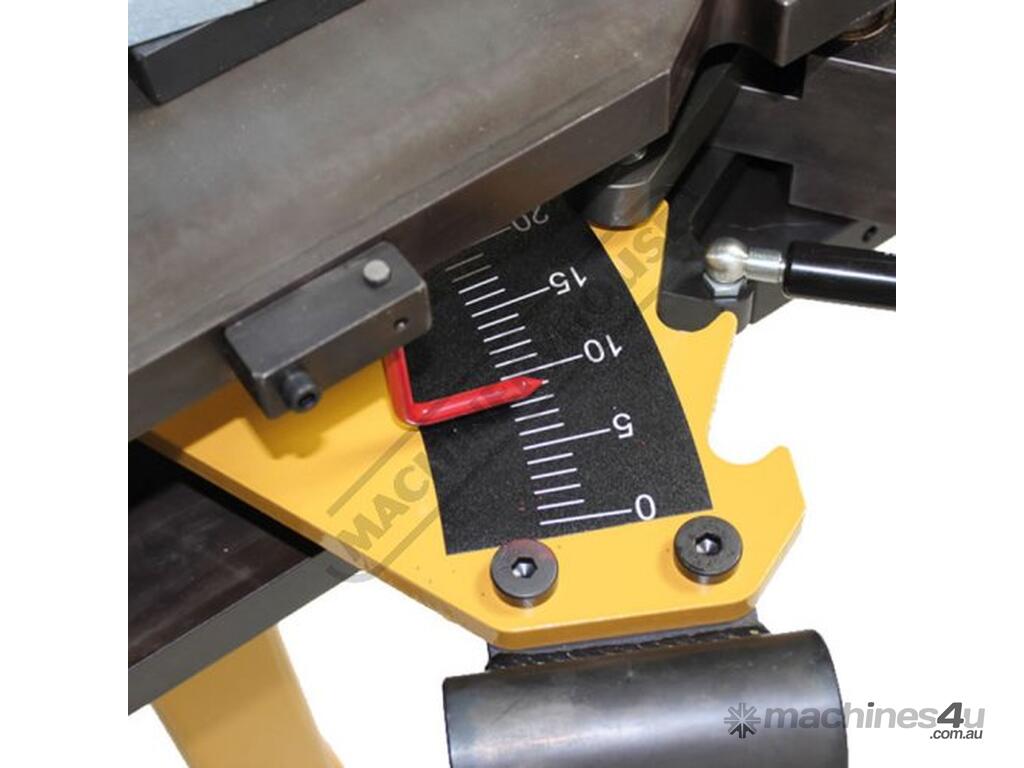

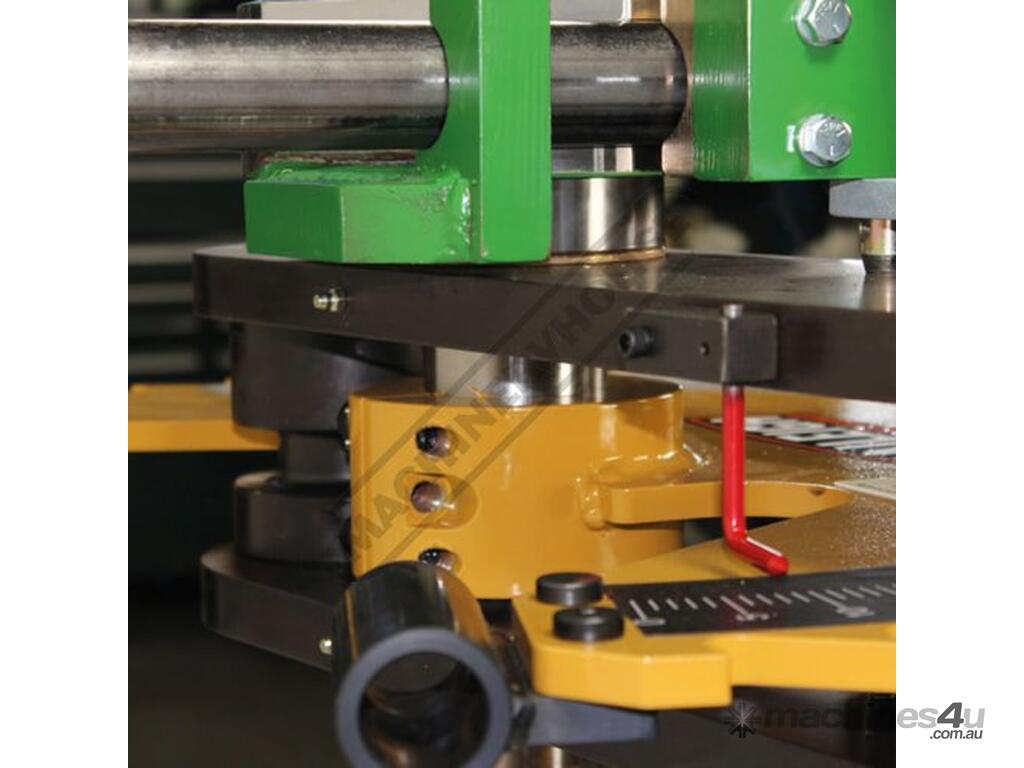

All tooling has a start-of-bend indicator line so you can make complex bends with accuracy and confidence
Ratcheting bend system lets you conveniently shift to manual override for lighter-gauge materials
Ships mostly pre-assembled; simply attach the handle and stand
Accepts hundreds of round and square tubing die sets as well as round pipe die sets
Steel plate construction ensures strength and precision
Includes stand degree dial and handle. Just add tooling and you’re ready to bend

Includes:
- Stand



Specifications:
ORDER CODE: B8070
MODEL: RDB-100
Material (Type): Pipe & Tube
Material Section (Type): Round, Square & Rod
Machine (Type): Manual - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø1"
Round Tube Range (OD) - Mild Steel (inch / mm): Ø6.35 - Ø44.45
Square Tube Range (inch / mm): 19.05 - 25.4
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø1" x 1/8"
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): Ø1" x 1/8"
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): Ø3/4" x 7/64"
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø44.45 x 2.1
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø50.8 x 3.17
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø38.1 x 2.1
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): Ø38.1 x 2.1
Solid Rod - Mild Steel (inch / mm): Ø25.4
Square Tube x Wall Capacity - Mild Steel (inch / mm): 25.4 x 3.17
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): ~
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 10 1/2" / 266.7mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1/2" / 12.7mm
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 206º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Nett Weight (kg): 132
