RDB-250 Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2" NB Pipe Capacity, Ø6.35 - Ø63.5mm Round

BAILEIGH RDB-250 Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2" NB Pipe Capacity, Ø6.35 - Ø63.5mm Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8085

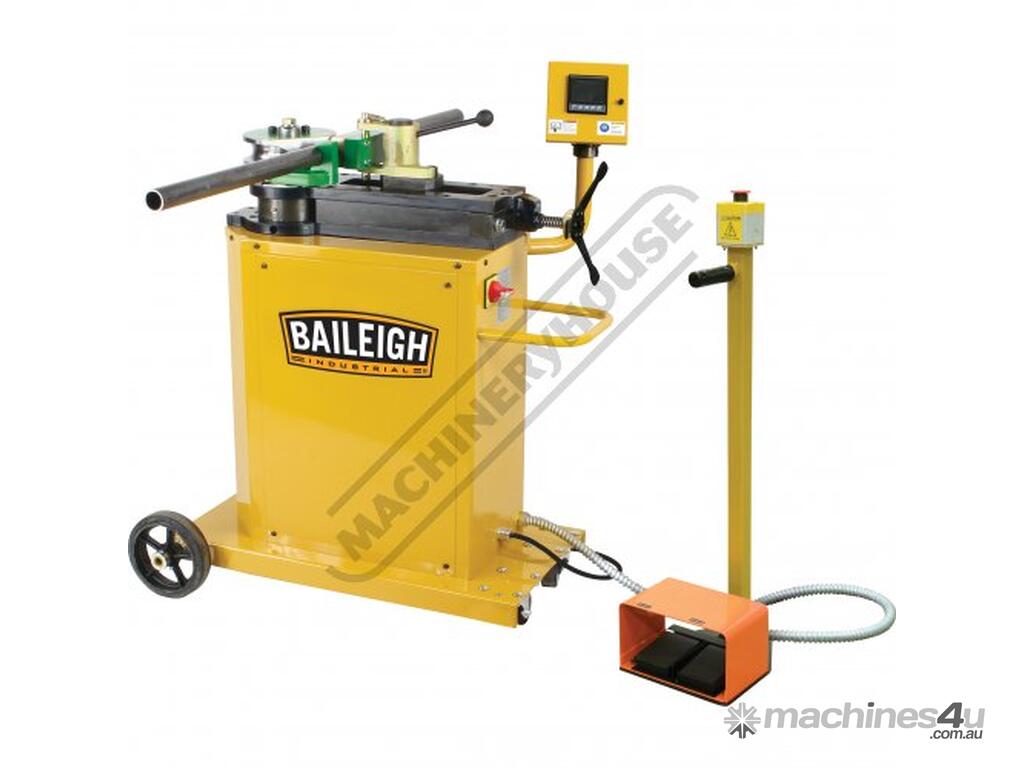

NOTE: Image shown with Optional Tooling.

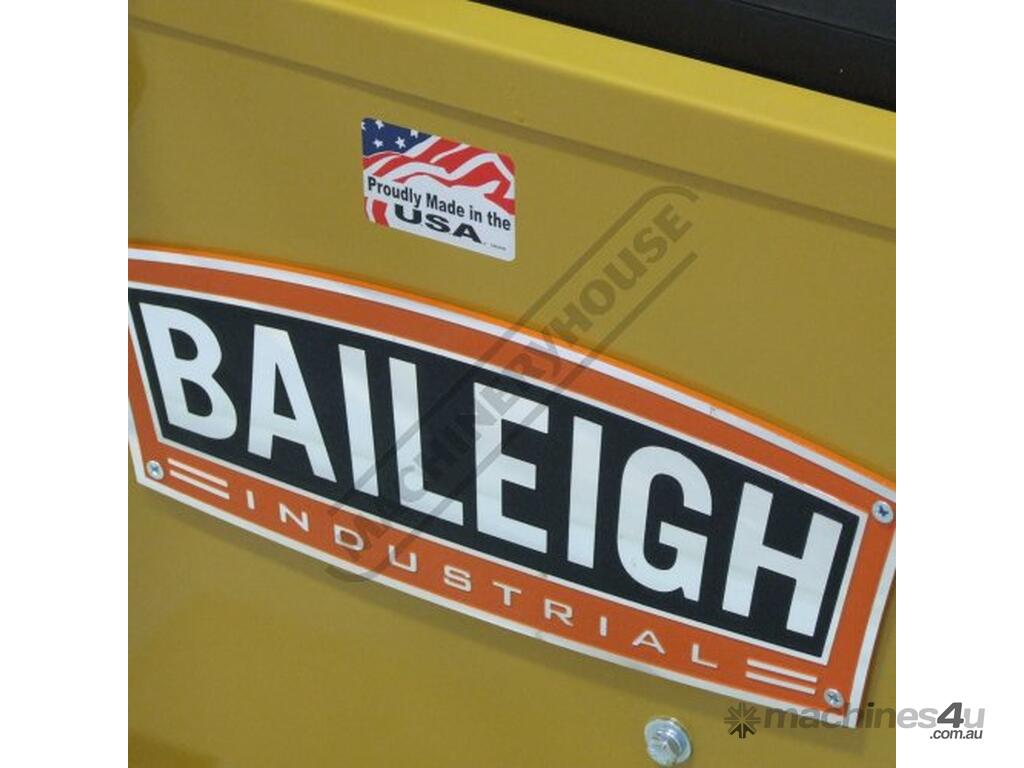

This compact, programmable tube bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-250 will revolutionise the efficiency of your fabrication shop.

Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.


Why choose Baileigh’s RDB-250 Tube Bender over competing machines?

Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
Reduces delays with extremely fast automatic bending.
Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.

Features:
Runs on 240-volt single-phase power
Tackles heavy-duty materials bending up to Ø63.5mm OD tubing and Ø2" NB (5/32" schedule 40) pipe

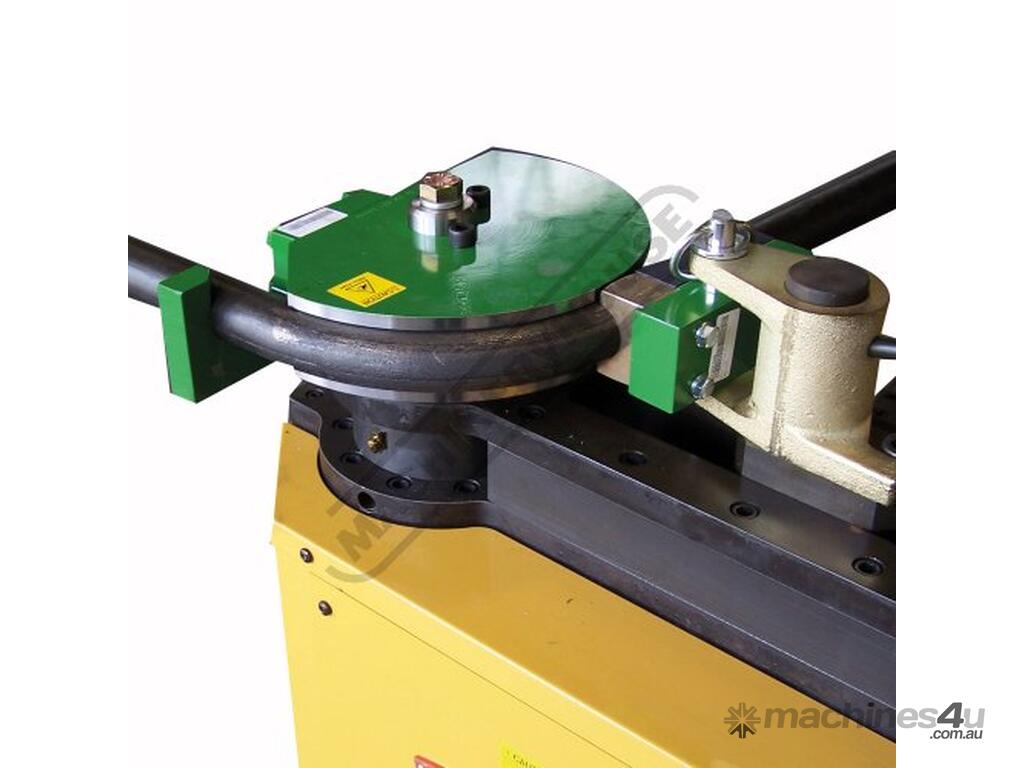

Rotary draw bender smoothly executes 180° bends in just 9 seconds and can complete up to 360° bends
Internal storage holds up to 170 programs of up to 10 bends per program
Also accepts micro SD memory card to store programs

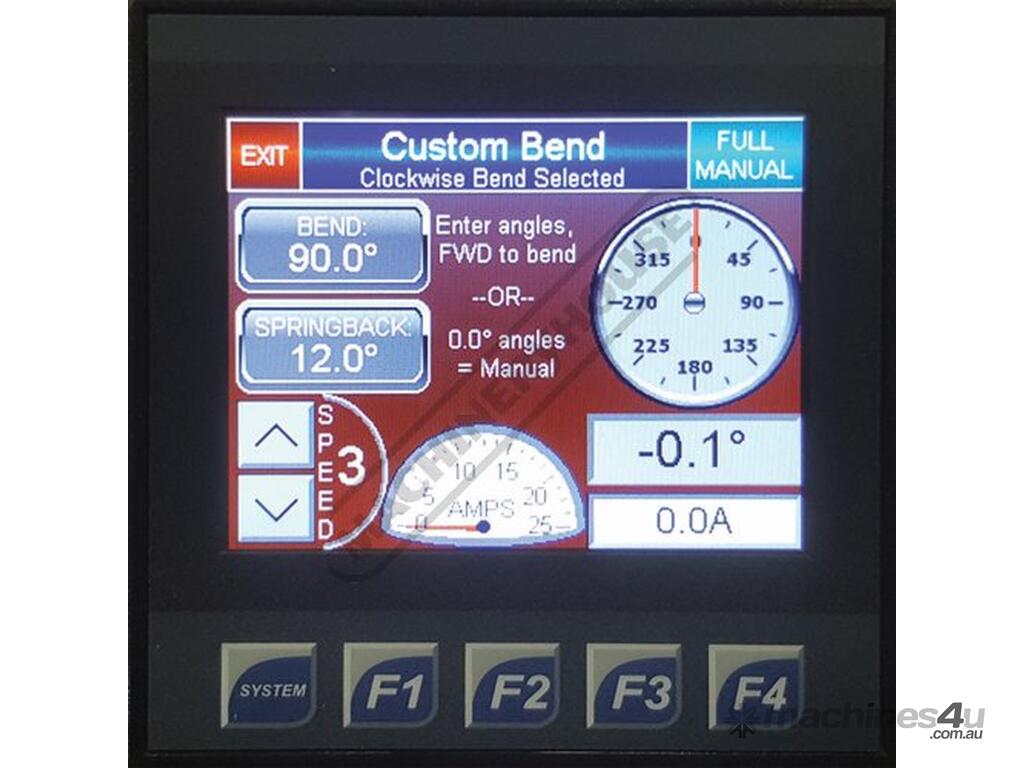

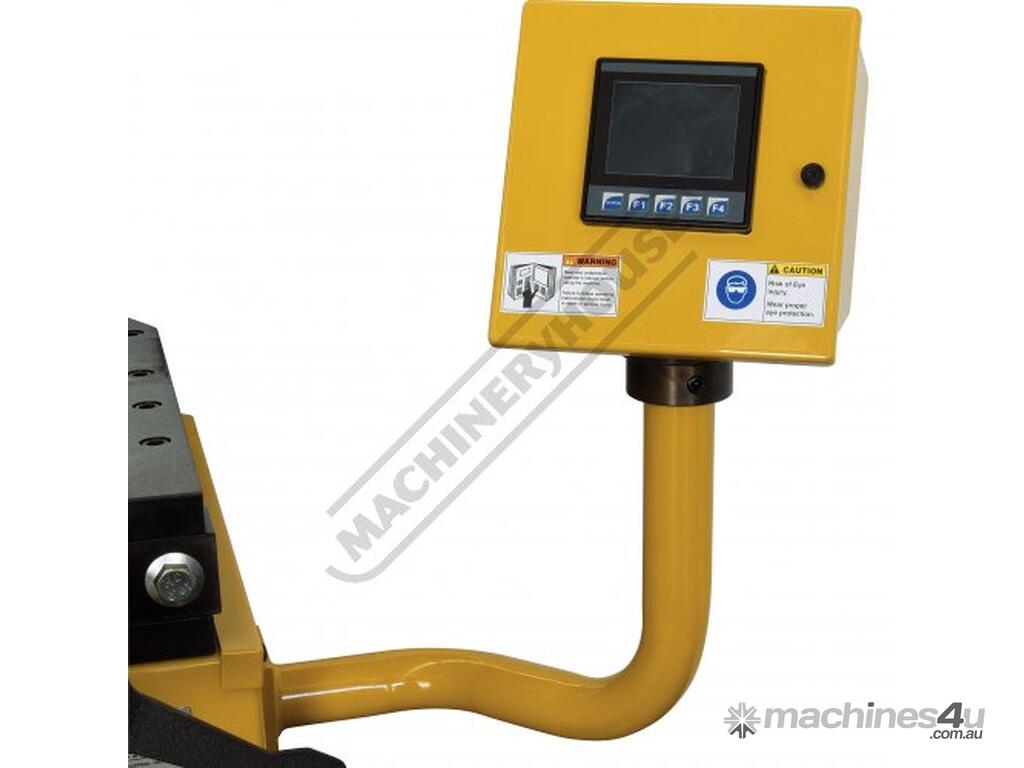

Easy-to-use touchscreen or handy foot pedal can both operate the bender when not in manual mode

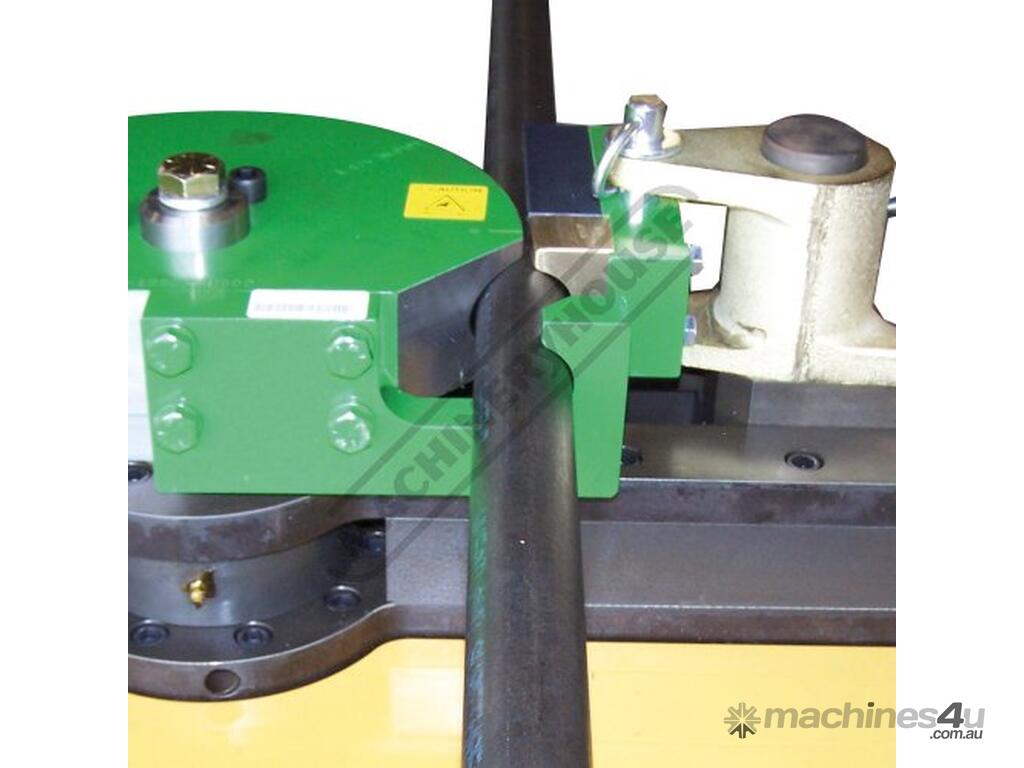

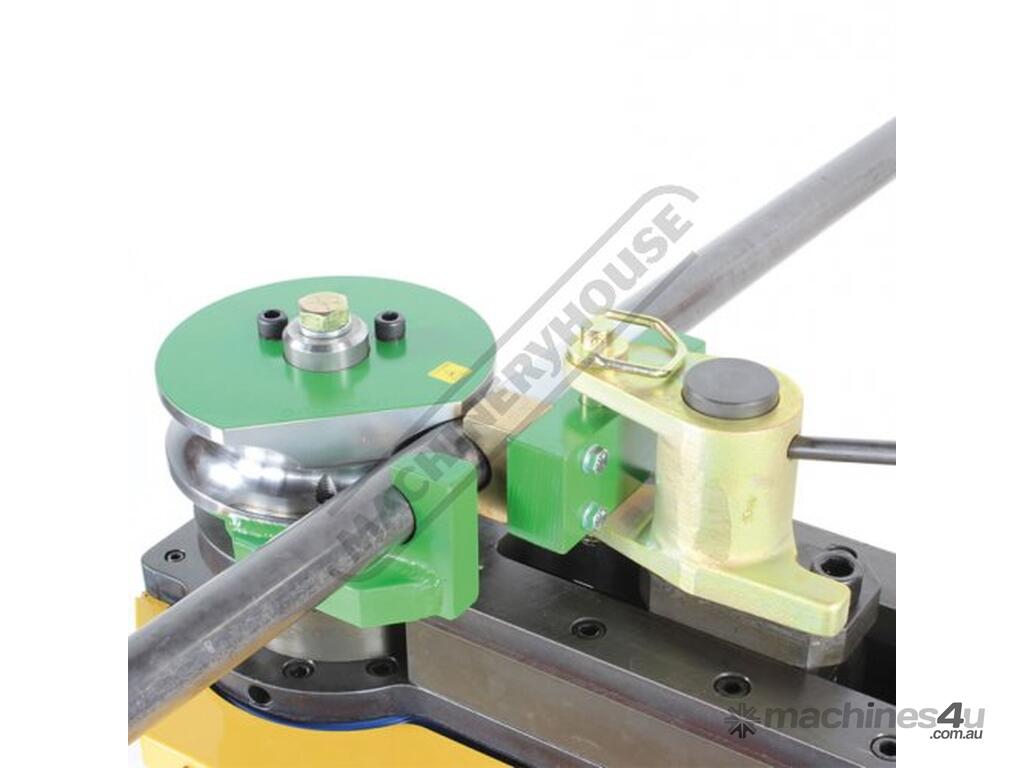

2-piece die mount loosens to release bent tubing without a hassle

Includes:

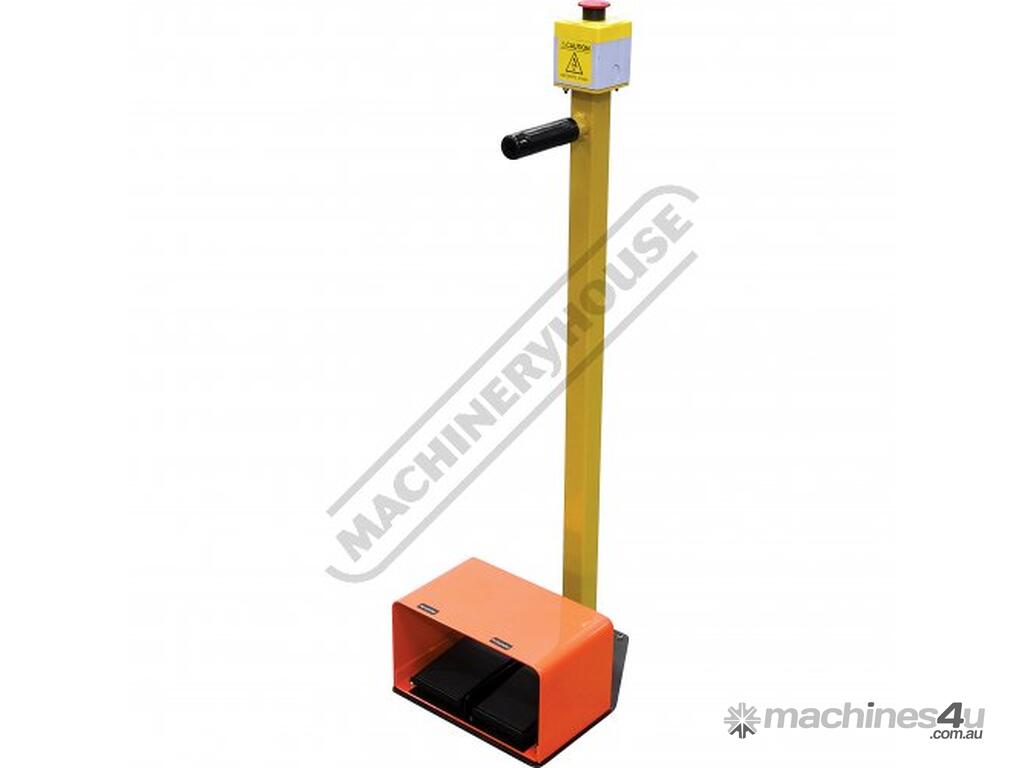

- Foot pedal control with forward & reverse



Specifications:
ORDER CODE: B8085
MODEL: RDB-250
Material (Type): Pipe & Tube
Material Section (Type): Round, Square & Rod
Machine (Type): Electric Hydraulic - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø2"
Round Tube Range (OD) - Mild Steel (inch / mm): Ø6.35 - Ø63.5
Square Tube Range (inch / mm): 19.05 - 50.8
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø2" (Schedule 40)
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): Ø2" (Schedule 40)
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): Ø1-1/2" (Schedule 40)
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø63.5 x 3.17
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø63.5 x 3.96
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø60.32 x 3.17
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): Ø50.8 x 3.17
Solid Rod - Mild Steel (inch / mm): Ø31.75
Square Tube x Wall Capacity - Mild Steel (inch / mm): 50.8 x 3.17
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): 180° / 9
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 9" / 228.6mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1/2" / 12.7mm
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 180º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 240
Nett Weight (kg): 278
