RDB-325 Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2" NB Pipe Capacity, Ø6.35 - Ø76.2mm Round

BAILEIGH RDB-325 Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2" NB Pipe Capacity, Ø6.35 - Ø76.2mm Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8090

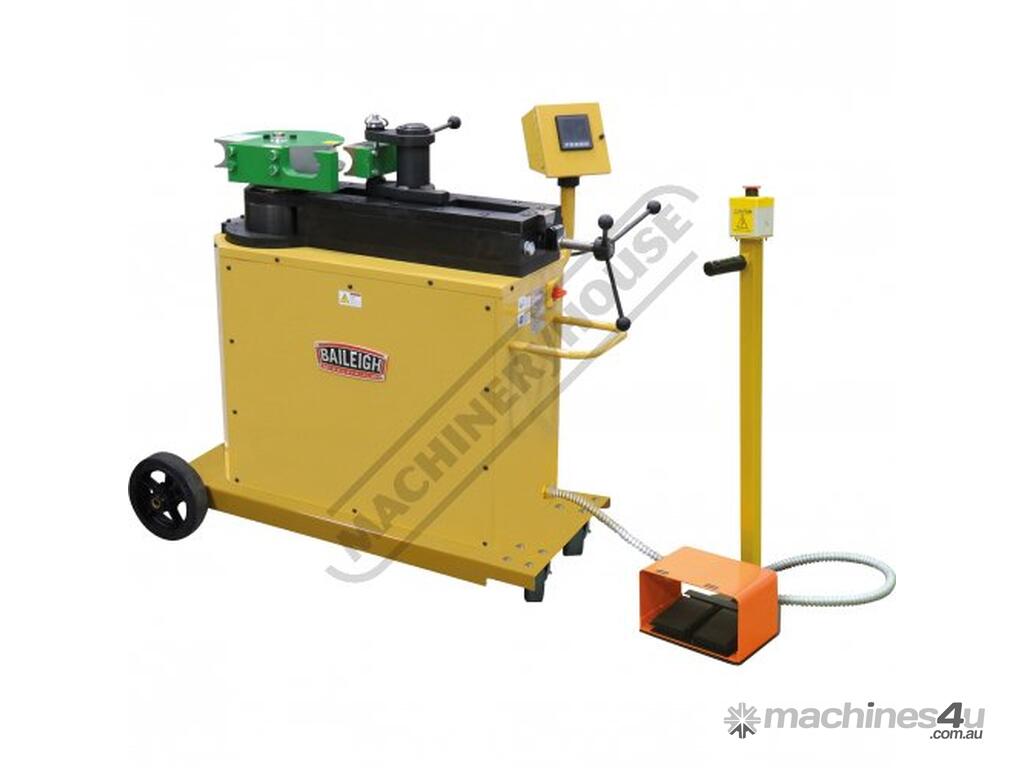

NOTE: Image shown with Optional Tooling.

Designed to be a workhorse in any shop for decades, this tube and pipe bender can tackle a huge capacity of 2" NB (7/32", schedule 80) pipe (mild steel T.S. 64,000 PSI) and 76.2mm OD round tubing.

Features:
16" (406.4mm) maximum centre line radius depending on material OD
Rotates up to 360° degrees in either direction ideal for rod applications if you use our optional universal bending plate

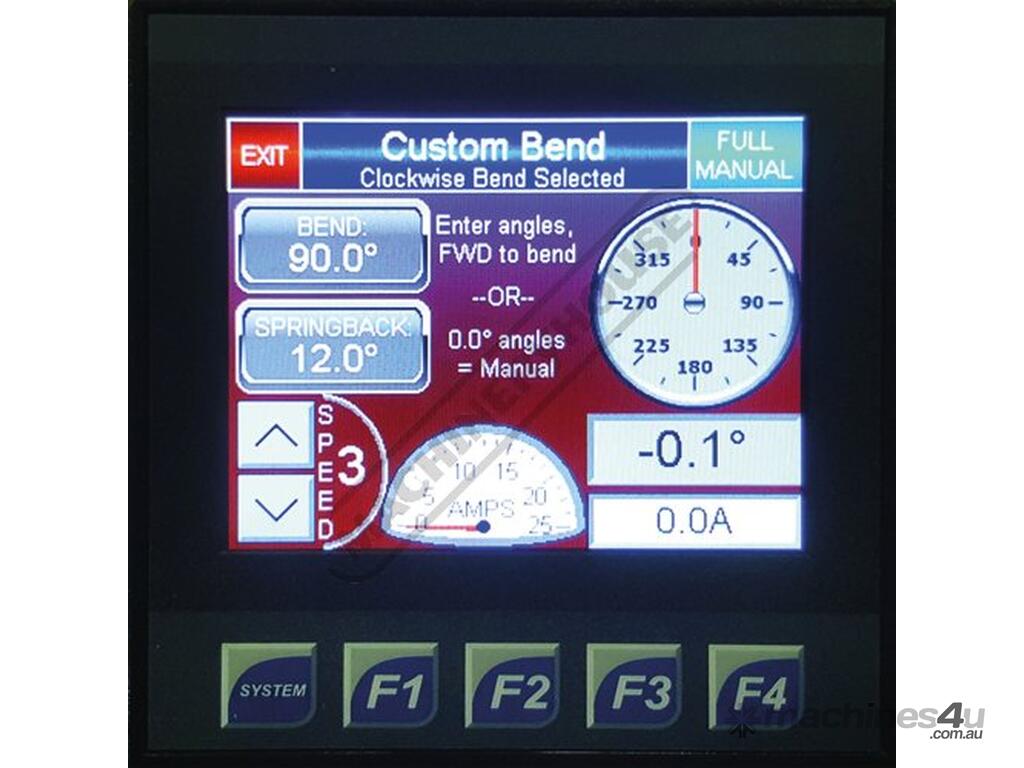

Comes standard with a simple-to-use touchscreen controller
Internal storage holds up to 170 programs of up to 10 bends per program
Also accepts micro SD memory card to store programs

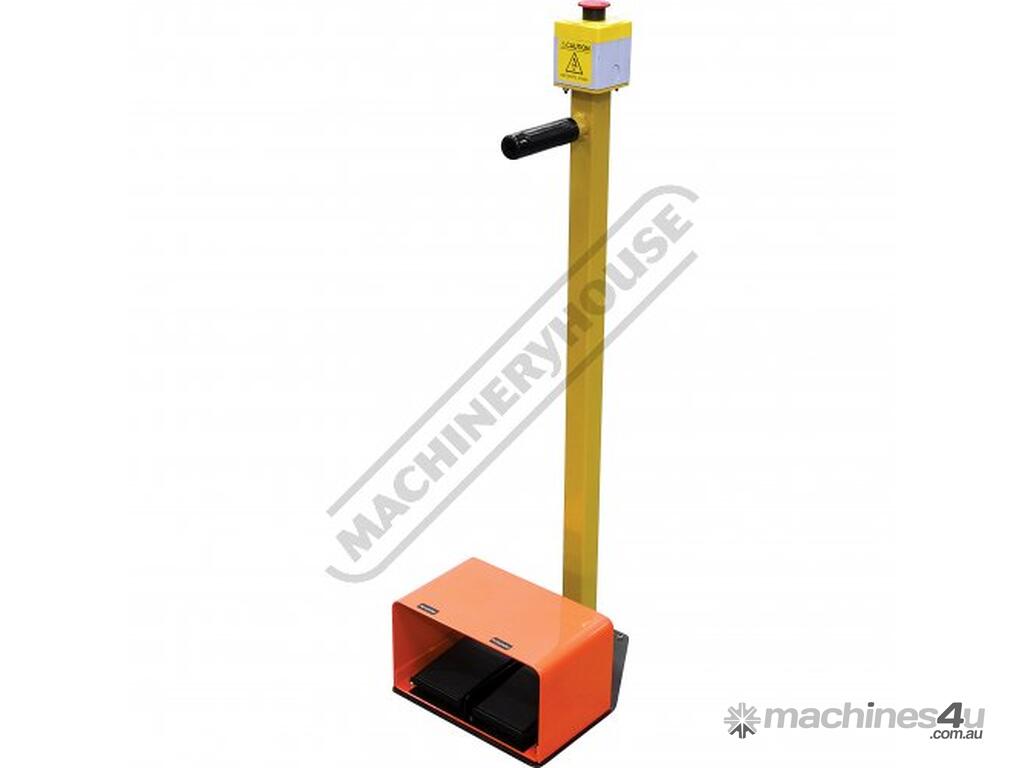

Convenient foot pedal controls let you stop and start the machine while leaving your hands free

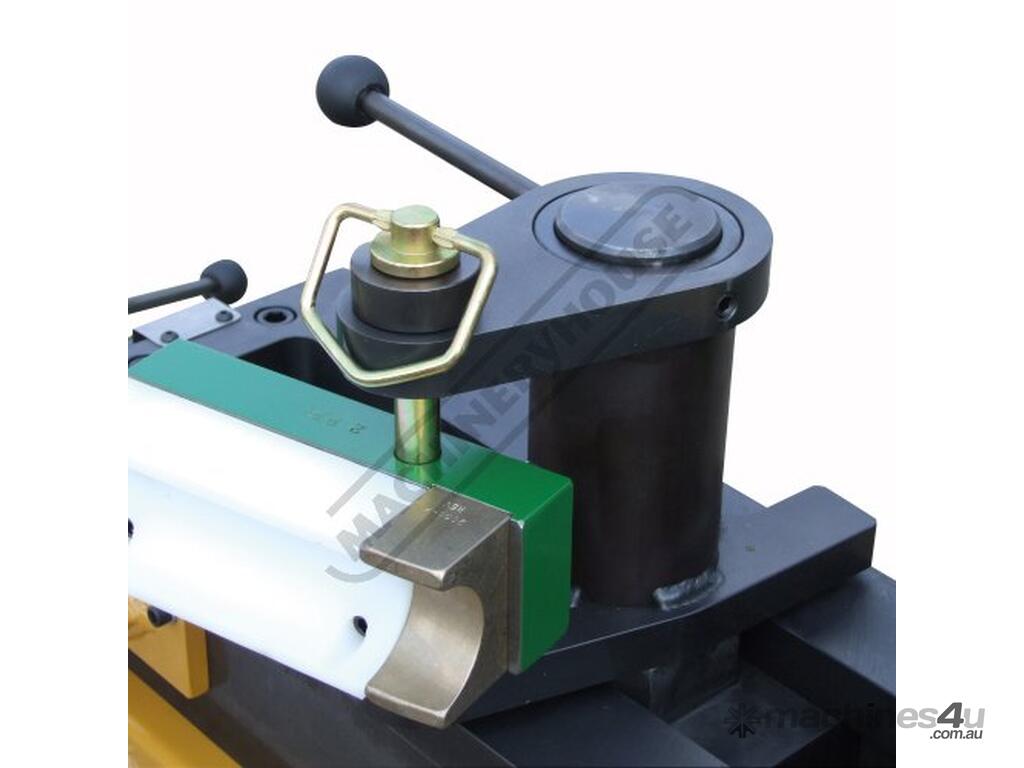

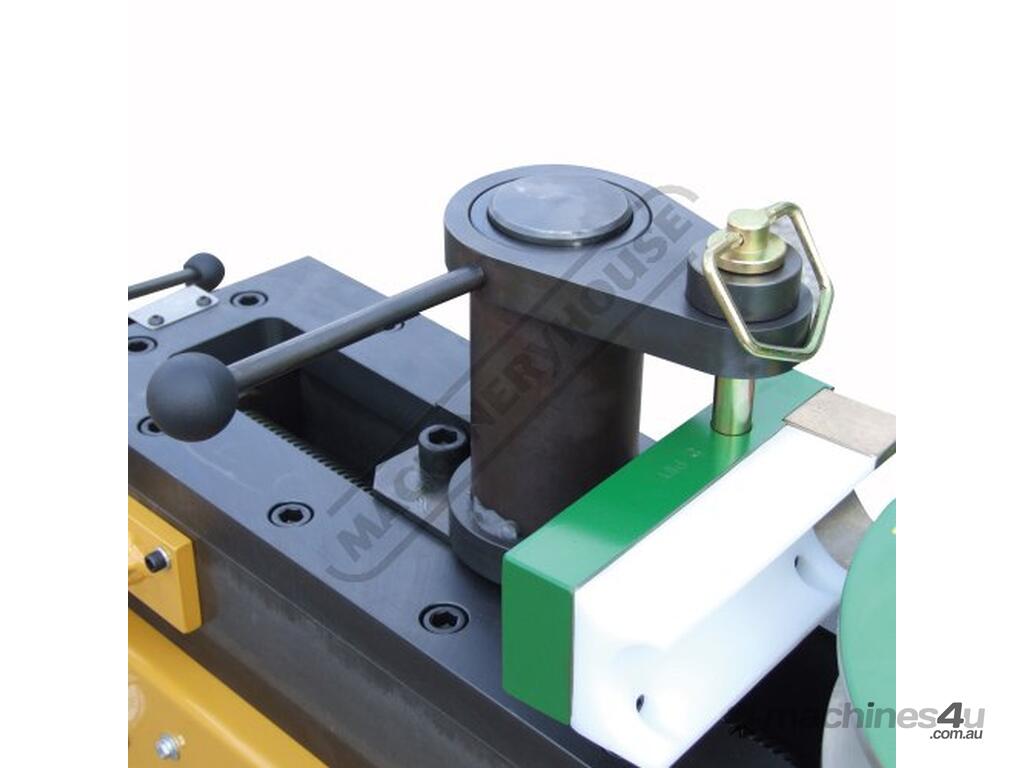

Swing-away counter die system helps you save valuable time on tooling changes and increase your production
You can add an optional indexing table to bend on varying planes and easily duplicate complex bends

Includes:
- Foot pedal control with forward & reverse



Specifications:
ORDER CODE: B8090
MODEL: RDB-325
Material (Type): Pipe & Tube
Material Section (Type): Round, Square & Rod
Machine (Type): Electric Hydraulic - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø2"
Round Tube Range (OD) - Mild Steel (inch / mm): Ø6.35 - Ø76.2
Square Tube Range (inch / mm): 19.05 - 50.8
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø2" (Schedule 80)
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): Ø2" (Schedule 80)
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): Ø2" (Schedule 40)
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): Ø76.2 x 2.41
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø76.2 x 5.15
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø76.2 x 2.41
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): Ø76.2 x 2.1
Solid Rod - Mild Steel (inch / mm): Ø31.75
Square Tube x Wall Capacity - Mild Steel (inch / mm): 50.8 x 3.17
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): 180° / 10
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 16 1/2" / 419.1mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1/2" / 12.7mm
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 180º
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 545
