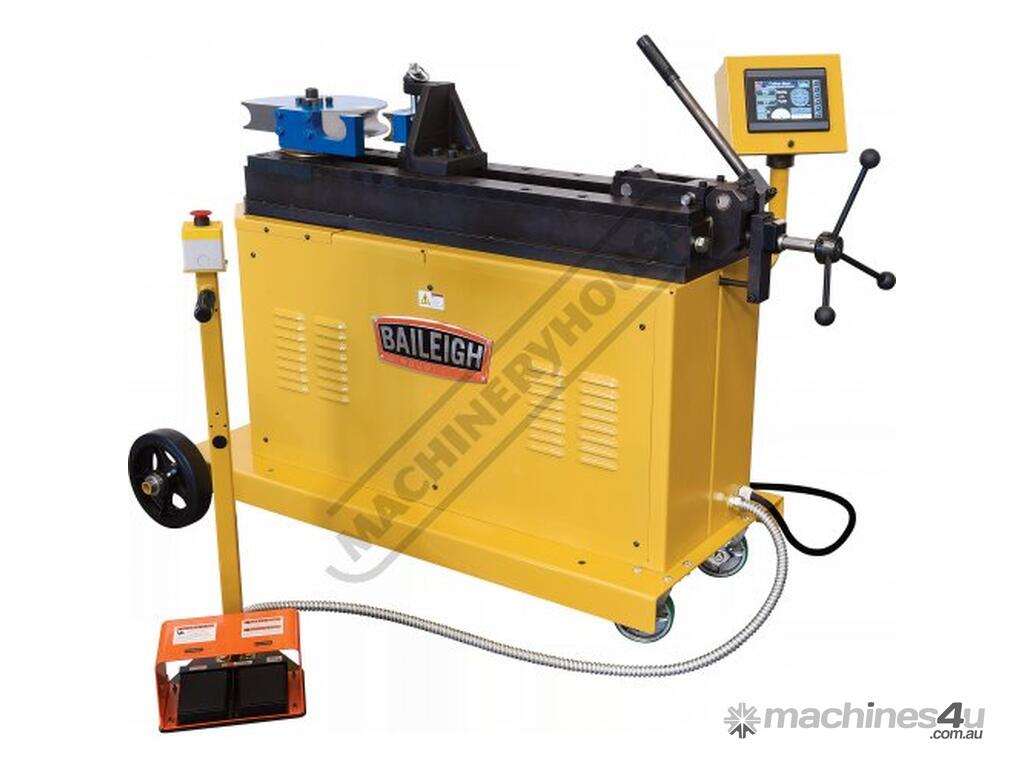

BAILEIGH RDB-350-TS Motorised Pipe & Tube Rotary Draw Bender Ø1/2" - Ø2-1/2" NB Pipe Capacity, Ø19.05 - Ø76.2mm Round Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: B8095
NOTE: Image shown with Optional Tooling.
This tubing bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS industrial tubing bender bends 180° in 16 seconds. And its quick-release die system speeds up production.
Features:
Proudly engineered and made in the USA
Capacity of Ø2-1/2" NB (13/64" schedule 40) pipe and Ø76.2mm OD tube with 4.75mm wall thickness
24" (609.6mm) centre line radius maximum
Bends to 360° in one shot both left and right
You can program the desired angle material springback and bend speed for easy repeatability
Programmer can also keep track of rotational orientation

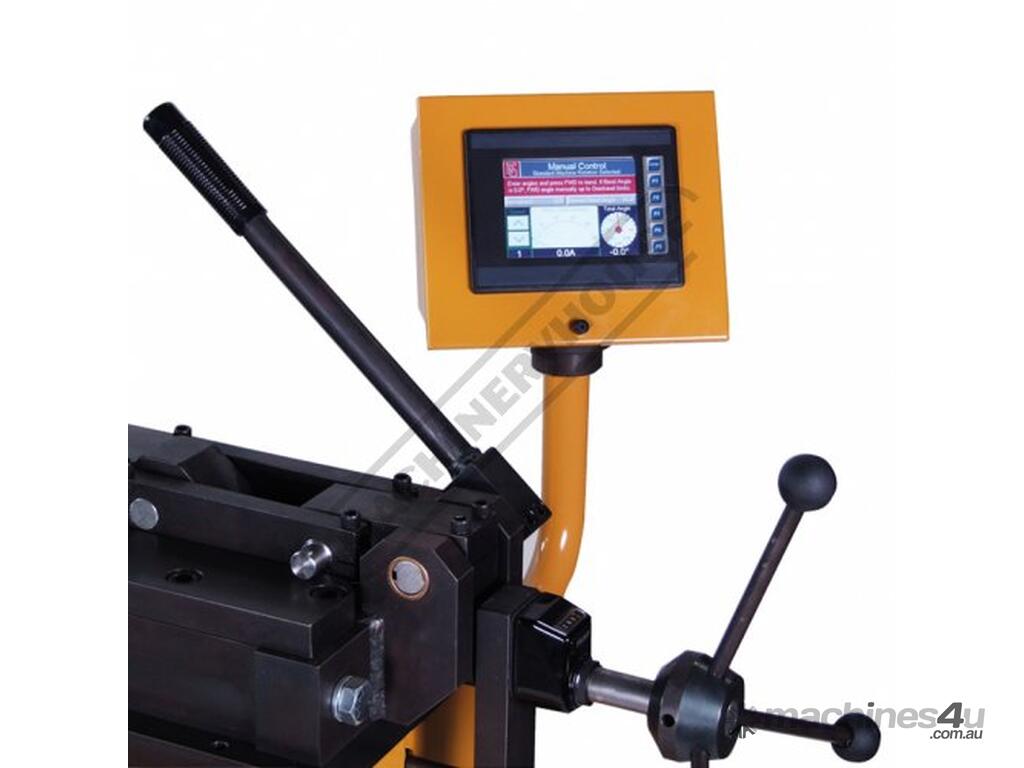

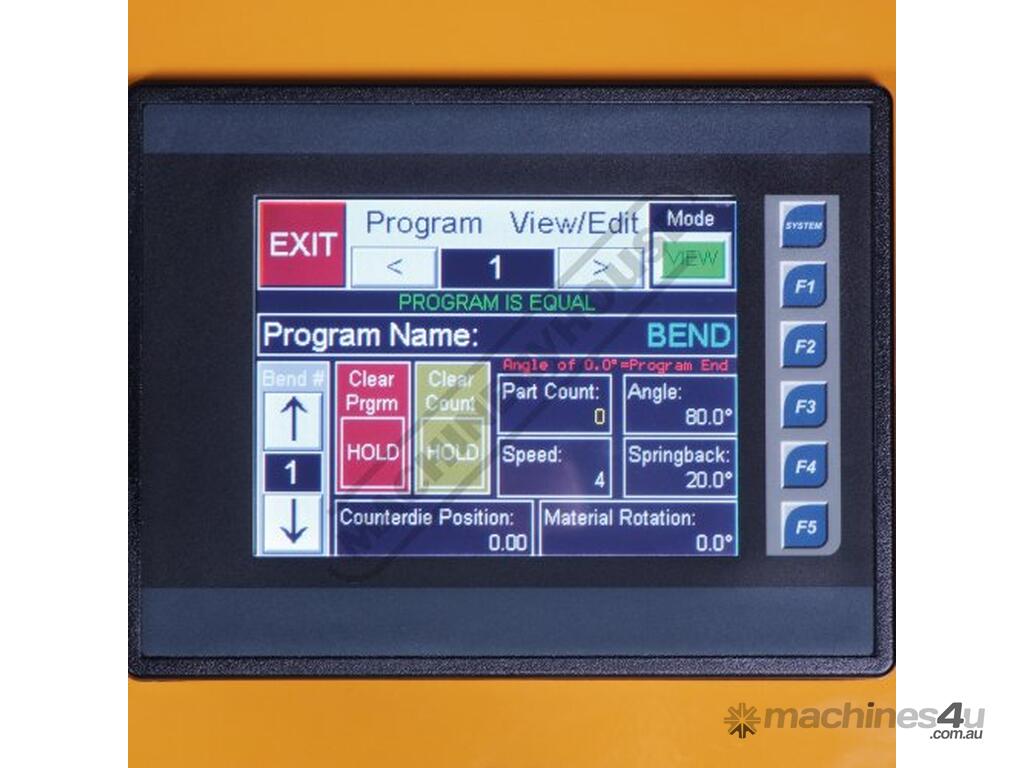

Touchscreen controller designed for user-friendly programming
320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
Internal memory can store up to 170 programs of 10 bends per program
Also accepts micro SD memory card to store programs

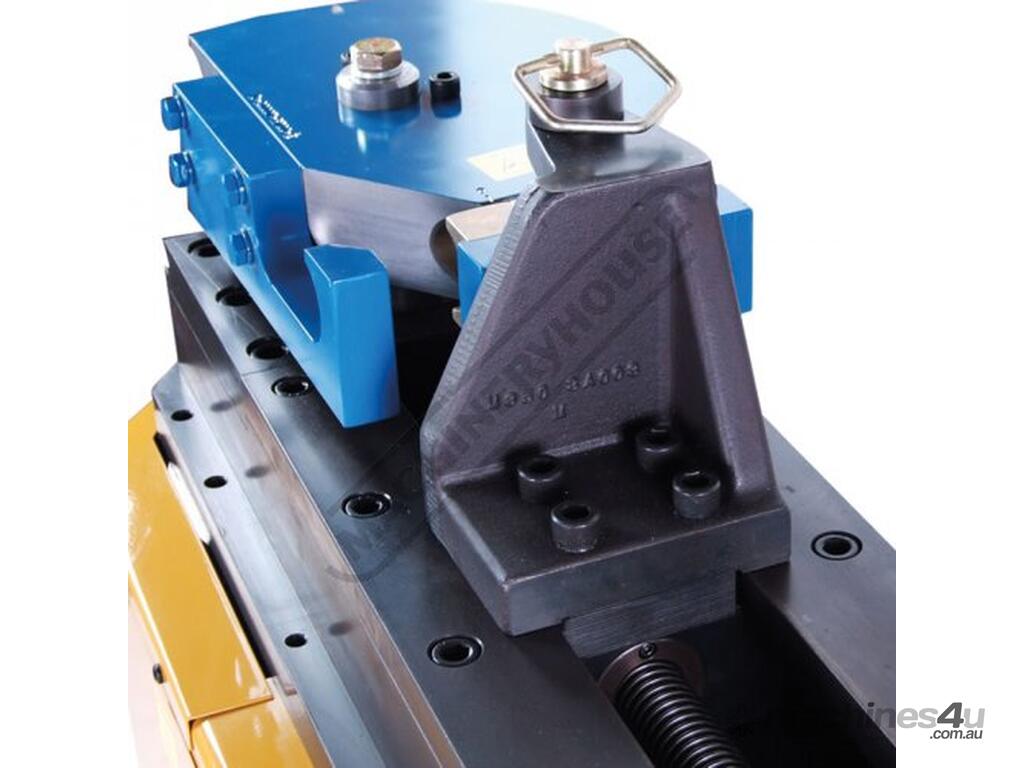

Quick-release counter die system allows allows you to load and unload the pipe bender quickly for high production runs
Like all Baileigh tubing benders the RDB-350-TS is compatible with our standard drop-on tooling. We can also make custom tooling for your application
Accepts a rotary positioning table available from in several lengths to achieve accurate bends on varying planes
Includes:

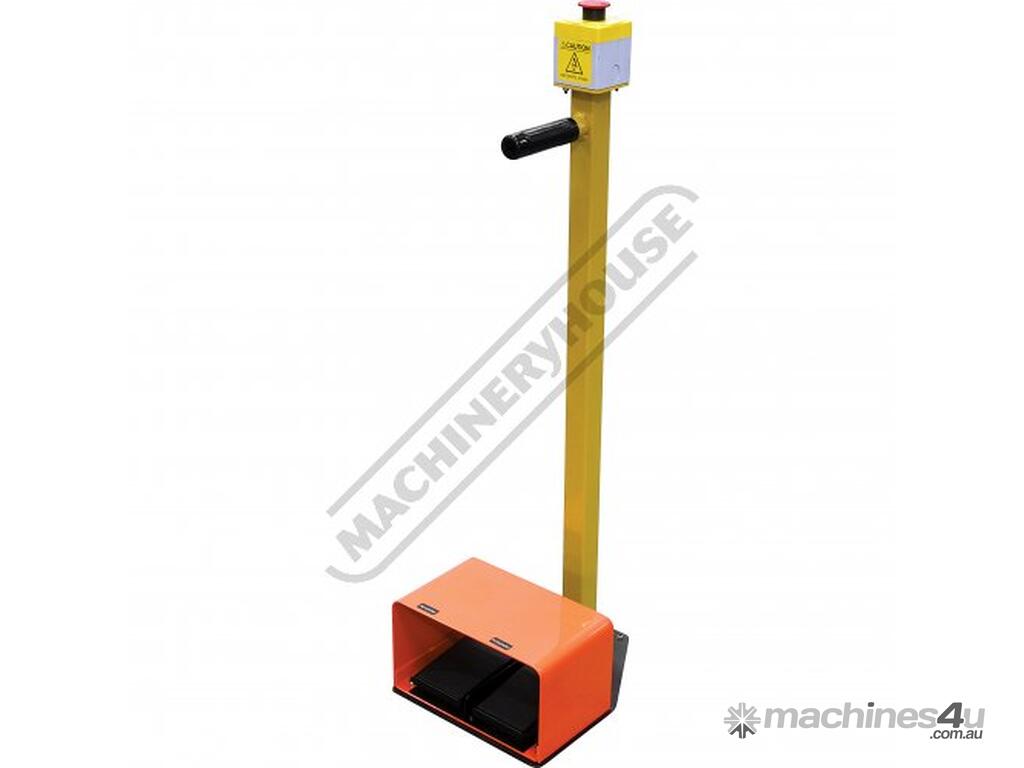

- Foot pedal control with forward & reverse
Specifications:
ORDER CODE: B8095
MODEL: RDB-350-TS
Material (Type): Pipe & Tube
Material Section (Type): Round, Square & Rod
Machine (Type): Electric Hydraulic - Rotary Draw
Hydraulic Jack Size (Tonne): ~
Round Pipe Range (NB) - Mild Steel (inch / mm): Ø1/2" - Ø2-1/2"
Round Tube Range (OD) - Mild Steel (inch / mm): Ø19.05 - Ø76.2
Square Tube Range (inch / mm): 12.7 - 50.8
Tube Wall Thickness - Mild Steel (inch / mm): ~
Round Pipe (NB) x Wall Capacity - Mild Steel (inch): Ø2-1/2" (Schedule 40)
Round Pipe (NB) x Wall Capacity - Aluminium (inch / mm): v3" (Schedule 40)
Round Pipe (NB) x Wall Capacity - Stainless Steel (inch / mm): Ø2" (Schedule 40)
Round Tube (OD) x Wall Capacity - Mild Steel (inch / mm): v76.2 x 4.75
Round Tube (OD) x Wall Capacity - Aluminium (inch / mm): Ø88.9 x 6.35
Round Tube (OD) x Wall Capacity - Copper, Brass (inch / mm): ~
Round Tube (OD) x Wall Capacity - Stainless Steel (inch / mm): Ø76.2 x 3.17
Round Tube (OD) x Wall Capacity - Chromoly (inch / mm): Ø63.5 x 3.17
Solid Rod - Mild Steel (inch / mm): Ø38.1
Square Tube x Wall Capacity - Mild Steel (inch / mm): 76.2 x 3.17
Rectangle Tube x Wall Capacity - Mild Steel (inch / mm): ~
Bend Speed - Maximum (Deg / Sec): 180° / 16
Bend Direction: ~
Centre Line Radius - Maximum (CLR) (inch / mm): 24" / 609.6mm
Centre Line Radius - Minimum (CLR) (inch / mm): 1/2" / 12.7mm
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Tube Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Pipe Formers Included (inch / mm): ~
Spigot Size on Ram (inch / mm): ~
Angle Capacity (deg): 180º (*360º)
Hydraulic Pressure - Maximum (psi): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 681
