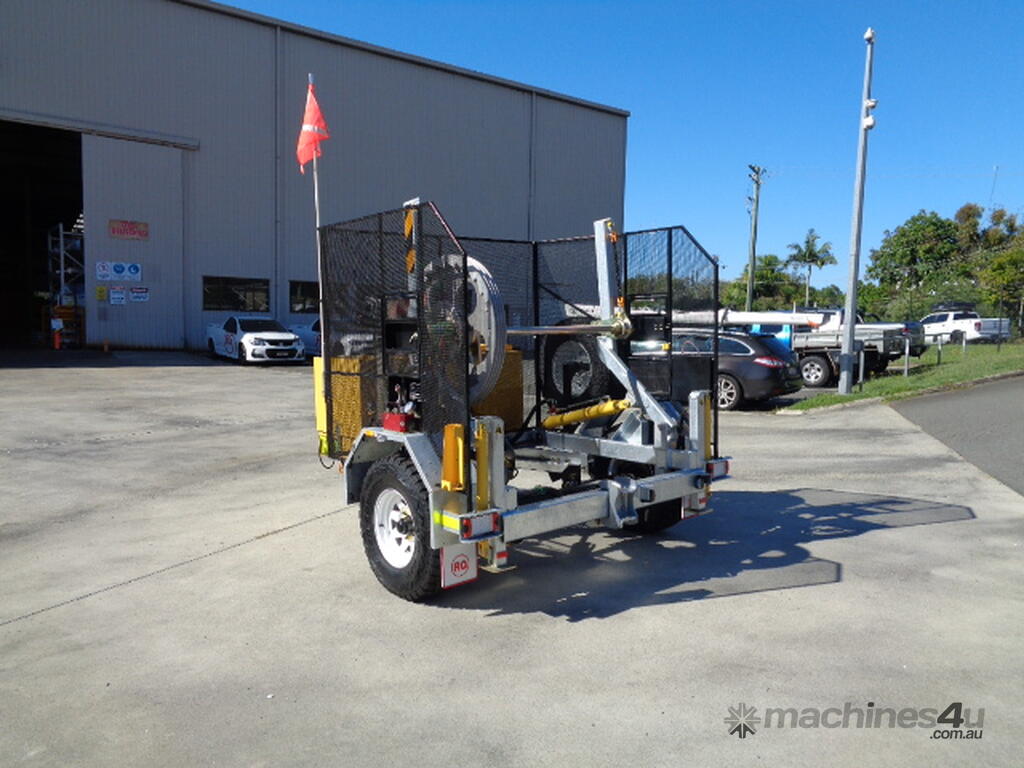

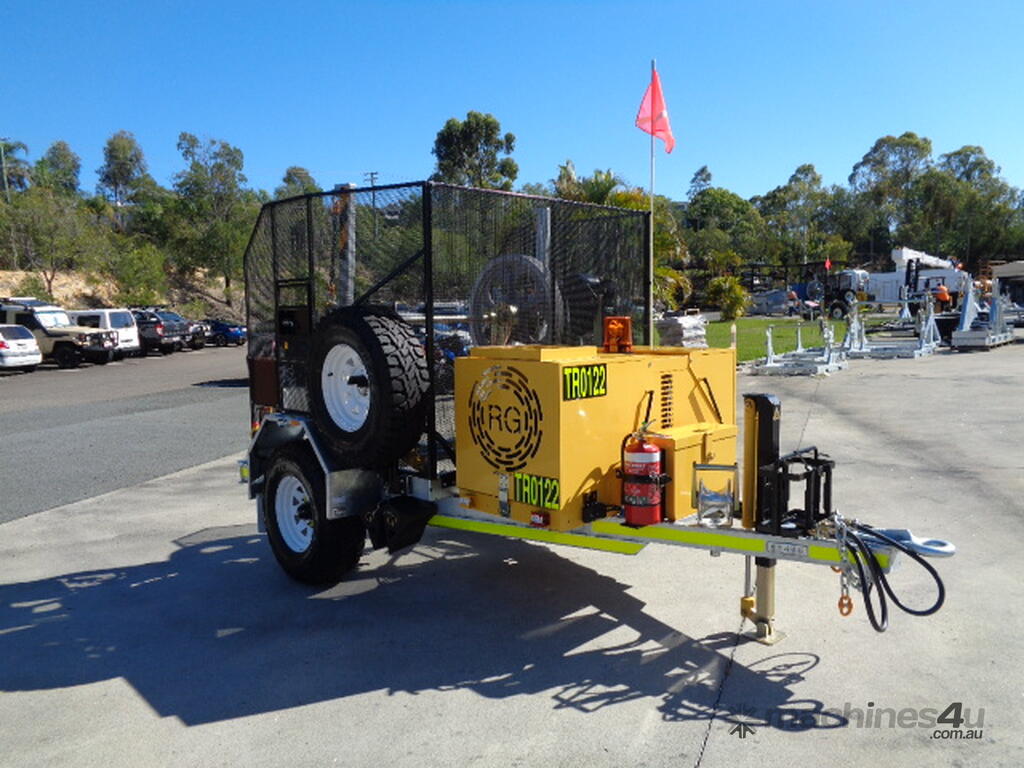

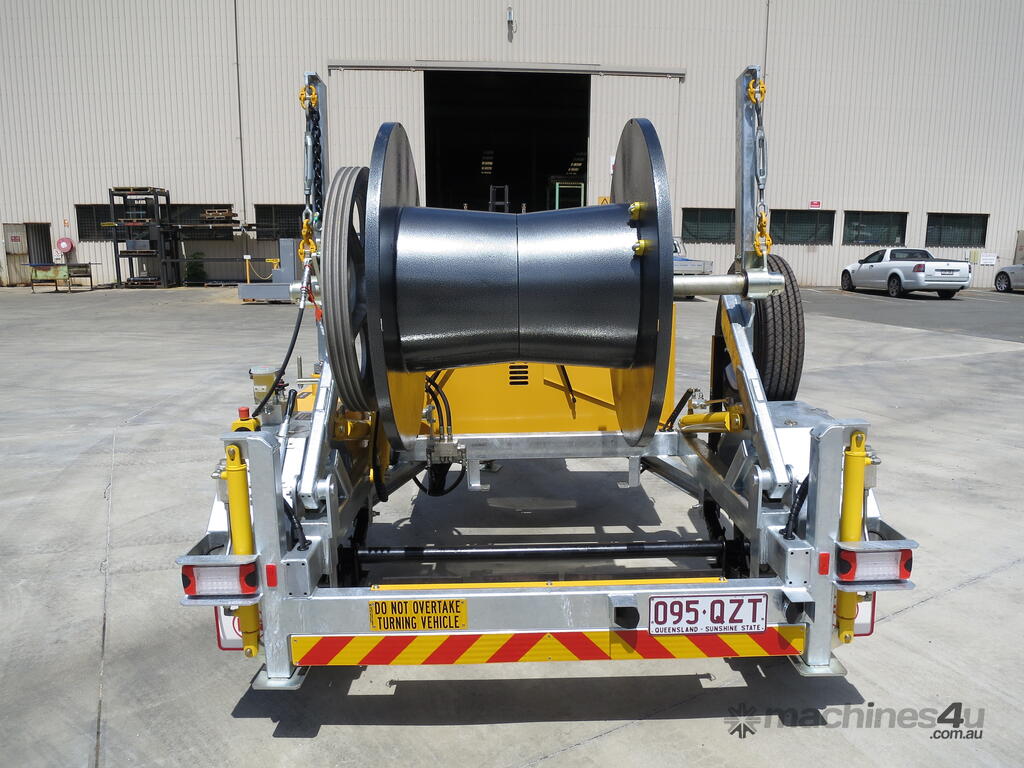

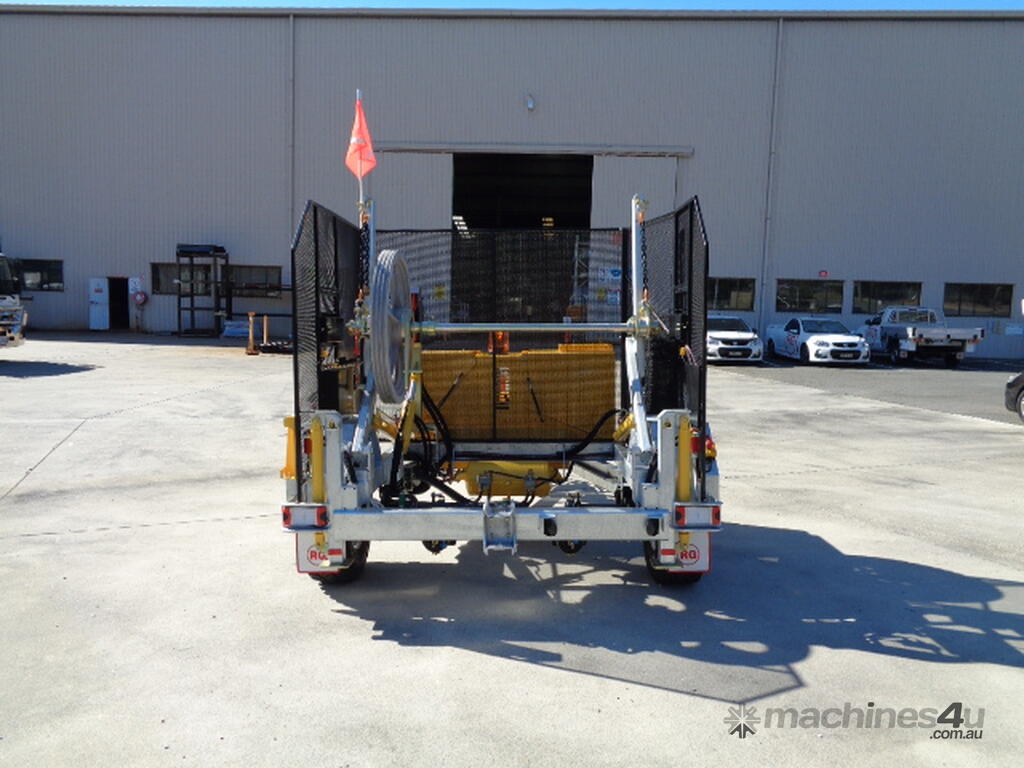

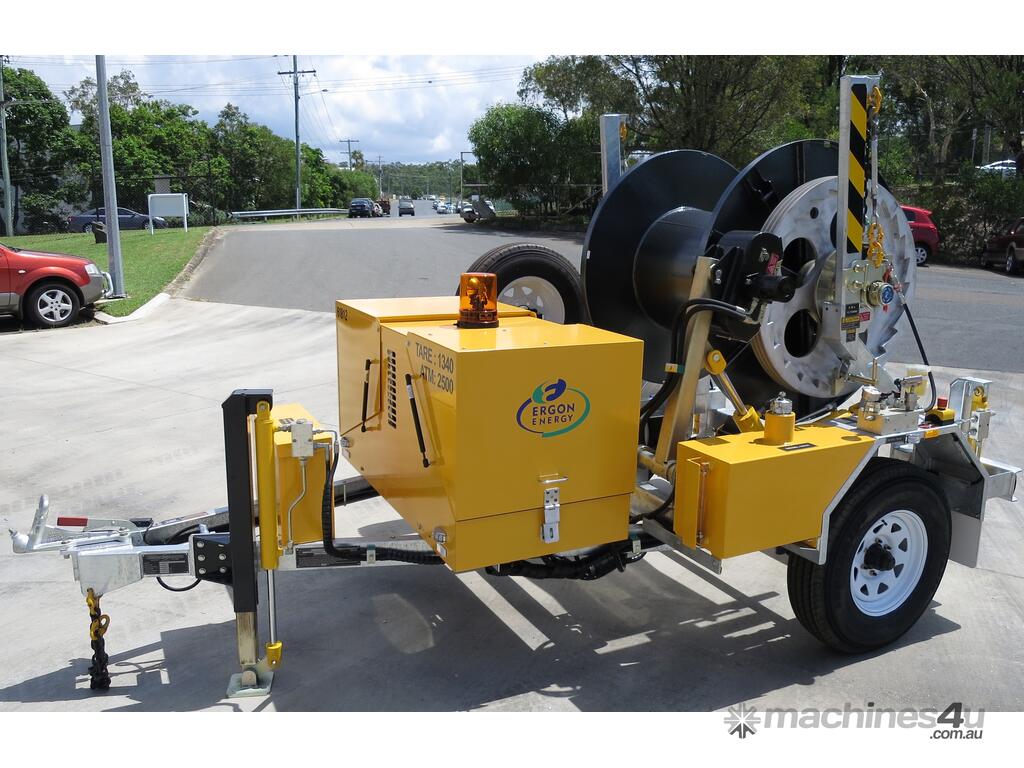

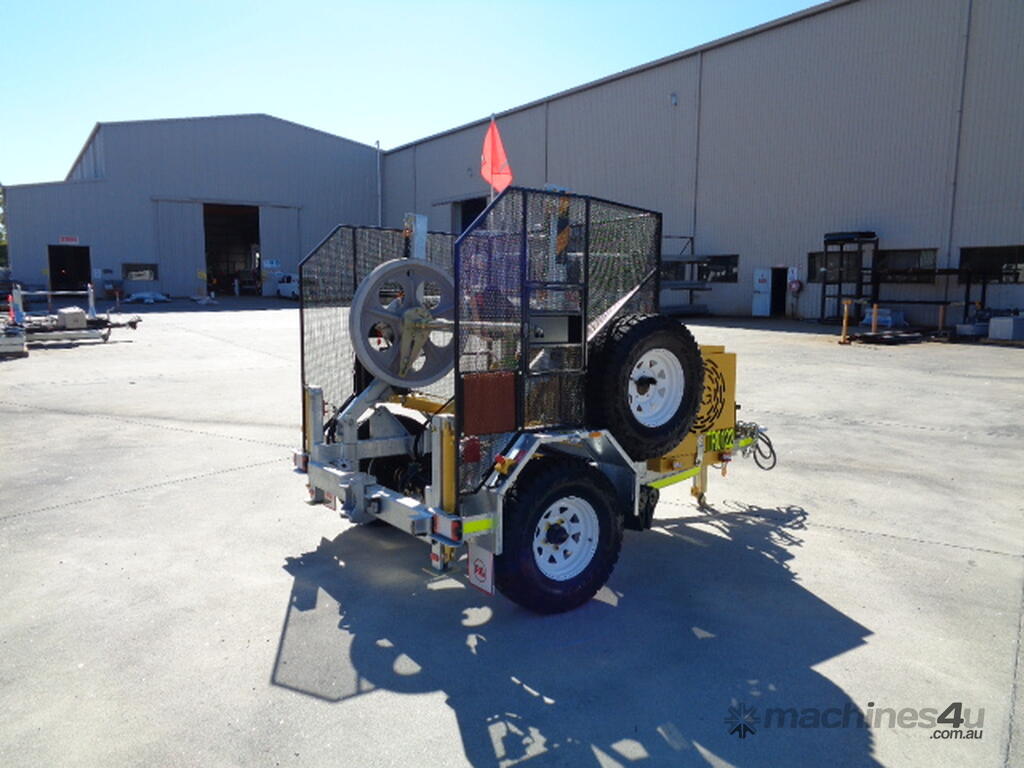

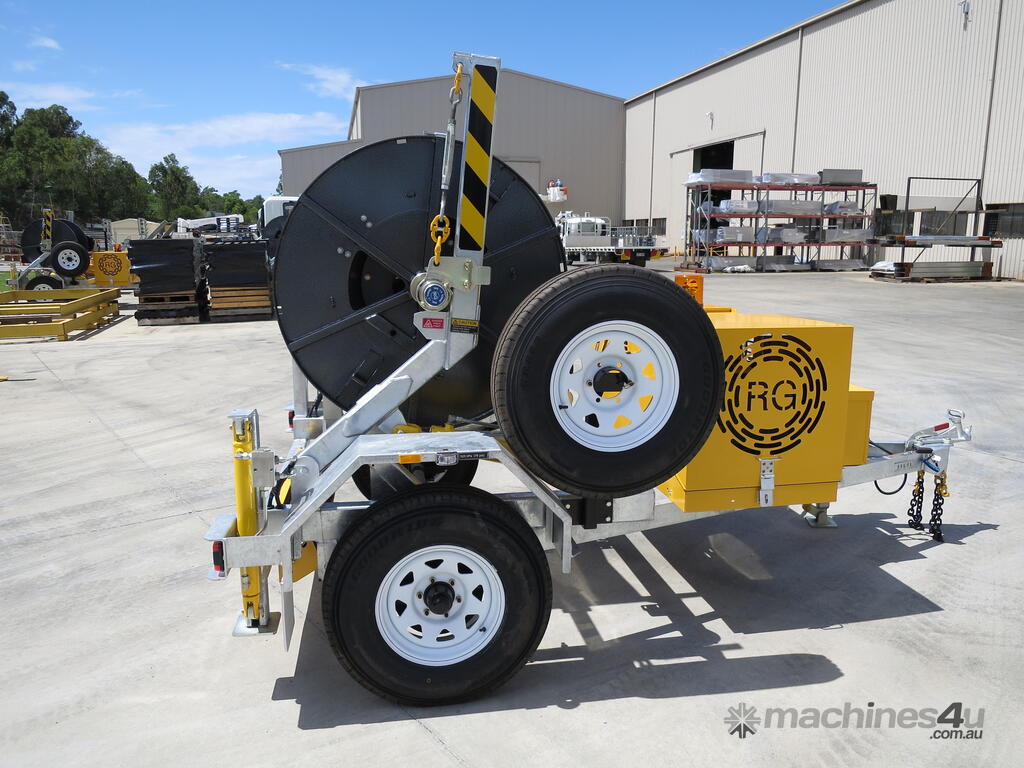

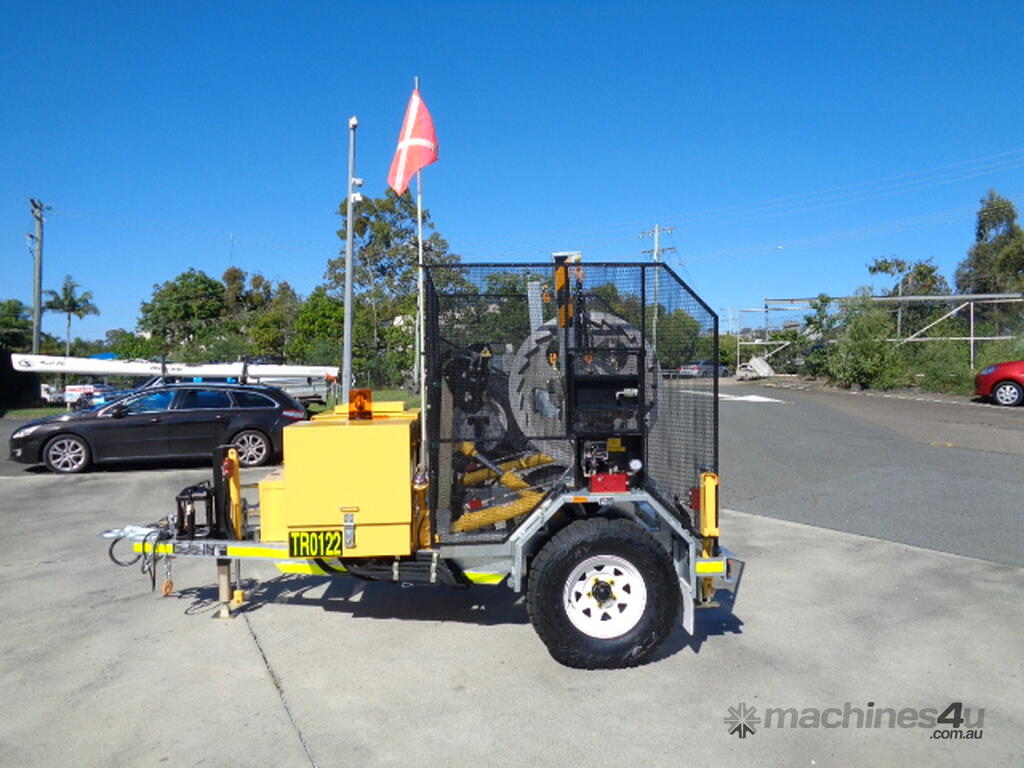

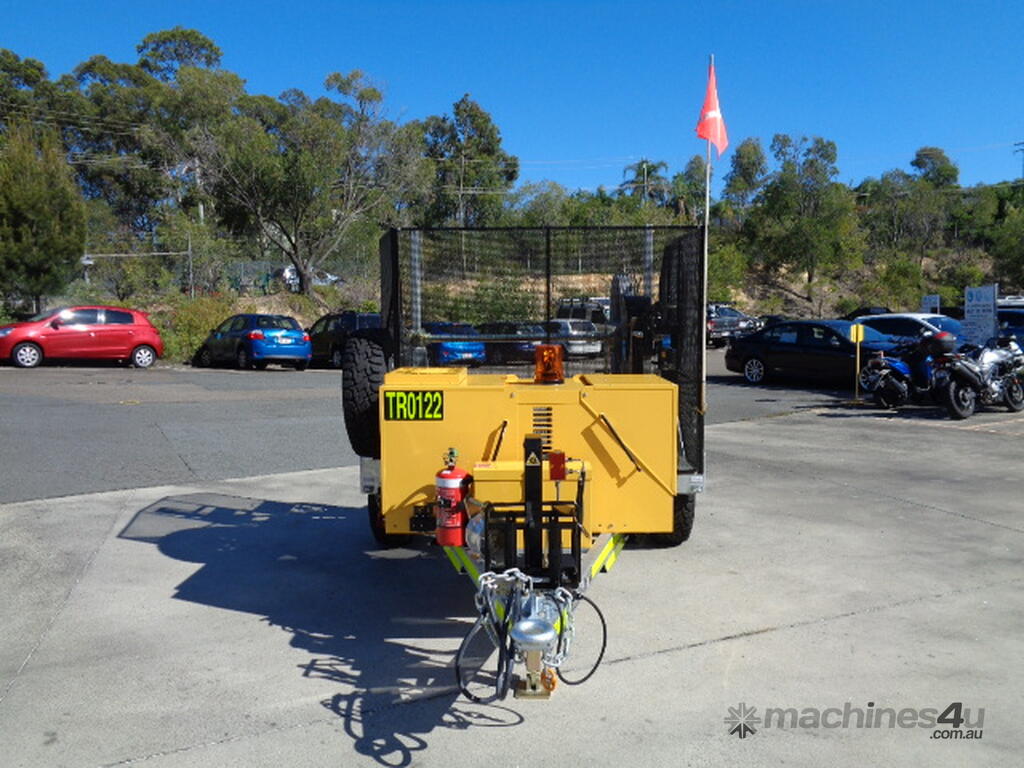

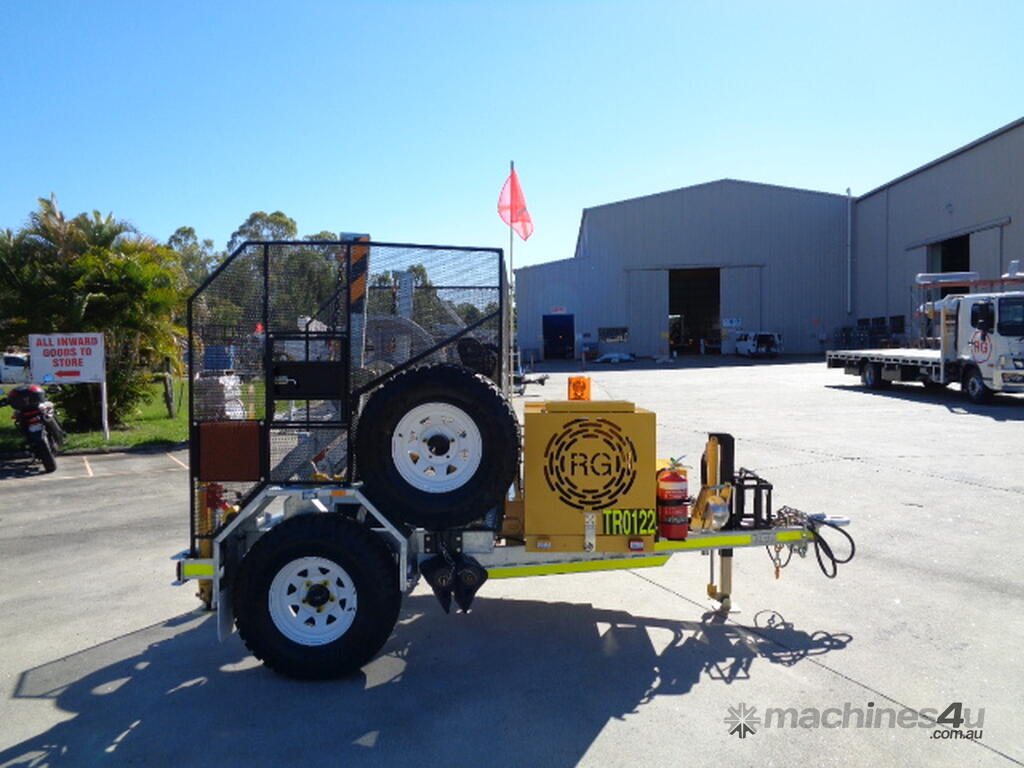

REDMOND GARY 1.5 Tonne Self Loading Cable Drum Trailer

REDMOND GARY 1.5 Tonne Self Loading Cable Drum Trailer

As you may be aware, Redmond Gary has manufactured many of these units for clients throughout Australia for the past 20 years. This tried and tested patented design evolved from meeting specific operational requirements such as loading from uneven ground. The machine was developed to enable one operator to safely and efficiently load drums up to 1500kg.

Trailer frame finished in hot dip galvanising.
Operation controls housed in weather secured cabinet located on kerb side of the trailer.
Control cabinet manufactured from 1.6mm zinc anneal sheeting finished with powder coating - all
All tanks and hydraulic cylinders finished in 2-pack enamel.
ADR approved single axle with S-Cam Air brakes.
Landcruiser Radial Rims, with 7.5 x 16 tyres.
Wind down front Jackleg/Stabilisers.
Two heavy-duty hydraulically operated rear Jackleg/Stabilisers.
75mm Ring Type, Fixed Bolt On Coupling.
13mm Trailer Safety Chain, suit Shackles or Bartlett attachments on towbar.
7 Pin flat Trailer Plug.
LED lights.
Coupling height - 575mm.
Water cooled Diesel Engine, Kubota.
E-Stop inside Engine Cabinet.
Battery Isolation Switch.
Engine Hour Meter.
10 hour fuel tank.
Safety and Operational signage - anodised aluminium.
76mm Spindle complete with mechanically operated stainless steel disk brake assembly.
Final coat finish - Powder Coating and 2 pack enamel (Interpon, Safety Yellow
One set of Operation Manuals.
