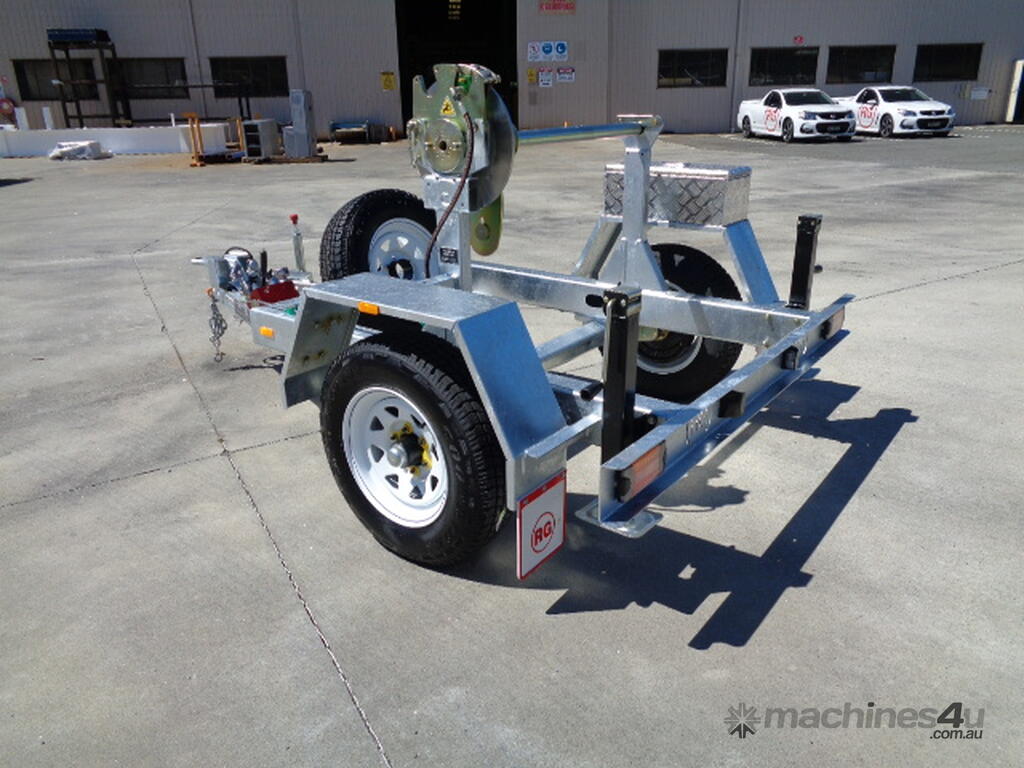

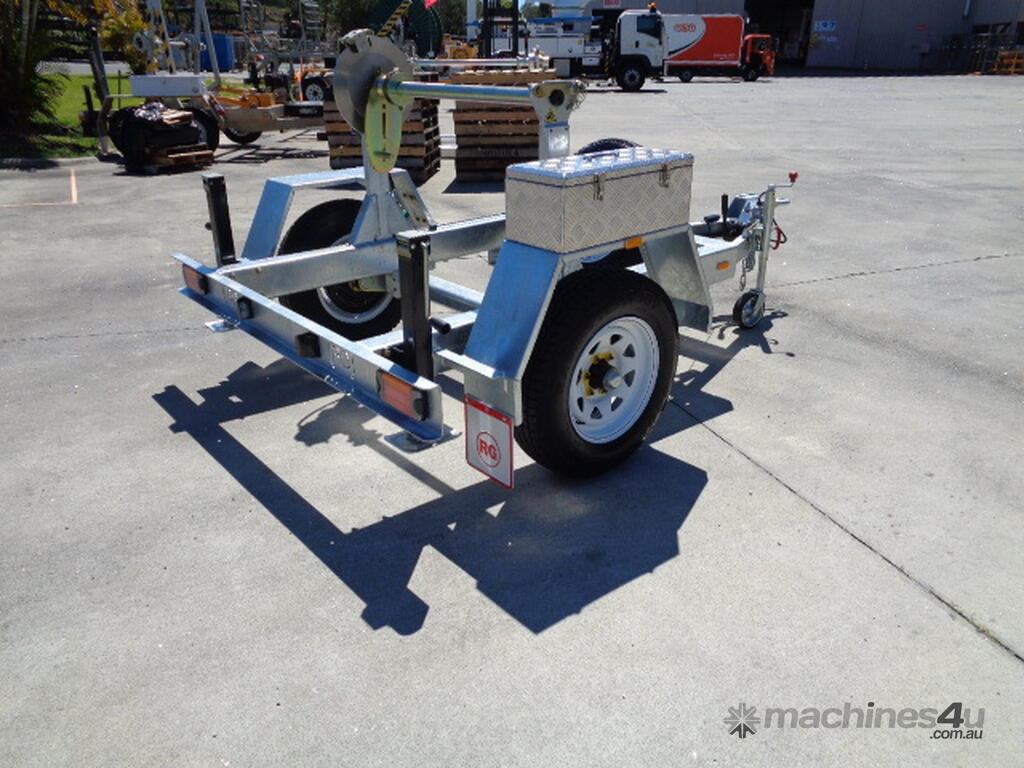

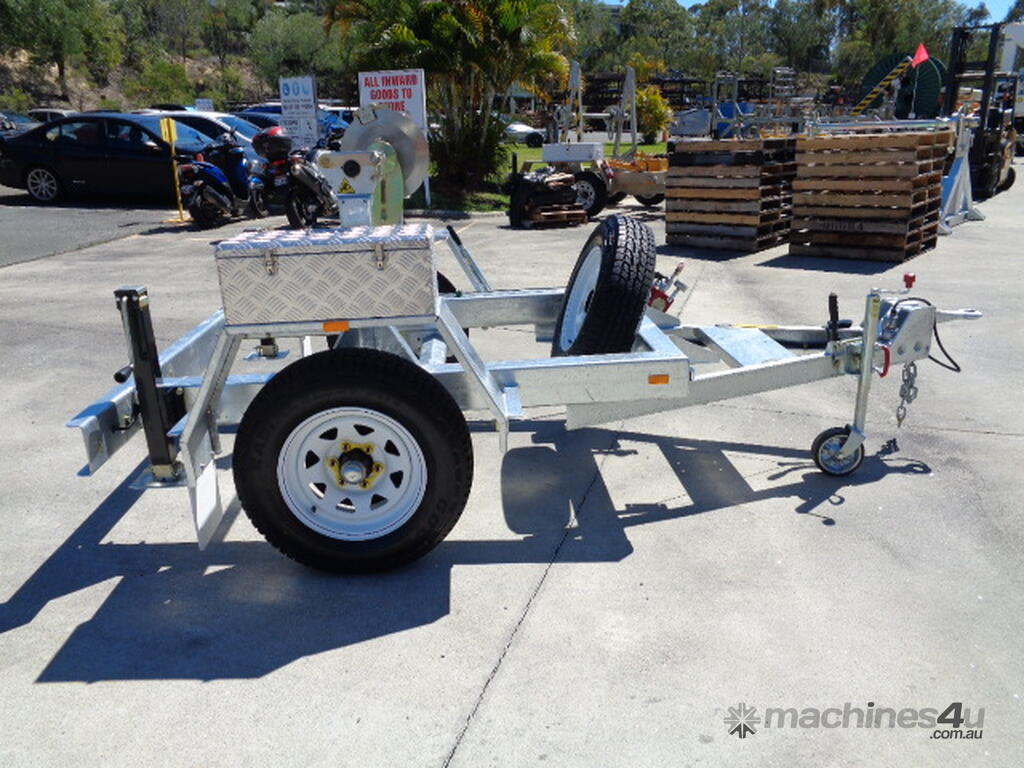

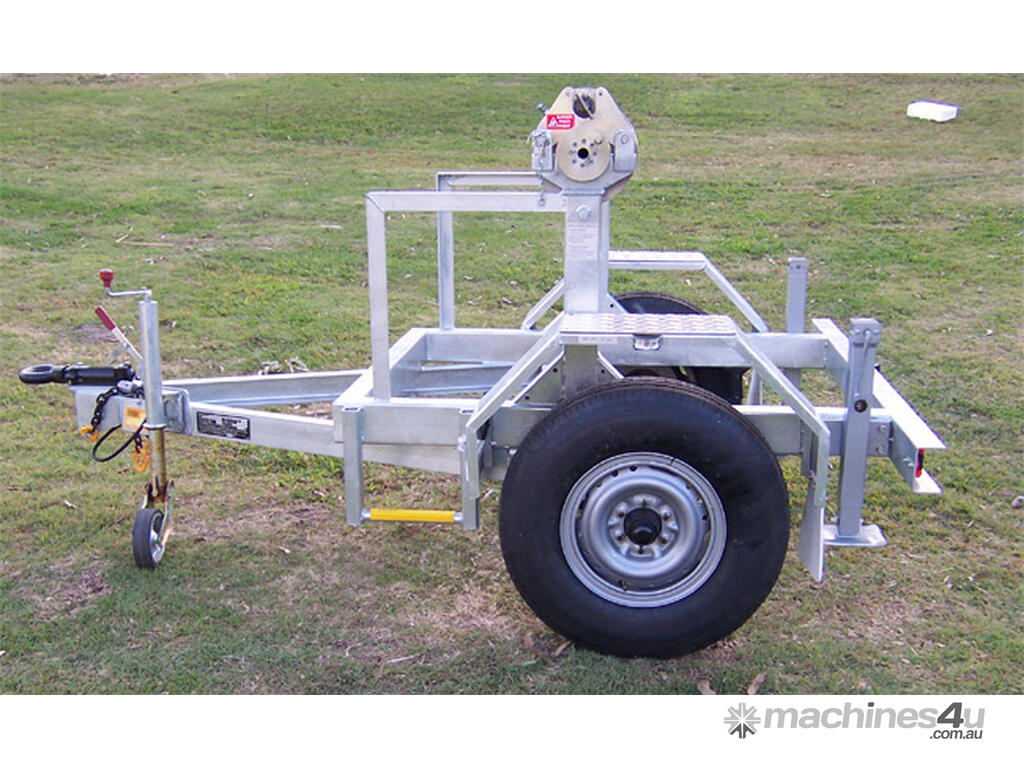

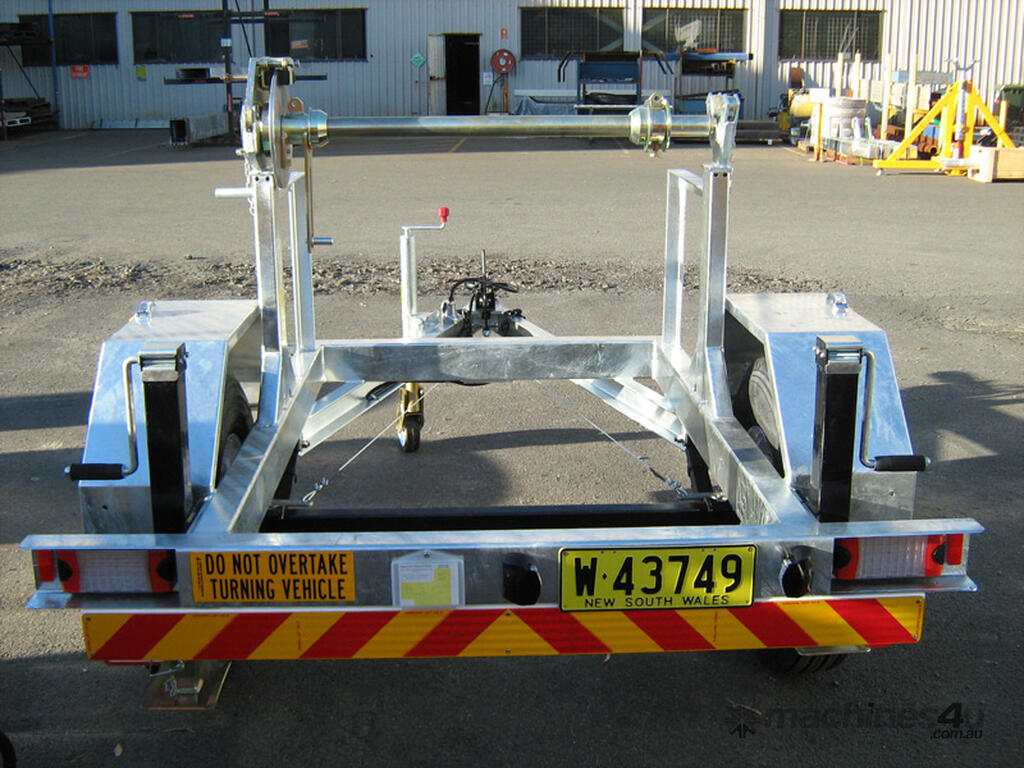

REDMOND GARY 1 Drum ABC Cable Trailer

REDMOND GARY 1 Drum ABC Cable Trailer

The trailer could be supplied with diesel/petrol engine to drive the hydraulic power unit if required. The hydraulic power unit (if this option is selected) enables the operational crew to reel the cable in (or pay out fully controlled) via a hydraulic motor which may be attached to the drum stand spindle.

Specifications:
Maximum drum diameter - 1600mm
Maximum drum width – 900mm
Maximum allowable drum mass – 1 tonne
Fitted with mechanical over-ride brakes
Fitted with removable 54mm centre drum spindle & disc brake assembly which allows operators to establish a line tension of up to 200kg at 1000mm diameter
Trailer frame finished in hot dip galvanising

Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its representatives.

Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
