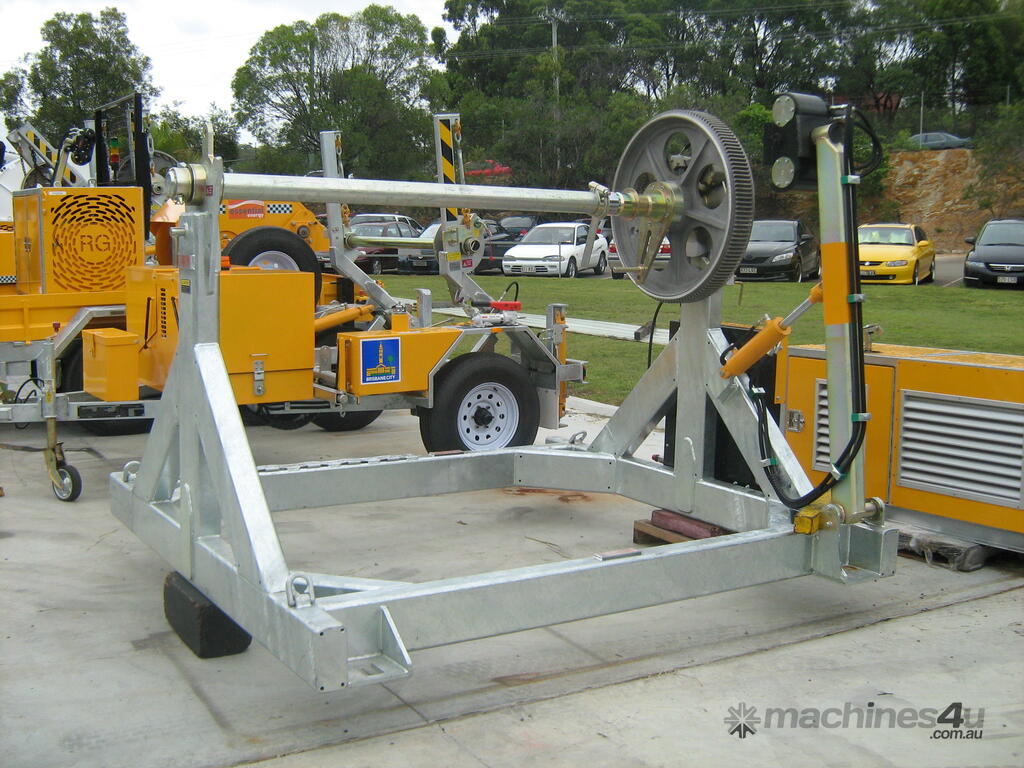

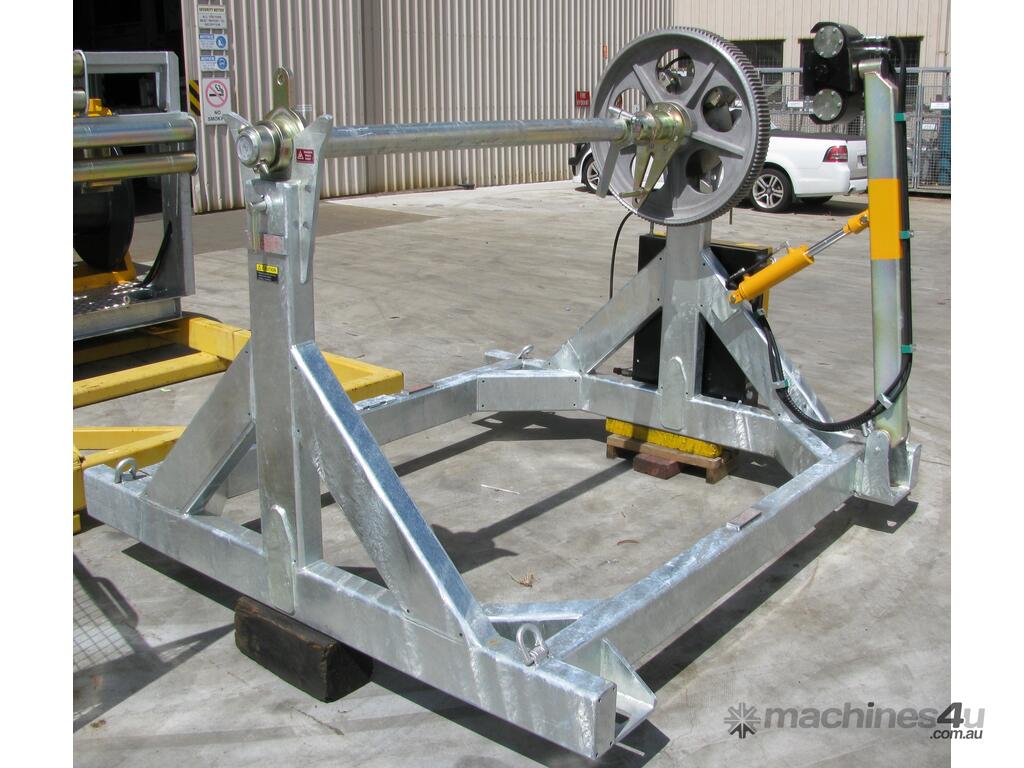

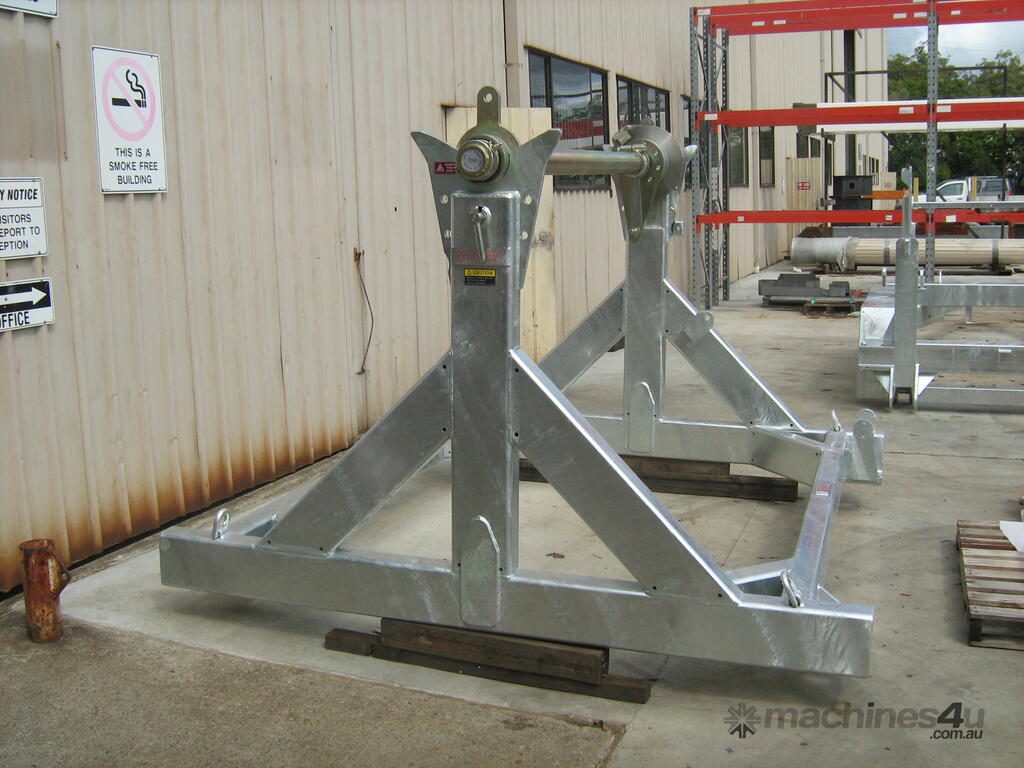

REDMOND GARY 14 Tonne Cable Drum Stand

REDMOND GARY 14 Tonne Cable Drum Stand

FOR MULTI-PURPOSE CABLE DRUM STORAGE AND HANDLING OPERATIONS

FEATURES:

> Multi-purpose: Unit may be used for the static storage, lifting and transportation of cable drums, as well as the unwinding of ropes, cables and conductors both freely and under tension.
> May also be used as a cable recovery unit in conjunction with drum drive options.
> Facilitates for both crane and forklift relocation, multiple tie down points and container locks for safe transportation.

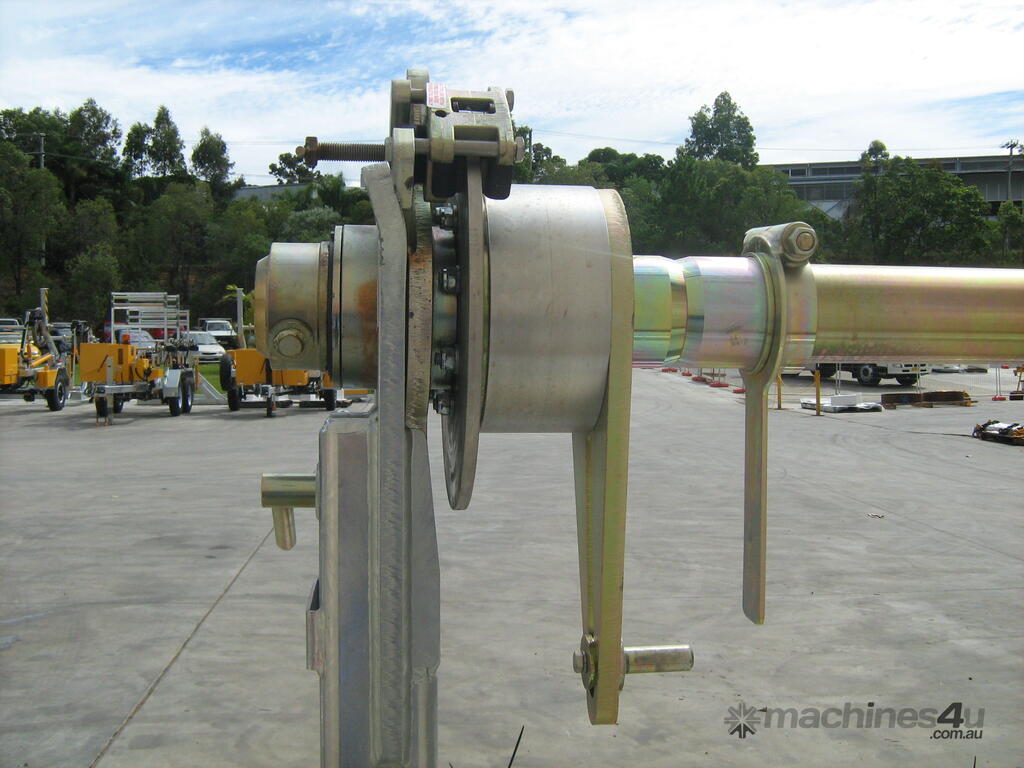

> Smooth operation: Removable spindle fully supported on bearings which connect to payout brake for full tension control on line.

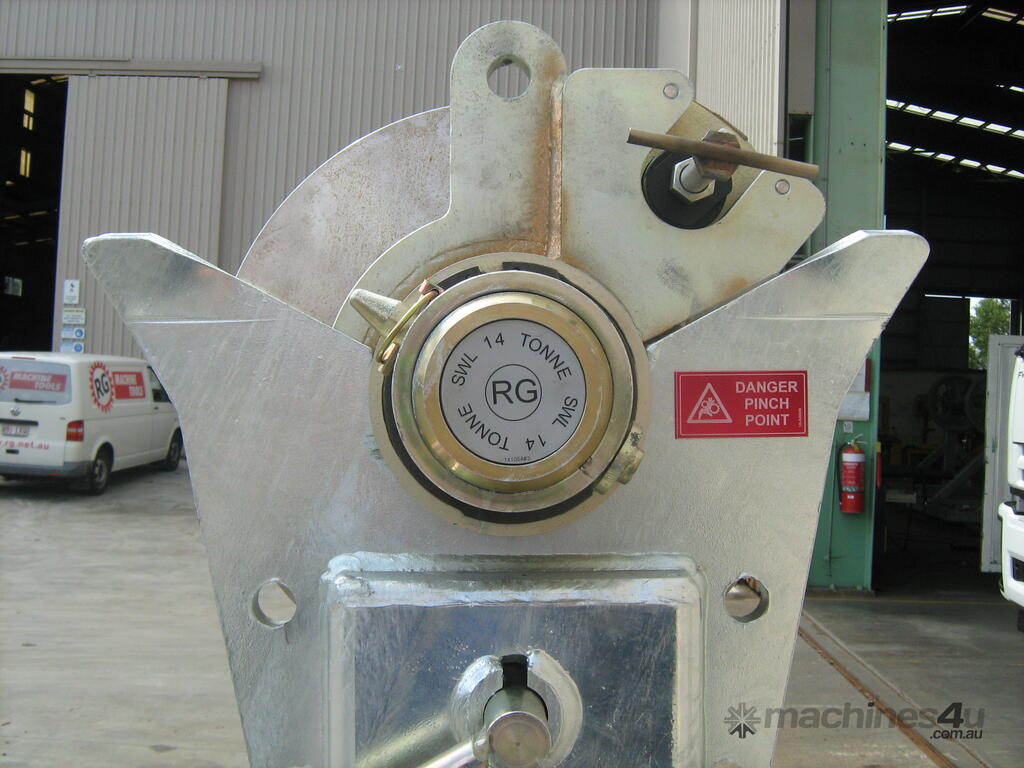

> Safety handbrake for safe operation.
> Cable drum drive pegs and collars to suit different size cable drums.
> 12 months parts and labour warranty in accordance with guarantee and sales conditions.

STANDARD FEATURES:

Maximum Load Mass: 14,000kg
Solid Spindle Diameter: 95mm
Height Unladen: 1625mm
Height Loaded: 3000mm
Mass Unladen: 700kg
Mass Fully Laden: 14,700kg
Maximum Drum Diameter: 3200mm
Maximum Drum Width: 2000mm
Overall Width: 2500mm
Overall Length: 2300mm

ADDITIONAL OPTIONS:

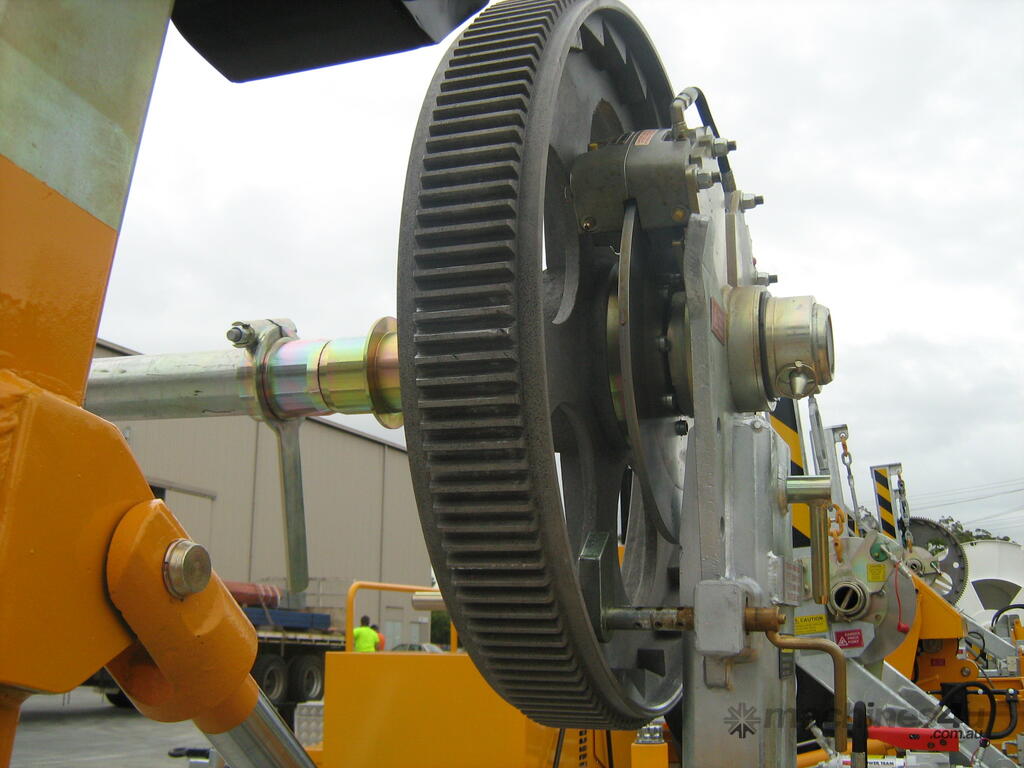

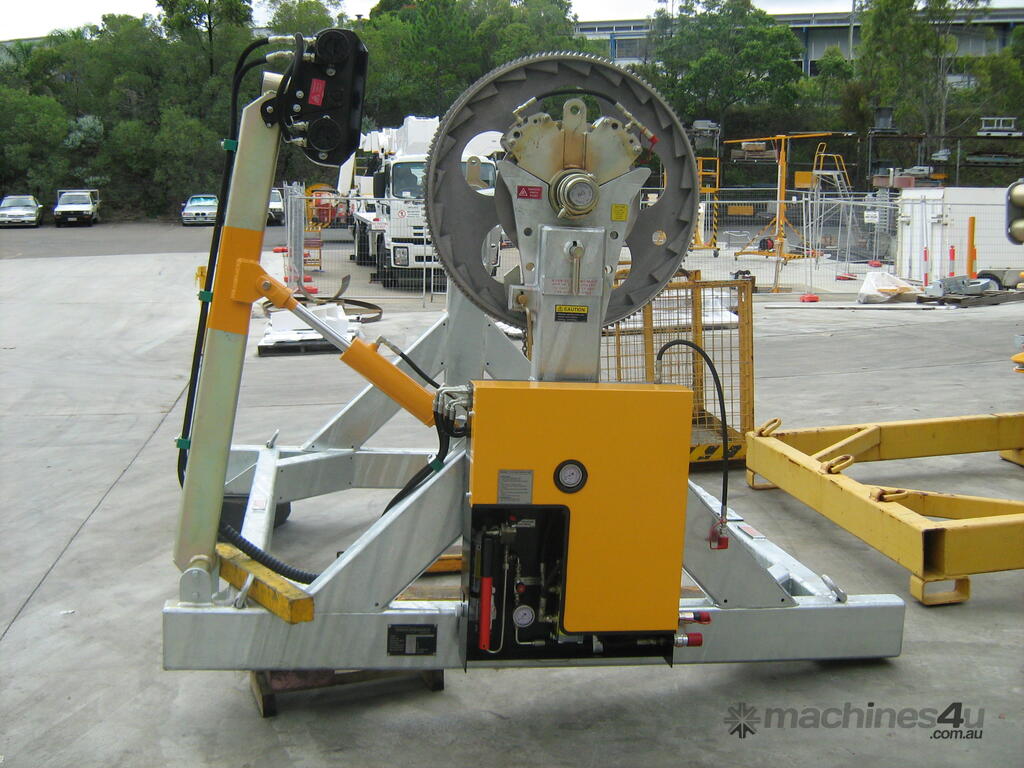

> Integrated diesel/hydraulic power pack with drum rotator assembly capable of 1000kg line pull at 1m drum diameter with Pendant Control on 6m of cable.
> Remote skid mounted power unit, Pendant Controlled 1000kg drum rotator and 15m hose reel.

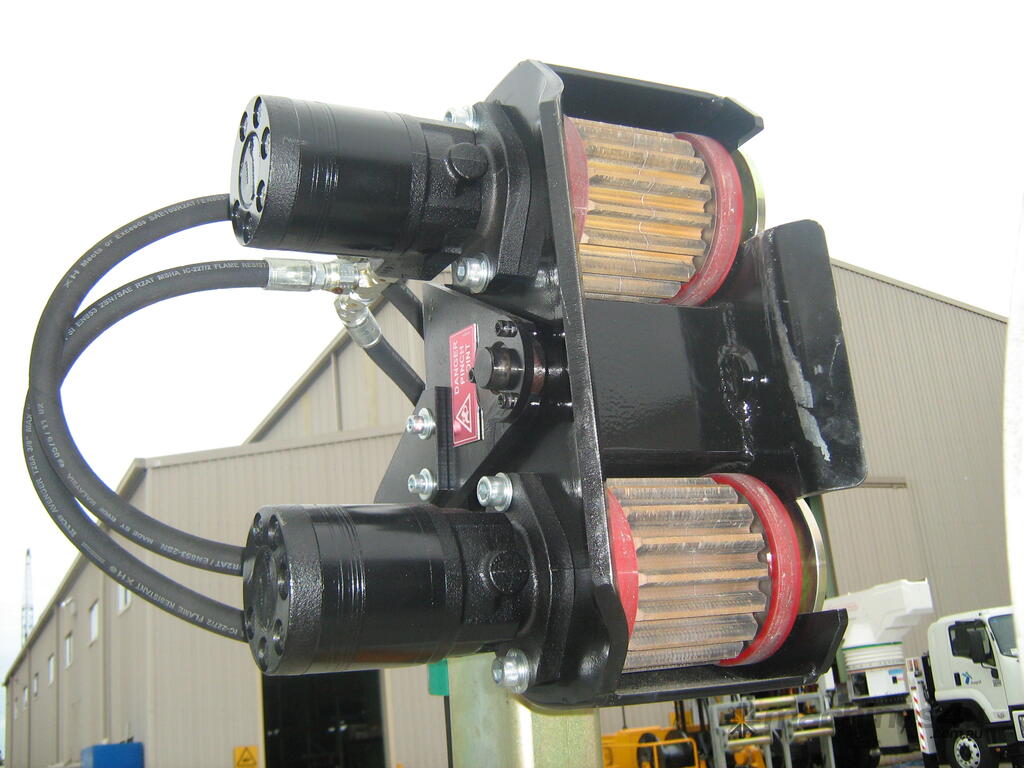

> Addition of a drum rotator assembly capable of 1000kg line pull at 1m drum diameter. To be driven from a remote hydraulic power supply, either truck PTO, or similar. Hydraulic power supply not included.
> Upgrade stainless steel brake spindle assembly from the standard 200kg tension to 900kg tension capability 1m drum diameter with hydraulic hand pump assembly.
> Spreader bar and chain assembly for lifting drums in and out of stand. 14,000kg Safe Working Load.
> Drum sleeves with square drum hole adaptors (2 only).
> Set of custom made spindle sleeves.
