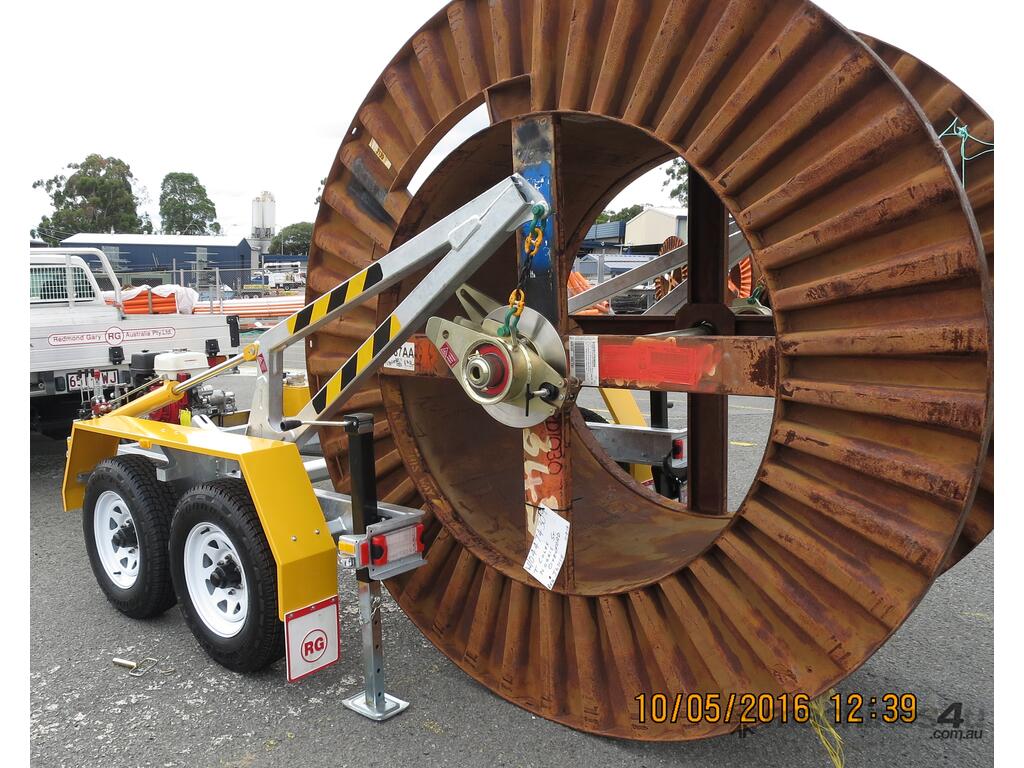

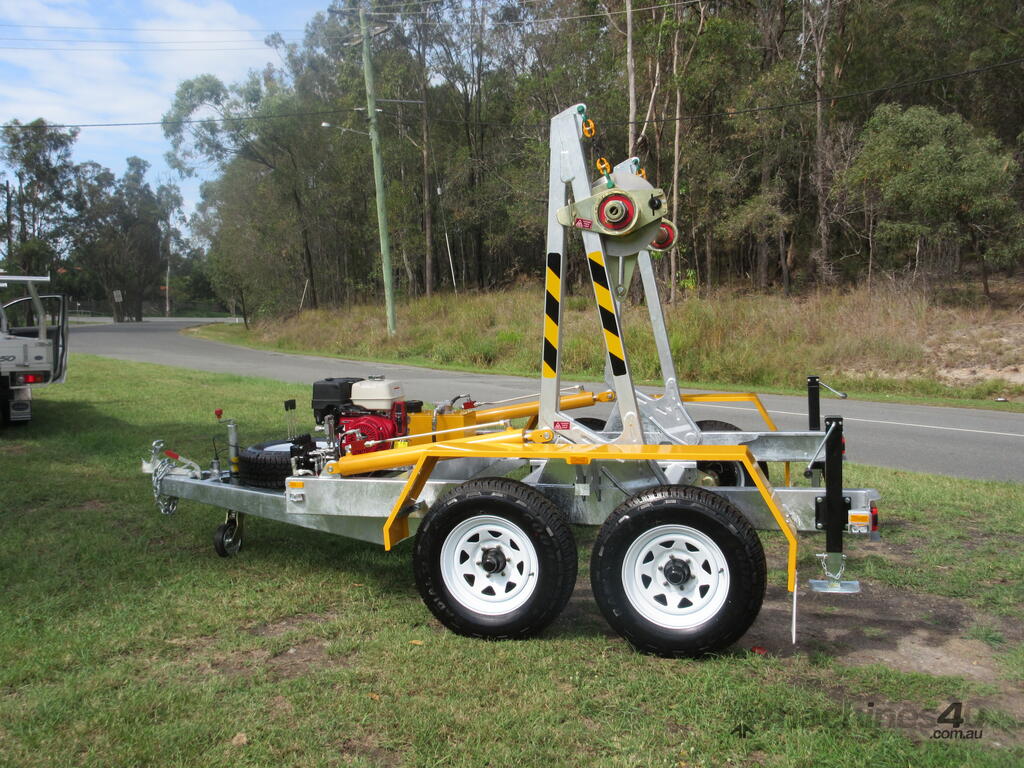

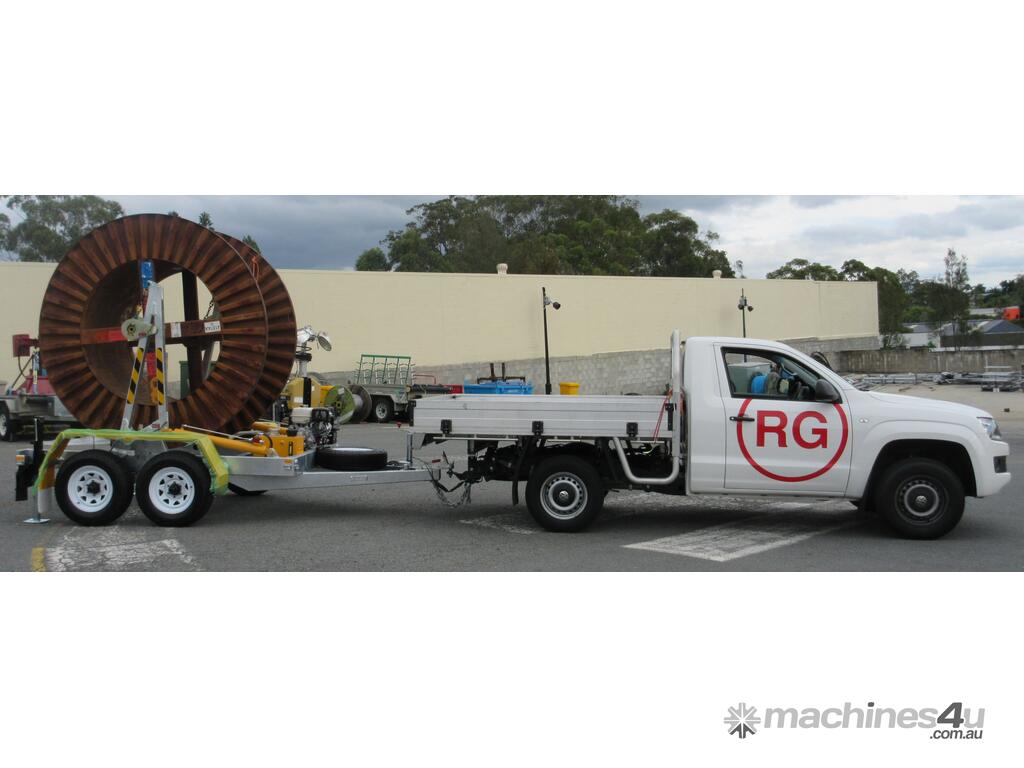

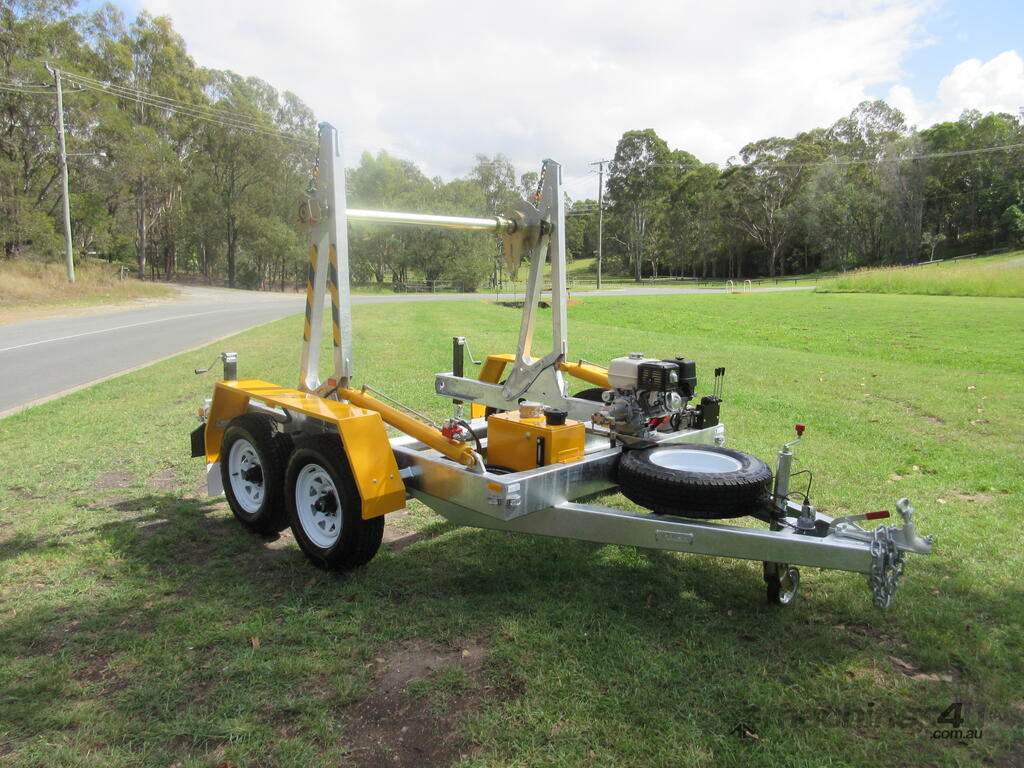

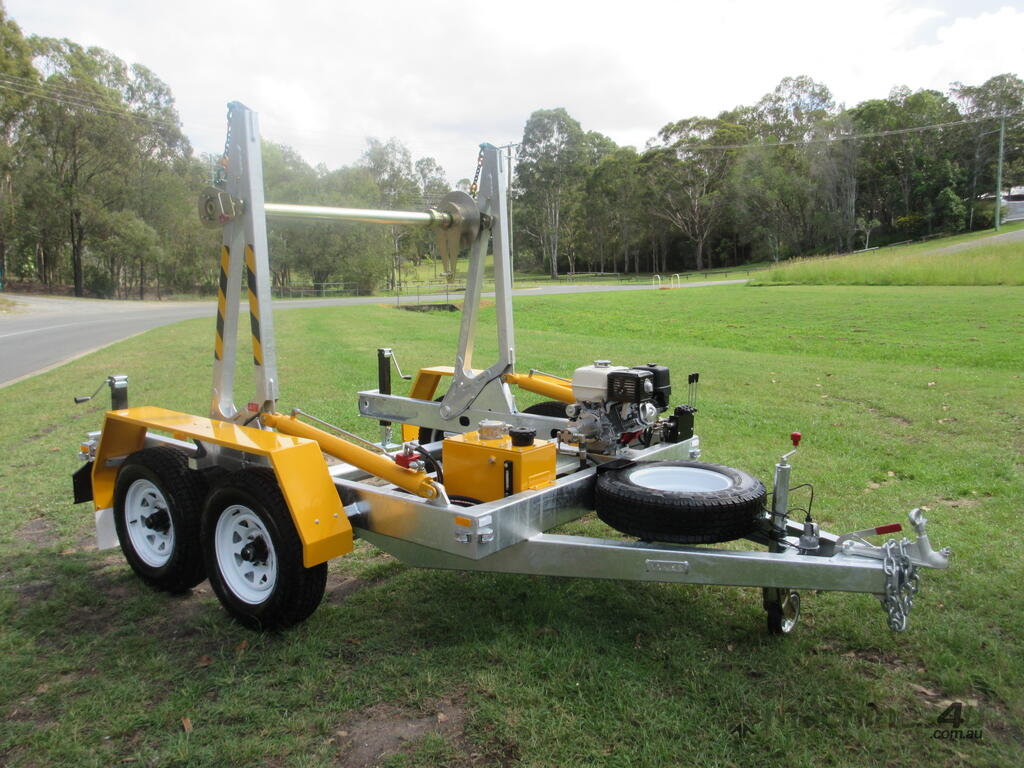

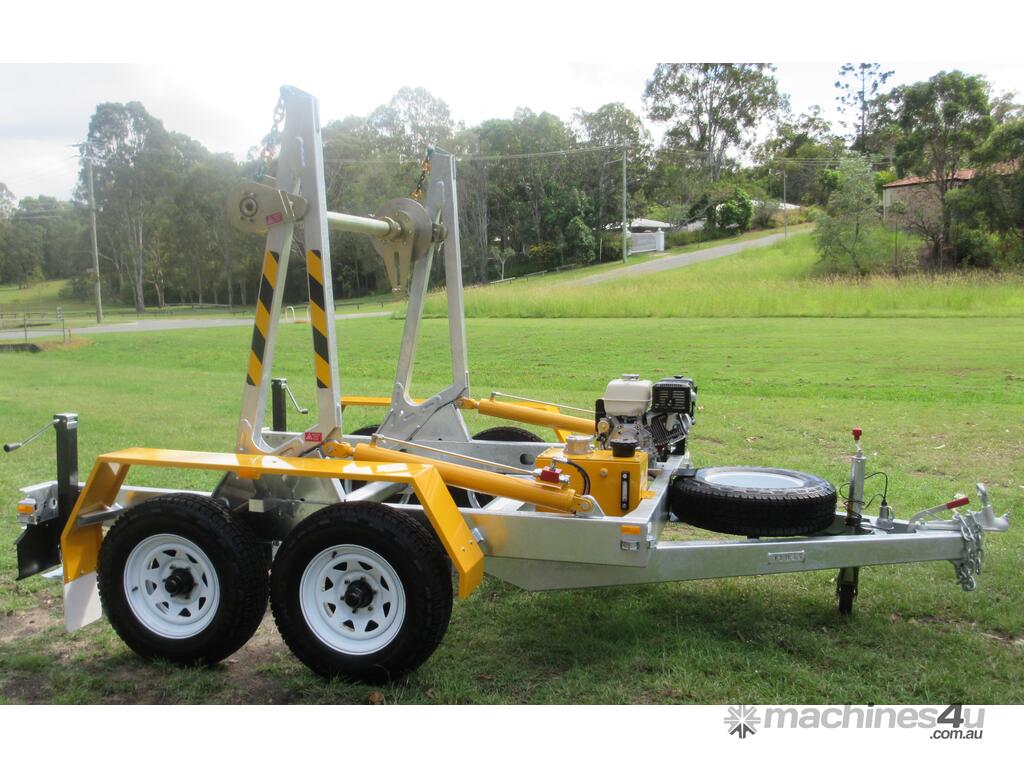

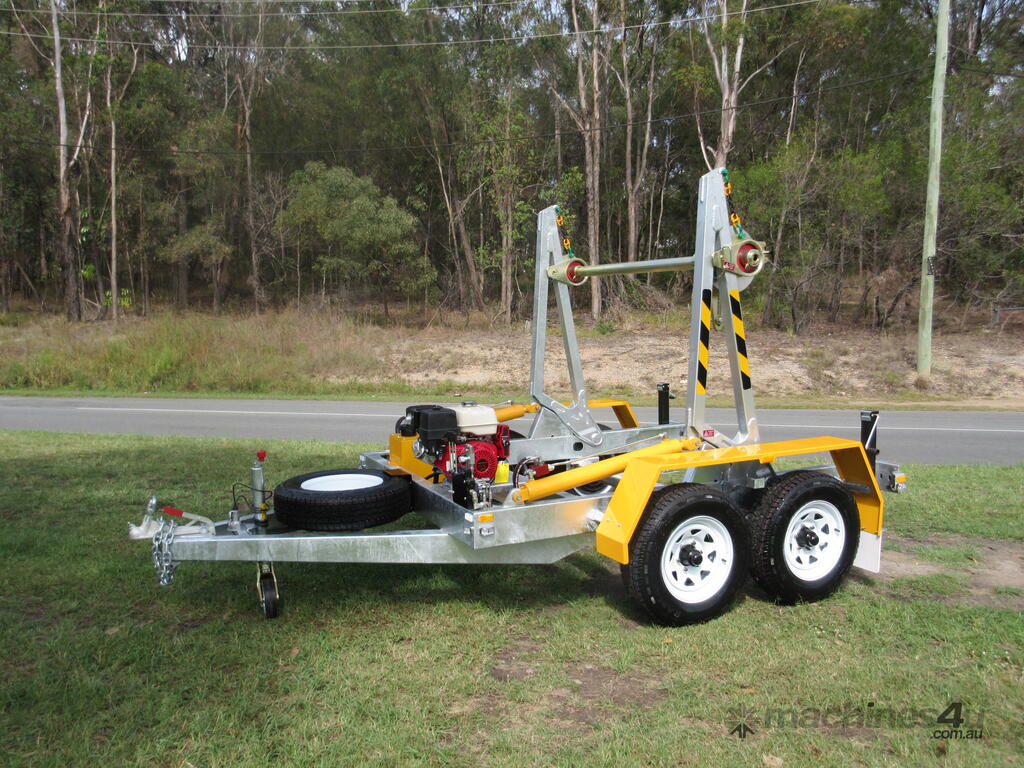

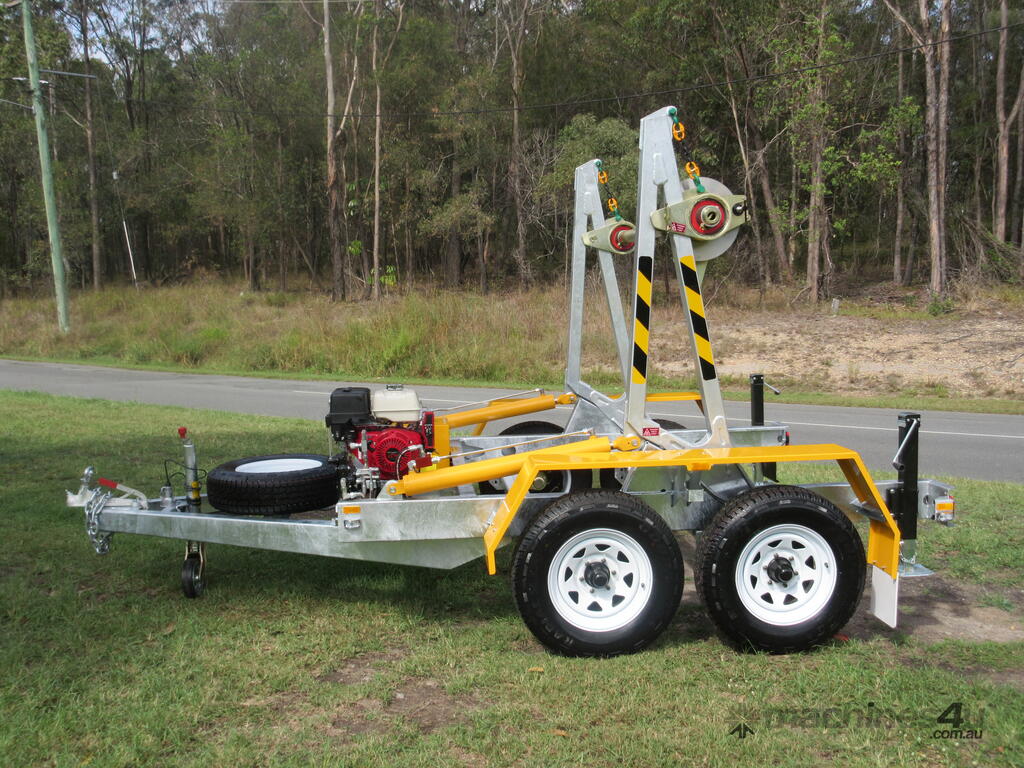

REDMOND GARY 2.5 Tonne Self Loading Cable Drum Trailer

REDMOND GARY 2.5 Tonne Self Loading Cable Drum Trailer
1. Standard Features:

• Trailer frame & mudguards finished in hot dip galvanising.
• All tanks and hydraulic cylinders finished in 2-pack enamel.
• ADR approved dual axle with electric brakes.
• Landcruiser Radial Rims, with 205/80 R16 Tyres.
• Wind down front and rear Jackleg/Stabilisers.
• 50mm Ball coupling (to AS4177.3-2011)
• 2 x 13mm Trailer Safety Chains. # Includes 2 x Rated Shackles.
• 7-Pin Flat Trailer Plug.
• LED lights.
• Laden Coupling height - 460mm (approximately) to AS4177.1-2004.

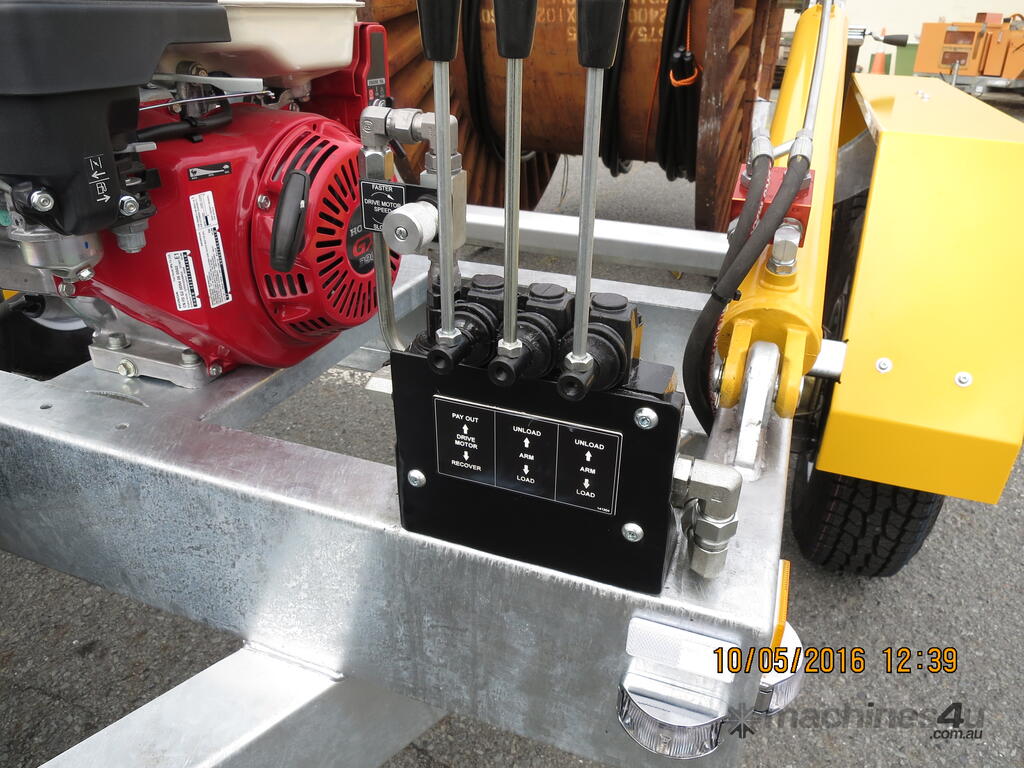

• Air Cooled HONDA Petrol Engine - 4 stroke with electric & pull start.
• Safety and Operational signage - Anodised Aluminium or UV Stable Acrylic.

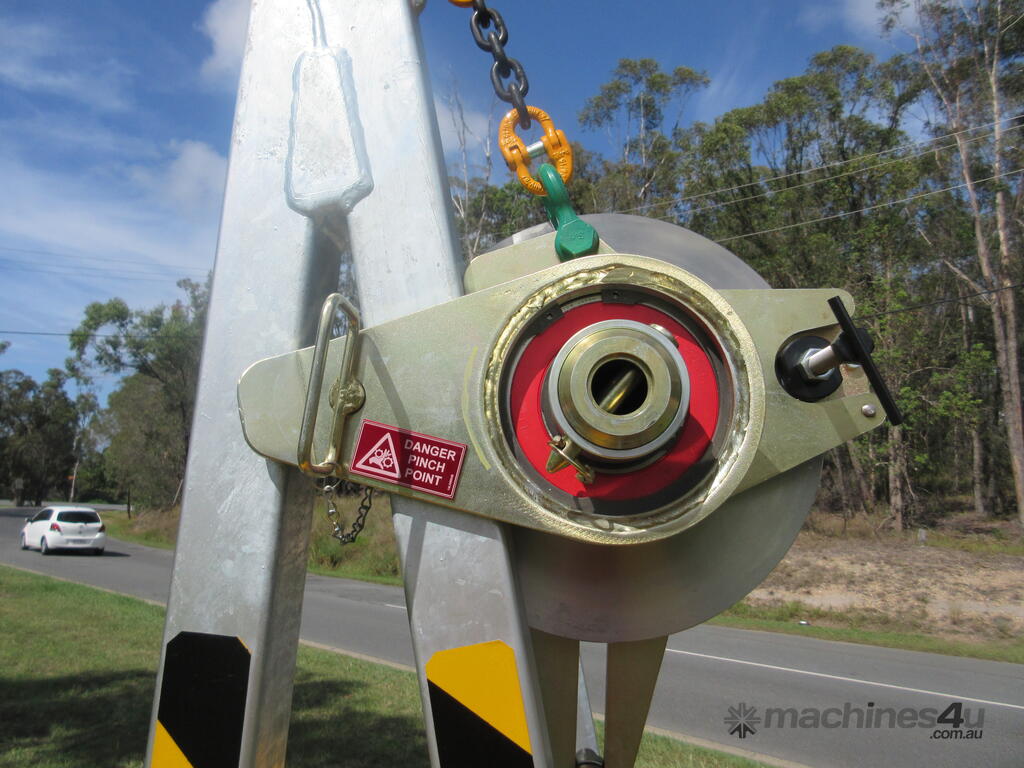

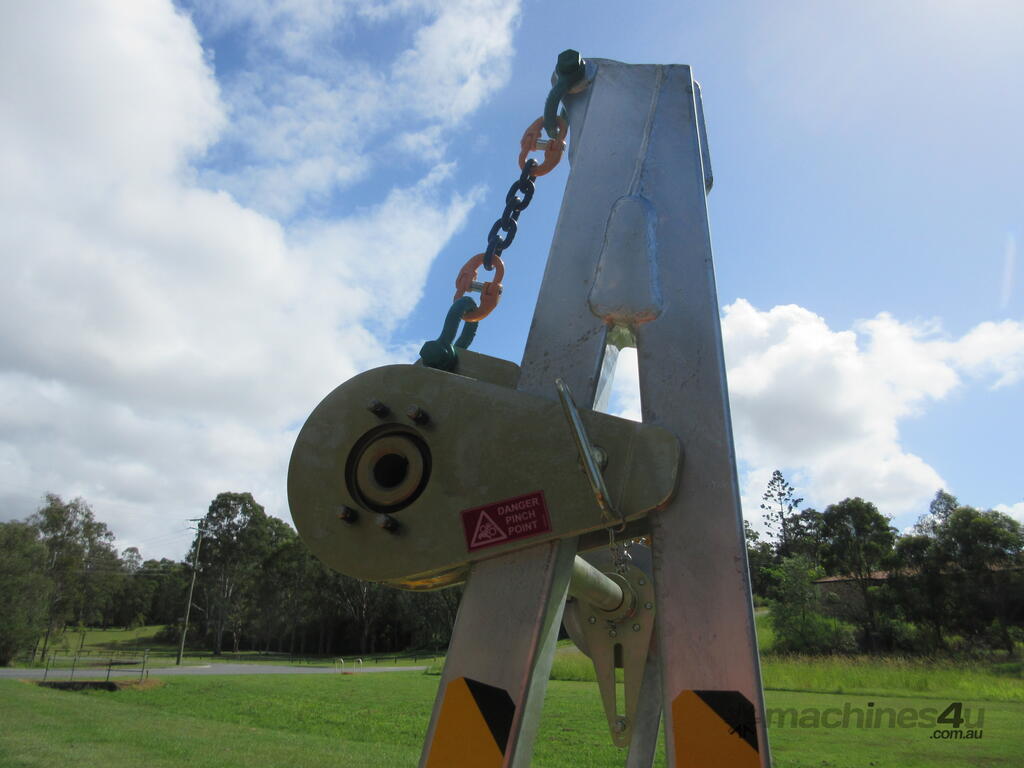

• 76mmØ Spindle assembly c/w with mechanically operated stainless steel disk brake, torque arm & Spindle Sleeve set - 95mmØ.
• Final coat finish - Powder Coating and 2 pack enamel (Interpon, Safety Yellow - Product code ME096A).
• One(1) set of Operation Manuals.


1.1 Additional Options:
• Air Cooled KOHLER Diesel Engine with electric and pull start, Model KD350
• Drum Rotator drive capable of max line pull of 200kg 1mØ.
Drum Rotator maximum line speed 1mØ = 94m/min (approximate).
