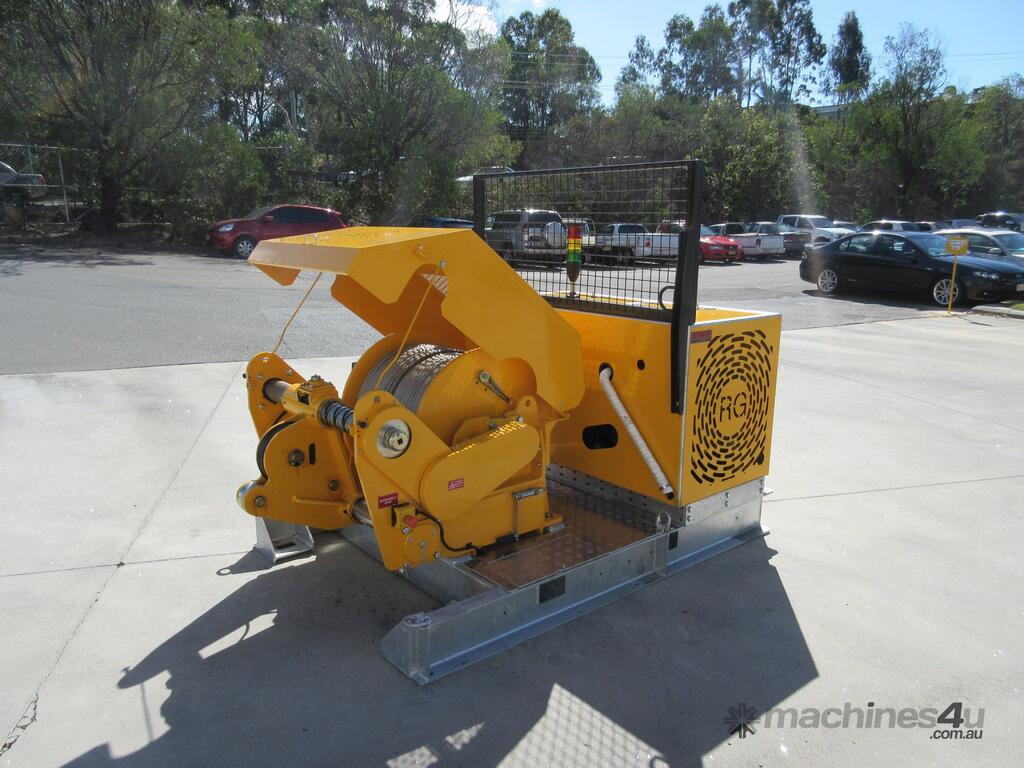

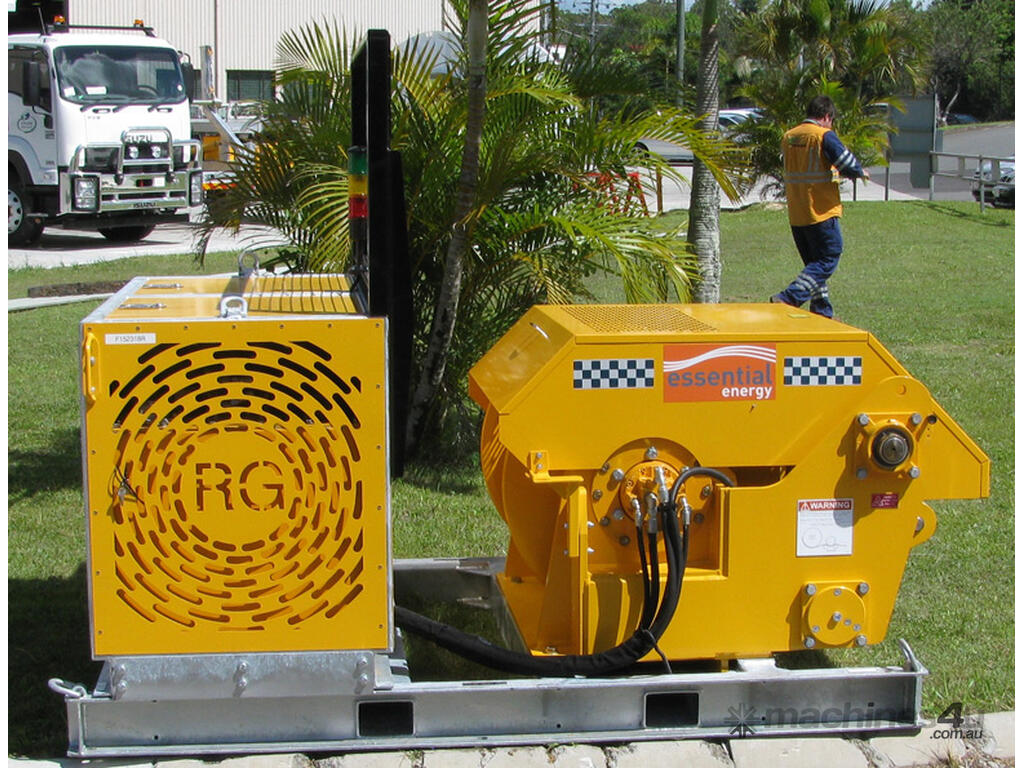

REDMOND GARY - 20kN Skid-Mounted Recovery Winch

This winch series is designed for general cable hauling and recovery work. These winches are fitted with hydraulic load holding valves and failsafe brakes enabling them to safely be used for hoisting. The winches have variable line speeds with a high-speed selection for faster retrieval and payout.

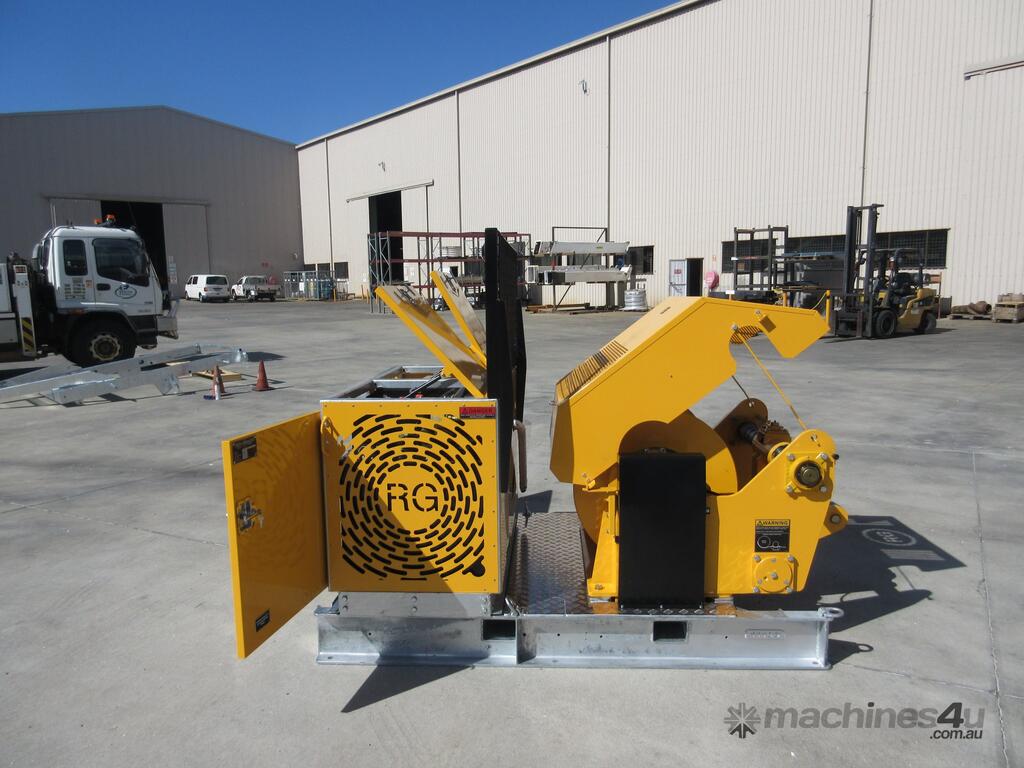

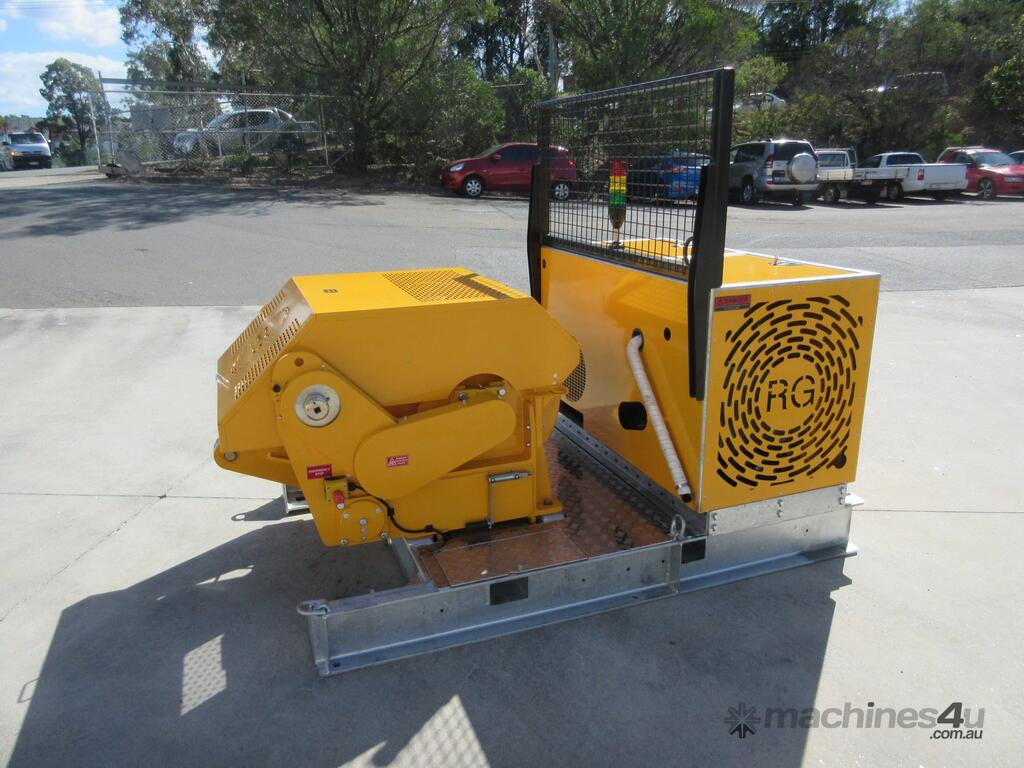

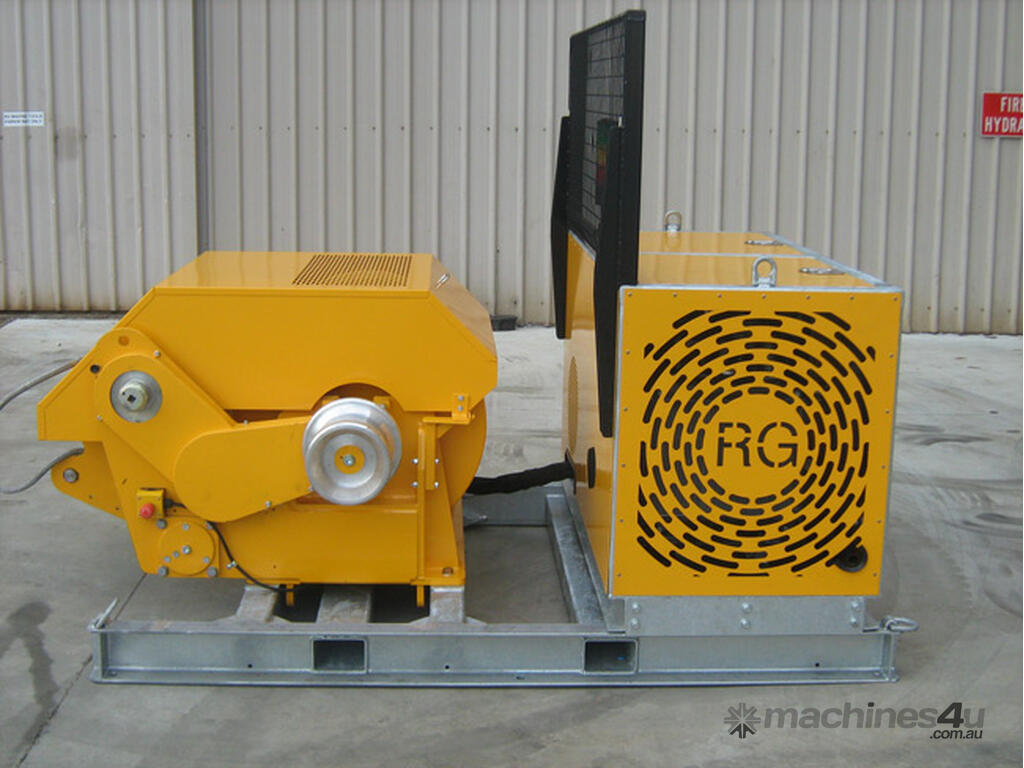

Winches are provided with hot dip galvanised skid-mount that connects the power pack to the winch assembly. The skid is provided with container lock location points, one on each corner. Winches can be easily lifted using a forklift or a crane. Lifting points are provided on each corner.

Specifications
Winch Line pull at top layer 20kN
Rope Capacity 12mm diameter 750 metres
Rope not included
Winch Speed: Normal 24 m/minute 20kN - 2000kg
Winch Speed: high speed 46 m/minute 10kN - 1000kg
Power Pack 11 kW
Engine type Water Cooled Diesel - electric start
Hydraulic oil reservoir 58 litres with 12 Volt oil cooler
Diesel tank 32 litres
Total weight 1840kg
Overall length 2500mm
Overall Width 1585mm
Overall Height 1780mm
Full Drum 650mm - 20kN (2000kg)
Empty Drum (Approximately) 40kN (4000kg)
Winch
Tension Line pull 20kN (2000kg) constant at low speed
Line Speed 2-Speed auto change via hydraulic motor
- High speed full drum 46 m/minute 10kN - 1000kg
- Low Speed full drum 24 m/minute 20kN - 2000kg
Rope 12mm 750 metres
Rope not included

Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its' representatives.

Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
