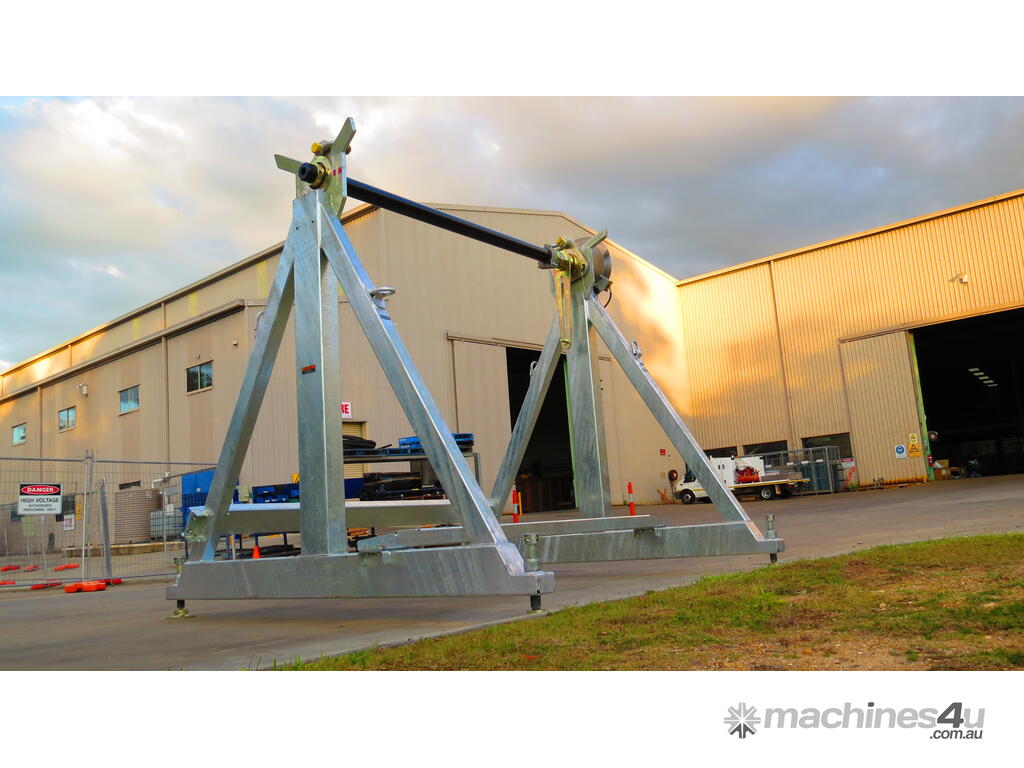

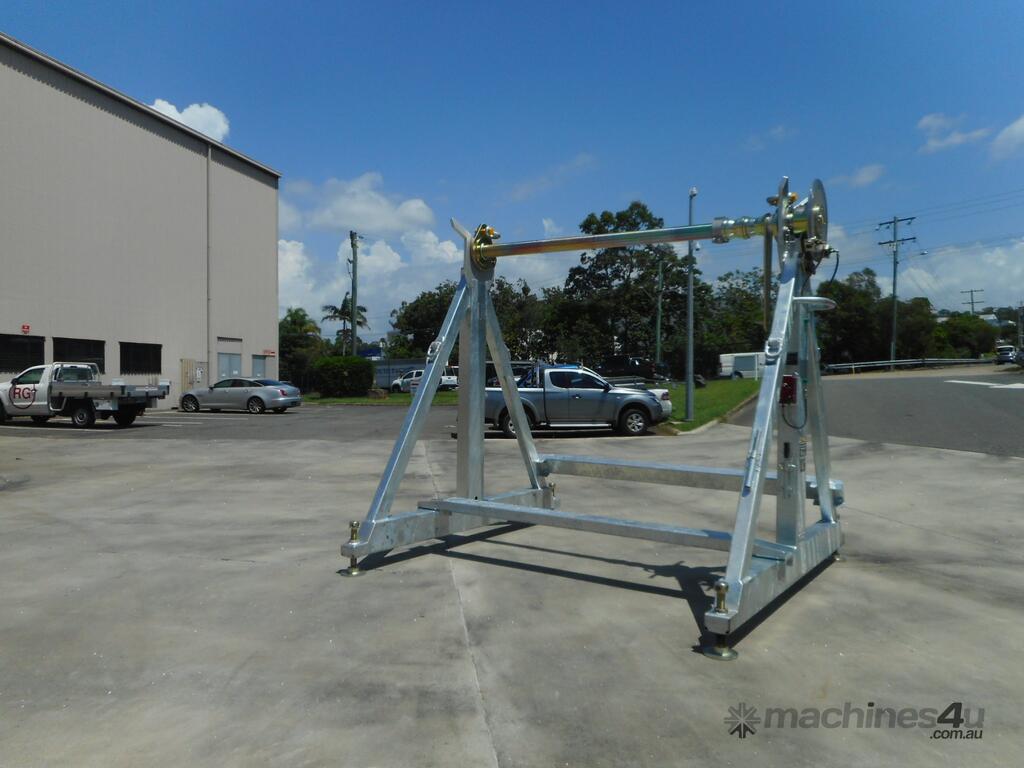

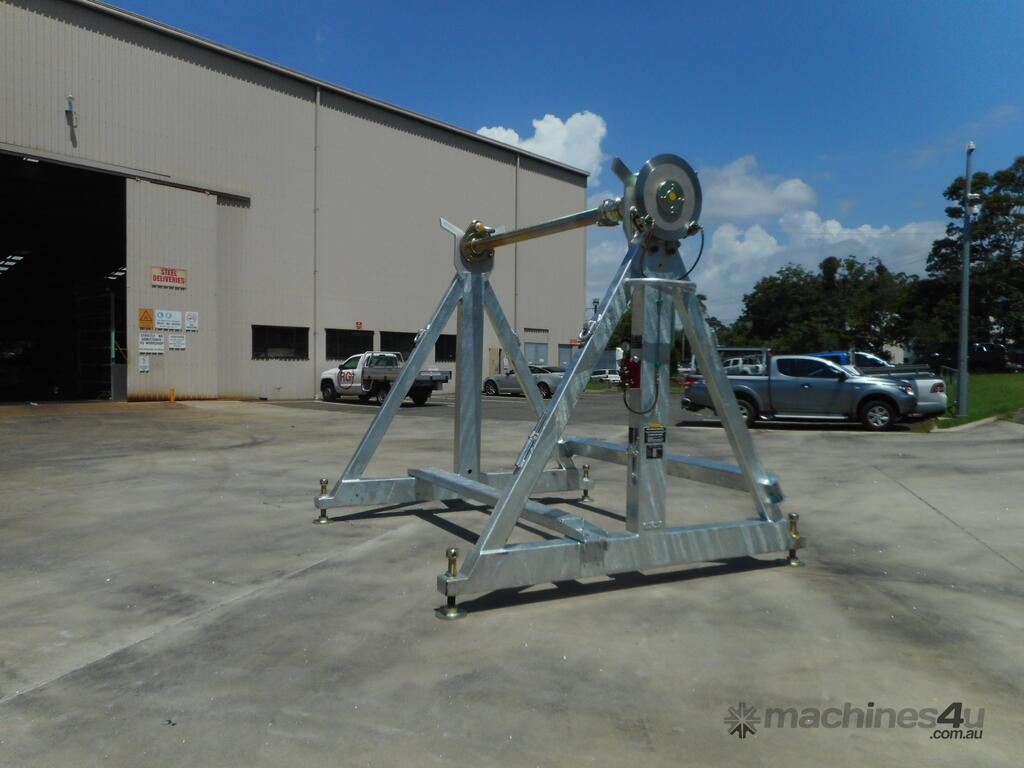

REDMOND GARY 24 Tonne & 30 Tonne Cable Drum Stand

REDMOND GARY 24 Tonne & 30 Tonne Cable Drum Stand

FOR MULTI-PURPOSE CABLE DRUM STORAGE AND HANDLING OPERATIONS

FEATURES:

> Multi-purpose: Unit may be used for the static storage, lifting and transportation of cable drums, as well as the unwinding of ropes, cables and conductors both freely and under tension.
> May also be used as a cable recovery unit in conjunction with drum drive option.
> Facilities for crane relocation, levelling jack.

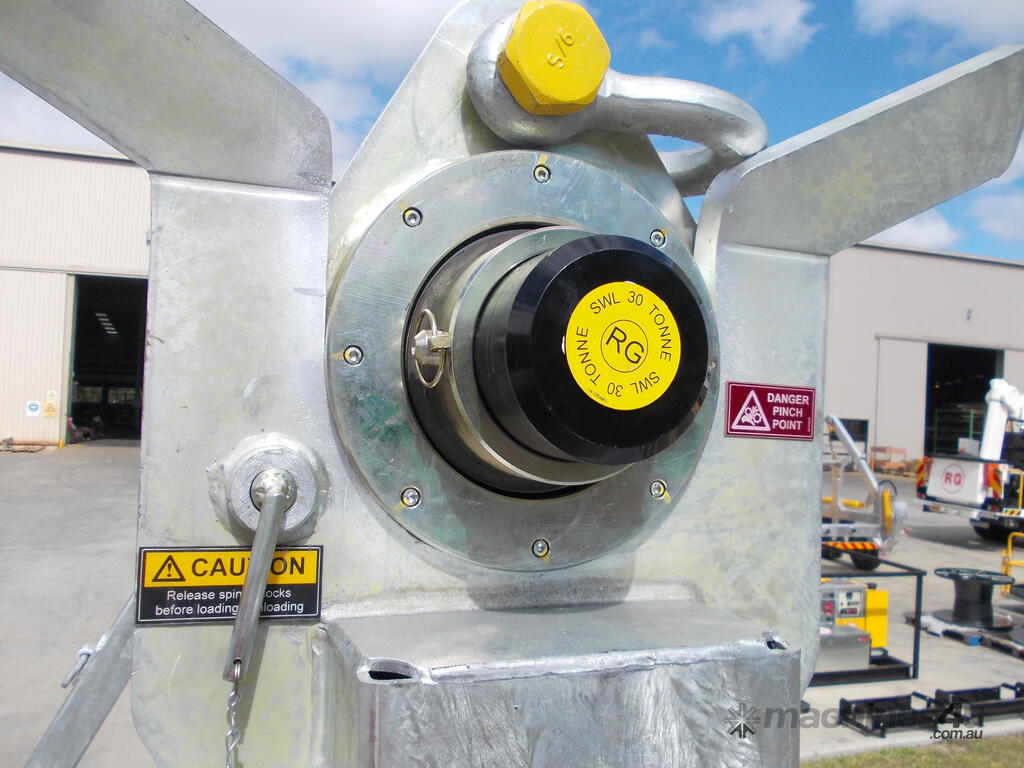

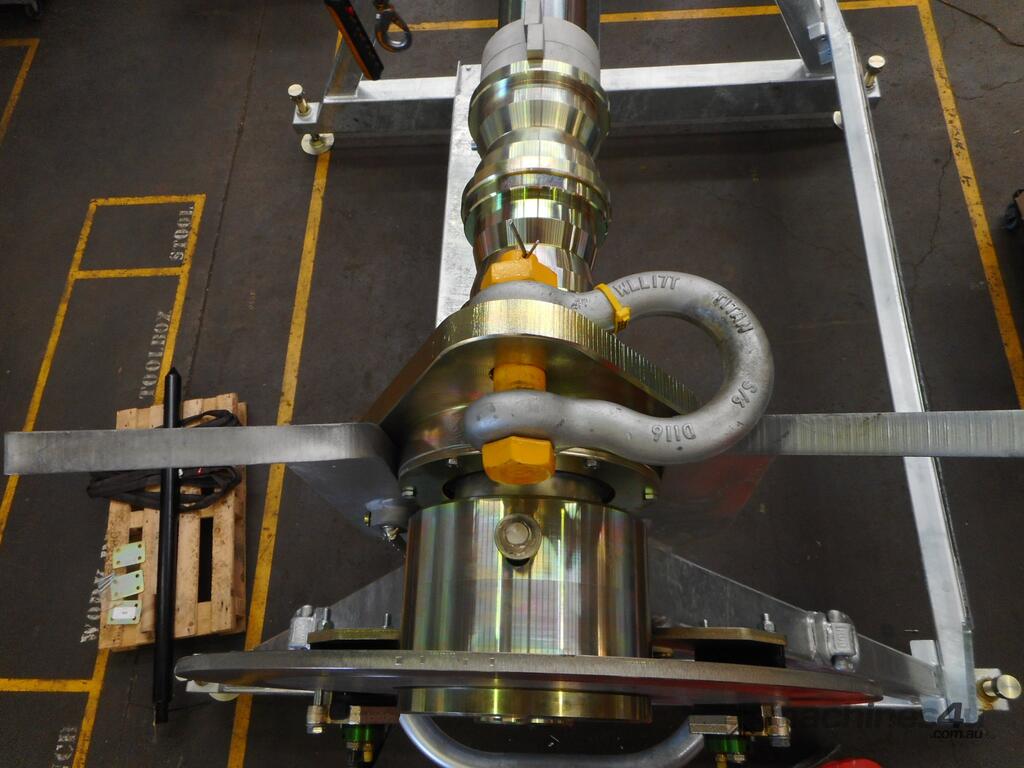

> Smooth operation: Removable spindle fully supported on bearings which connect to payout brake for full tension control on line.

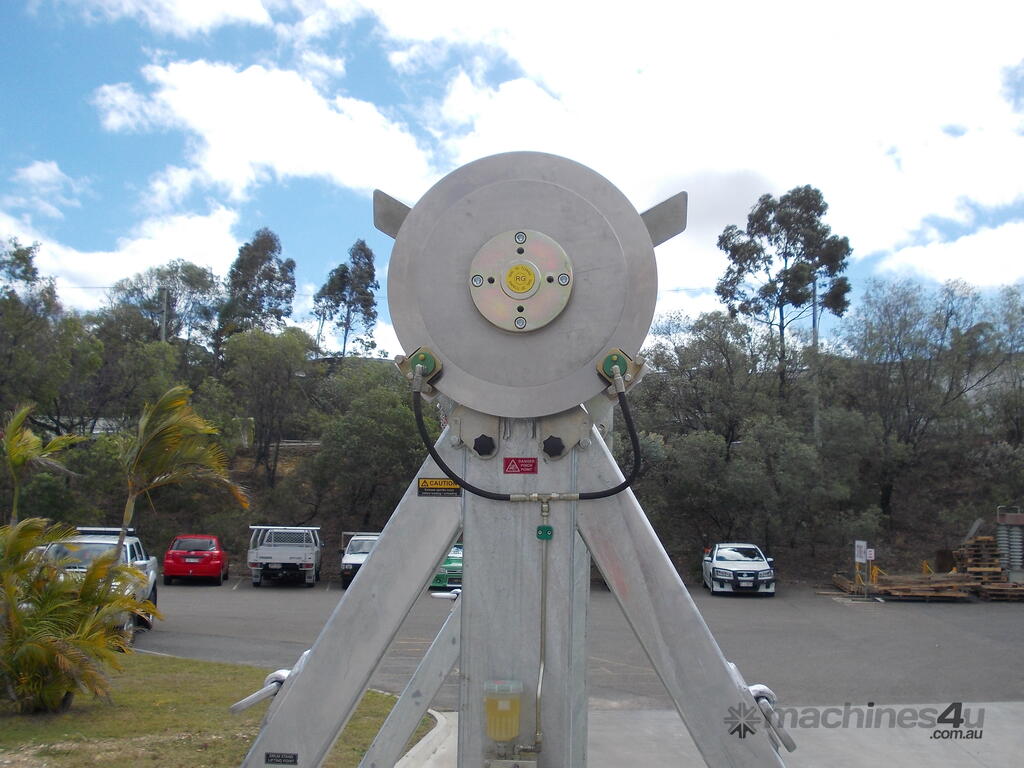

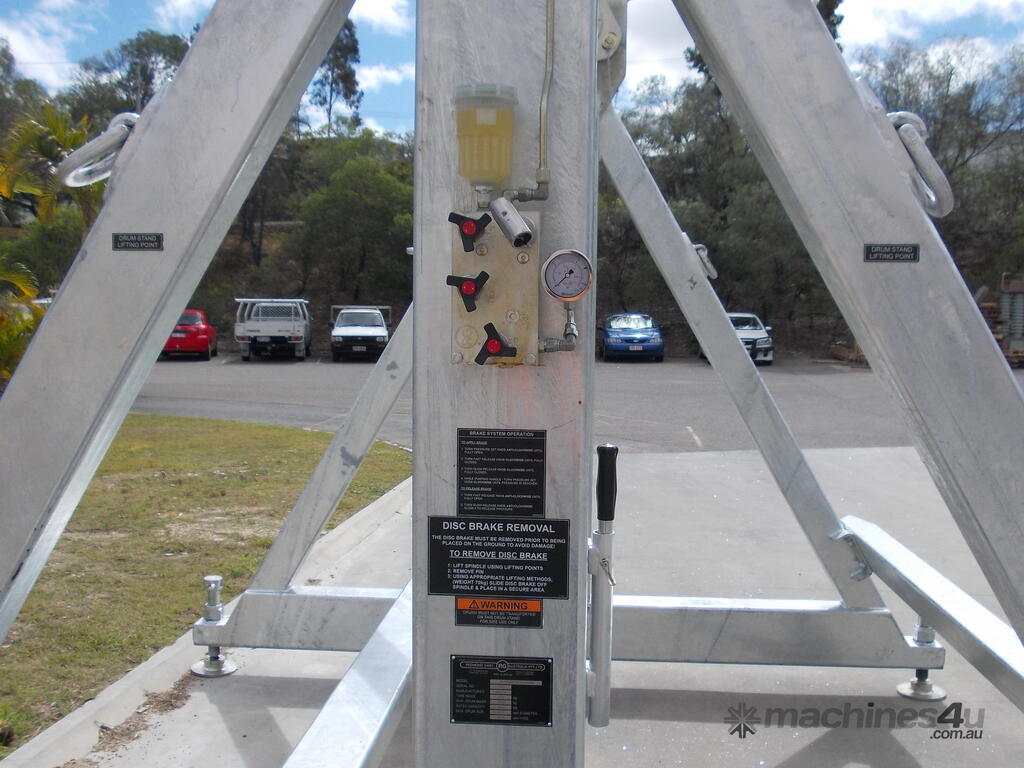

> Safety hydraulic spindle brake.
> Cable drum drive pegs and collars to suit different size cable drums.
> 12 months parts and labour warranty in accordance with guarantee and sales conditions.

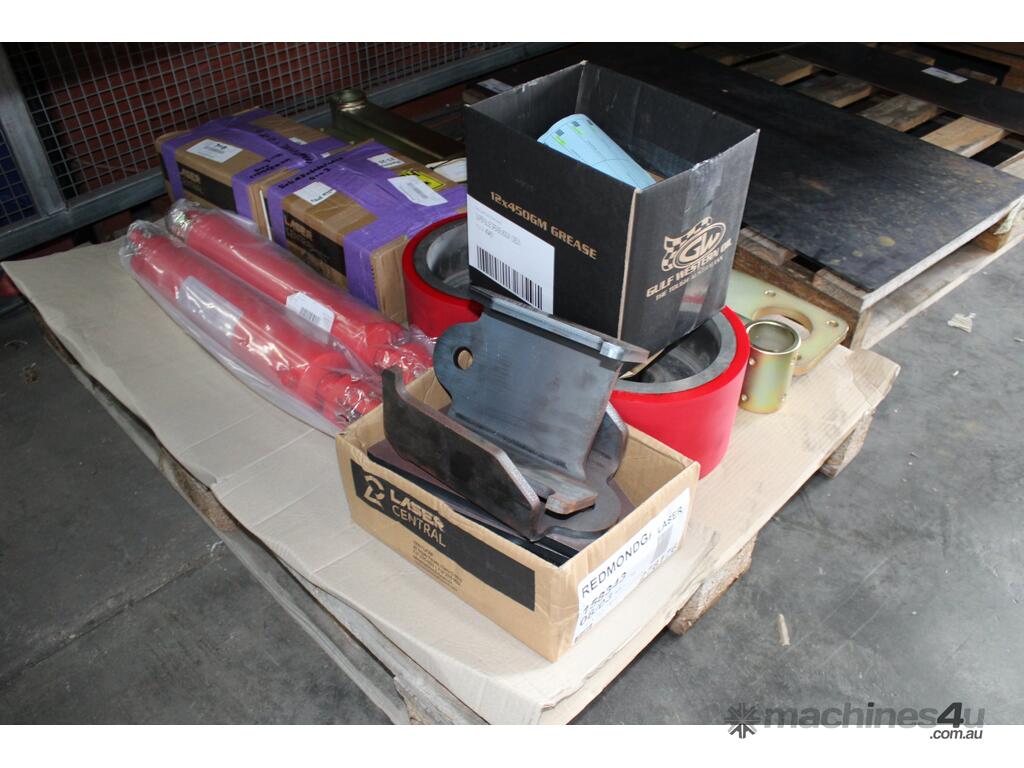

ADDITIONAL OPTIONS:

> Remote skid mounted diesel power unit, Pendant Controlled 1000kg drum rotator and 15m hose reel.
> 24t - 95mm diameter spindle and adaptors (as an extra spindle)
> Spindle drum sleeve 200mm (x 2)
> Spindle drum sleeve 250mm (x 2)
> Spindle drum sleeve 300mm (x 2)
> Spindle drum sleeve 350mm (x 2)
> Spindle drum sleeve 400mm (x 2)

TECHNICAL DATA:

Maximum drum mass: 24,000kg (24t) 30,000kg (30t)
Spindle diameter (standard): 95mm (24t) 120mm (30t)
Height unladen: 3,060mm (24t) 3,060 (30t)
Height laden: 5,000mm (24t) 5,000mm (30t)
Mass unladen: 1,360kg (24t) 1,580kg (30t)
Mass fully laden: 25,360kg (24t) 31,580kg (30t)
Maximum drum diameter: 4,270mm (24t) 4,270mm (30t)
Maximum drum width: 2,550mm (24t) 2,550mm (30t)
Overall width: 3,565mm (24t) 3,565mm (30t)
Overall length: 3,235mm (24t) 3,235mm (30t)
