REDMOND GARY - 3.5 Tonne Self Loading Cable Trailer

3.5 Tonne Self Loading Cable Trailer

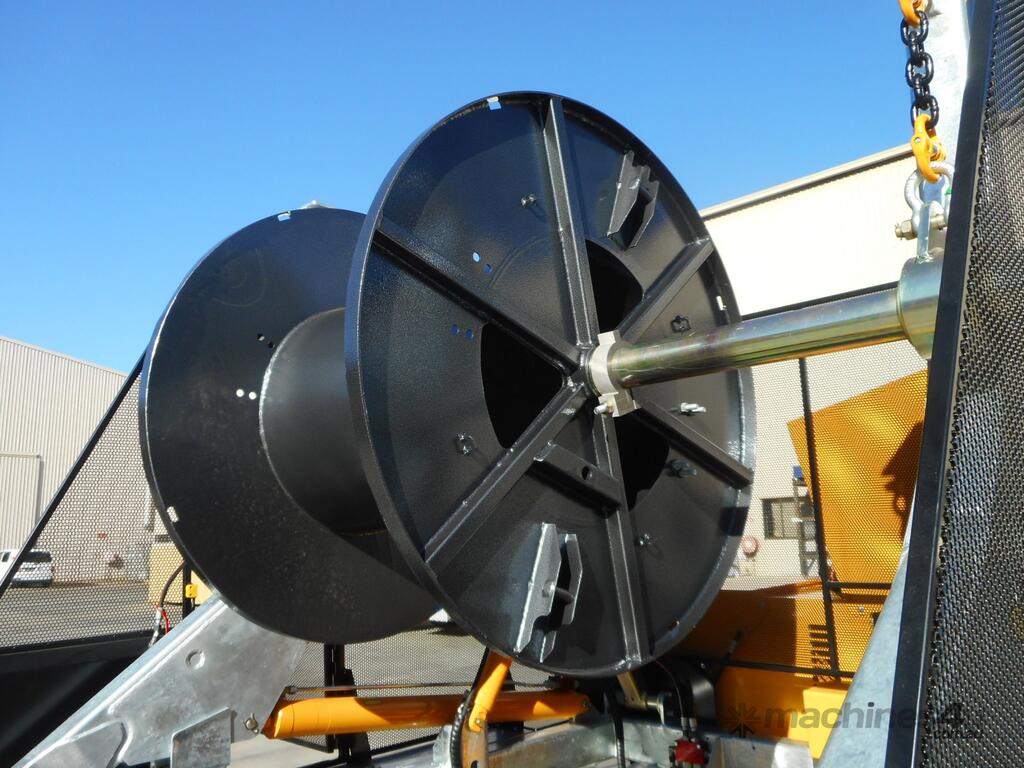

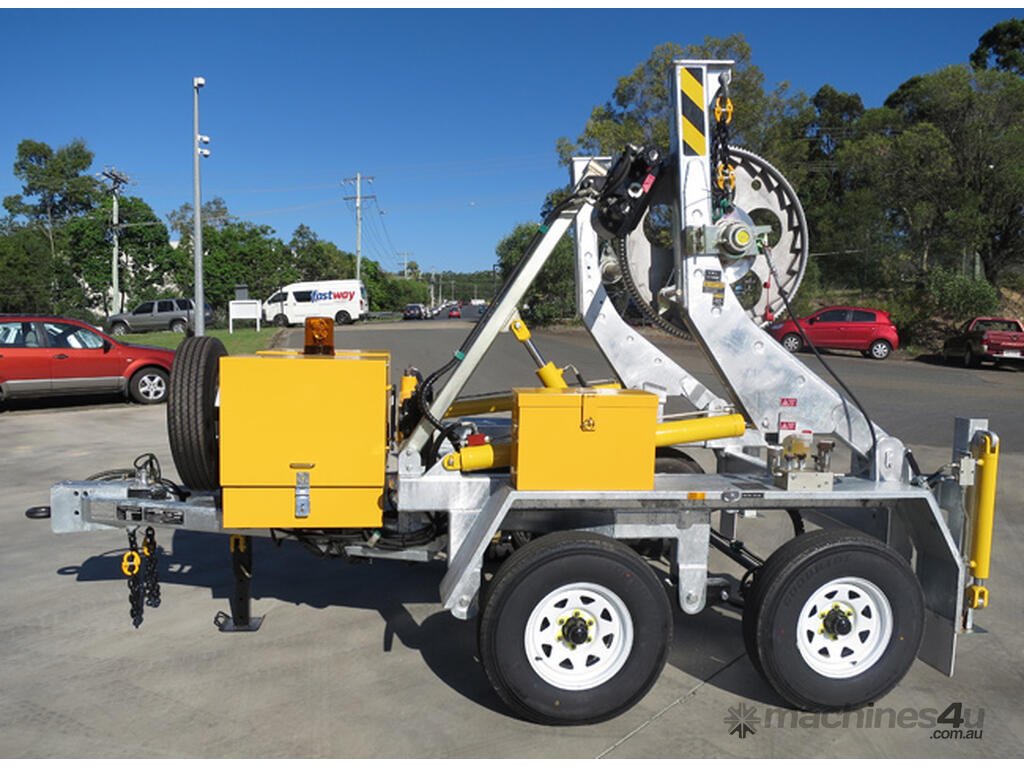

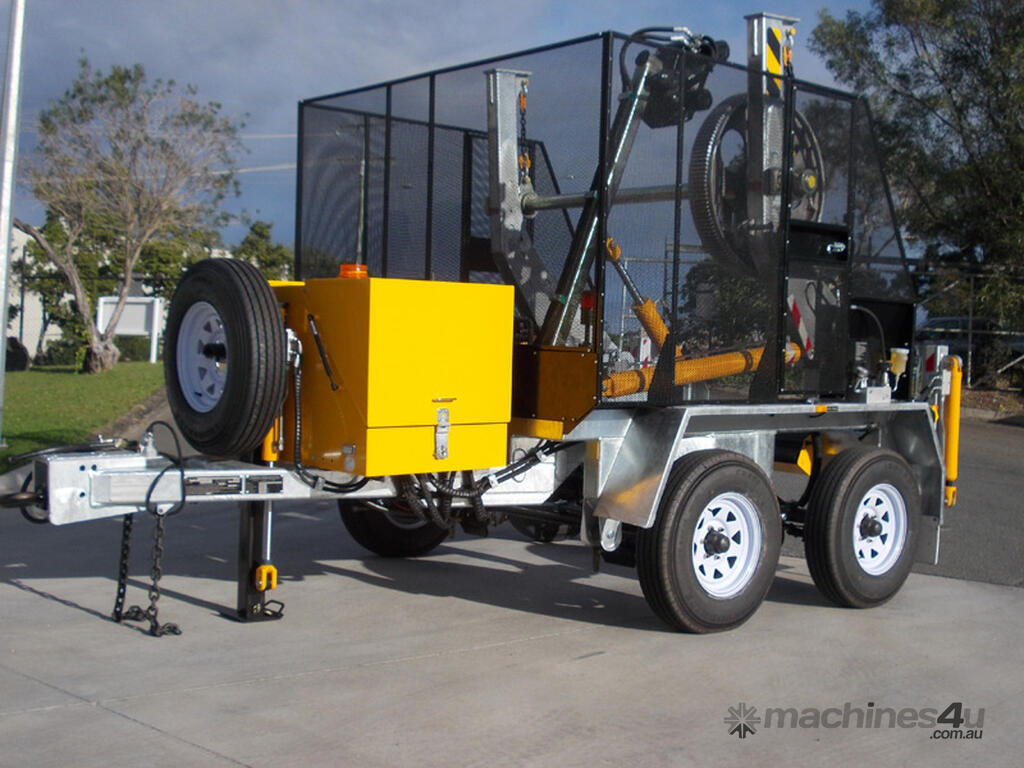

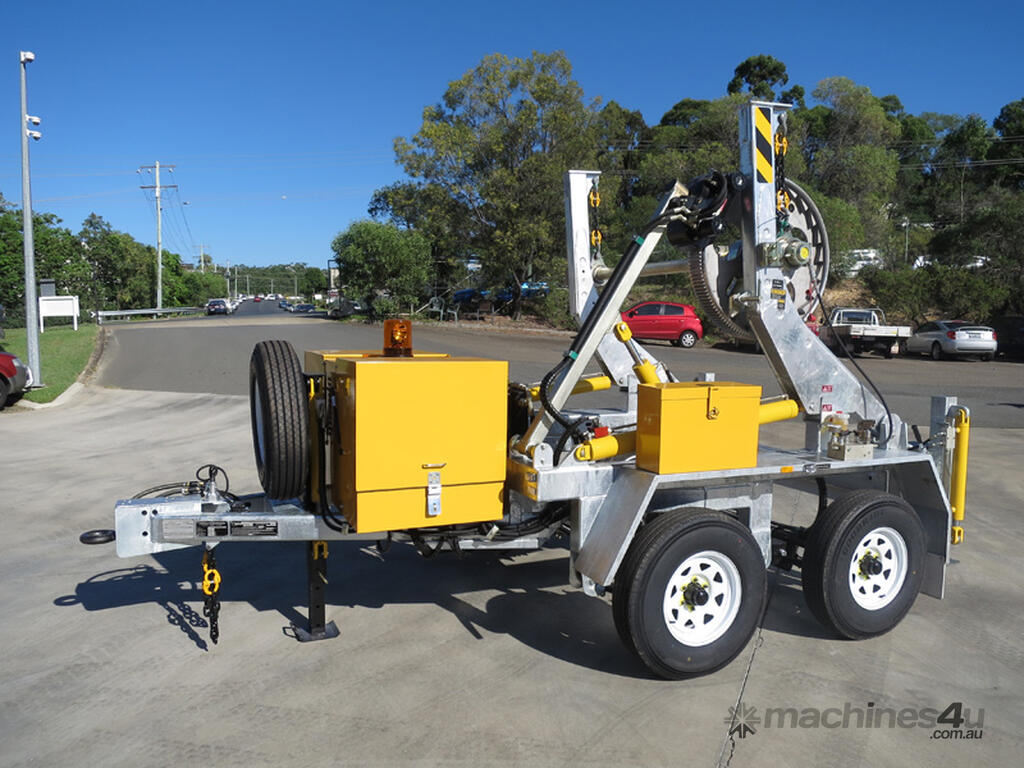

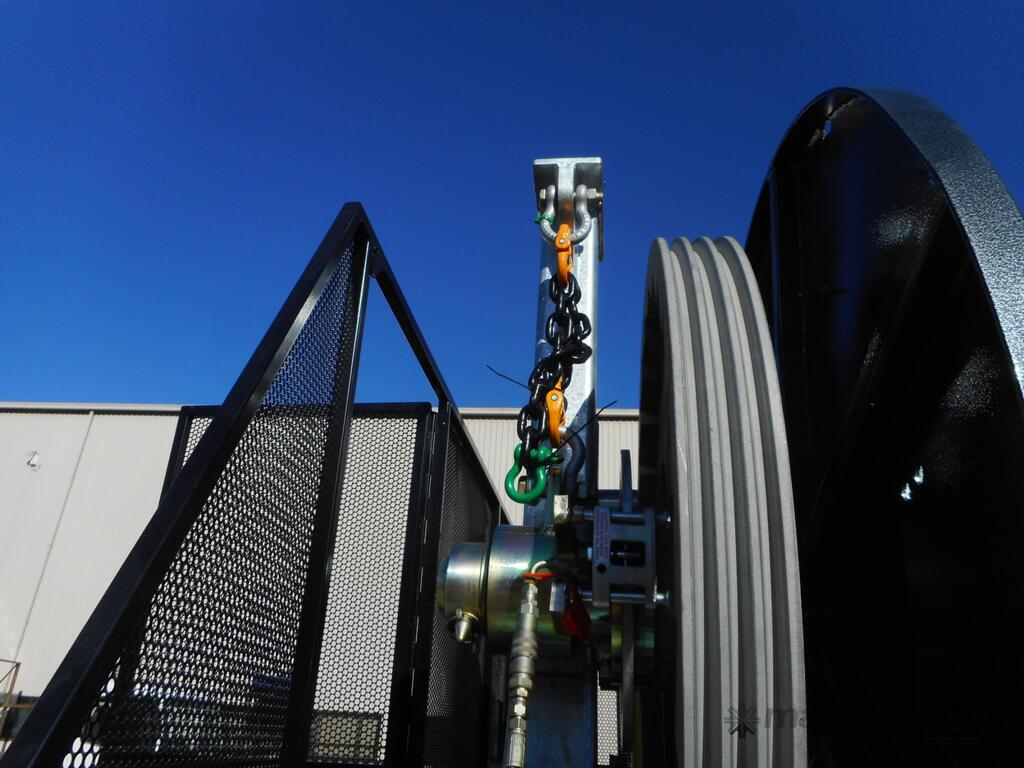

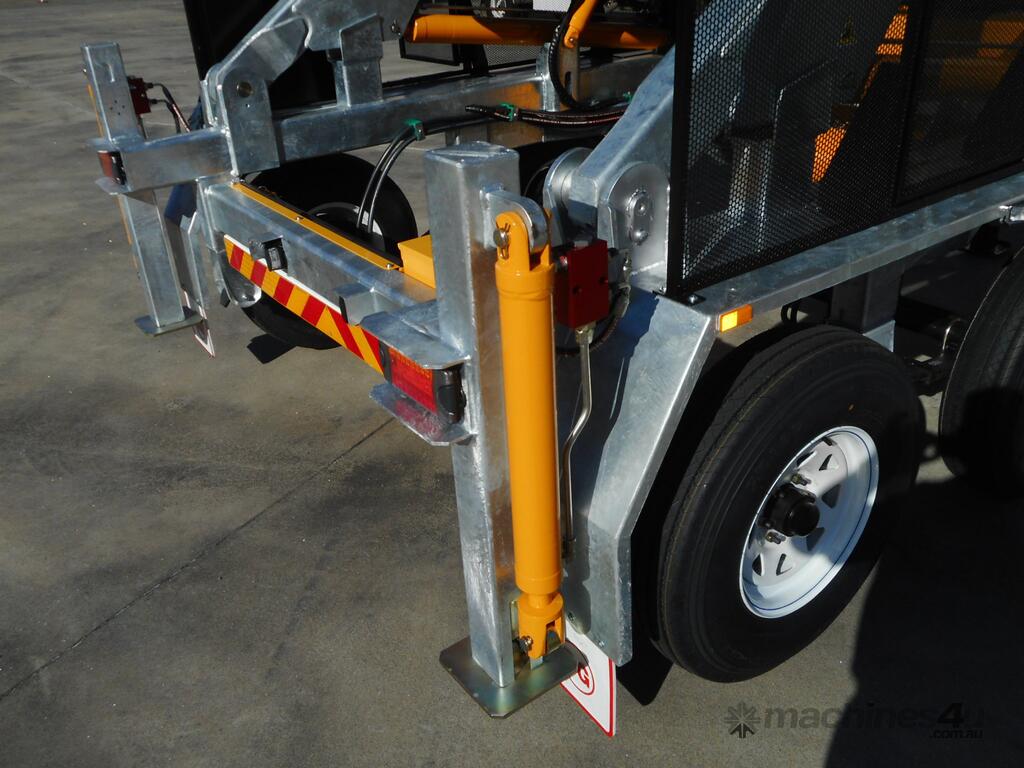

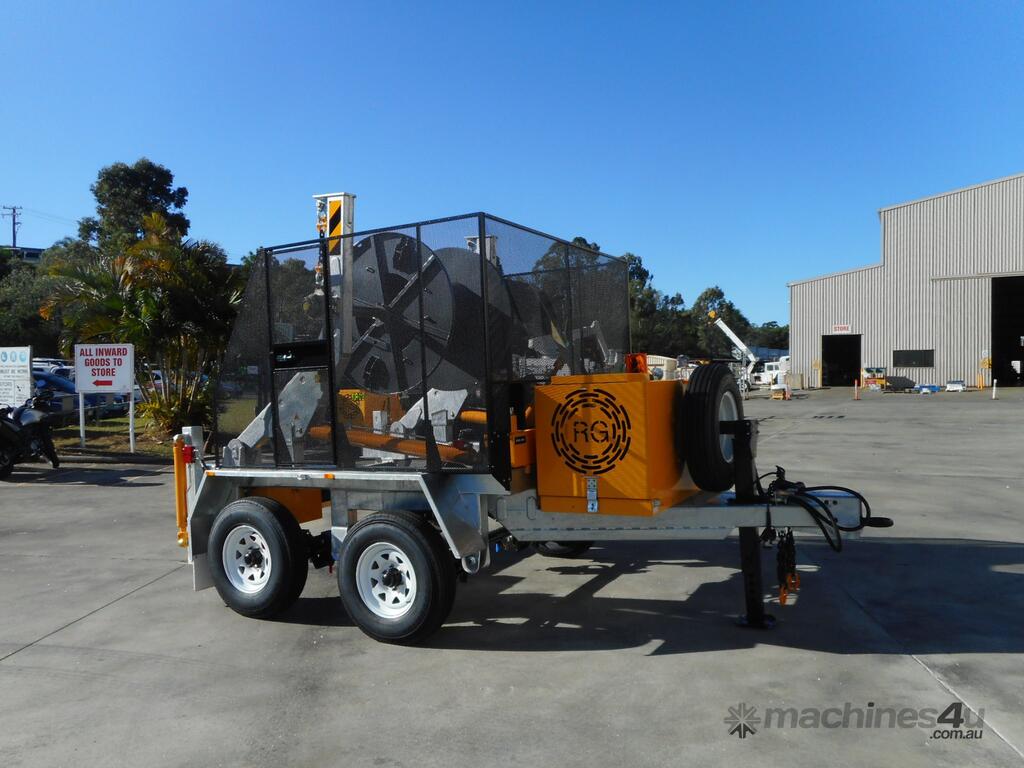

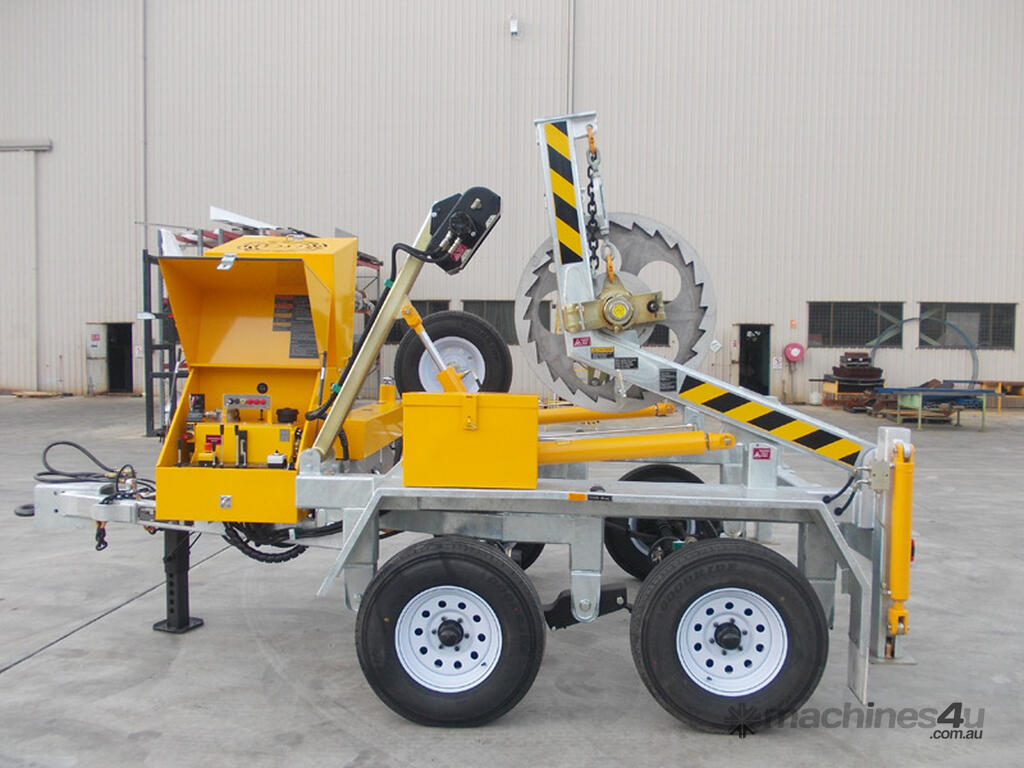

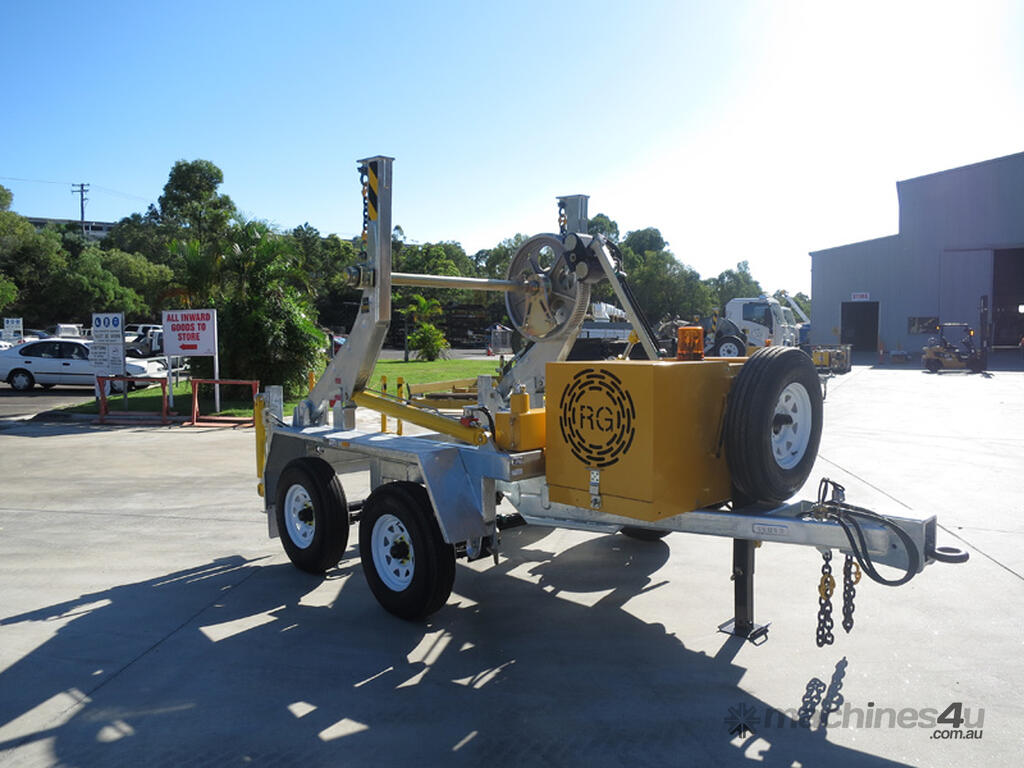

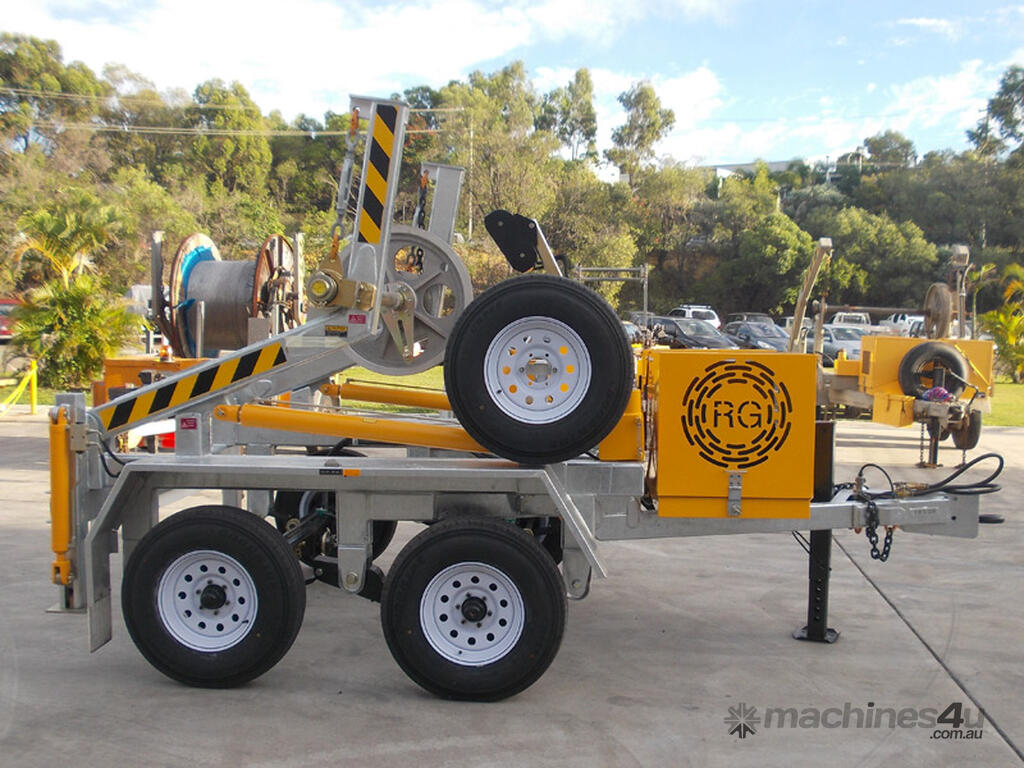

3.5 Tonne Self Loading Cable Trailer is a unique design which includes two independently controlled lift arms and chain link to the spindle bearing carriers. This makes it possible to pick up drums that are not aligned to the trailer or are on uneven surfaces. All Redmond Gary Self Loading Cable Trailers incorporate this design feature. All trailers are designed for one man operation. Due to the mechanised design of the trailer, which includes hydraulic jacklegs, hydraulic lift arms and drum rotators, trailers can be used for lifting drums, rotating drums, etc., all by one person. All trailer spindles are high tensile hollow section, making them light enough to be a single person lift.
Trailers are of rugged construction featuring hot dip galvanised frame and powder coated sheet metal components. All trailers are equipped with water cooled diesel engine and fully self contained power pack. Trailers are designed to comply with Australian Standards and Australian Design Rules. They can be registered in any state of Australia and New Zealand. A wide range of optional accessories are available.

Specification
Max Load Mass: 3.5 Tonne
Max Drum Diameter: 2600 mm
Max Drum Width: 1440 mm
Standard Spindle Diameter: 95 mm
Overall Length: 4600 mm
Overall Width: 2500 mm
Height Loaded: 3400 mm
Mass Unladen: 2000 kg
Standard Trailer Brake Type: "S" Cam to ADR 38
Engine: 10 kW
Transmission: Hydraulic


Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.


Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its representatives.

Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
