REDMOND GARY 30 Tonne Aircraft Jack Drum Stand

REDMOND GARY 30 Tonne Aircraft Jack Drum Stand

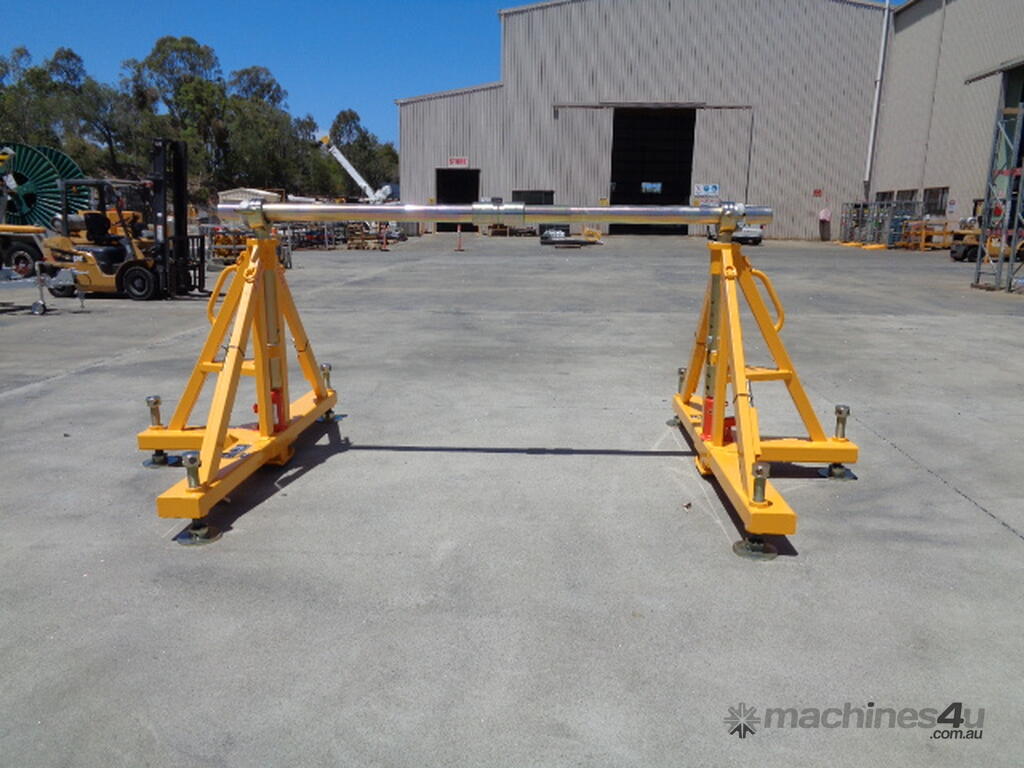

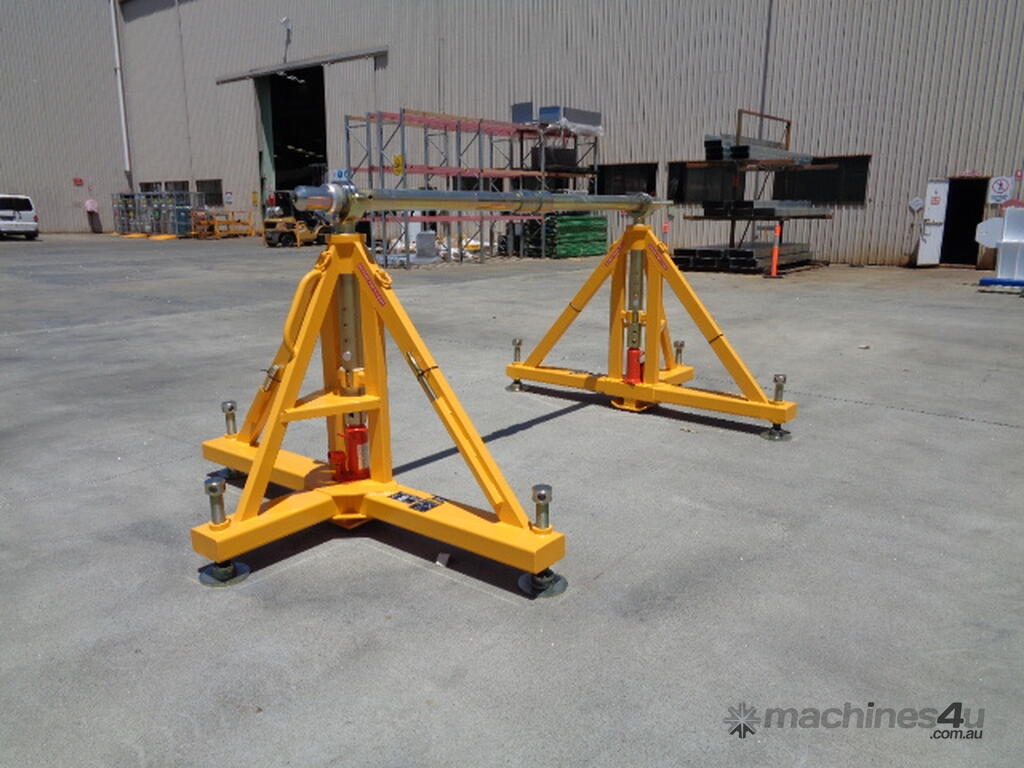

The special A-Frame design using aircraft jacks makes it possible to carry heavy drums of cable up to 30,000kg for assembly on-site. The system has two hydraulic stands - one placed either side of the drum and a special spindle consisting of stub axles either side tied together with a light-weight brace. Both stands are provided with three ball and socket feet which are height adjustable for easy setup. This frame is designed to be used on site where minimal drum handling equipment is available. Because both sides of the frame are completely independent, the drum width can be easily accommodated and drums up to 4000mm in diameter can be installed.

Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its' representatives.

Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
