REDMOND GARY 4 Tonne Adjustable Cable Drum Stand

REDMOND GARY 4 Tonne Adjustable Cable Drum Stand

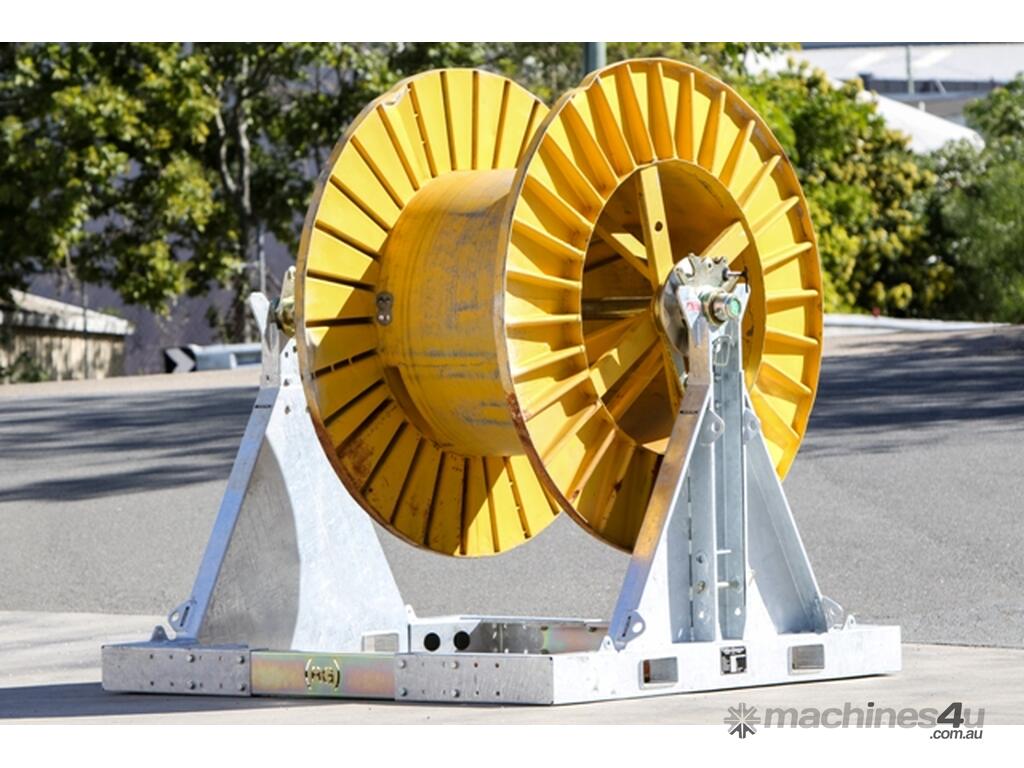

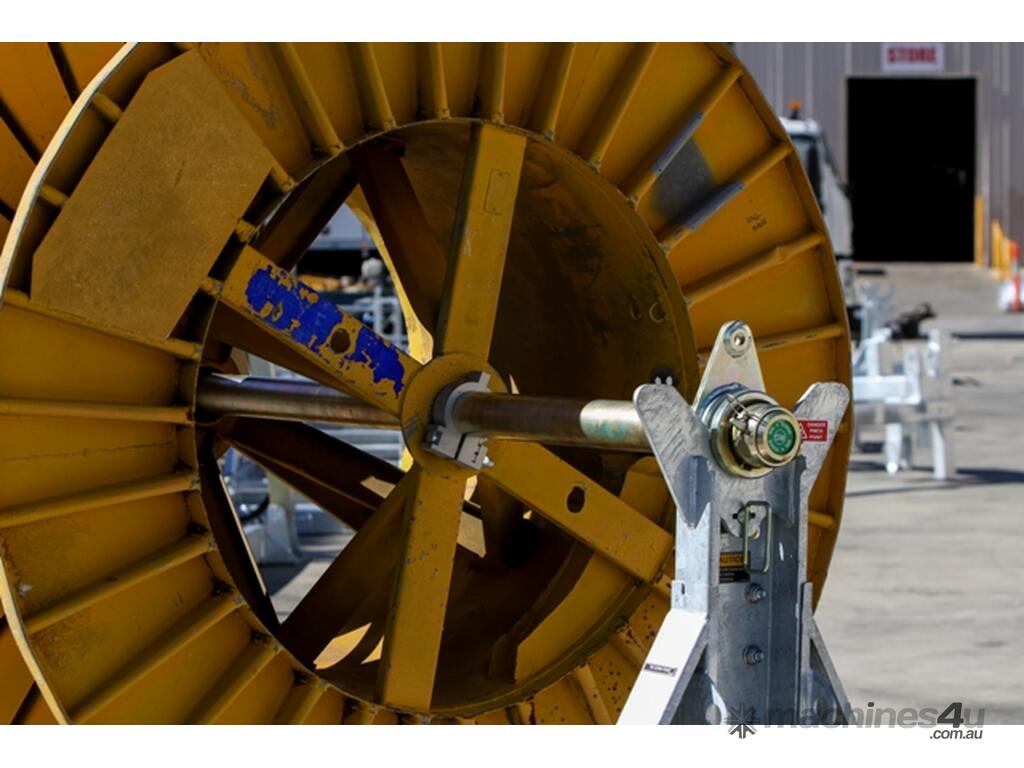

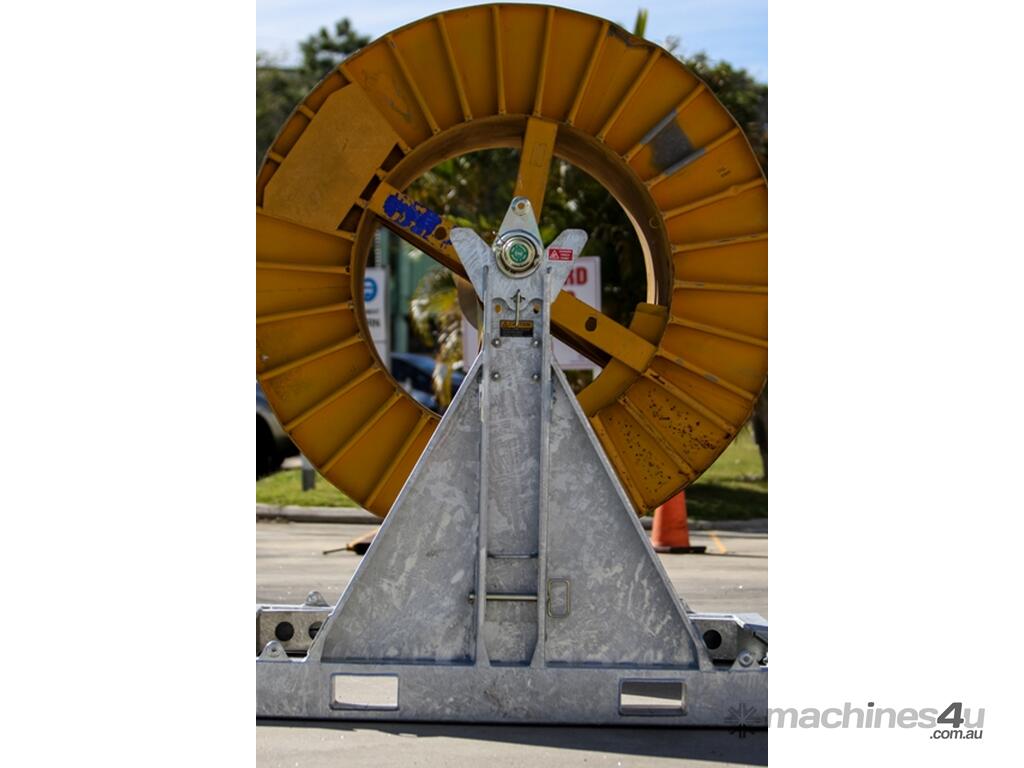

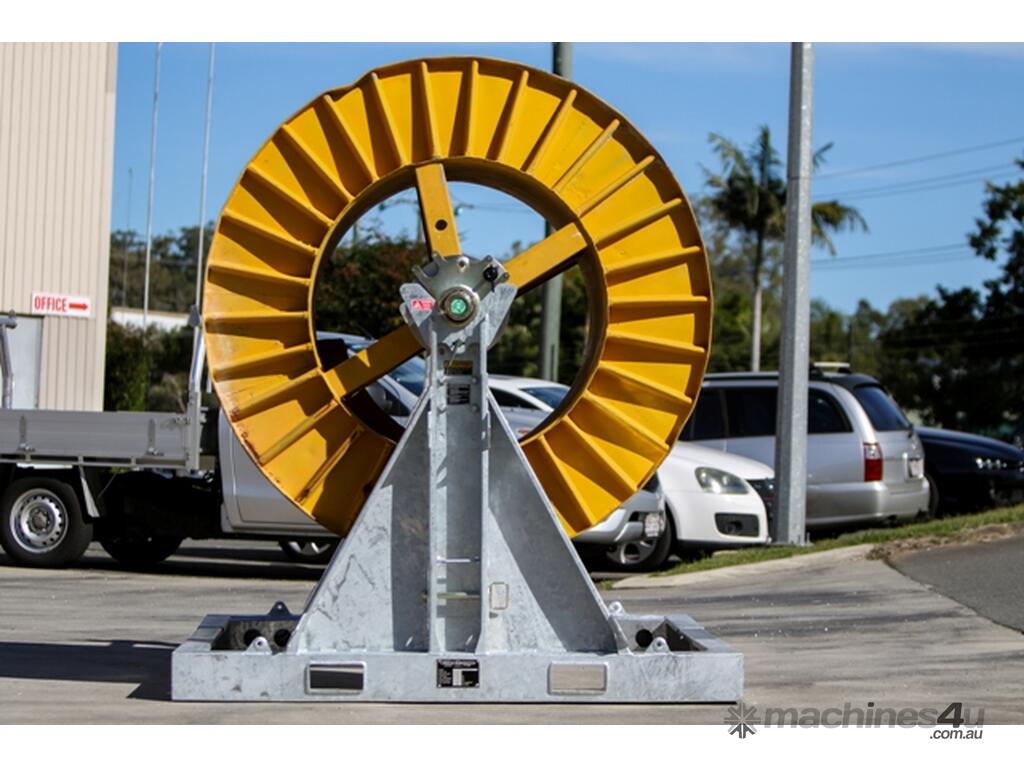

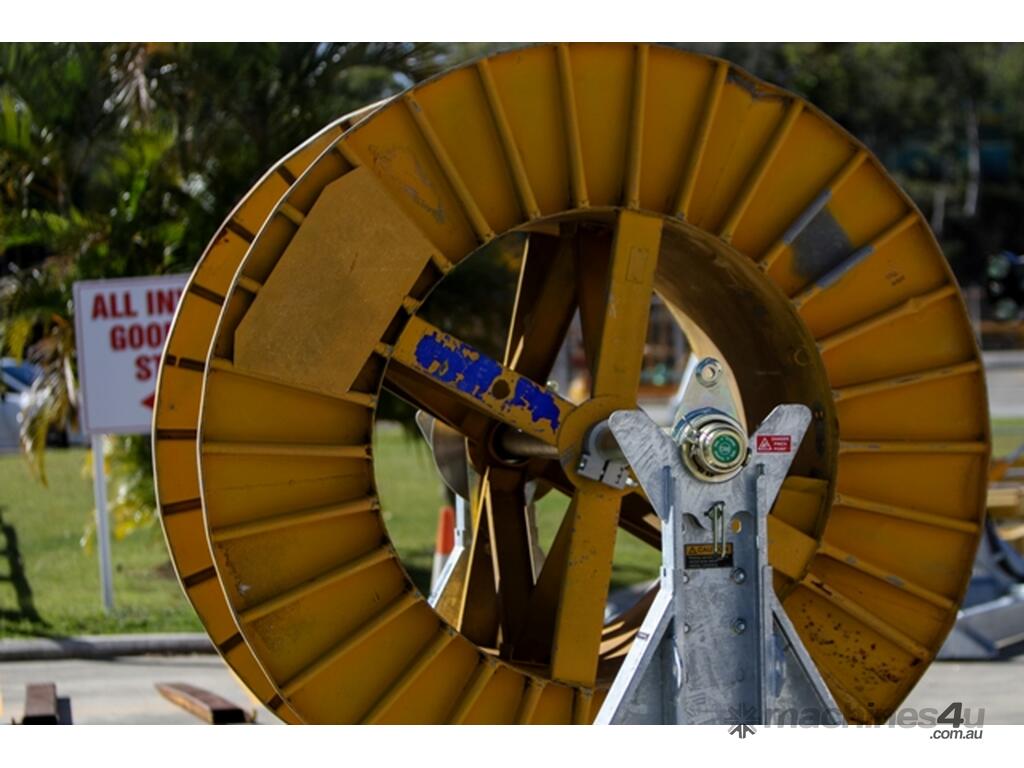

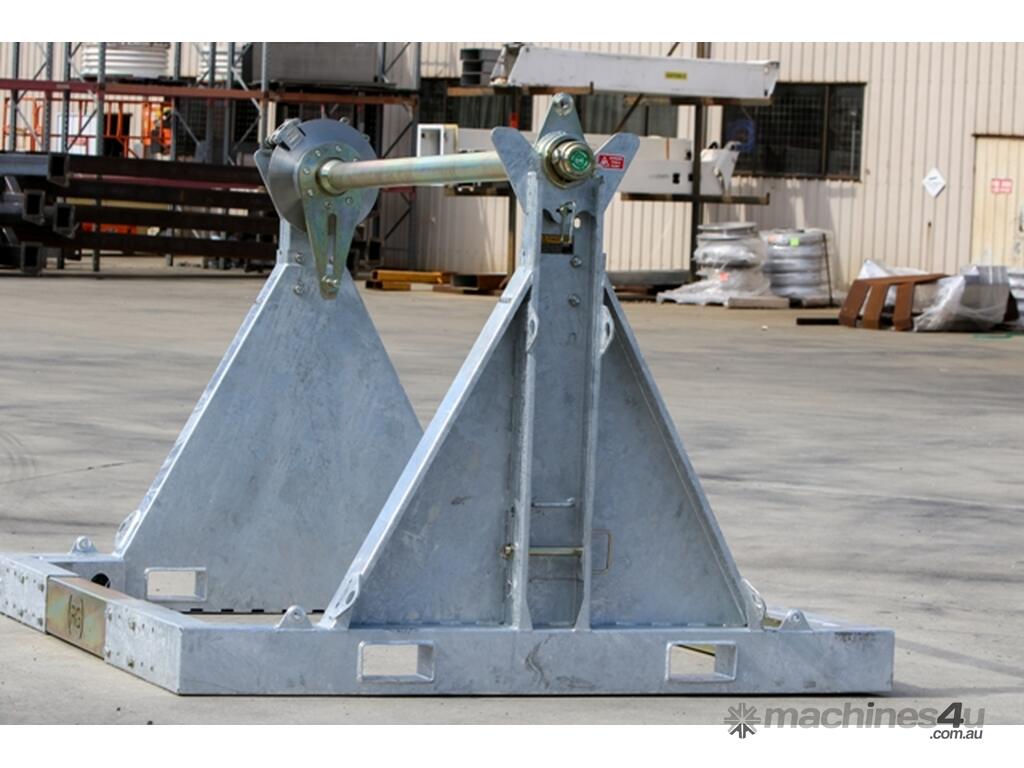

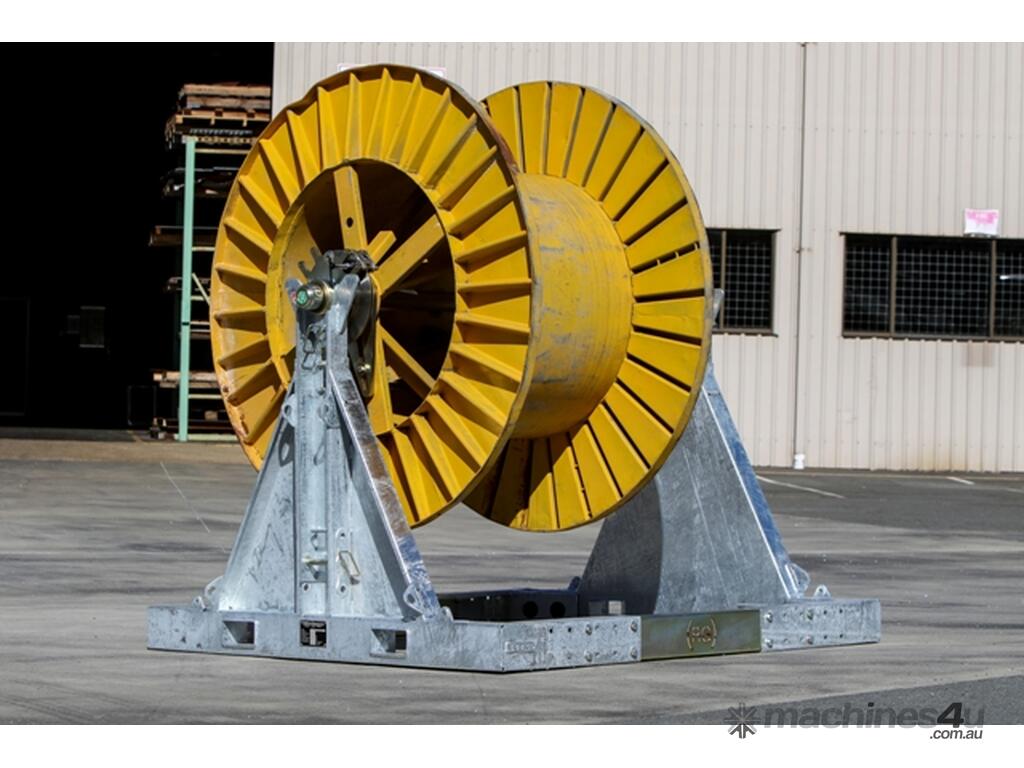

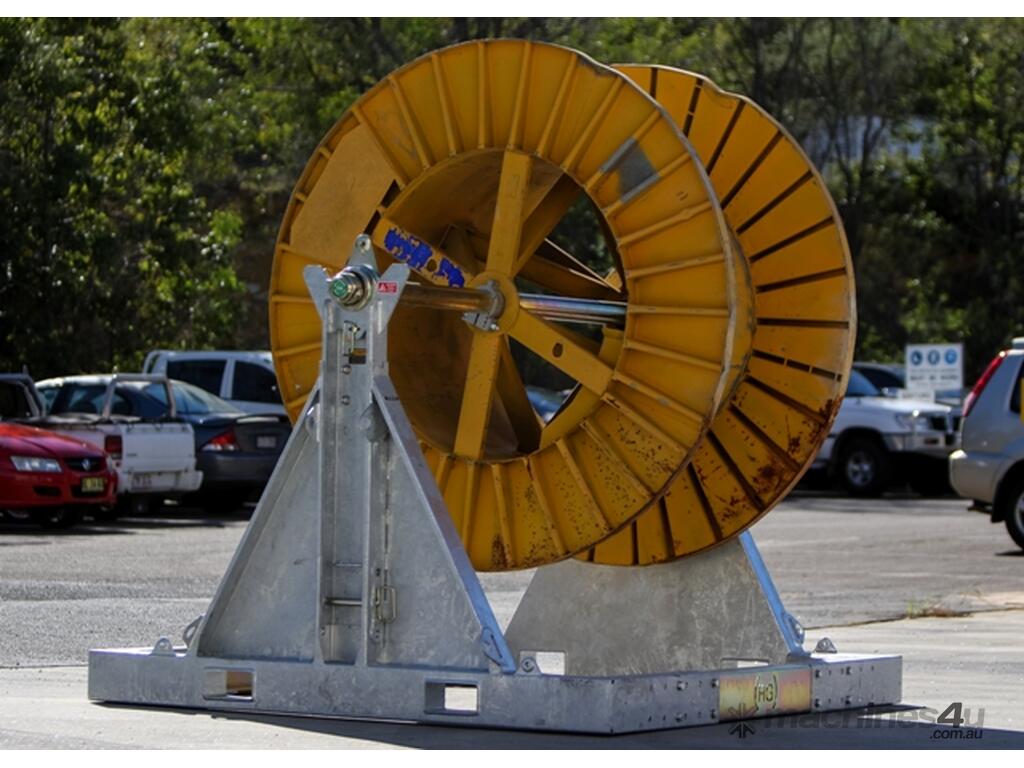

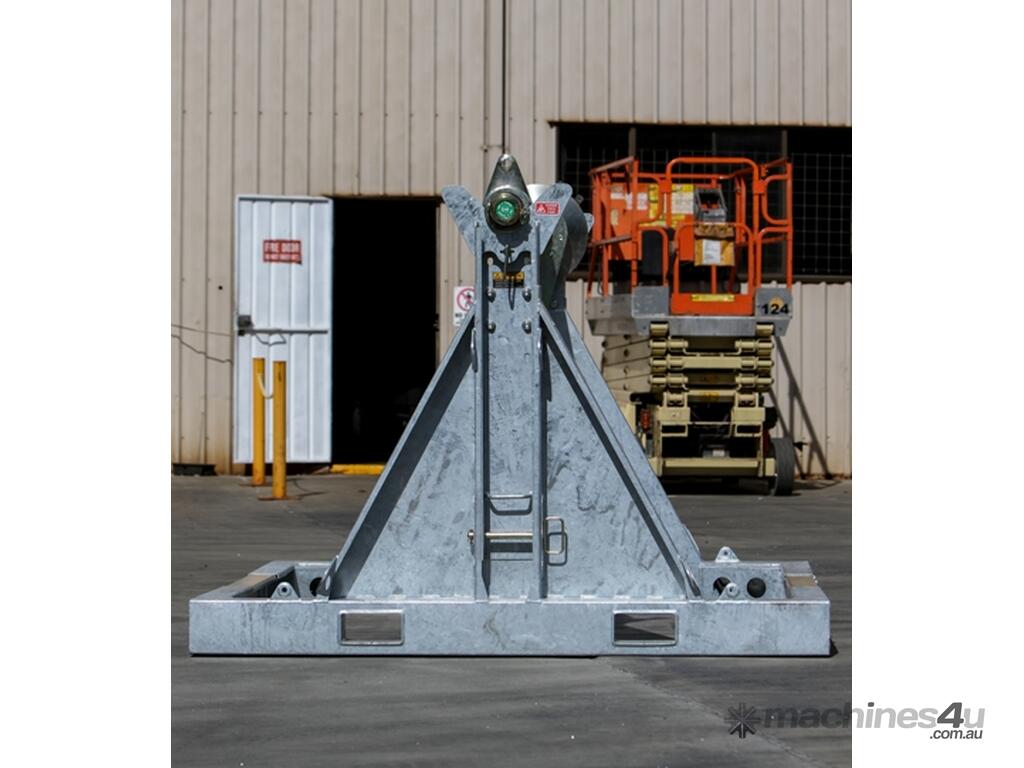

These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the back of a tray back truck. All spindle hardware is zinc plated and gold passivated, the hydraulic disc brake is manufactured from stainless steel. They are also provided with lifting lugs, one on each corner. In addition to this, there are lifting points provided on each end of the spindle assembly for lifting the drum and spindle out of the drum stand. The spindle is manufactured from special high tensile hollow section and can be lifted by one person. 4t adjustable skid mounted drum stand complete with a drag brake (payout capacity) of 200kg at 1000mm diameter.

Specification:

Maximum drum mass: 4000kg
Drum diameter range: 2400mm, 2600mm, 2800mm adjustable
Drum width range: 1350mm, 1550mm, 1750mm. Drum stand adjustable different length spindles must be supplied.
Spindle diameter: 82mm

Optional Accessories:

4kN drag brake
Hydraulic brake control
Link bolt kit for joining multiple drum stands together
