REDMOND GARY - 40kN (4-Tonne) Trailer-Mounted Recovery Winch

40kN (4-Tonne) Trailer-Mounted Recovery Winch

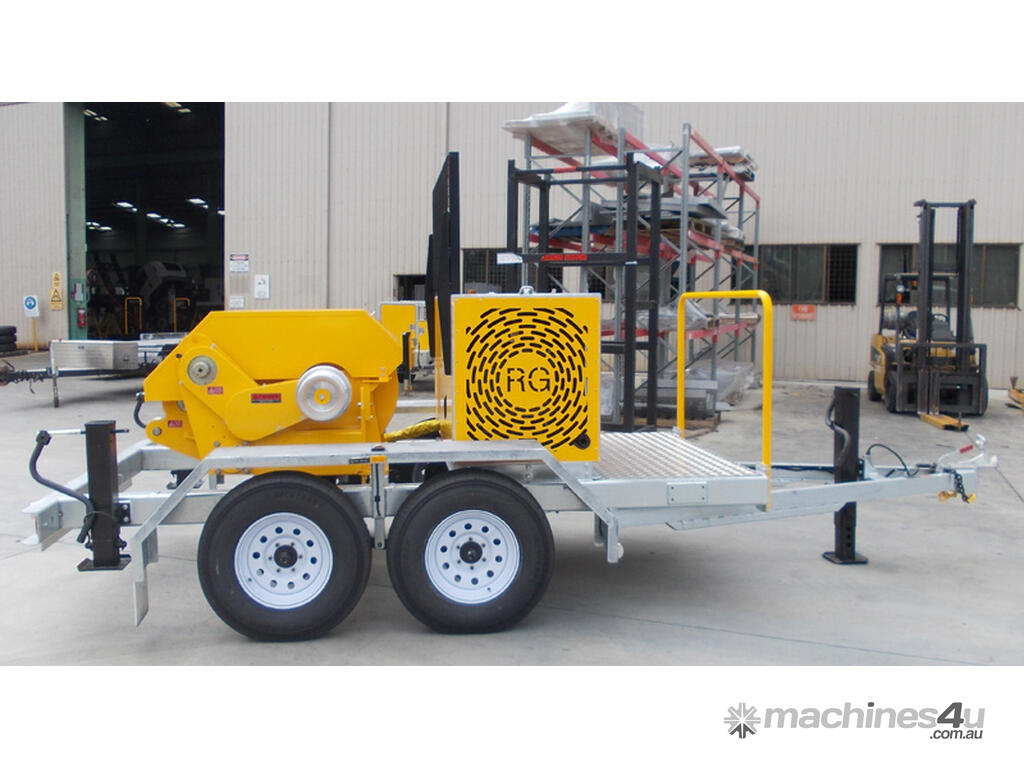

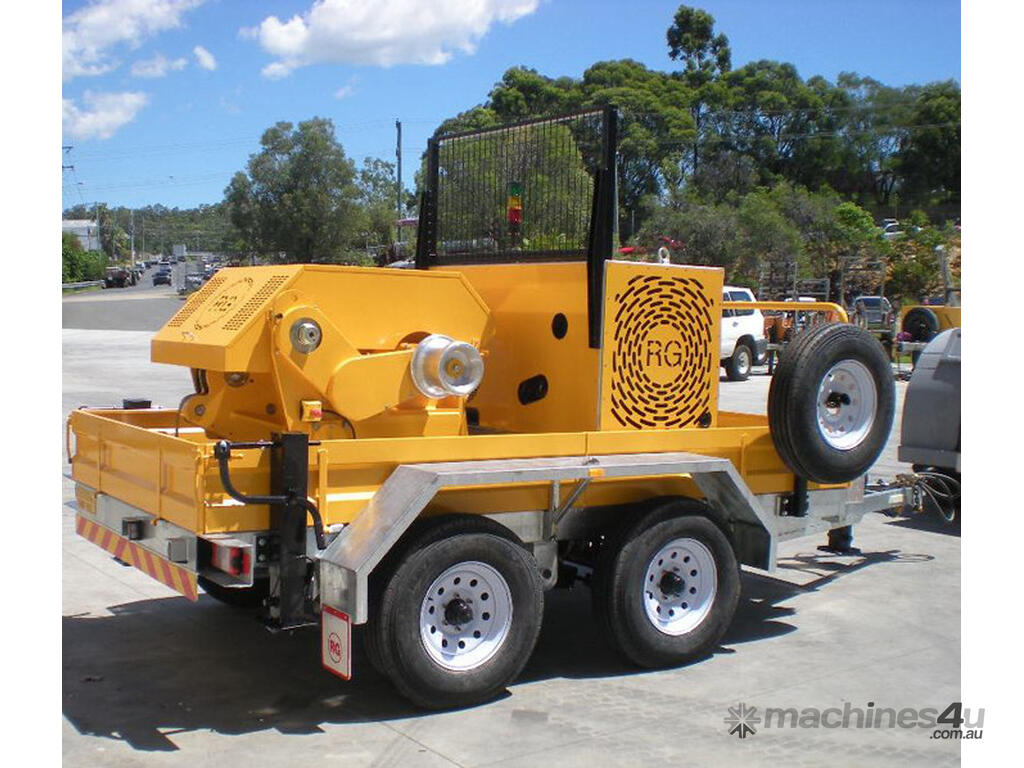

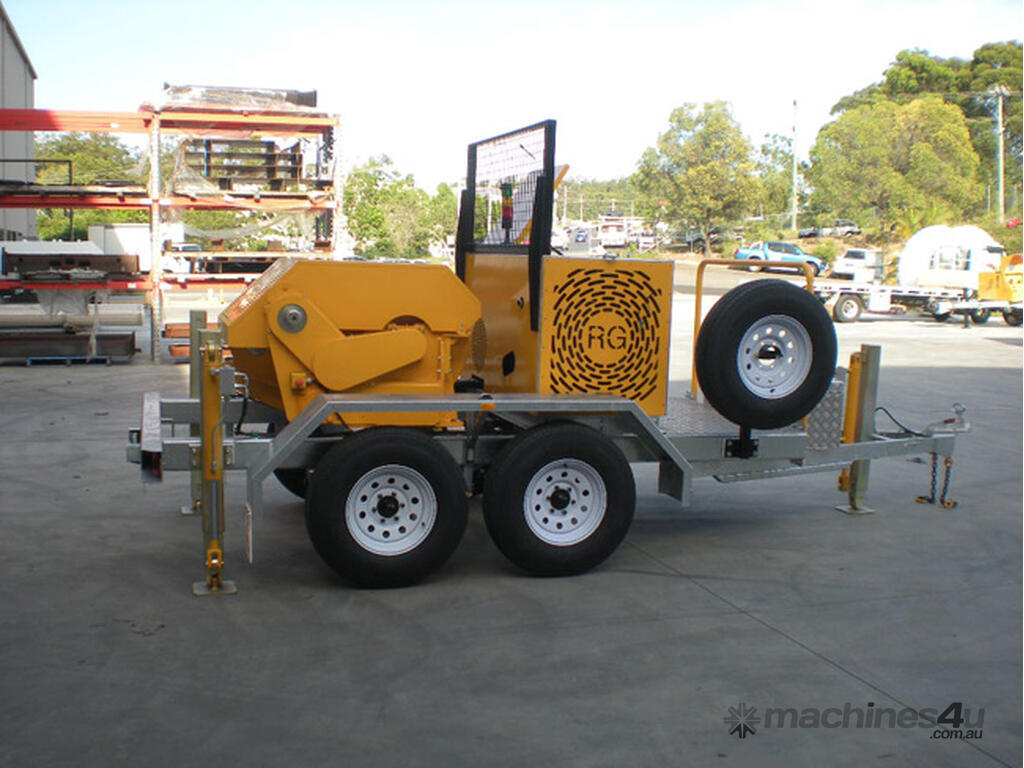

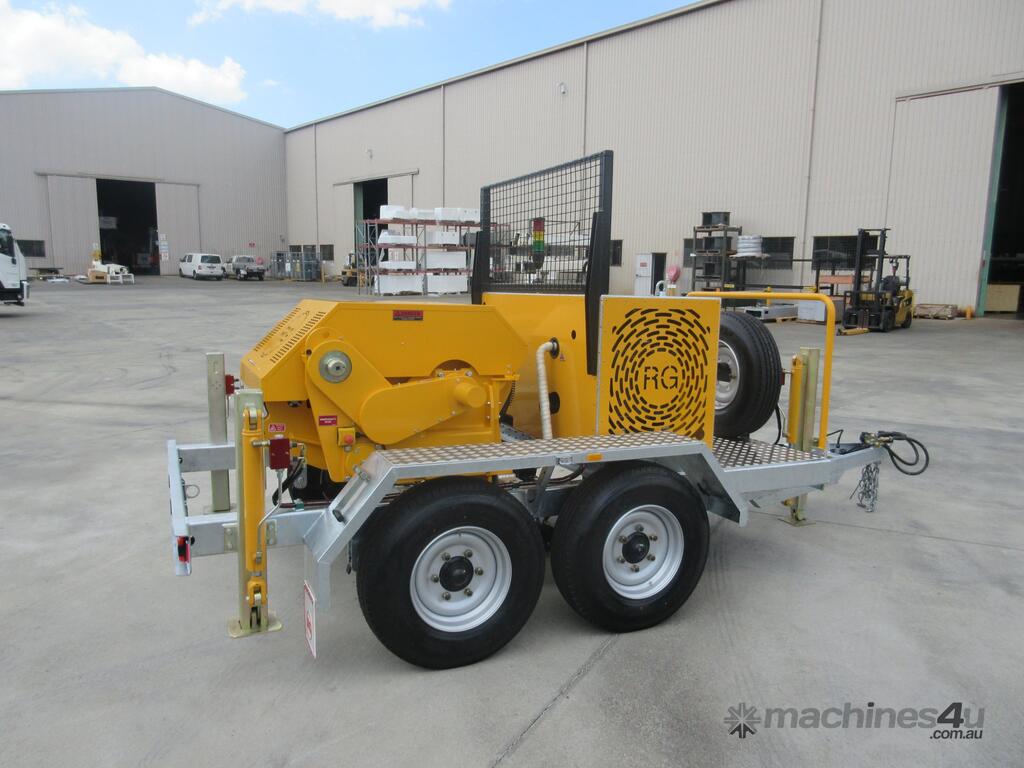

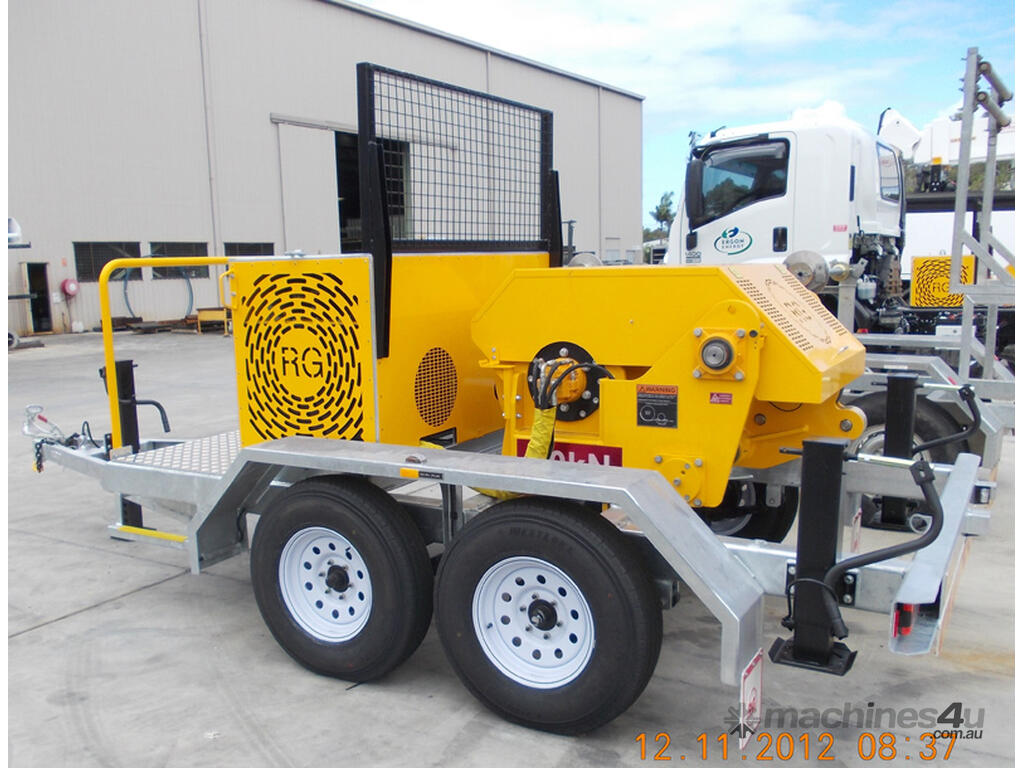

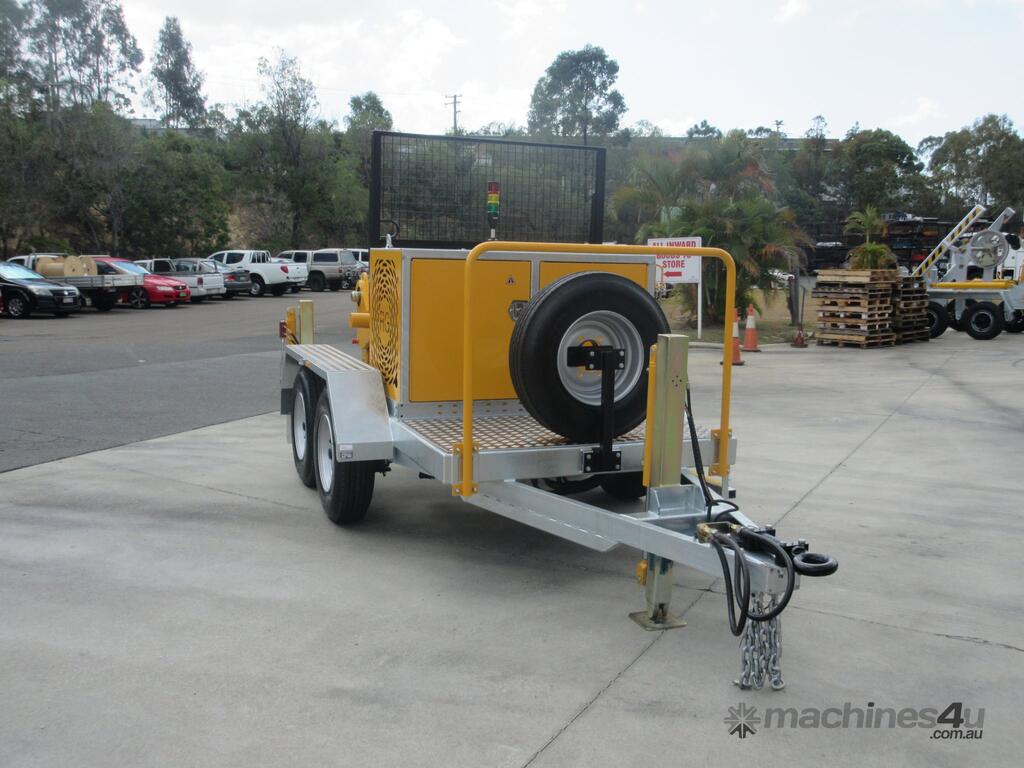

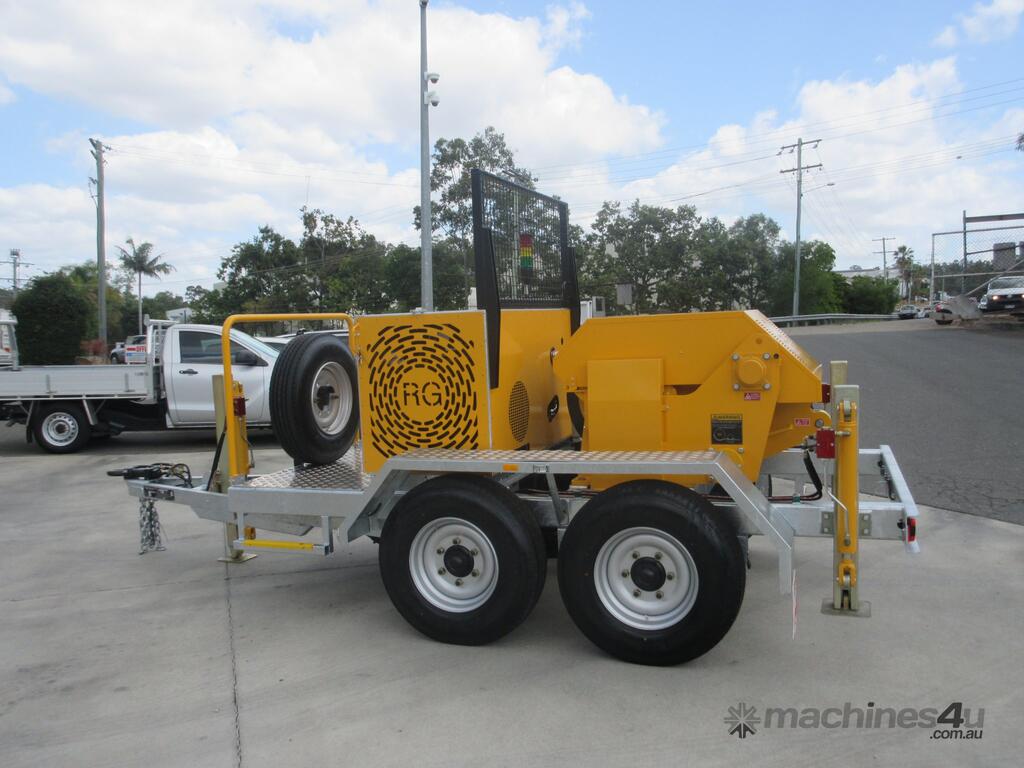

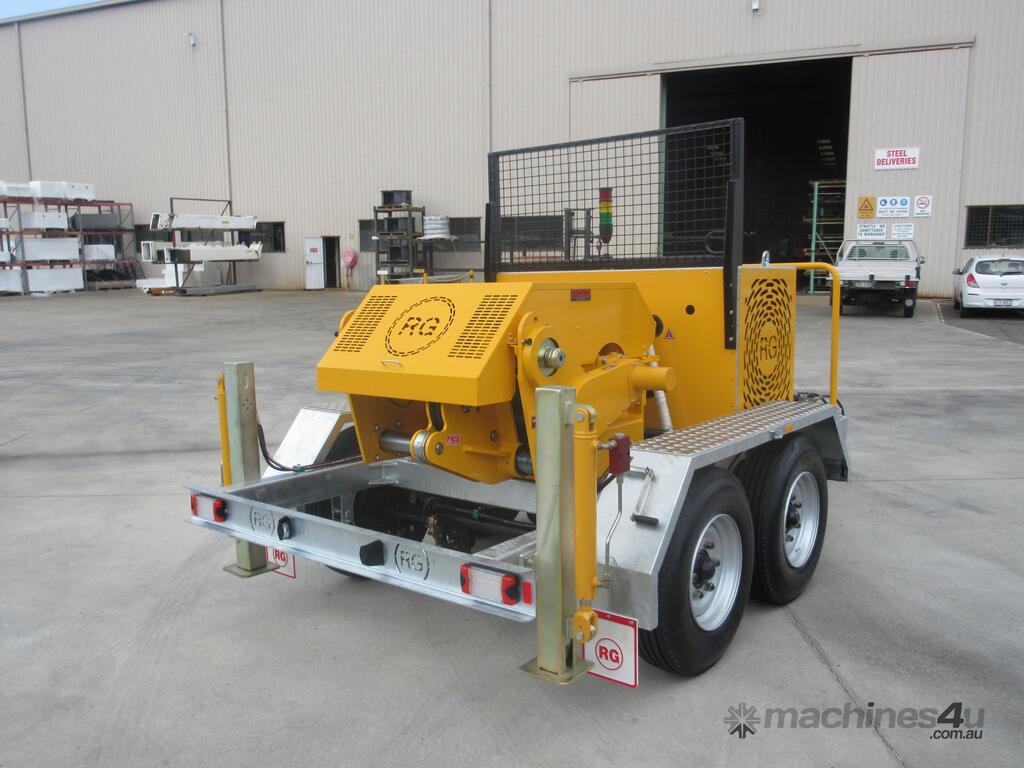

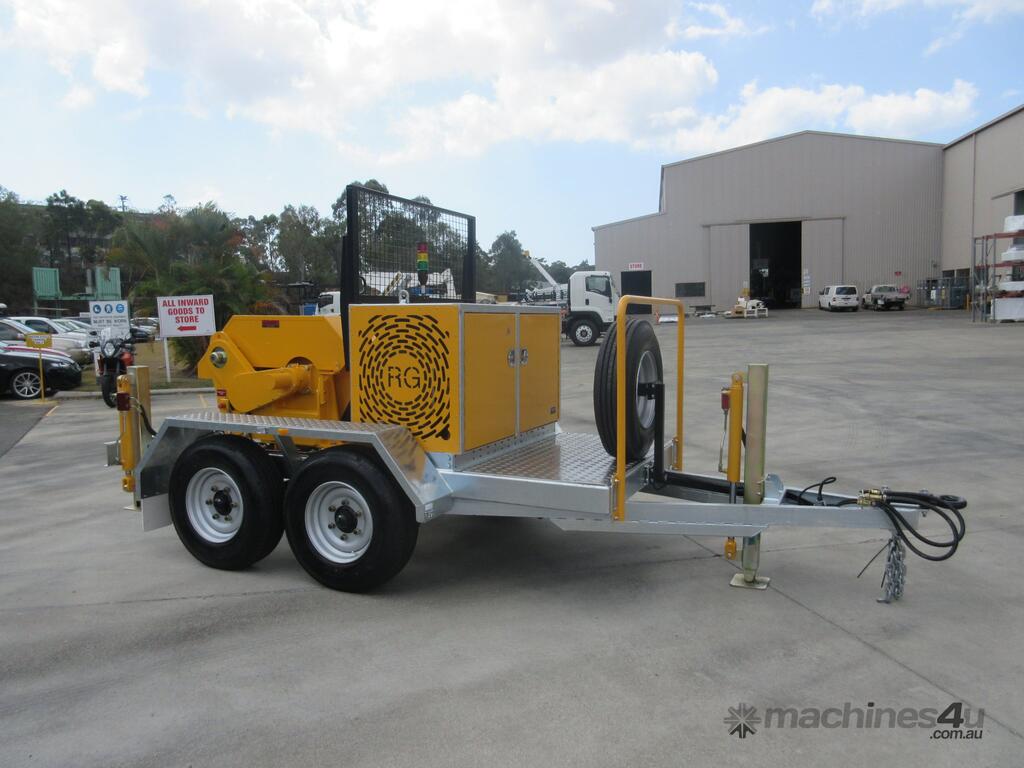

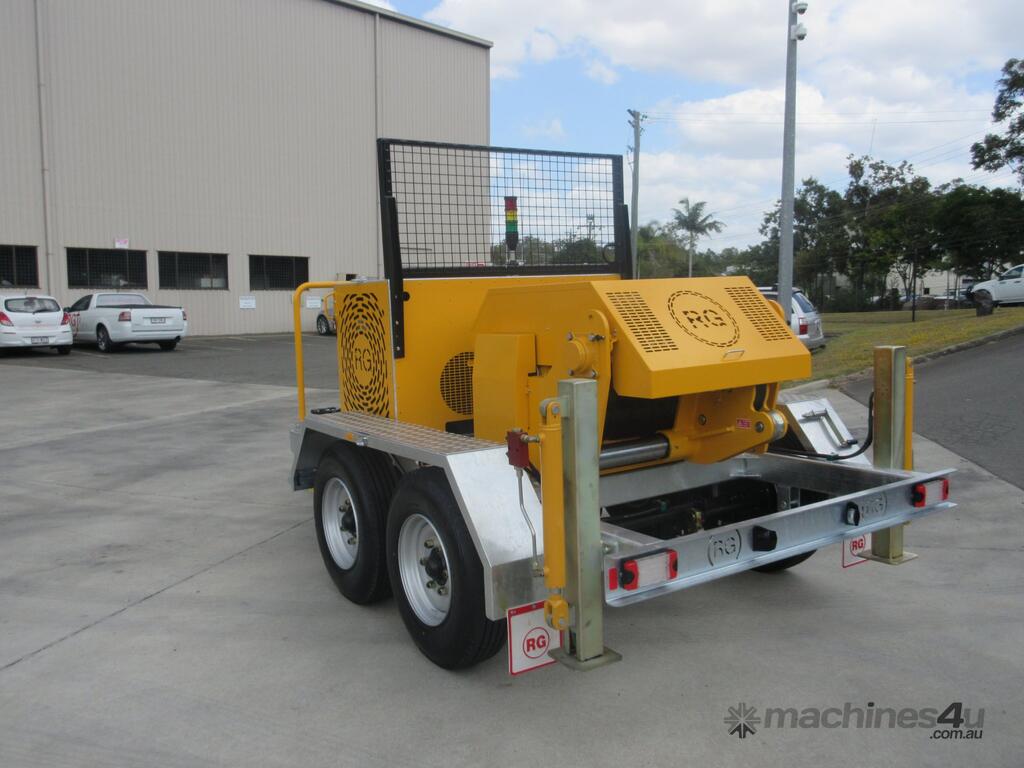

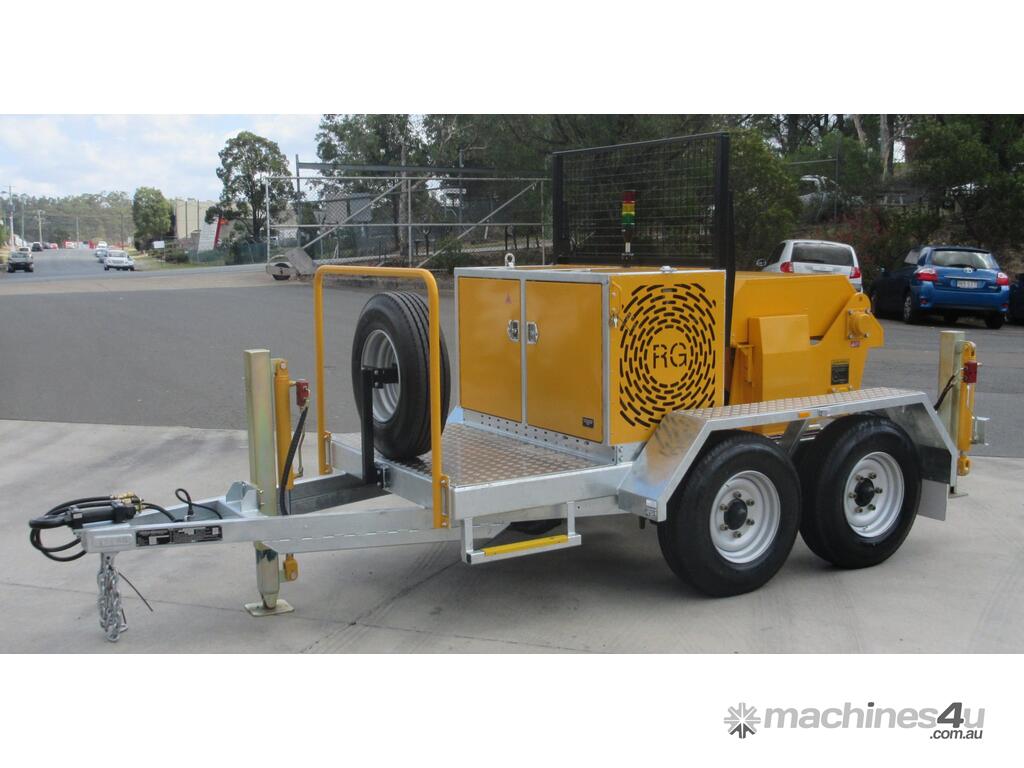

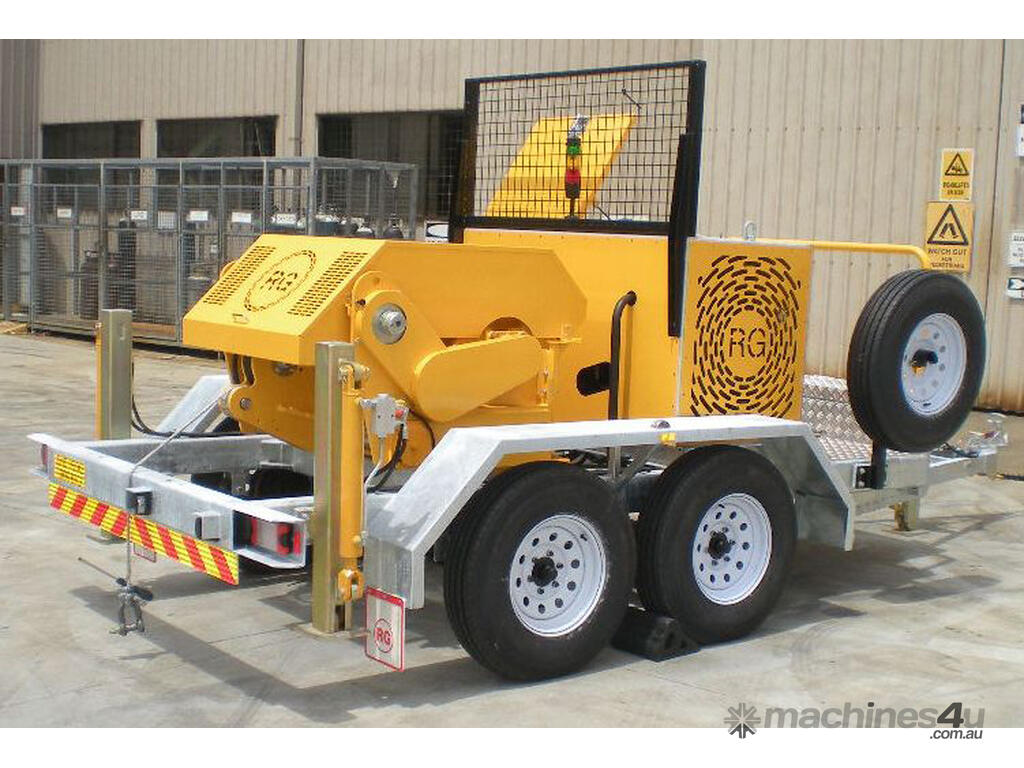

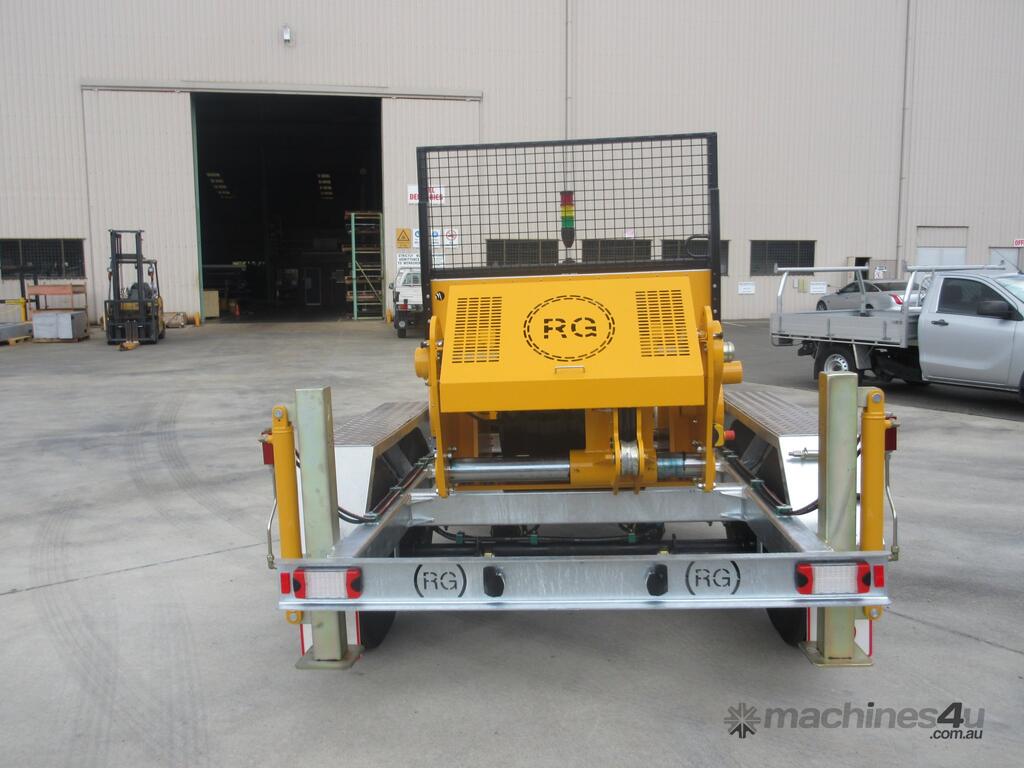

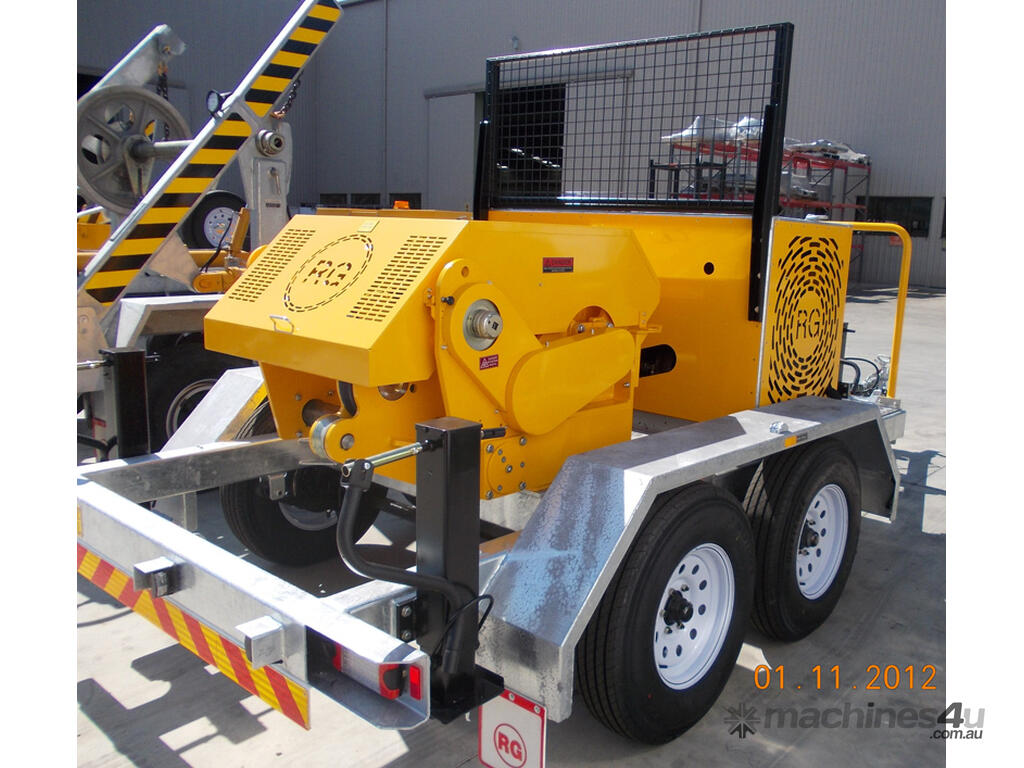

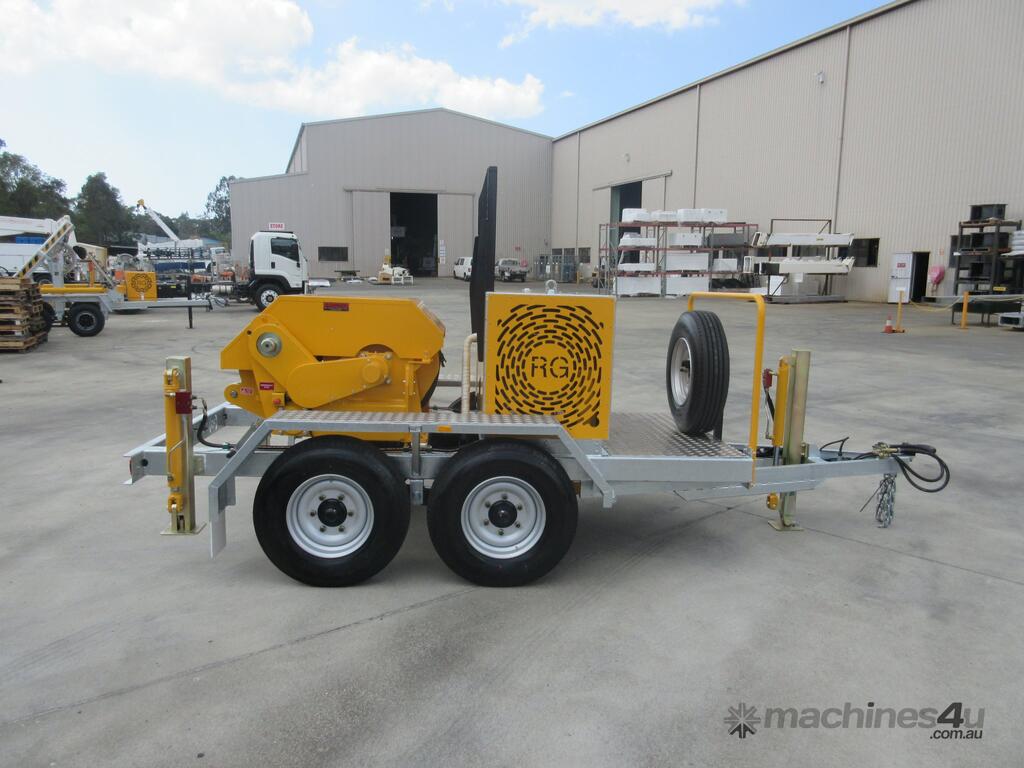

This trailer-mounted 40kN trailer-mounted recovery winch can be used for a variety of applications. The winch is mounted onto a sturdy hot dip galvanized trailer utilizing Landcruiser wheels. The trailer is provided with an operator's platform incorporating safety guard that gives the operator excellent visibility of the winch operations from the control console.

Specifications
Trailer Frame
Overall Length 5525 mm
Overall Width 2230 mm
Overall Height
2410 mm
Aggregate Trailer Mass (ATM)
3150 kg
Finish Hot Dip Galvanised
Front Stabiliser Manual – Wind down
Rear Stabilisers (Two) Manual – Wind down
Tow Coupling 75 mm Tow Coupling Part No. C02TE120
Axle ADR approved dual axle with electric brakes
Tyres 7.5 x 16 tyres (Land cruiser)
Controls Operational controls positioned behind protective guard
Engine Water cooled Diesel 17.5kW
Fuel Tank 32 lt
Hydraulic Oil Reservoir 58 litres with 12 Volt oil cooler
Start Electric
Transmission Hydraulic
Toolbox Option on A-Frame
Winch
Tension (Pull) 40kN (4000kg) constant at low speed
Line Speed 2-Speed auto change via motor
- High speed full drum 24 m/min – 20kN (2000kg)
- Low Speed full drum 12m/min - 40kN (4000kg)
Rope 16mm 500 metres
Rope Not included.

Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its' representatives.

Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
