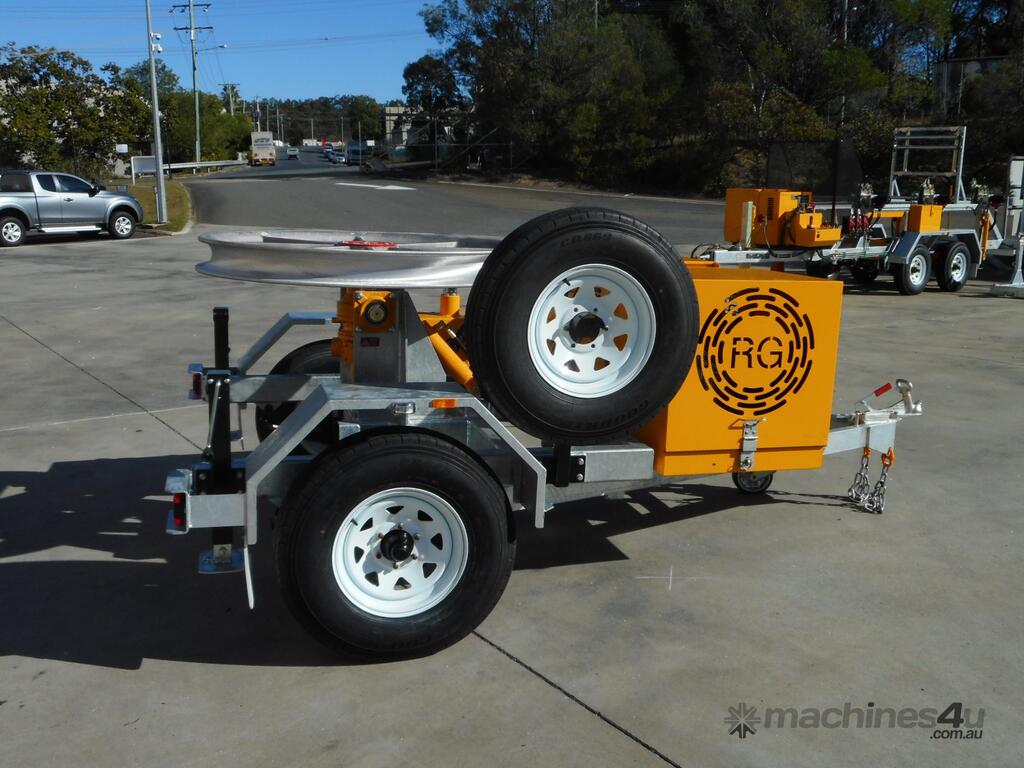

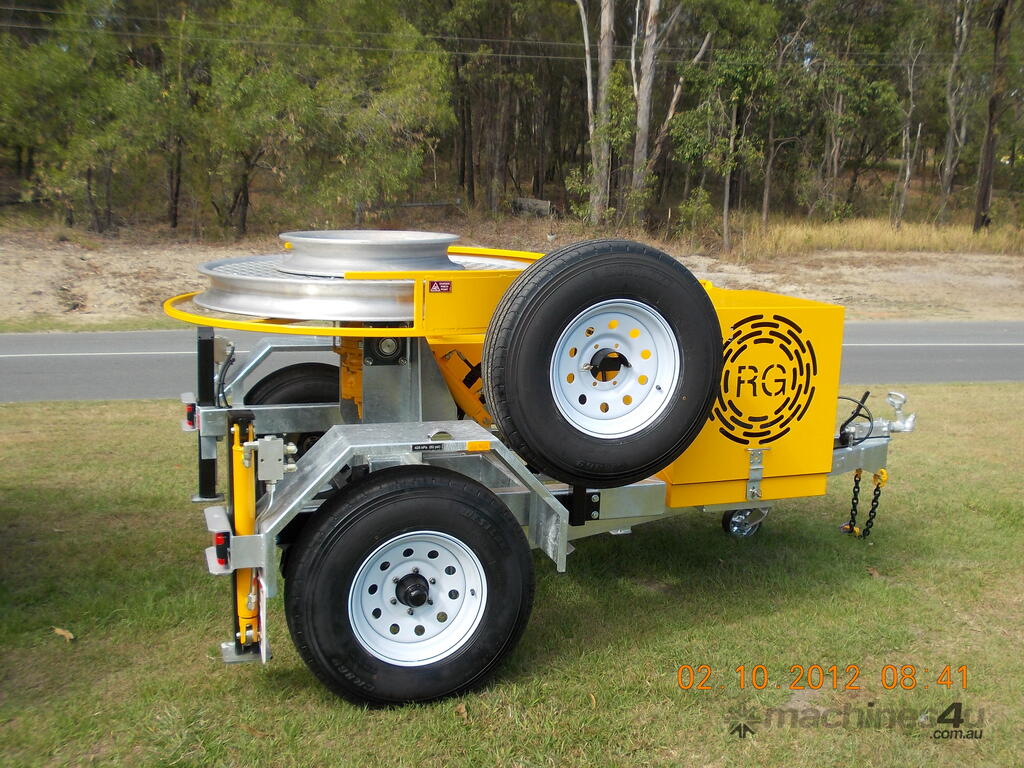

5kN FIBRE OPTIC CAPSTAN WINCH TRAILER
Winch Trailer frame finished in hot dip galvanising.
Engine cabinet manufactured from 1.6mm zinc anneal sheeting finished with powder coating - all seams and edges sandblasted, primed prior to powder coating.
Final coat finish - Powder Coating and 2 pack enamel (Interpon, Safety Yellow

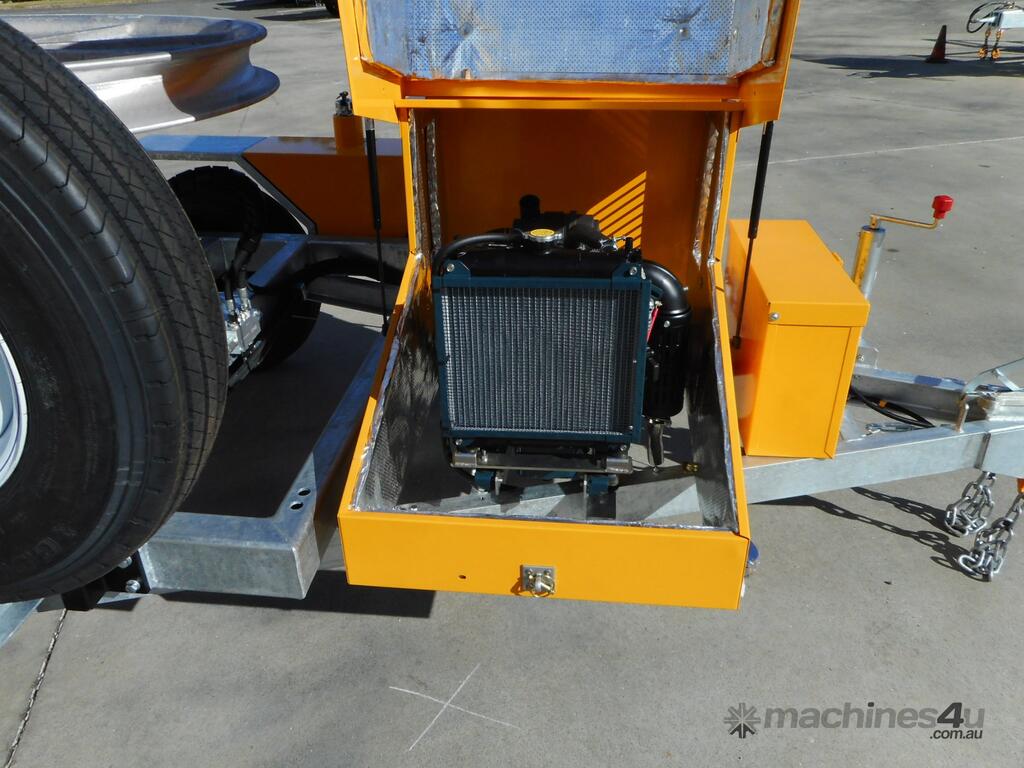

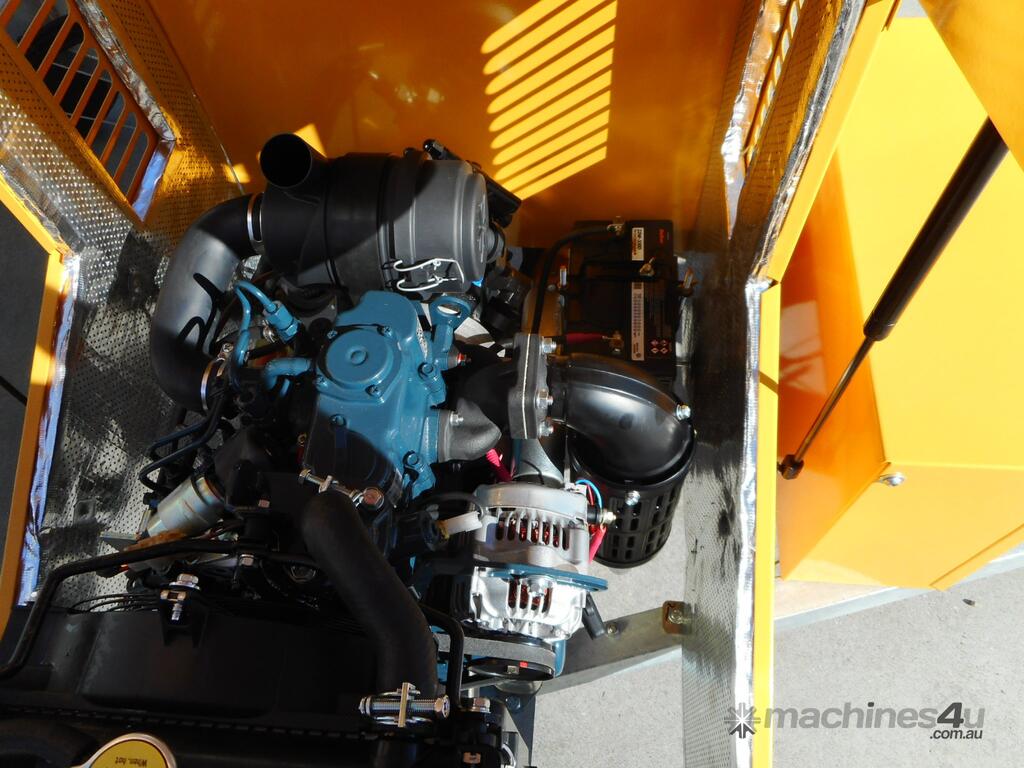

Water cooled Diesel Engine, Kubota - [or optional Honda Petrol Engine].
30 litre Diesel fuel tank.
Tow Coupling - Ring Type 75mm Swivel.
Tow Eye Height 575mm.
10mm Trailer Safety Chain, suit Shackles or Bartlett attachments on towbar.

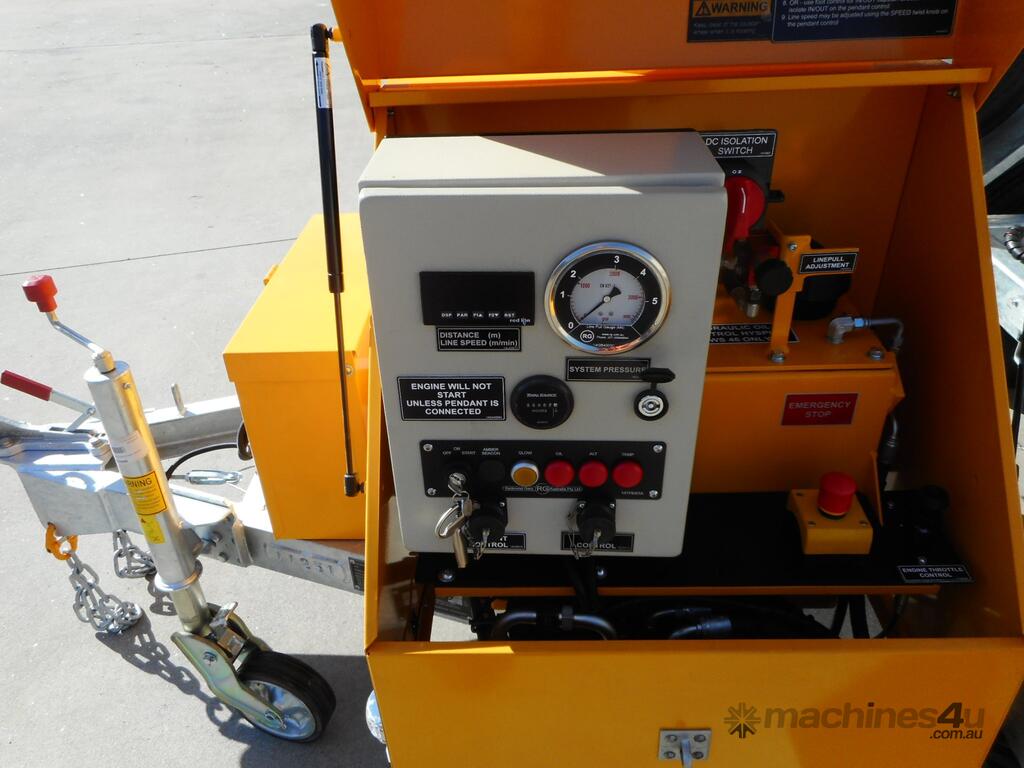

Pendant controls with 6m umbilical cable are located on kerb side of the trailer.
Foot pedal control on 6m of umbilical cable. Controls capstan forward and reverse.
Safety and Operational signage.
LED Lights.
Landcruiser Radial Rims, with 7.5 x 16 tyres.
Mechanical Override brakes.
Heavy duty lockable tool box.
Mechanical Jack Legs (Front and Rear).
Hour Meter.
Battery Isolation Switch.
One(1) set of Operation Manuals.
