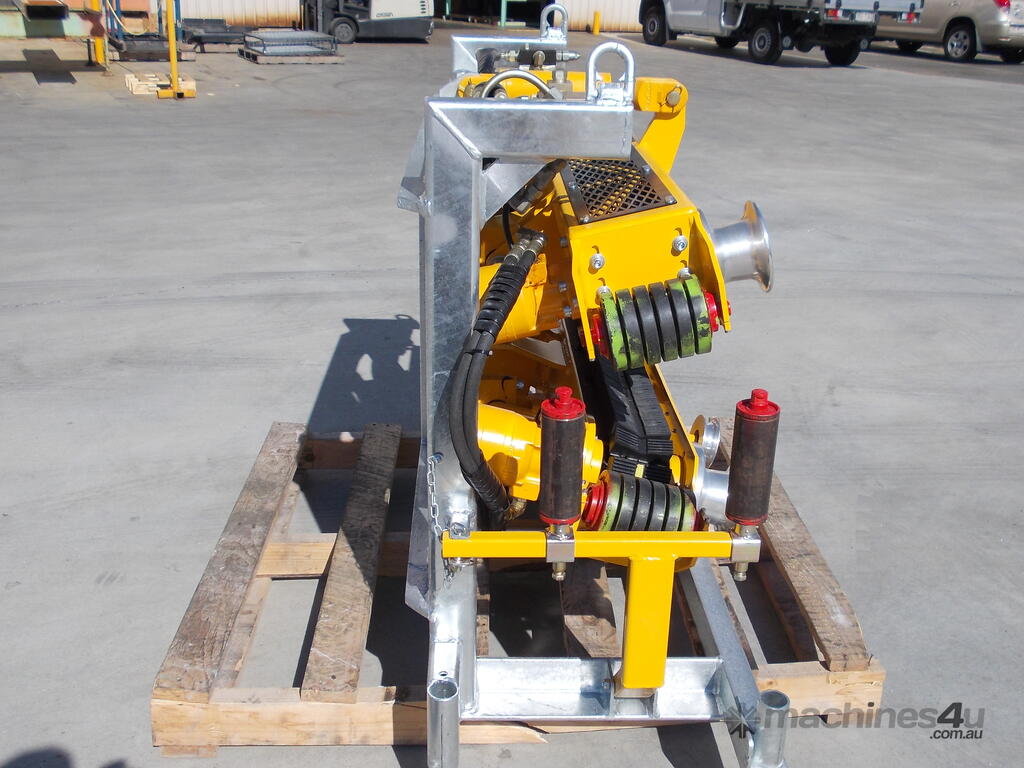

REDMOND GARY Cable Pusher - 20kN Side Mount

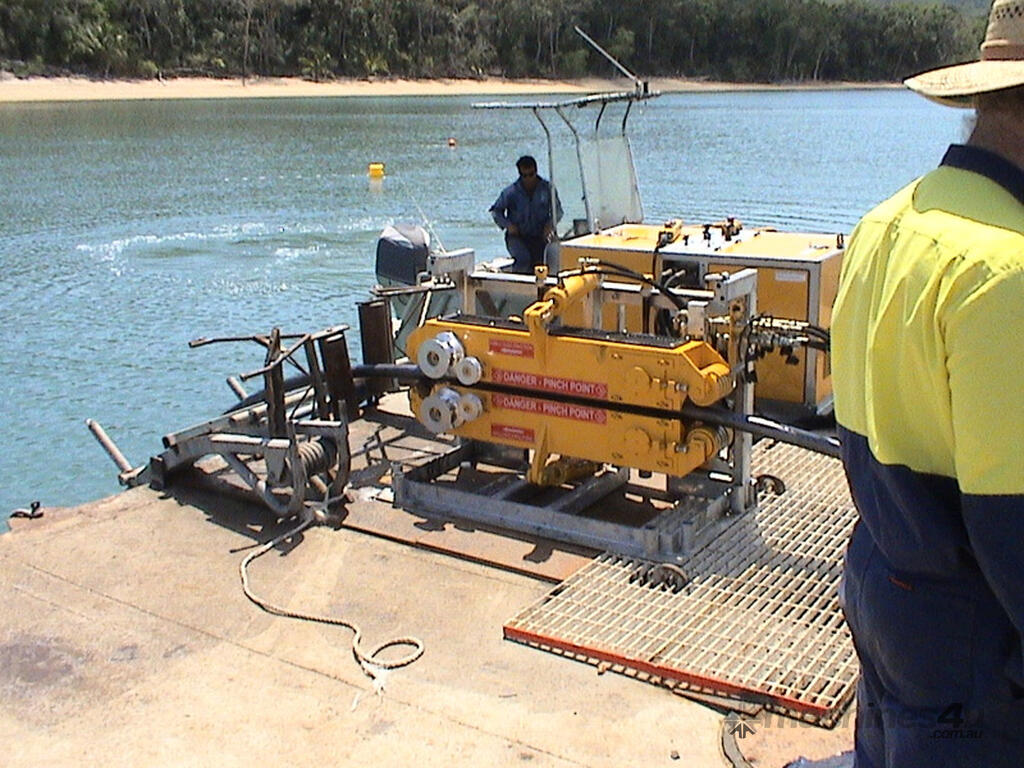

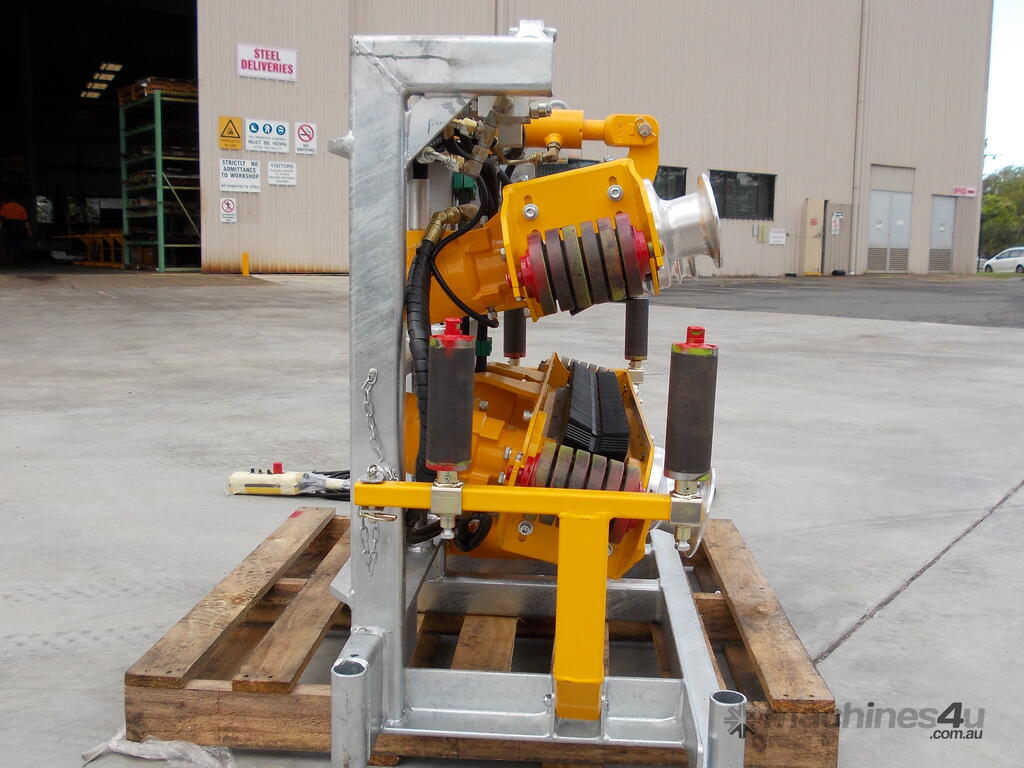

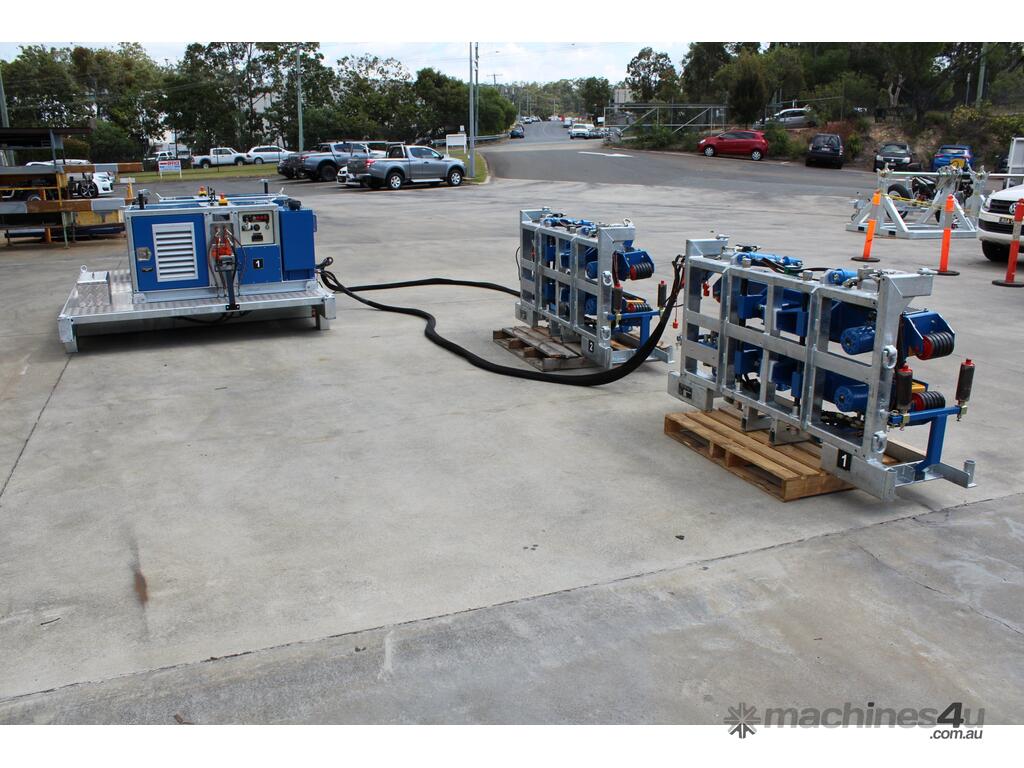

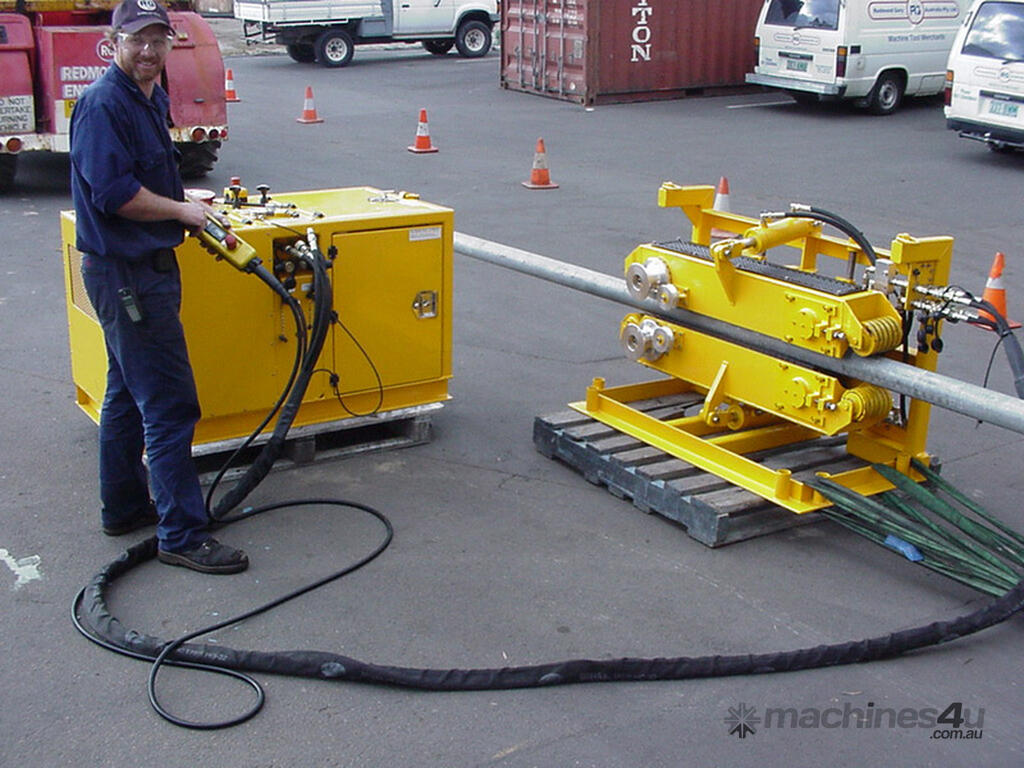

The 20kN side-mount version has been designed to allow cable to be lifted in from one side. This design has the advantage of being more compact when used in restricted areas such as a trench. It is easier to lift heavy cable into the side of the pusher than it is to lift it over the pusher and into the top. The hydraulic power unit includes the control valving and is positioned remotely, generally on the embankment above the trench.
SPECIFICATIONS
Specification

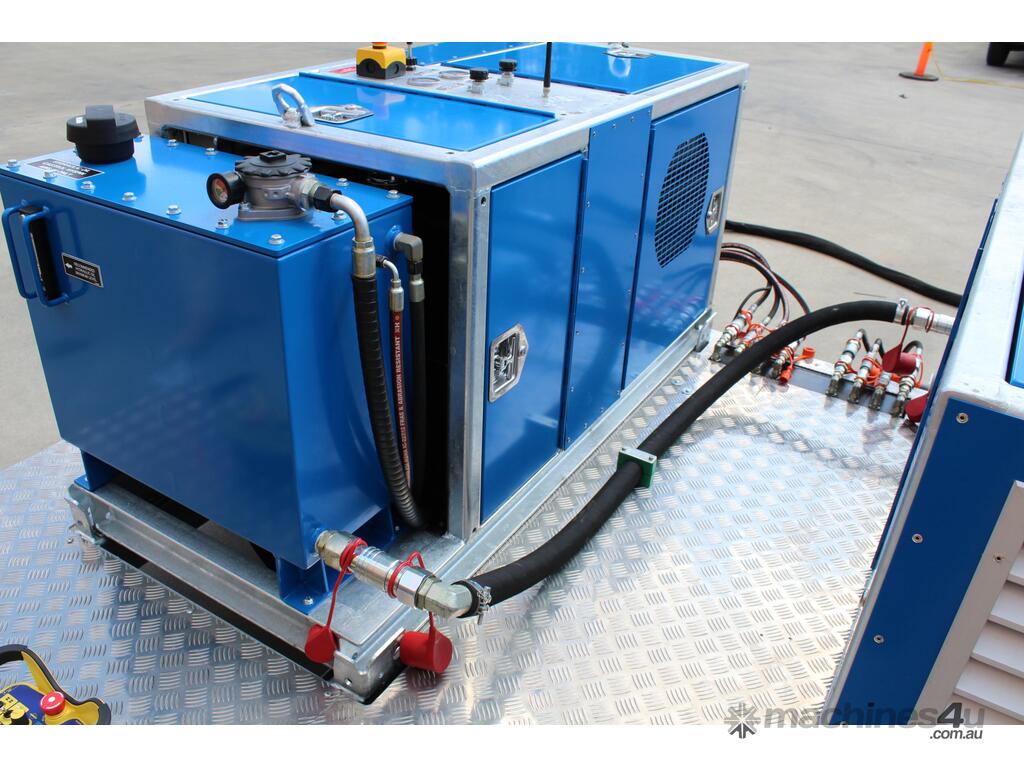

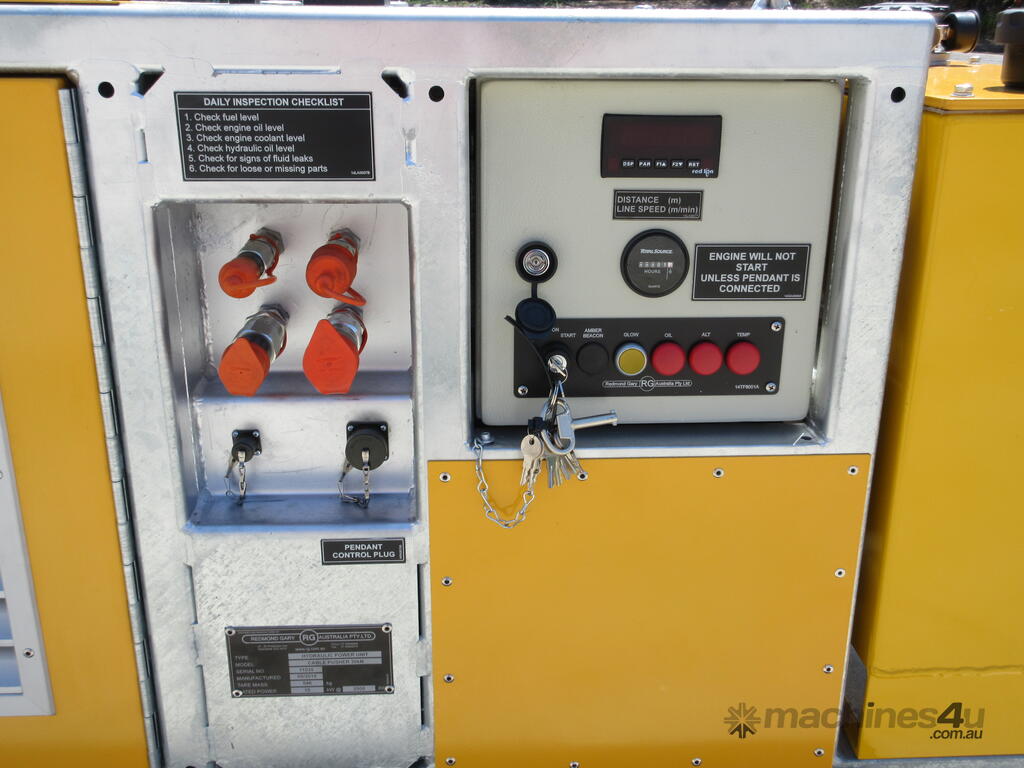

HYDRAULIC POWERPACK
Diesel Engine Kubota D902 - 15 kW 3600 rpm
Fuel Tank Capacity 40 L
Engine Oil Shell Rimula
Hydraulic Oil Castrol Hyspin AWH 46
Hydraulic Fluid Reservoir Capacity 90 Litres
Run time/tank 8 -9 hrs dependant on workload
Hydraulic Load Sense Piston Pump 25 L/min
Maximum System Pressure 240 bar (3500 psi)
Hydraulic Power unit Mass 482 kg

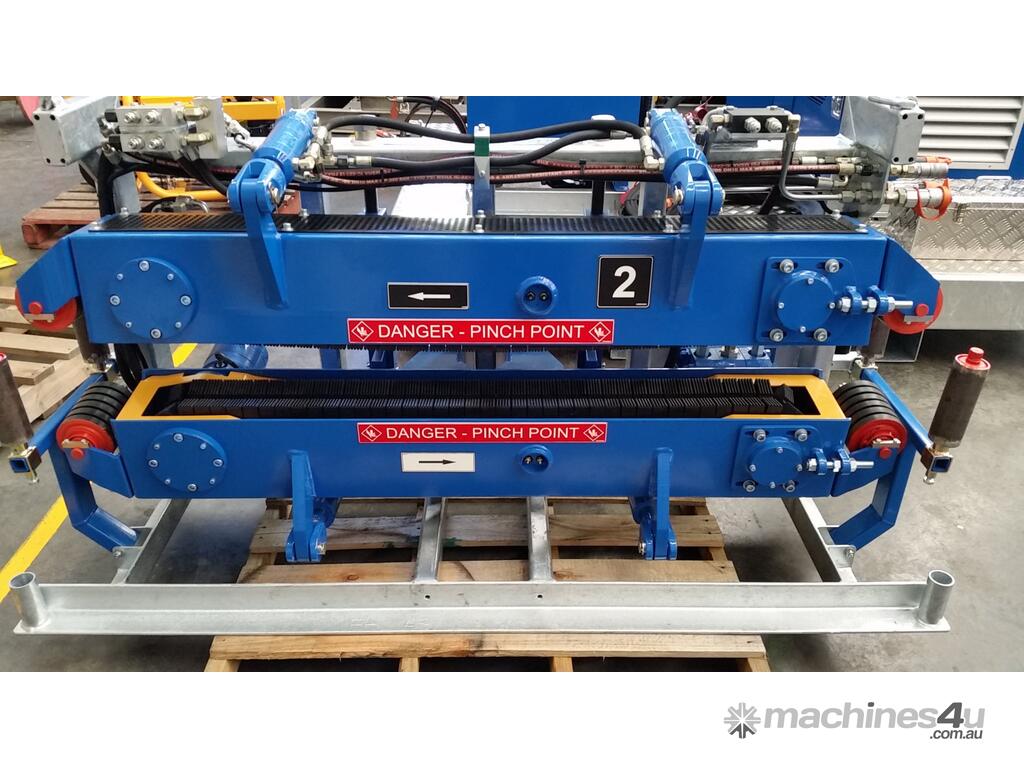

CABLE PUSHER
Frame Footprint Fits into 730 mm trench
Refer to attached drawing
Cable Pusher Unit Overall Dimensions (LxWxH) 1350 mm x 900 mm x 534 mm
Push or Pull Machine is capable of pushing, pulling or pushing and pulling.

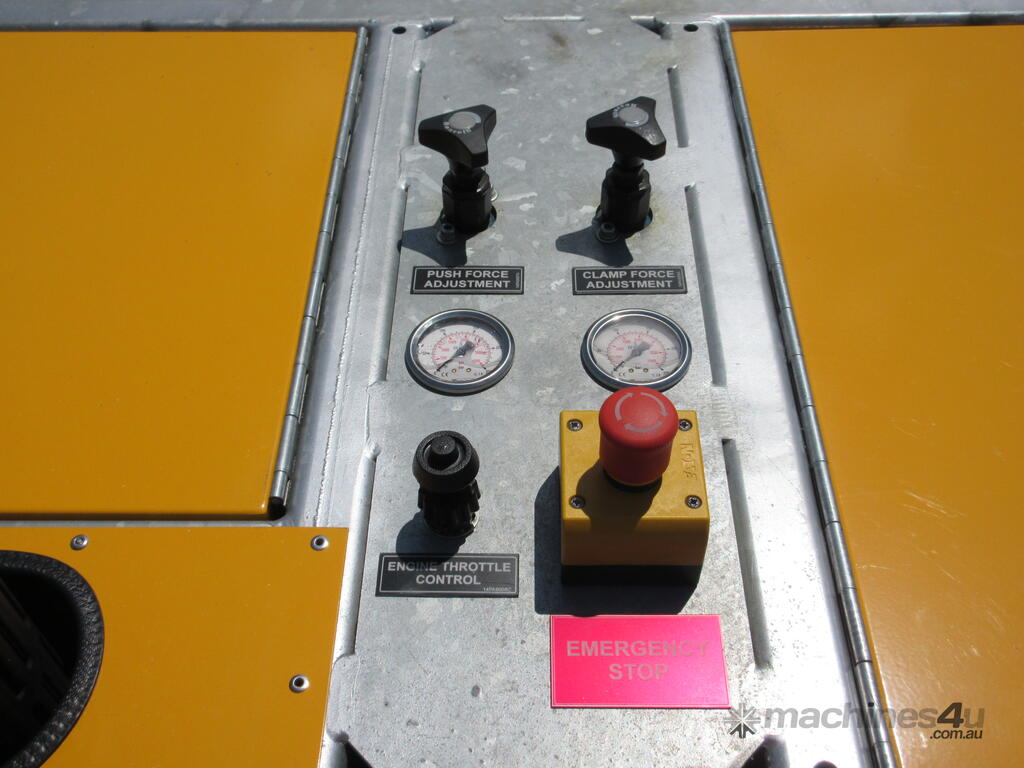

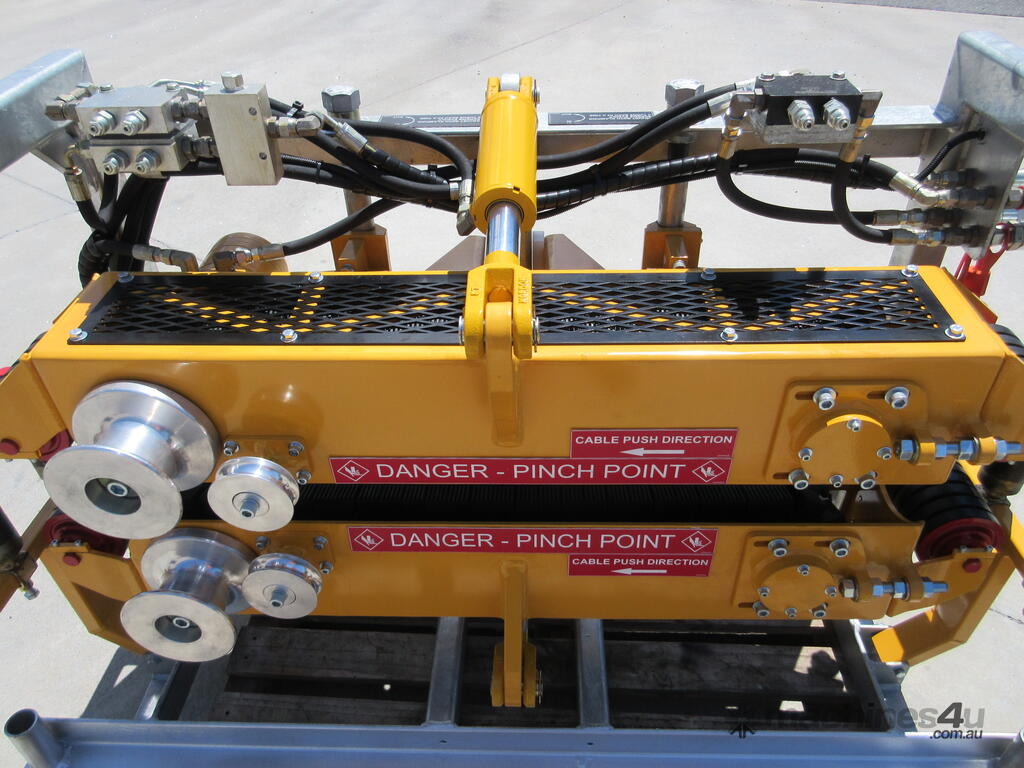

Clamping pressure User adjustable. Clamping pressure and pull/push force displayed on gauges.
Maximum Cable Push Force (at reduced line speed) 20kN (2000kg)
Maximum Line Speed (at reduced push force) 25 m/min

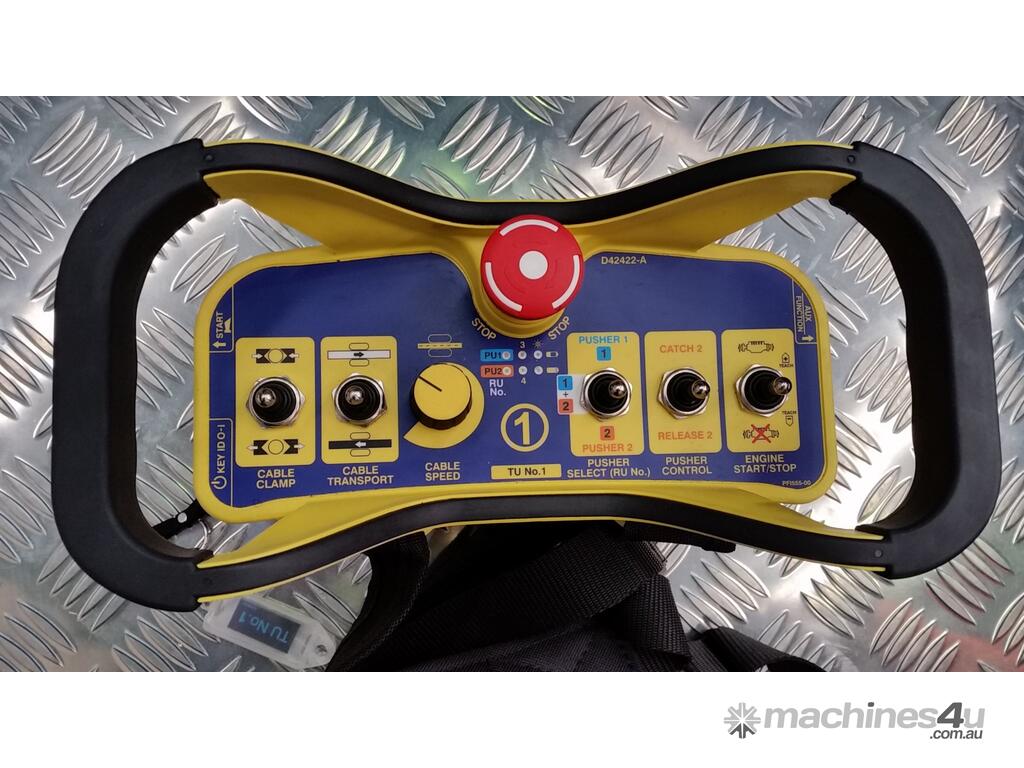

Line cable speed and distance display On pendant
Capstan Pull Capstan enables polypropylene rope to be winched
Maximum Capstan Winch Line Pull Force 16 kN (1600 kg)
Maximum Capstan Winch Line Pull Speed 23 m/min

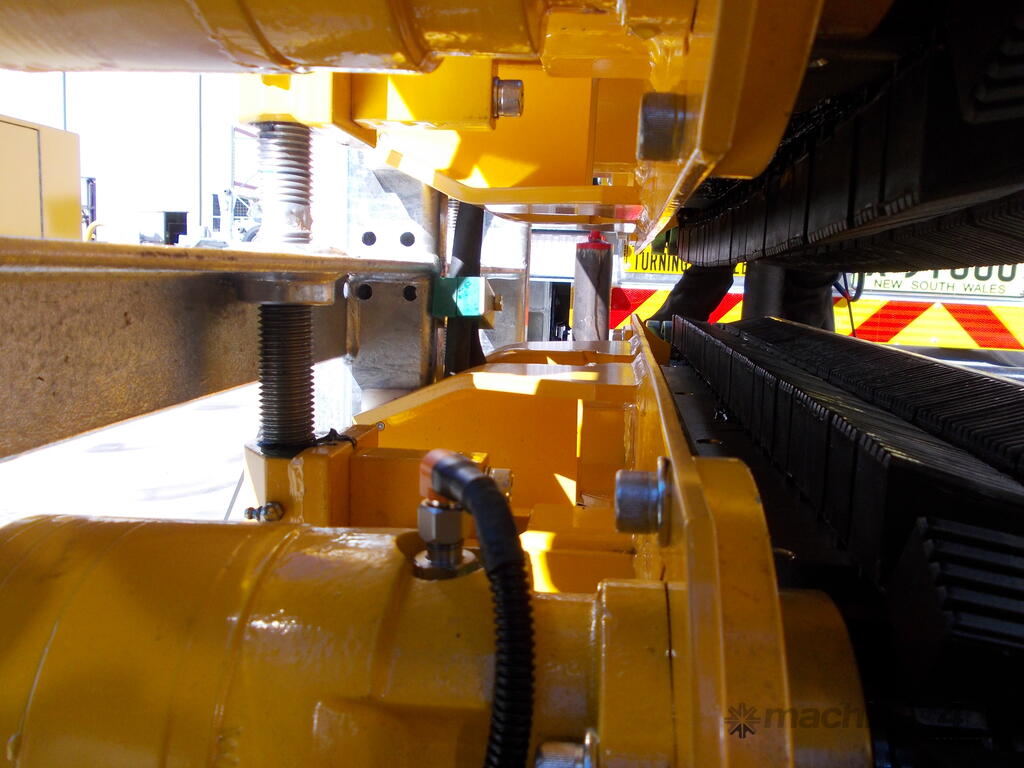

Adjustable Jaws, Cable Capacity. 50 to 140 mm cables
Pusher Unit Overall Dimensions (LxWxH) 1350 mm x 900 mm x 534 mm
Cable Pusher Mass 420 kg
Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.
Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its' representatives.
Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
