REDMOND GARY Cable Pusher - 20kN Top Mount

Cable Pusher - 20kN Top Mount

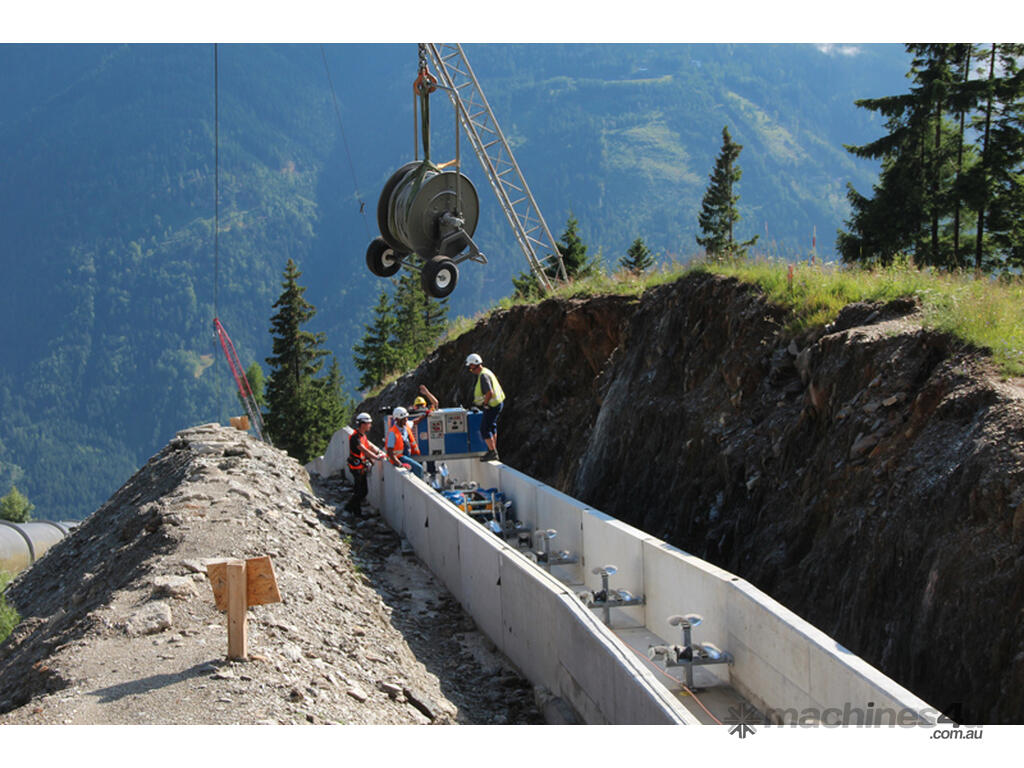

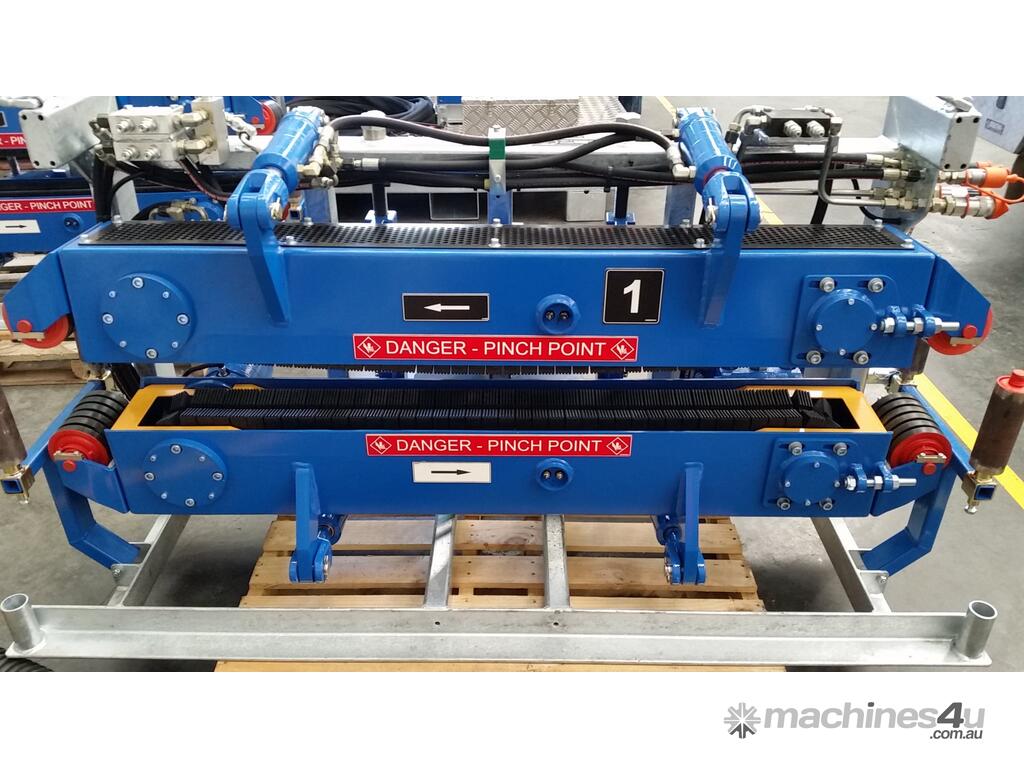

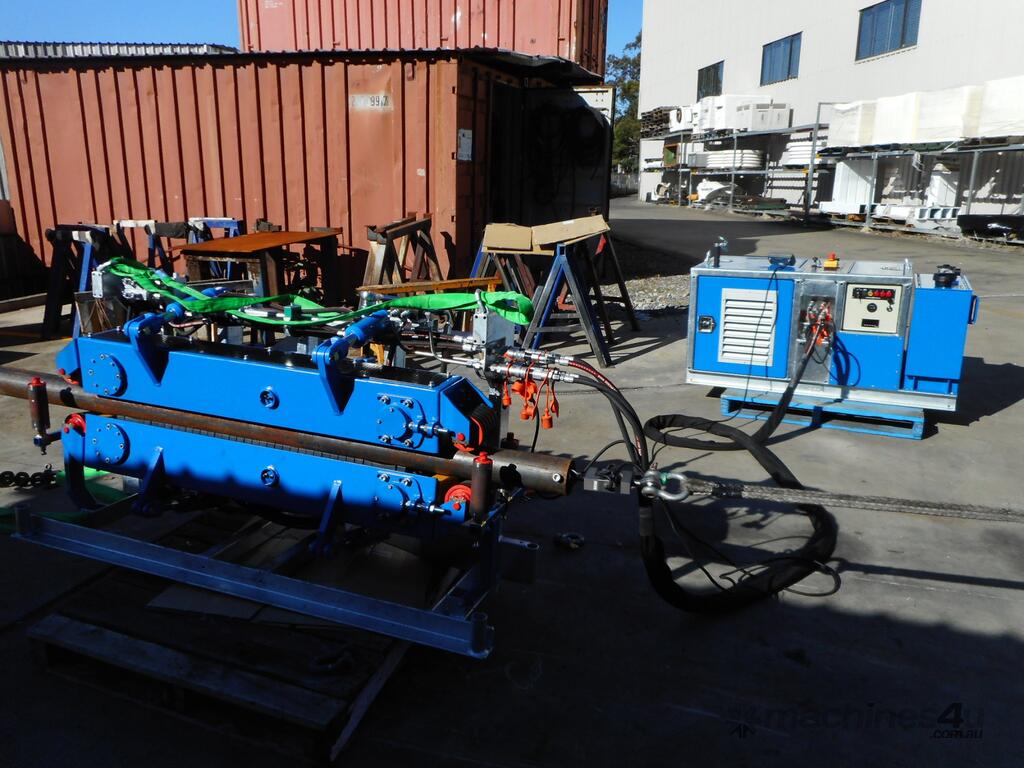

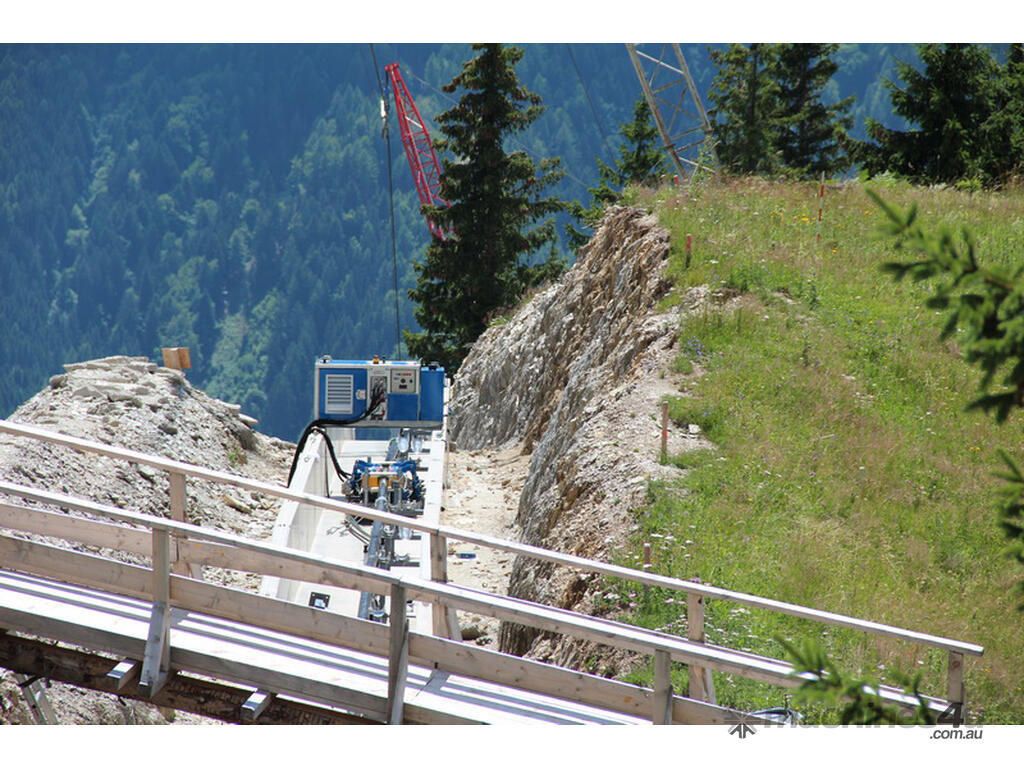

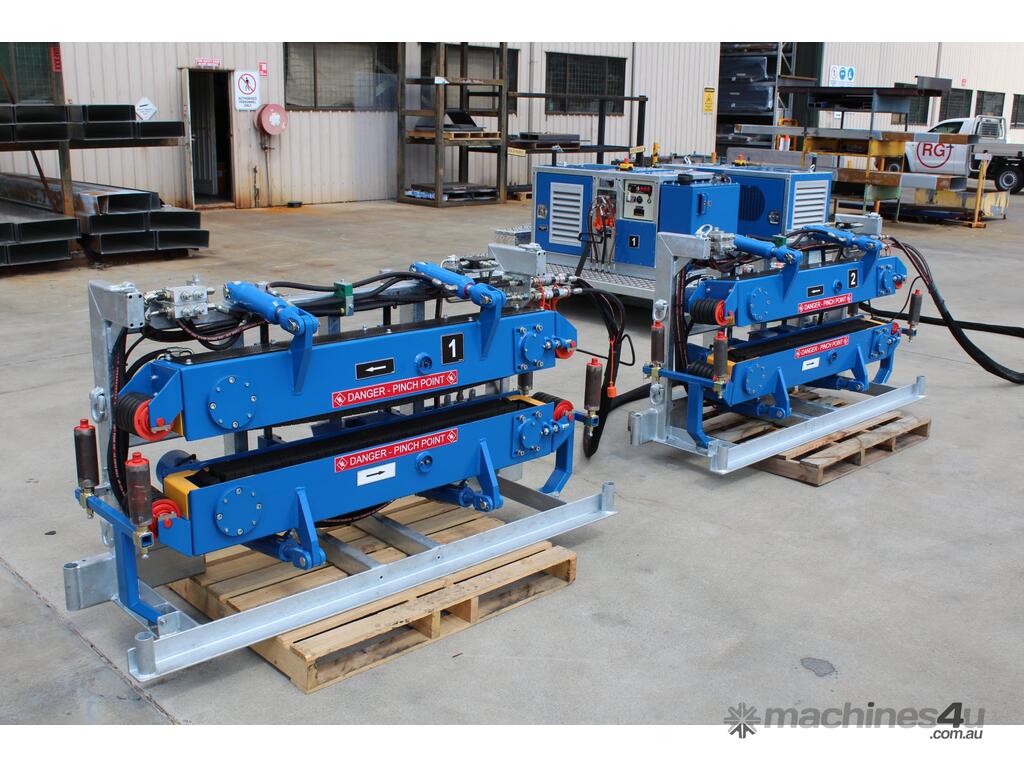

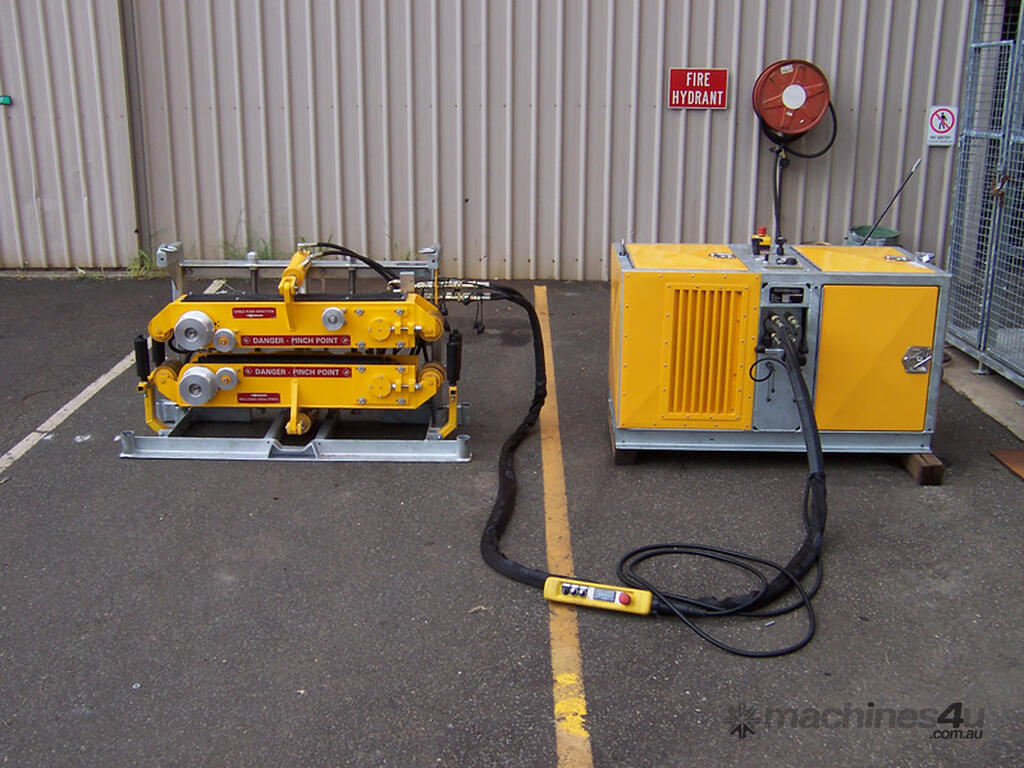

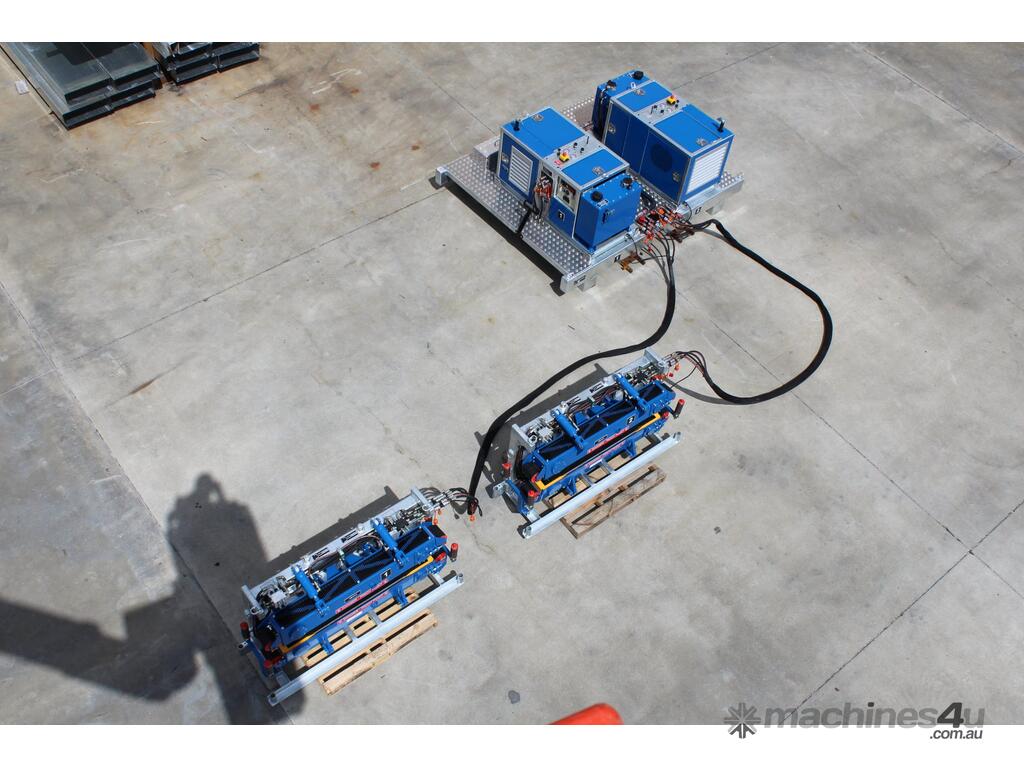

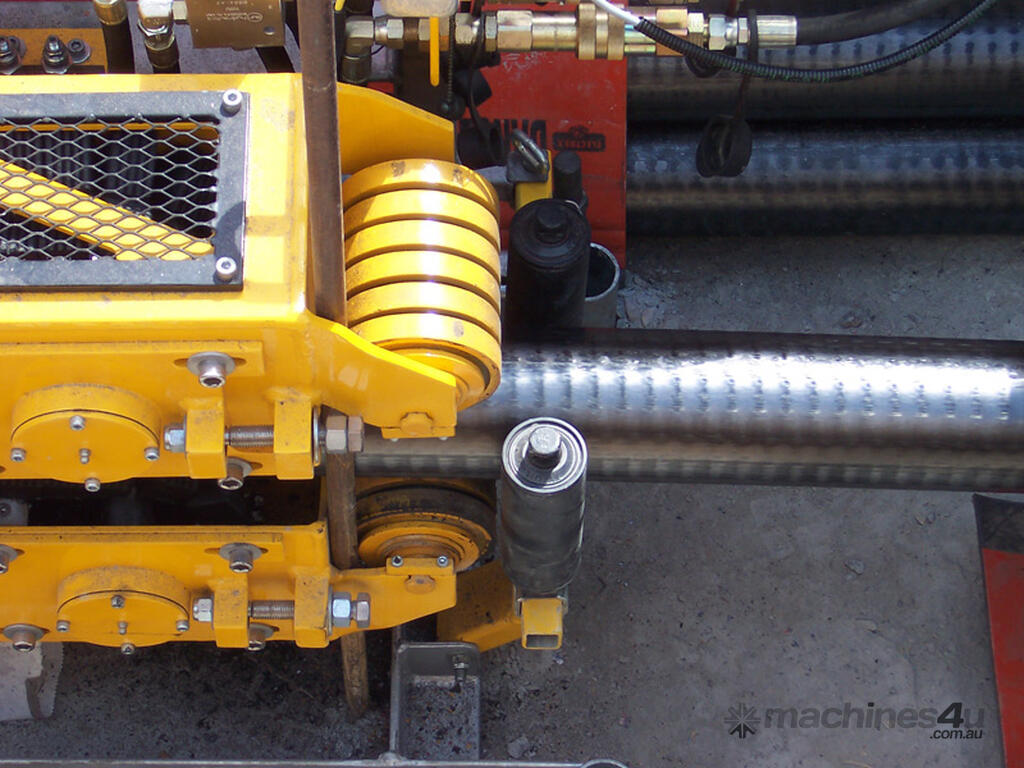

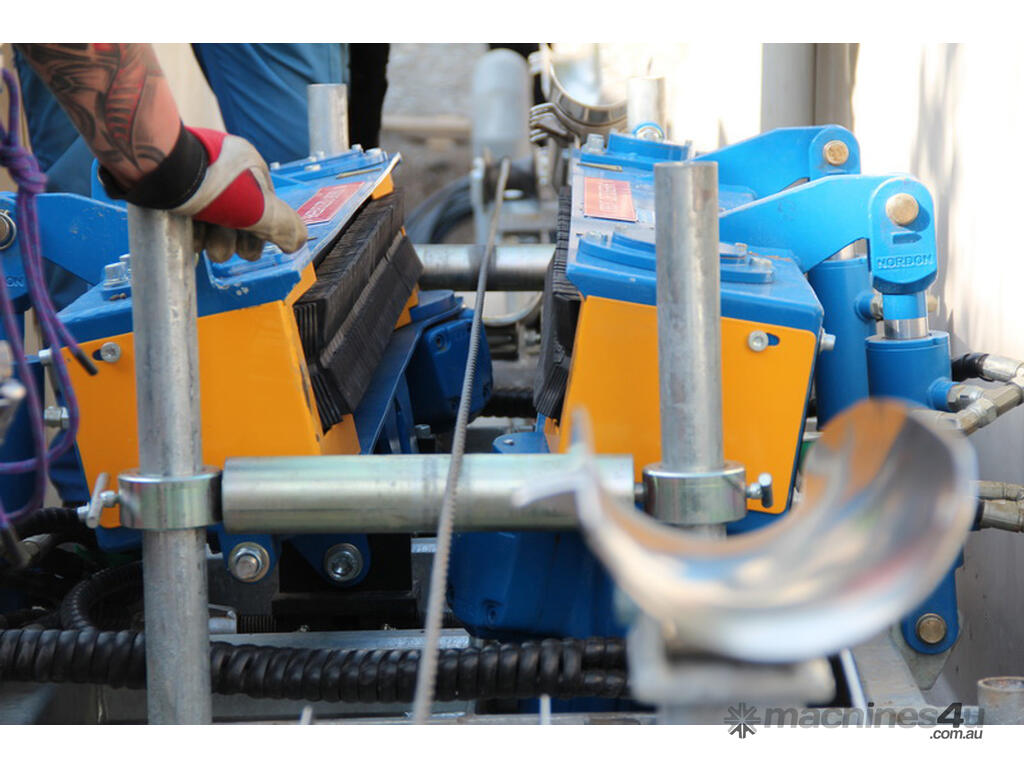

The 20kN top-mount version is designed to grip cable from 50 –140mm in diameter and push (or pull) it by driving it through two caterpillar tracks that grip the wall of the cable with rubber shoes. Using an electrical control pendant, the operator has full remote control of the pusher. This pendant is connected to the unit by 5 metres of cable allowing the operator to observe and control the cable pusher from an optimum vantage point. All parameters of the pusher are adjustable to give the machine the largest possible envelope, maximise its versatility and ensure that cables are not damaged through bruising or buckling.

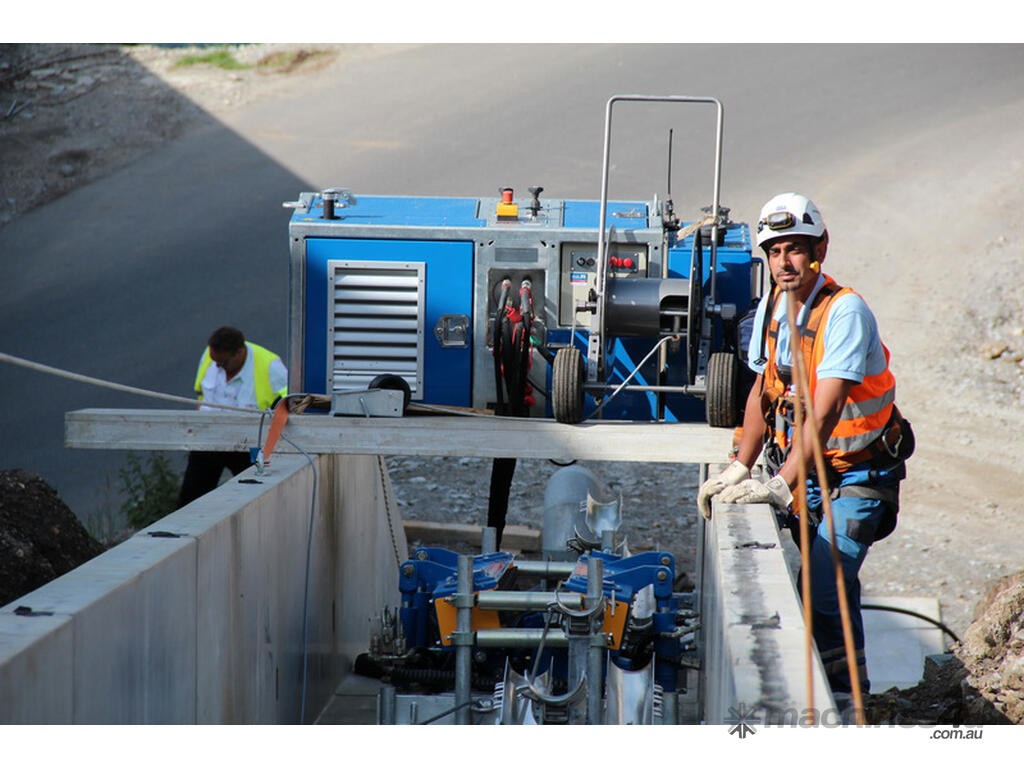

These machines are designed to couple to a hydraulic power pack or similar hydraulic power source. All control circuits etc are incorporated into the pusher unit. The only connections to the machine are hydraulic power in and out (200 bar 23 litres/minute) and electrical power (30W, 12V DC, 3 amp).

SPECIFICATIONS

Specification

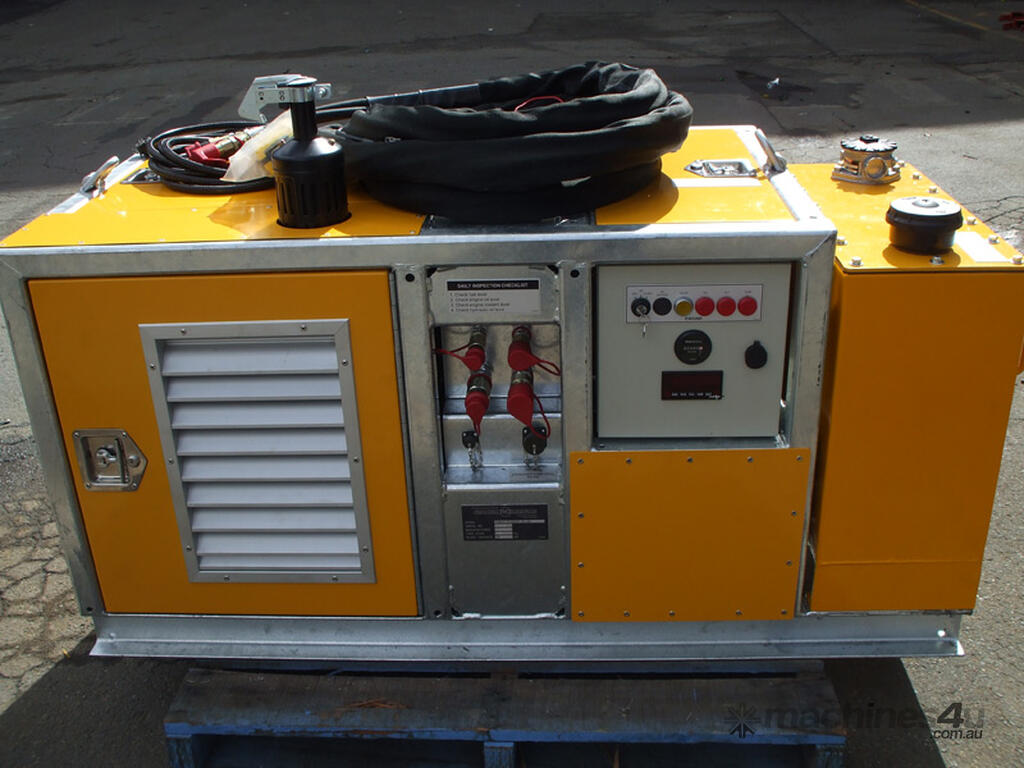

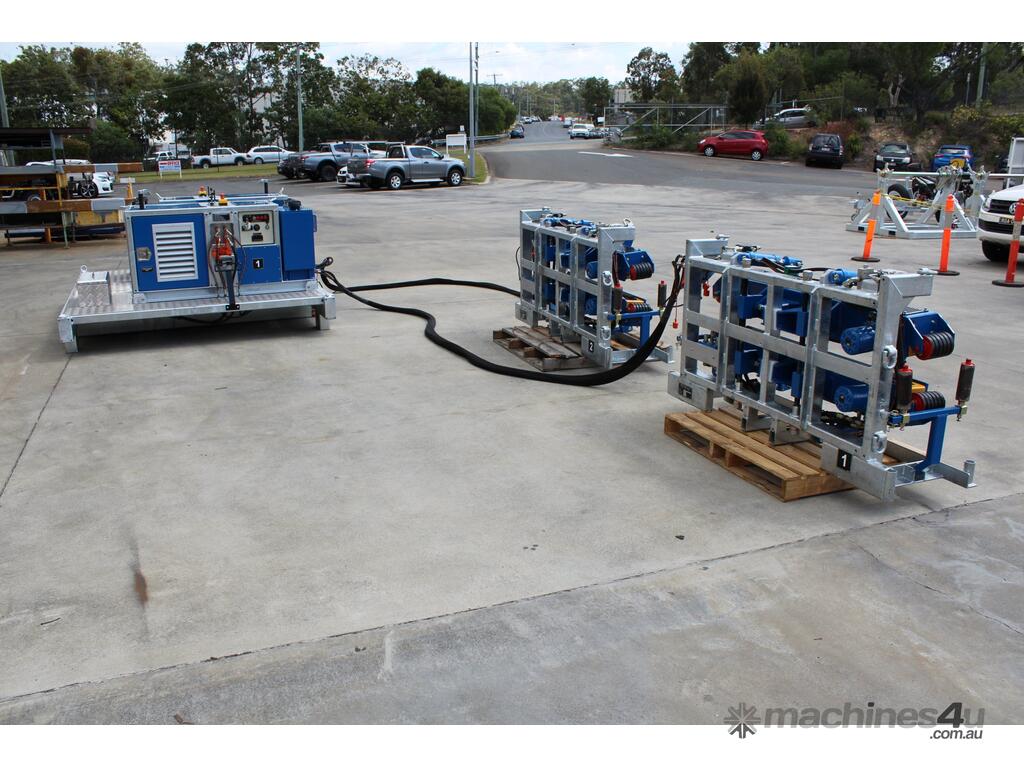

HYDRAULIC POWERPACK
Diesel Engine Kubota D902 - 15 kW 3600 rpm
Fuel Tank Capacity 40 L
Engine Oil Shell Rimula
Hydraulic Oil Castrol Hyspin AWH 46
Hydraulic Fluid Reservoir Capacity 90 Litres
Run time/tank 8 -9 hrs dependant on workload
Hydraulic Load Sense Piston Pump 25 L/min
Maximum System Pressure 240 bar (3500 psi)
Hydraulic Power unit Mass 482 kg

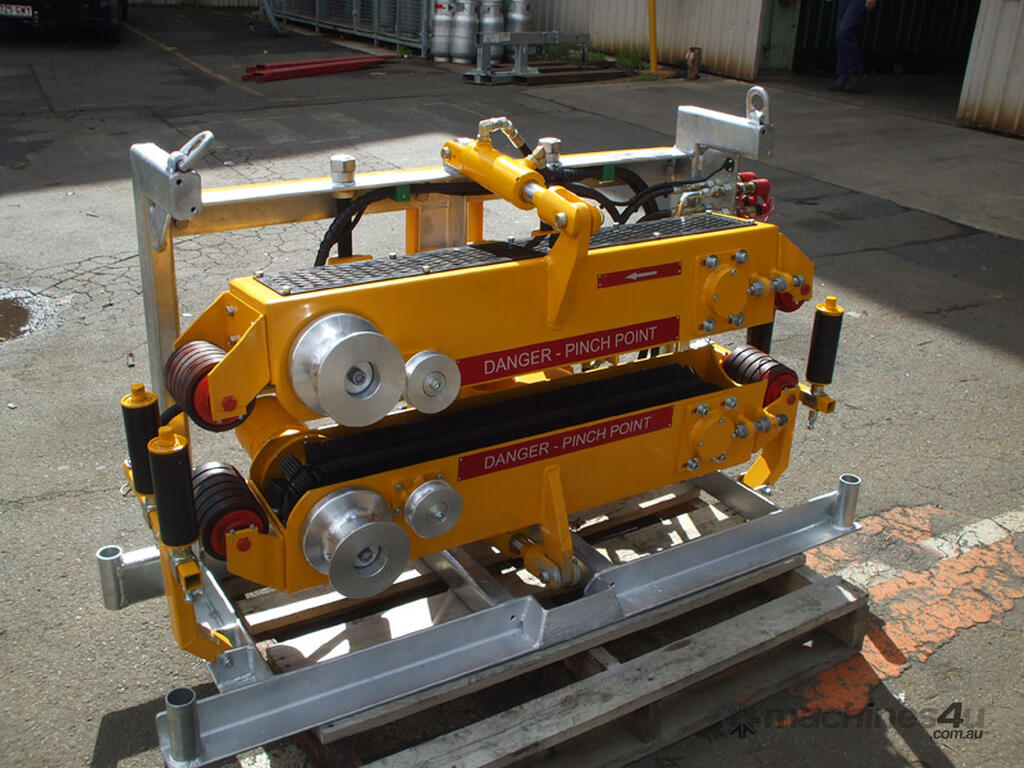

CABLE PUSHER

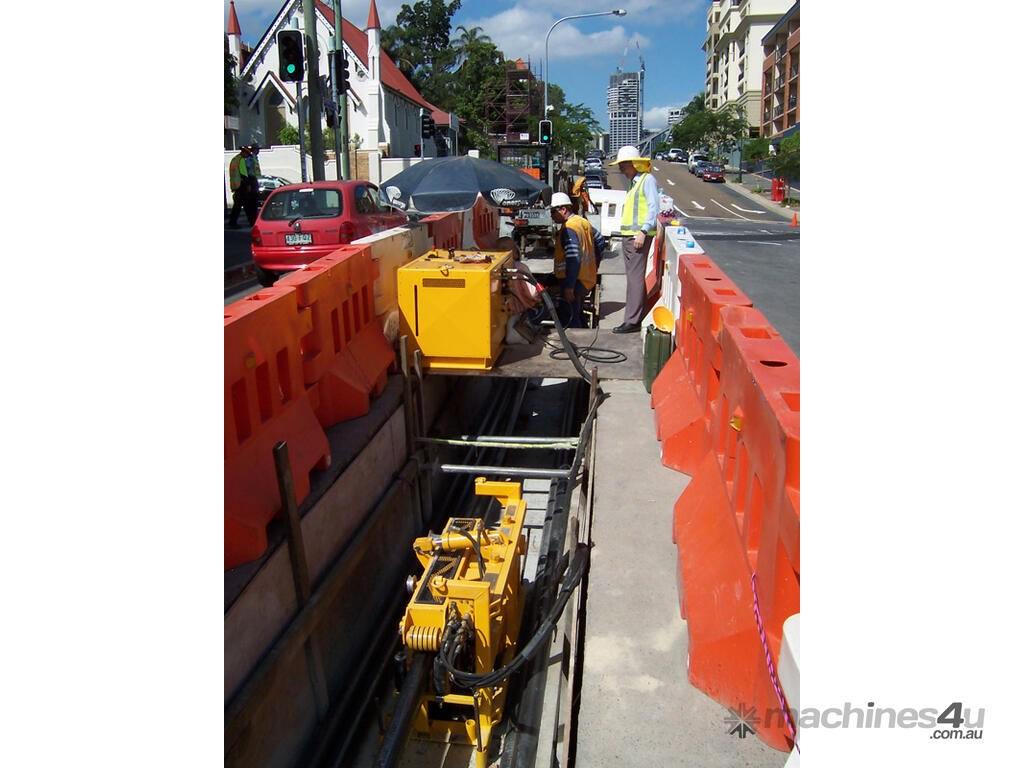

Frame Footprint Fits into 730 mm trench
Refer to attached drawing
Cable Pusher Unit Overall Dimensions (LxWxH) 1350 mm x 900 mm x 534 mm
Push or Pull Machine is capable of pushing, pulling or pushing and pulling.
Clamping pressure User adjustable. Clamping pressure and pull/push force displayed on gauges.
Maximum Cable Push Force (at reduced line speed) 20kN (2000kg)
Maximum Line Speed (at reduced push force) 25 m/min
Line cable speed and distance display On pendant
Capstan Pull Capstan enables polypropylene rope to be winched
Maximum Capstan Winch Line Pull Force 16 kN (1600 kg)
Maximum Capstan Winch Line Pull Speed 23 m/min
Adjustable Jaws, Cable Capacity. 50 to 140 mm cables
Pusher Unit Overall Dimensions (LxWxH) 1350 mm x 900 mm x 534 mm
Cable Pusher Mass 420 kg

Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its' representatives.

Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
