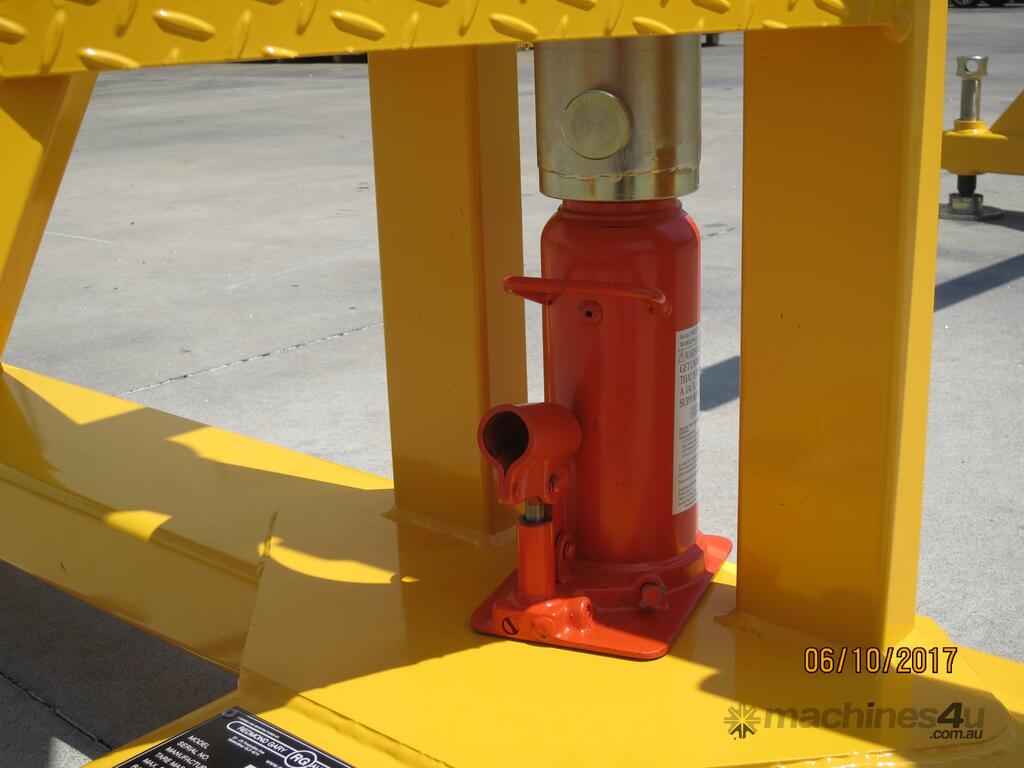

30T - HYDRAULIC ADJUSTABLE DRUM STANDS (Aircraft Jacks)

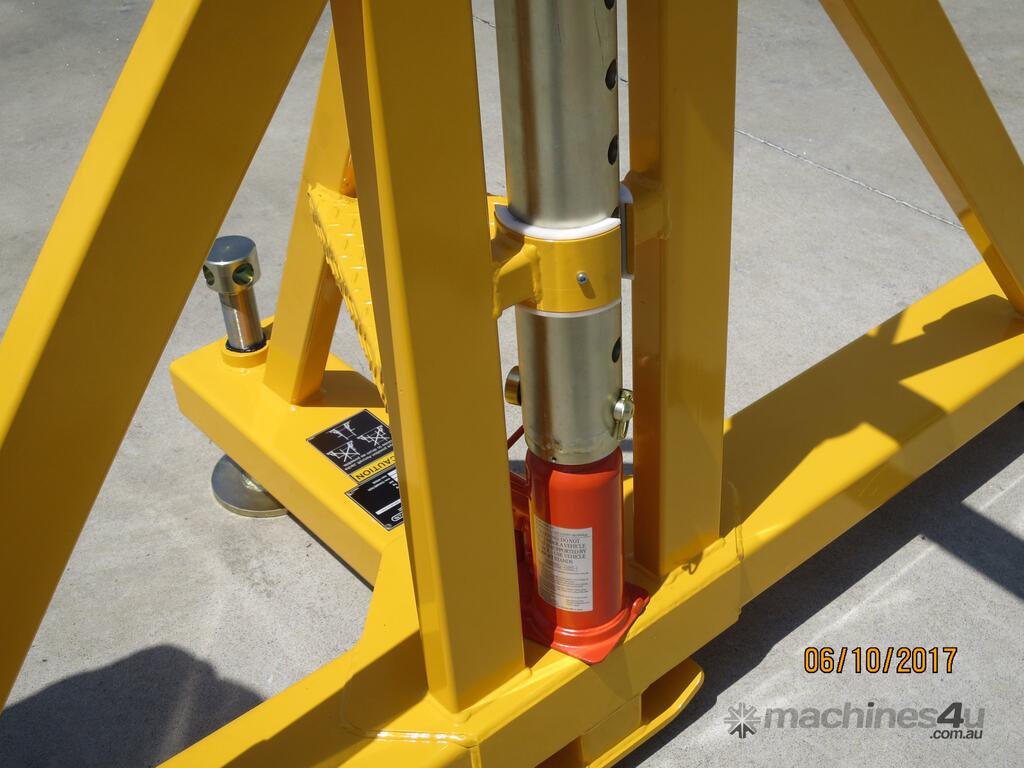

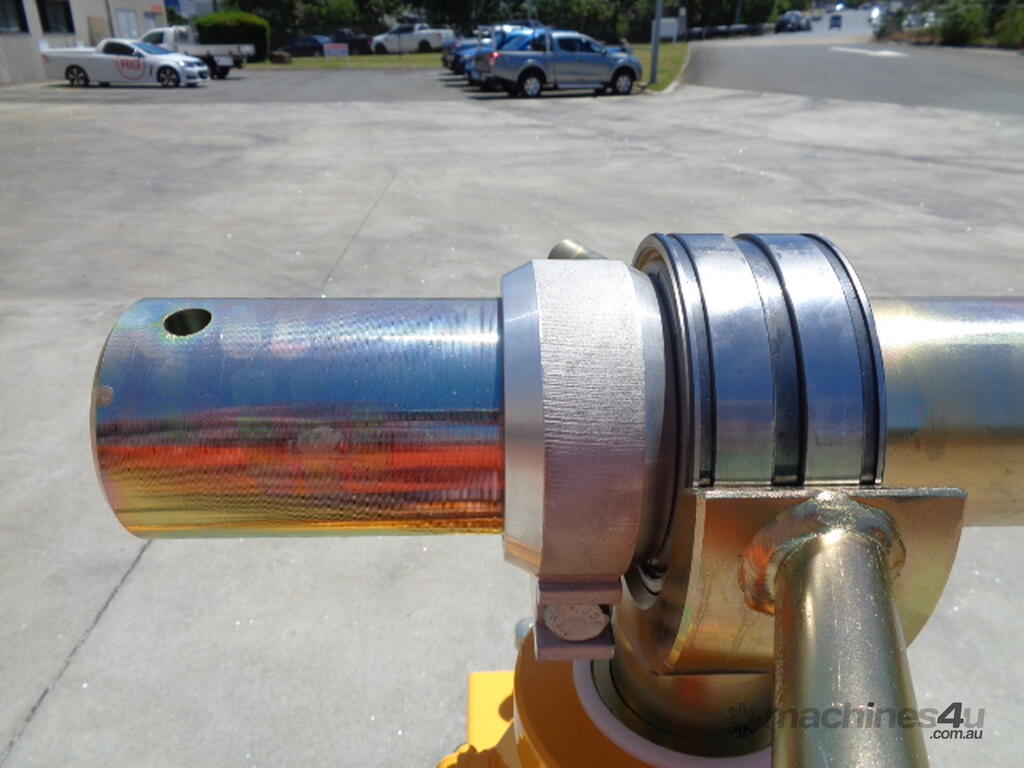

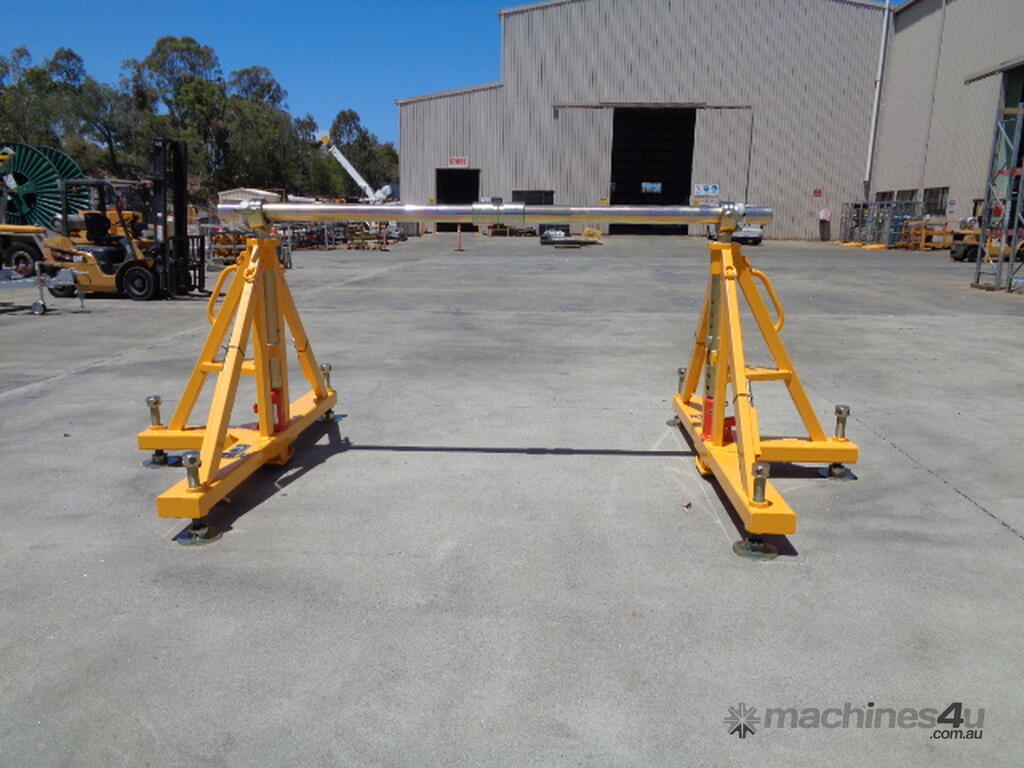

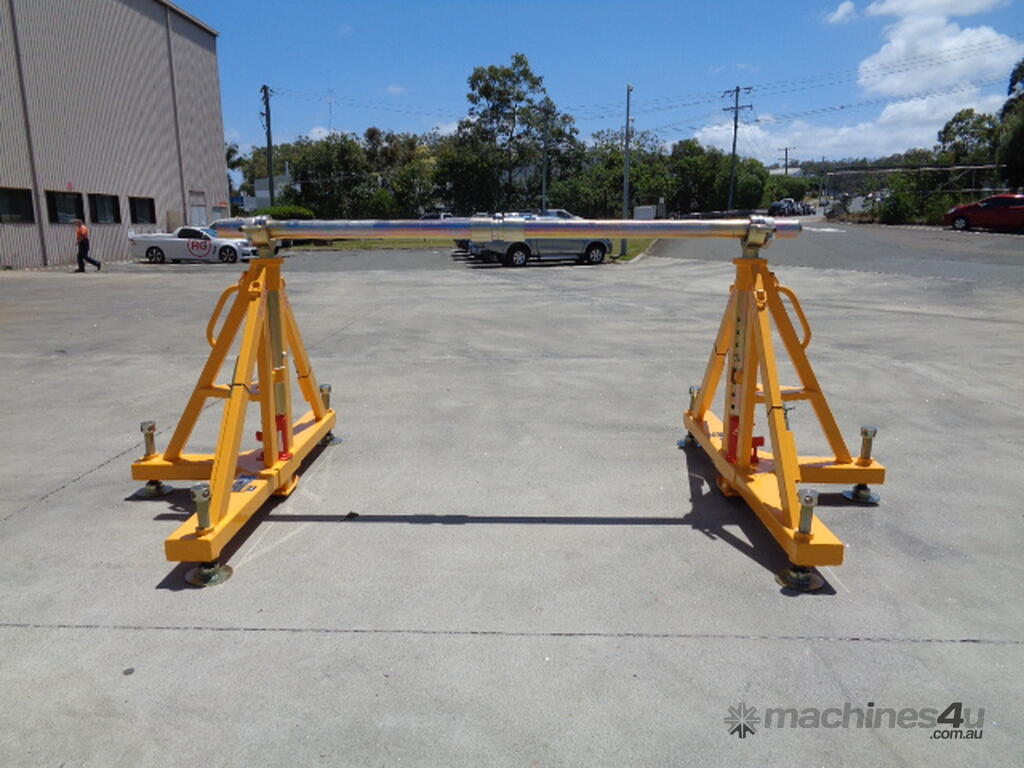

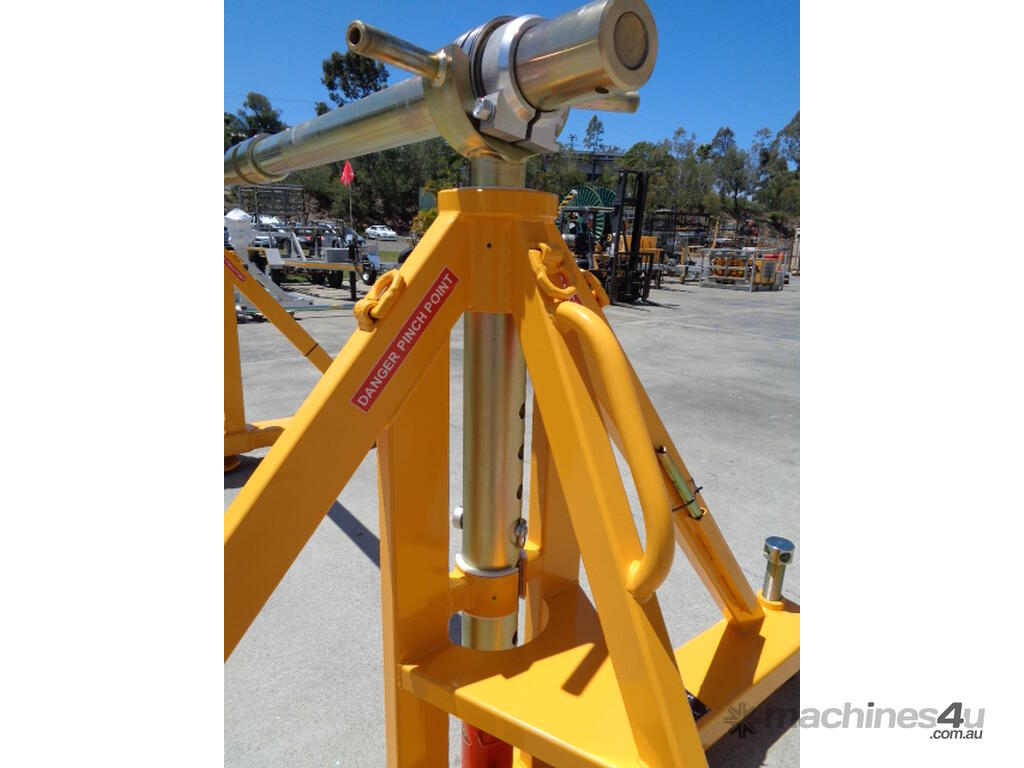

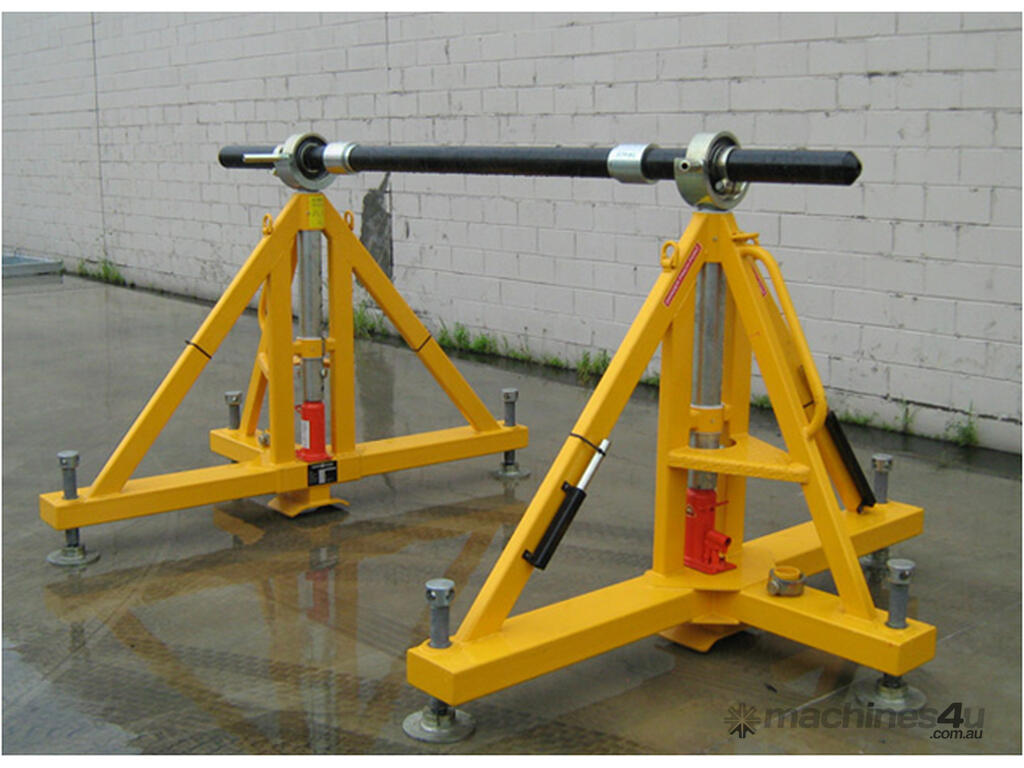

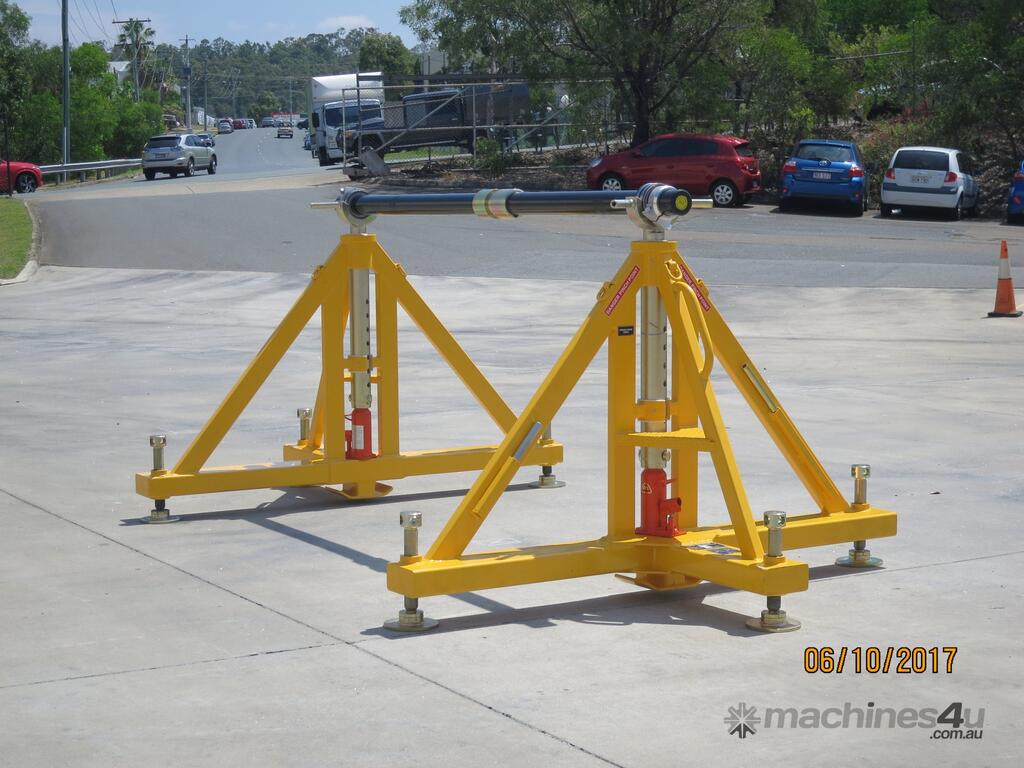

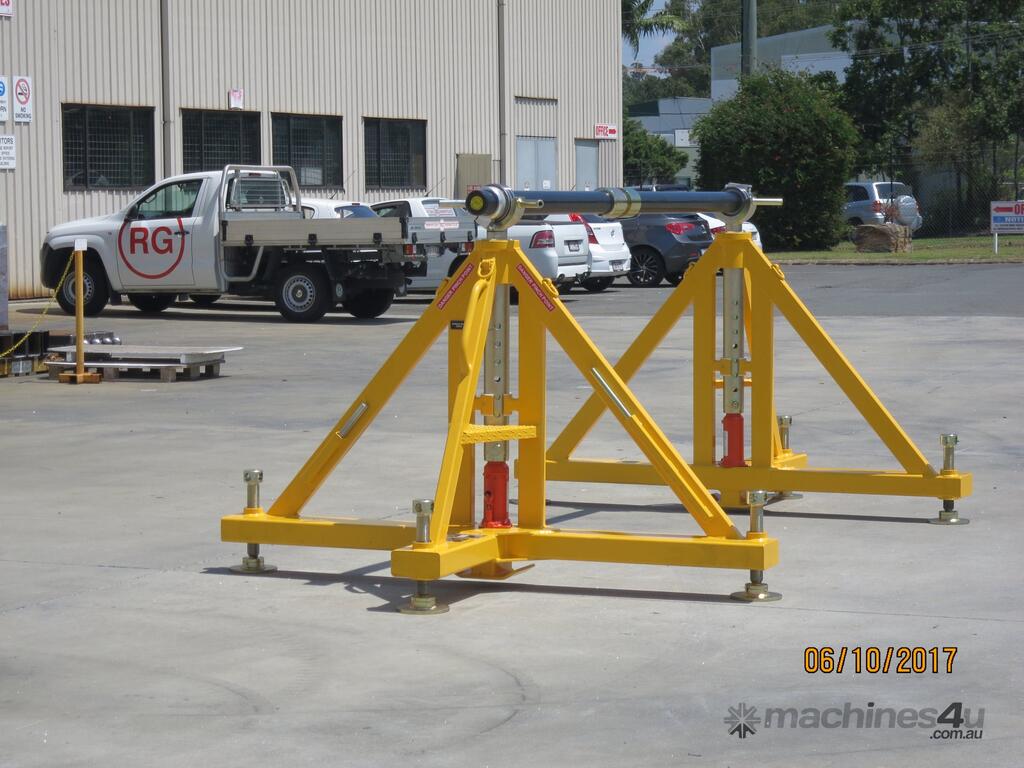

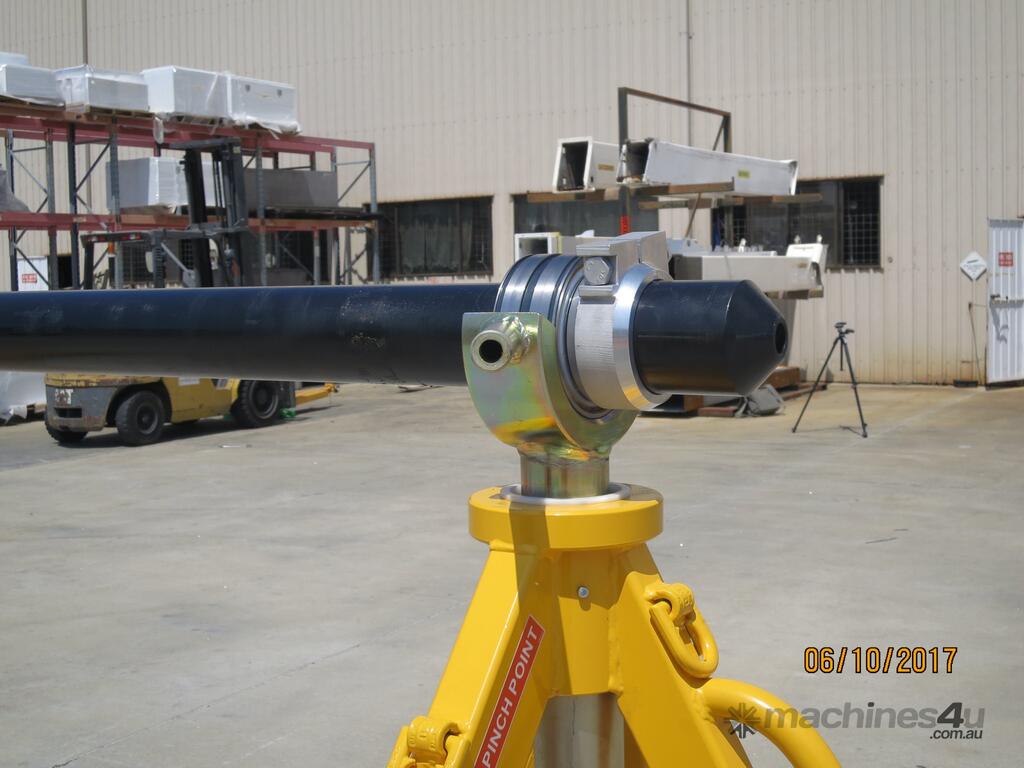

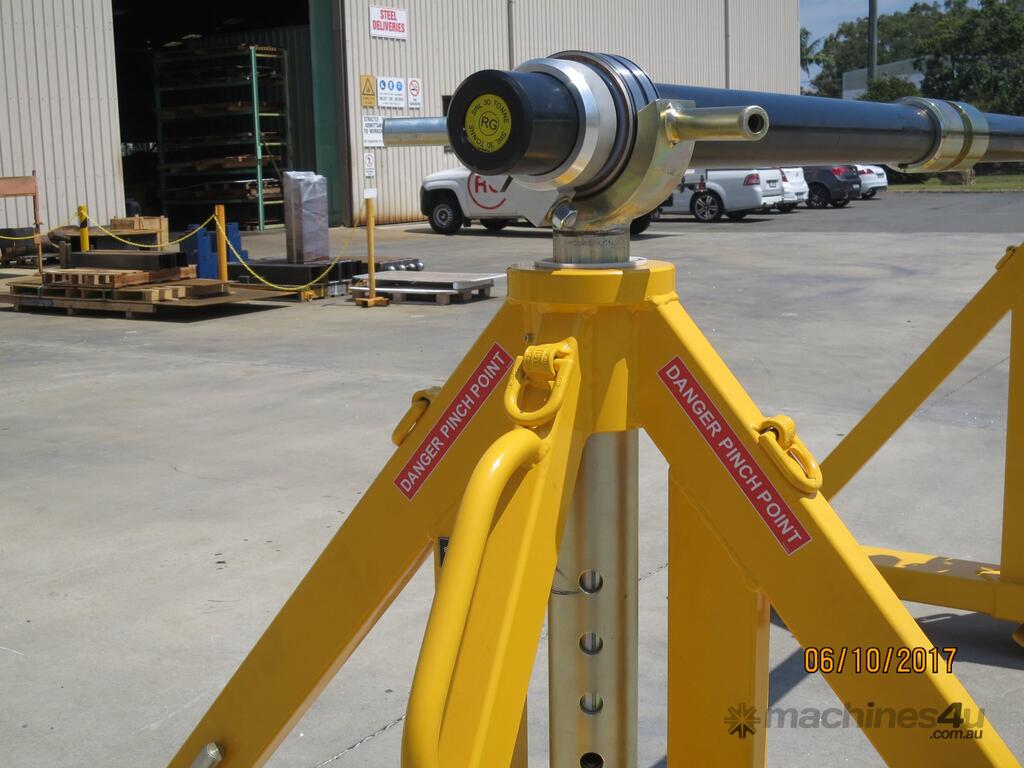

The special A-Frame design using aircraft jacks makes it possible to carry heavy drums of cable up to 30,000kg for assembly on-site. The system has two hydraulic stands – one placed either side of the drum and a special spindle consisting of stub axles either side tied together with a light-weight brace. Both stands are provided with three ball and socket feet which are height adjustable for easy setup. This frame is designed to be used on site where minimal drum handling equipment is available. Because both sides of the frame are completely independent, the drum width can be easily accommodated and drums up to 4000mm in diameter can be installed.
