REMU XO2090 SKID STEER CROSSOVER SCREENING BUCKET (1.5T)

: ALL FLOOR STOCK MUST GO, HEAVILY DISCOUNTED PRICES ON ALL REMU SCREENING BUCKETS. RENT TO OWN OPTION AVAILABLE! CALL US TODAY!

The REMU XO crossover bucket is a totally new type of concept in the attachment sector allowing the use of one bucket frame for multiple applications. Put simply it is a bucket frame which can be connected to several work modules, enabling fast changes for different jobs. Basically you are changing the module instead of the bucket. Changeover takes just 10 minutes!

There are 3 modules available: SB Module | SC Module | SV Module

BLADE SCREEN MODULE (SB)
Ideal for screening top soil or using for padding pipelines and cables. The rotating blades process even the most moist top soil and are available in several spacings. Also great for mixing soil, sand and fertilizers to get the ideal mix, landscaping, screening peat and soil stabilization.

SCREENER CRUSHER MODULE (SC)
An excellent choice when you need to grind lumpy materials such as topsoil. The crushing blades push the materials through the blades to make it finer. Applications also include mixing and aeriating compost, grinding packed materials to make them loose, and crushing roof tiles and wood.

VIBRATING SCREENING MODULE (SV)

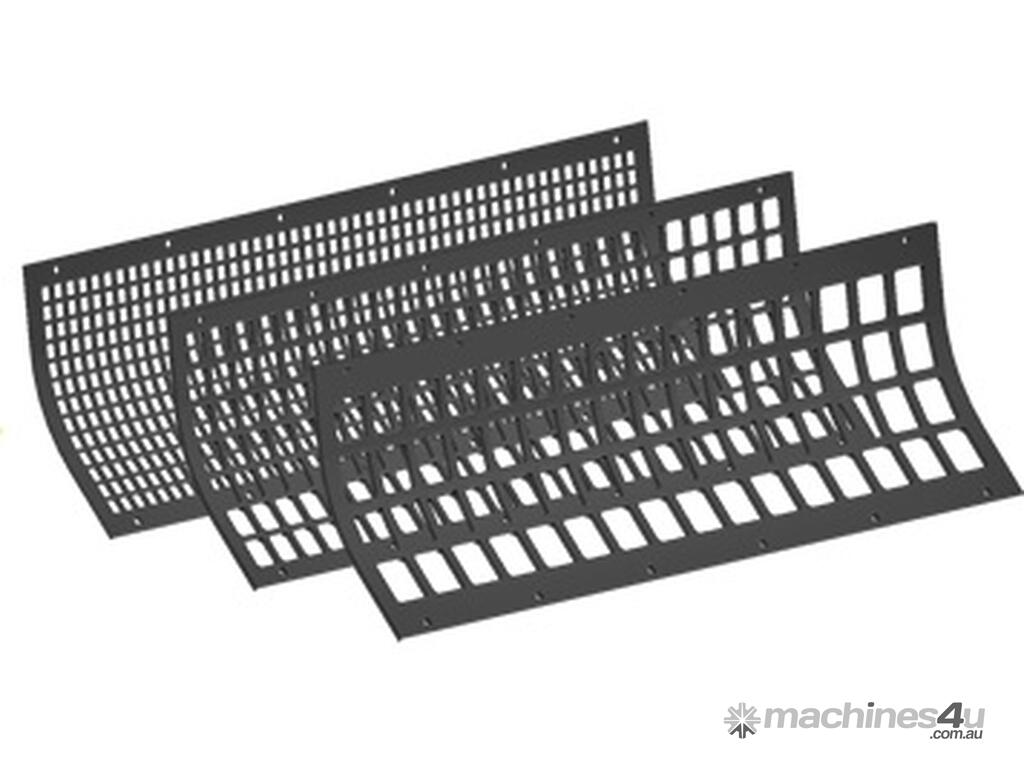

Based on a vibrating movement in conjunction with a screening mesh (available in various sizes). It is ideal for separating sand from paving stones for reuse, screening the sand or other loose and dry materials, and shaking waste and dirt out of recyclable material.

Two different sizes of the Crossover bucket will be launched initially. The XO2090 is recommended for excavators over 5 tons and the XO2150 for excavators over 8 tons.

FEATURES
• Easy to use and maintain bucket with multiple different applications.
• Suitable for use on Bobcats or excavators up to 8 tonnes.
• Change the blade module in ten minutes to change between crushing and screening.
• One bucket to dig, move, dump, screen or crush.
• Easy process to handle wood, bark, brick, clay, building debris and stubborn soil contents.
• Reduce waste/spoil removal by crushing, screening and reusing on site.
• Mix sand, soil and fertilizers to get the best mix for each use.
• Use the Vibrating Screen Module to shake trash and debris out of reusable material.
• Use the Screening Module to screen top soil.
• Use the Crusher Module to grind packed materials loose.

REMU XO crossover buckets can be attached to almost any type of excavator, backhoe, wheel-loader, skid-steer or tractor. Through the set-up of different rotor types and spacing of rotating blades, screening buckets can be easily adapted for different applications.

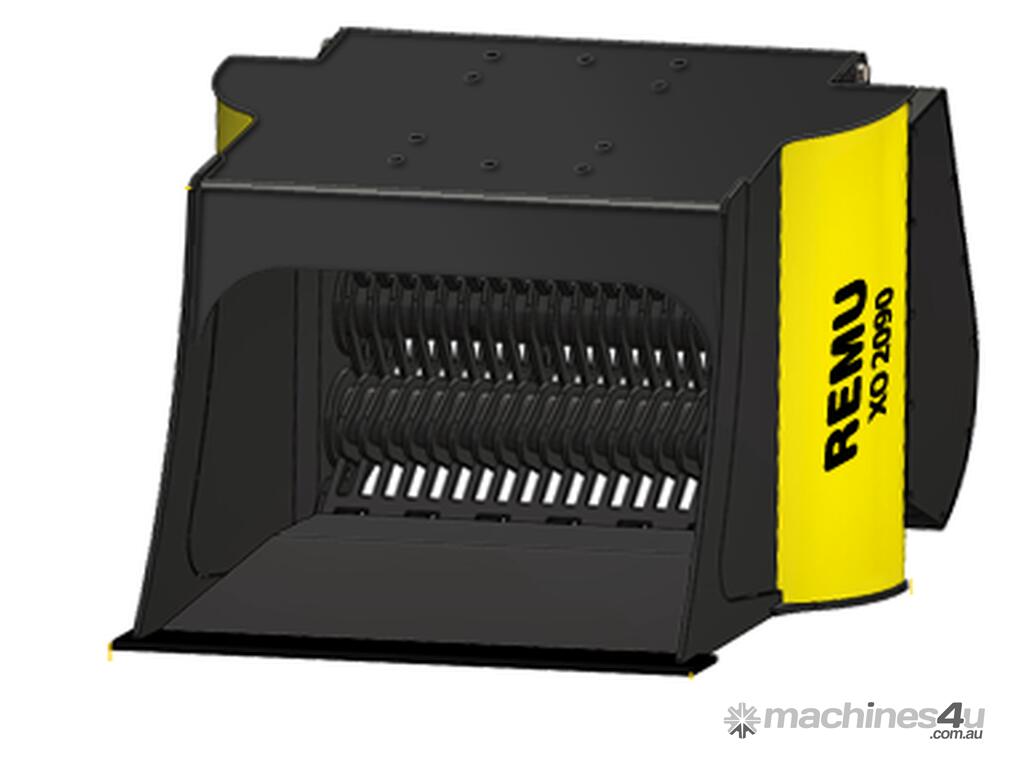

FRAME SPECIFICATIONS - XO 2090
Bucket volume: 0,35 m3
Width: 125 cm / 1250 mm
Depth: 97 cm
Height: 88 cm
Weight: 215 kg

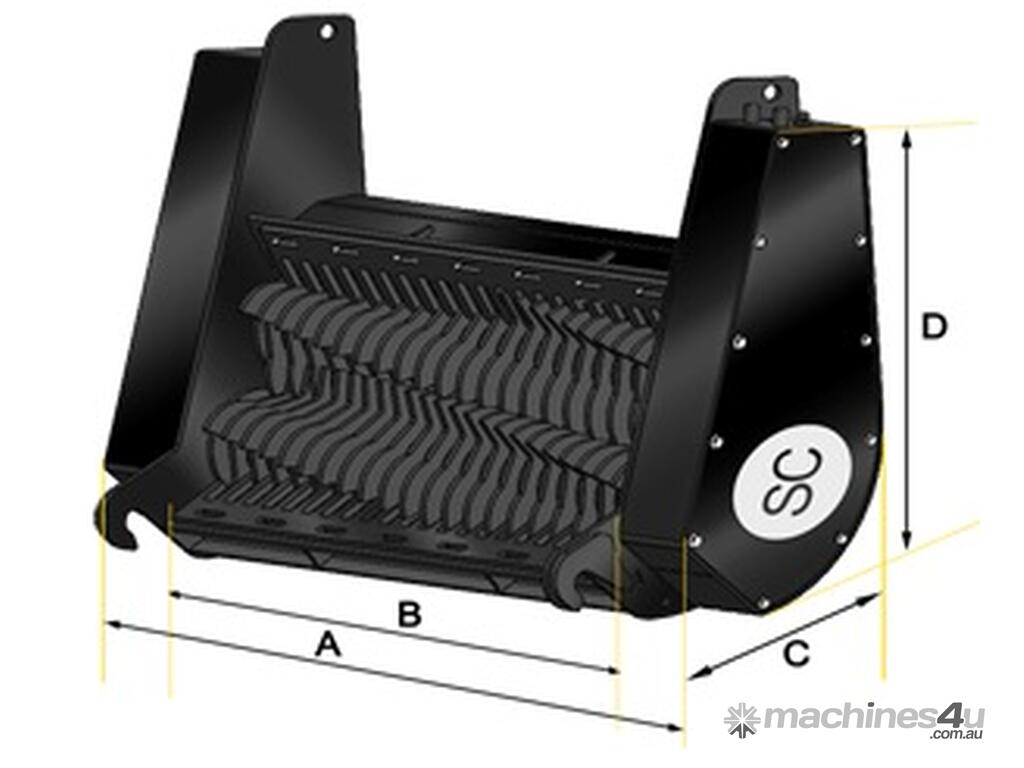

Screener Crusher Module Specifications - SC2090
Excavator/Loader: 0,5 / 1,5 Tonnes
Hydraulic flow: 30-80 l/min
Max Hydraulic Pressure: 400 bar
Width (A): 120 cm
Rotor Width (B): 90 cm
Depth (C): 40 cm
Height (D): 80 cm
Weight(1*): 290 (2*)

1*: Module weights differ from each other depending on the blade type used. This table indicates the weight of modules with a blade model 2304, with 30 mm spacing and 10 mm thickness.
2*: Including cleaning comb frames and combs 28 kg.

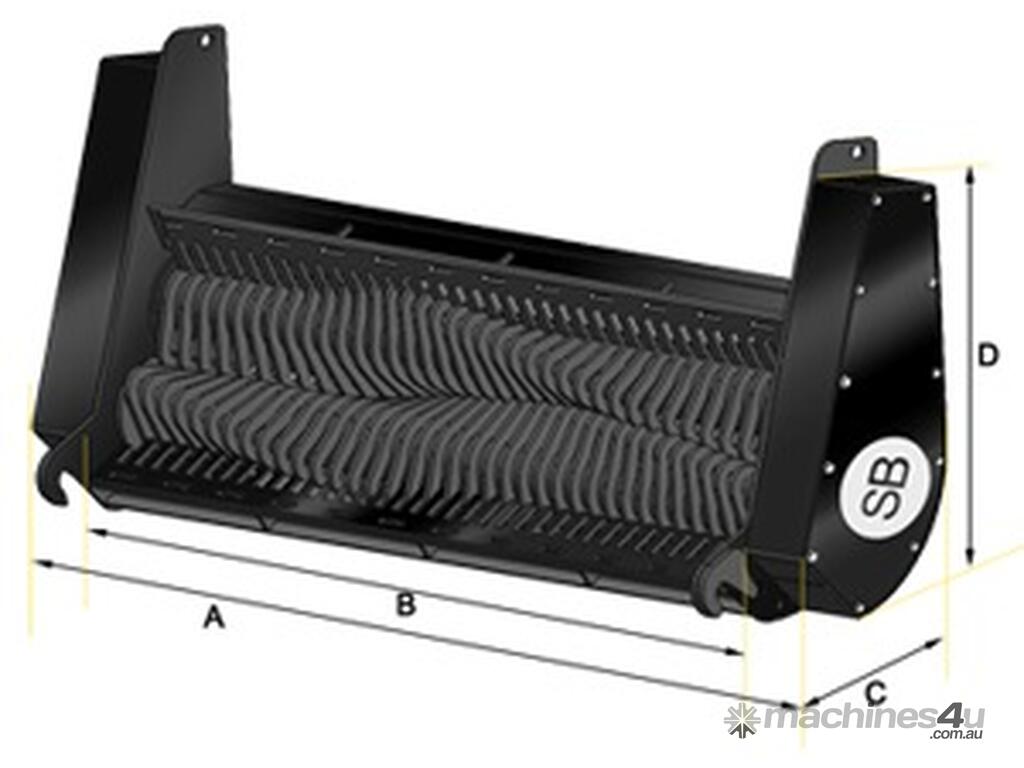

Blade Screen Module Specifications - SB2090
Excavator/Loader: 0,5 / 1,5 Tonnes
Hydraulic flow: 30-80 l/min
Max Hydraulic Pressure: 400 bar
Width (A): 120 cm
Rotor Width (B): 90 cm
Depth (C): 40 cm
Height (D): 80 cm
Weight(1*): 256 kg (2*)

1* Module weight differs depending on the blade type used. This table indicates the weight of modules with blade model 2004, with 30 mm spacing and 10 mm thickness.
2* Including cleaning comb frames and combs 28 kg.

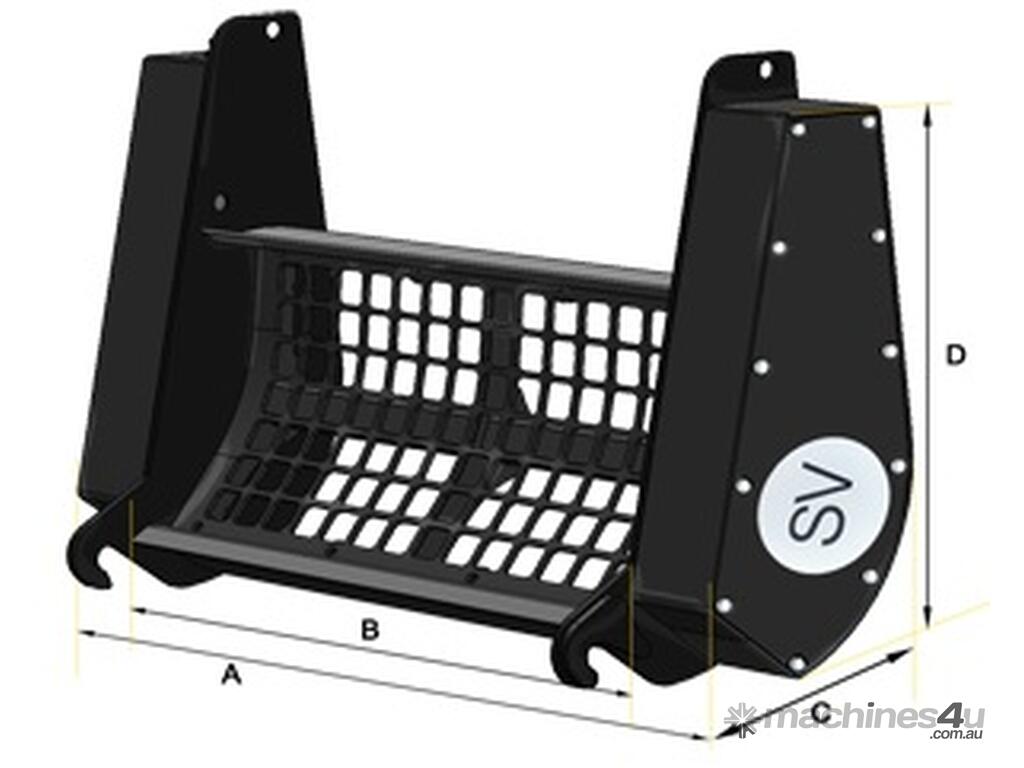

Vibrating Screening Module Specifications - SV2090
Excavator/Loader: 0,5 / 1,5 Tonnes
Hydraulic flow: 20-40 l/min
Max Hydraulic Pressure: 200 bar
Width (A): 120 cm
Mesh’s width (B): 90 cm
Depth (C): 40 cm
Height (D): 80 cm
Weight(1*): 165 kg

1* Modules weight differs depending on the screening mesh used.
