REROUNDING TOOLS PE PIPE (250-800mm)

Rerounder the mechanical thread of these steel-made products help remodel the ends of ovalized pipes that need to welded by electrofusion.

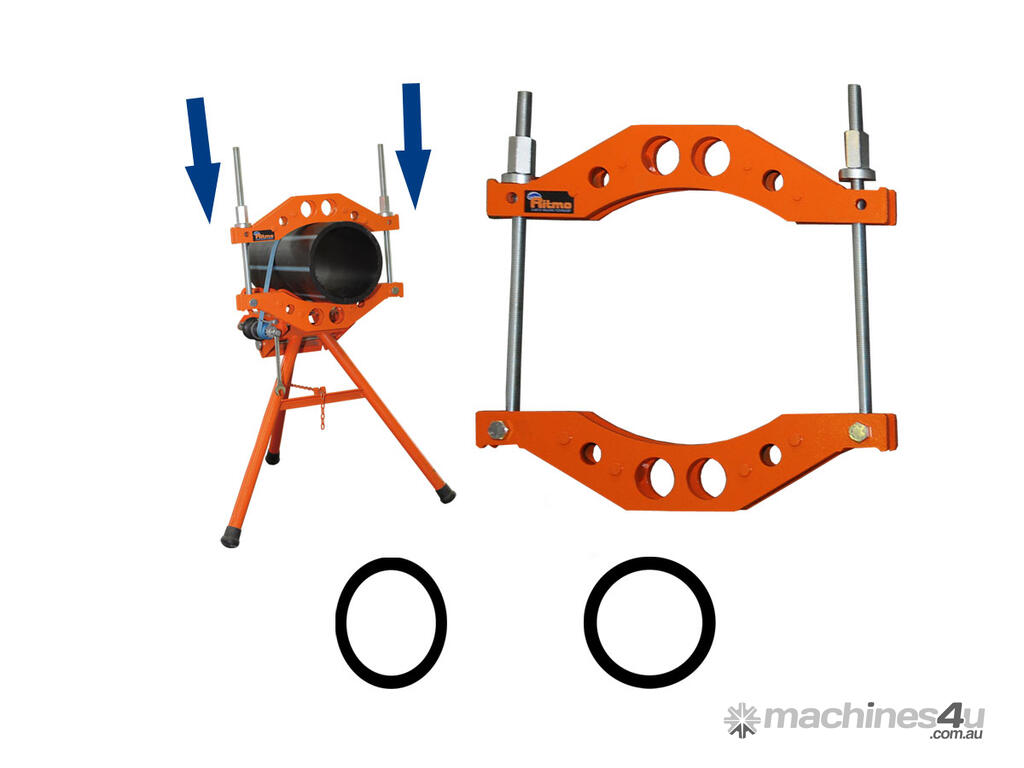

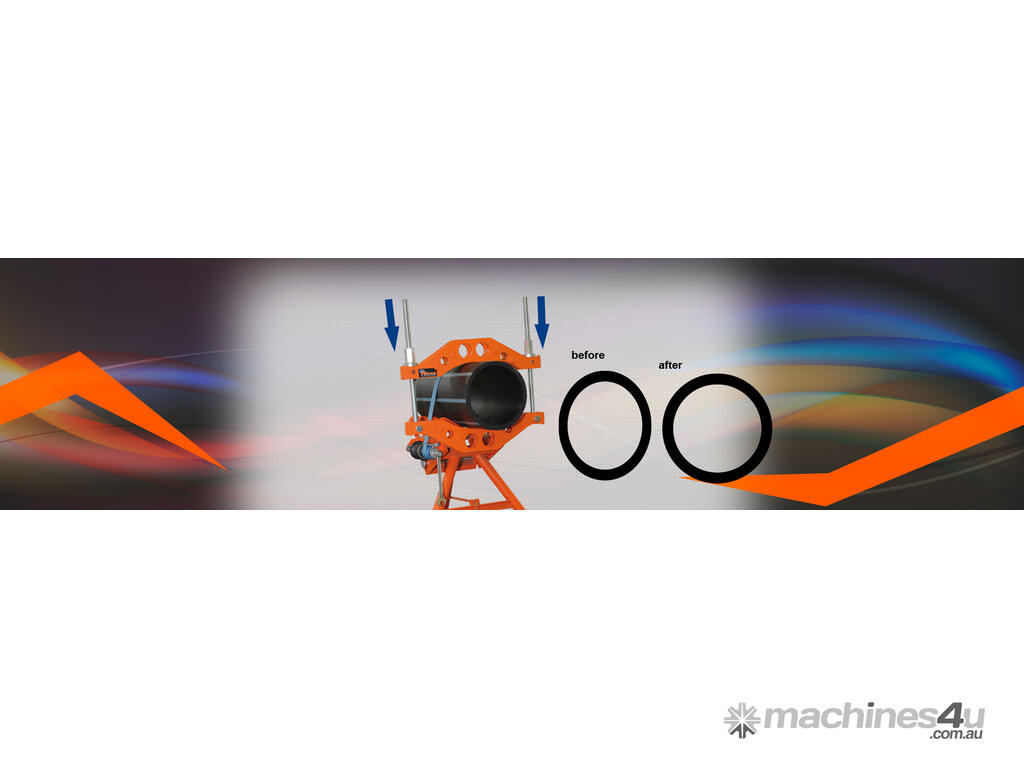

The manual clamping of the tool stems pushes the ovalized end till its reshaping respects the ovalization range required by most standards, therefore allowing its insertion into an electrical coupling - and avoiding the cost of eliminating a good pipe.

The 3 rerounders cover the following diameters range:
250-400 model for OD from 250 to 400 mm;
450-560 model for OD from 450 to 560 mm,
630-800 model for OD from 630 to 800 mm.

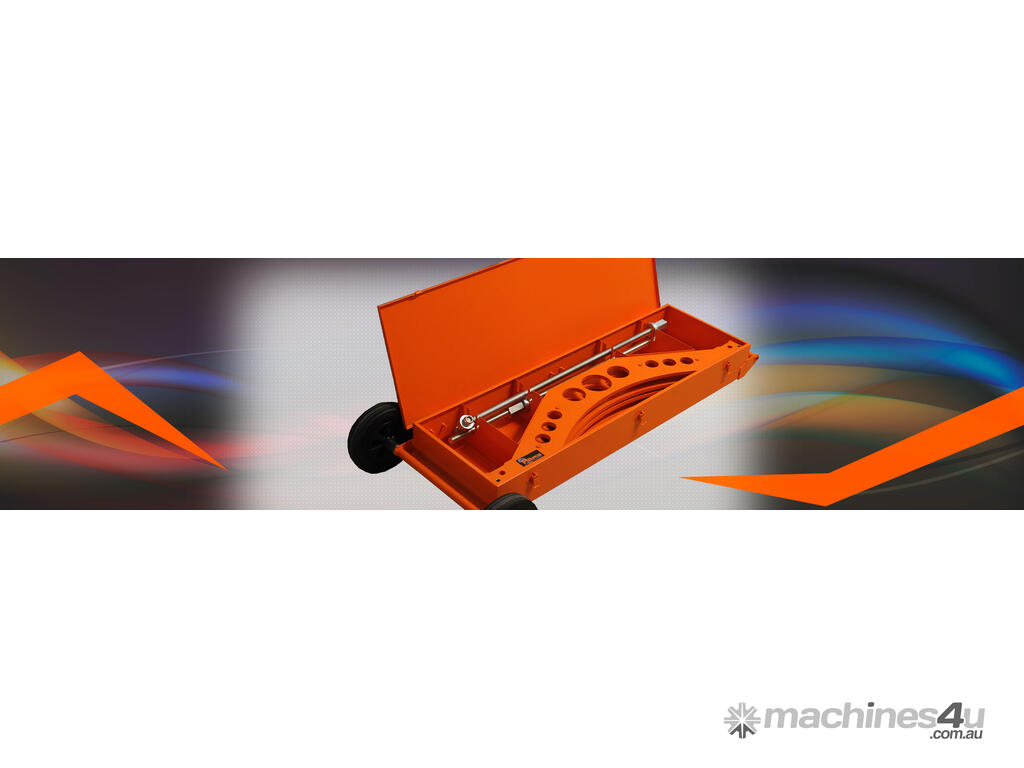

Each one of them is sold separately, with a steel transport box.

The manual clamping of the tool stems pushes the ovalized end till its reshaping respects the ovalization range required by most standards, therefore allowing its insertion into an electrical coupling - and avoiding the cost of eliminating a good pipe.

Rerounder 250 - 400



Working range

Ø 250 ÷ 400 mm


Dimensions
610 x 255 x 120 mm


Weight
27 Kg



Rerounder 450 - 560



Working range
Ø 450 ÷ 560 mm


Dimensions
980 x 495 x 200 mm


Weight
41 Kg






Rerounder 630 - 800



Working range
Ø 630 ÷ 800 mm


Dimensions
1240 x 555 x 200 mm


Weight
60 Kg
