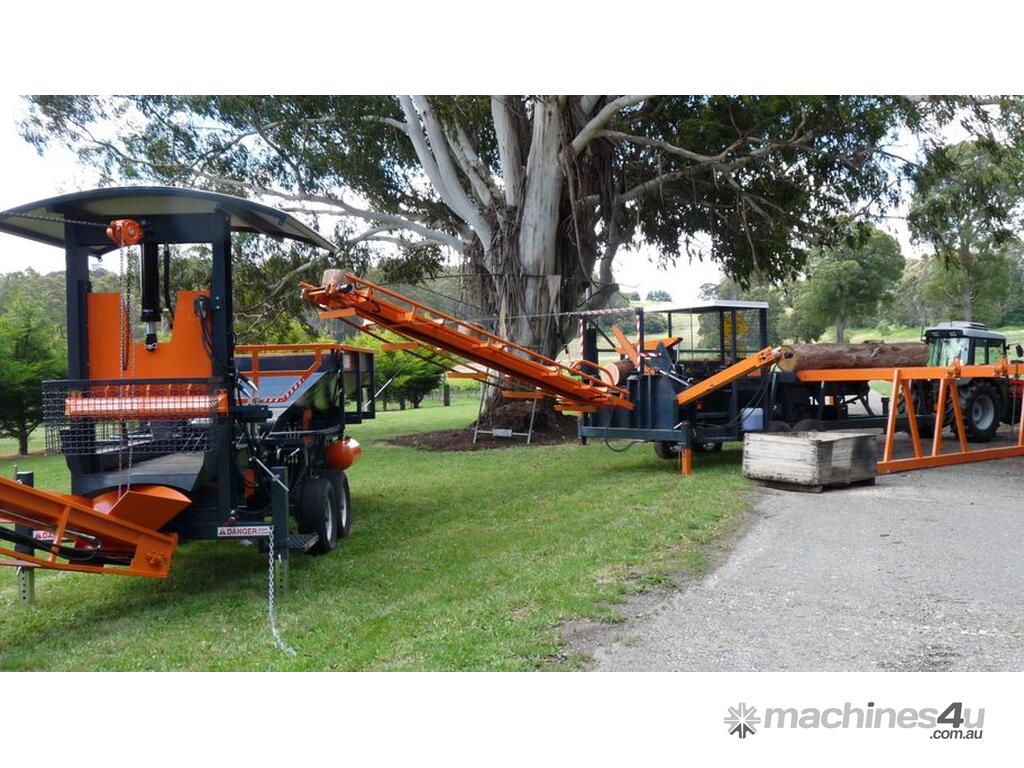

New rex Log Saws for sale - REX LOG SAW 1050

With a larger capacity than the 800 Log Saw, the 1050 model is designed to work as a stand alone machine or in conjunction with the Rex 900 Processor. Able to cut logs up to 1050mm diameter, it will efficiently cut logs into blocks ready for processing into split firewood. As a one person operation this machine will produce as much block firewood as three to four people on chainsaws.

The Rex Log Saw is a fully self-contained unit. The 48 inch chain saw bar is direct driven from the 50hp Deutz diesel engine via a clutch, drive shaft & pulley system. Logs are loaded onto the log deck with a loader, fed into the trough using a hydraulic chain drive system and then fed into the saw head. An increment system ensures even block length and blocked timber is carried away by the 5m conveyer for splitting or stockpiling. Sawdust removal is handled by a 4.2 m sawdust conveyer. Importantly, the operator’s working environment is safe, as they are well clear of the saw zone and protected by a semi enclosed cabin. This machine is WorkCover compliant making it ideal for firewood businesses who are seeking to reduce their liability.

Designed with an over specified hydraulic system, and built with off the shelf components (and minimal electronics), the Rex Log Saw will give thousands of hours of trouble free operation. The Rex Log Saw will cut your labour costs, increase productivity and eliminate Work Cover liability.

PROUDLY MADE IN AUSTRALIA: Designed and built in our Victorian workshop with quality components

CAPACITY & OUTPUT >>
PRODUCTION POSSIBILITY: One operator is capable of processing in excess of 150 – 200 cubic meters of logs per day (guide only). Similar running costs to one chainsaw with three – four times the output.
CAPACITY: Will cut logs up to 1050mm diameter & 7m long.

ENGINE & CUTTING BAR >>
ENGINE: 50hp Deutz, 3 cylinder air-oil cooled diesel.
CUTTING BAR: Direct drive 48 inch cutting bar with ¾ inch harvester chain. Automatic chain oiler.
BLOCK INCREMENT SYSTEM: Red eye block increment system ensures consistent block length
FUEL: 60 litre tank. Economical consumption estimated at only three litres per hour ~
ENGINE WARRANTY: All engines backed by comprehensive manufacturers warranty

CONSTRUCTION >>
LOG DECK: Large ‘live’ log deck (3.5m) will handle logs from 1.5m up to 7m long
SAWDUST CONVEYOR: 4.2 meters long; takes saw dust away for sale or stockpile
OUTFEED BLOCK CONVEYOR: 5 meters, designed to feed blocks into a Rex Firewood Processor, load trucks or stockpile
BUILT TO LAST: Proven heavy duty construction with minimal maintenance required.
EASE OF USE: Safe and easy to use with low noise output.
MOBILTY: Fully self contained & yard towable, with dual axles – 16 inch wheels and tow hitch
MAINTENANCE: Chain sharpener supplied. Standard chainsaw maintenance is required
WARRANTY: Six month commercial warranty on frame; all other parts covered by own manufactures warranty
TRAVEL DIMENSIONS: Weight 6000kg / Height 3.6m / Width 2.4m / Length 8m
WORKING DIMENSIONS: Weight 6000kg / Height 3.6m / Width 7m / Length 13m

DESIGN, SAFETY & CONTROLS >>
INNOVATIVE DESIGN: Impressive efficiency with minimal labour requirements.
CONTROLS: Simple controls with minimal electronics.
OPERATOR SAFETY: the operator’s working environment is safe, as they are well clear of the saw zone and protected by a semi enclosed cabin. This machine is WorkCover compliant making it ideal for firewood businesses who are seeking to reduce their liability.
SAFETY COMMUNICATION: All machines come with a detailed operator manual which includes operator training, maintenance recommendations & risk assessment.
