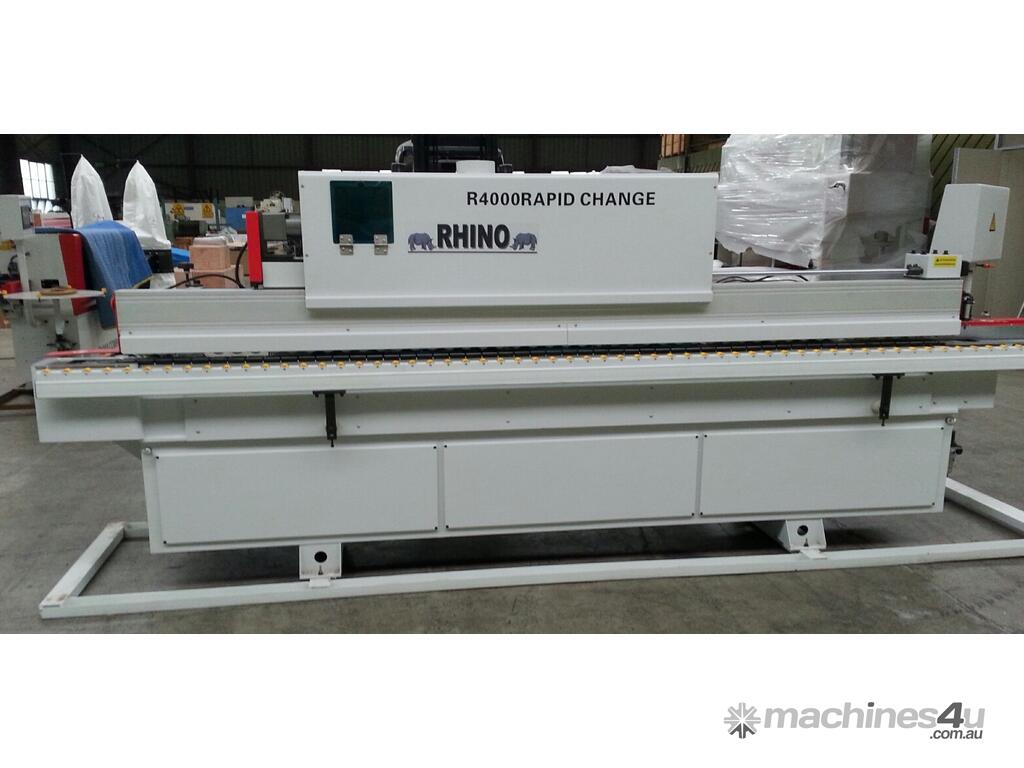

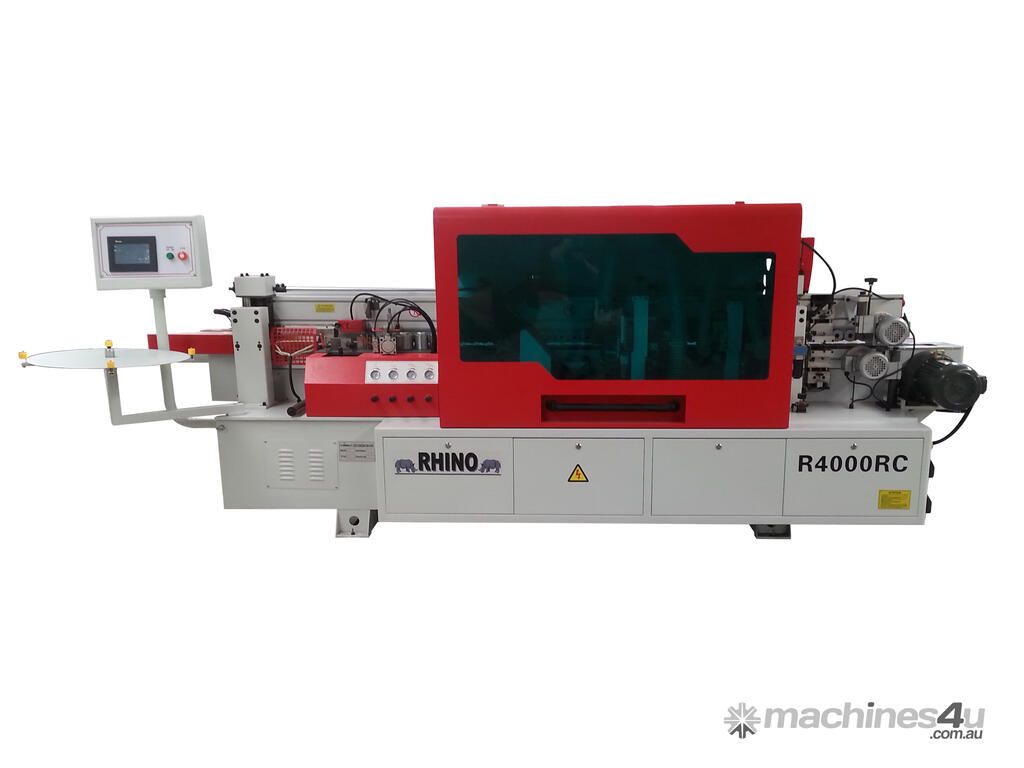

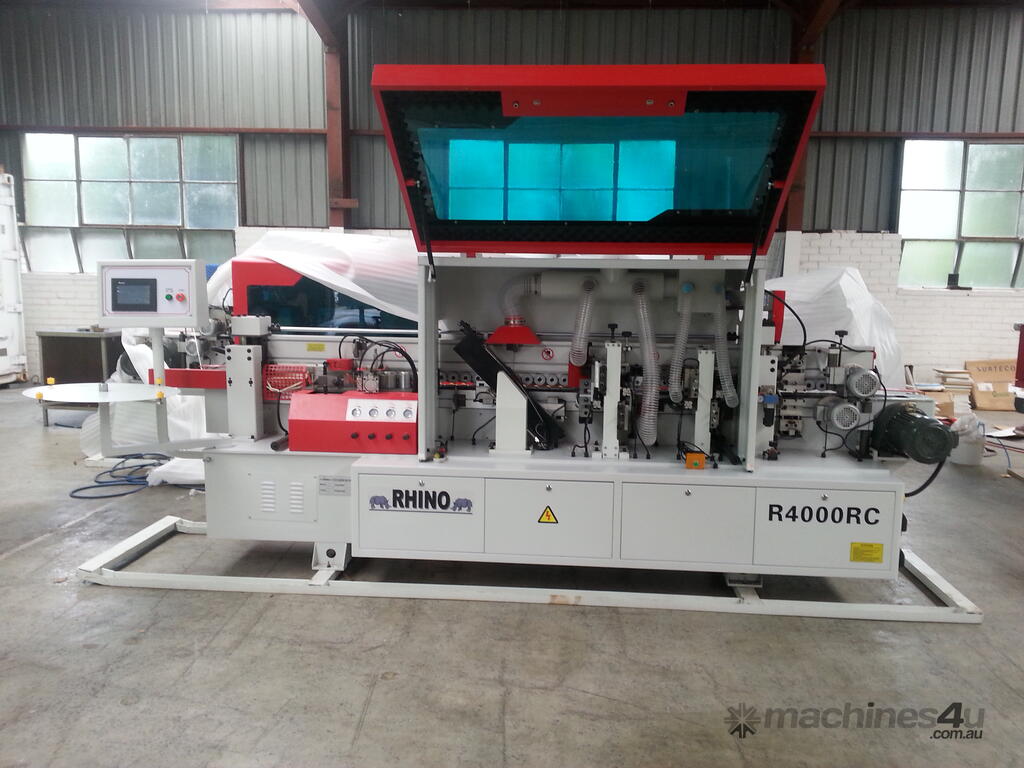

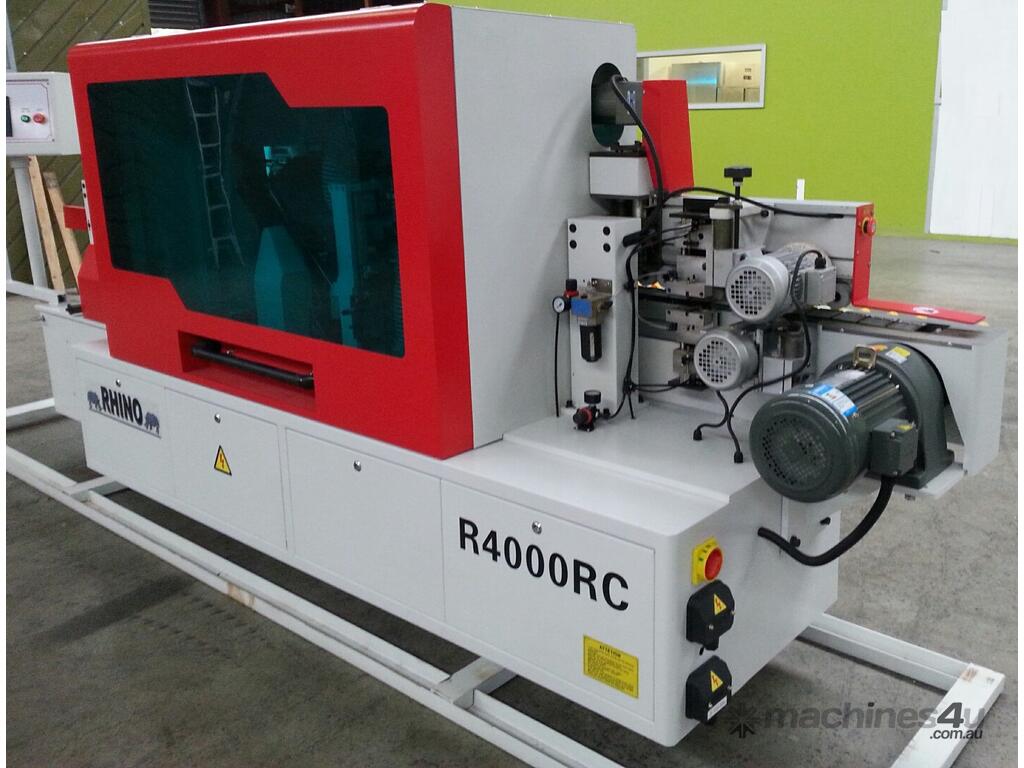

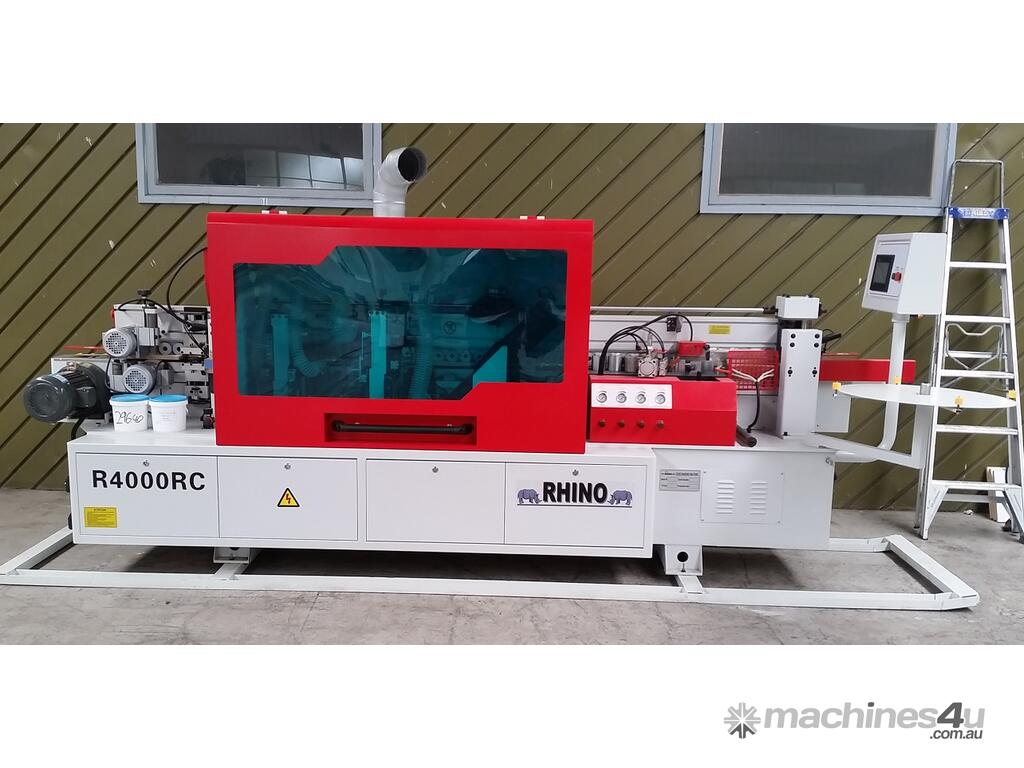

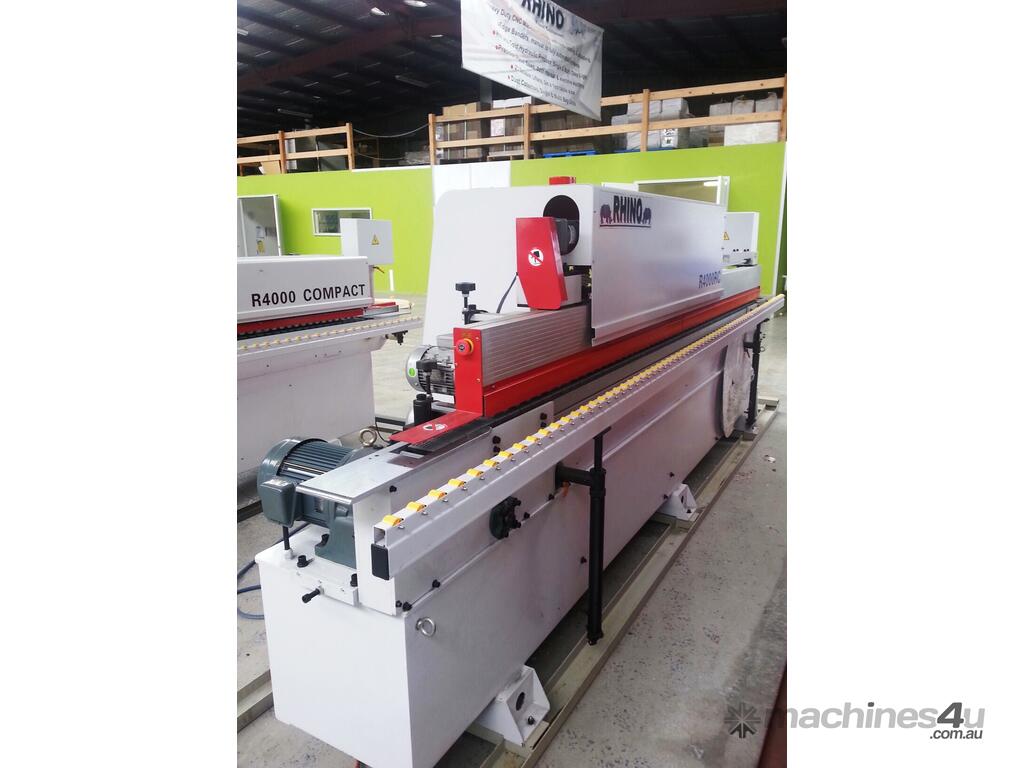

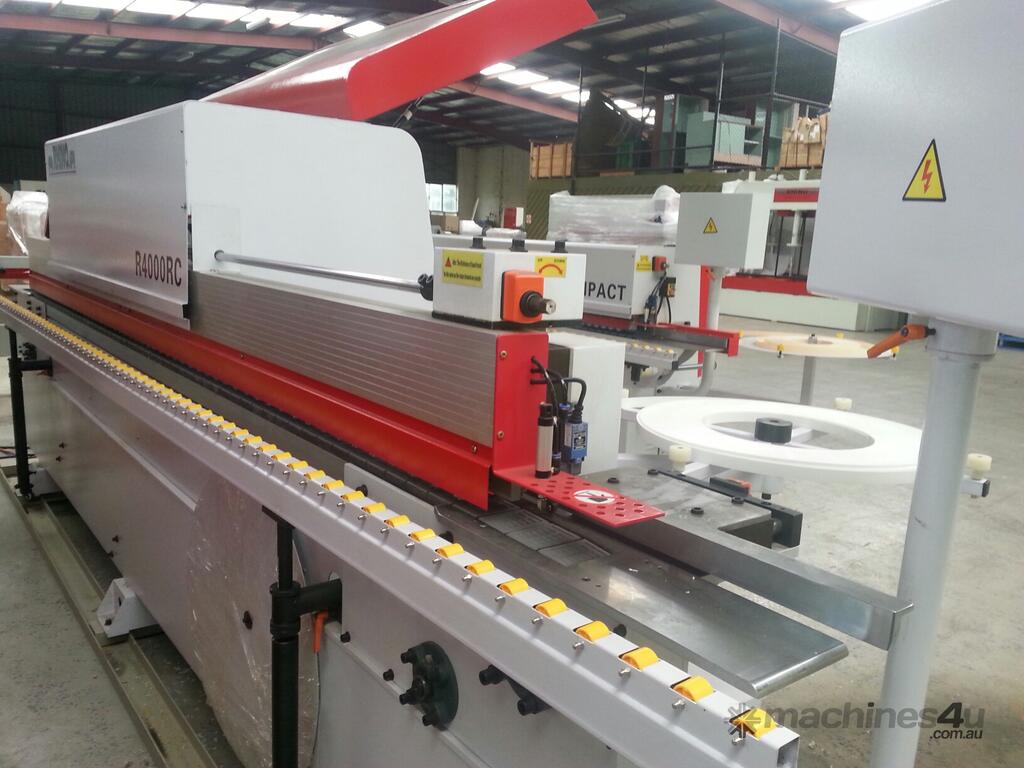

RHINO R4000 RC HEAVY DUTY RAPID CHANGE 20mt/min EDGEBANDER

RHINO R4000 RC HEAVY DUTY 20MT/MIN EDGEBANDER LH & RH FEED DIRECTION AVAILABLE

EDGE BANDER WORKING UNITS:
TEFLON COATED HOT MELT GLUE POT WITH INFRARED BOARD HEATING SYSTEM
EDGE STRIP APPLICATION STATION WITH PNEUMATIC GUILLOTINE
PNEUMATIC ROLLER PRESSURE STATION
TWO SAW END TRIMMING STATION
TOP and BOTTOM TRIMMING STATION WITH 2MM RADIUS CUTTERS

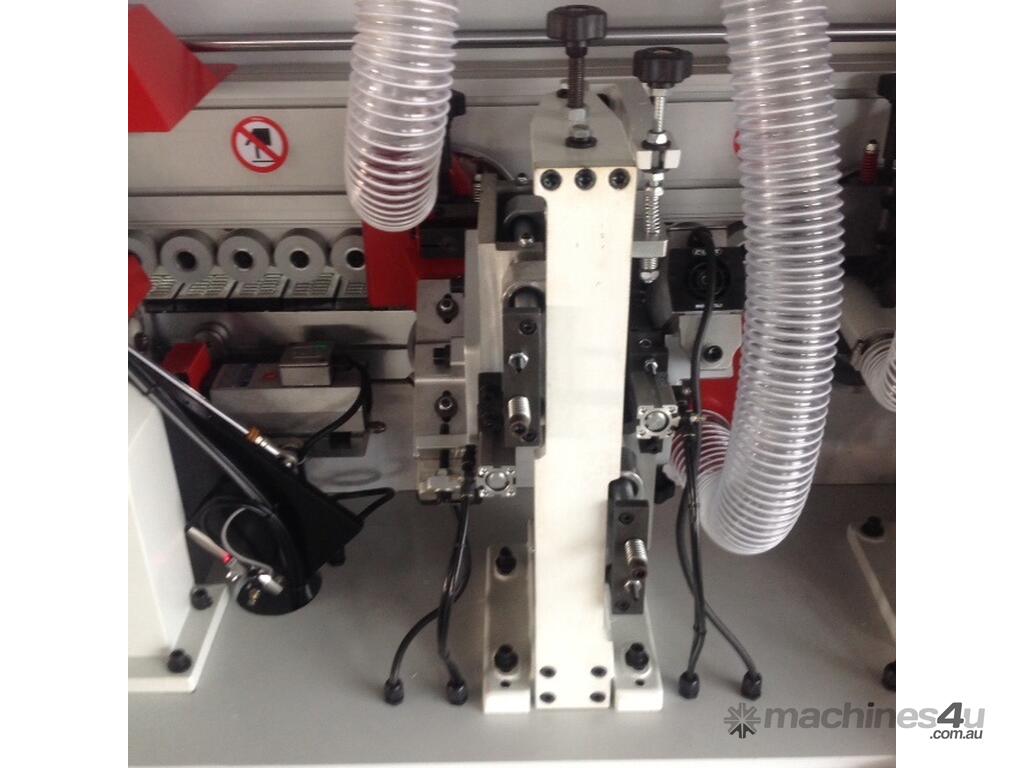

TOP and BOTTOM RADIUS SCRAPERS
TOP and BOTTOM FLAT GLUE SCRAPERS
WHITE OIL MIST SPRAY SYSTEM FOR BOARD EDGE REJUVENATION

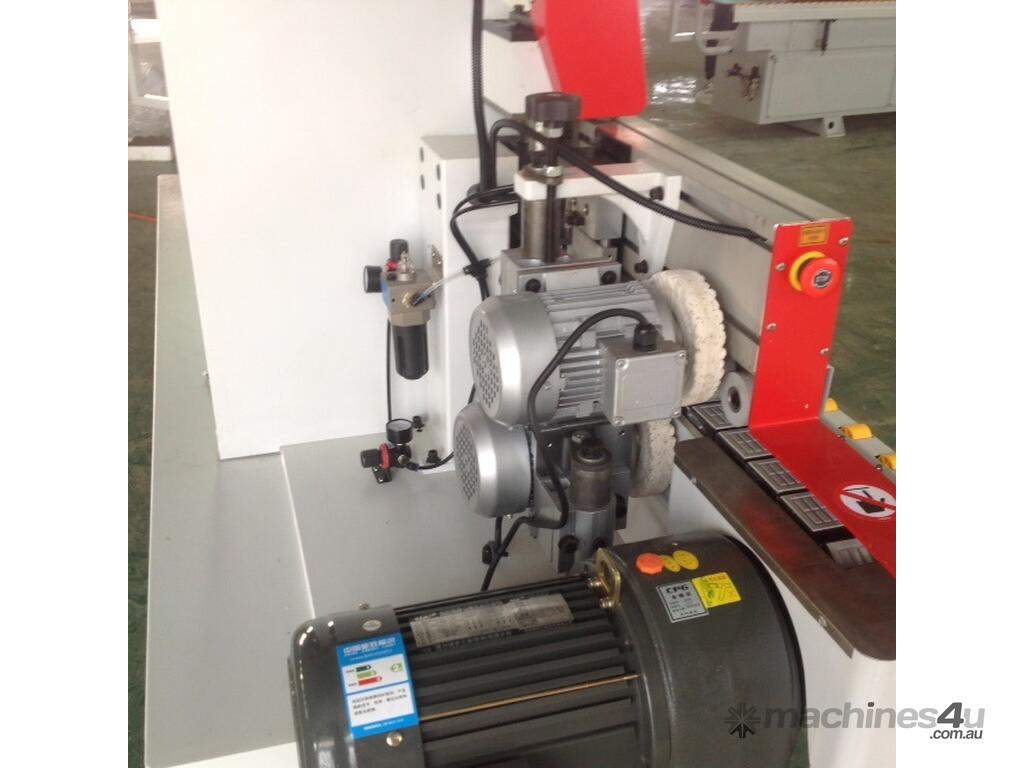

TOP and BOTTOM BUFFING STATION
TOUCH SCREEN CONTROLS FOR ALL FUNCTIONS
AUTO THICK THIN TAPE ADJUSTMENT FROM TOUCH SCREEN
ELECTRIC RISE and FALL OF BEAM FOR BOARD THICKNESS FROM TOUCH SCREEN
ITALIAN MANUFACTURED HIGH FREQUENCY MOTORS
DELTA TAIWANESE INVERTERS

EDGE BANDER SPECIFICATIONS:
Heavy Duty Construction, heat treated prior to machining
Tape width: 15 to 58mm
Tape thickness: 0.4 to 2mm
Work piece thickness: 12 55mm
Min. work piece width: 80mm
Min. work piece length: 120mm
Feeding speed: 12 to 20mt/min.
Teflon coated glue pot
Temperature stand by if not used for a pre determined period of time

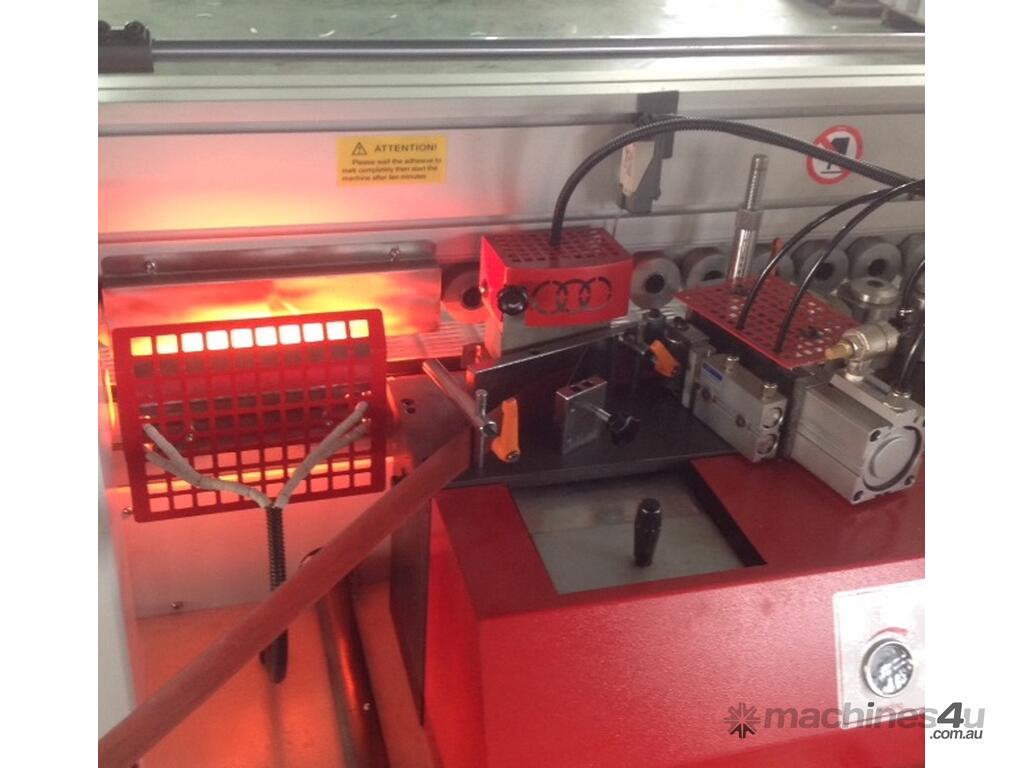

Infrared board heating system
Safety distance stop infeed cylinder

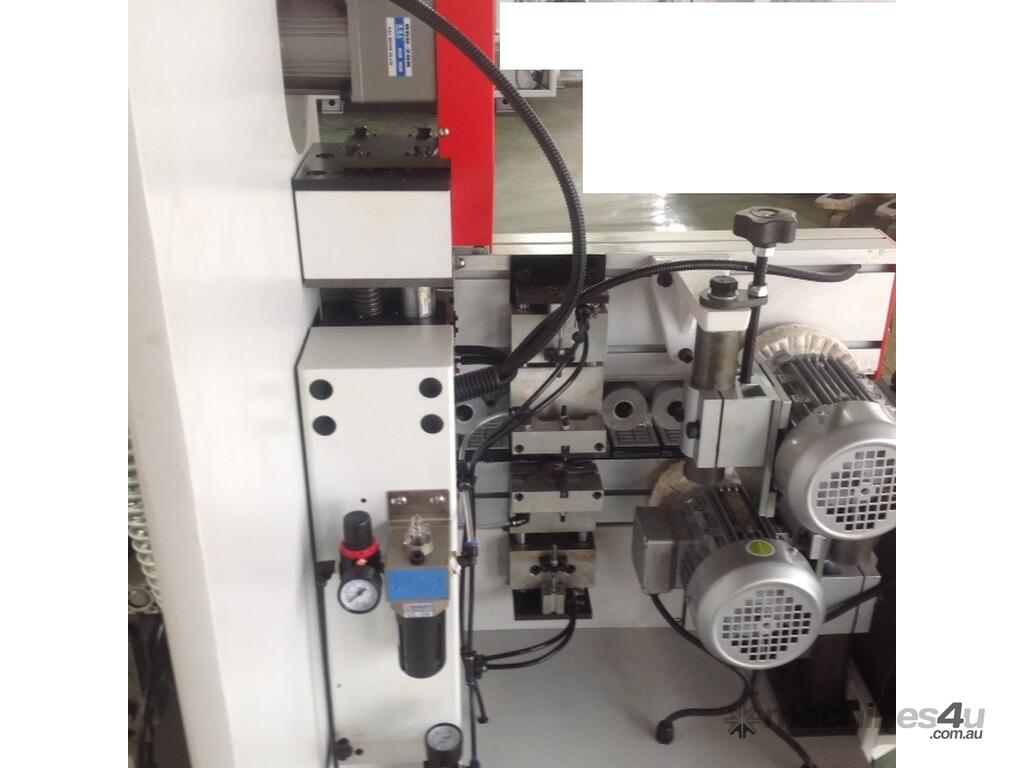

ITALIAN end cutting motors 2 x 0.5kW 12,000rpm
Linear guide rail for end cutting function
End cutting unit with adjustable angle
ITALIAN fine trimming motors 2 x 0.5kW 12,000rpm
Fine trimming unit adjustable 0 45 degrees
All ITALIAN high frequency motors fitted with DELTA 3 phase inverters for more power & braking

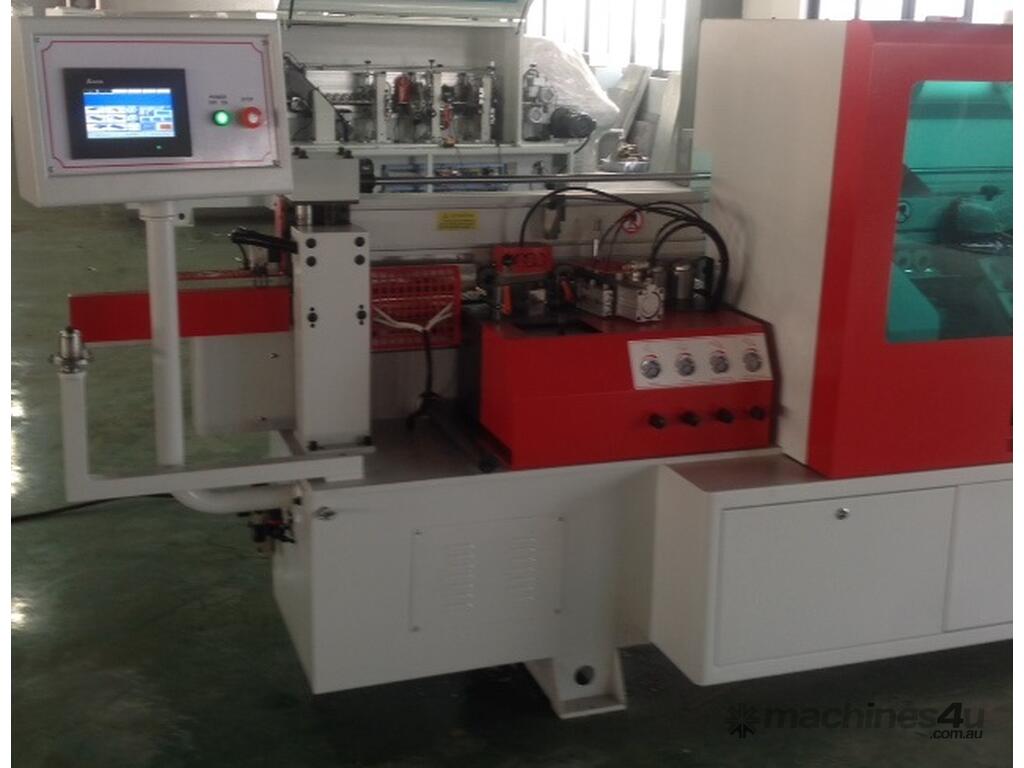

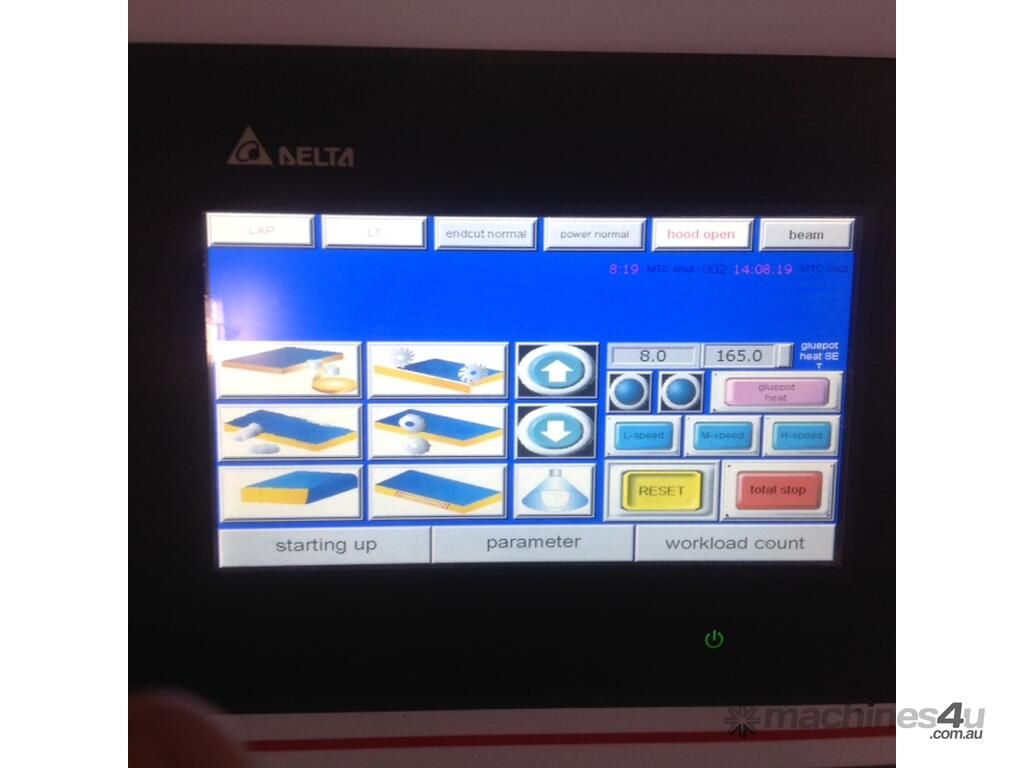

DELTA Touch Screen for all controls
Rapid change from 1 2mm with one touch on the screen
Linear bearings on horizontal guides
Electric rise & fall of top beam with digital display for panel thickness

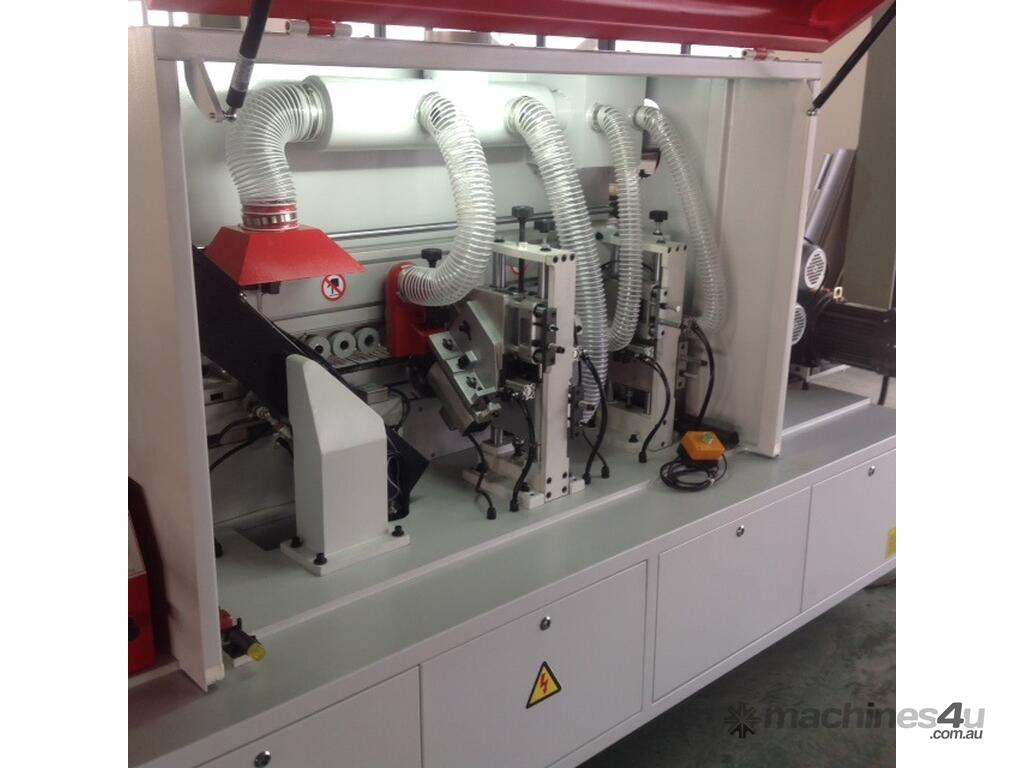

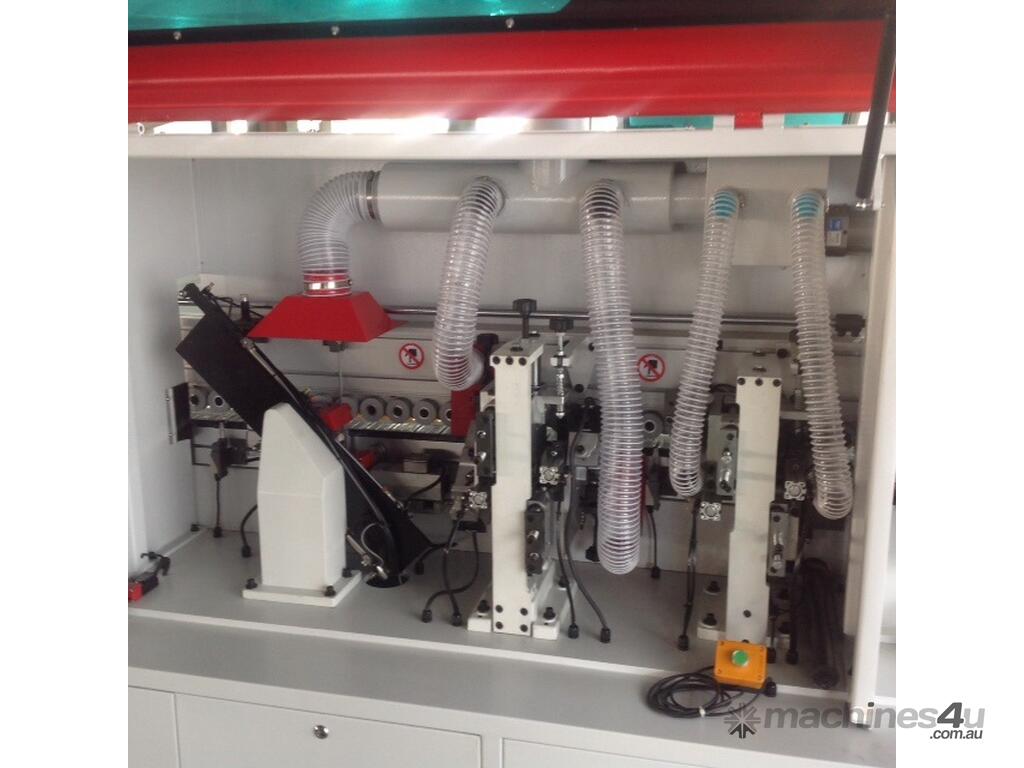

Dust extraction on scrapers & trimmers

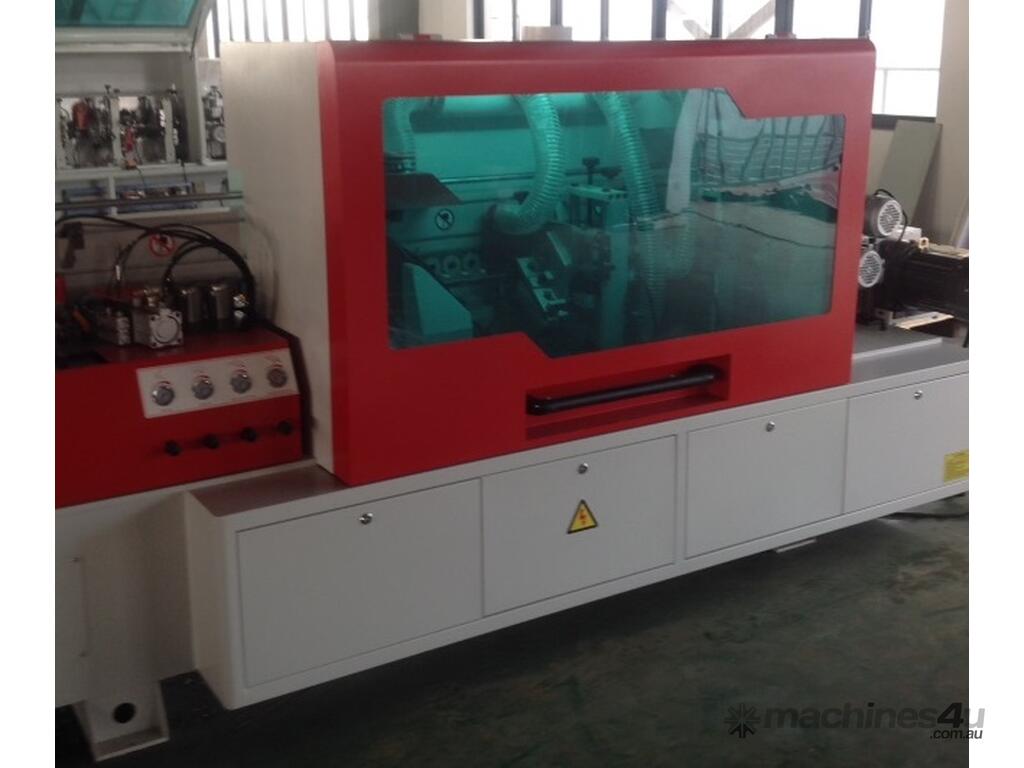

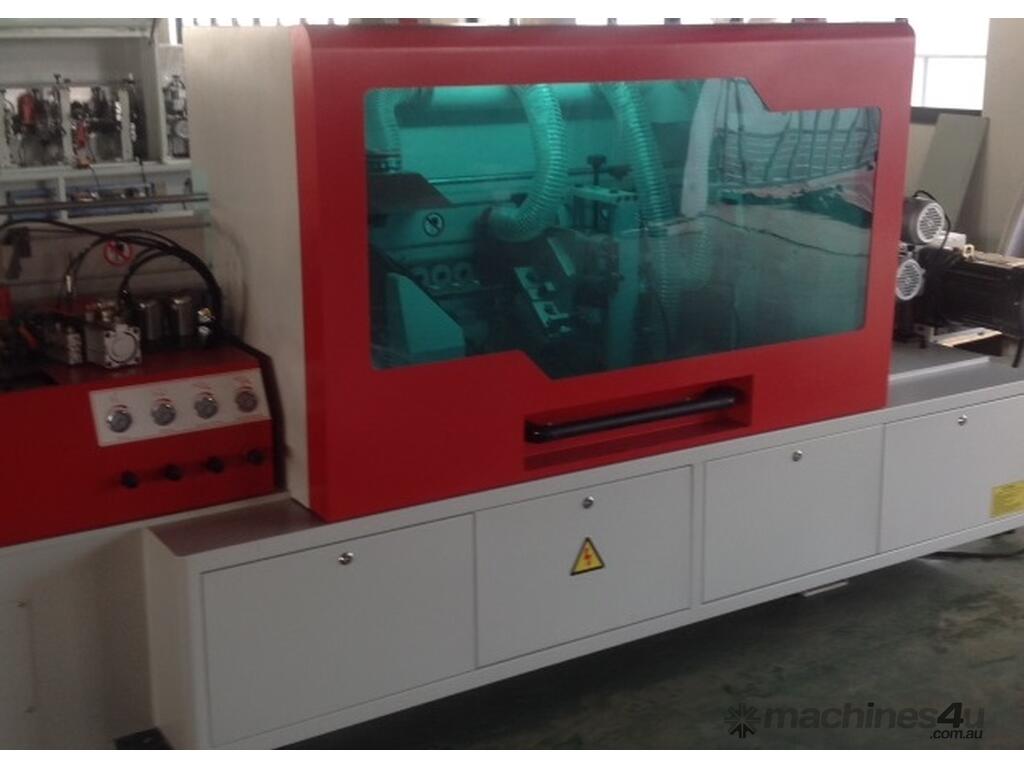

Sound proofing of hood with large viewing window incorporating cabin lighting
Runs on 20Amp 3 Phase electric circuit
Dust extraction electrics & controls for upto 4kW dust unit built in & starts up with feed track
Feed Direction, both hands available
Packing size 4600 x 1000 x 1700mm (h)

SALE PRICE R4000 RC EDGEBANDER $P.O.A plus gst

Delivery approx. 12-14 weeks from order

Enquire now to receive full quotation including delivery, installation and warranty
