RHINO R8000 PRE MILLING AUTOMATIC CNR ROUNDING EDGE BANDER

RHINO R8000 AUTOMATIC EDGE BANDER incorp. the FOLLOWING FEATURES:

Twin spindle jump pre milling unit with pneumatic movement including diamond tipped tooling.
Hot melt glue pot application unit with heated infeed fence, incorporating a Teflon lined glue pot for ease of cleaning & a glue pot stand by temperature switch.
Edge strip application unit with pneumatic guillotine.
Four roller pressure unit with pneumatic pressure.
End trimming unit cut off saws with angle adjustment, running on German / Rexroth linear guides for accuracy and long life.
Main top & bottom trimming unit – tiltable to 15º with 12mm straight cutting tips, incorporating 18,000rpm European manufactured high frequency motors.
Fine top & bottom trimming station – tiltable to 45º, with 2mm radius cutters, incorporating 18,000rpm European manufactured high frequency motors.
Two (2) unit Corner rounding station with two motorized cutter units to travel around curved ends of panels.
Top and bottom radius scraper unit to fine finish PVC edging.
Top and bottom buffing unit

RHINO R8000 AUTOMATIC EDGE BANDING MACHINE COMPLETE WITH FOLLOWING FEATURES:
Full safety covers over motorised cutting and trimming units.

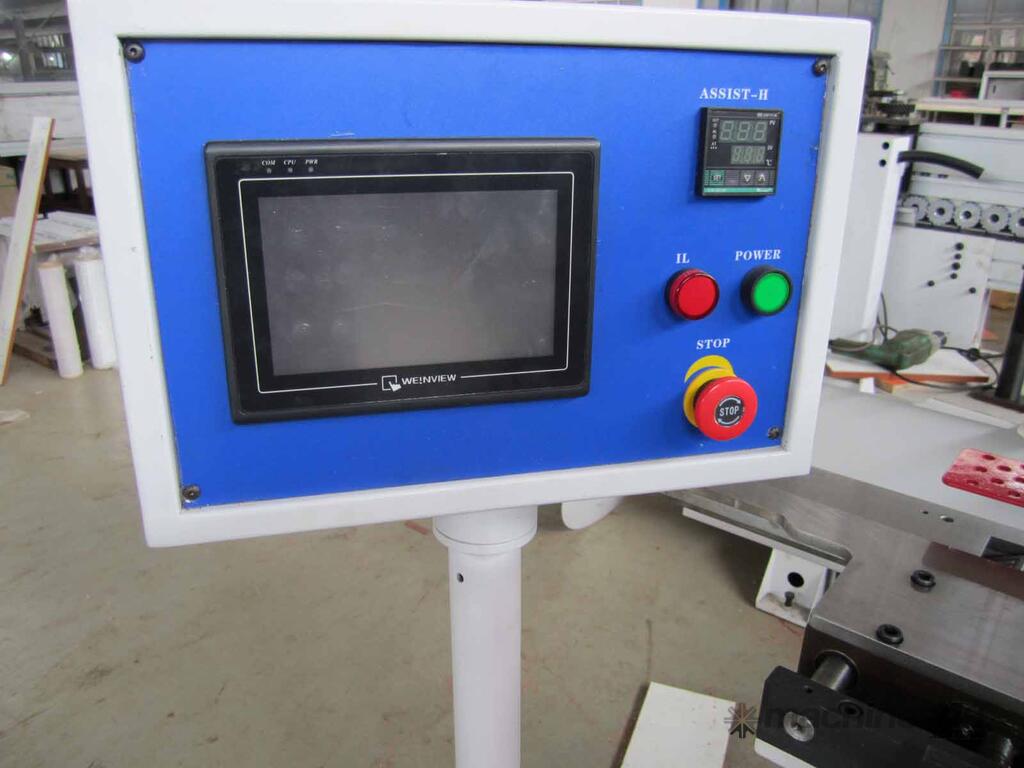

Convenient electrical control panel at infeed position.
Change set up from 0.4mm to 2mm edgestrip with one switch on electrical control panel.
Fluorescent light inside safety hood.
High feed rates – 12, 16 or 20 metres/min. Feed speed selected from console switch.
Inch / Jogging Feed button to assist setting up.
Pneumatic shut off gate on glue roller.
Front and rear tape overlap adjustment from electrical control panel.
Large 3” (75mm) dust exhaust hoses on trimming units for efficient extraction.
Large windows in safety hoods for better visibility.
Five independent pressure rollers – pneumatic pressure.
Pneumatic gate prevents panels being fed in too close to one another.
Mechanical digital readout on motorized height setting on top beam for different panel thicknesses.
Precision German / Rexroth linear guides on cut off saws.
European manufactured 18,000rpm high frequency motors on saws and trimmers.
Cut off saws and trimmers can be set on angle.
Diamond tipped 140mm diameter cutterheads on twin spindle pre milling station.
Pneumatic blowers on scraper tracer wheels to keep swarf from affecting accuracy.
Buffing units mounted on 50mm round bars – will not flex under load.

POA

Delivery approx. 14 weeks from order and deposit
