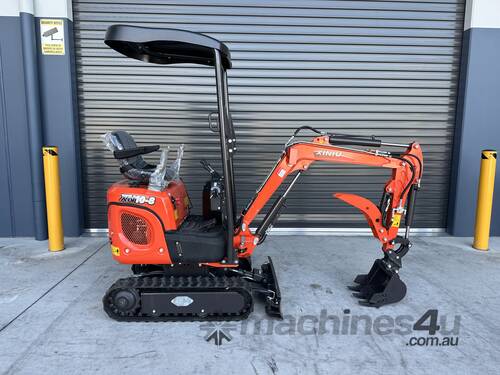

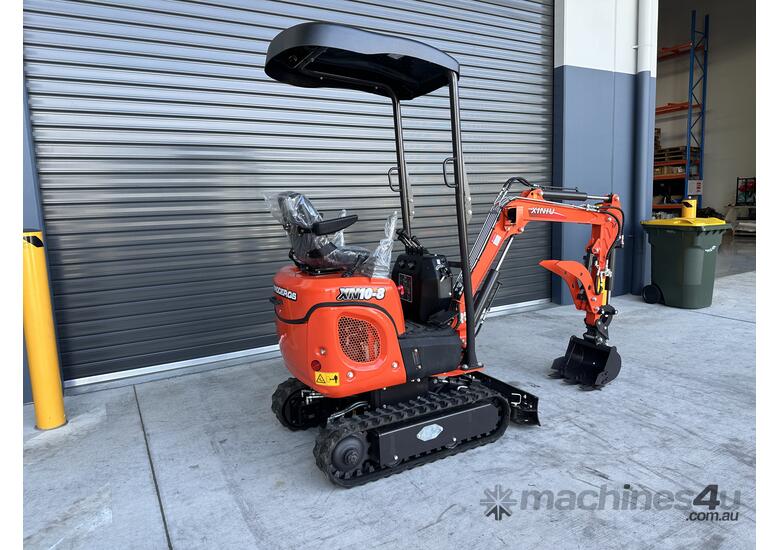

RHINOCEROS XNCYL KOOP DIESEL 1 TON MINI EXCAVATOR
*** INCLUDES 450MM BUCKET / HYDRAULIC THUMB GRAB / QUICK HITCH ***
FEATURES INCLUDE :

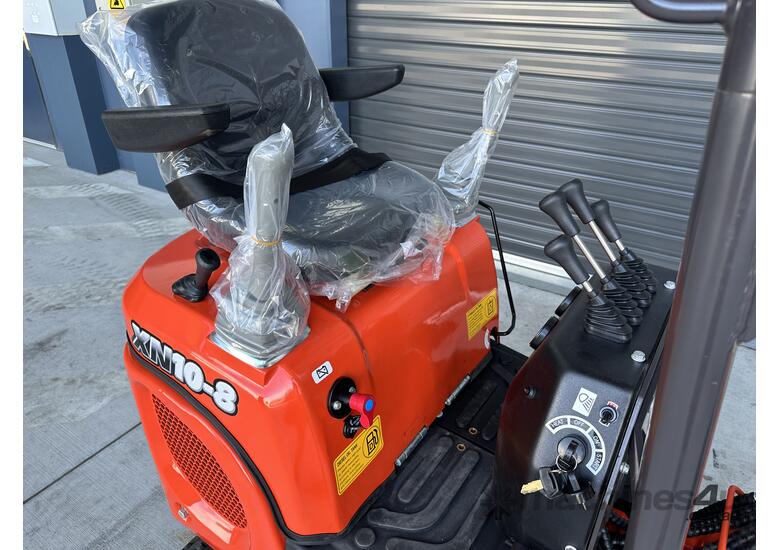

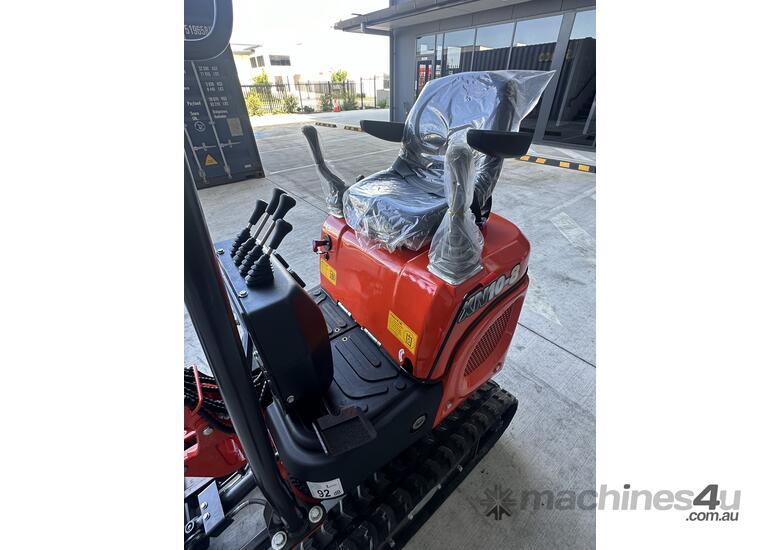

- SEAT MOUNTED JOYSTICK CONTROLS
- NARROW ACCESS - ADJUSTABLE TRACKS 770-950MM
- SWING BOOM
- DUAL AUXILARY HYDRUALIC OUTLETS
- 1000KG WEIGHT
- EASY ACCESS TO ENGINE - HINGED BONNET
- SAFETY HYDRAULIC LEVER
- LED WORK LIGHT
- ISOLATOR SWITCH / USB PORT
The Rhinoceros XN10-8 is small enough and light enough to transport on most small trailers - A truly great little versatile machine for doing an endless amount of jobs !
SPECIFICATIONS
Model : XN10-8
Manufacturer : SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD
Brand : RHINOCEROS
Operating Weight : 1000kg
Engine : KOOP
Rated power : 12HP3600RPM
Displacement : 0.499 L
Bore stroke : 70x55
Main pump : KDK
Pump Flow : 16.6L/min
Displacement : 7.2ml/r
Swing motor : EASTON ( USA )
Traveling motor : EATON ( USA )
Travel speed : 2.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH) : 1877x780/930x1990 mm
Wheelbase : 910 mm
Total length of track : 1230mm
Upper chassis ground clearance : 453 mm
Adjustable track width : 750mm/950mm
Track width : 180 mm
Track height : 320 mm
Swing Boom left : 363mm
Swing Boom right : 325mm
OPERATING RANGE
Max. Digging depth : 1650 mm
Max. Digging height : 2646 mm
Max. Dumping height : 1850 mm
Max. Digging radius : 2850 mm
Min. Rotation radius : 1330 mm
Max. Height of bulldozer blade : 141 mm
Max. Digging depth of bulldozer blade : 255 mm
Max. Platform back turning radius 784 mm
Bucket Digging Force : 9.2kN
OPTIONAL ATTACHMENTS AVAILABLE
- 200mm Trench Bucket
- 350mm GP Bucket
- 800mm Tilting Mud Bucket
- Ripper
- Rake
- 5 Finger Grab
- Sieve bucket
- Post Hole Digger with 200mm and 300mm Auger
