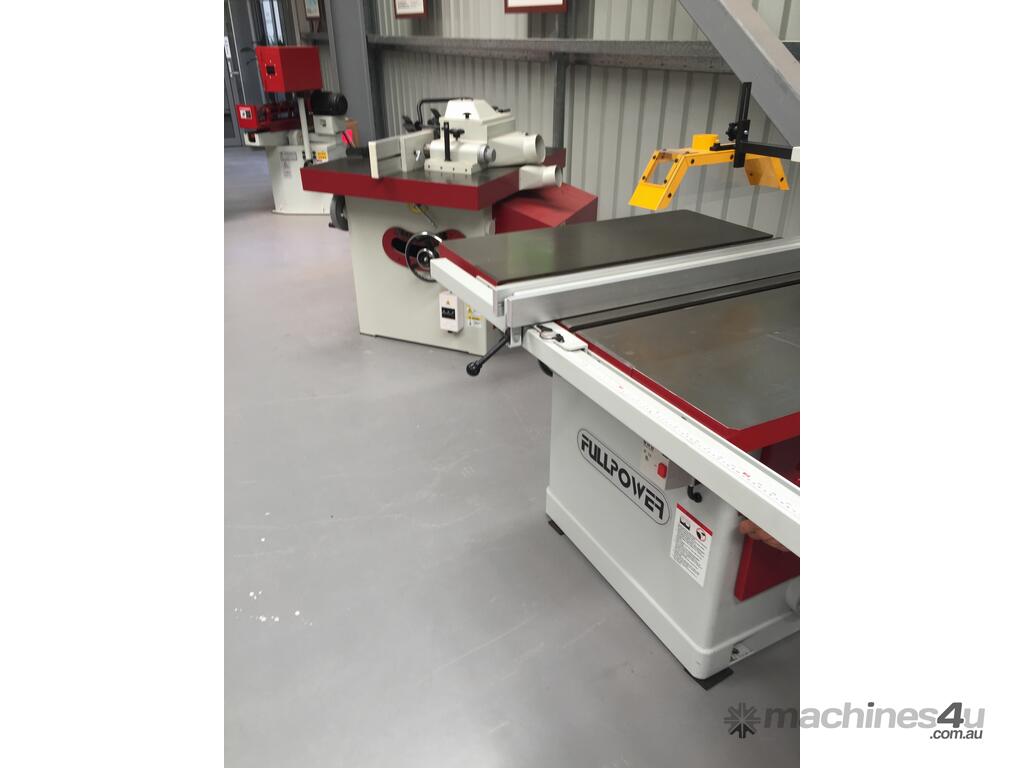

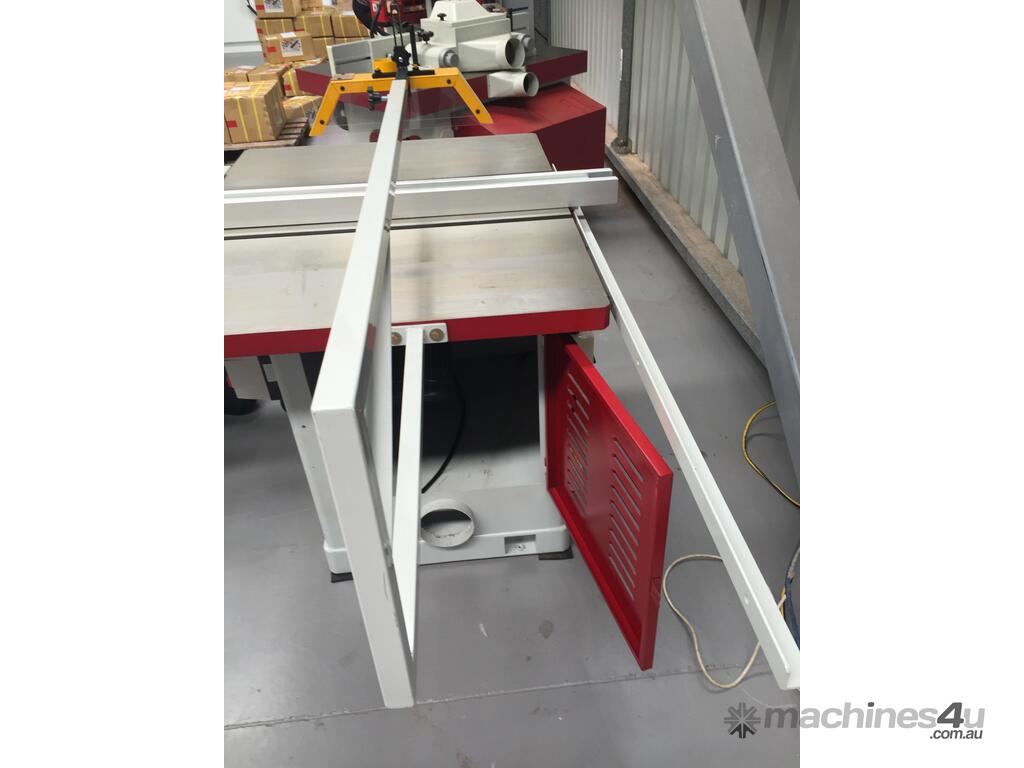

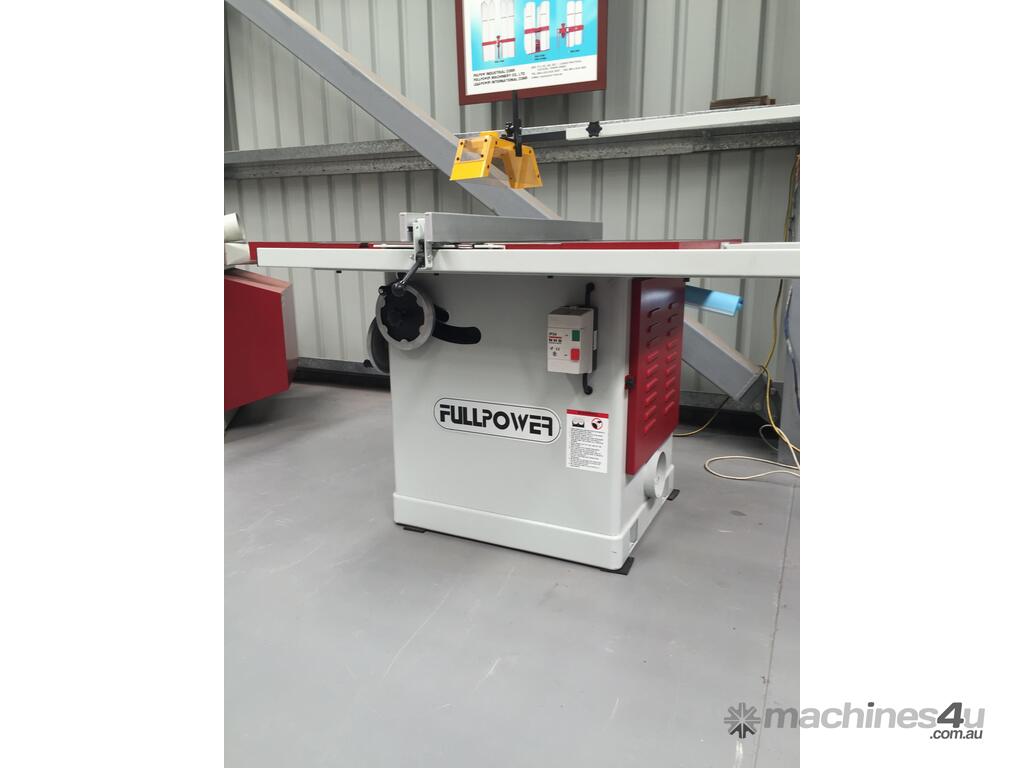

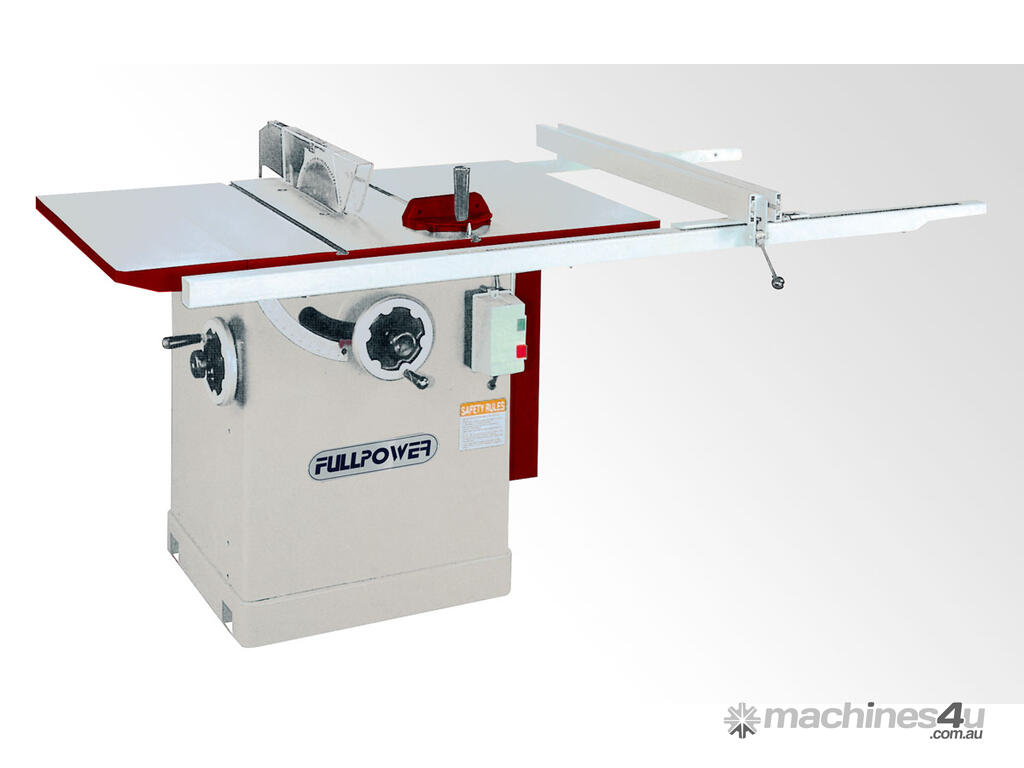

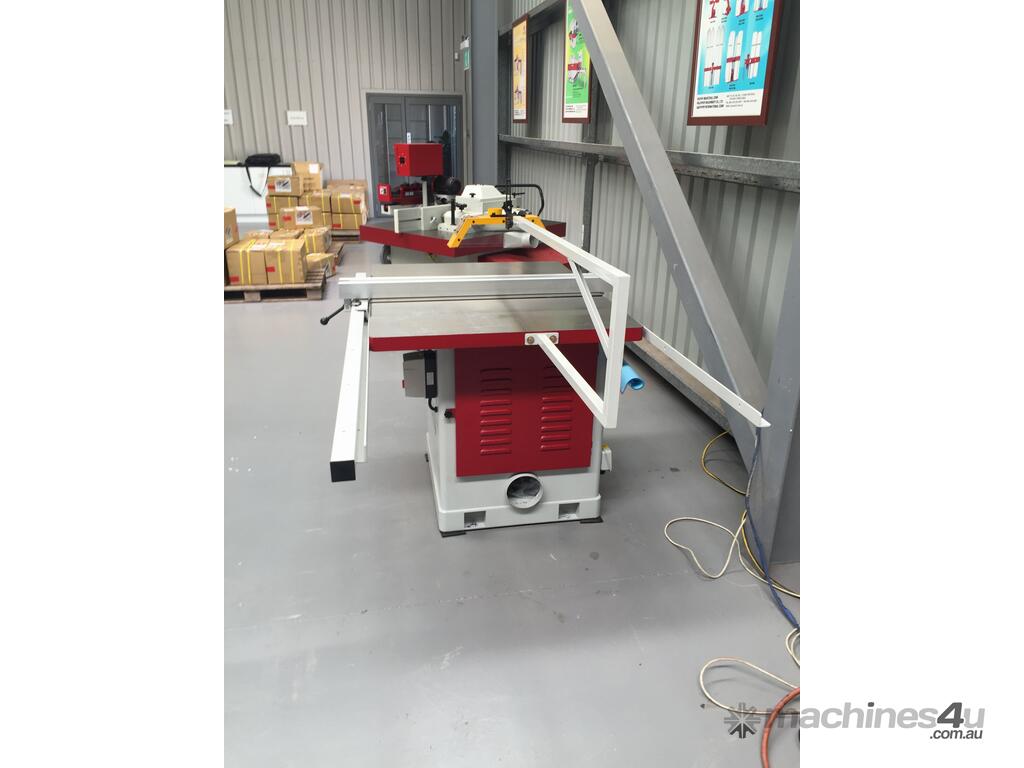

FULLPOWER RIP SAW MODEL TC-16

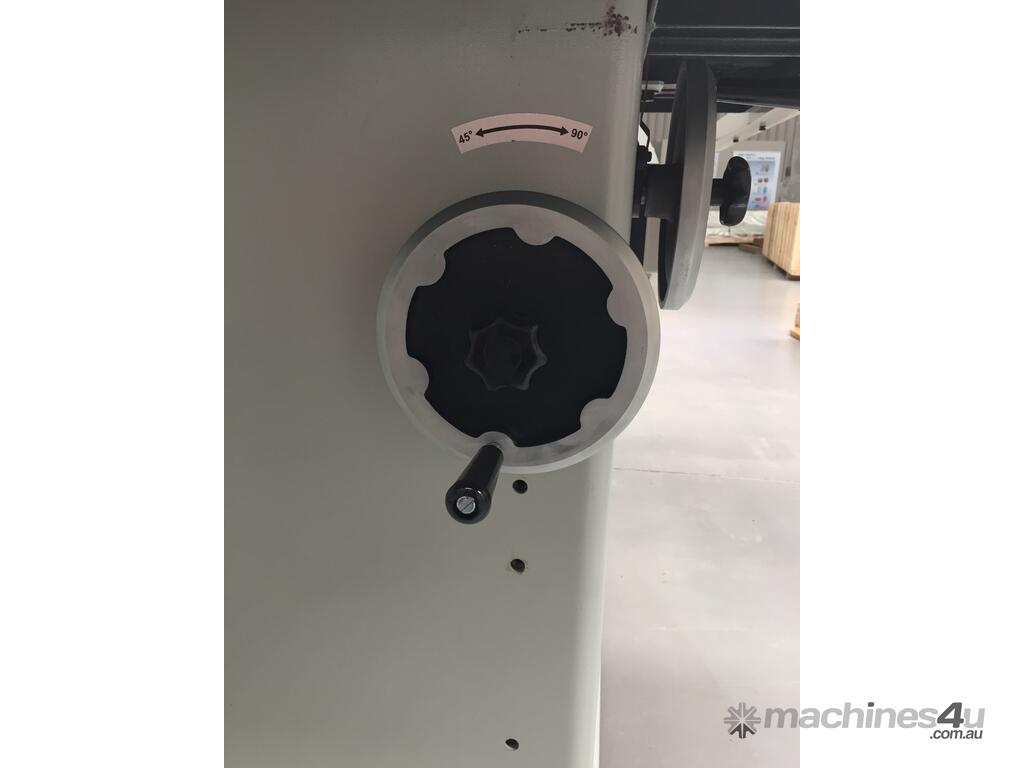

The TC-16 is a medium duty rip saw suitable for hardwood up to 100mm and softwood up to 140mm in thickness. The TC-16 is also capable of ripping up to 98mm at 45 degrees.
SPECIFICATIONS:-
Max. thickness of timber: 140mm (at 90 degree) 98mm (at 45 degree)

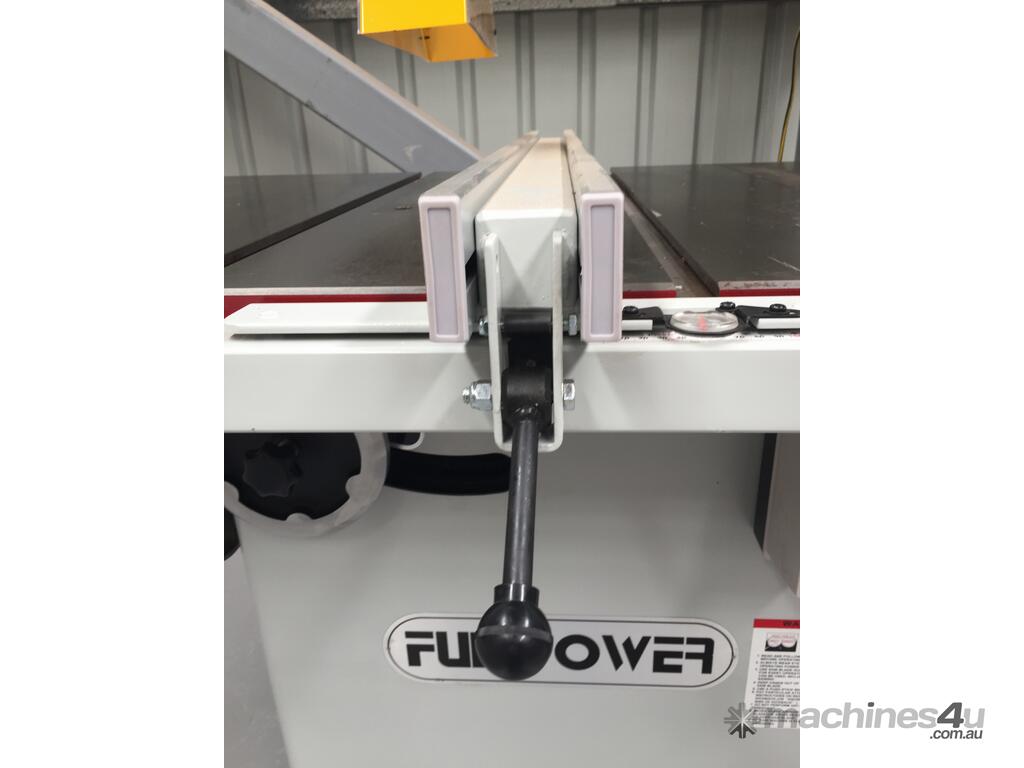

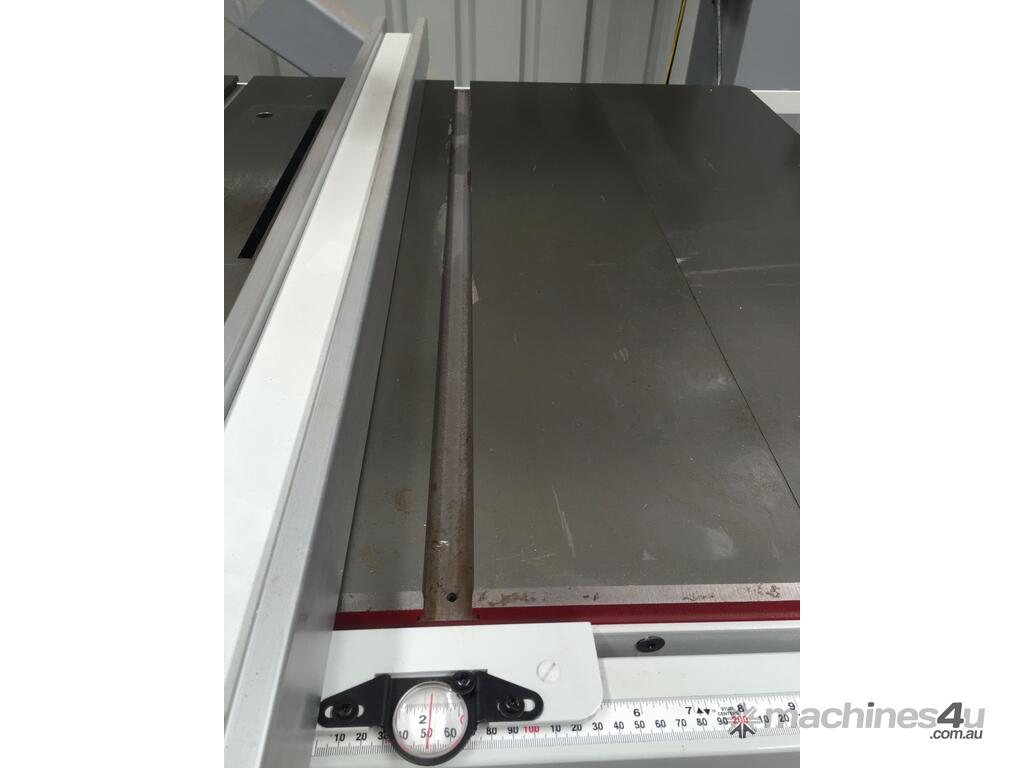

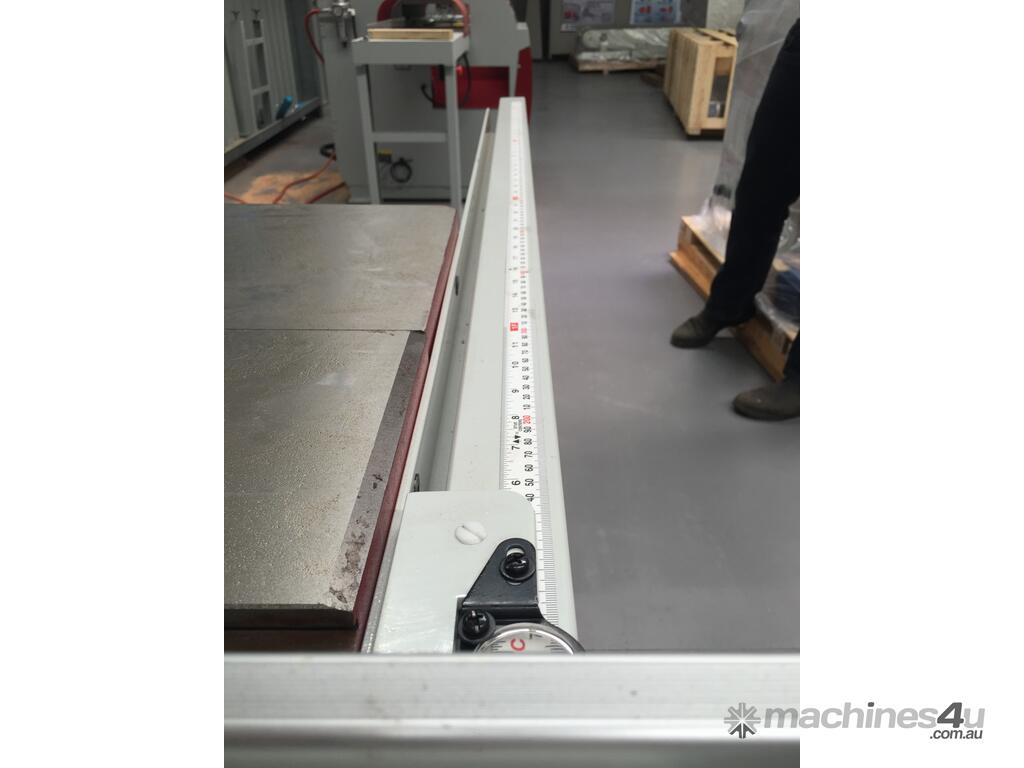

Max. ripping capacity: 1270mm (from fence to saw blade)
Saw diameter: 405mm
Saw speed: 3750rpm

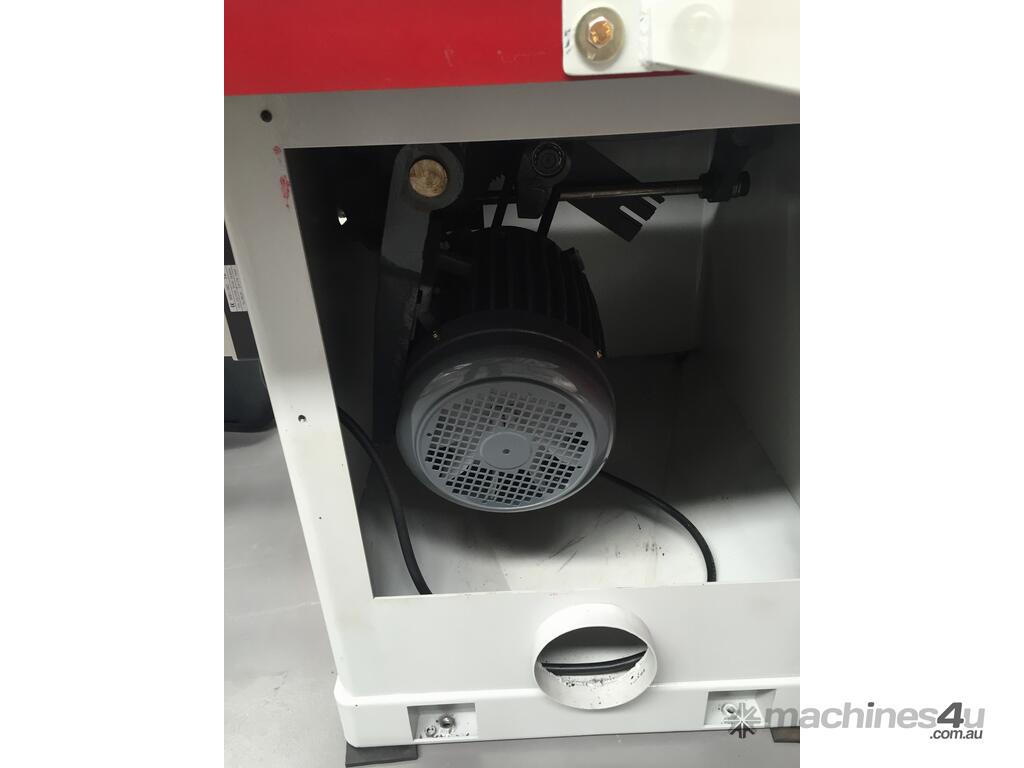

Saw motor: 7.5kw (10hp)
Table heigh: 857mm

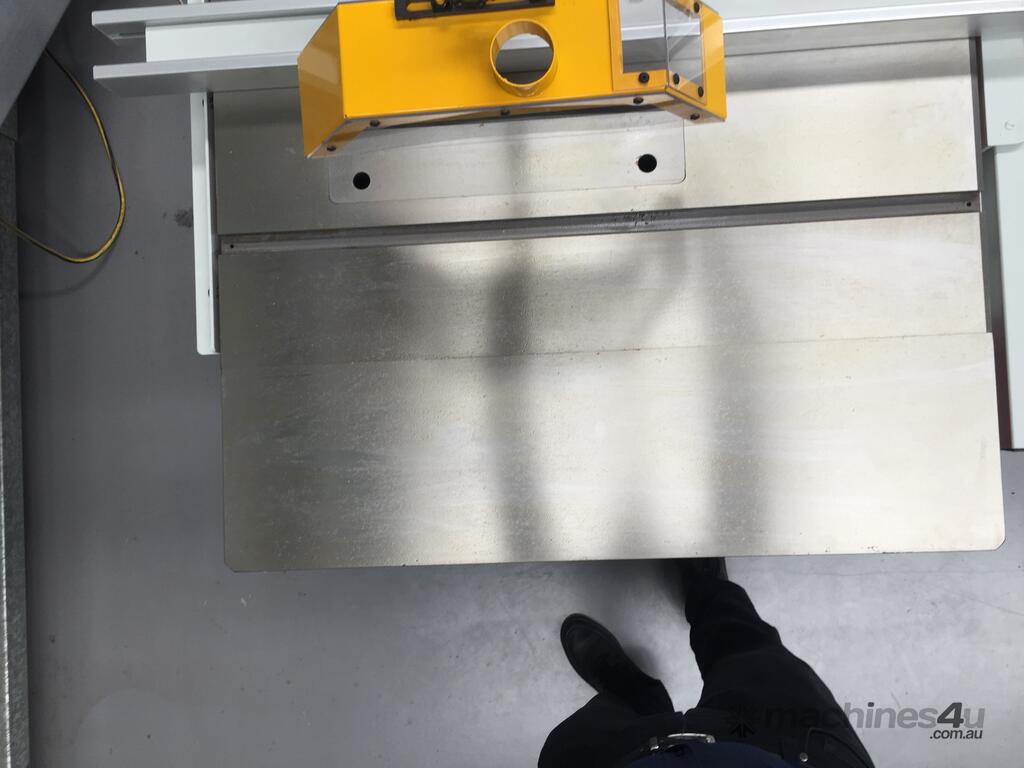

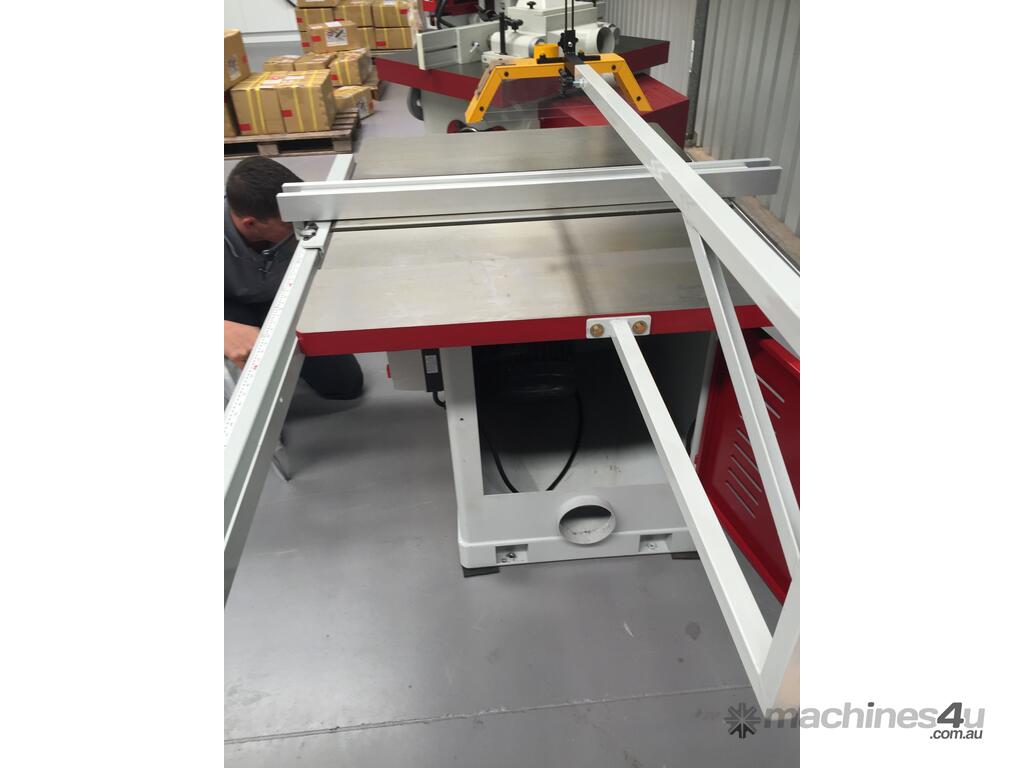

Table size: 1220mm x 965mm
Net weight: 470kg
