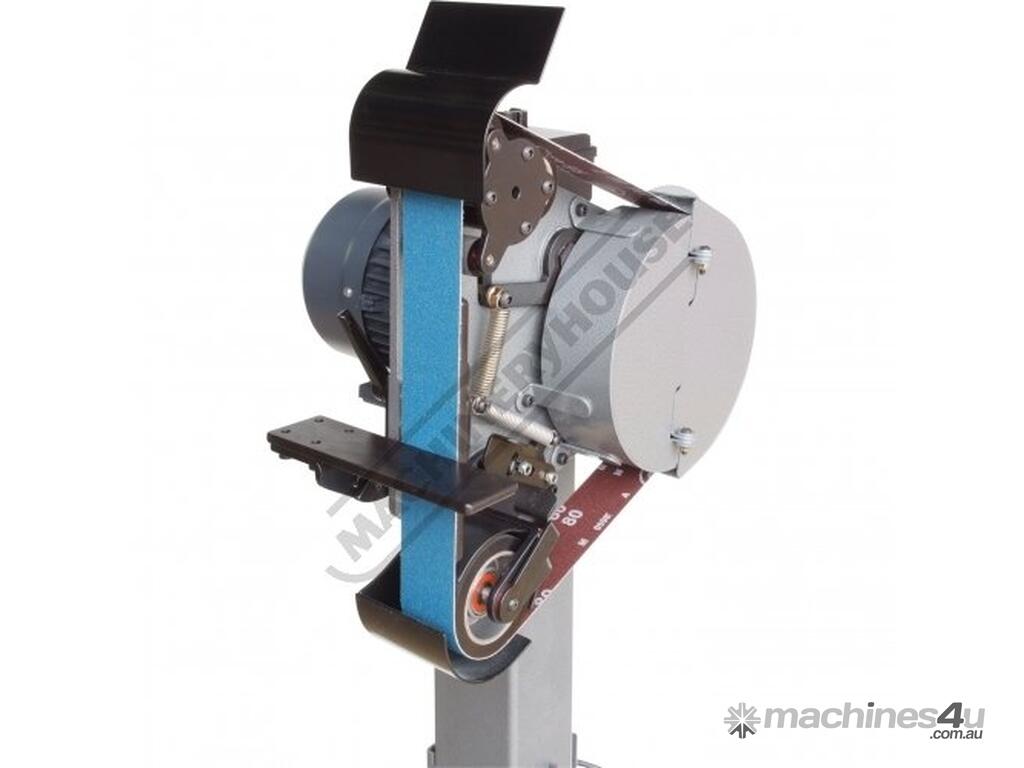

RM-48 Radius Master Pedestal Belt Grinder / Linisher - Series 2 50 x 1220mm Belt Size 7 Work Station

RADIUS MASTER RM-48 Radius Master Pedestal Belt Grinder / Linisher - Series 2 50 x 1220mm Belt Size 7 Work Stations
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: L096

The Best Knife Making Machines & Belt Grinding Machines In The World

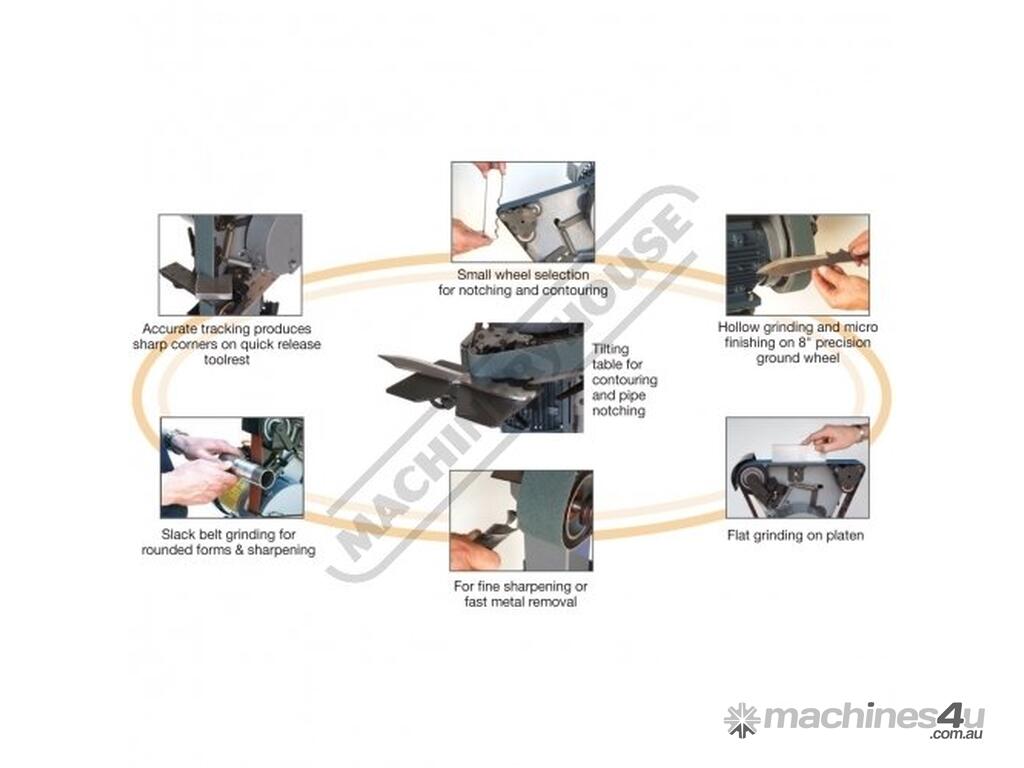

Radius Master’s unique design provides a multitude of functions via 7 work stations, each readily available in seconds and without tools, using an easy to operate index knob. Only the Radius Master brand of machines are capable of tracking the latest heavy duty polyester backed ceramic belts. 7 work stations provide a wide variety of surface finishing, intricate product de-burring, tube notching, profiling and precision sharpening of drills and cutters.

Radius Master provides accurate tracking performance, allowing notching into sharp corners for better product finishing and significant savings on consumables, such as belts and contact wheels.

Lightning fast belt changes, 7 work stations and 5 contact wheels result in savings of hours per day on many jobbing, restoration and prototype work.

Designed for engineers, fabricators, welders, fitters, balustrade and stainless specialists, foundries, toolmakers, knife makers, rural manufacturers, mechanics, restorers, aircraft engineers, medical equipment manufacturers, sculptors, model makers and manufacturers of many wood and plastic products.

The Radius Master multi station belt grinder can do it all!

Features:
7 work stations 5 contact wheels (Ø25-Ø200mm) side tilt for pipe notching - all instantly accessible
Uses include contouring squaring facing deburring (inside tube included) sharpening all stainless finishes texturing micro finishing and polishing

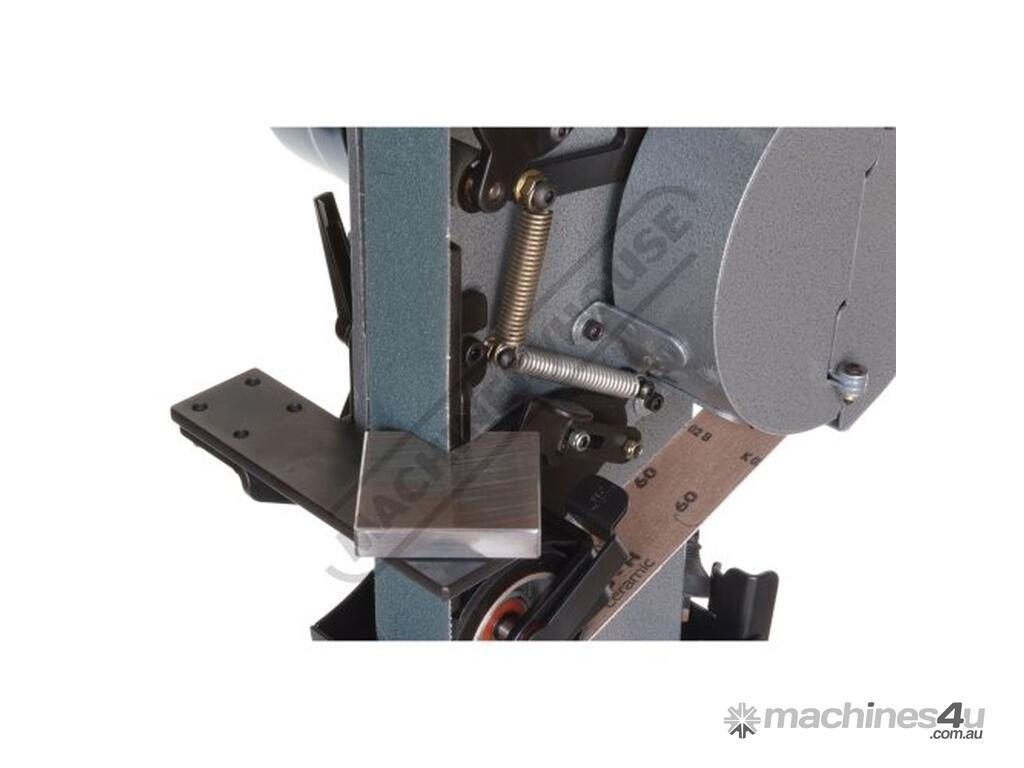

Outstanding tracking allows notching sharp corners at the very edge of the belt. 3 x Plus better belt life
2m lead and plug provided

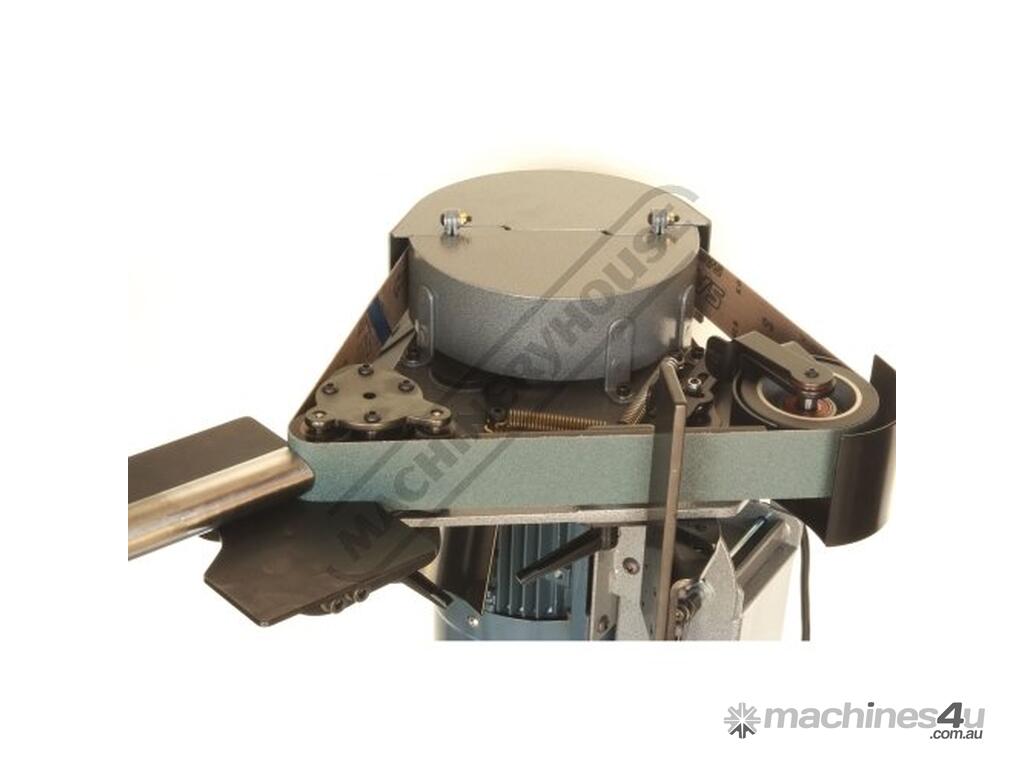

Can be laid on its side for profiling pipe notching etc. Table tilts to 45º
The only belt grinder that accurately and rigidly tracks the heaviest backed belts (essential in drill & cutter sharpening)
Sealed bearings teflon gaskets - adjustable pivots give many years life expectancy - Designed from 35 years experience in belt grinding

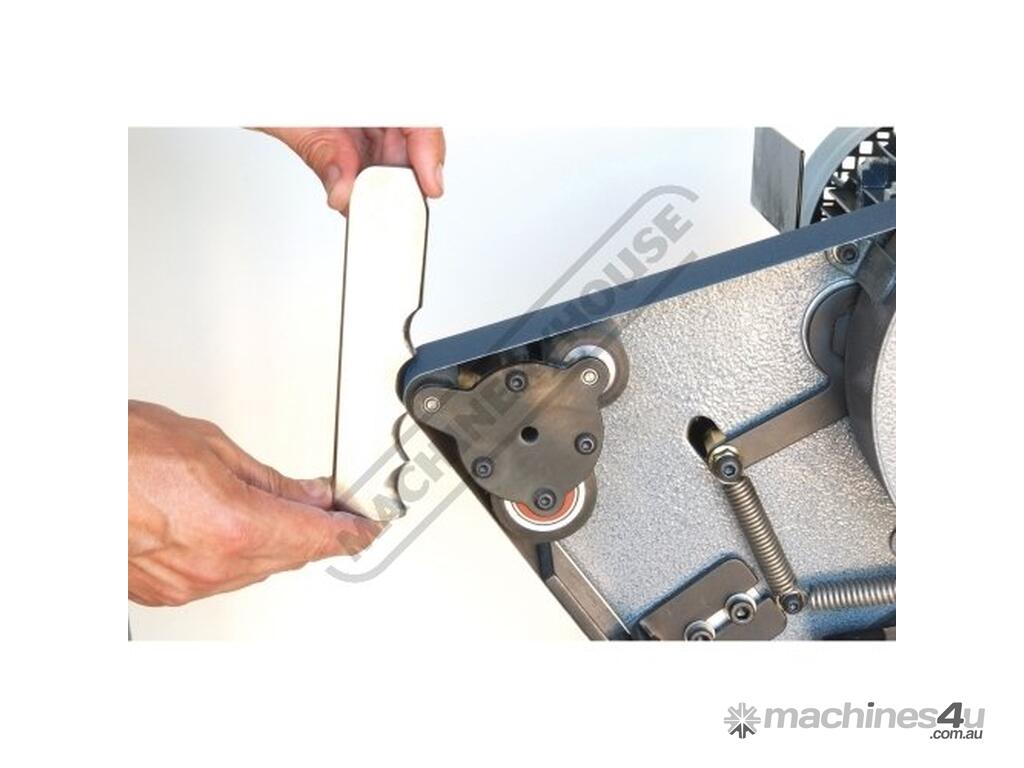

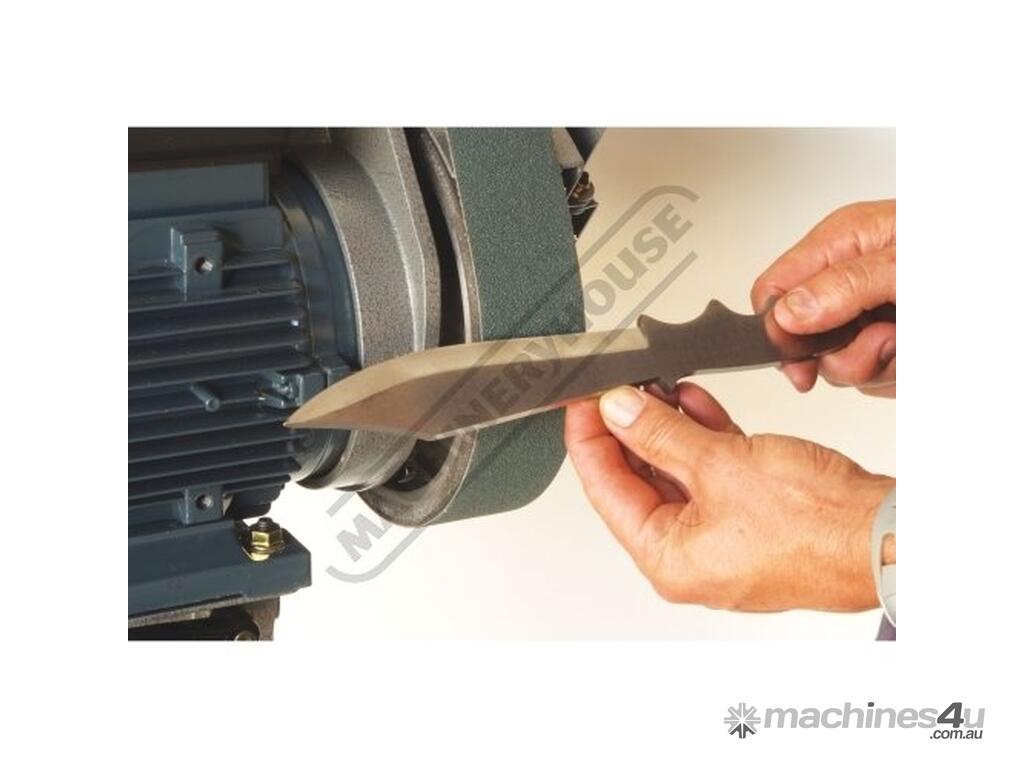

Internal external and hollow grinding on 5 contact wheels

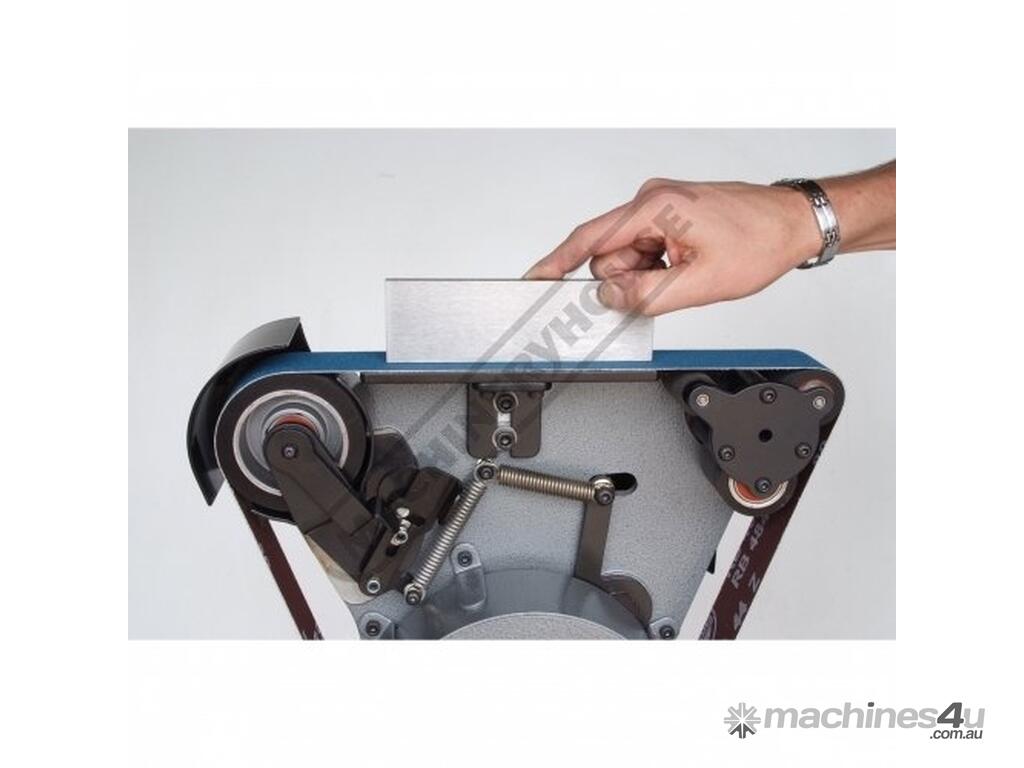

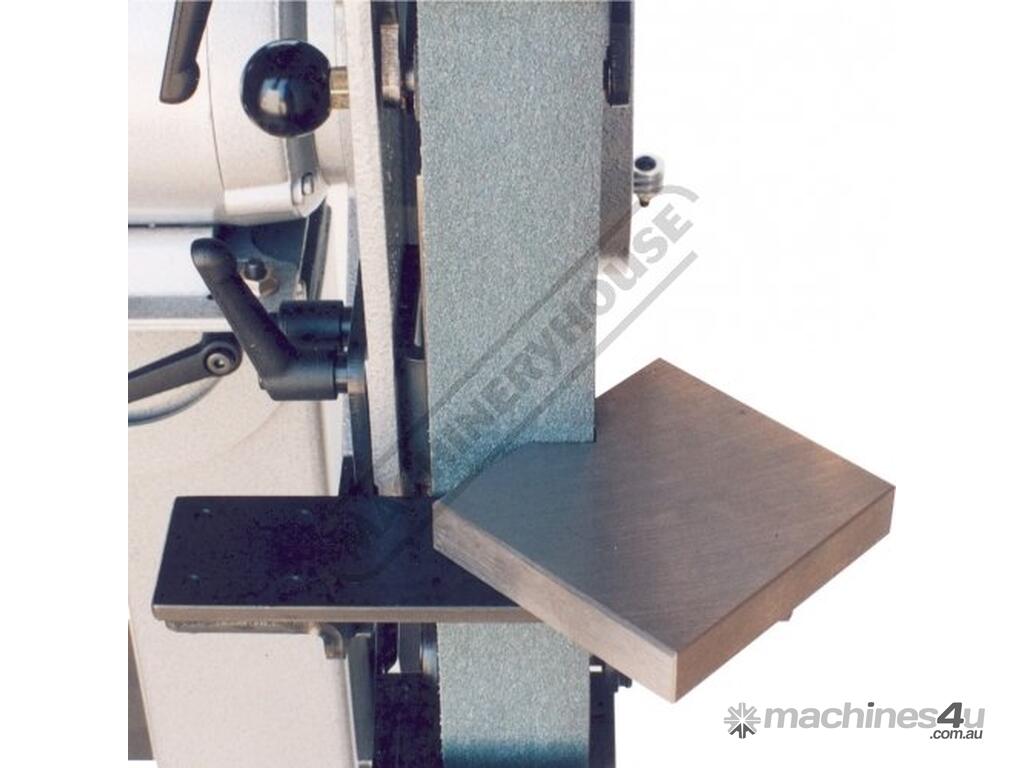

Flat grinding in vertical and horizontal position

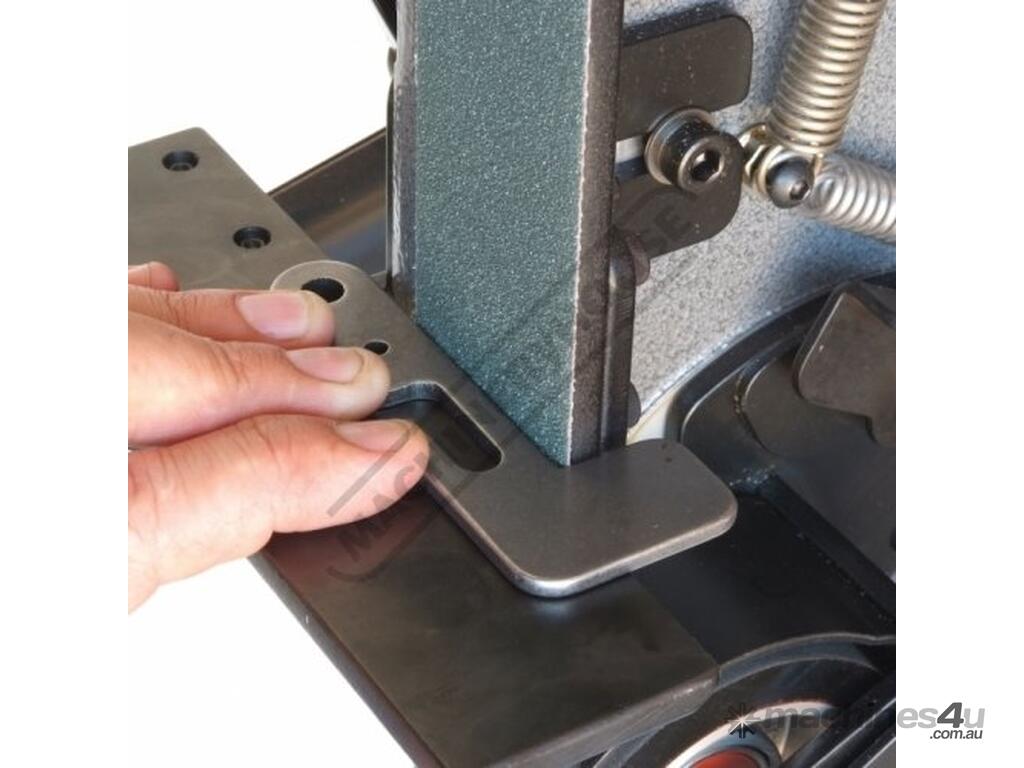

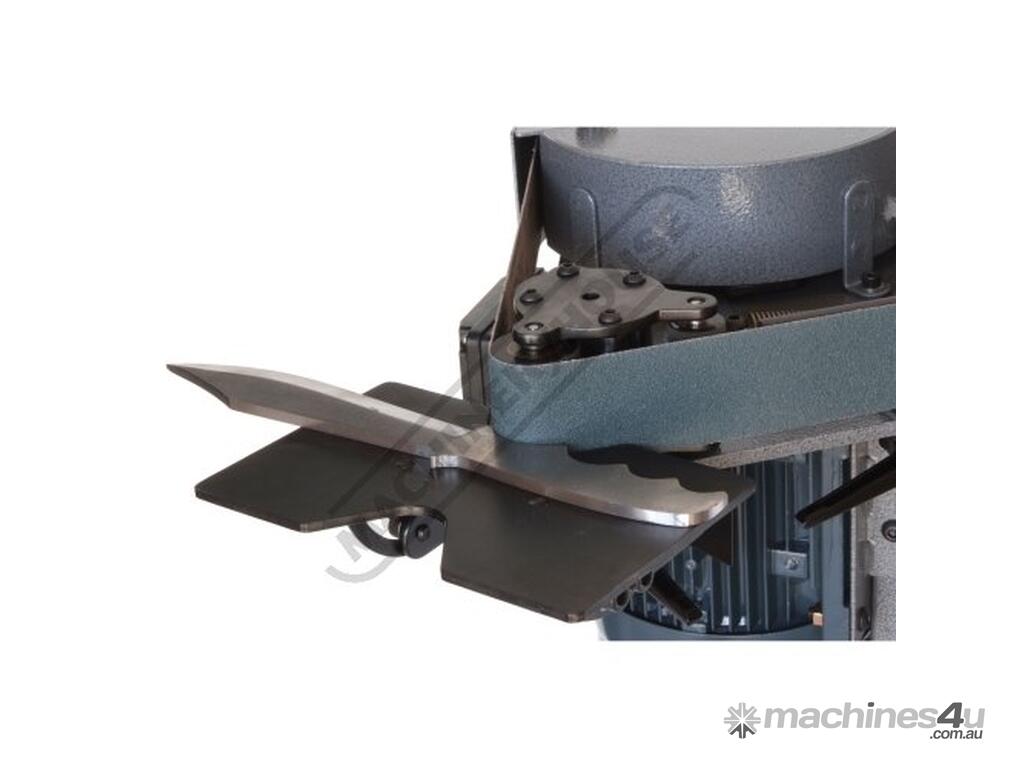

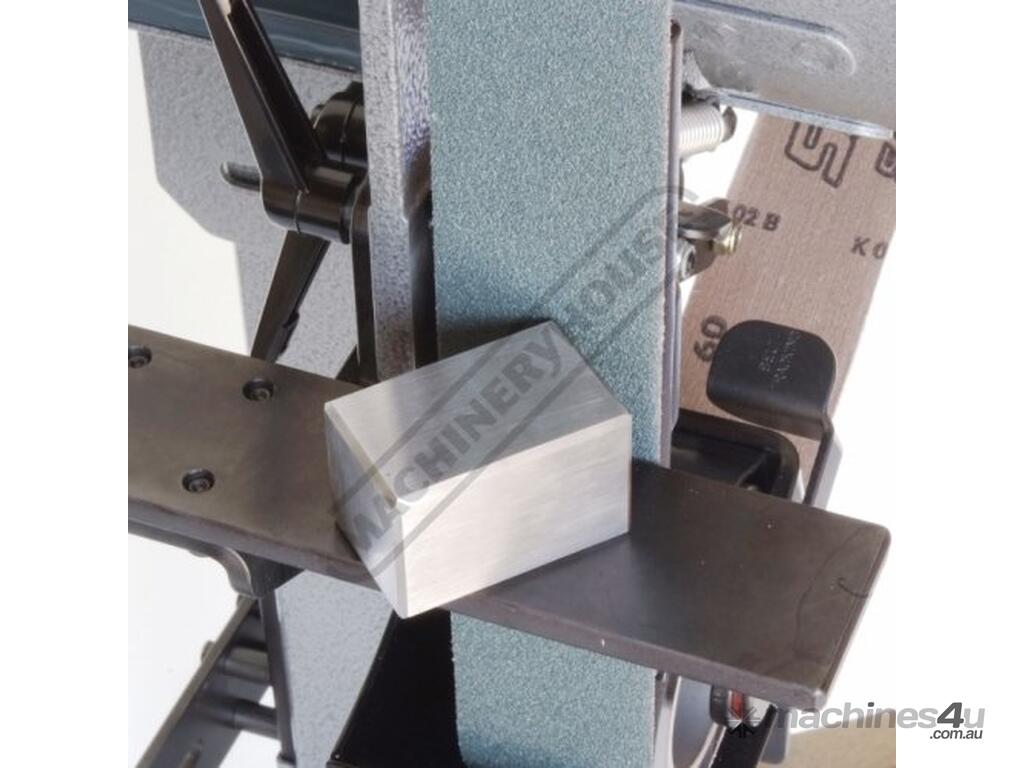

Edge grinding on tool rest (tilts up 20° and down 45°)
Slack belt grinding in horizontal and vertical positions

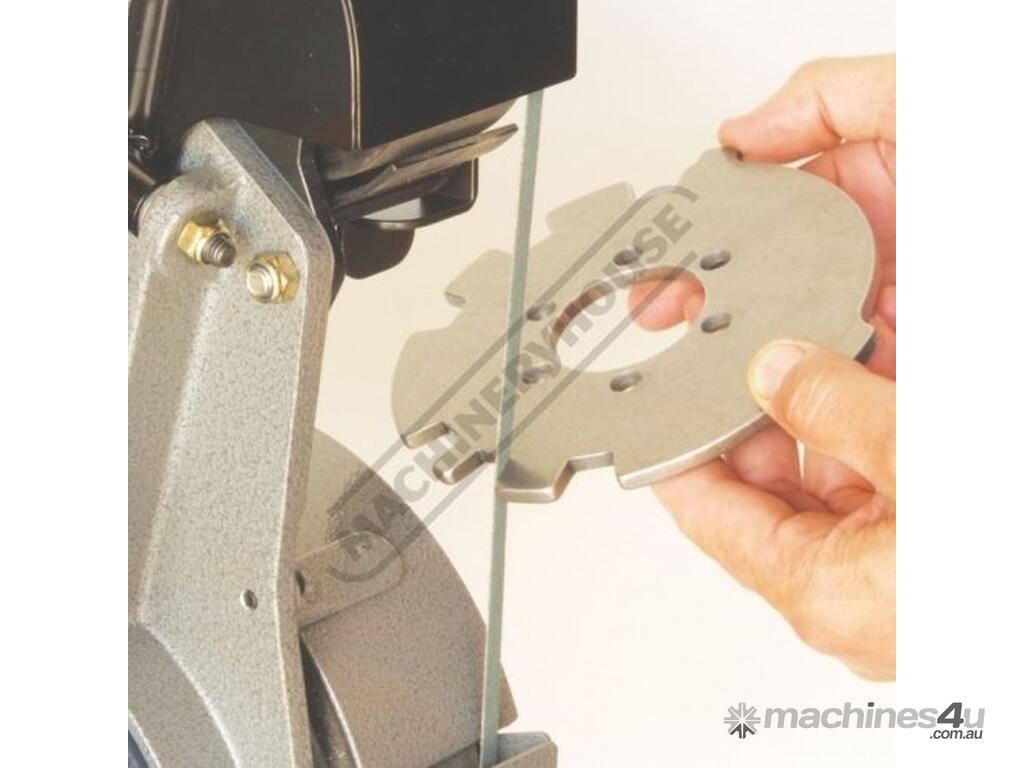

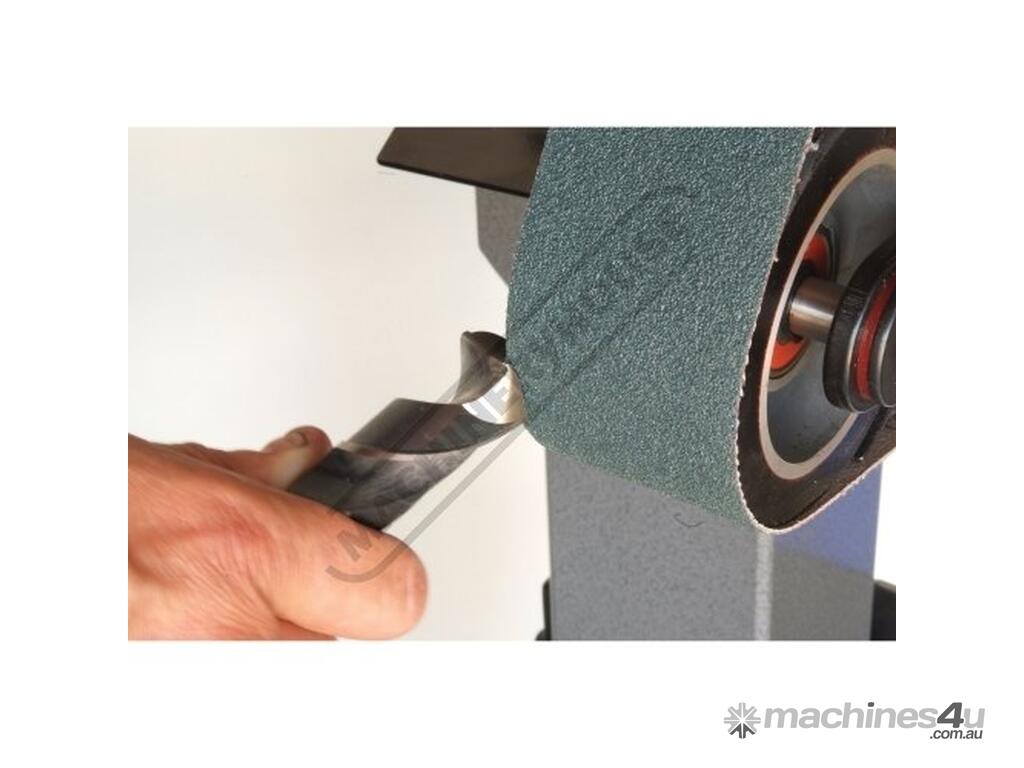

Its accurate tracking is an unmatched asset in precision sharpening of small drills & cutters and allows the use of cut down belts to 8mm for finishing &deburring difficult contours.
Tracking mechanism will never lose it's precision as vital pivots are sealed ball bearings

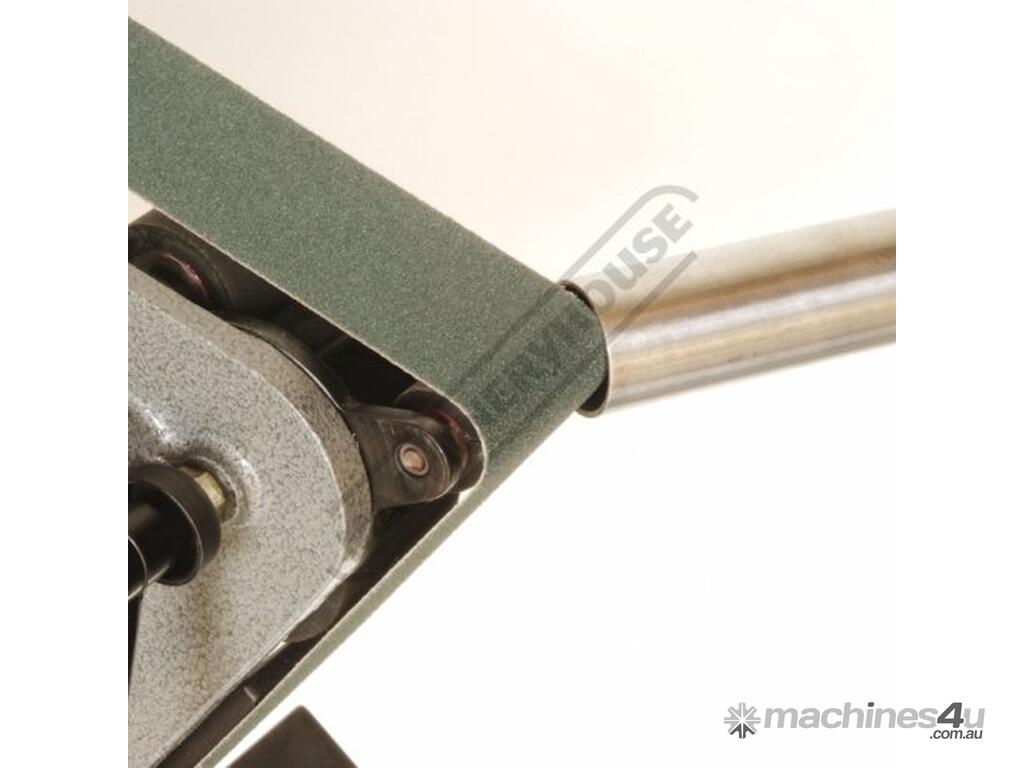

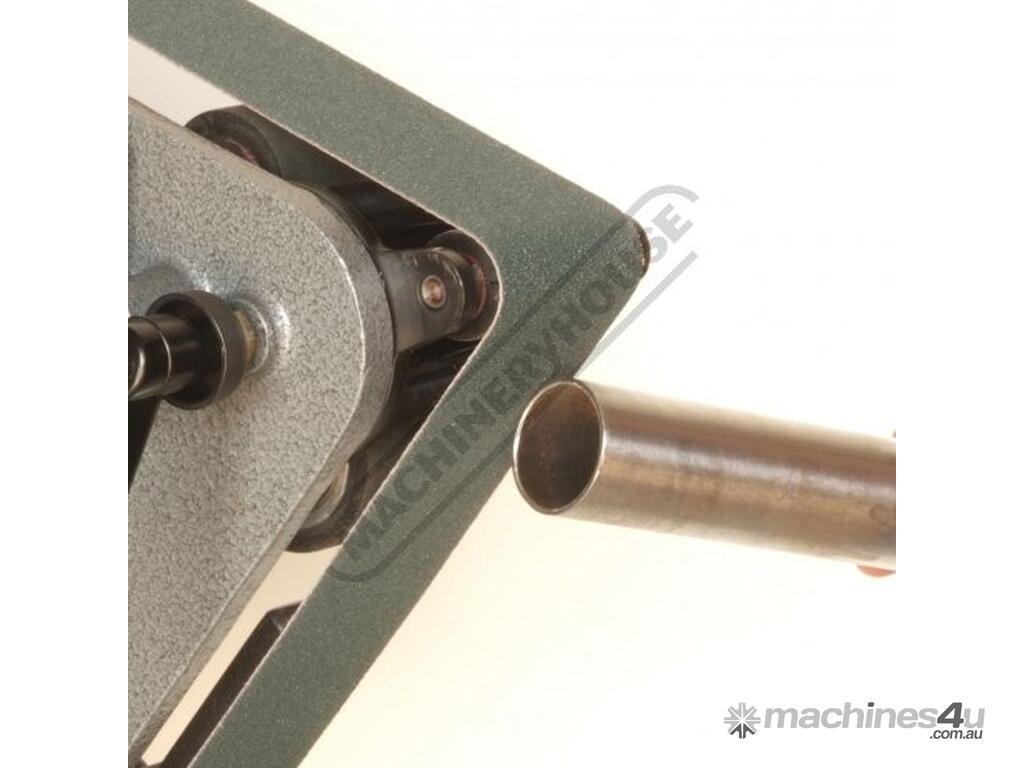

Deburring of tube inside and outside
Performance and durability backed by a 2 year commercial warranty
Unmatched accuracy versatility performance & durability

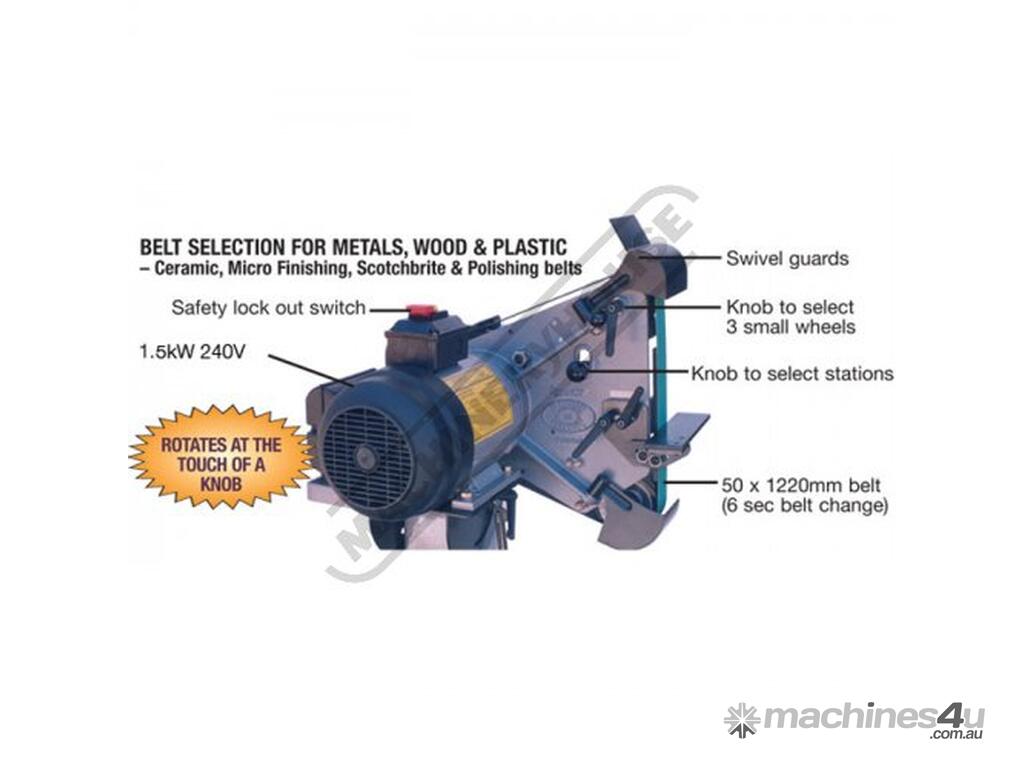

50 x1220mm belt (6 sec belt change)
240V 1.5kW MOTOR totally enclosed with overload protection
20 year life expectancy

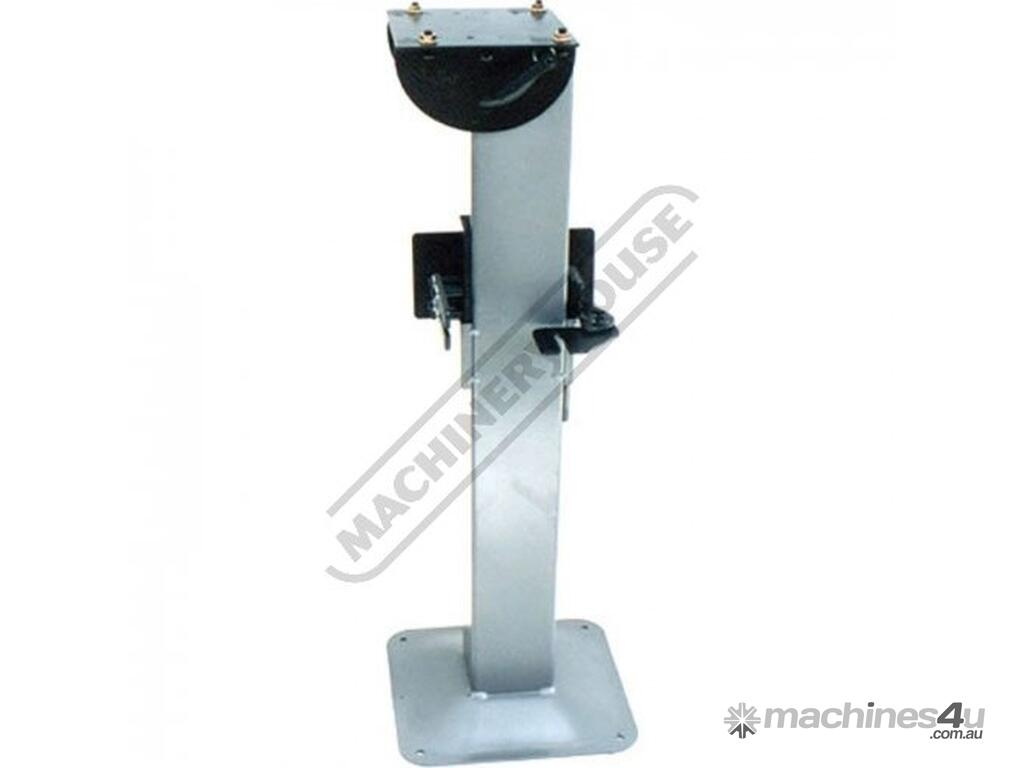

Includes Pedestal stand
Made in Australia

Includes:
- Tilting top stand & base plate
- Tool rest
- Notching tilt table
- 1 x zirconia belt
- 5 contact wheels (Ø25-200mm)



Specifications:
ORDER CODE: L096
MODEL: RM-48
Type: Belt Grinder / Linisher
Mounting Type - Bench / Pedestal: Pedestal
Includes Stand: Yes
Belt Size (mm): 50 x 1220mm
Belt Speed (fpm / mpm): 3000 / 914
Motor Speed (rpm): 2800
Motor Power (kW / hp): 1.5 / 2
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 50
