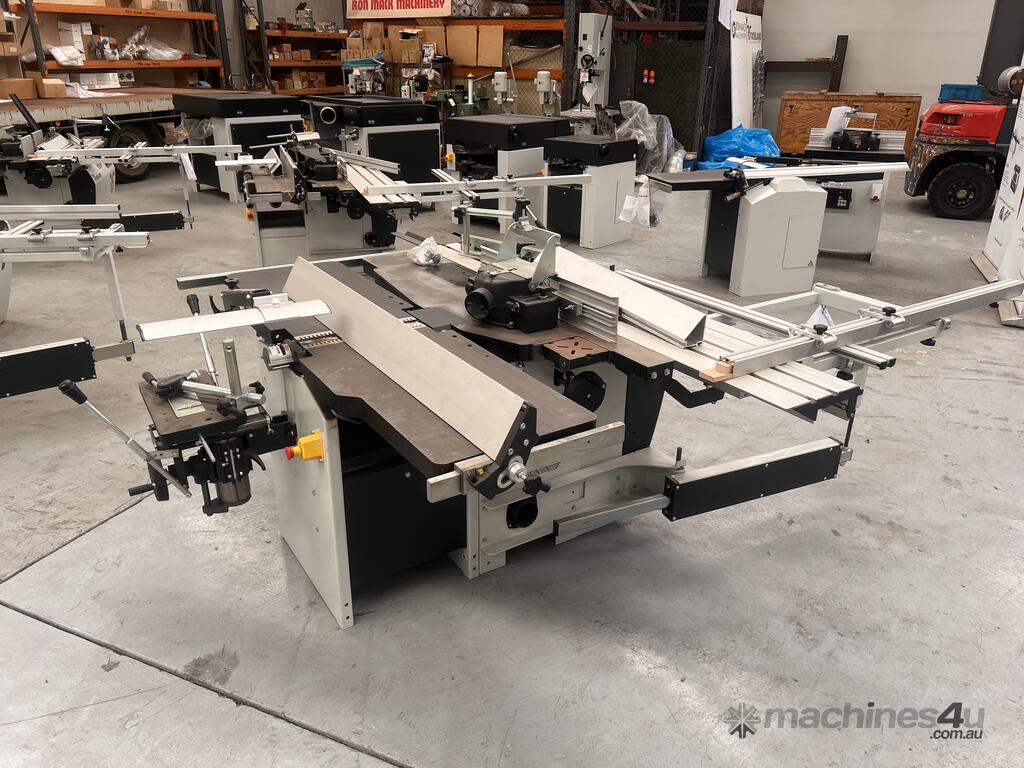

NX410 PRO Technical Data
Weight 640 kg
Voltage 240V
Dust suction outlet 100 mm
Saw
Saw rotation speed 4500 RPM
Scorer 8800 RPM
Diameter saw blade and bore 250 x 30 mm
Cutting depth at 90° 85 mm
Cutting depth at 45° 55 mm
Dimensions cast iron table 1080 x 410 mm
Dimensions sliding table 1450 mm x 320 mm
Cutting length 2500 mm
Cutting width parallel fence 900 mm
Motor power single phase (S6) 2,2 kW / 3 hp

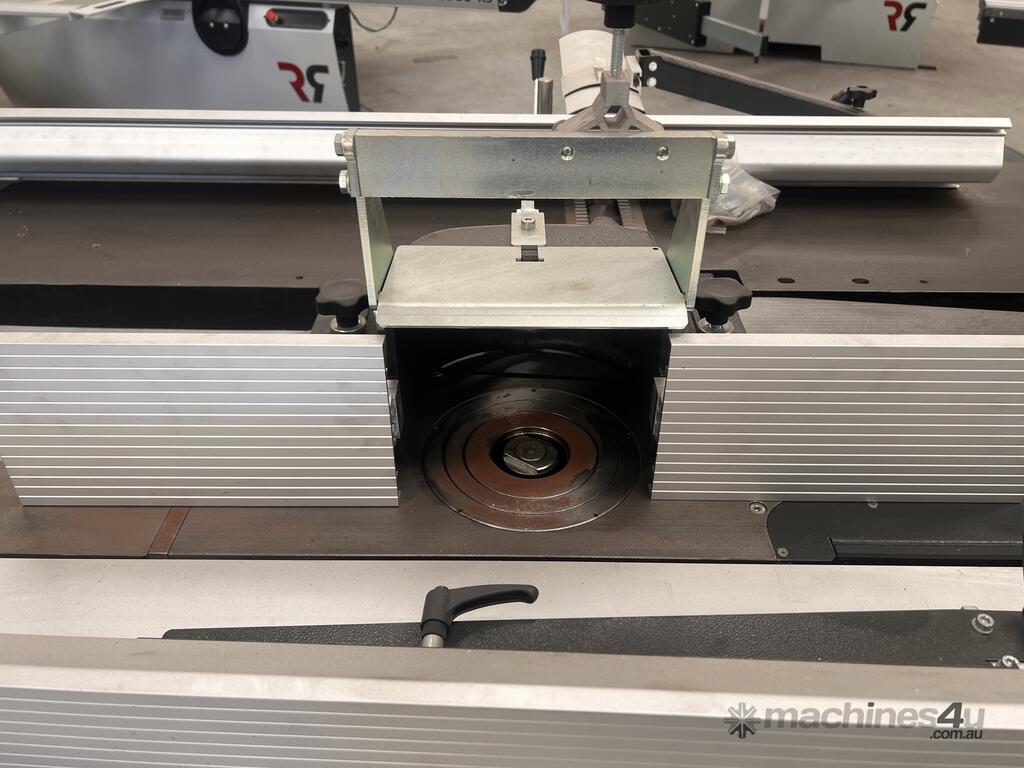

Spindle
Spindle rotation speed 2900/4000/6000/7500
Diameter spindle arbor 30 mm
Capacity spindle arbor 122 mm
Travel 140 mm
Dimensions table opening 180 mm
Motor power single phase (S6) 2,2 kW / 3 hp

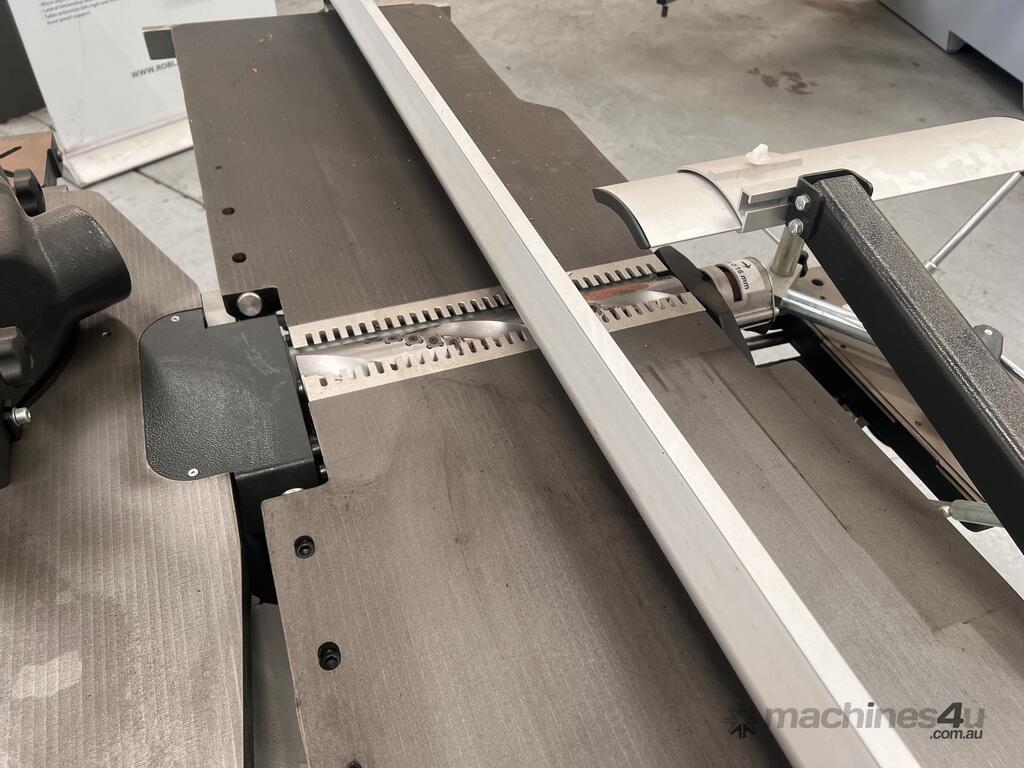

Planer-Thicknesser
Total length planer tables 1800 mm
Height capacity thicknesser 230 mm
Diameter cutter block 70 mm
Knives 3
Dimensions knives 410 x 25 x 3 mm
Planer thicknesser width 410 mm
Max. depth of cut 4 mm
Feeding speed 6 m/min
Cutter block rotation speed 5400 RPM
Motor power single phase (S6) 2,2 kW / 3 hp

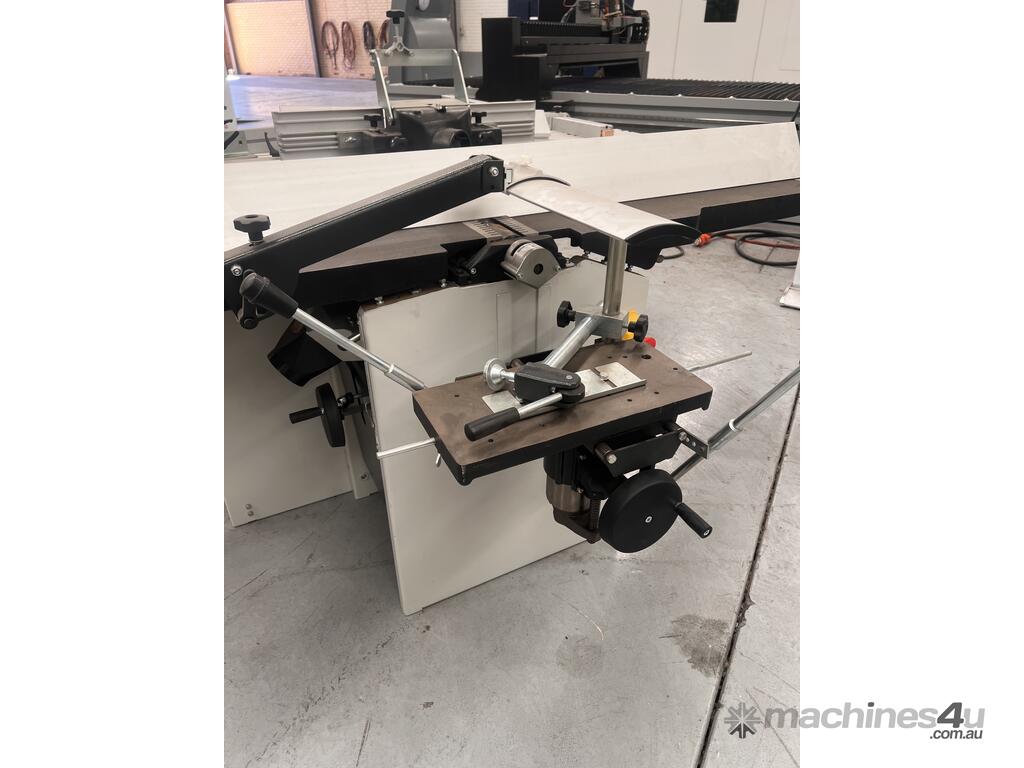

Mortiser (option) $850.00 + GST
Chuck 0 - 16 mm
Travel 165 x 140 x 85 mm
