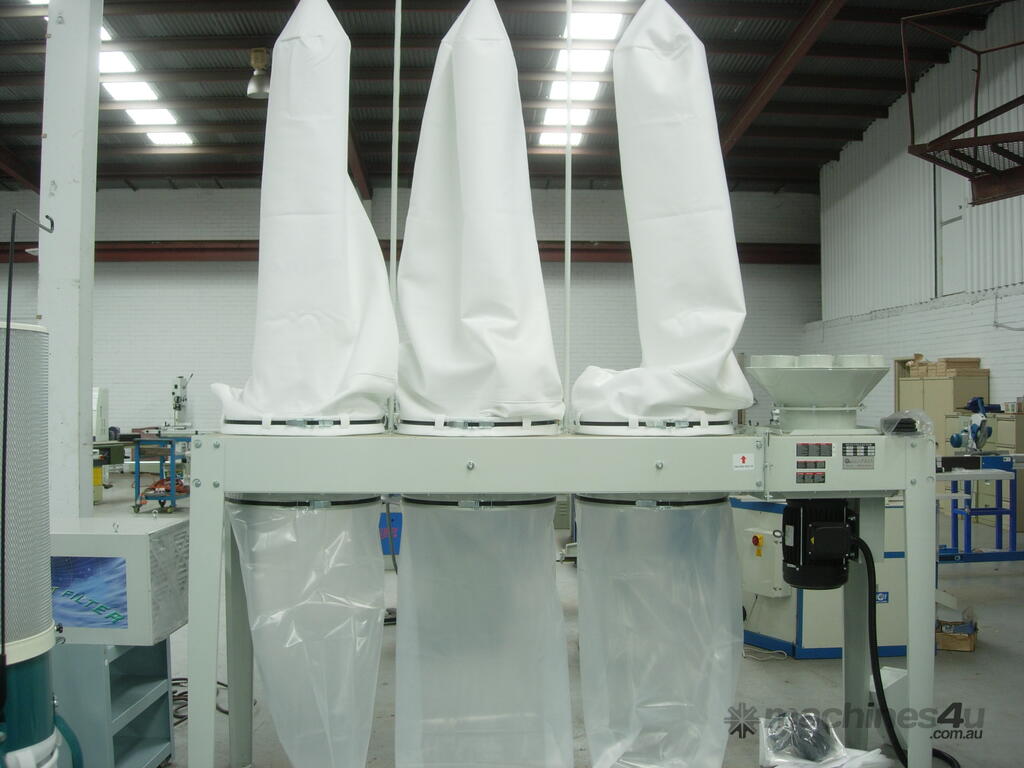

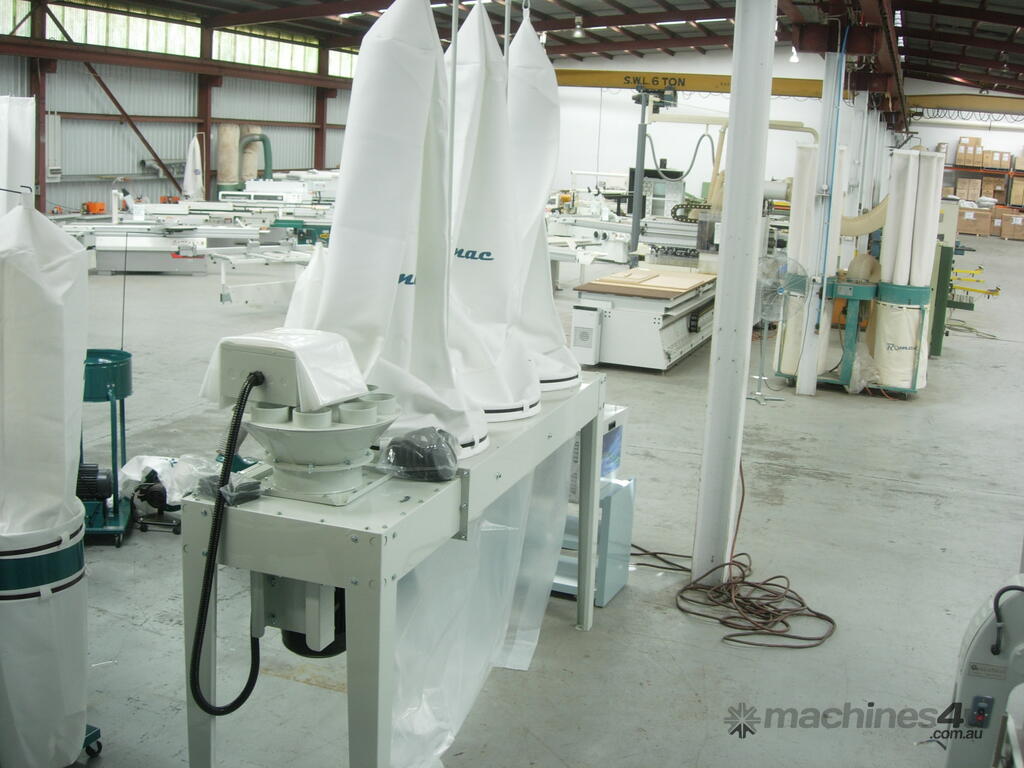

Strong sheet metal construction – 280kgs nett weight.

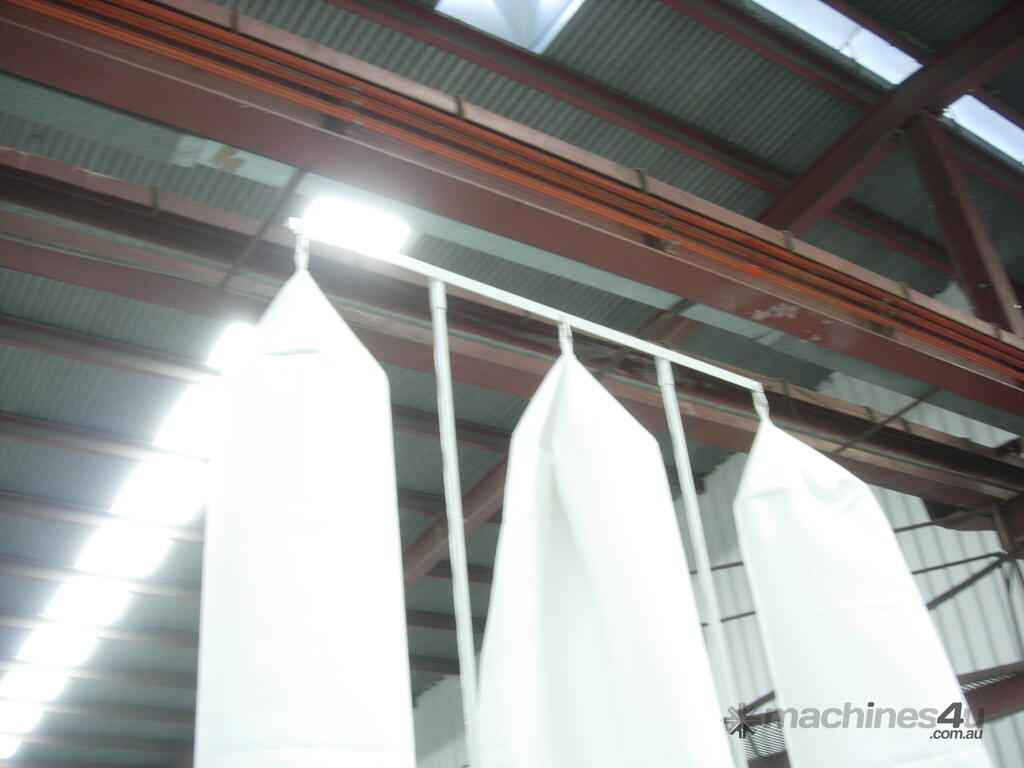

Three tall top filter bags 610 x 1800mm L x of 5 micron filter material.
Three bottom collection bags 610mm dia x 1400mm – clear plastic disposable type bags.
Technical Data
Main inlet dimension 330mm diameter

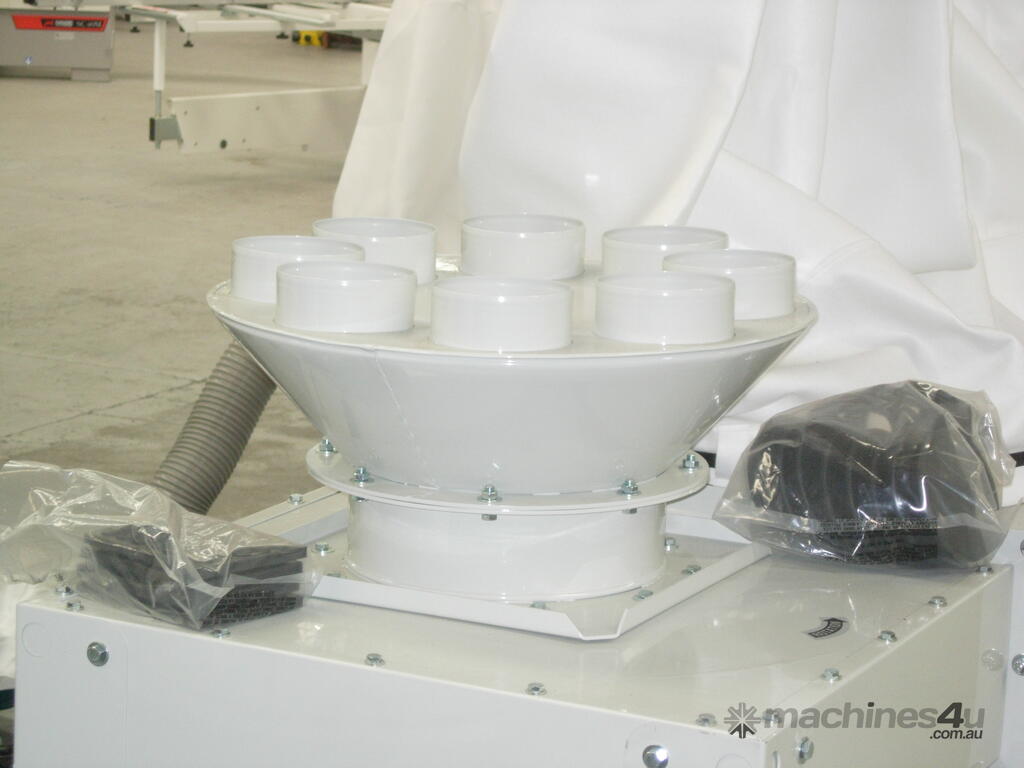

Adaptor on main inlet 8 x 127mm (5”) diameter
Air throughput capacity 7900 cubic ft/min
Air speed through inlet 38 metres/second
Fan motor, three phase 10 hp
Space occupied 3022x980x3150mm
