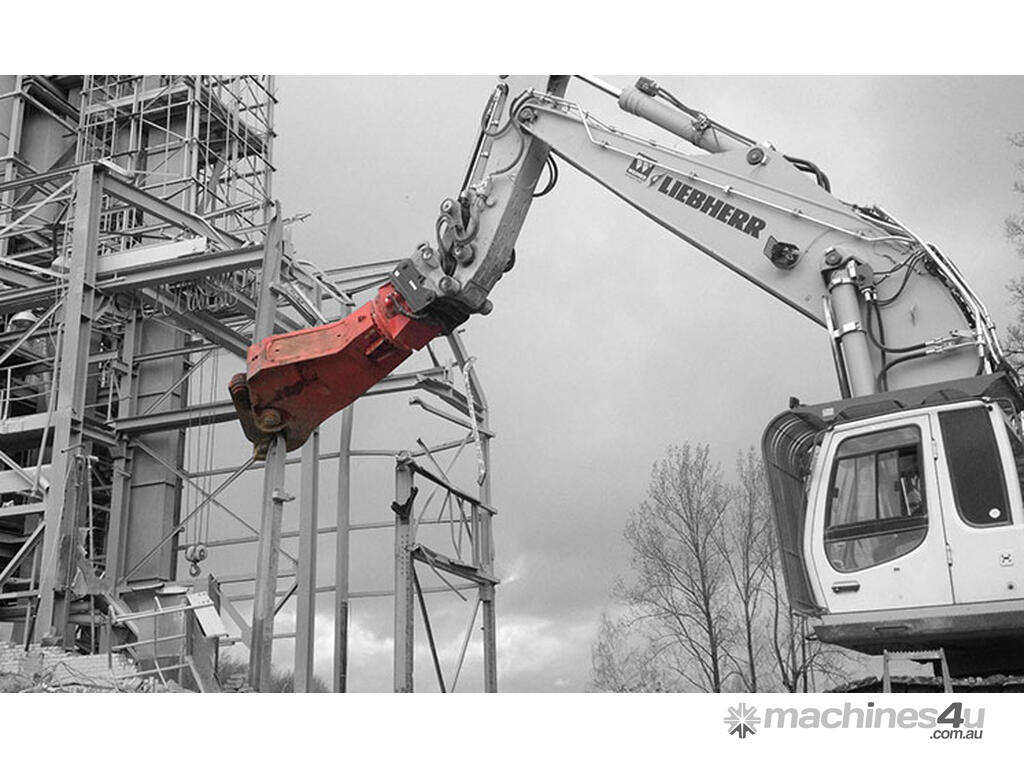

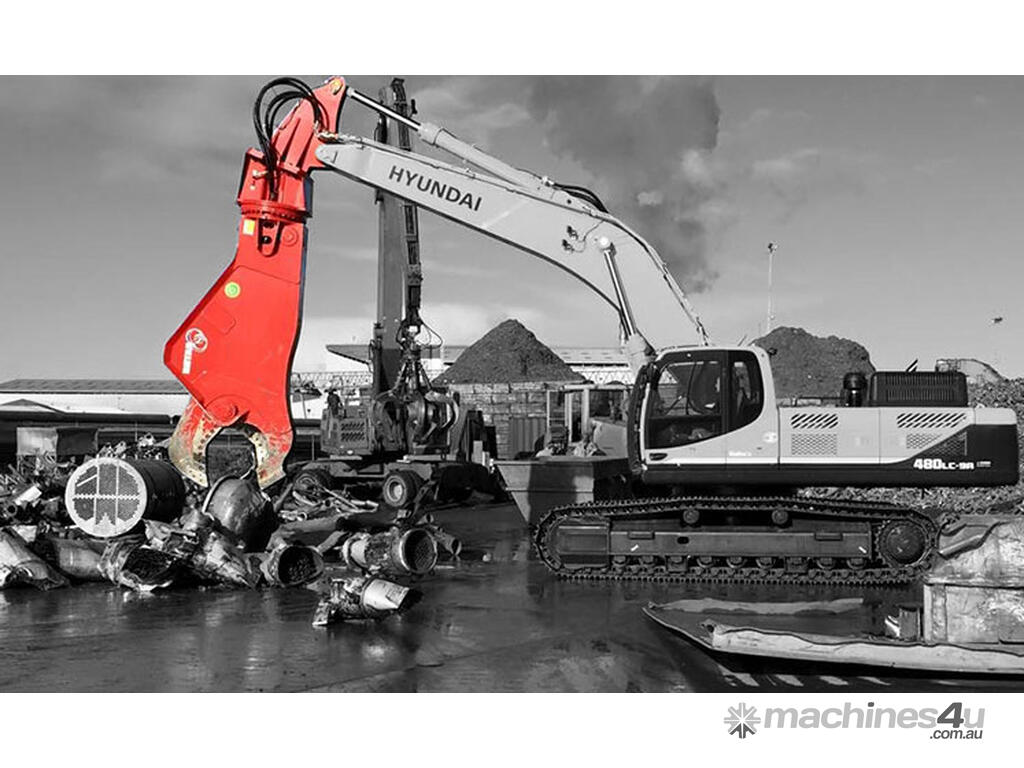

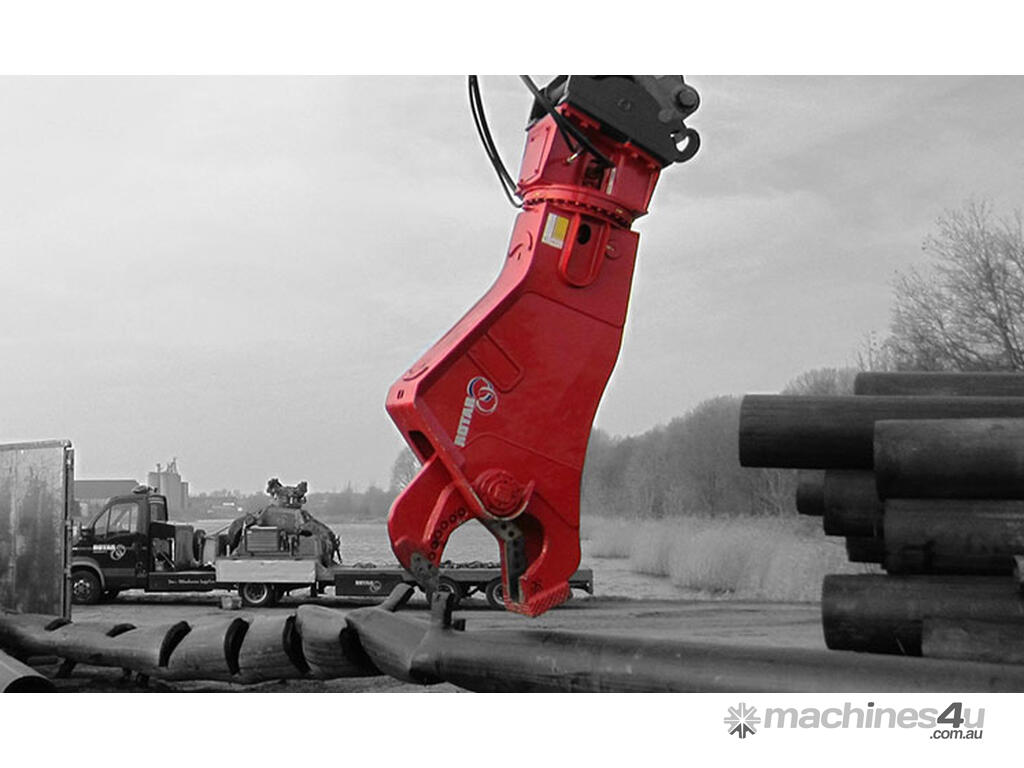

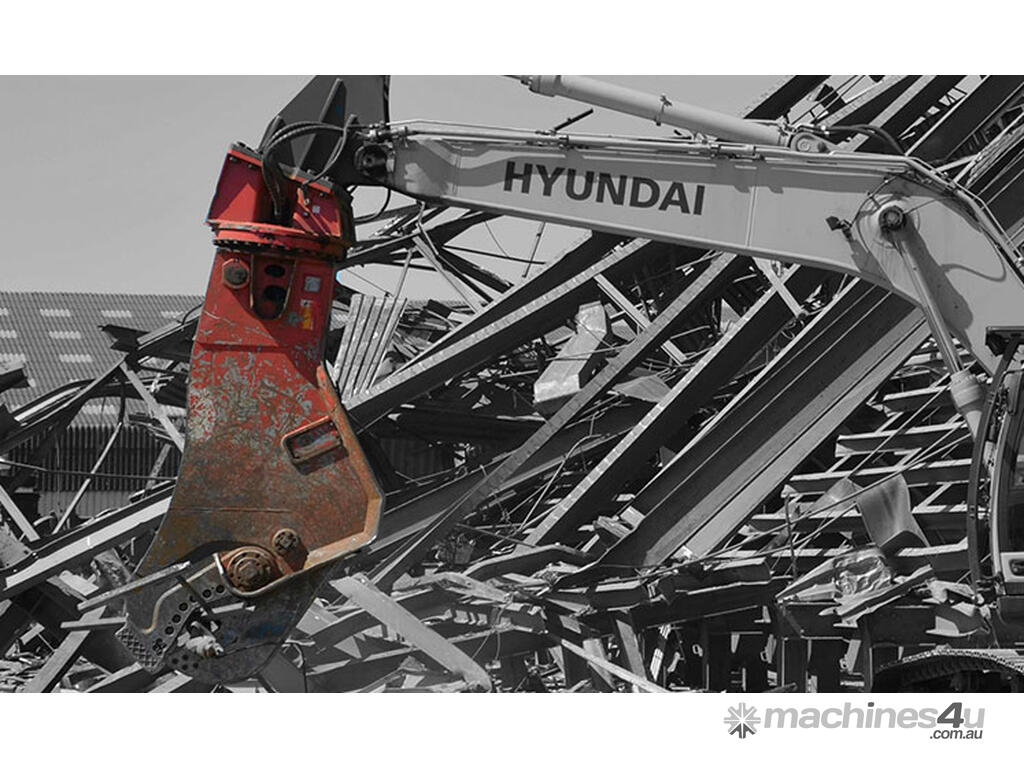

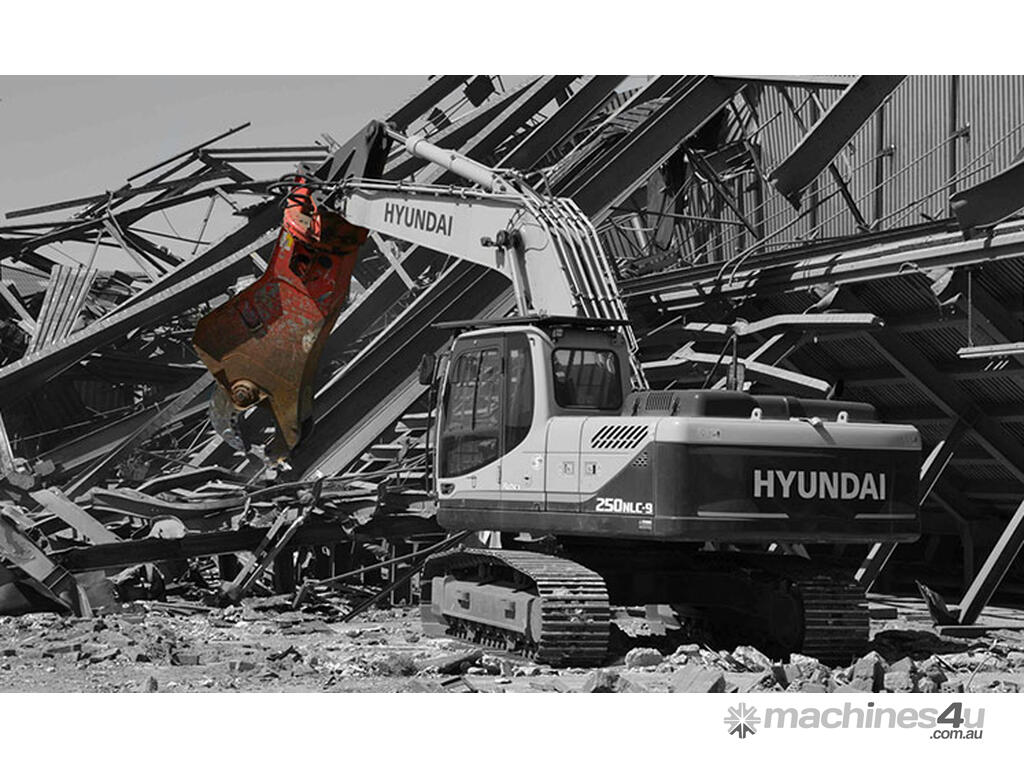

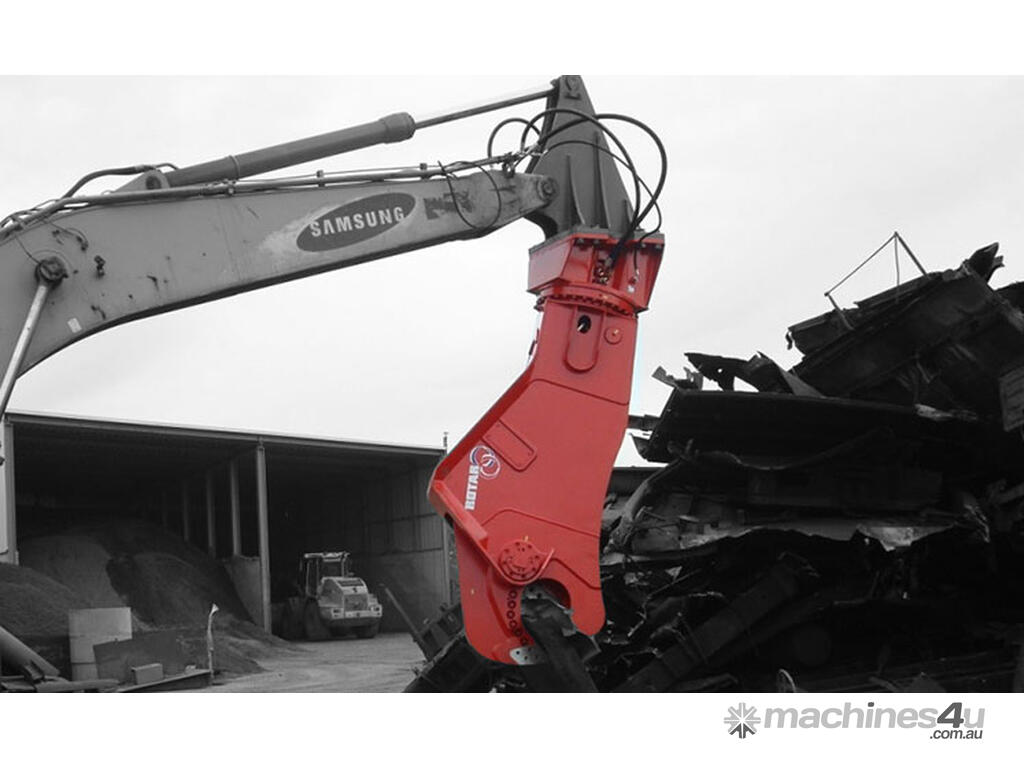

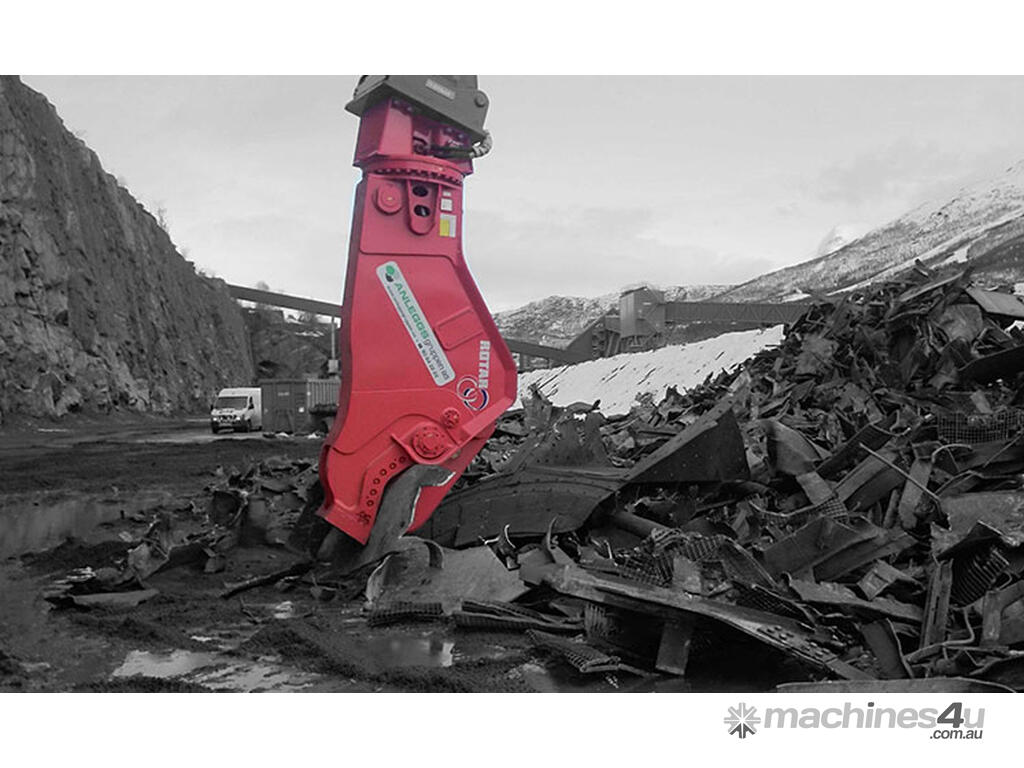

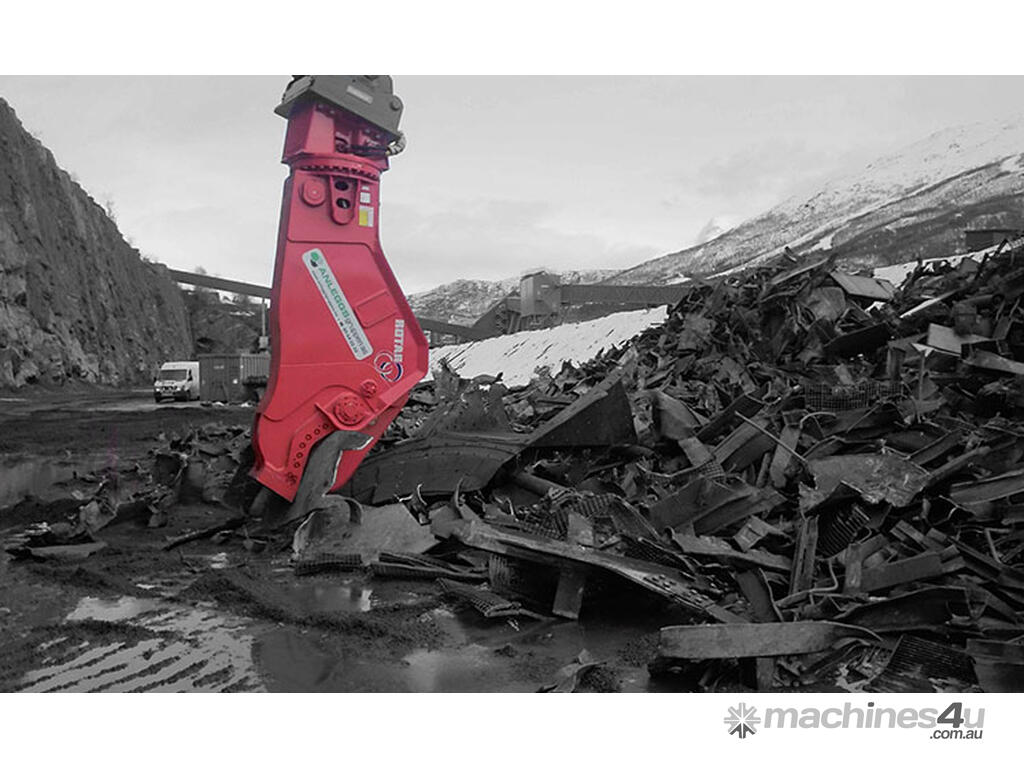

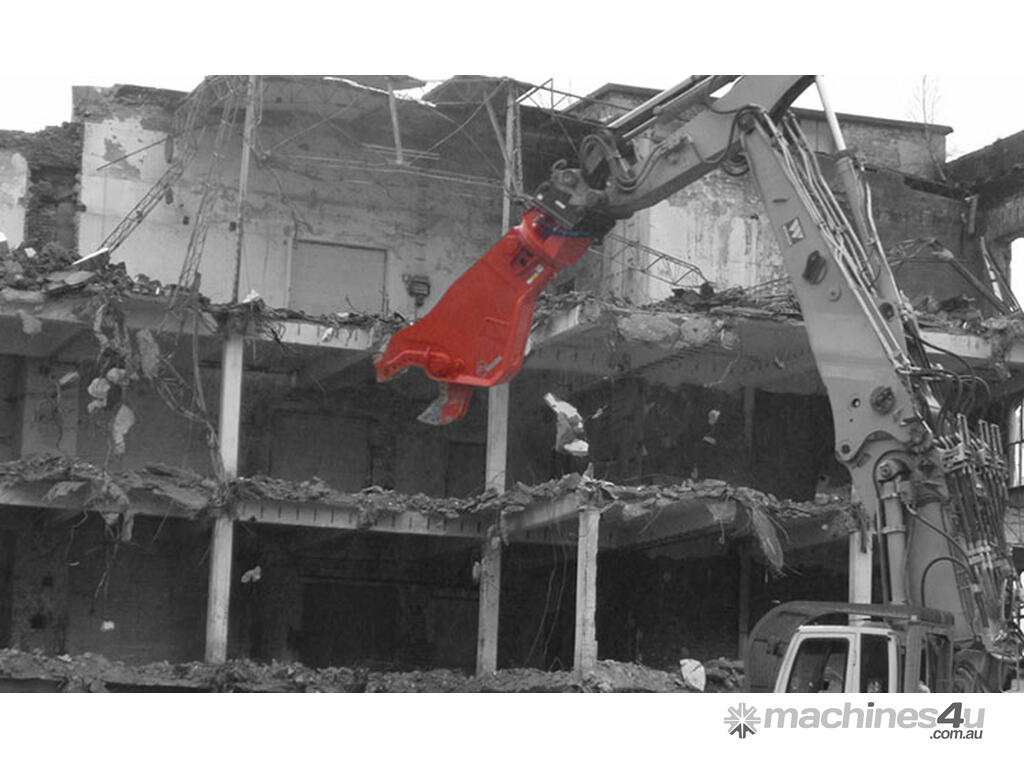

Rotar Scrap Shear
Enormous cutting power and rapid cycle times guarantee incredible productivity. The RSS series will cut tonnes of steel in the blink of an eye!

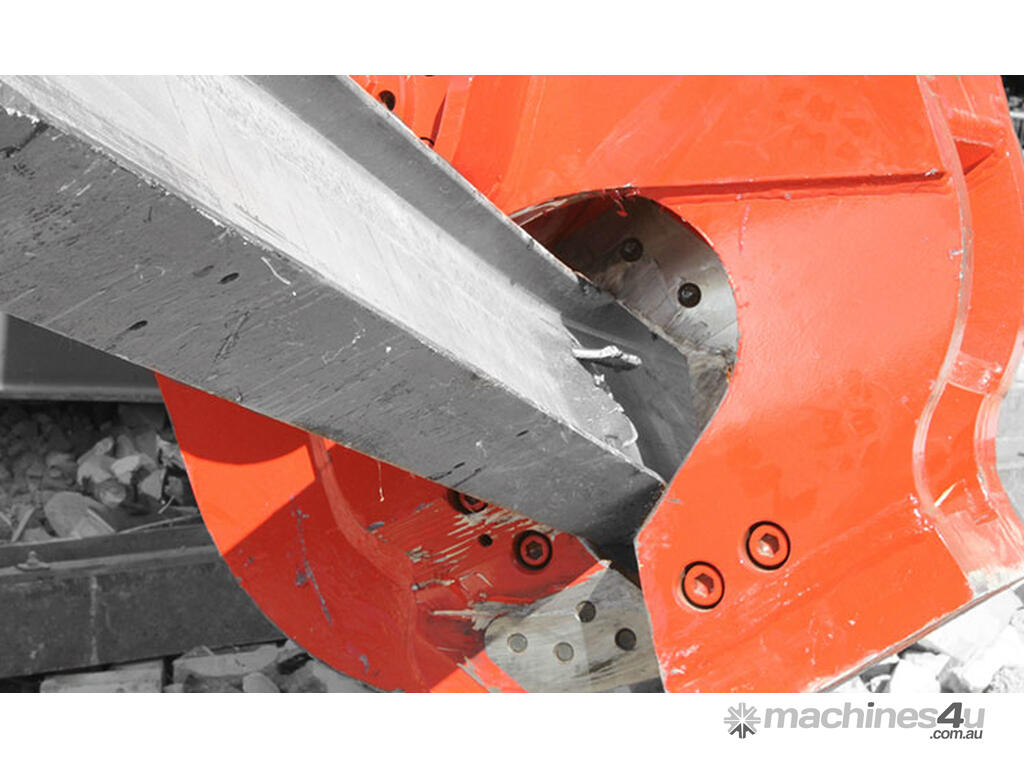

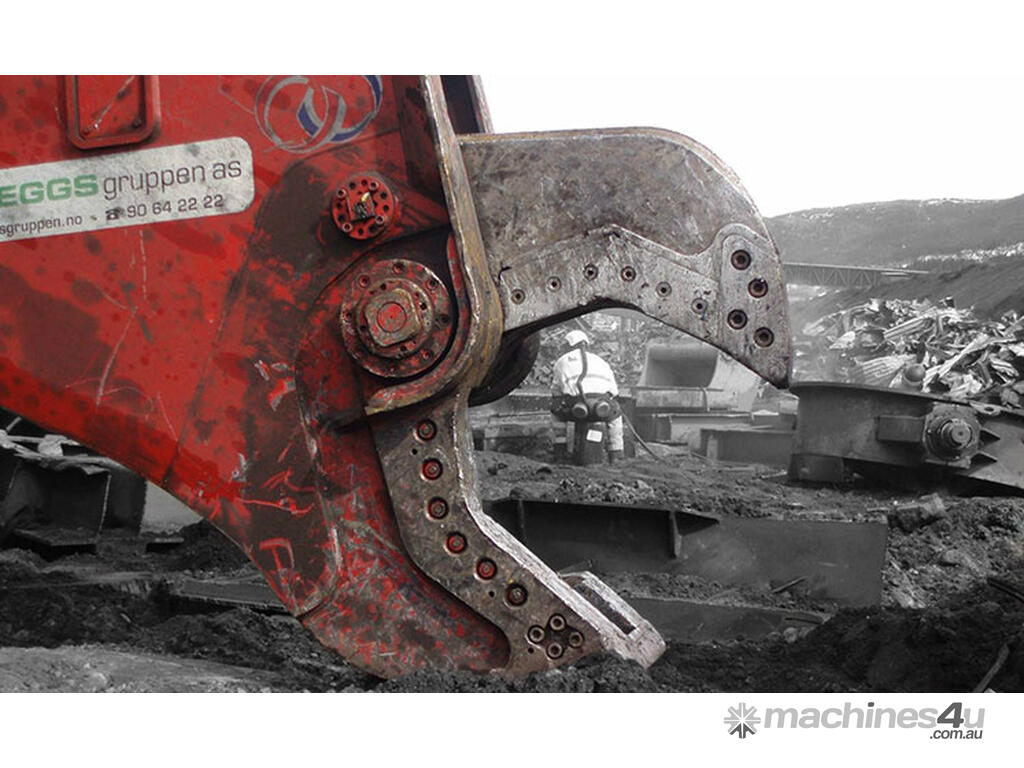

Replaceable cutting knives

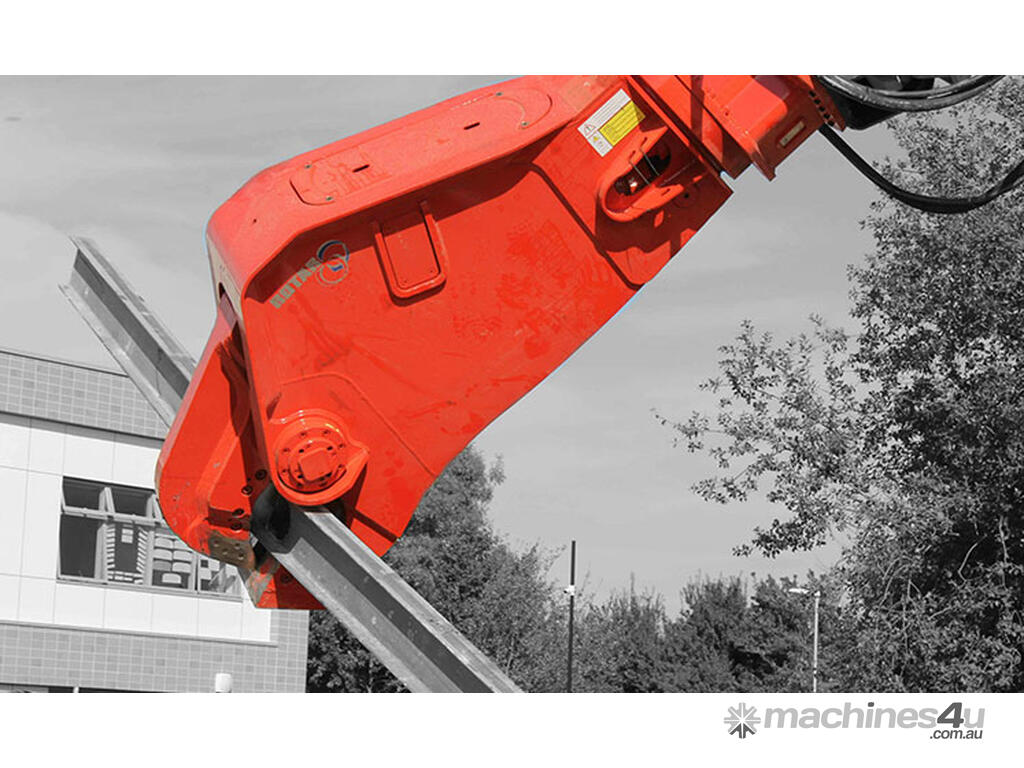

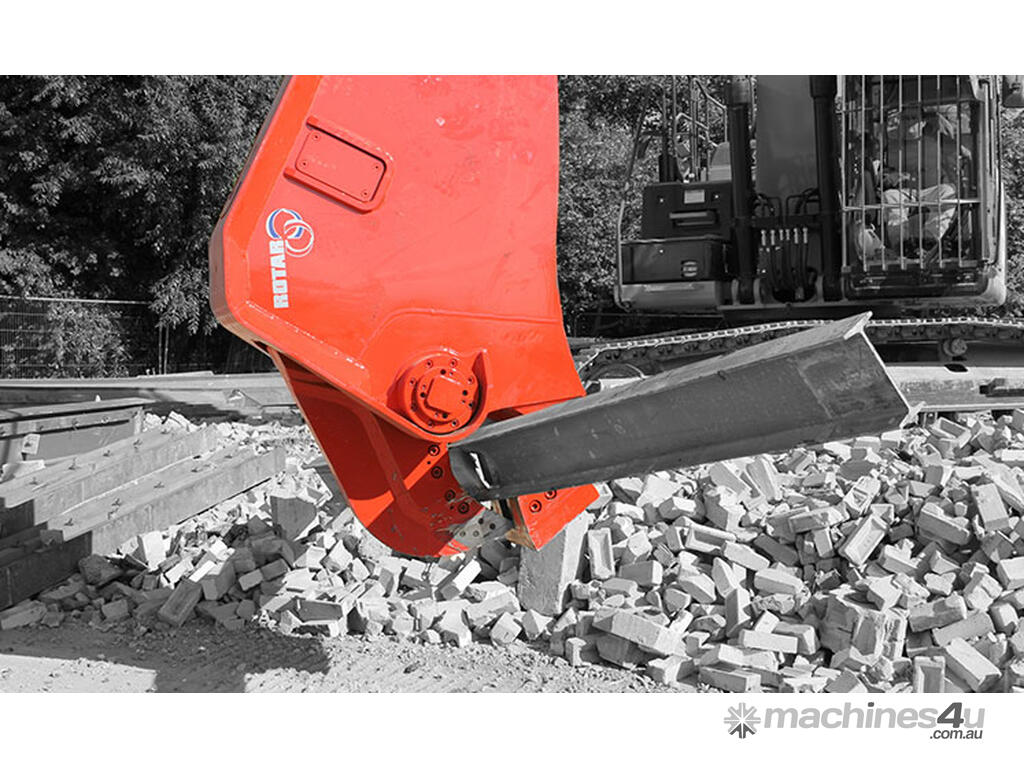

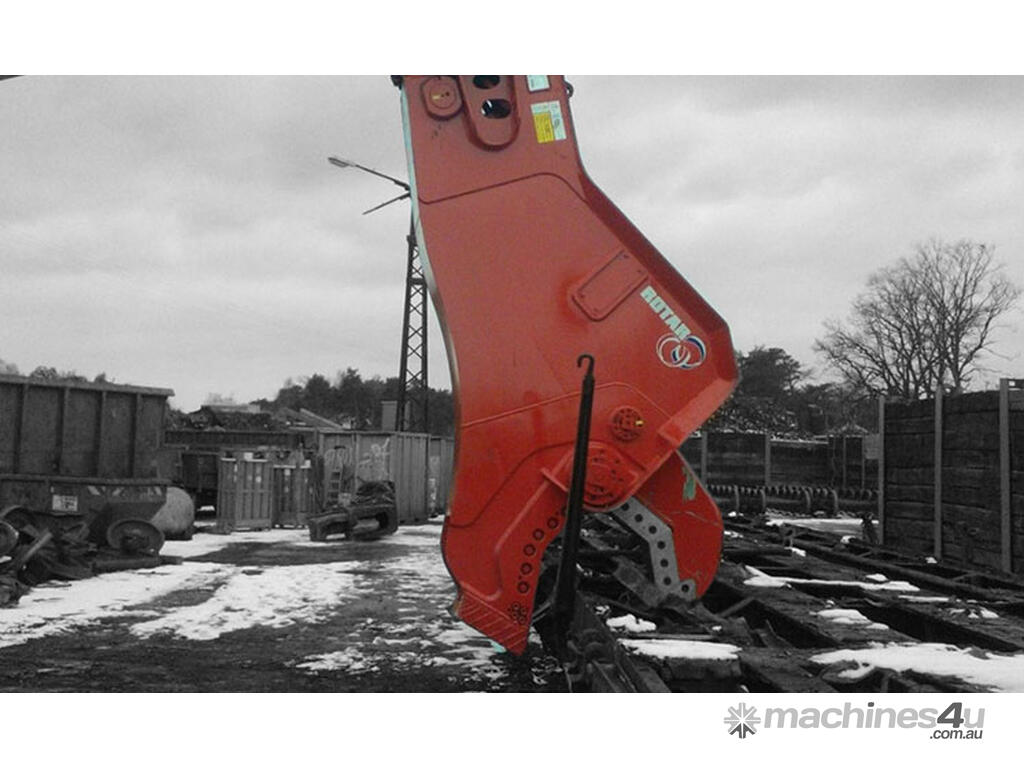

The Rotar Scrap Shear is fitted with replaceable cutting knives and completely encased nose knives. The jaw’s designs ensure that the materials are forced deep into the jaws, where the cutting power is greatest.
Headpiece and slewing ring
The RSS series has a strong rotating headpiece and an over-dimensioned, double-rowed slewing ring. The hydraulic engine and the gearbox in the headpiece create a high torque, allowing the scrap shear to be positioned in any desired way.
Specially developed hydraulic cylinder
The hydraulic cylinder with integrated speed valve, developed by Rotar, allows the jaws to close quickly and the scrap shear will effortlessly switch from speed to power mode as soon as the job requires cutting power. The scrap shear’s body has been assembled from high-grade and wear-resistant materials, making it extremely strong.
The double hose connection
The double hose connection on the swivel and large diameter of hoses, bores and pipes create optimal oil flow. This counters heat build-up in the hydraulic system, reducing the scrap shear’s fuel consumption
Specifications: 100
INFORMATION
Machine class (t) on boom: 45
Machine class (t) on dipper: 65
Weight (kg) *: 8250
Rotar Hole-pattern: 200
DIMENSIONS
Dimension A (mm): 4835
Dimension B (mm): 947
Dimension C (mm): 903
KNIPKRACHT
Tip ** (D) (t): 242
Apex ** (E) (t): 467
Throat ** (F) (t): 1338
OPEN / CLOSE
Operating pressure (bar): 350
Oil volume (L/min.): 750
ROTATION
Operating pressure (bar): 170
Oil volume (L/min.): 50
* Weight exclusive adapterplate with bracket specifications may change without prior notice
** Cuttingforce measssured at 350 bar
