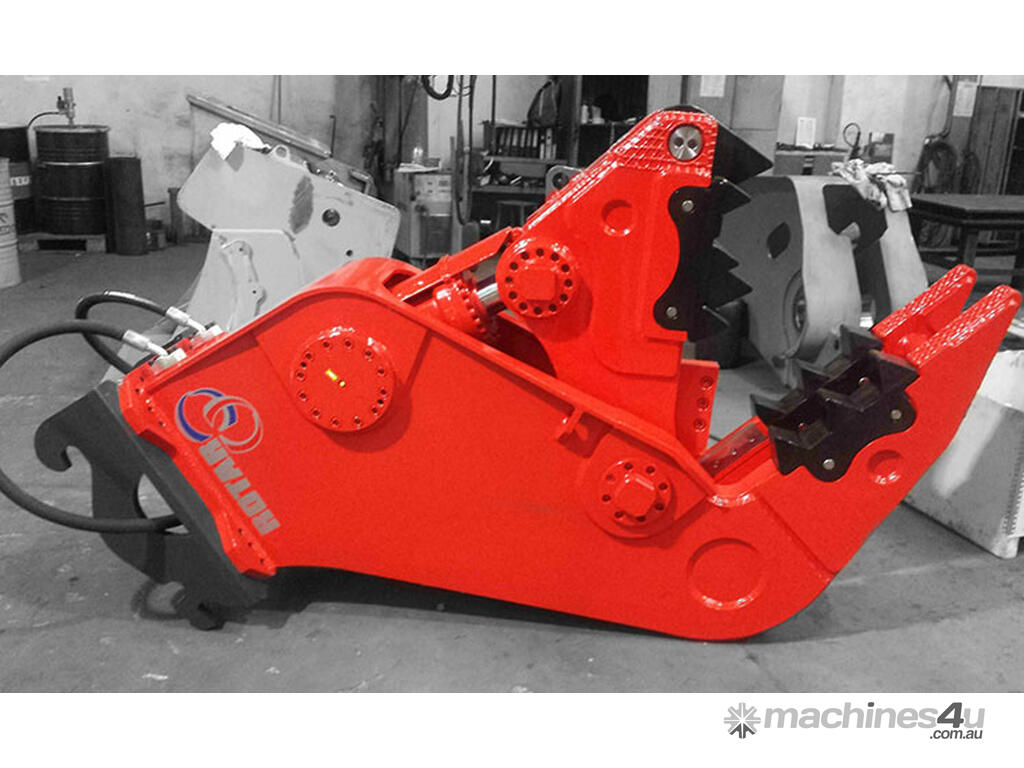

ROTAR 20 S STATIC DEMOLITION PULVERIZER (16-24T)

Rotar Static Pulverizer

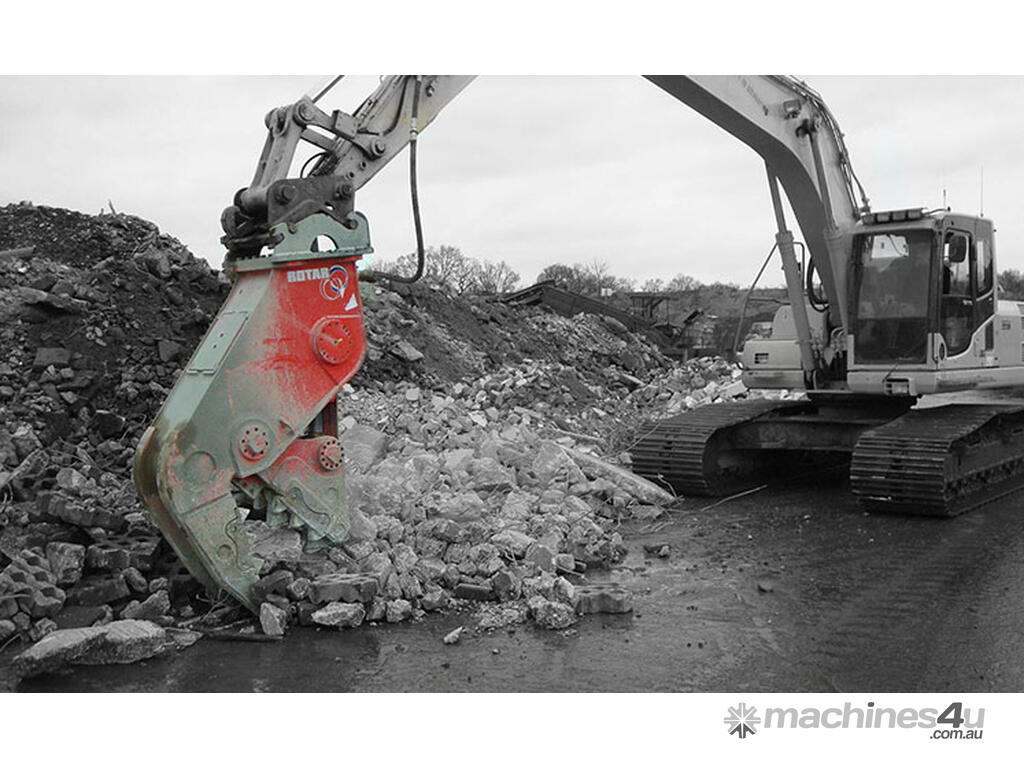

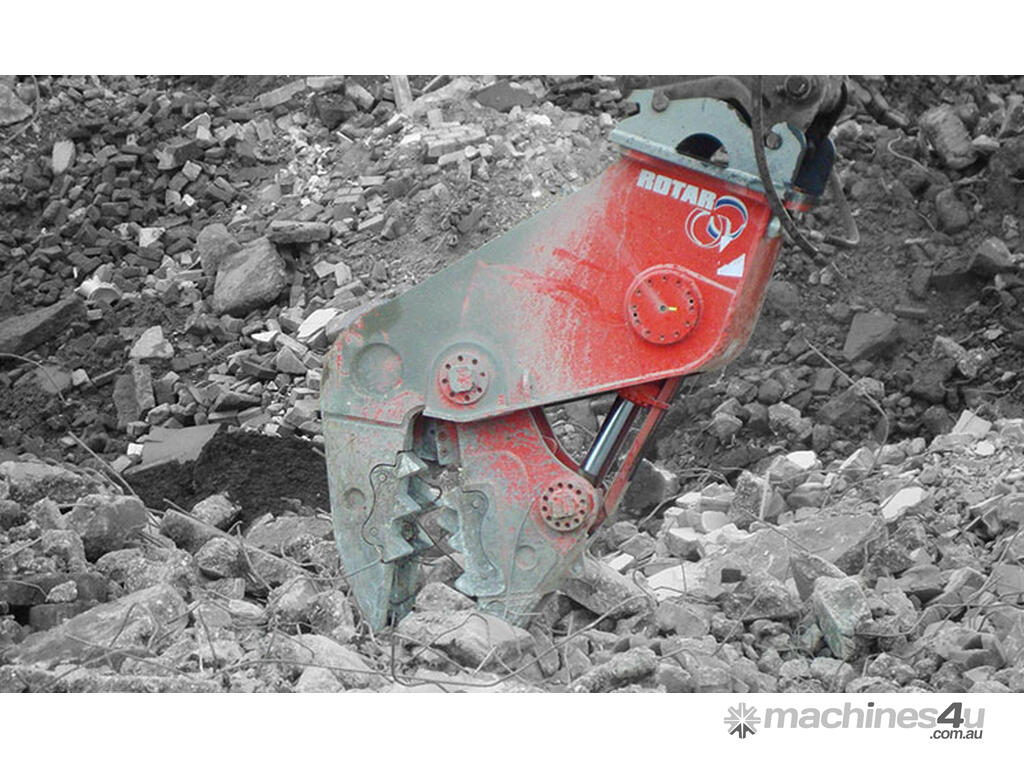

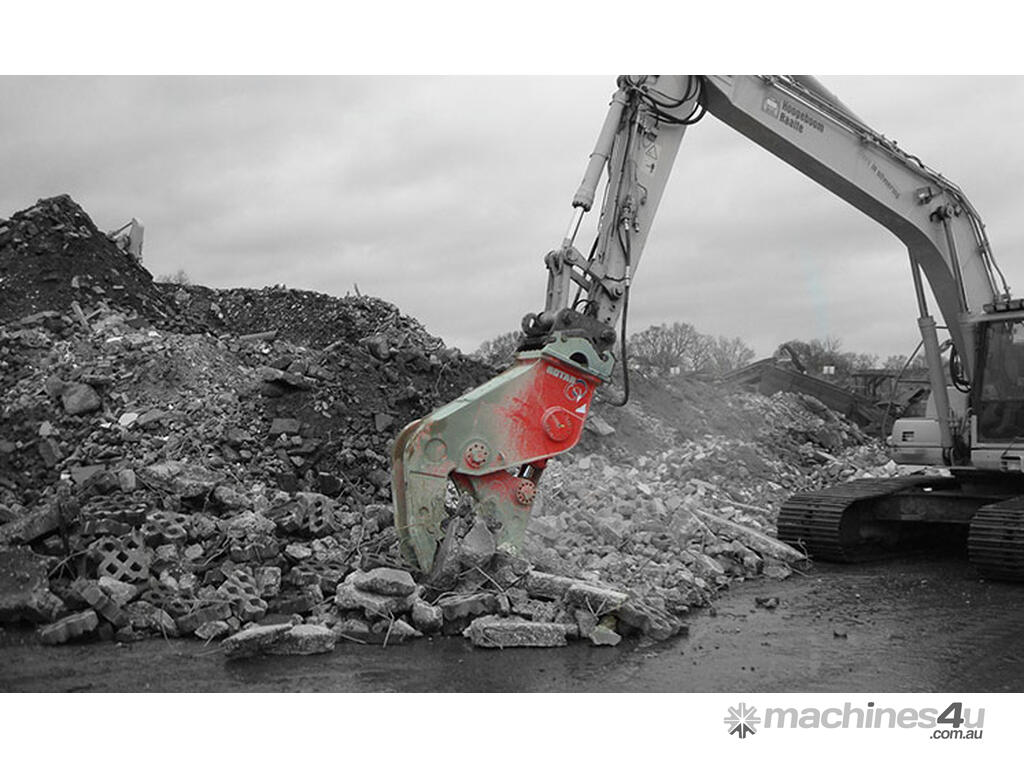

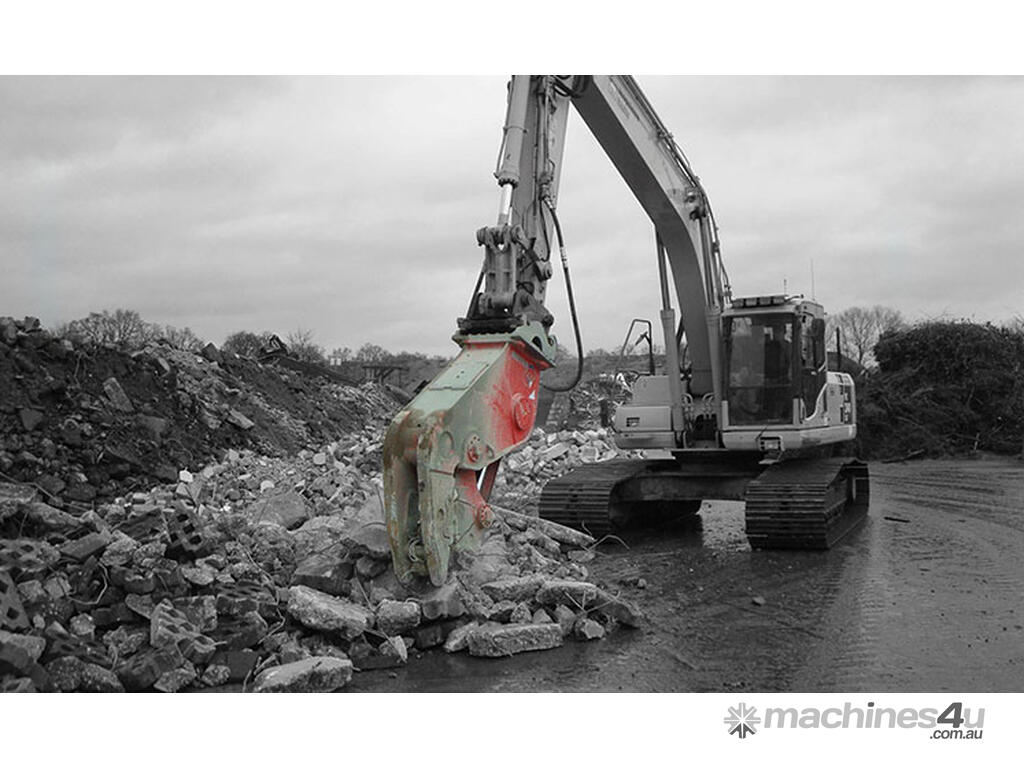

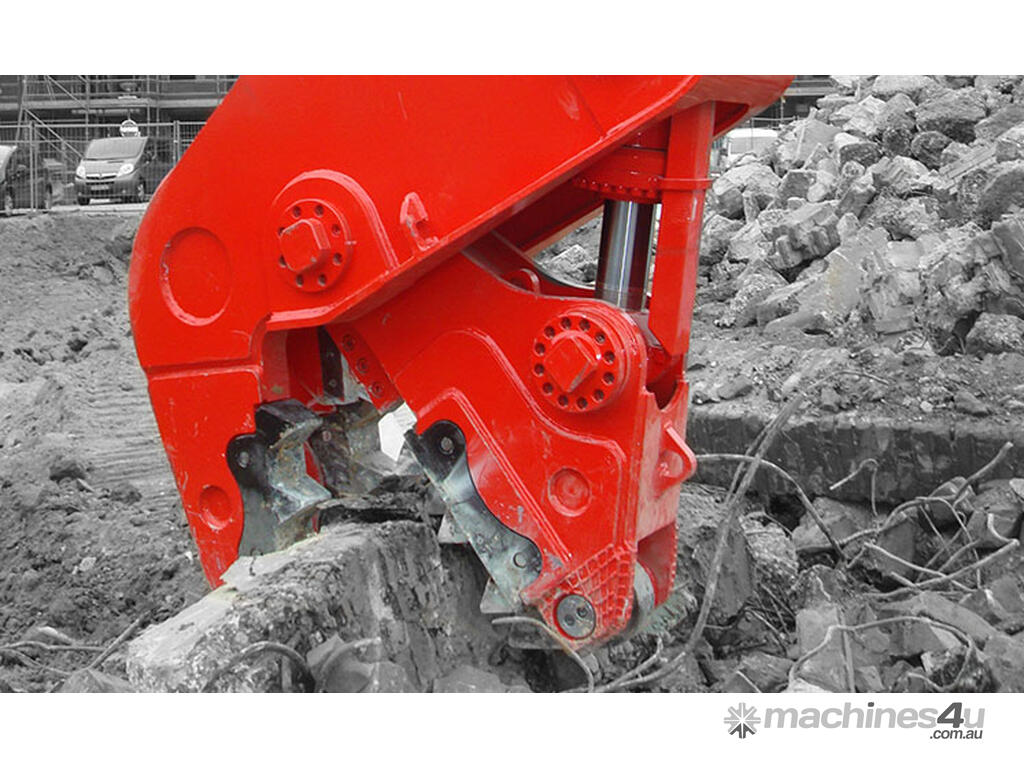

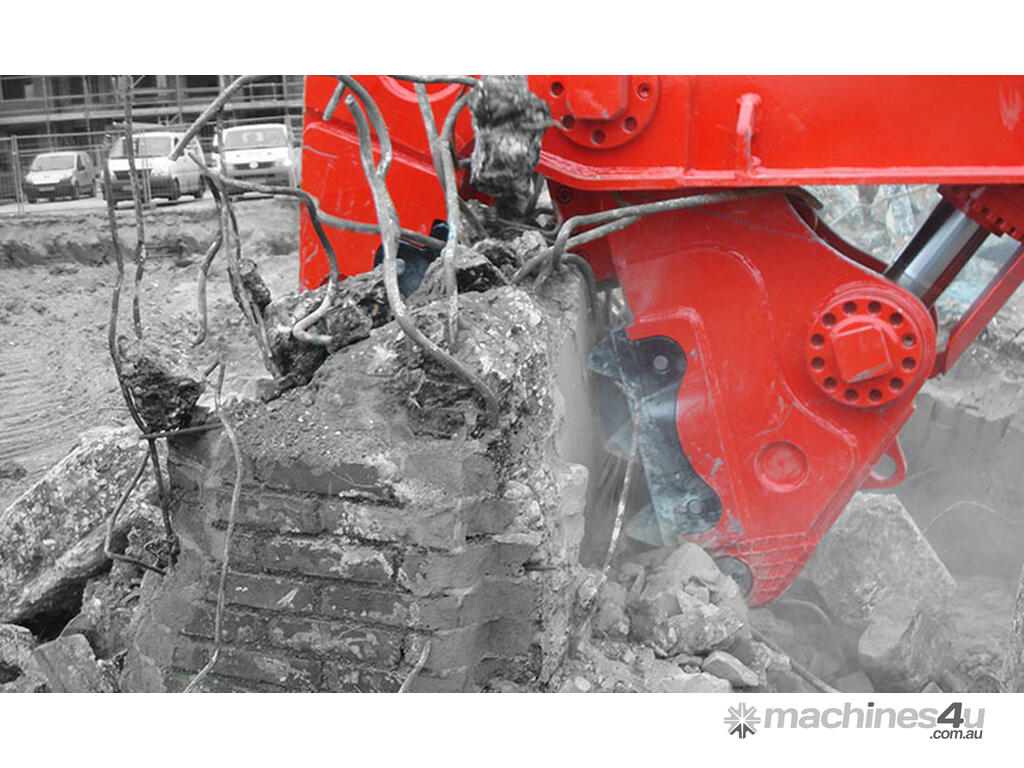

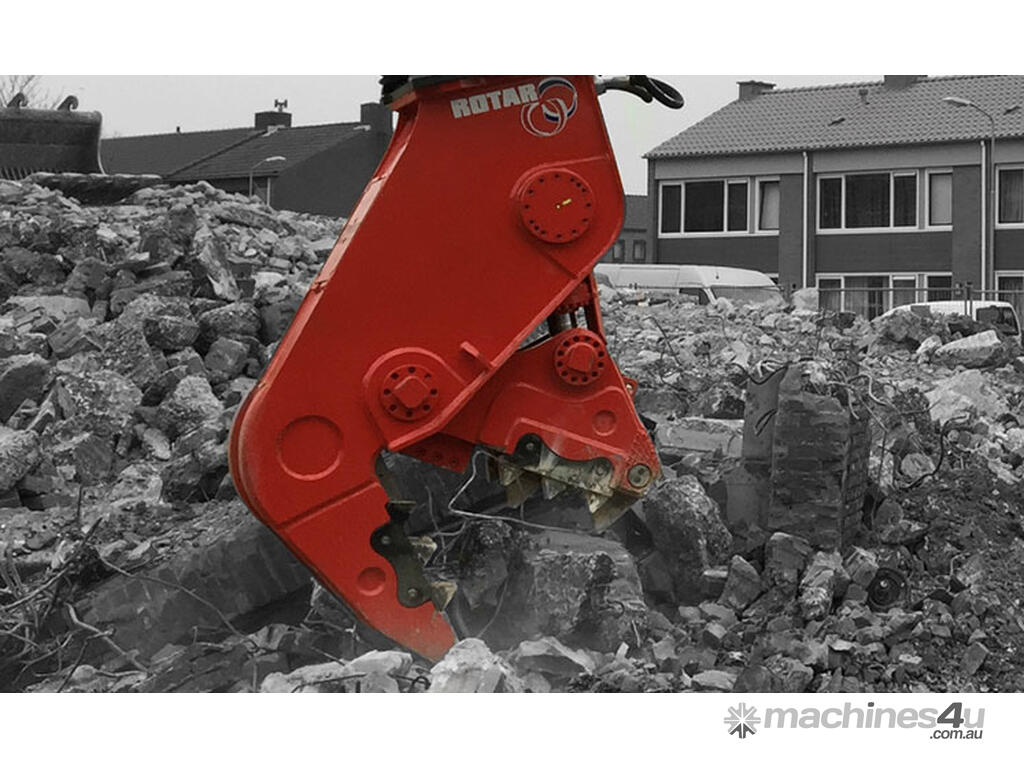

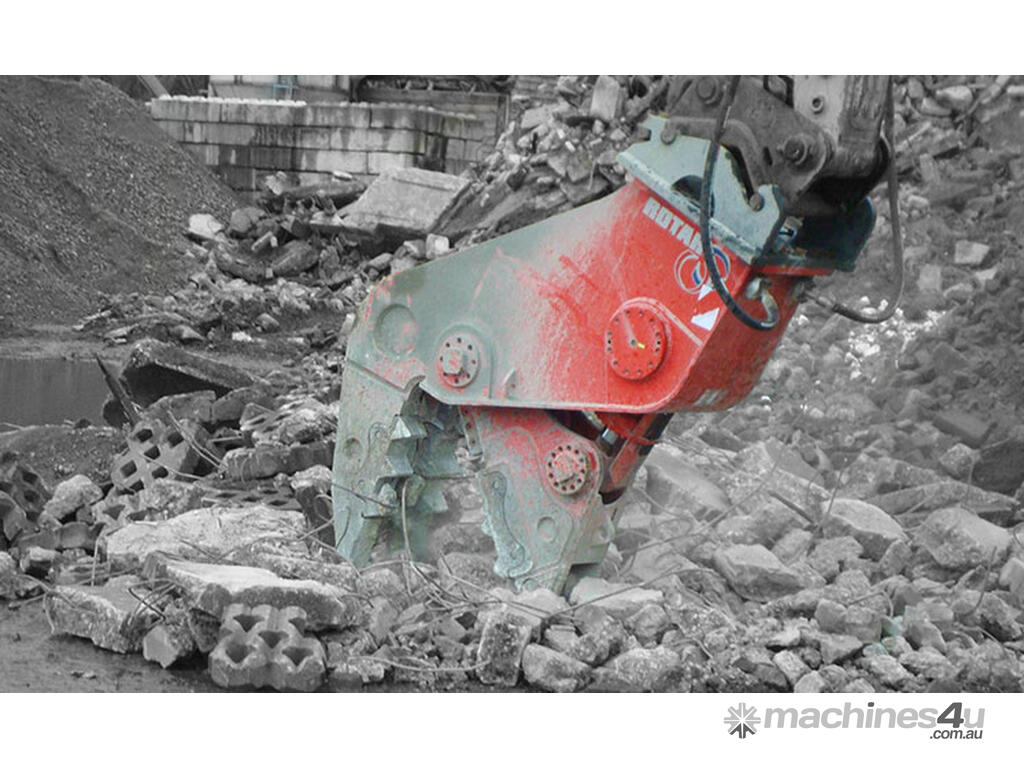

Incredible cutting power combined with easy to replace wear parts make this Rotar Static Pulverizer the perfect concrete pulverizer for secondary demolitions. The RSP-series can easily crush the concrete and remove the reinforcement.

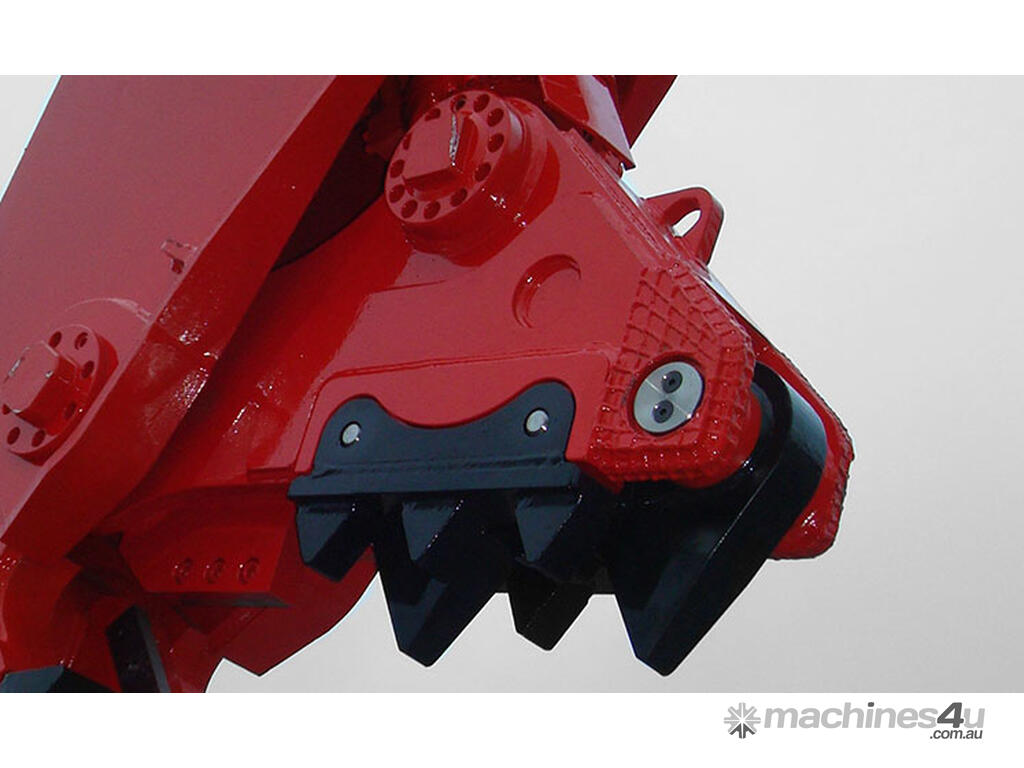

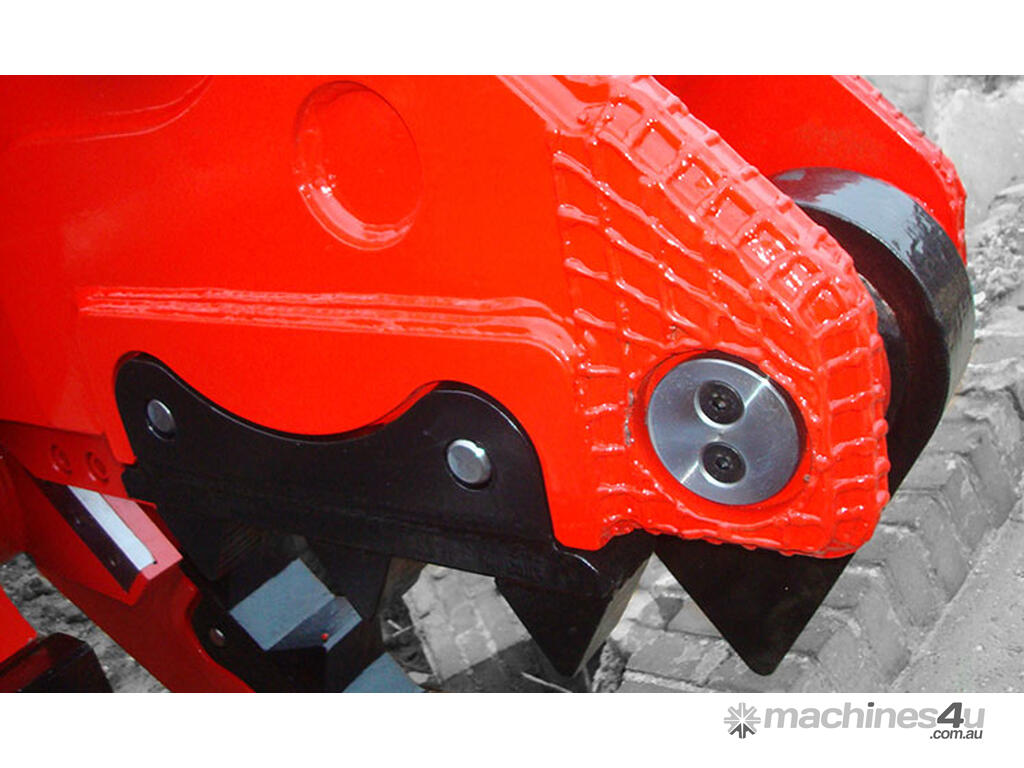

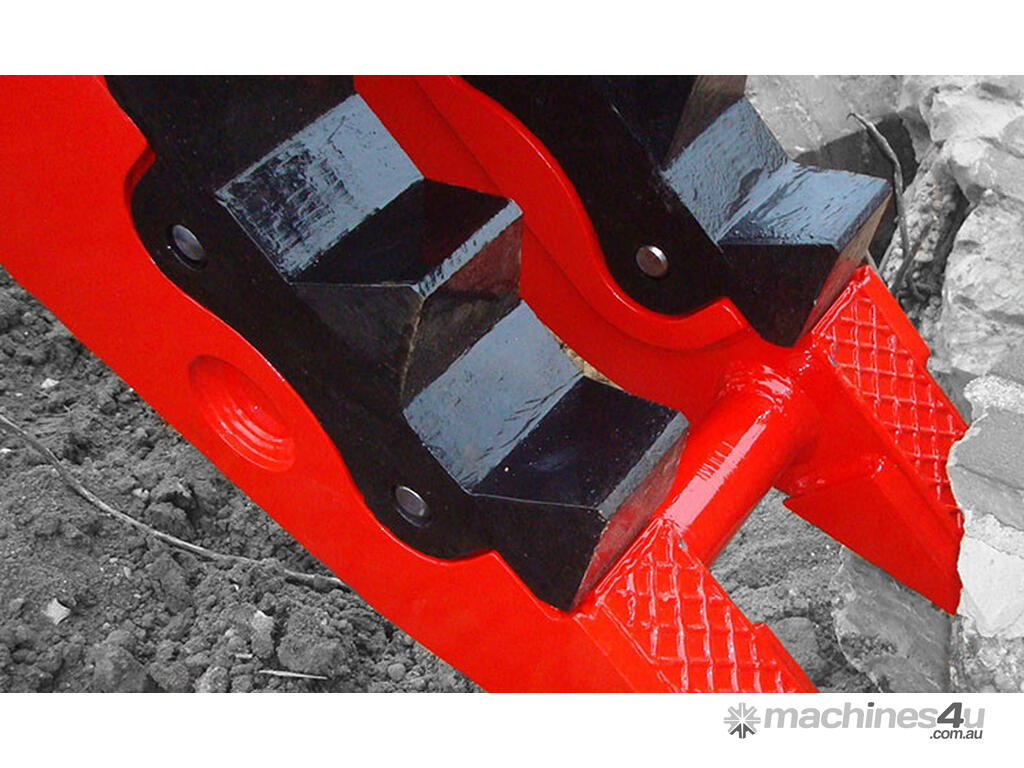

Replaceable teeth

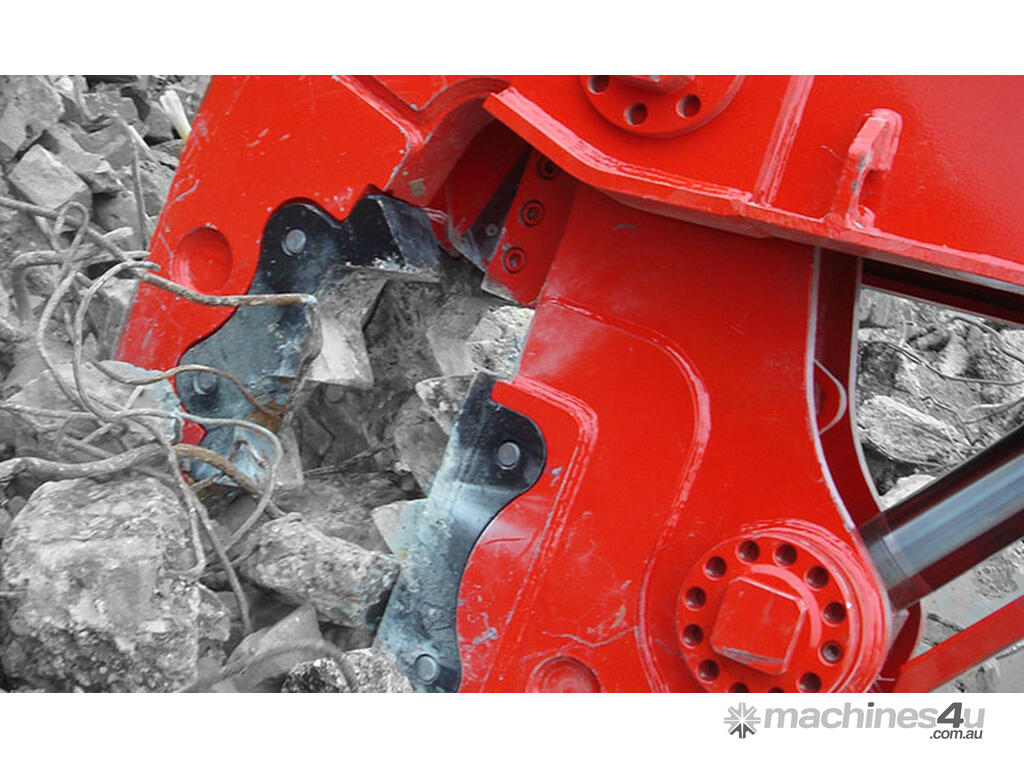

The Rotar Static Pulverizer has been fitted with replaceable teeth. It’s impressive to watch these rows of teeth cutting through the extremely strong concrete. The design of the jaws guarantees powerful penetration of the material.

Specially developed speed valve
The speed valve that was specially developed by Rotar makes sure that the jaws close quickly and that they switch from speed to power mode as soon as the job requires cutting power. The pulverizer’s body has been assembled from high-grade and wear-resistant materials, making it extremely strong.

Cross-mounted hydraulic cylinder

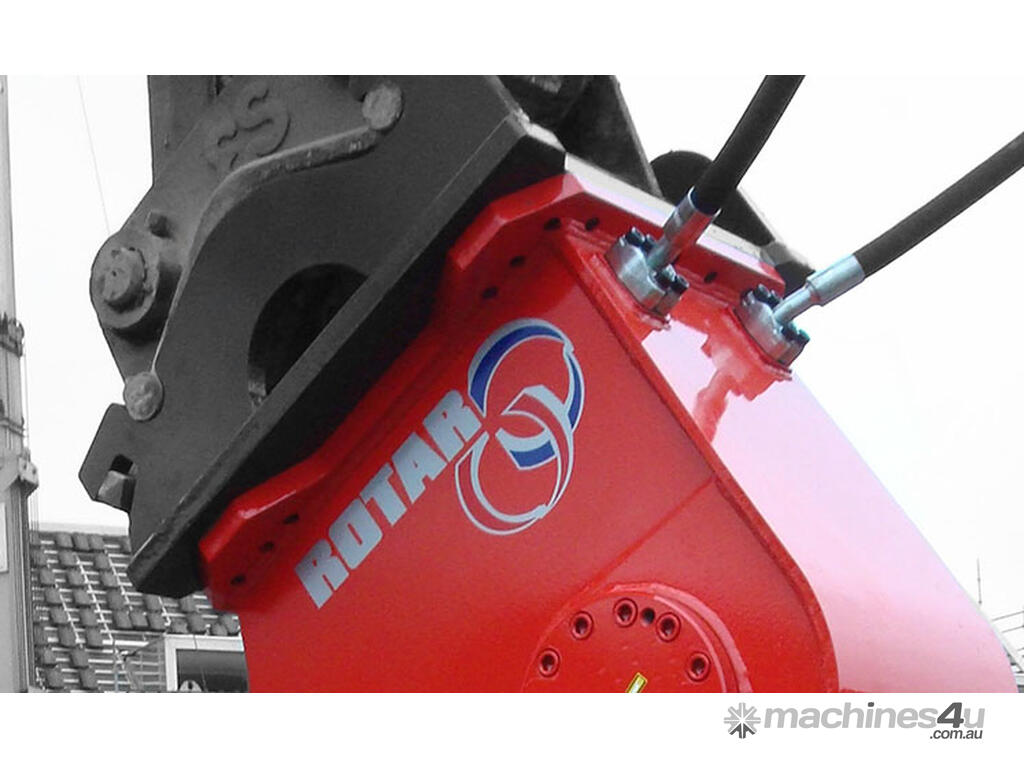

The cross-mounted hydraulic cylinder ensures optimal efficiency of the cutting power and a compact design with a favourable centre of gravity. The large diameter of hoses, bores and pipes reduce the return pressure in the hydraulic system and contribute to this pulverizer’s extraordinary performance.

Specifications: 20 S
INFORMATION
Weight (kg) *: 2500
Cycle open/close (s.): 1,9 - 1,2
Closing force at tip of jaw 1 (T): 130
Closing force at tip of jaw 2 (T): 240
Machine class (t): 16 - 24
Rotar Hole-pattern: 140 - 150
DIMENSIONS
Dimension A (mm): 2657
Dimension B (mm): 445
Dimension C (mm): 416
Dimension D (mm): *
Dimension E (mm): *
Dimension F (mm): *
Dimension G (mm): *
HYDRAULIC
Max. operating pressure motor (bar): 350
Oil volume cylinder (L/min.): 250
Connector Size: SAE 1 1/4"
* Dimensions under construction
** Weight exclusive adapterplate with bracket
