ROTAR 25 RAIL CUTTER

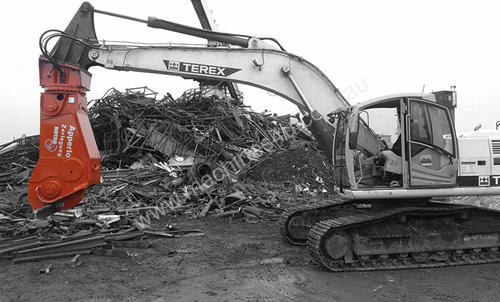

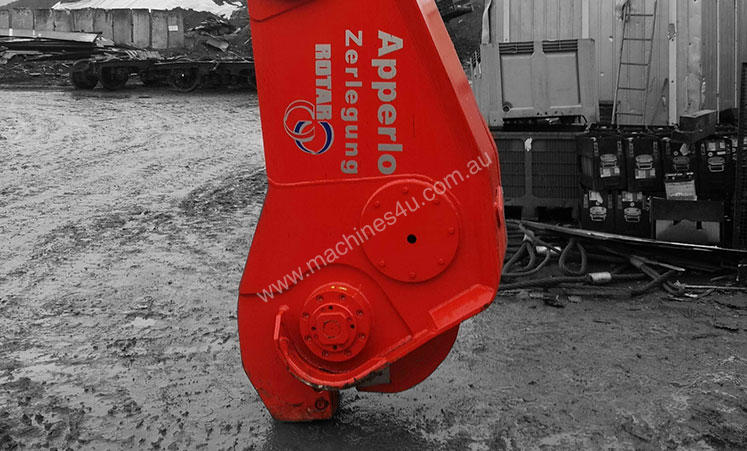

Rotar Rail Cutter
The Rotar Rail Cutter is synonymous with enormous productivity. With its fast cycle times and incredible cutting power, the RRC series will process tonnes of rail in the blink of an eye!

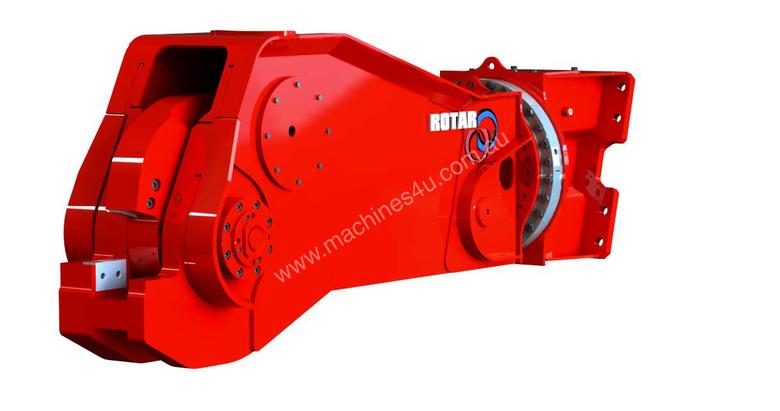

Headpiece and slewing ring
The Rail Cutter is fitted with a strong rotating headpiece and an over-dimensioned, double-rowed slewing ring. The hydraulic engine and the gearbox create a high torque, allowing the rail cutter to be positioned in any desired way.

Specially developed hydraulic cylinder

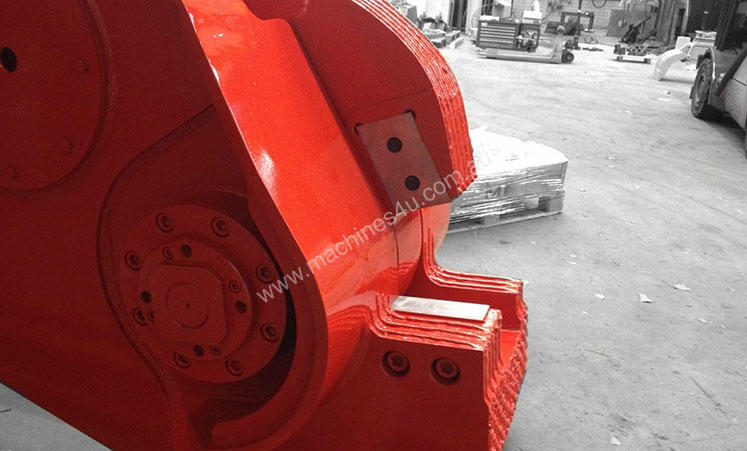

The specially developed hydraulic cylinder with integrated speed valve allows the jaws to close quickly and the rail cutter will effortlessly switch from speed to power mode as soon as the job requires cutting power. The rail cutter was constructed from high-grade and wear-resistant materials, with the incredibly strong bottom and upper jaws with replaceable cutting knives and main axis with wide pivots as the basis.

The double hose connection
The double hose connection on the swivel and large diameter of hoses, bores and pipes create optimal oil flow. This counters heat build-up in the hydraulic system, reducing the rail cutter’s fuel consumption.

Specifications: 25
INFORMATION
Weight (kg) *: 3500
Machine class (t) on boom: 25
Machine class (t) on dipper: 38
Rotar Hole-pattern: 200
DIMENSIONS
Dimension A (mm): 2884
Dimension B (mm): 204
Dimension C (mm): 190
Dimension D (mm): 111
OPEN / CLOSE
Operating pressure (bar): 250
Oil volume (L/min.): 450
ROTATION
Operating pressure (bar): 170
Oil volume (L/min.): 50
* Weight exclusive adapterplate with bracket

ABOUT PREMIER ROCK MACHINERY
Premier Rock Machinery selects only the very best manufacturing brands from companies that design and build world-class excavator attachments to the most exacting standards using high quality materials suitable for the rugged Australian environment.

Premier Rock Machinery partner with the following world class manufacturers: MOVAX, MONTABERT, REMU, ROTAR and LEHNHOFF.

With a state-of-the-art workshop facilities and a fleet of dedicated service vehicles, Premier Rock Machinery is able to assist customers on or off their site whether they are engaged in the smallest of earthwork projects or the most demanding construction and civil engineering challenges.

Contact us today for more information this product.
