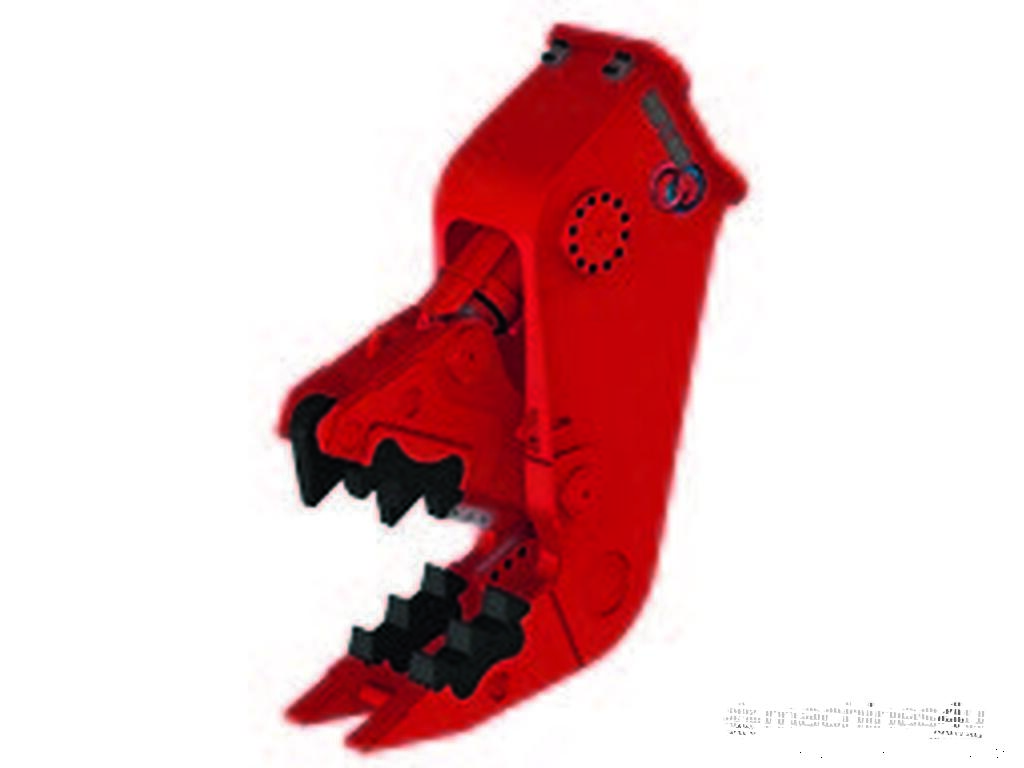

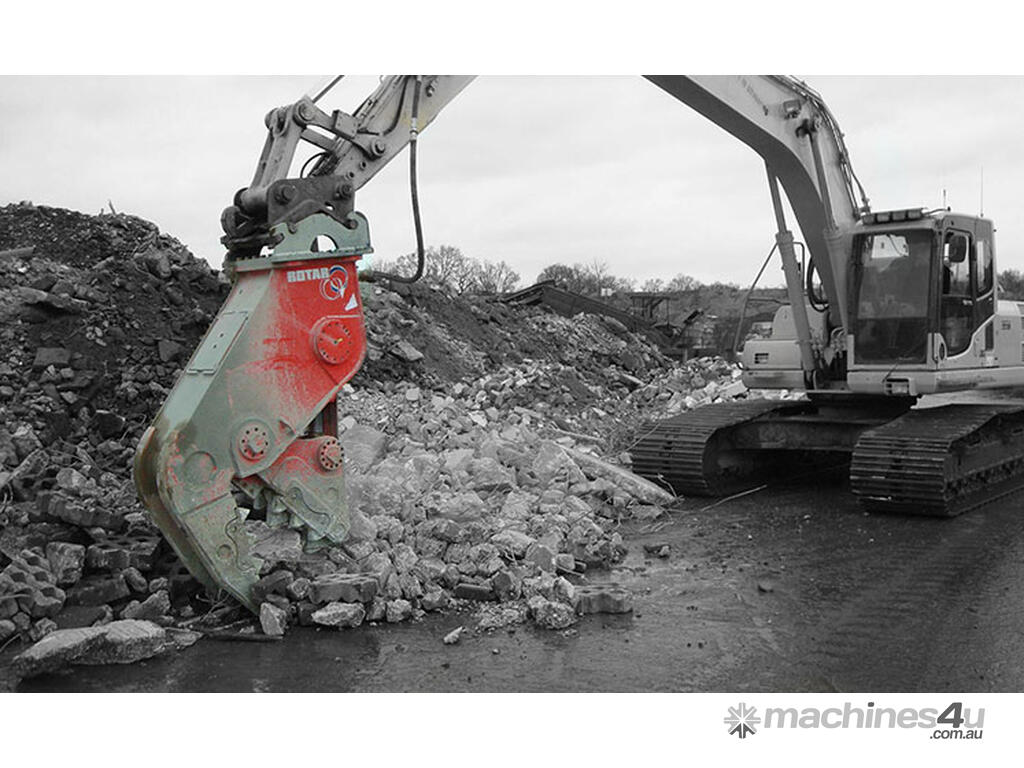

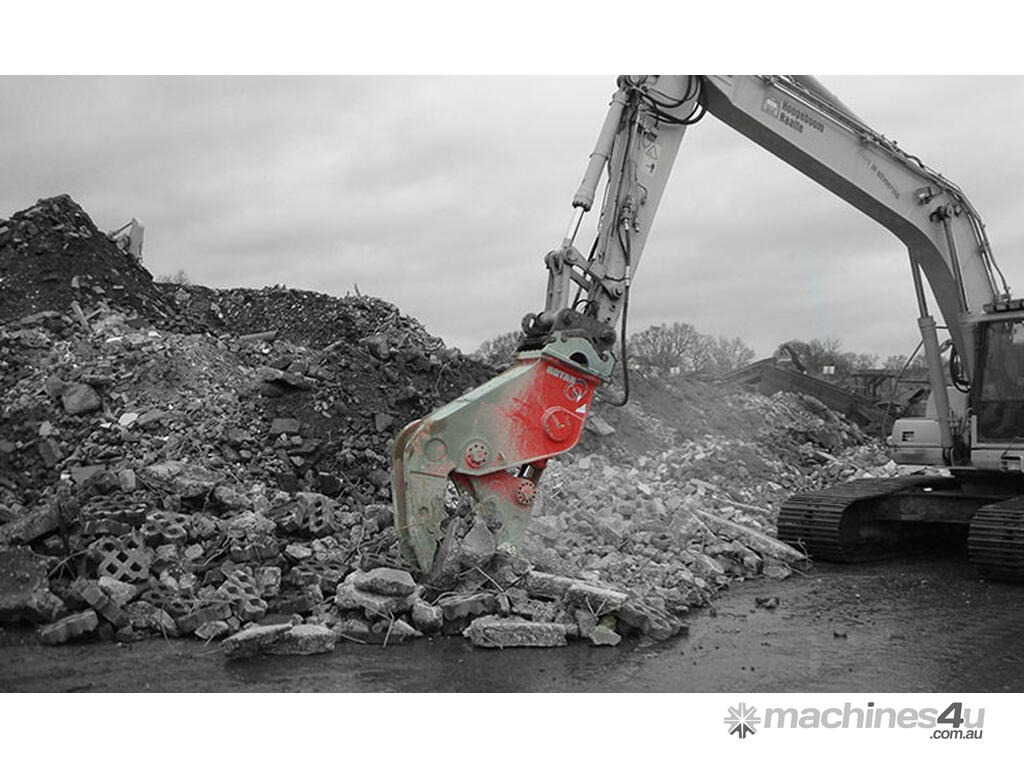

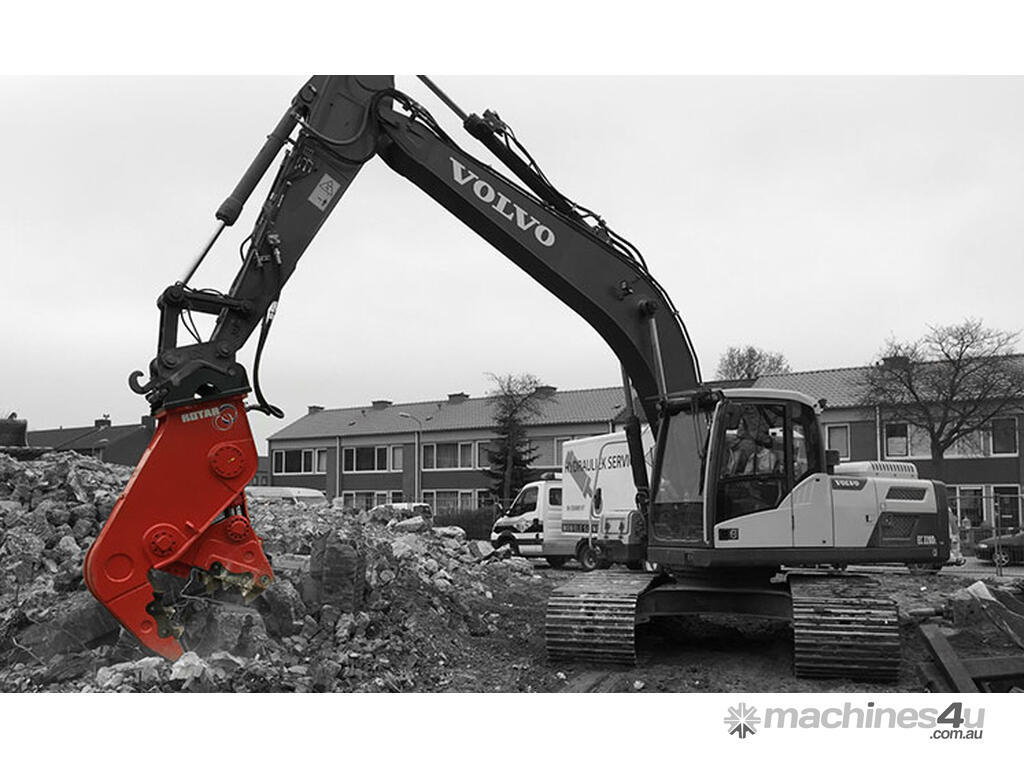

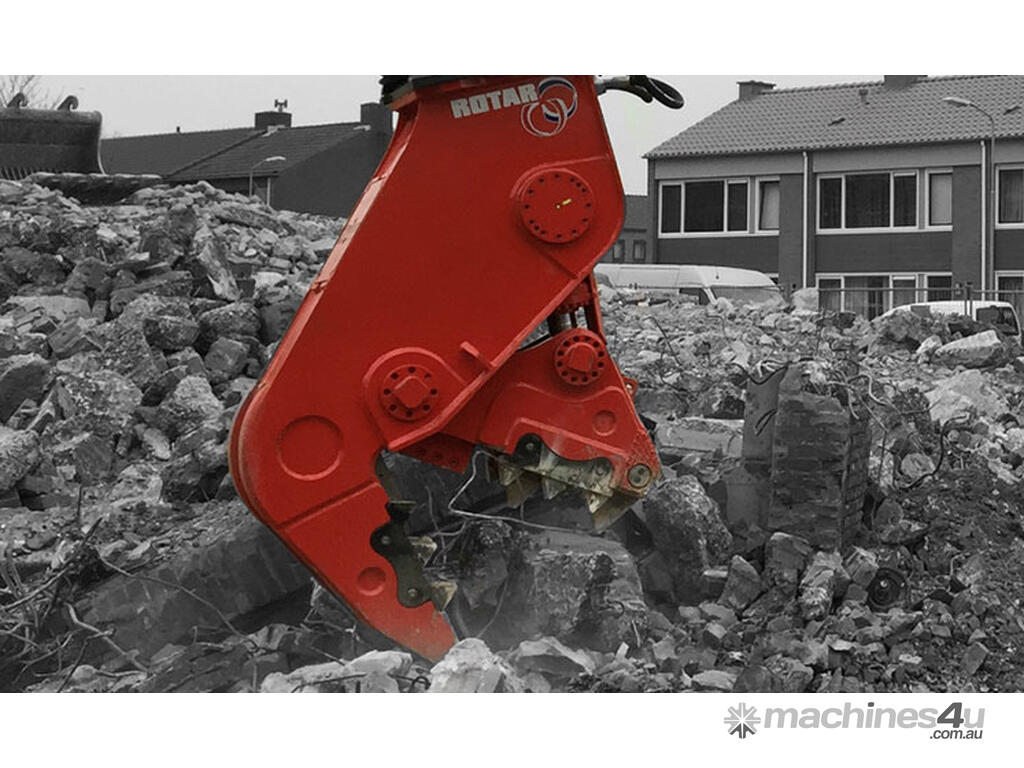

ROTAR 25 S STATIC DEMOLITION PULVERIZER (20-30T)

Rotar Static Pulverizer

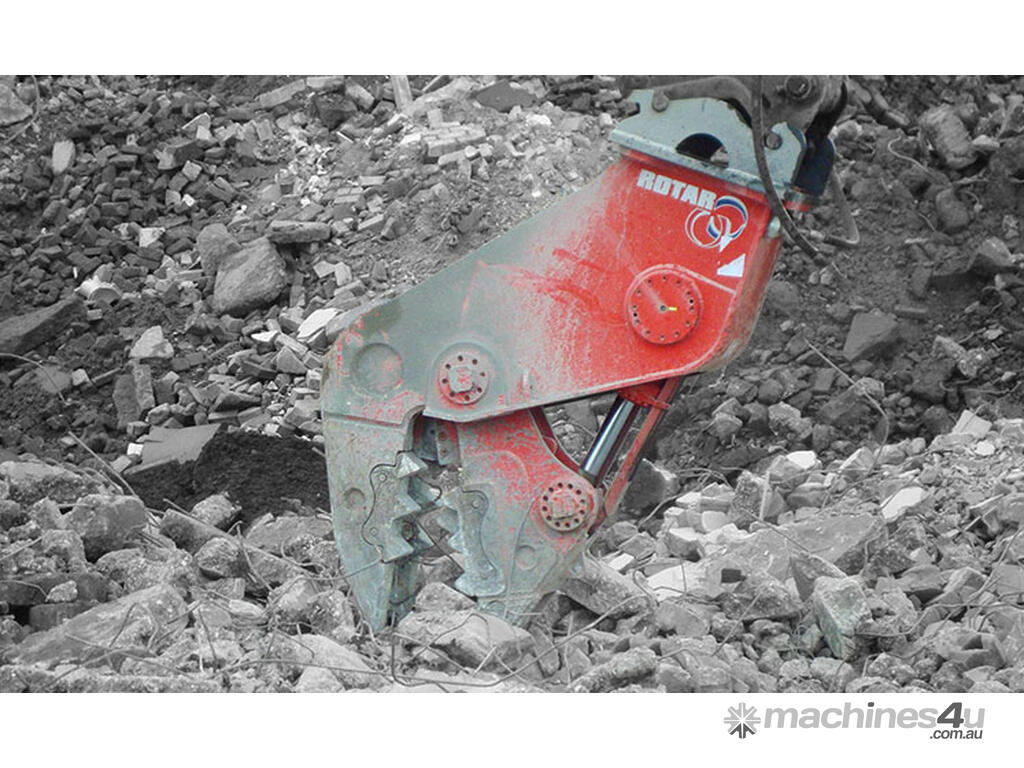

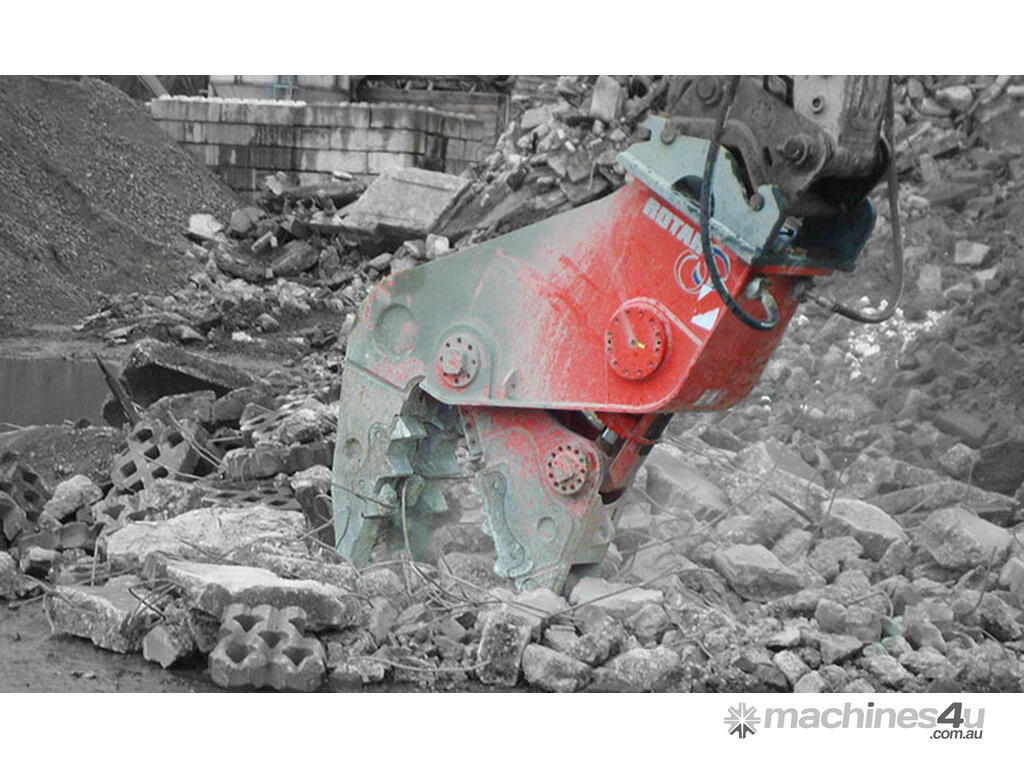

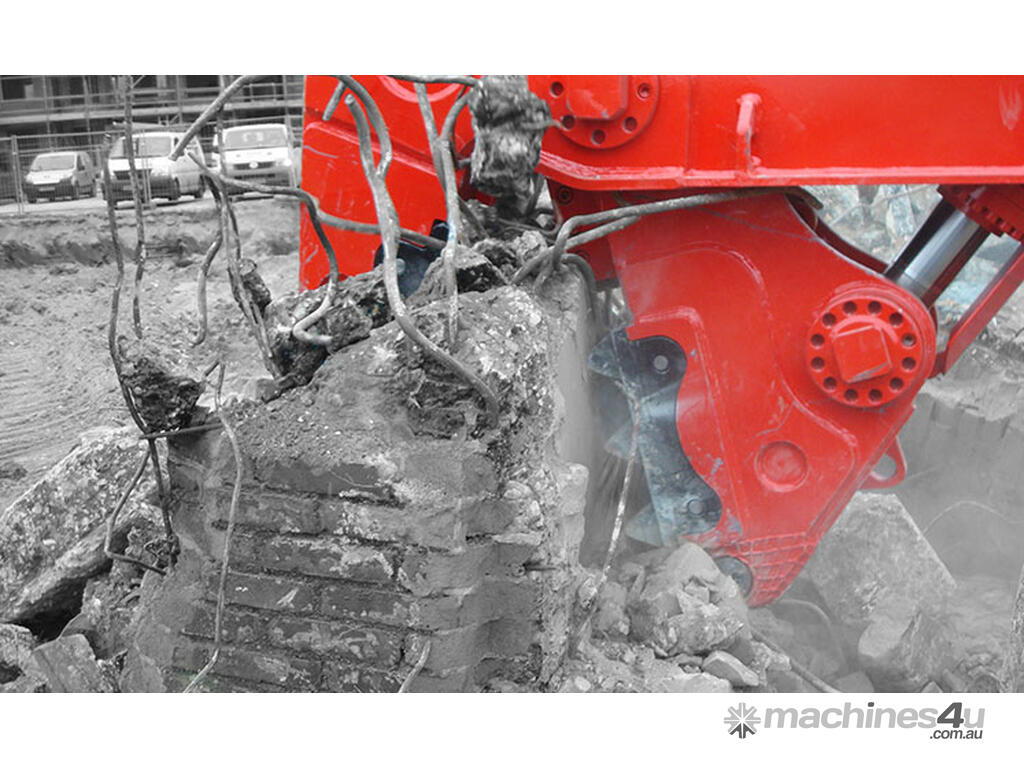

Incredible cutting power combined with easy to replace wear parts make this Rotar Static Pulverizer the perfect concrete pulverizer for secondary demolitions. The RSP-series can easily crush the concrete and remove the reinforcement.

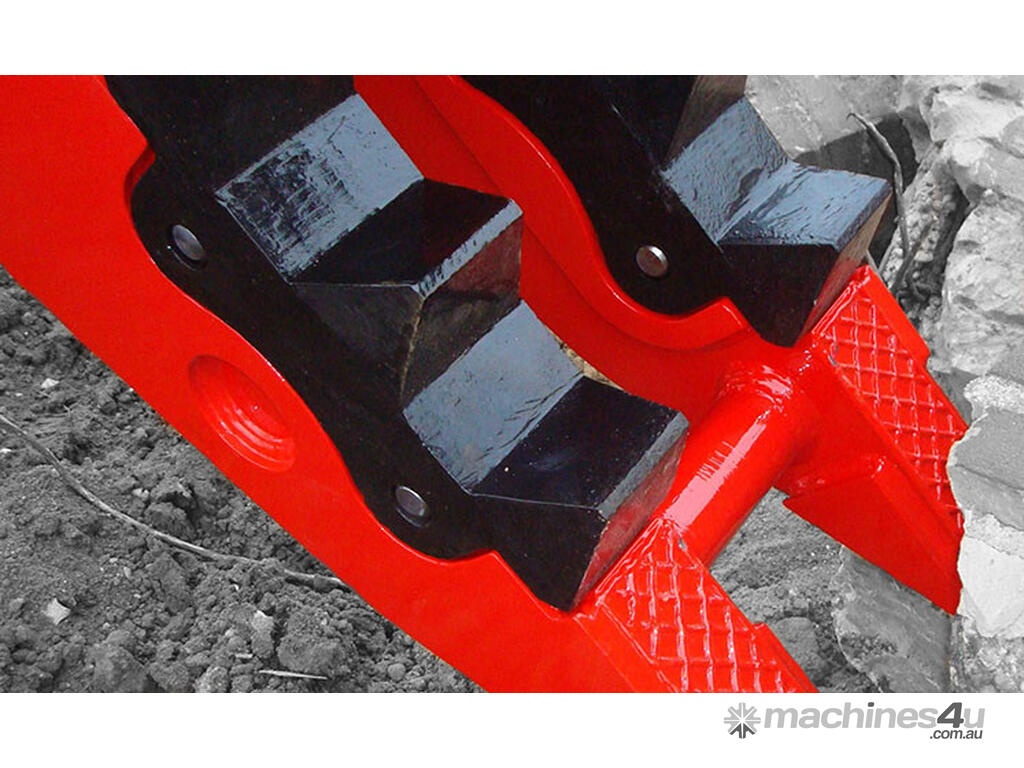

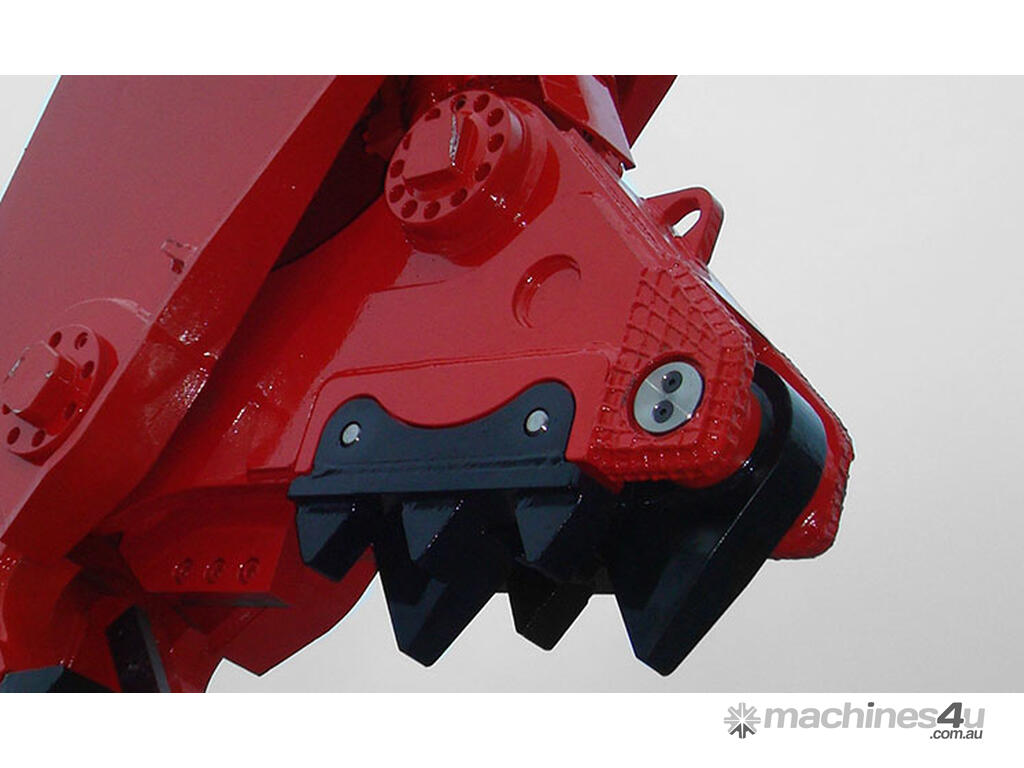

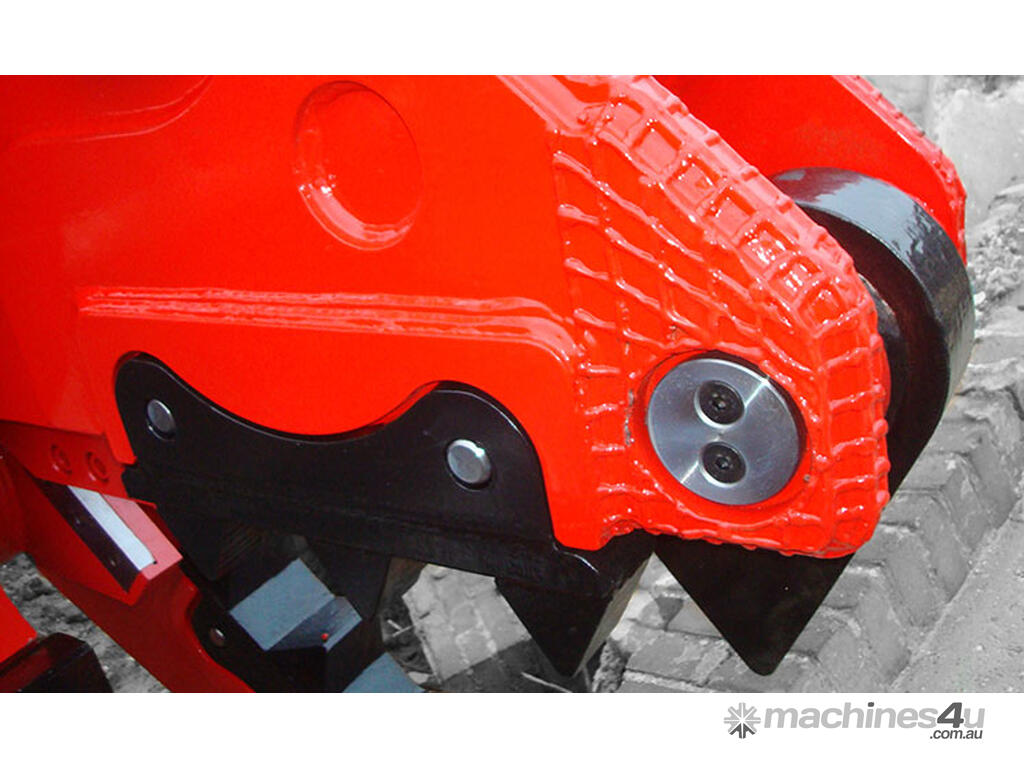

Replaceable teeth

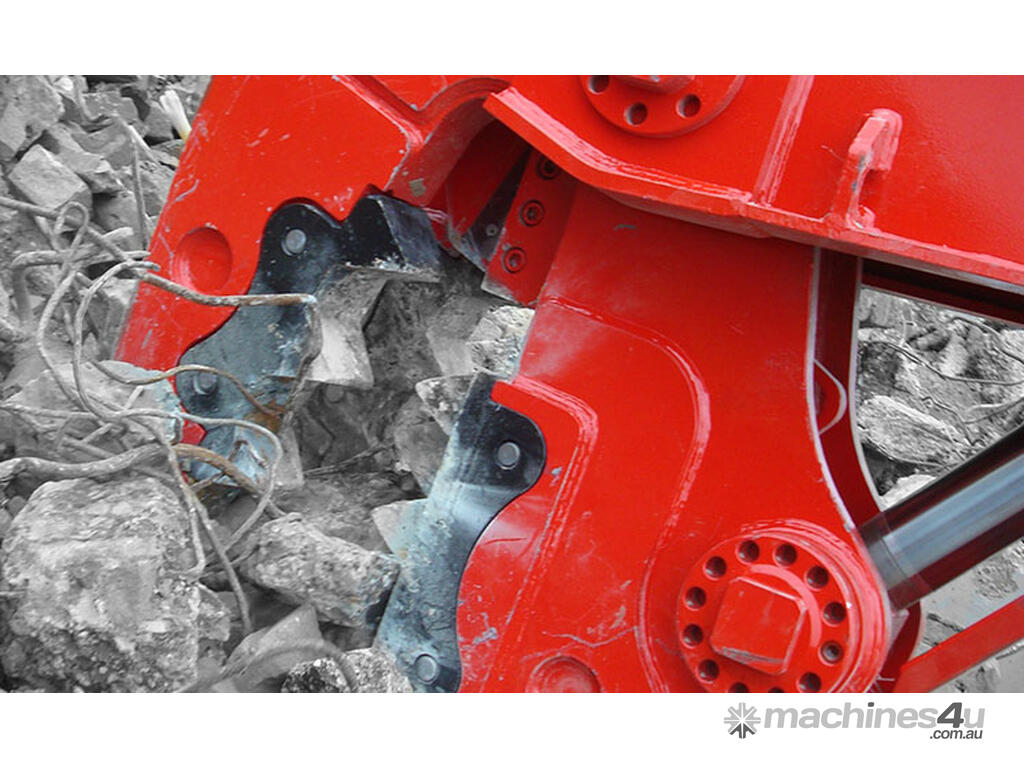

The Rotar Static Pulverizer has been fitted with replaceable teeth. It’s impressive to watch these rows of teeth cutting through the extremely strong concrete. The design of the jaws guarantees powerful penetration of the material.

Specially developed speed valve
The speed valve that was specially developed by Rotar makes sure that the jaws close quickly and that they switch from speed to power mode as soon as the job requires cutting power. The pulverizer’s body has been assembled from high-grade and wear-resistant materials, making it extremely strong.

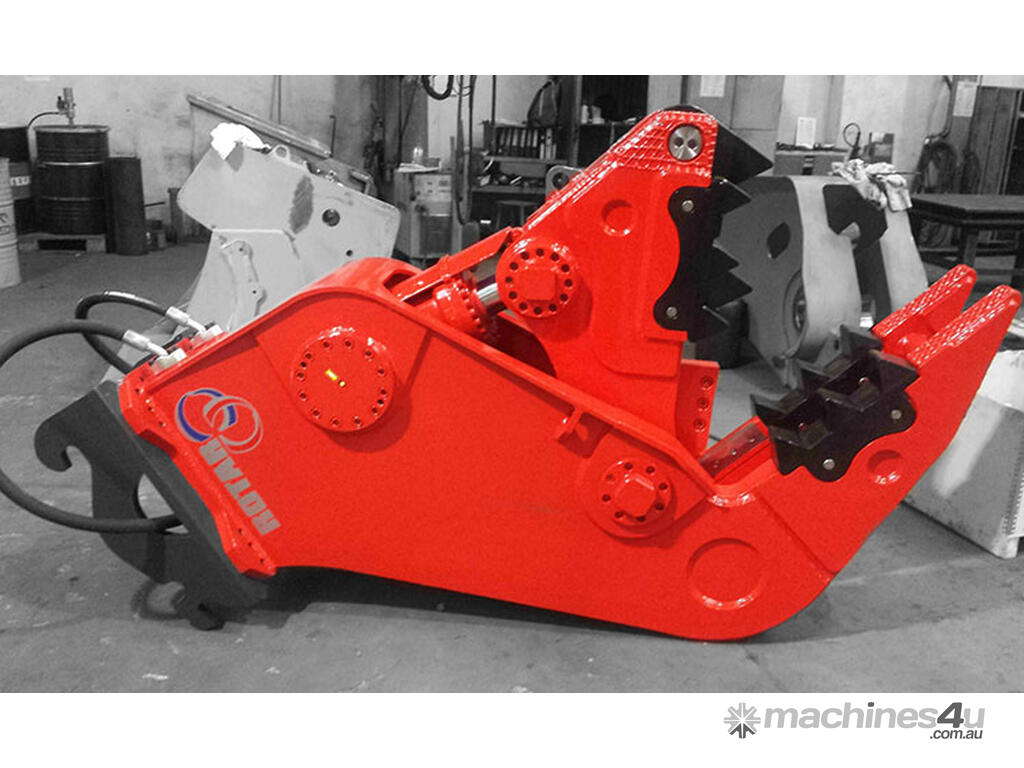

Cross-mounted hydraulic cylinder
The cross-mounted hydraulic cylinder ensures optimal efficiency of the cutting power and a compact design with a favourable centre of gravity. The large diameter of hoses, bores and pipes reduce the return pressure in the hydraulic system and contribute to this pulverizer’s extraordinary performance.

Specifications: 25 S
INFORMATION
Weight (kg) *: 2350
Cycle open/close (s.): *
Closing force at tip of jaw 1 (T): 70
Closing force at tip of jaw 2 (T): 105

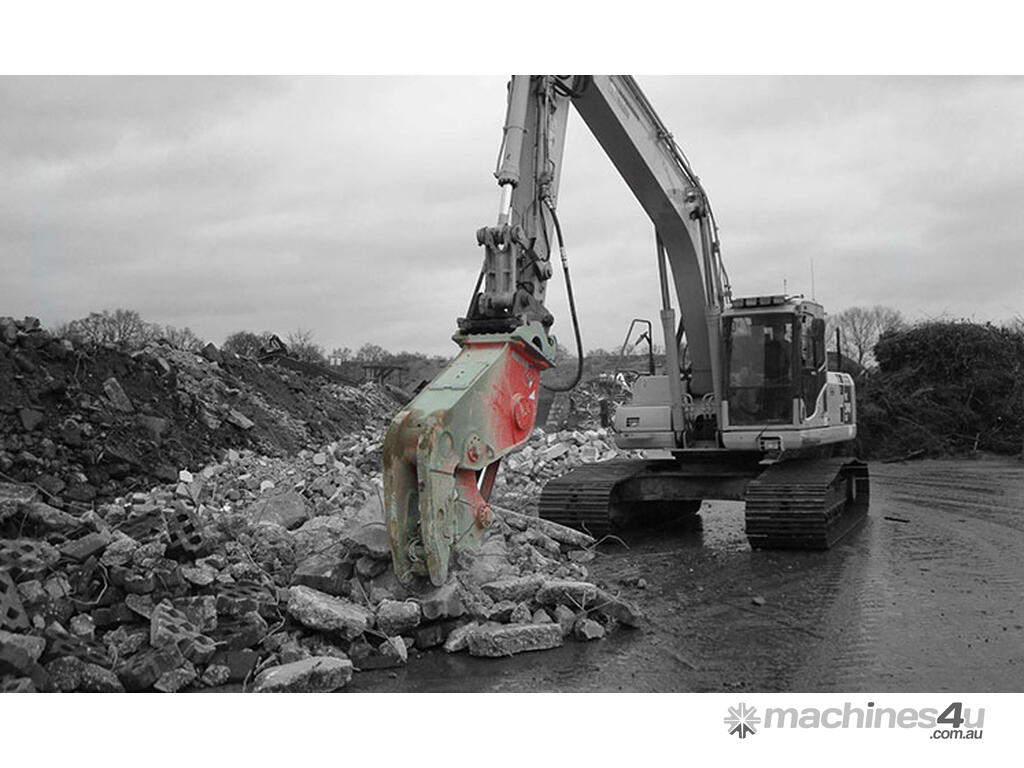

Machine class (t): 20 - 30
Rotar Hole-pattern: 140 - 150
DIMENSIONS
Dimension A (mm): 2400
Dimension B (mm): 620
Dimension C (mm): 440
Dimension D (mm): 310
Dimension E (mm): 911
Dimension F (mm): 860
Dimension G (mm): 200
HYDRAULIC
Max. operating pressure motor (bar): 350
Oil volume cylinder (L/min.): 250
Connector Size: SAE 1 1/4"
* Dimensions under construction
** Weight exclusive adapterplate with bracket
