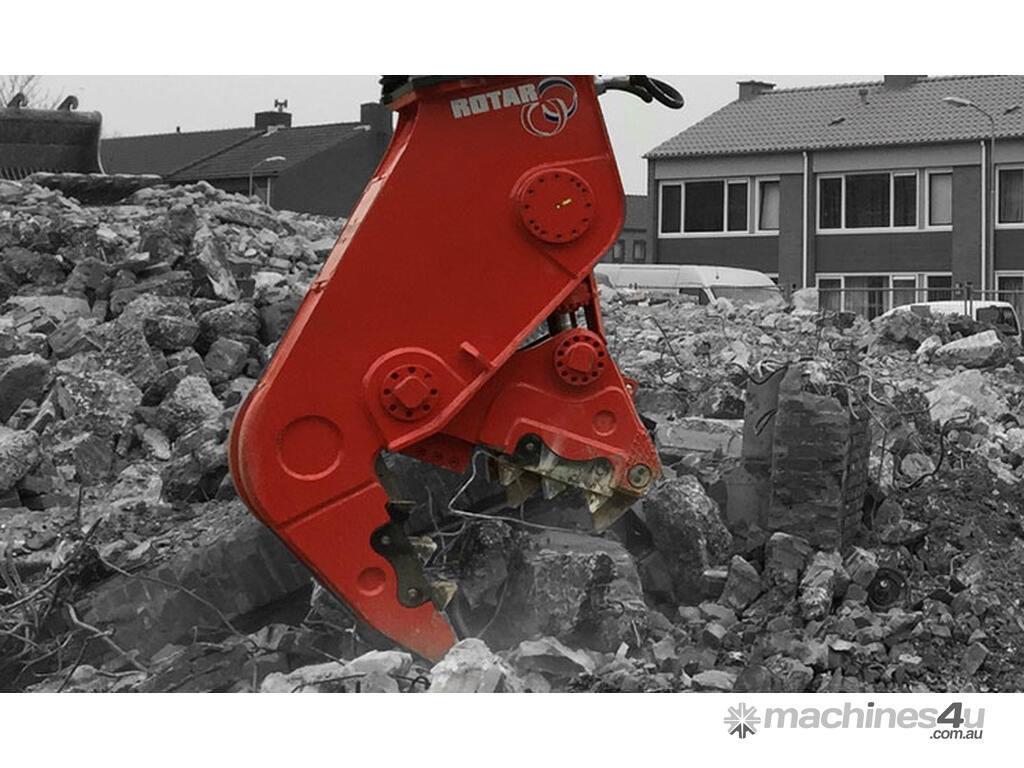

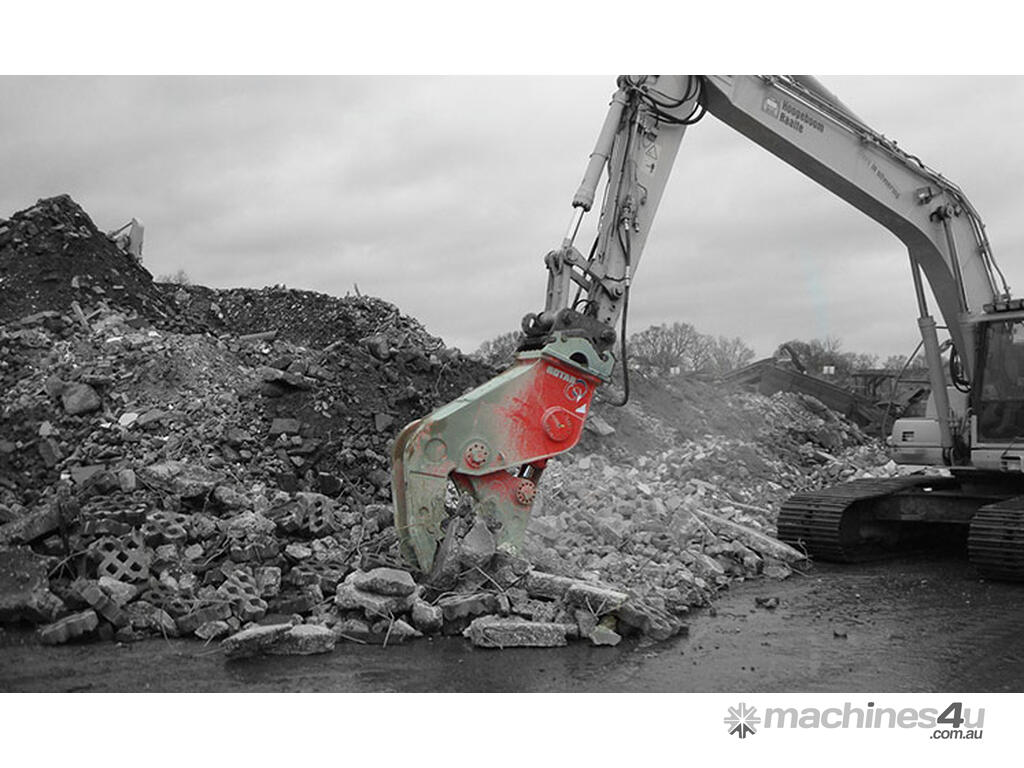

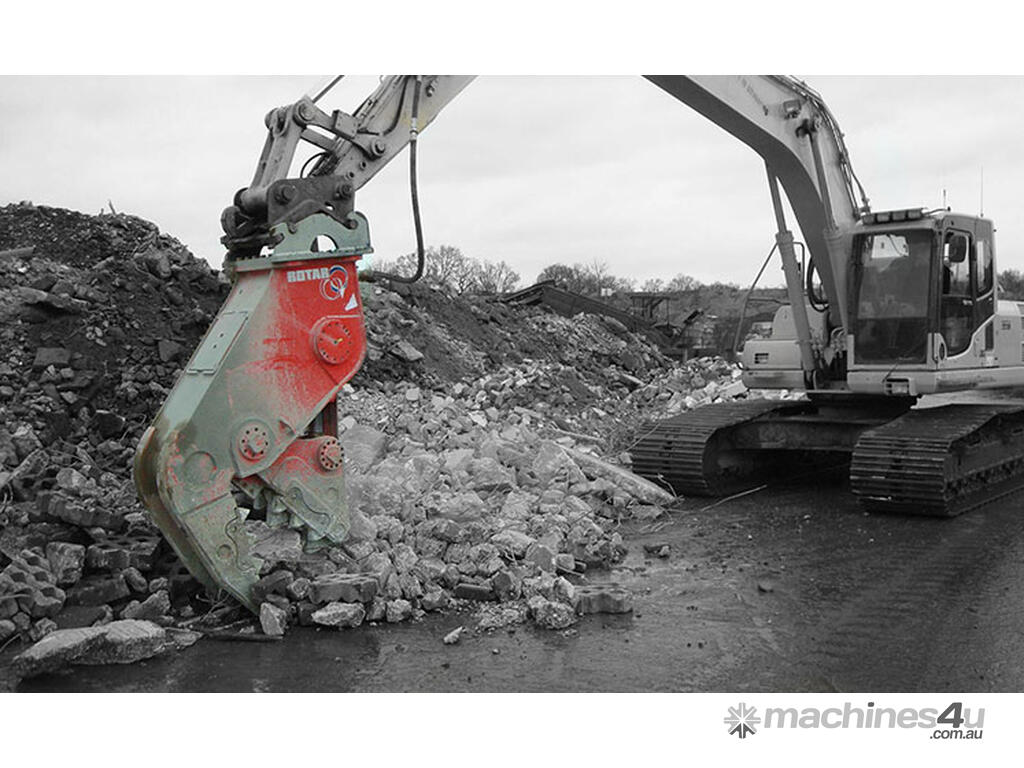

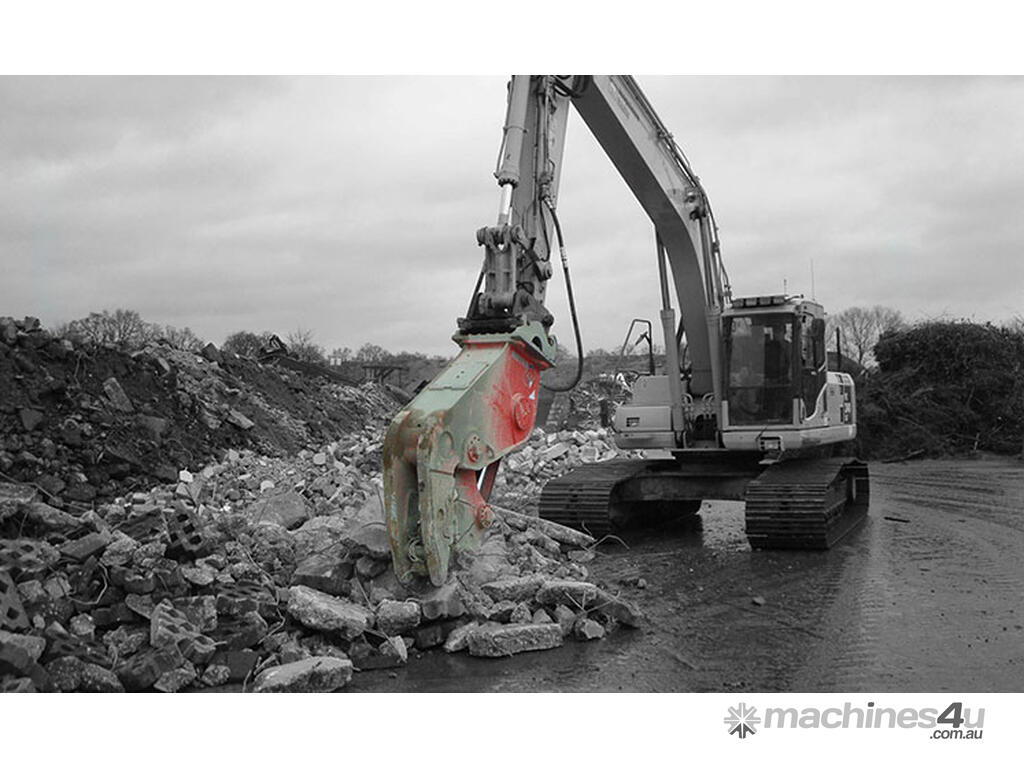

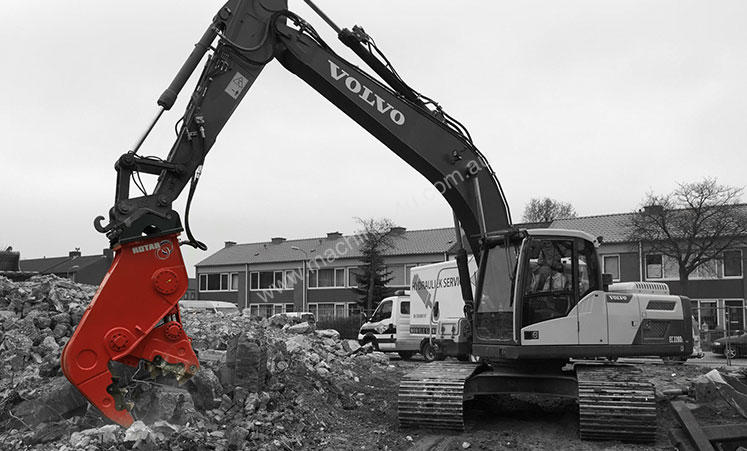

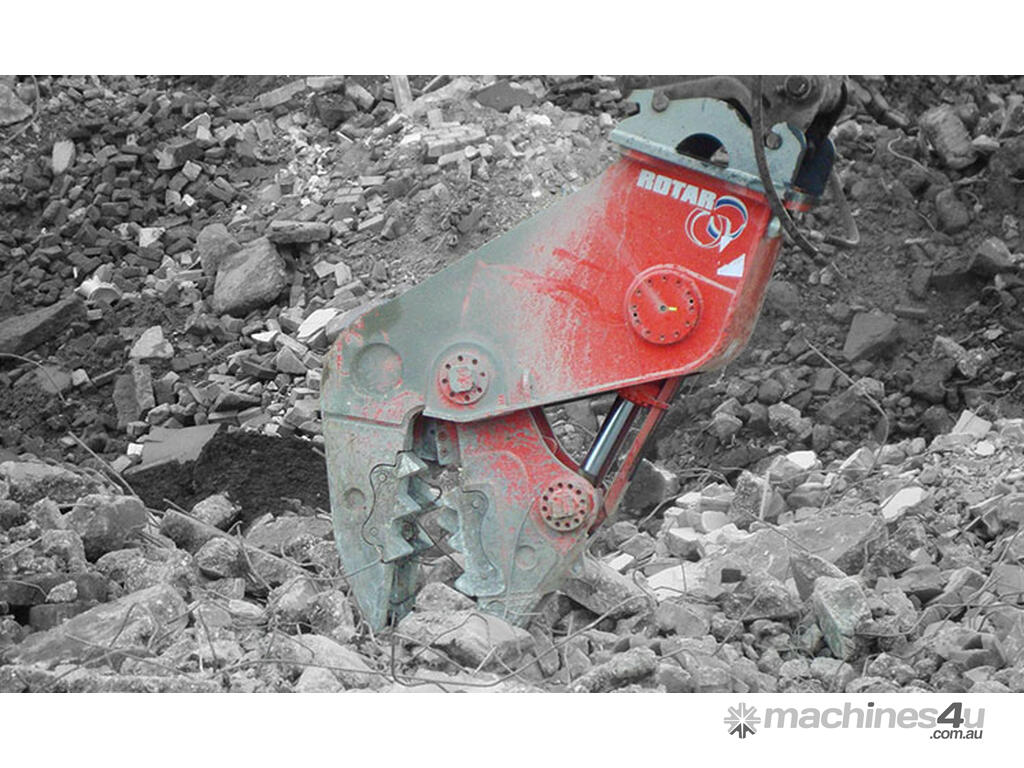

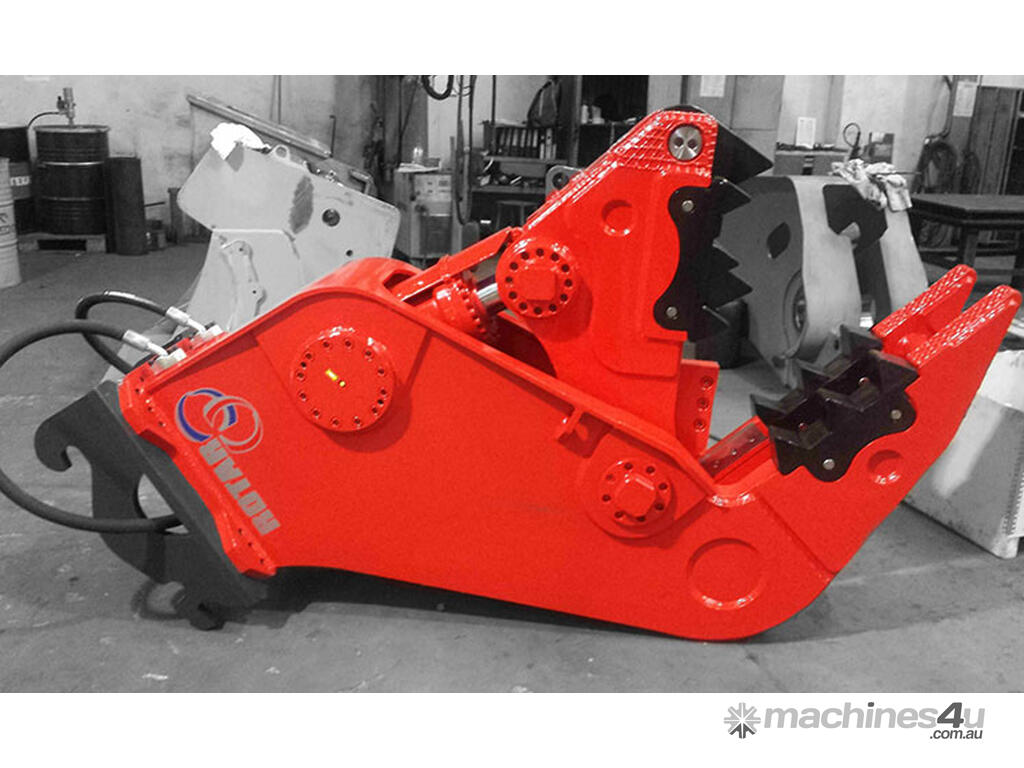

Rotar Static Pulverizer

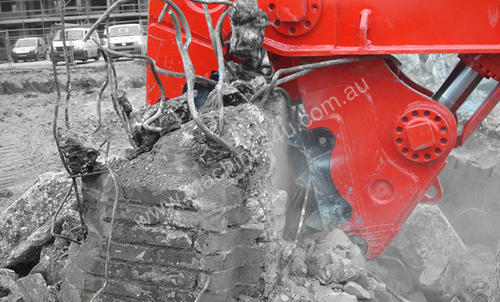

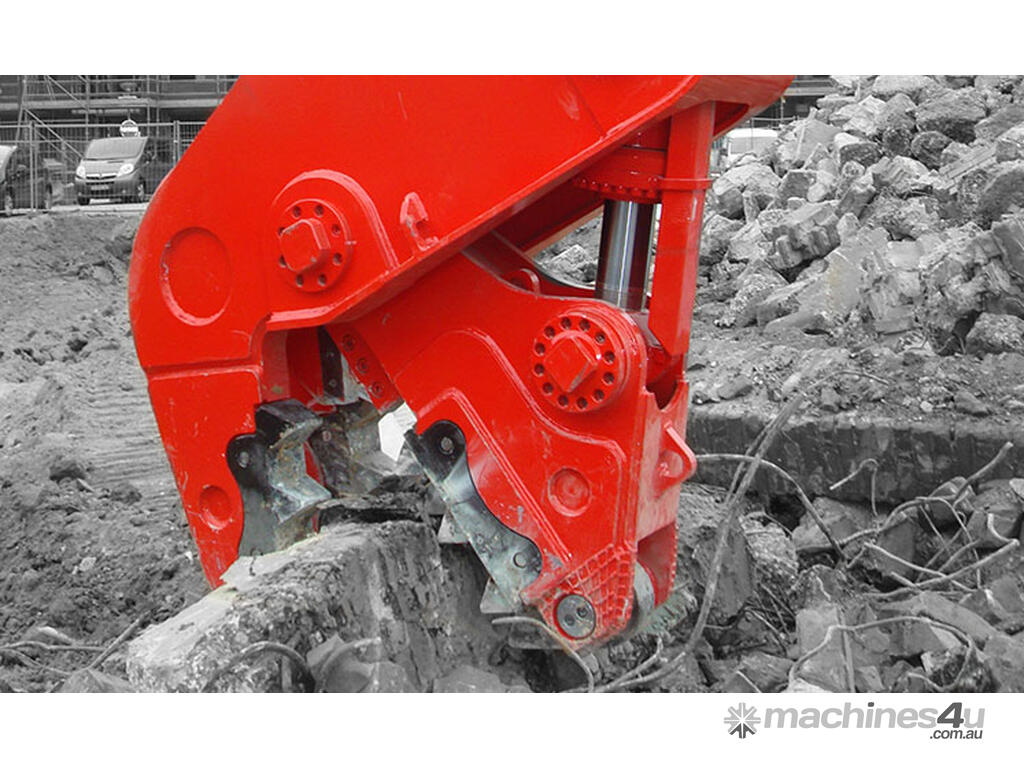

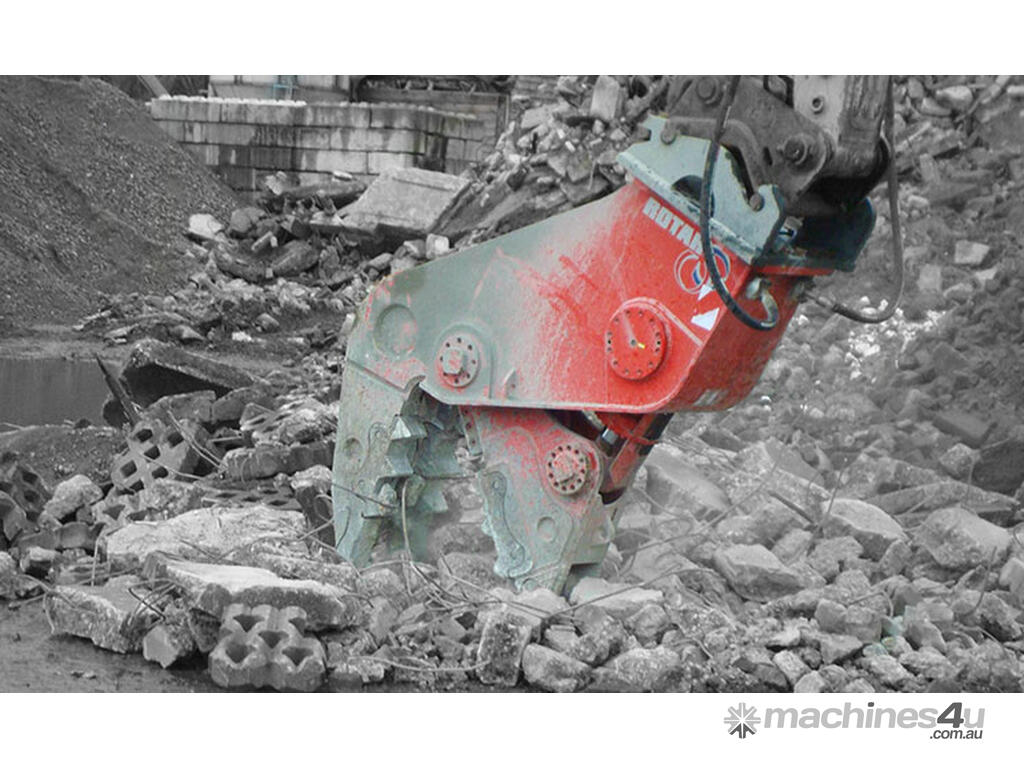

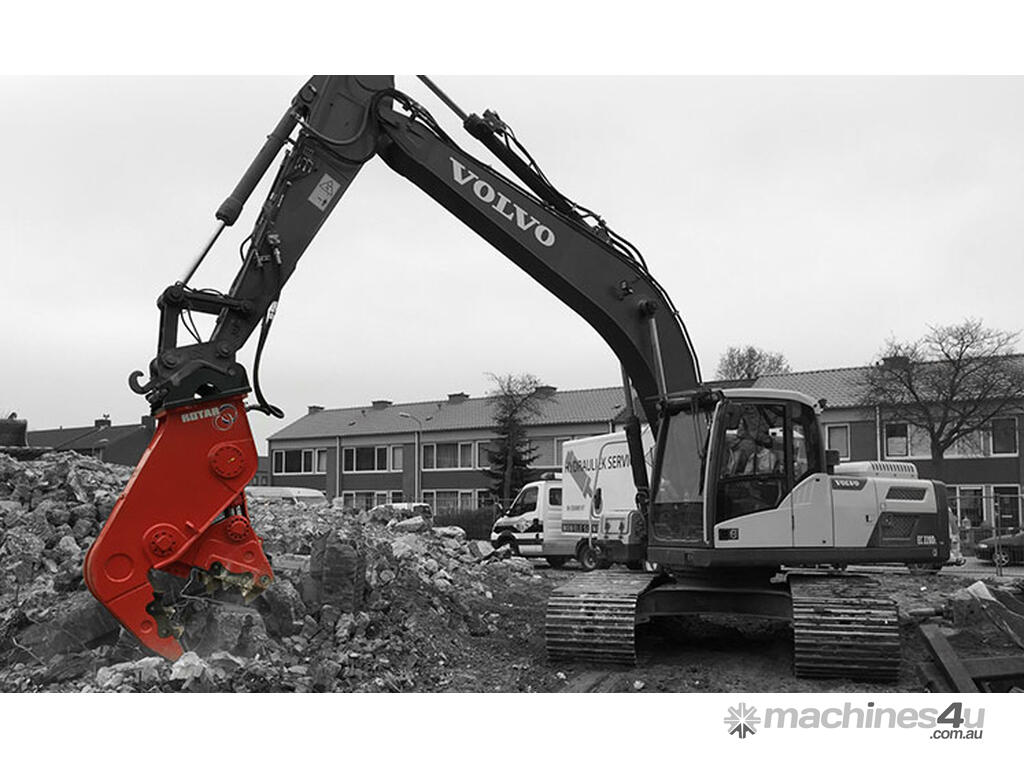

Incredible cutting power combined with easy to replace wear parts make this Rotar Static Pulverizer the perfect concrete pulverizer for secondary demolitions. The RSP-series can easily crush the concrete and remove the reinforcement.

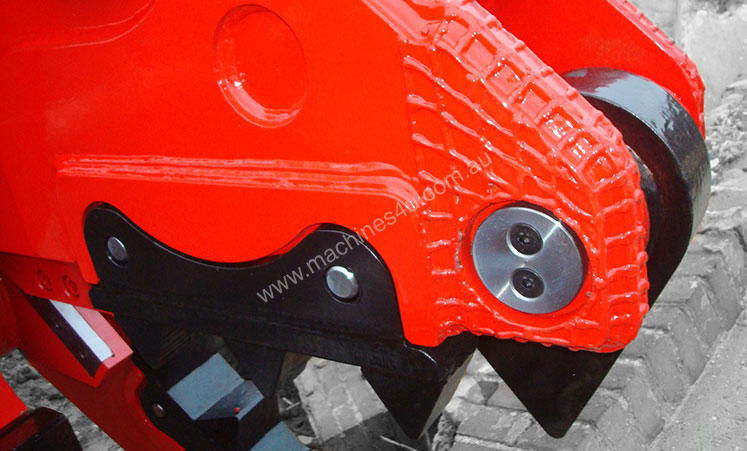

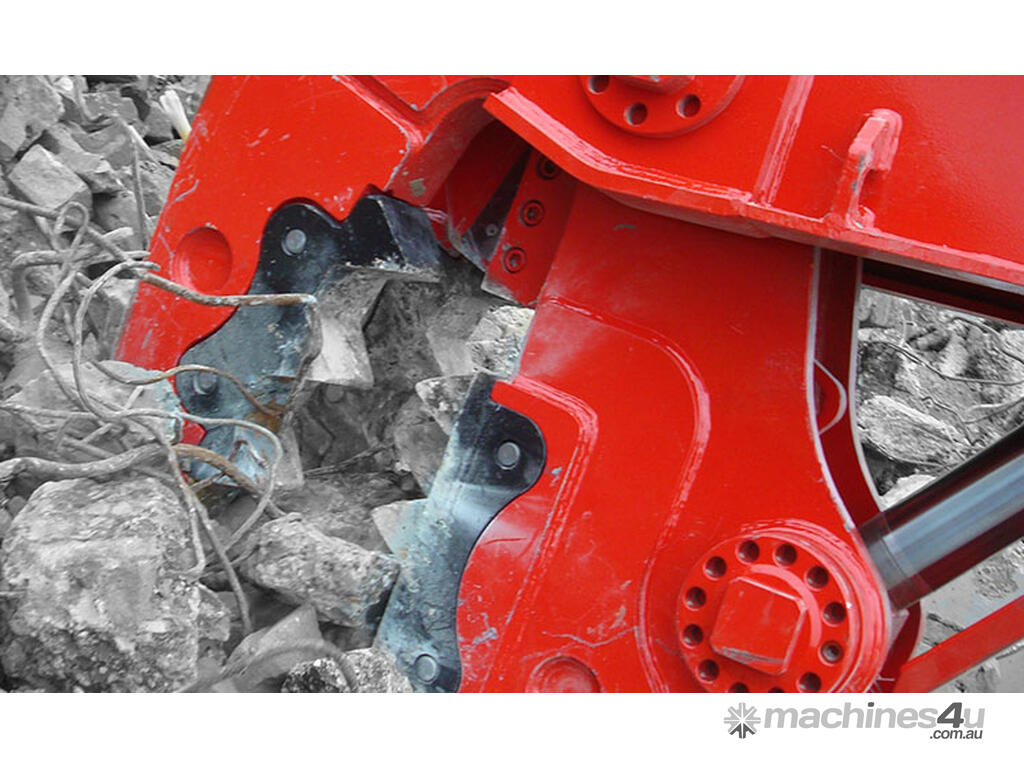

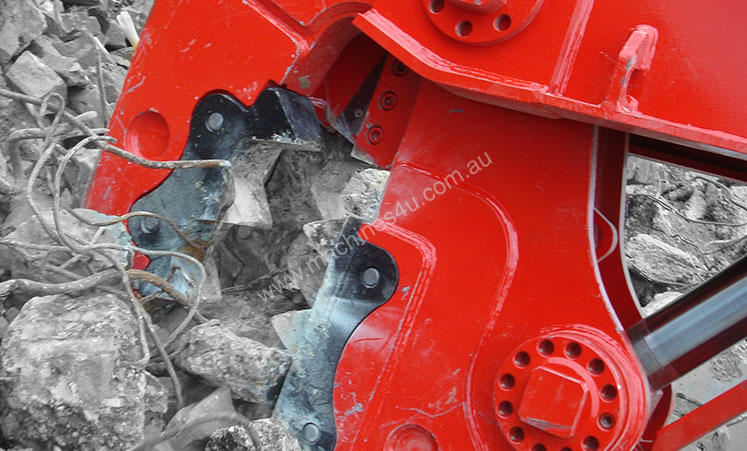

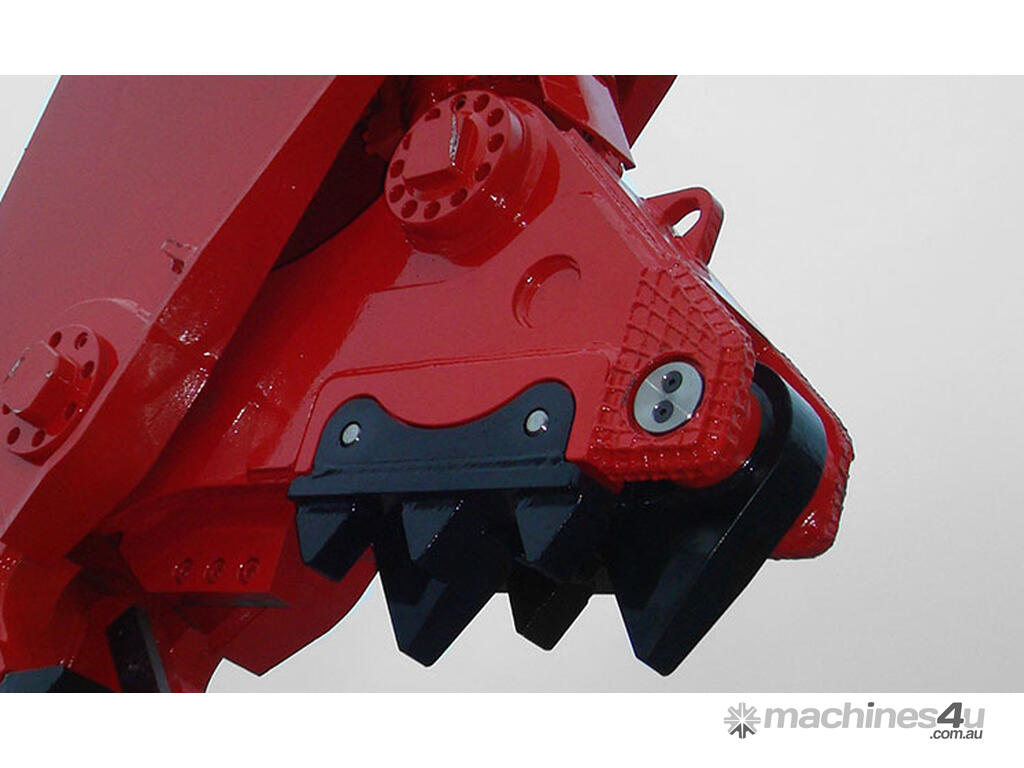

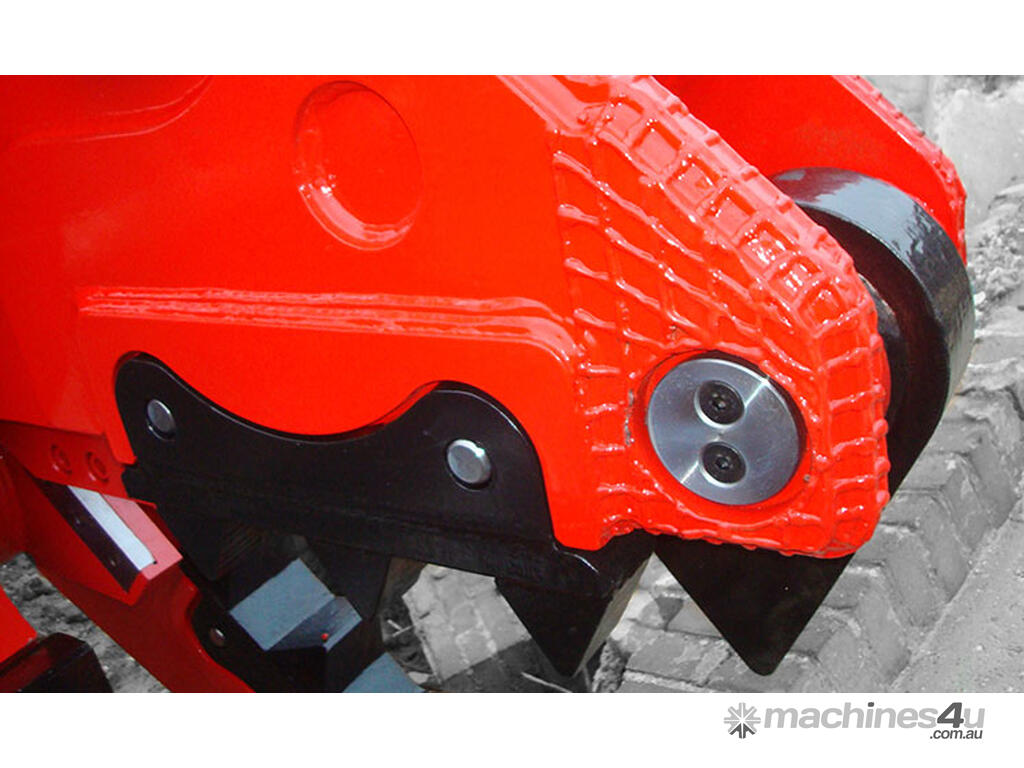

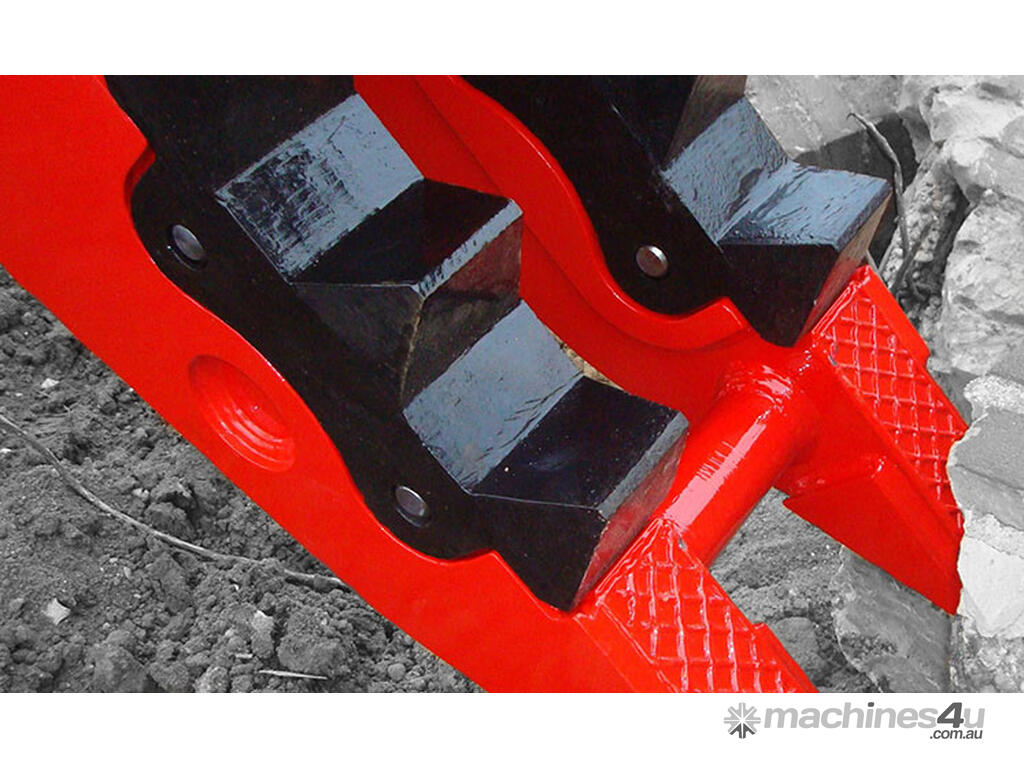

Replaceable teeth
The Rotar Static Pulverizer has been fitted with replaceable teeth. It’s impressive to watch these rows of teeth cutting through the extremely strong concrete. The design of the jaws guarantees powerful penetration of the material.
Specially developed speed valve
The speed valve that was specially developed by Rotar makes sure that the jaws close quickly and that they switch from speed to power mode as soon as the job requires cutting power. The pulverizer’s body has been assembled from high-grade and wear-resistant materials, making it extremely strong.
Cross-mounted hydraulic cylinder
The cross-mounted hydraulic cylinder ensures optimal efficiency of the cutting power and a compact design with a favourable centre of gravity. The large diameter of hoses, bores and pipes reduce the return pressure in the hydraulic system and contribute to this pulverizer’s extraordinary performance.
Specifications: 32 S
INFORMATION
Weight (kg) *: 4440
Cycle open/close (s.): *
Closing force at tip of jaw 1 (T): 168
Closing force at tip of jaw 2 (T): 319
Machine class (t): 25 - 38
Rotar Hole-pattern: 140 - 150
DIMENSIONS
Dimension A (mm): 3635
Dimension B (mm): 760
Dimension C (mm): 625
Dimension D (mm): *
Dimension E (mm): *
Dimension F (mm): *
Dimension G (mm): *
HYDRAULIC
Max. operating pressure motor (bar): 350
Oil volume cylinder (L/min.): 250
Connector Size: SAE 1 1/4"
* Dimensions under construction
** Weight exclusive adapterplate with bracket
ABOUT PREMIER ROCK MACHINERY
Premier Rock Machinery selects only the very best manufacturing brands from companies that design and build world-class excavator attachments to the most exacting standards using high quality materials suitable for the rugged Australian environment.
Premier Rock Machinery partner with the following world class manufacturers: MOVAX, MONTABERT, REMU, ROTAR and LEHNHOFF.
With a state-of-the-art workshop facilities and a fleet of dedicated service vehicles, Premier Rock Machinery is able to assist customers on or off their site whether they are engaged in the smallest of earthwork projects or the most demanding construction and civil engineering challenges.
Contact us today for more information this product.
