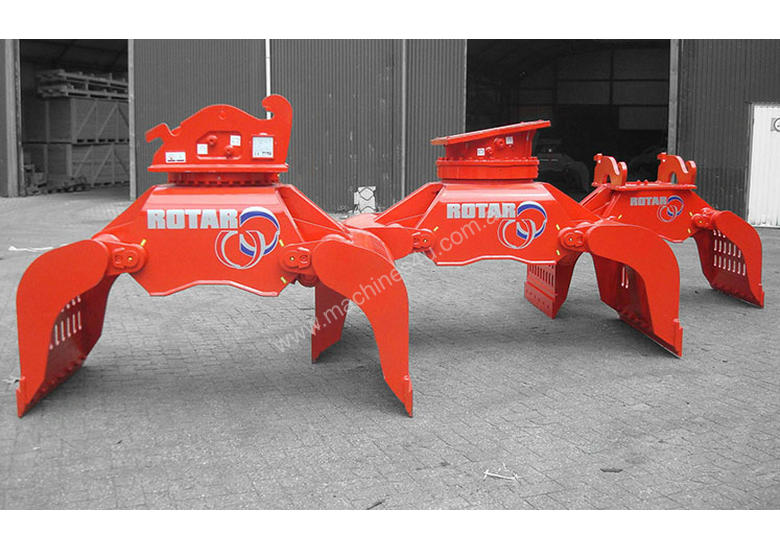

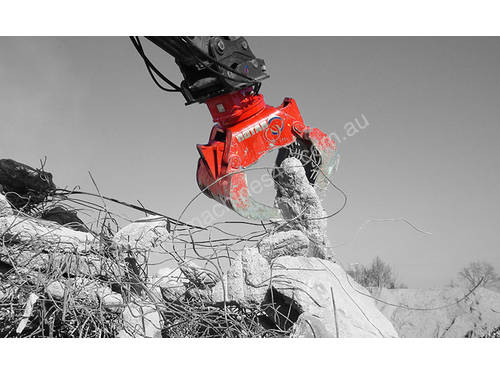

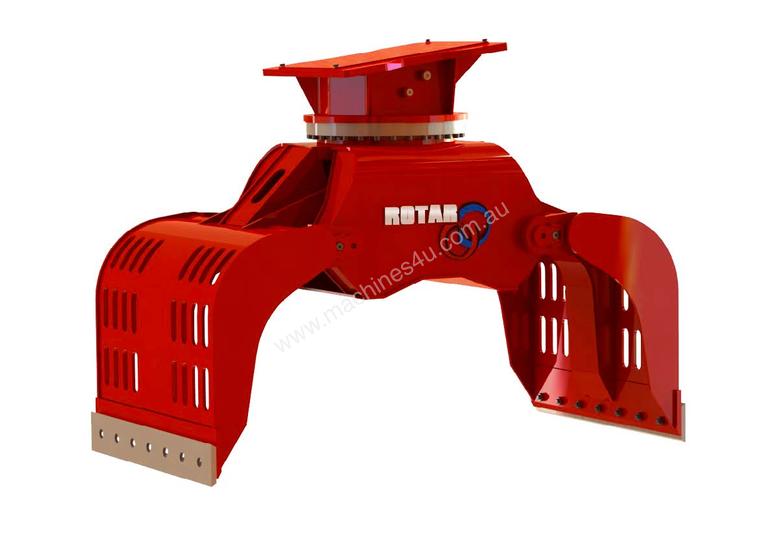

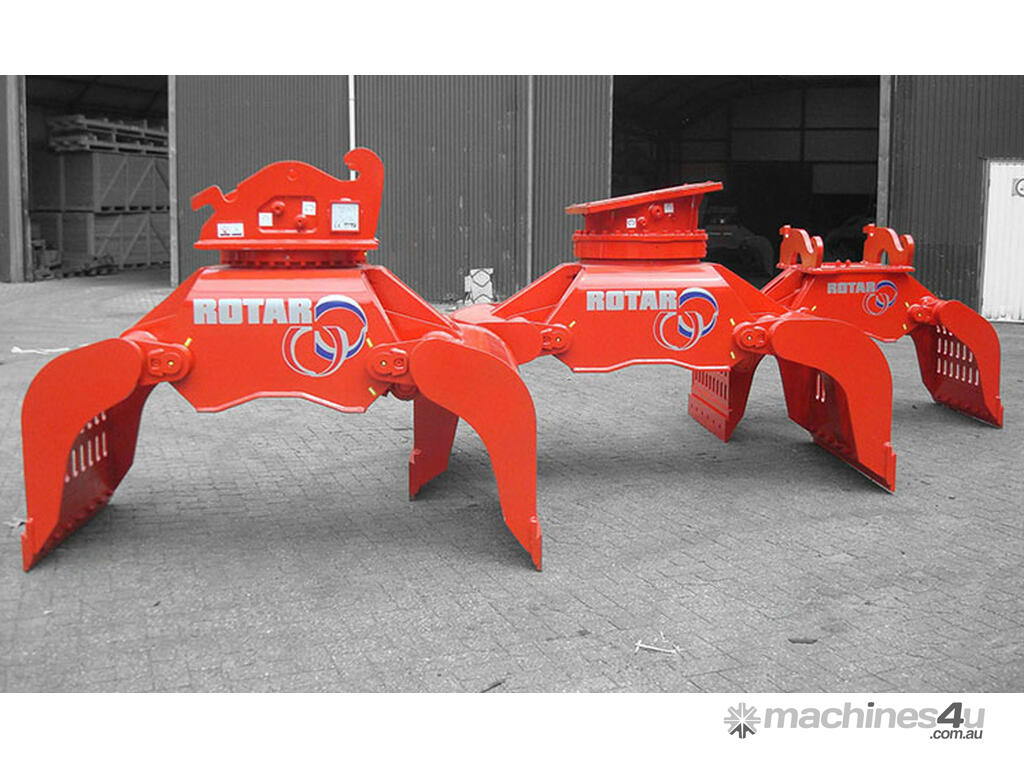

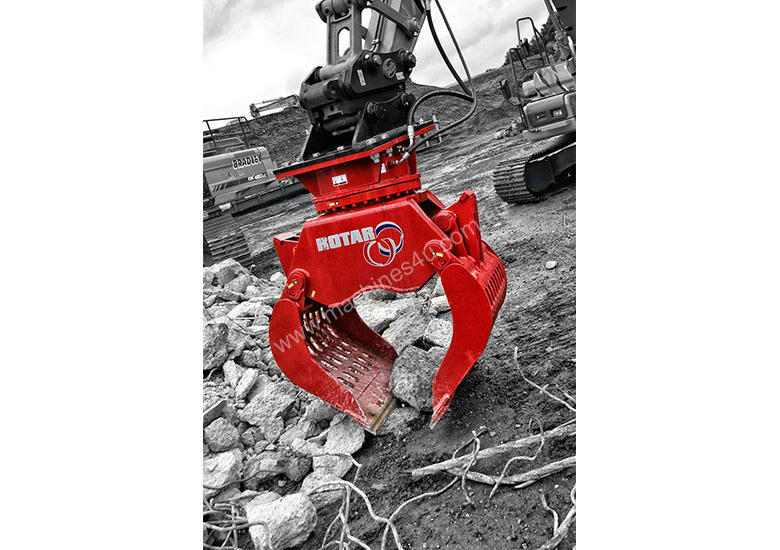

ROTAR 5-N SORTING / DEMOLITION GRAB (2-5T)

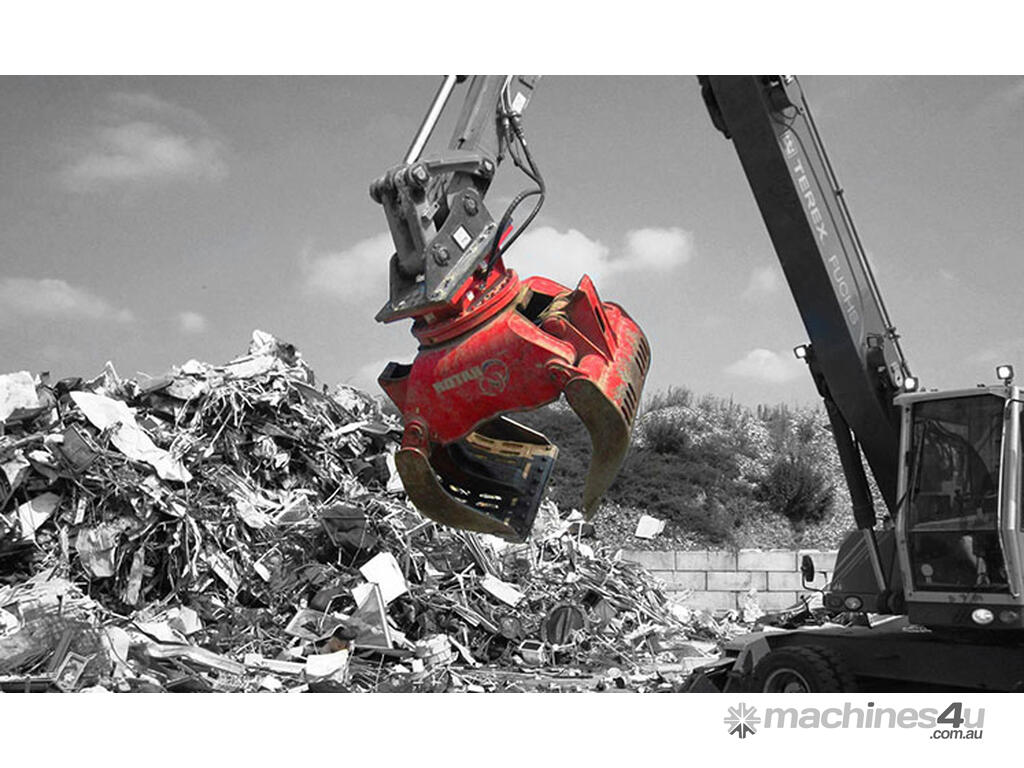

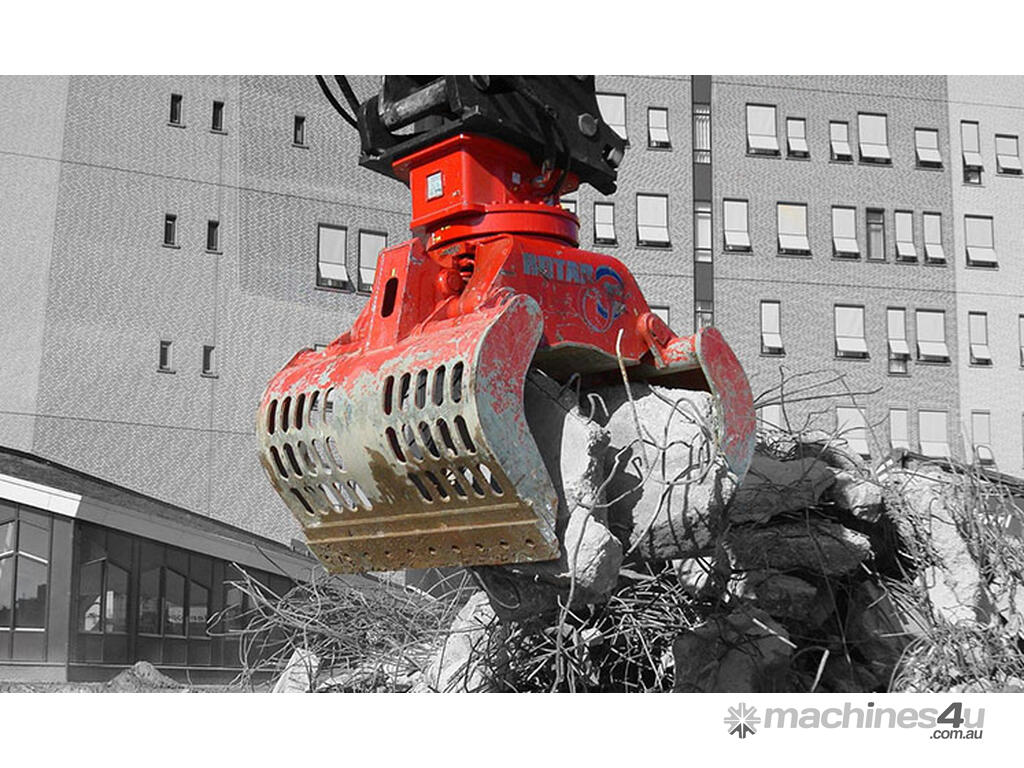

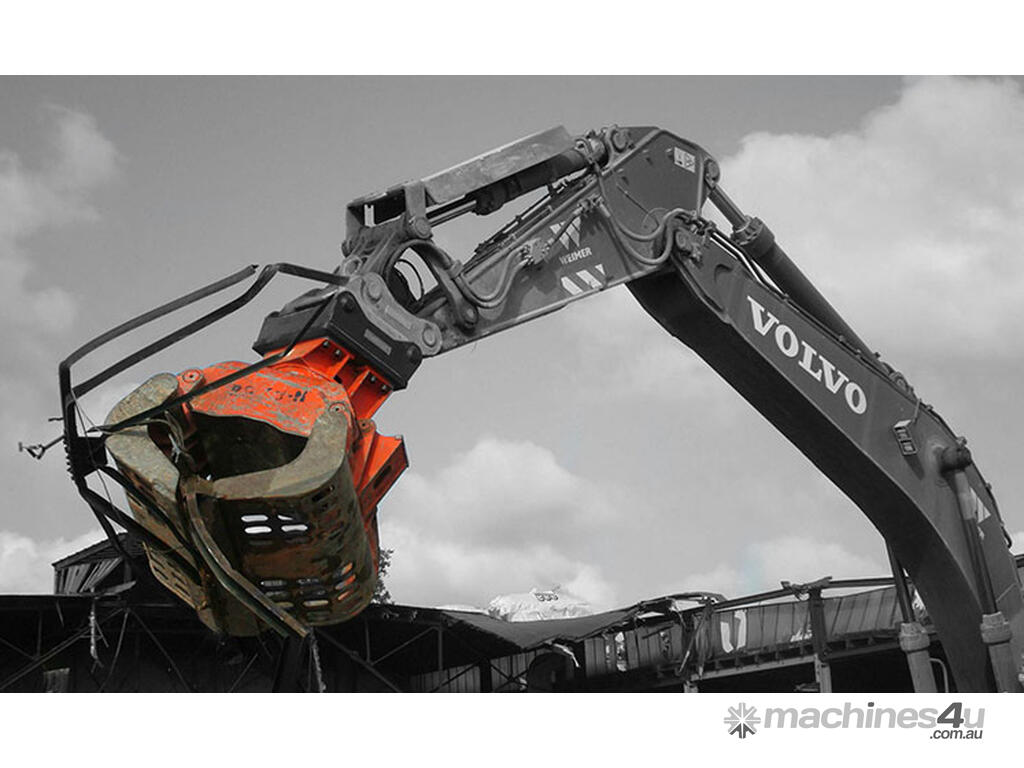

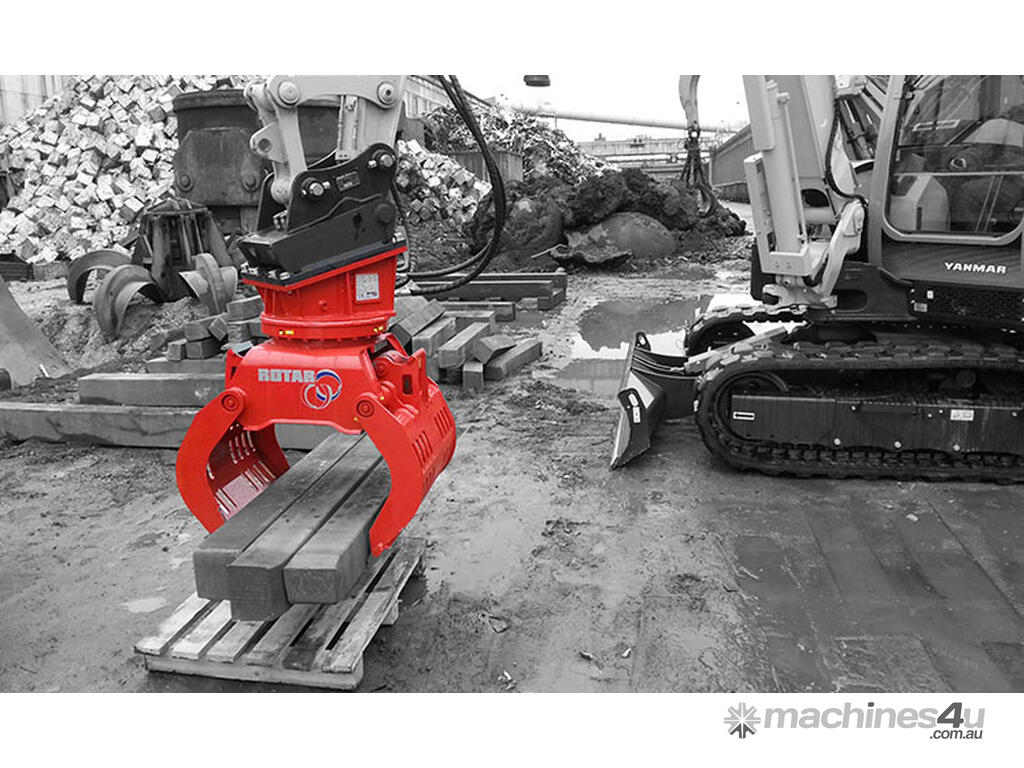

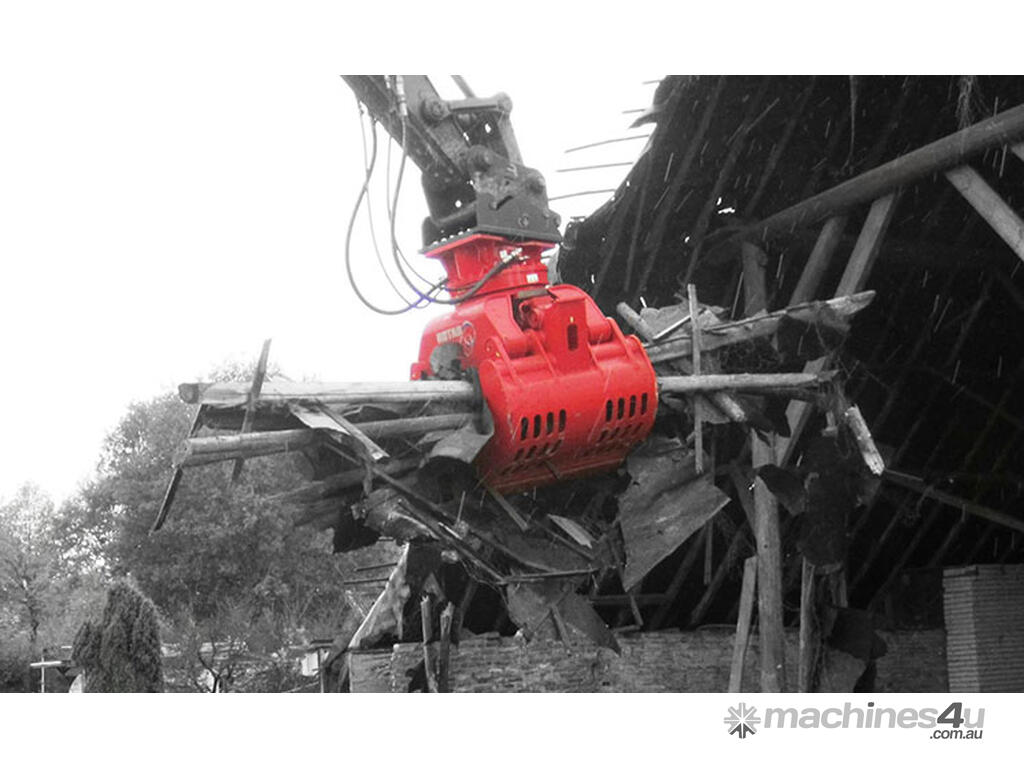

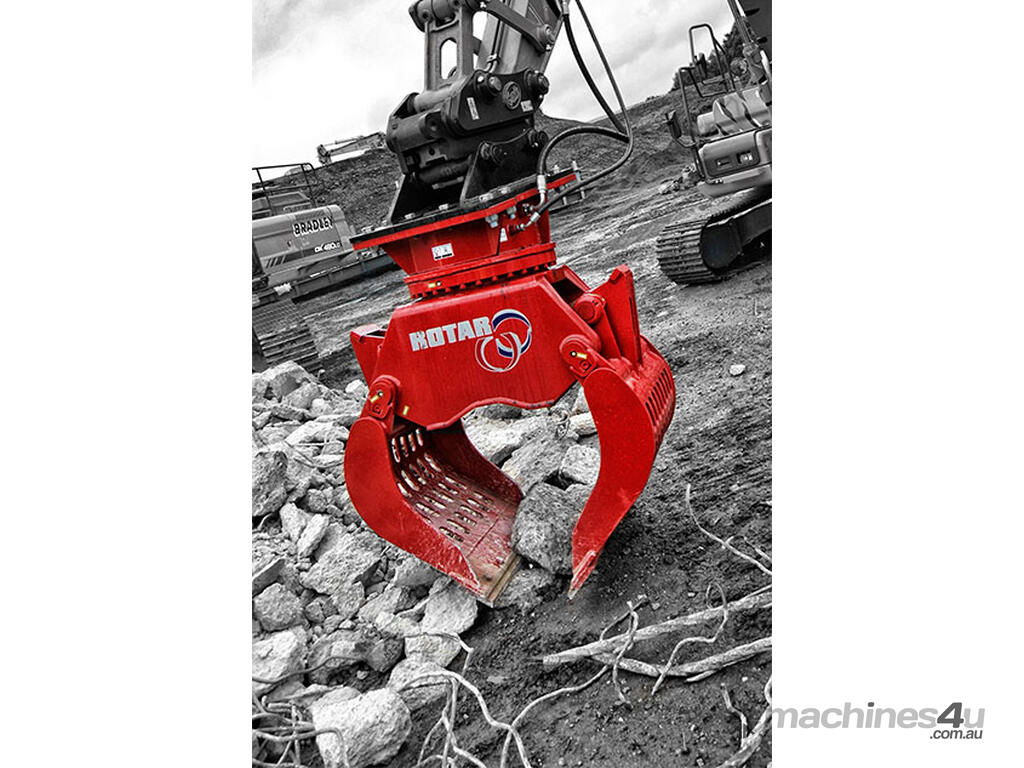

Rotar Sorting / Demolition Grab

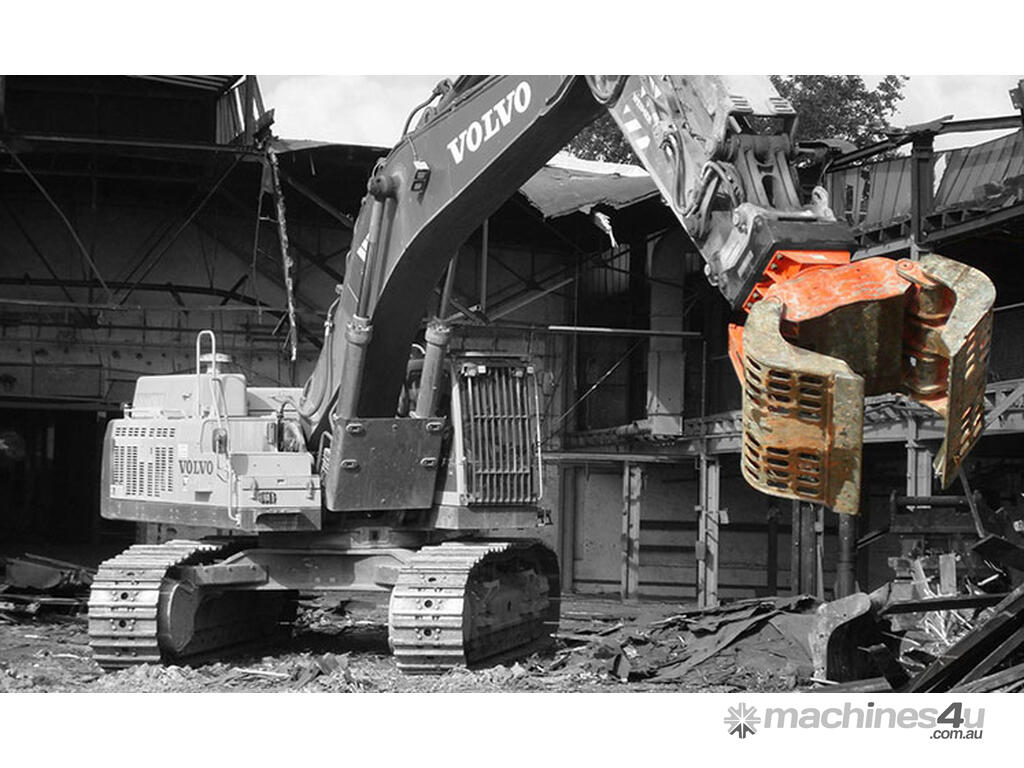

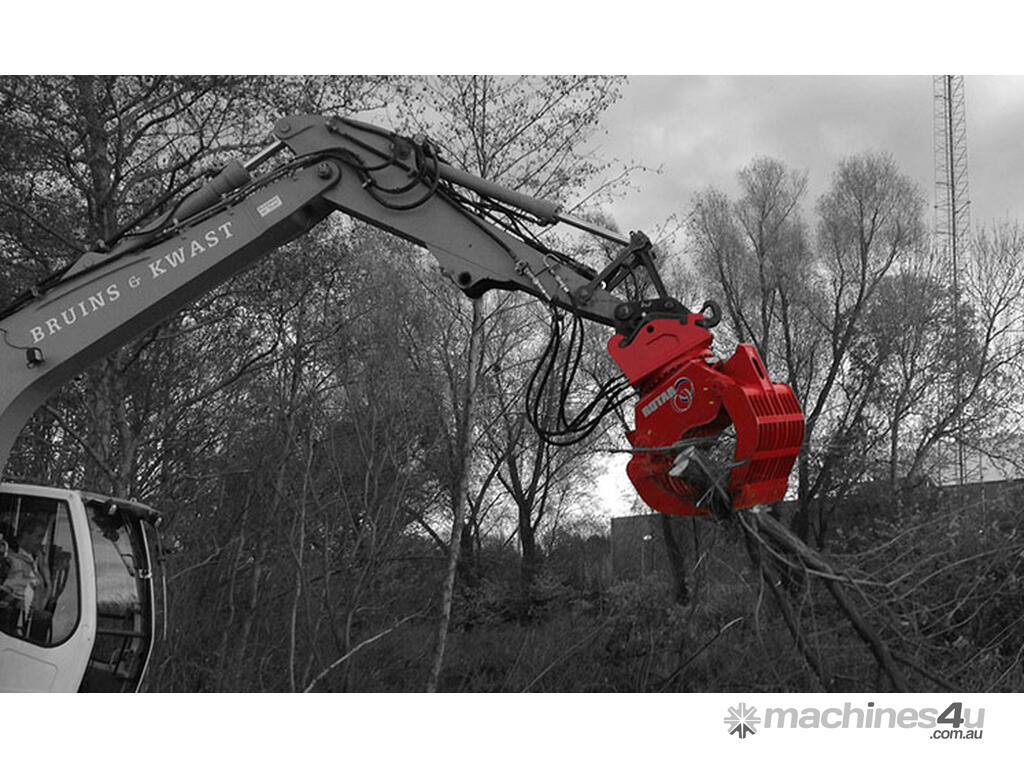

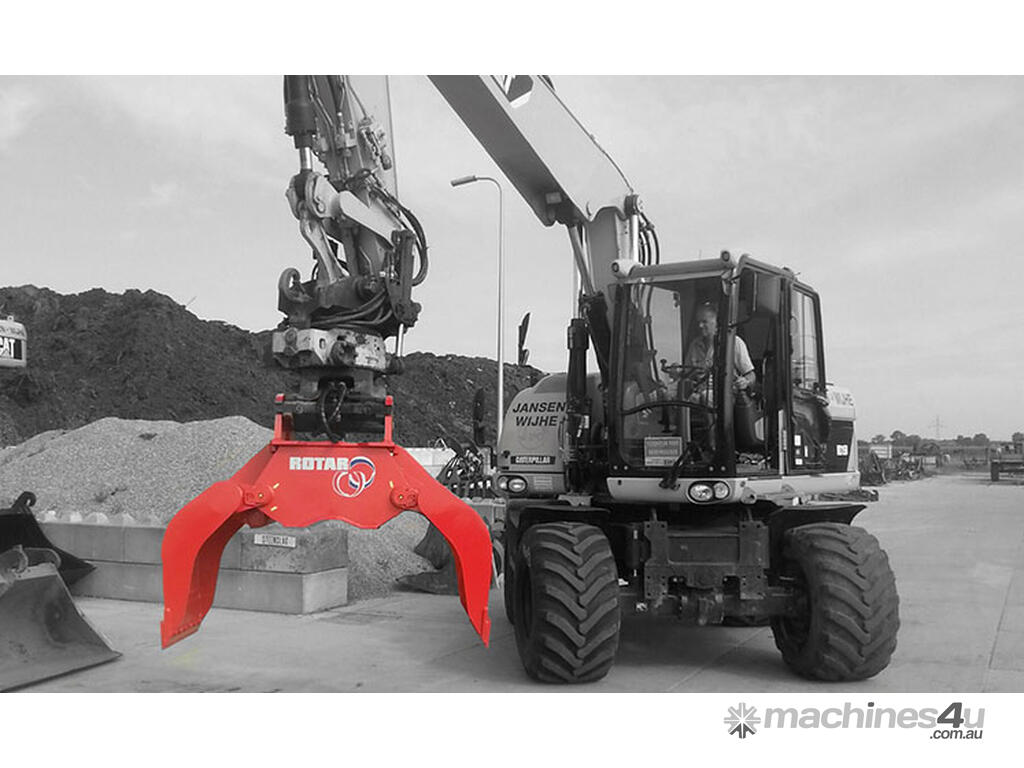

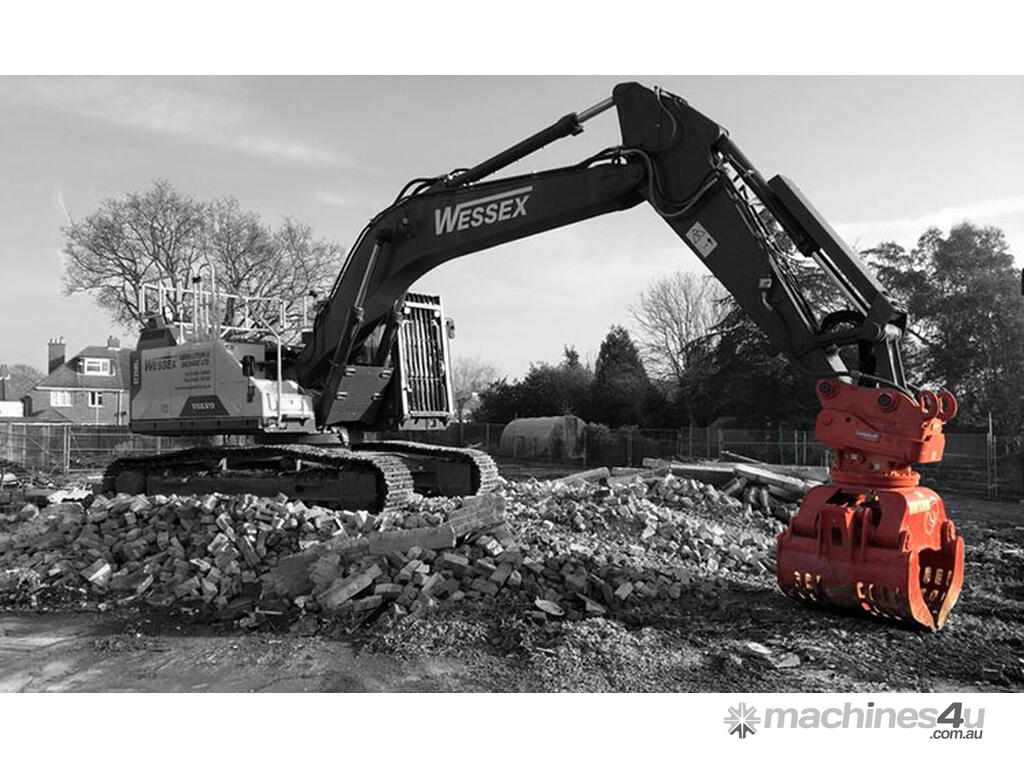

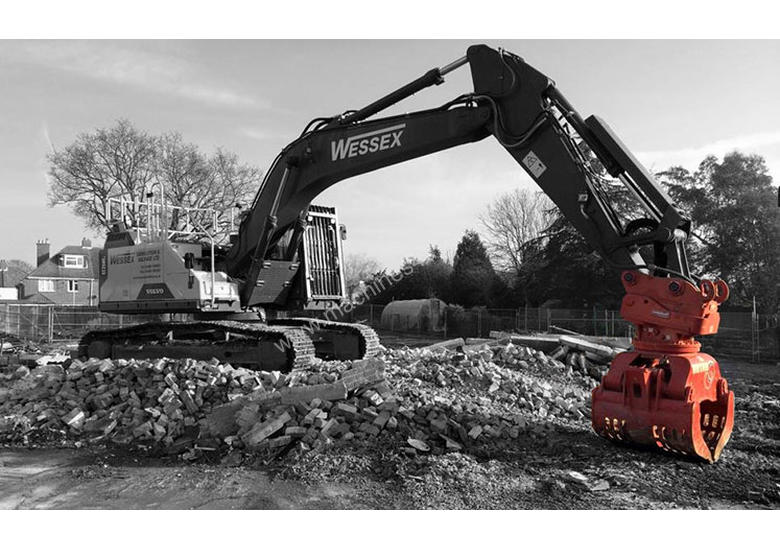

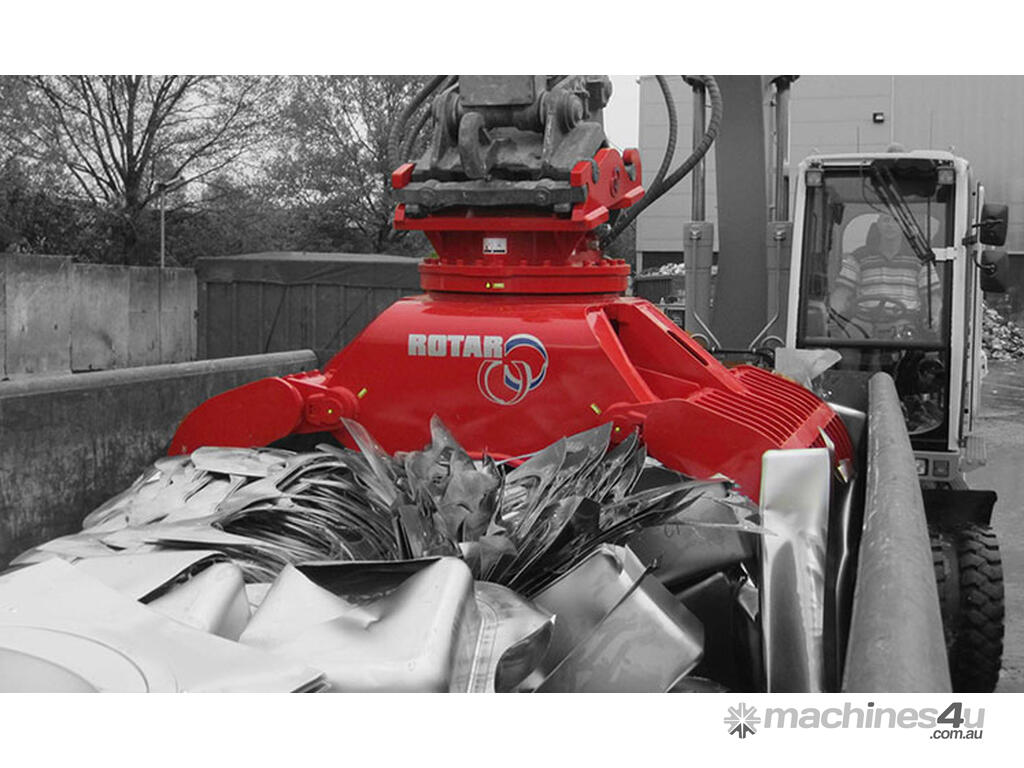

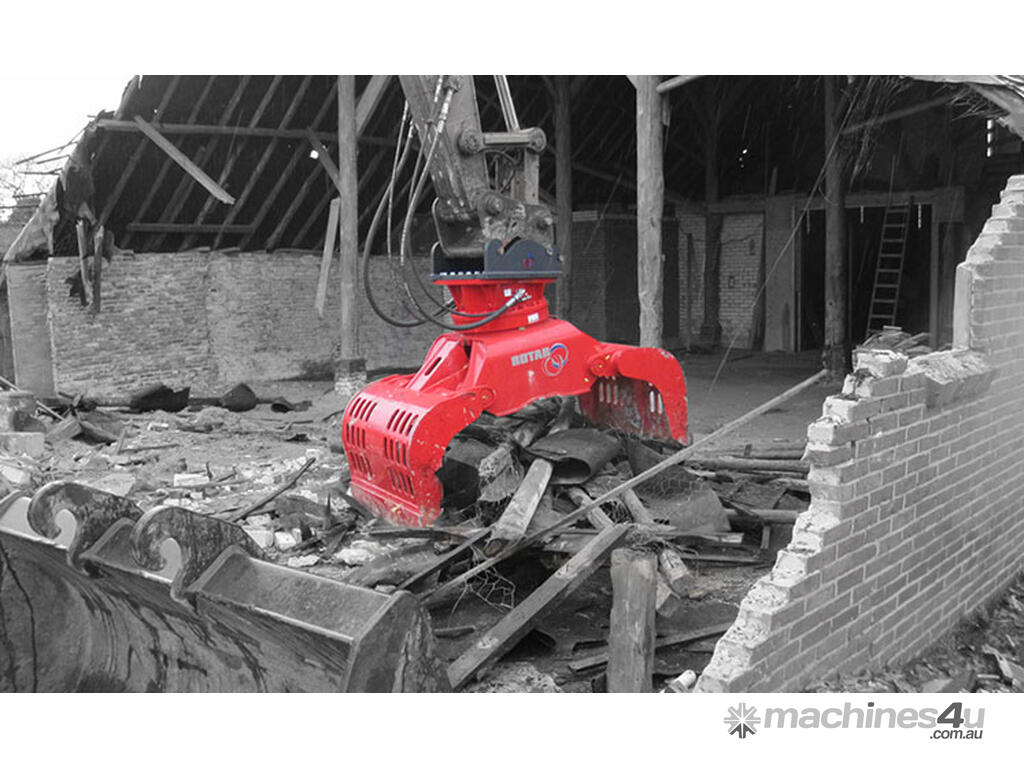

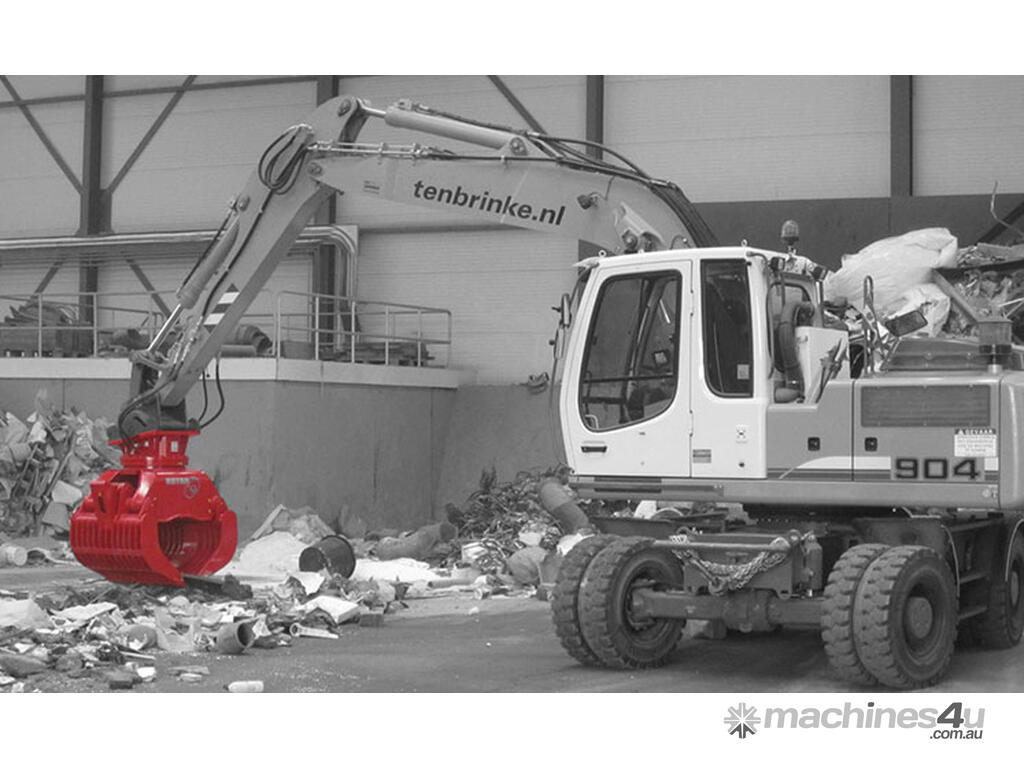

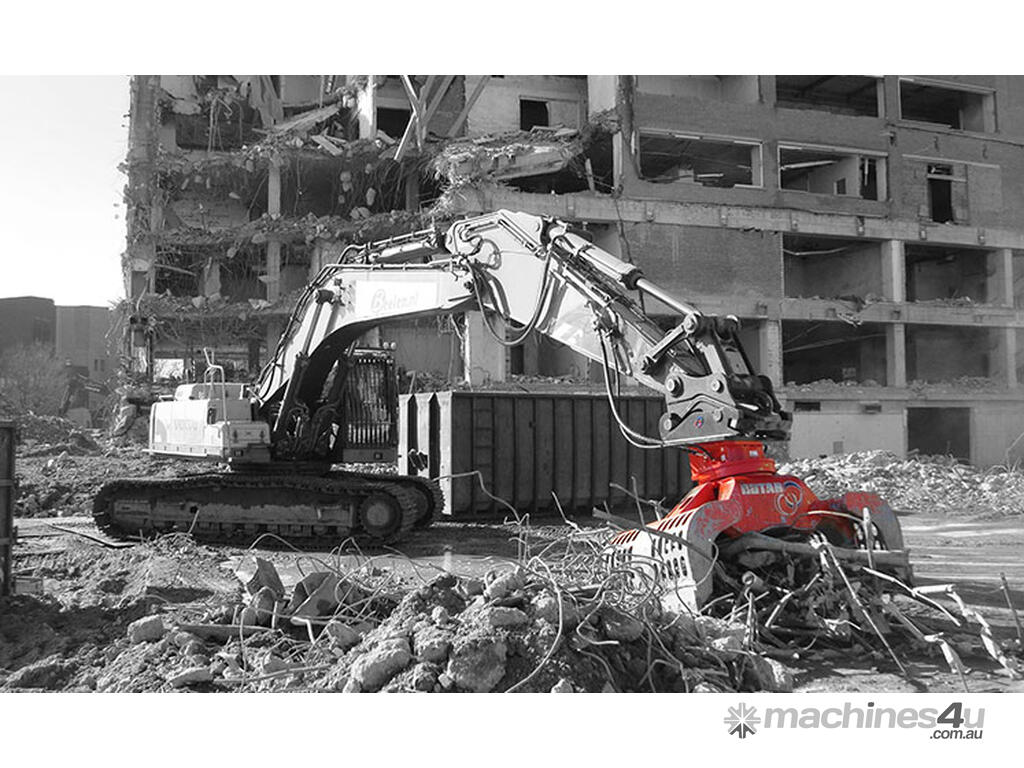

Reliable, service-friendly and extremely strong. The RG series is the perfect grab for industrial demolitions and intensive sorting and recycling activities.

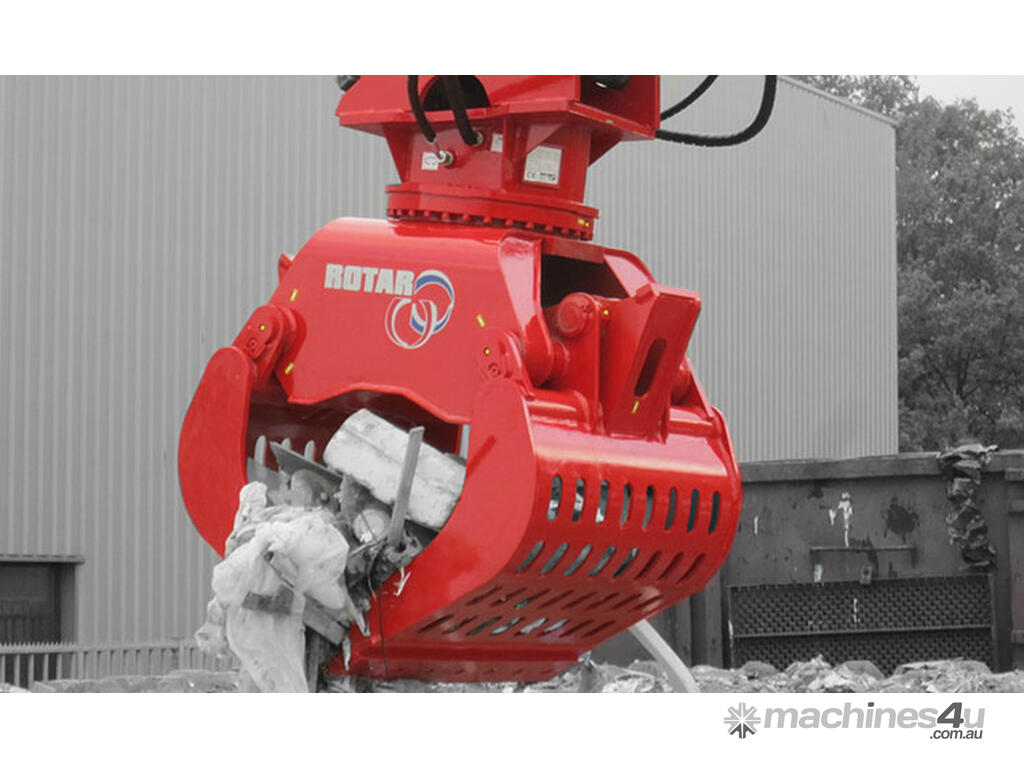

Headpiece and slewing ring
The Rotar Sorting / Demolition Grab is fitted with a strong rotating headpiece and an over-dimensioned, double-rowed slewing ring. The hydraulic engines in the headpiece create a high torque, allowing the sorting/ demolition grab to be positioned in any desired way.

All fitted with a load holding
The hydraulic cylinders of the Rotar RG series have all been fitted with a load holding valve which secures the load if the oil pressure is cut off. The cylinder furthermore has an extra-long stroke, meaning that the sorting / demolition grab’s teeth always perfectly align with each other, even if the cutting edges are worn.

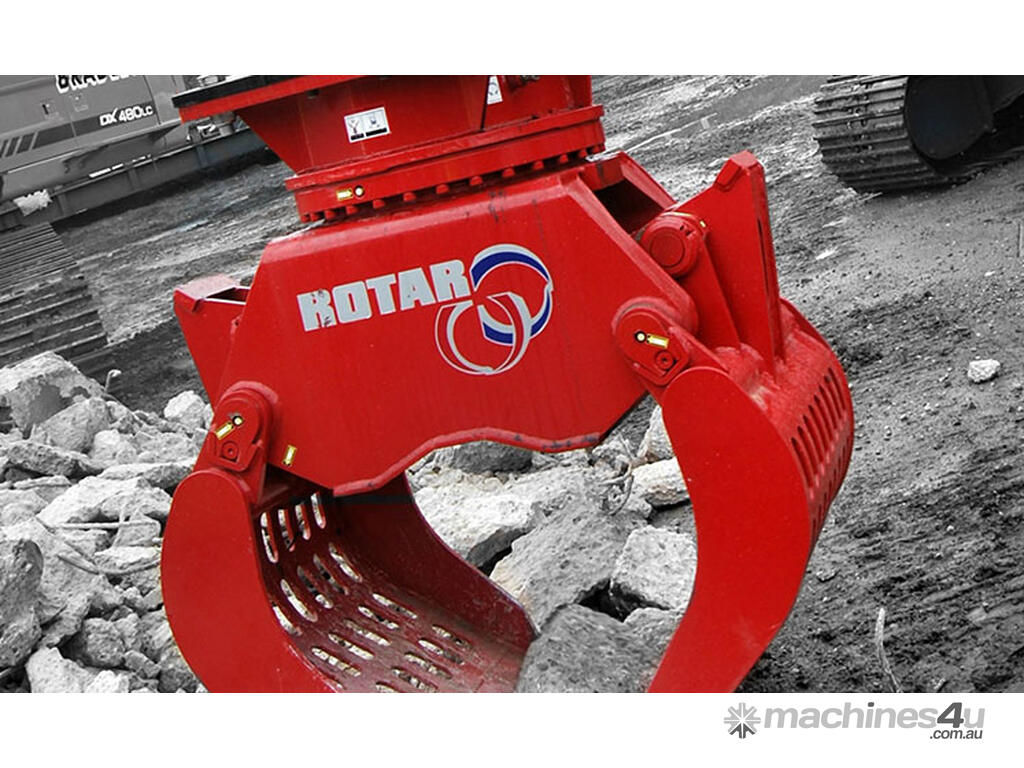

Wear-resistant teeth with wide bushes
The RG series’ wear-resistant teeth have been fashioned from HARDOX steel and fitted with easily replaceable cutting edges. The teeth have been mounted in the extra wide bearing bushes of the double-walled grab trunnion with hardened, over-dimensioned pins. The extra wide bearing bushes decrease the overall tension in the construction, thereby increasing the sorting / demolition grab’s longevity.

Specifications: 5-N
INFORMATION
Machine class (t): 2-5
Weight (kg): 210
Volume (L): 100
Closing force (kN)*: 12
DIMENSIONS
Dimension A (mm): 1137
Dimension B (mm): 500
Dimension C (mm): 703
ATTACHMENT
Rotar Hole-pattern: 100
HYDRAULIC
Max. operating pressure clamshell (bar): 320
Oil volume clamshell (L/min.): 35
Max. operating pressure hydromotor (bar): 120
Oil volume hydromotor (L/min.): 20
* Closing force by 320 Bar
