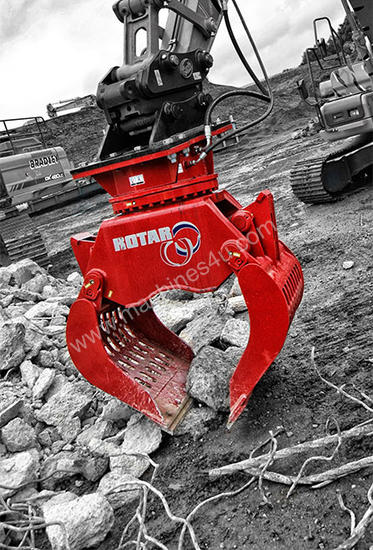

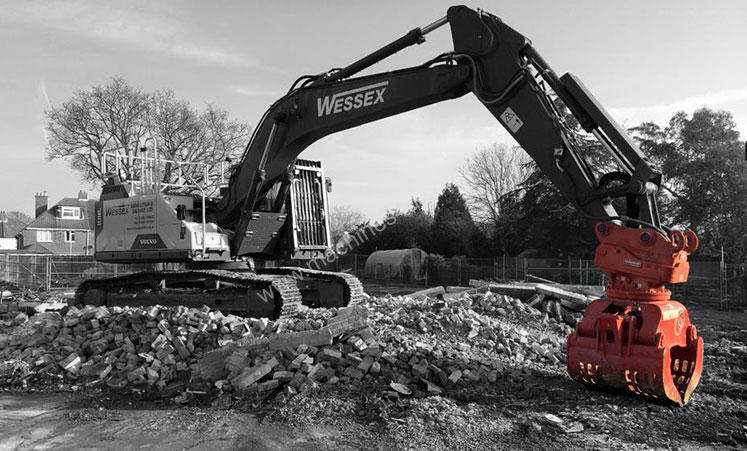

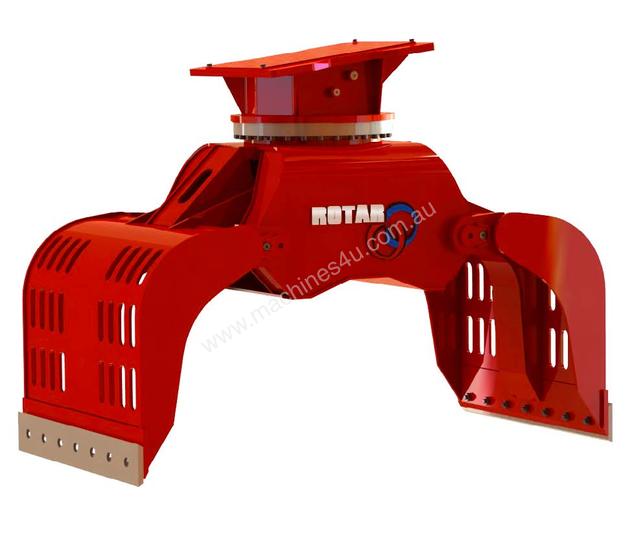

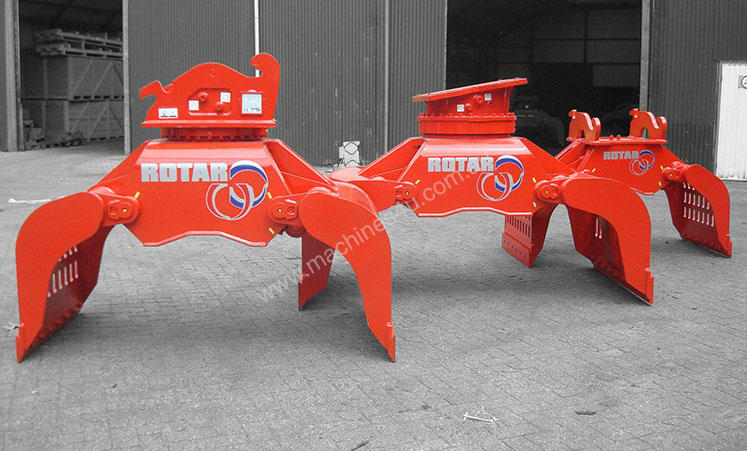

ROTAR 60-N SORTING / DEMOLITION GRAB (45-60T)

Rotar Sorting / Demolition Grab
Reliable, service-friendly and extremely strong. The RG series is the perfect grab for industrial demolitions and intensive sorting and recycling activities.

Headpiece and slewing ring
The Rotar Sorting / Demolition Grab is fitted with a strong rotating headpiece and an over-dimensioned, double-rowed slewing ring. The hydraulic engines in the headpiece create a high torque, allowing the sorting/ demolition grab to be positioned in any desired way.

All fitted with a load holding
The hydraulic cylinders of the Rotar RG series have all been fitted with a load holding valve which secures the load if the oil pressure is cut off. The cylinder furthermore has an extra-long stroke, meaning that the sorting / demolition grab’s teeth always perfectly align with each other, even if the cutting edges are worn.

Wear-resistant teeth with wide bushes
The RG series’ wear-resistant teeth have been fashioned from HARDOX steel and fitted with easily replaceable cutting edges. The teeth have been mounted in the extra wide bearing bushes of the double-walled grab trunnion with hardened, over-dimensioned pins. The extra wide bearing bushes decrease the overall tension in the construction, thereby increasing the sorting / demolition grab’s longevity.

Specifications: 60-N
INFORMATION
Machine class (t): 45-60
Weight (kg): 3860
Volume (L): 1500
Closing force (kN)*: 115
DIMENSIONS
Dimension A (mm): 3050
Dimension B (mm): 1500
Dimension C (mm): 1900
ATTACHMENT
Rotar Hole-pattern: 200
HYDRAULIC
Max. operating pressure clamshell (bar): 350
Oil volume clamshell (L/min.): 200
Max. operating pressure hydromotor (bar): 170
Oil volume hydromotor (L/min.): 40
* Closing force by 320 Bar
