ROTAR 600 S SEGREGATOR EXCAVATOR BUCKET (13-18T)

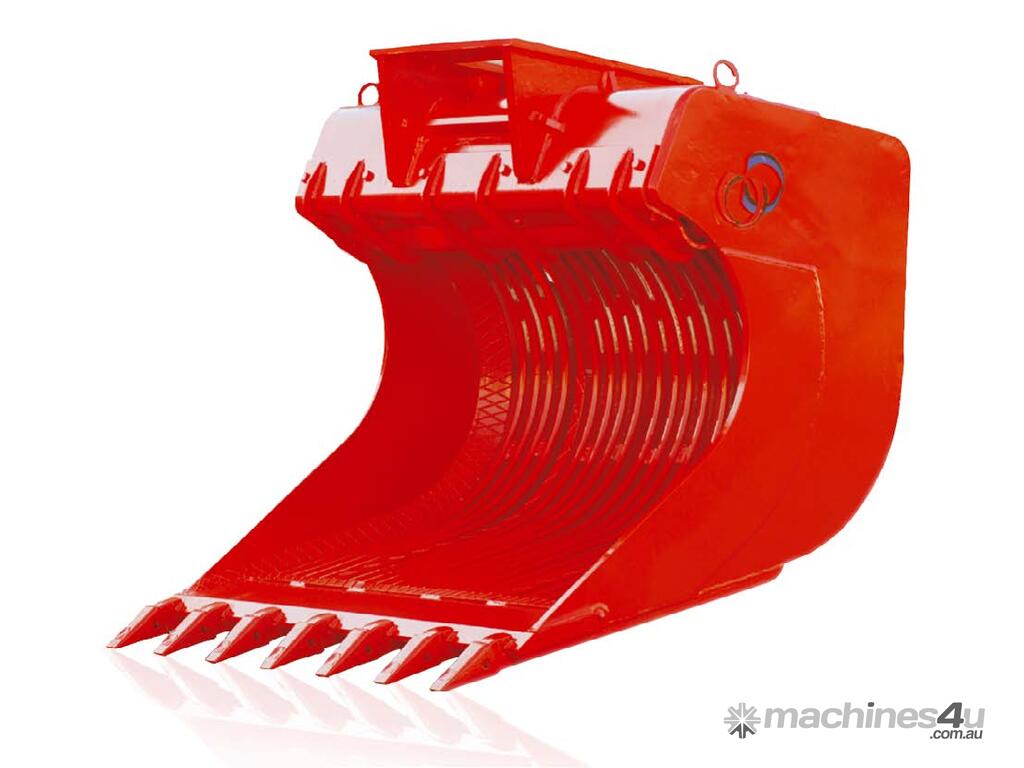

Rotar Segregator Bucket
The Rotar Segregator Bucket is a jack of all trades: whether you are breaking up and cleaning paving slabs, clearing construction and demolition sites, or sorting debris and soil – it is the attachment for you.

Sturdy power train
This versatile and multi-deployable Rotar Segregator Bucket has been fitted with a sturdy power train. The eccentrics on the train create a back-and-forth motion of the slats sections. Power train maintenance is very simple and every lubrication point is easily accessible.

Hydraulic system
Processing a huge volume of materials every hour takes no more than attaching two hydraulic hoses to the excavator or wheel loader. The segregator bucket’s hydraulic system is protected against peak pressures and excessive oil volumes. Customers can also have the Rotar Segregator Bucket fitted with replaceable teeth on the cutting edge.

Specifications: 600 S
INFORMATION
Weight (kg): 1100
Volume (L): 600
Machine class (t): 13-18
Rotar Hole-pattern: 140-150
DIMENSIONS
Dimension A (mm): 1275 / 127.5 in cm
Dimension B (mm): 1400 / 140 in cm.
Dimension C (mm): 1000 / 100 in cm.
Dimension D (mm): 1200 / 120 in cm.
HYDRAULIC
Max. operating pressure motor (bar): 140
Max. oil volume (L/min.): 70-100*
Max. operating pressure hydromotor (bar): 120
Oil volume hydromotor (L/min.): 20
* Distance between bars S=42mm - I=80mm
* System is controlled by a flowcontrol-valve
