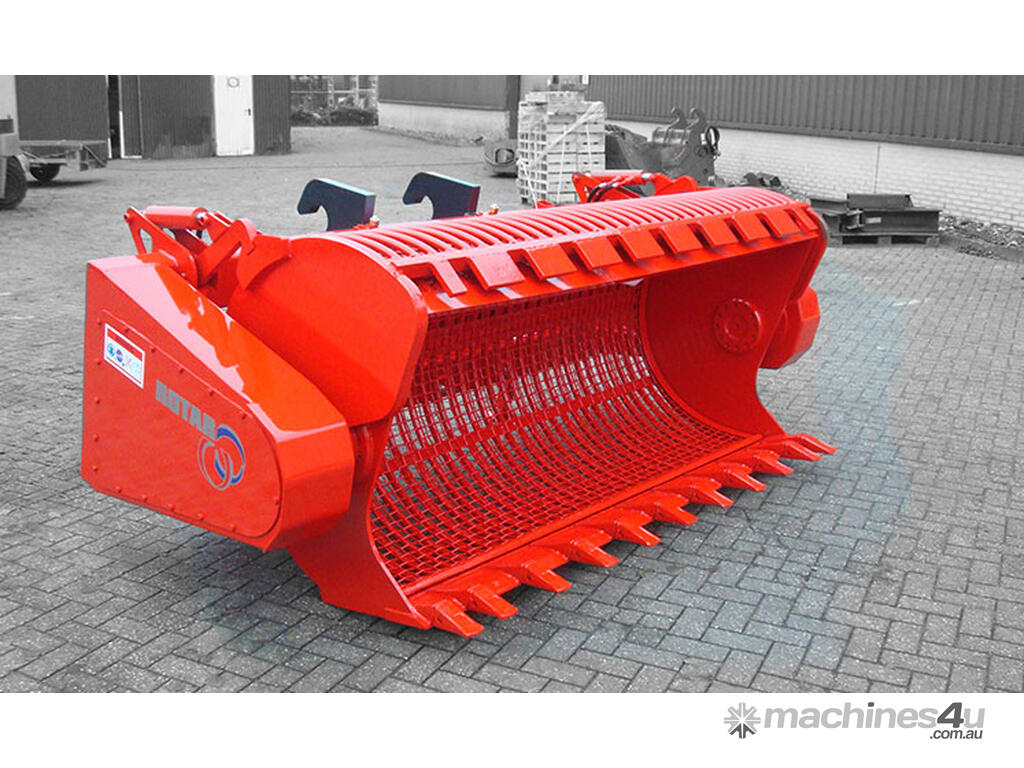

ROTAR HPL 3000 I LOADER SCREENING DRUM

Rotar Screening Drum
In the late 1970s, Rotar founder Hendrick Pleysier invented the Rotar Screening Drum, an innovative solution for washing street slabs that heralded the end of expensive and labour-intensive methods. Pleysier was a true pioneer.

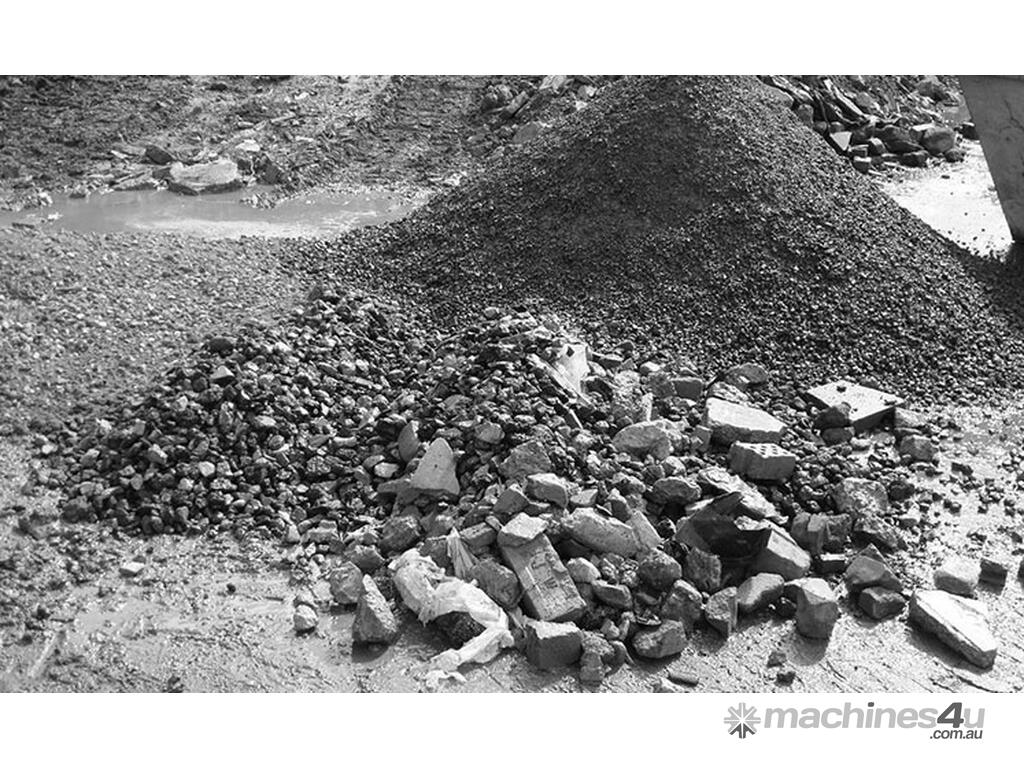

Screens every kind of material in the desired size

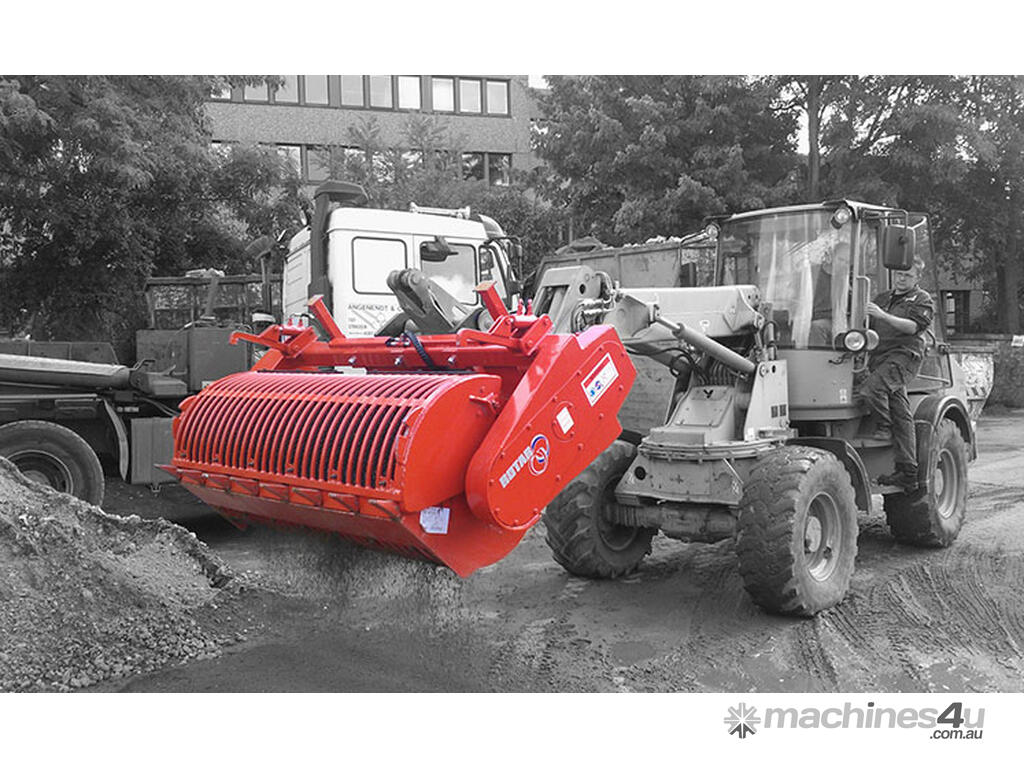

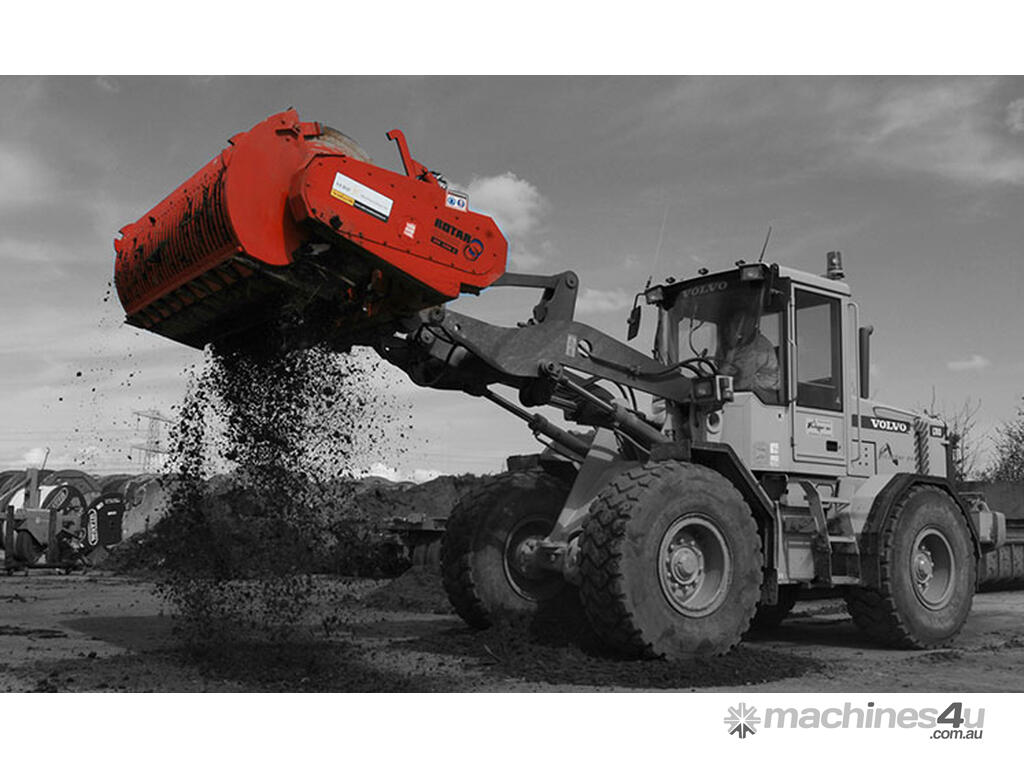

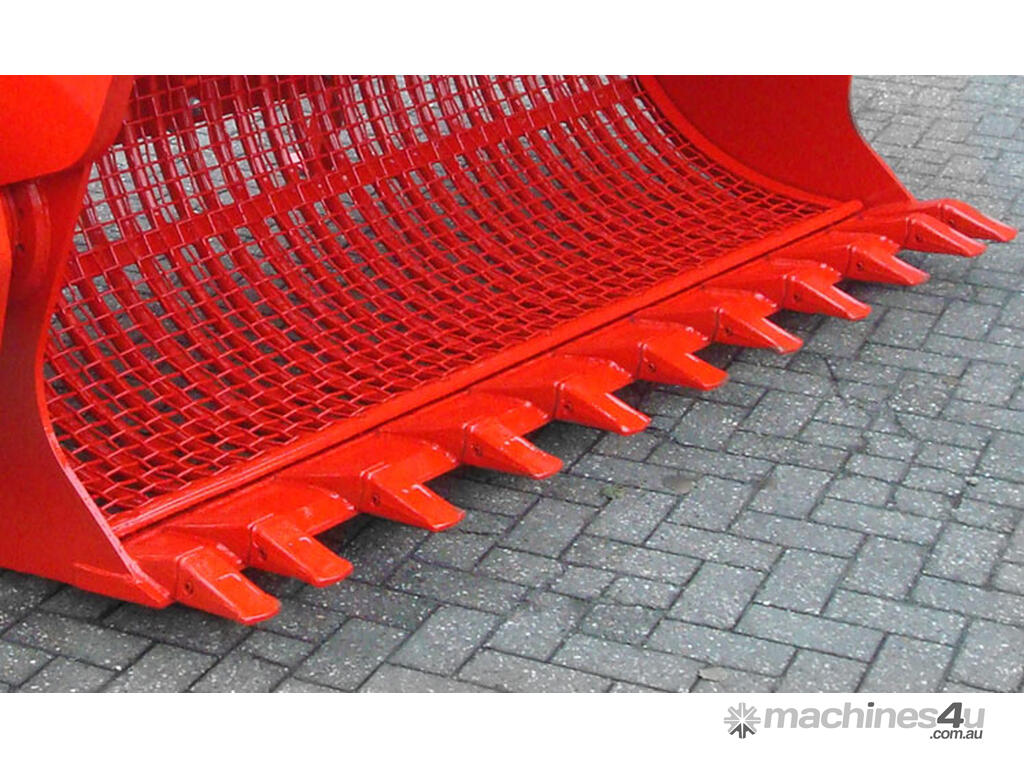

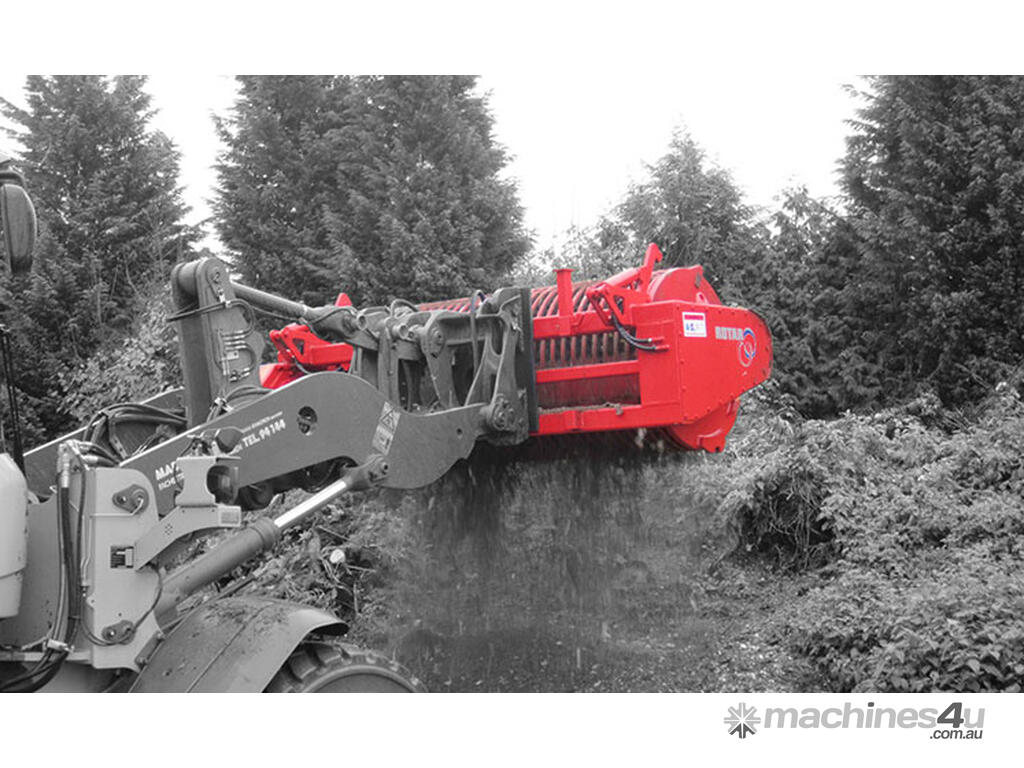

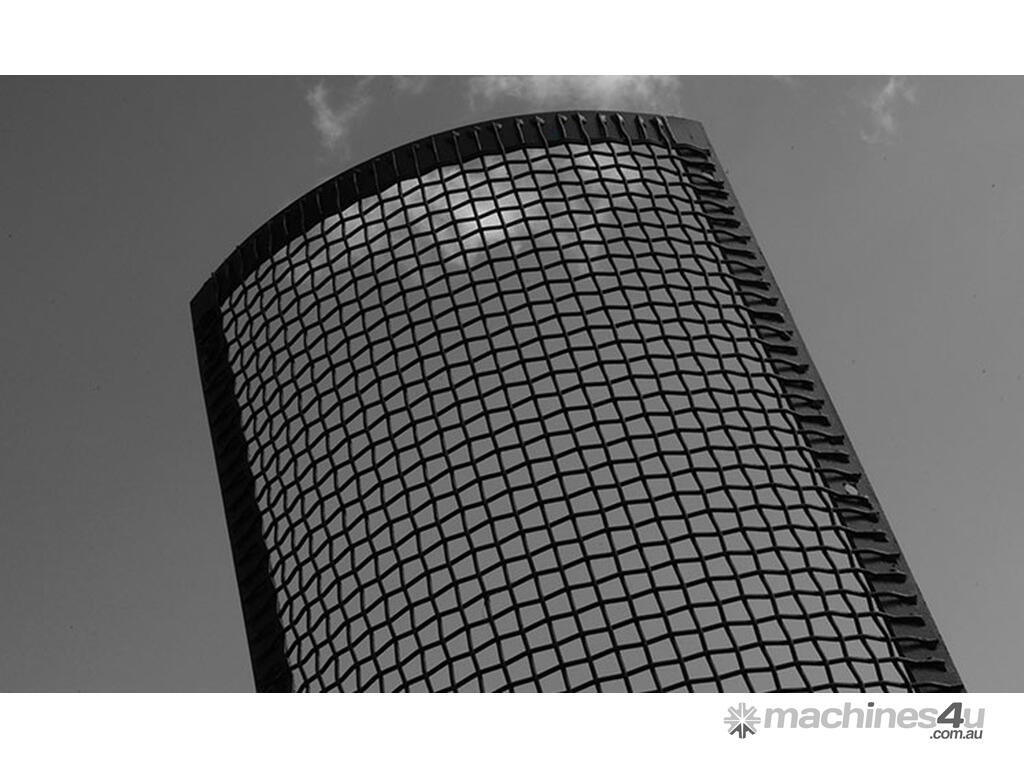

Nowadays, the Rotar Screening Drum for excavators and wheel loaders is still the most effective way to sieve, sort, wash, mix, and clean a variety of materials. As the largest sieving surface available on the market, and with its laying-sieve option, the Rotar Screening Drum can sieve every kind of material in any desired size.

A new EVO operating system

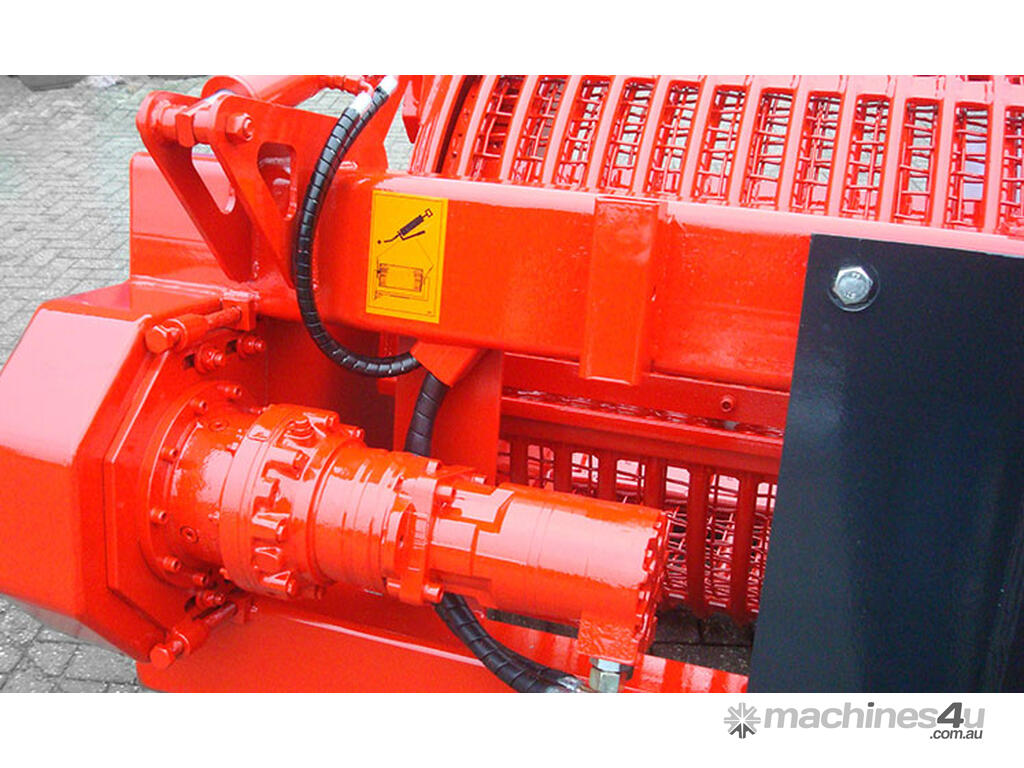

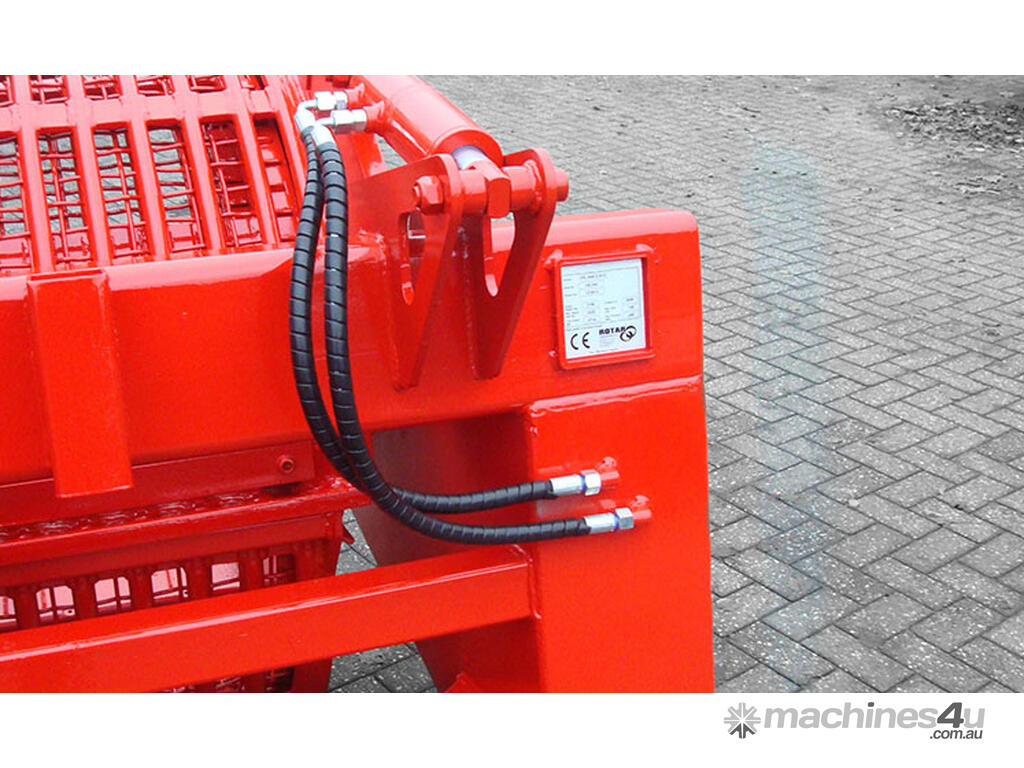

Processing a huge volume of materials every hour takes no more than attaching two hydraulic hoses to the excavator or wheel loader. To make this possible, the indestructible screening drum has been fitted with a new EVO operating system, which completely eliminates any need for electrical operating.

Specifications: HPL 3000 I
Drum capacity (L): 3000
Drum weight (kg) *: 2780


Drum Height: 1170 mm
Drum Width: 2280 mm

Dimension A (mm): 2880 / 288 in cm.
Dimension B (mm): 3430 / 343 in cm.
Dimension C (mm): 1170 / 117 in cm.
Operating pressure min. / max. (bar) **: 120/250
Oil volume (L/min.): A 160/ B160
Rotar Hole-pattern: 470
Distance between ribs: 60
