ROTAR RPG 4-600 ORANGE PEEL GRAB (16-30T)

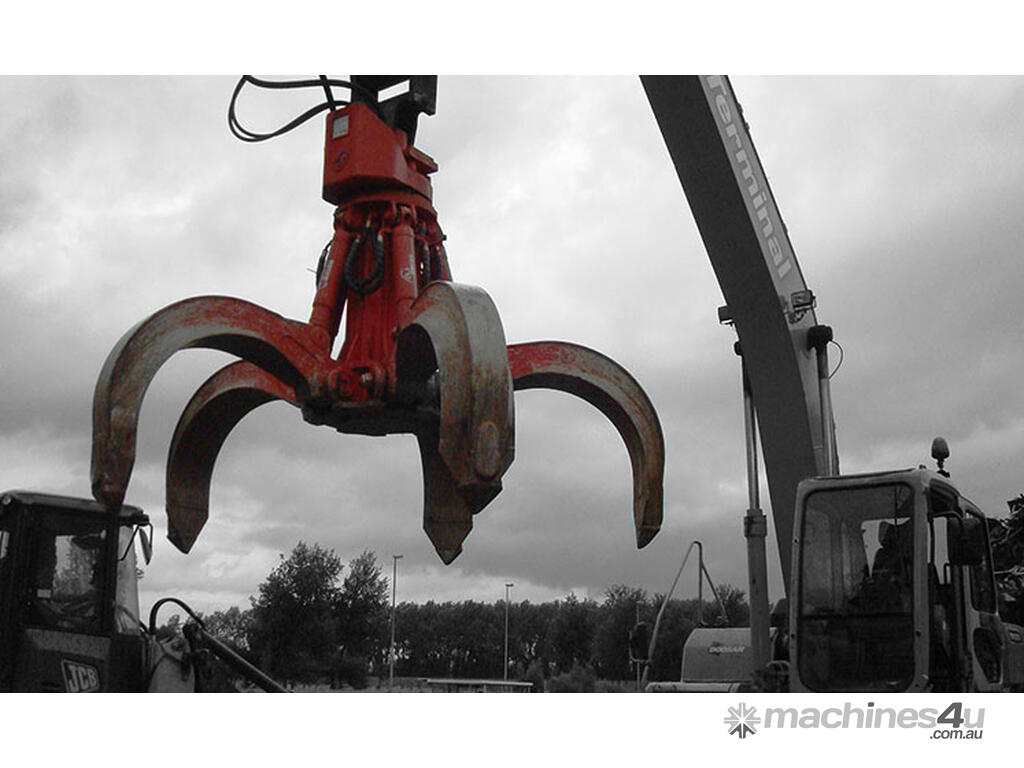

Rotar Orange Peel Grab

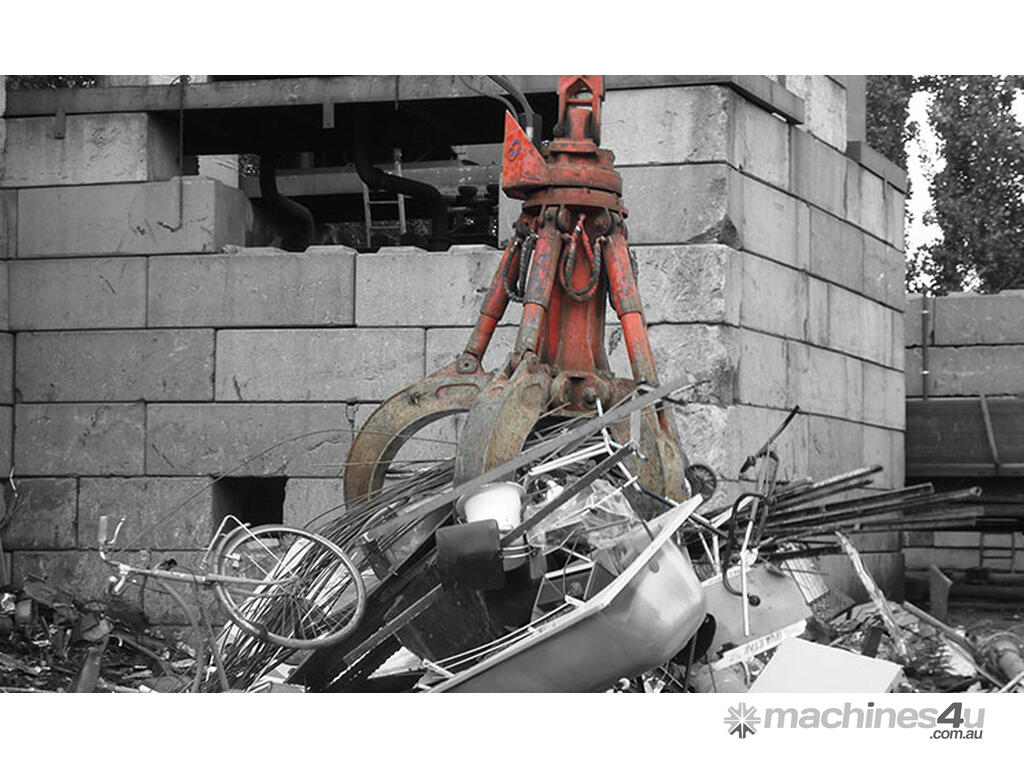

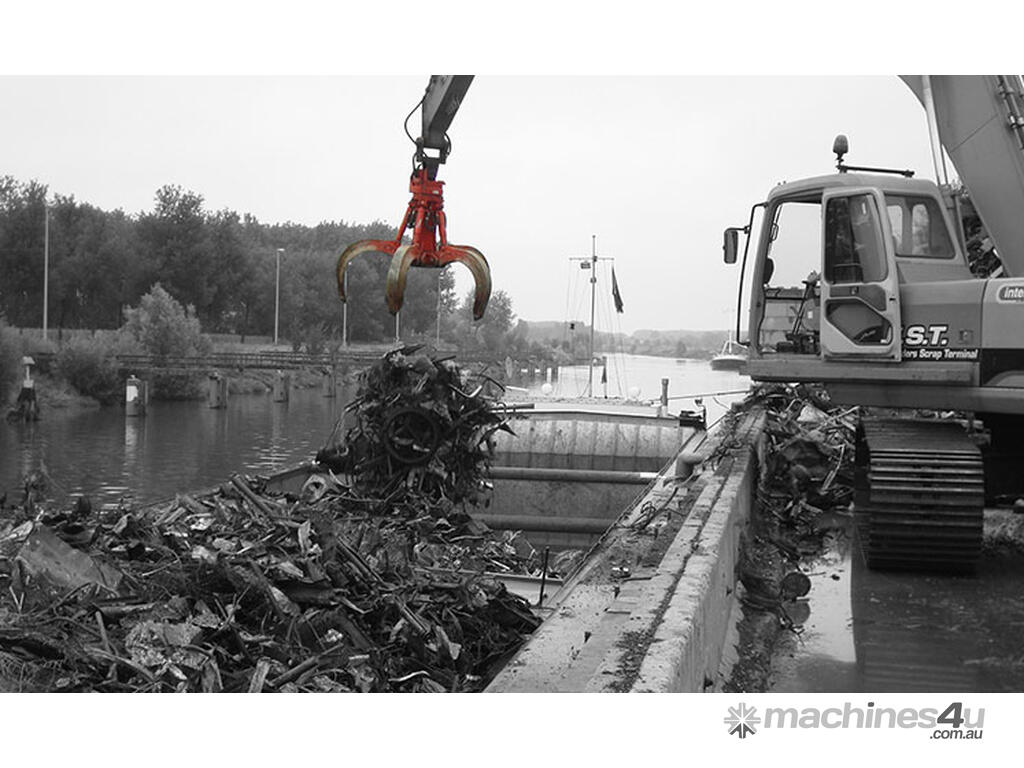

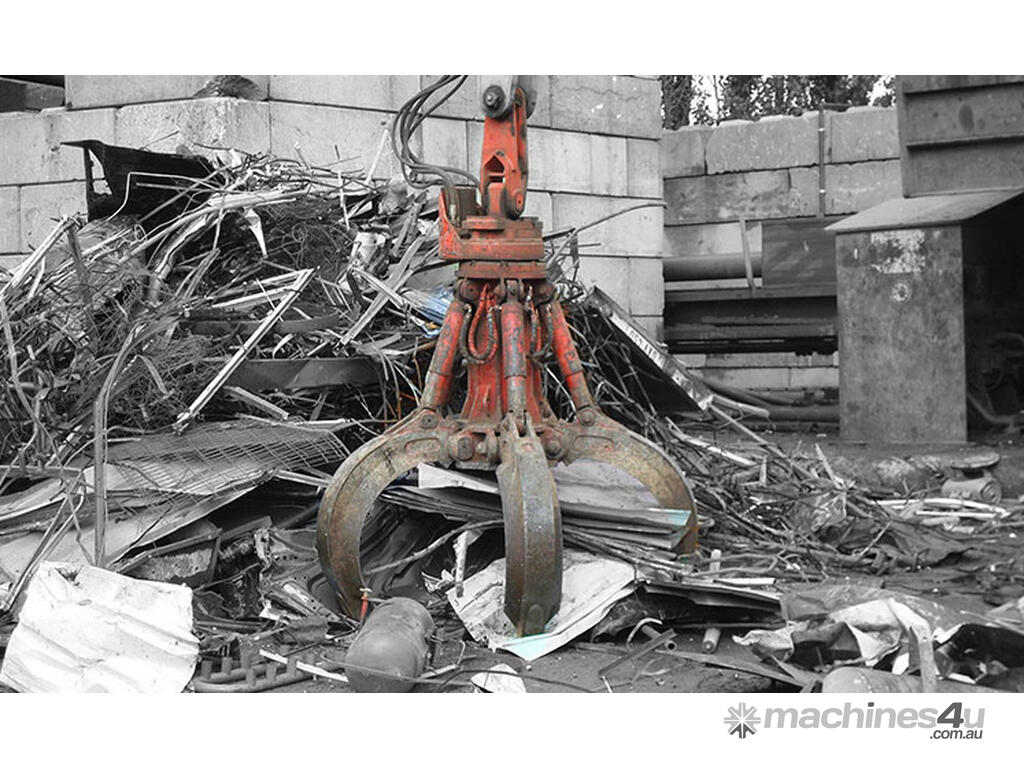

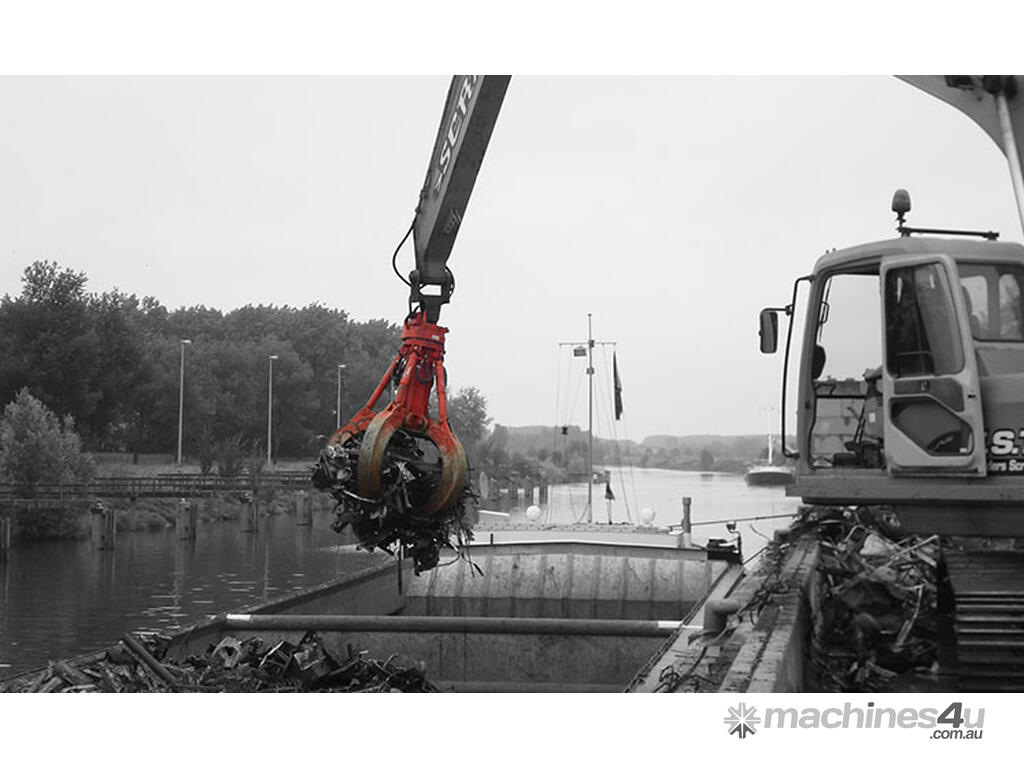

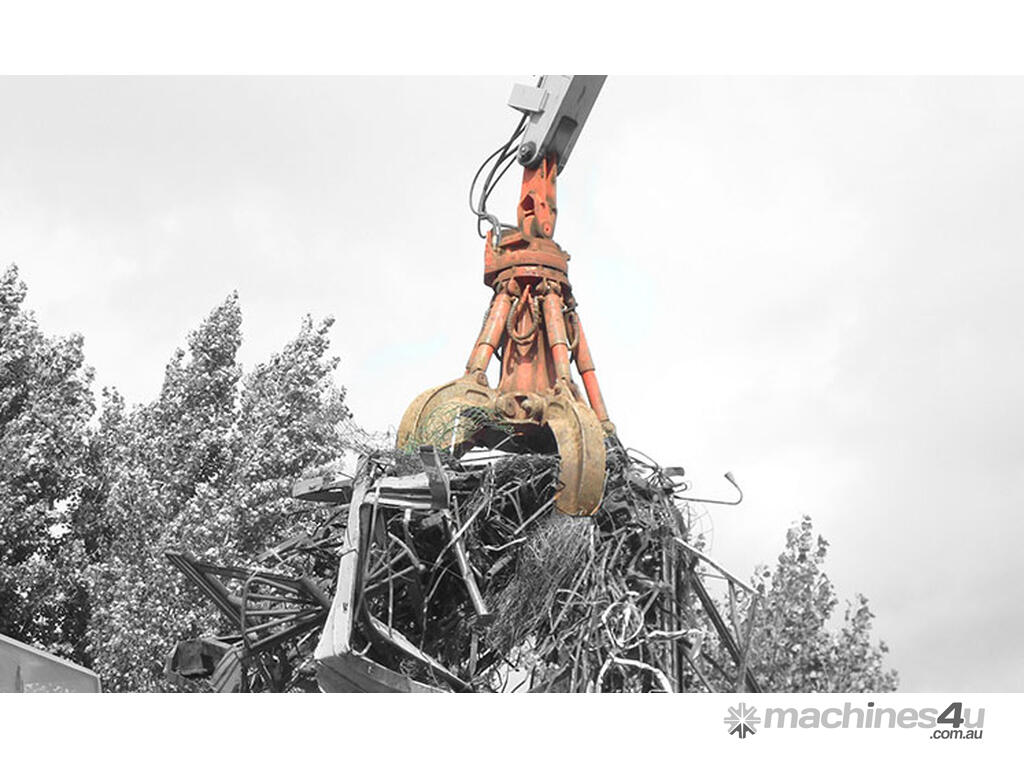

Rapid cycle times combined with a large volume make the RPG Rotar Orange Peel Grab the perfect attachment for transferring scrap. The RPG-series will move a mountain!

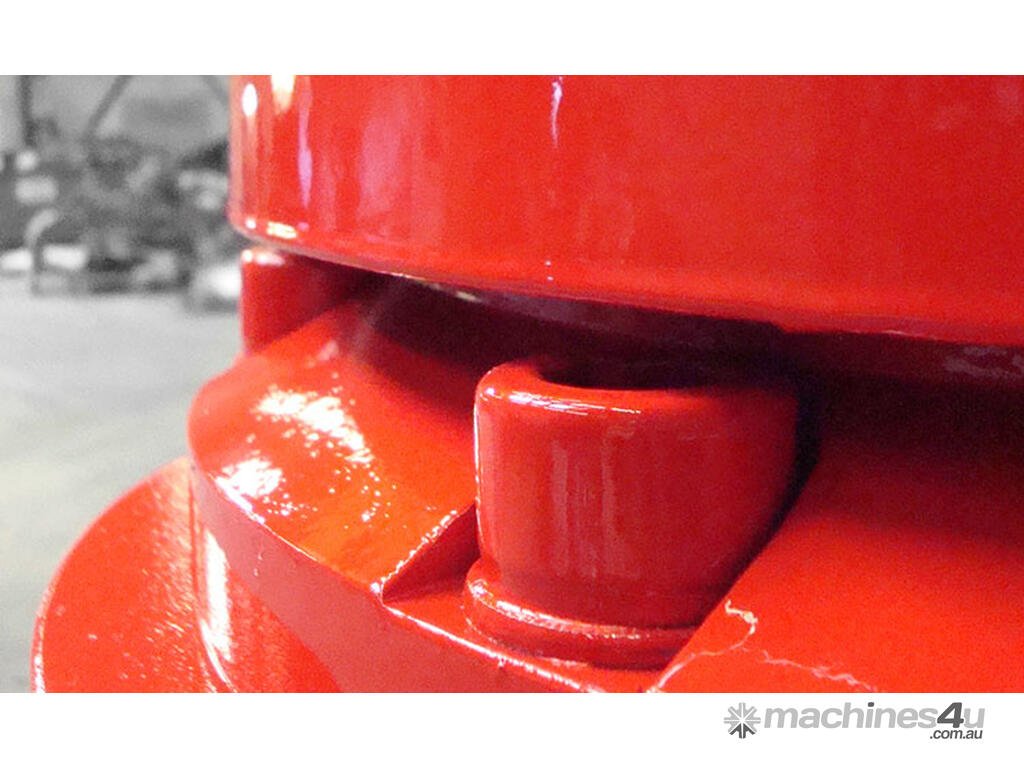

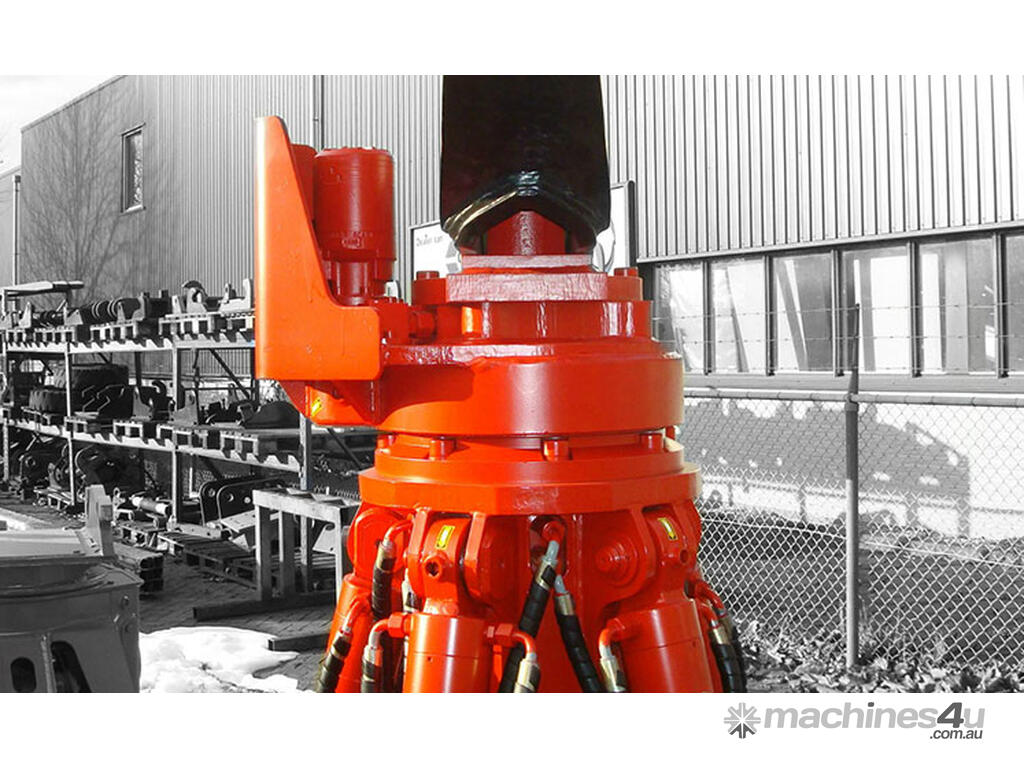

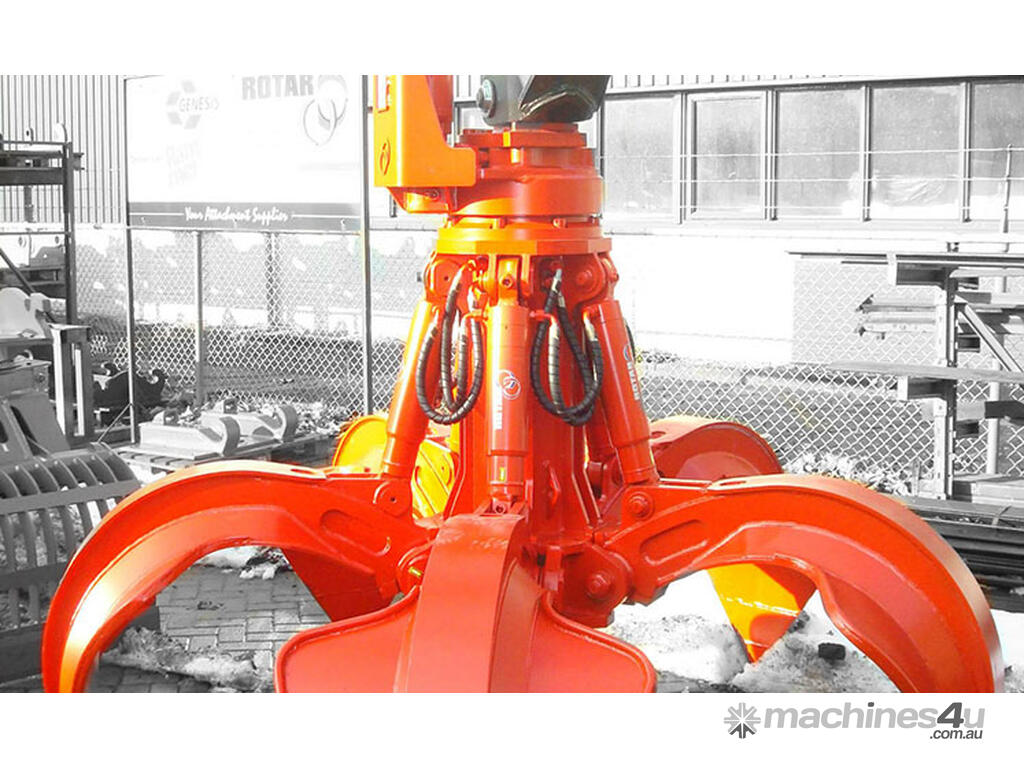

Headpiece and slewing ring
The Rotar Orange Peel Grab has been fitted with a strong rotating headpiece and over-dimensioned slewing ring. The hydraulic motor on the headpiece provides high torque, allowing the orange peel grab to be moved to every possible position.

Excellent protection
Orange peel grabs are subjected to heavy shock loads. The hydraulic cylinders of the RPG-series are fitted with end-cushioning. The end-cushioning is able to take the heavy punches and protect the cylinders. Moreover, the Rotar Orange Peel Grabs have been fitted with a pressure relief valve that will protect the hydraulic system against peak pressures.

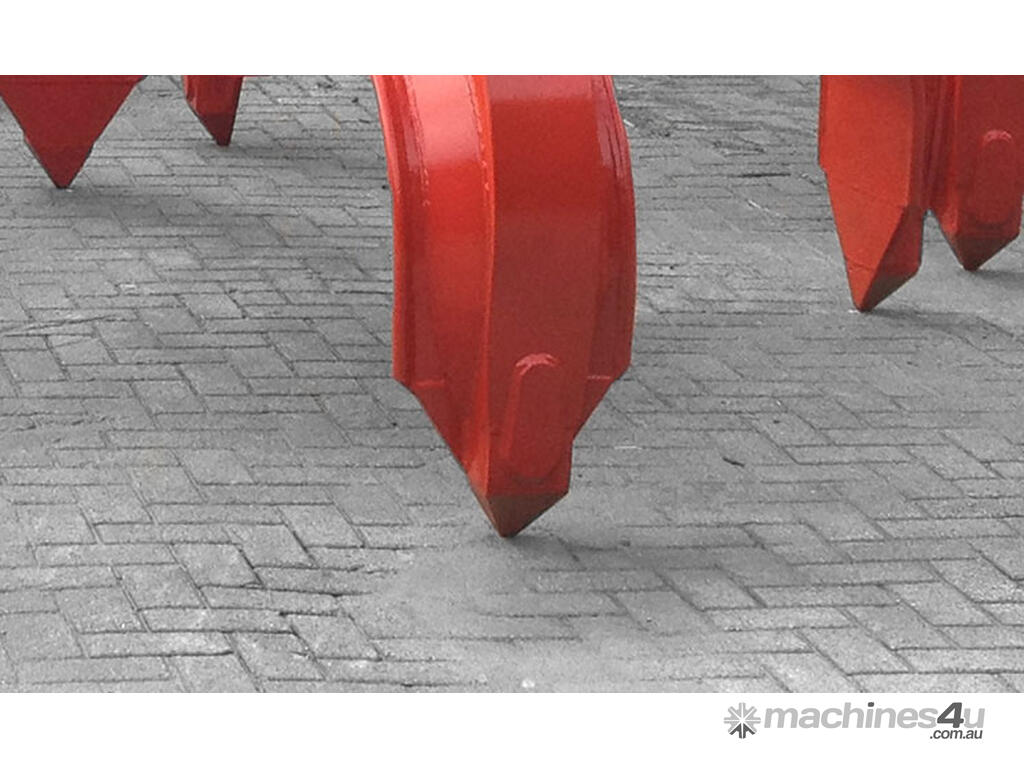

Wear-resistant teeth
The RPG-series’ wear-resistant shell design guarantees optimal penetration. The shells have been manufactured from HARDOX steel and fitted with Manganese tips. Hardened, over-dimensioned pins spin in wide bearing bushes and form an incredibly strong pivot hinge for the grab shells. Every hinge point has been sealed against fat and dust, allowing for optimal lubrication.

Specifications: RPG 4-600
INFORMATION
Volume (L): 600
Weight (kg)* open: 1590
Weight (kg)* halfopen: 1675
Weight (kg)* closed: 1732
Machine class (t): 16-30
Max. lifting capacity grab (t): 8
DIMENSIONS
Dimension A (mm): 2340
Dimension B (mm): 1900
Dimension C (mm): 1435
Dimension D (mm): 2490
HYDRAULIC
Max. operating pressure (bar): 350
Max. operating pressure hydromotor (bar): 200
Oil volume clamshell (L/min.): 115
Oil volume hydromotor (L/min.): 50
* Weight exclusive adapterplate with bracket
