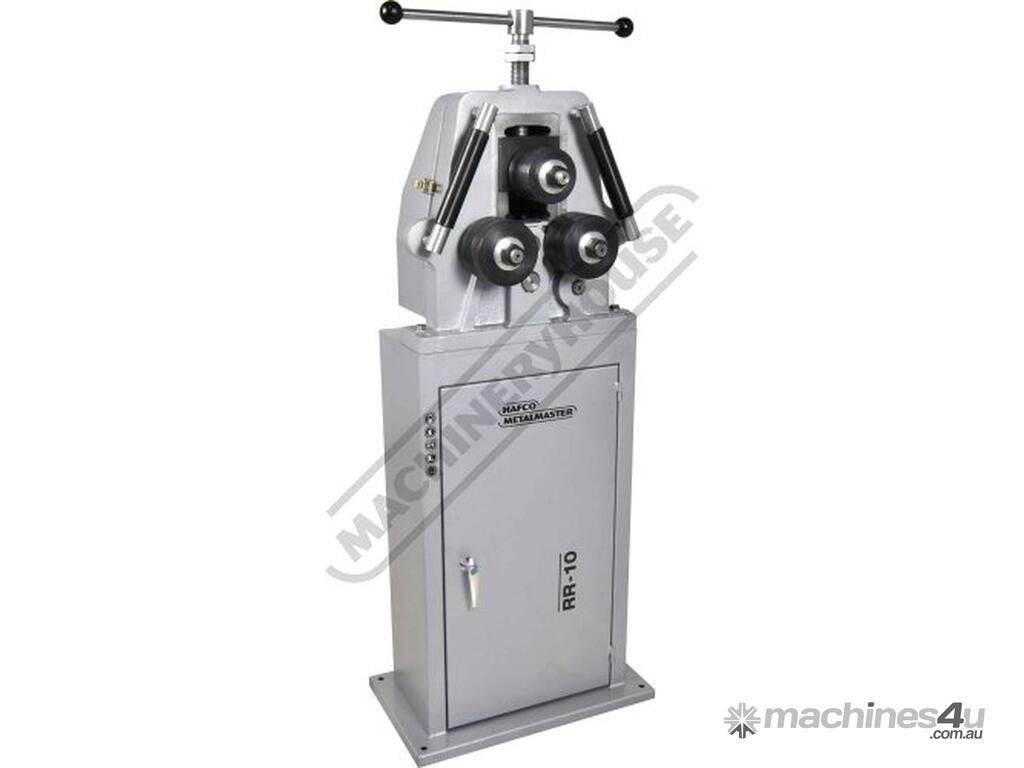

RR-10 Manual Section & Pipe Rolling Machine 50 x 10mm Flat Bar Capacity

HAFCO-METALMASTER RR-10 Manual Section & Pipe Rolling Machine 50 x 10mm Flat Bar Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S681

Features:
Hardened 98mm top & 118mm bottom rolls
30mm heat treated drive shaft

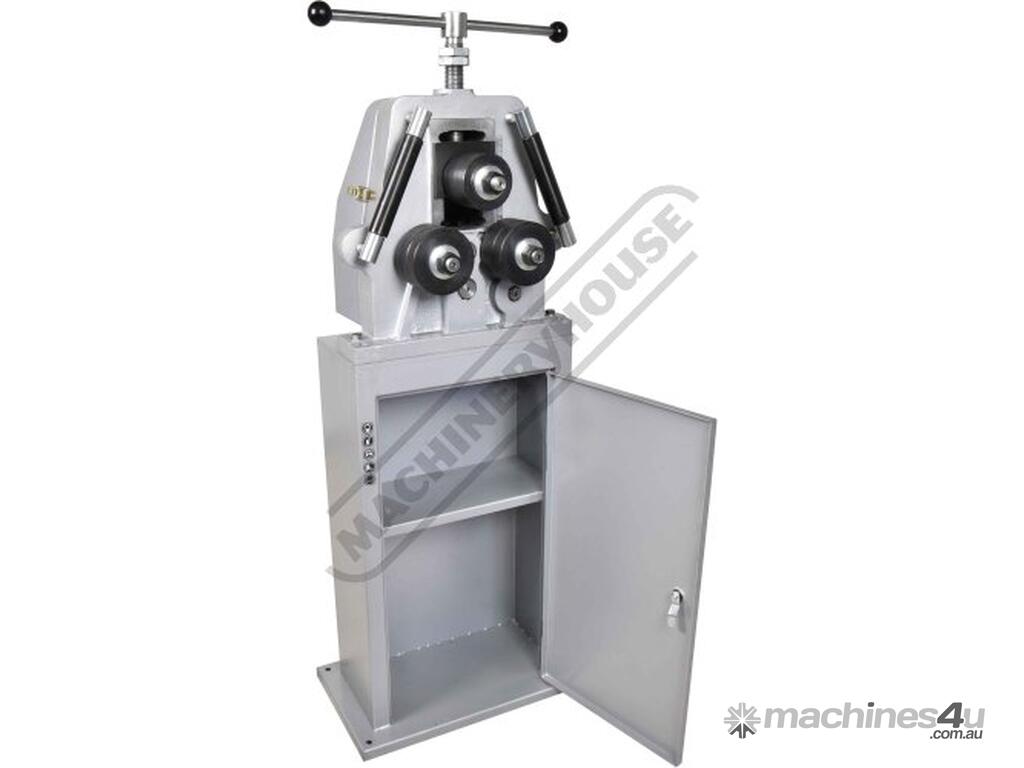

Cast iron housing on heavy duty stand

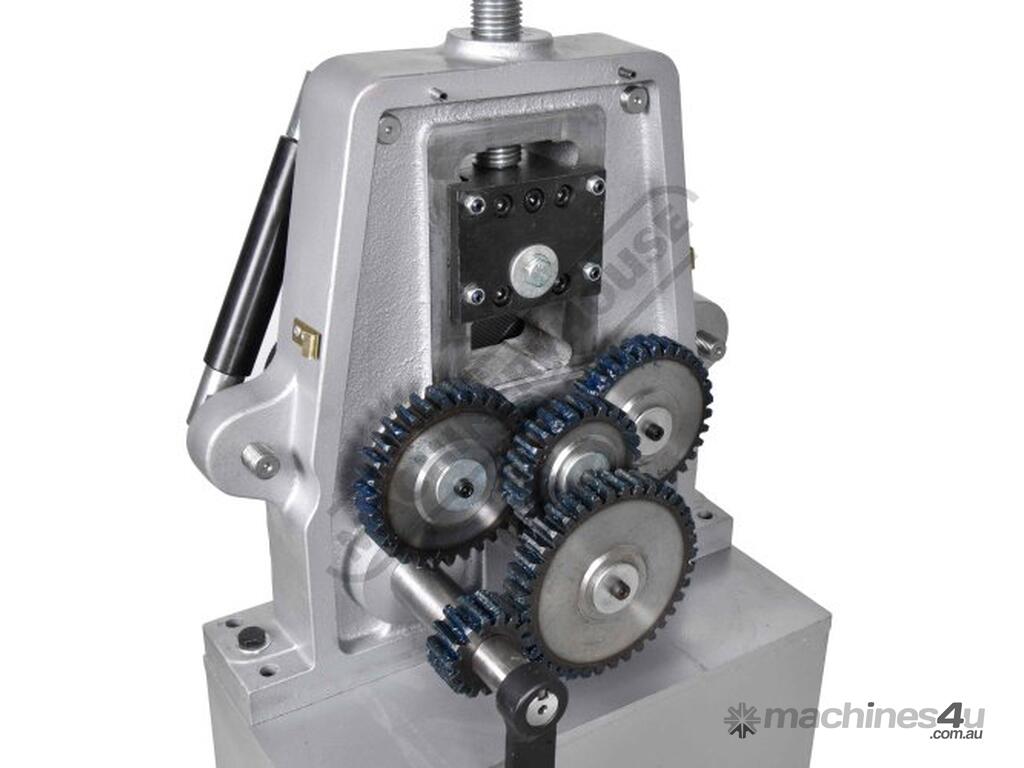

Gear driven rolls
Heavy duty steel fabricated frame

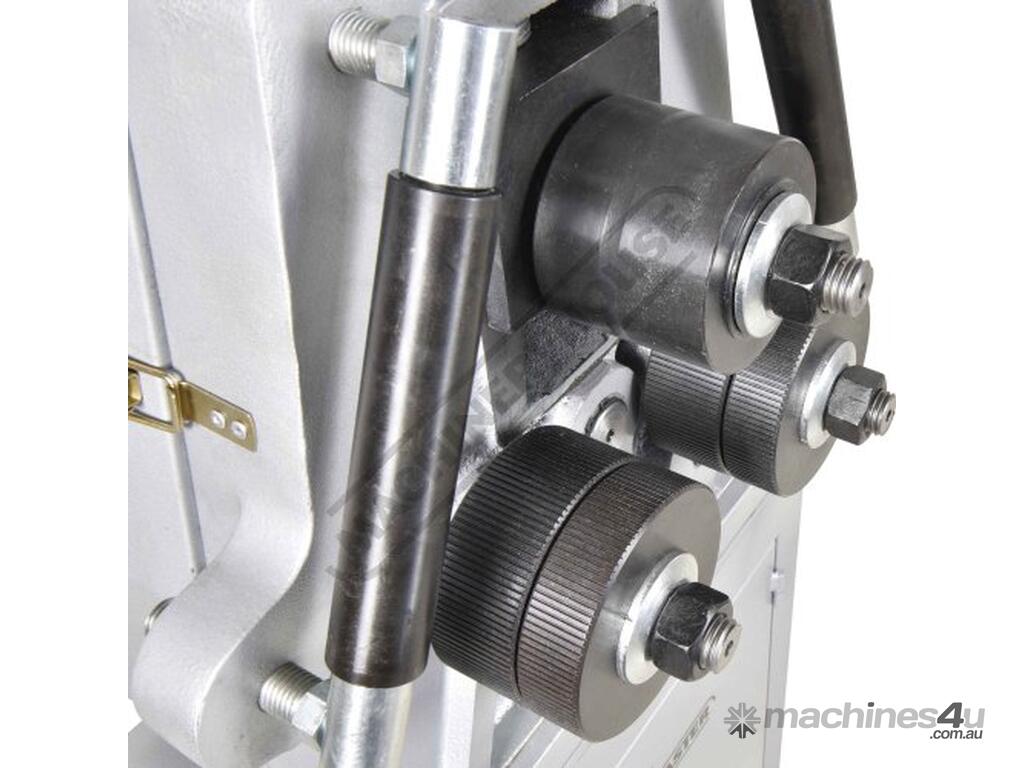

Bottom rolls are knurled for additional grip on material

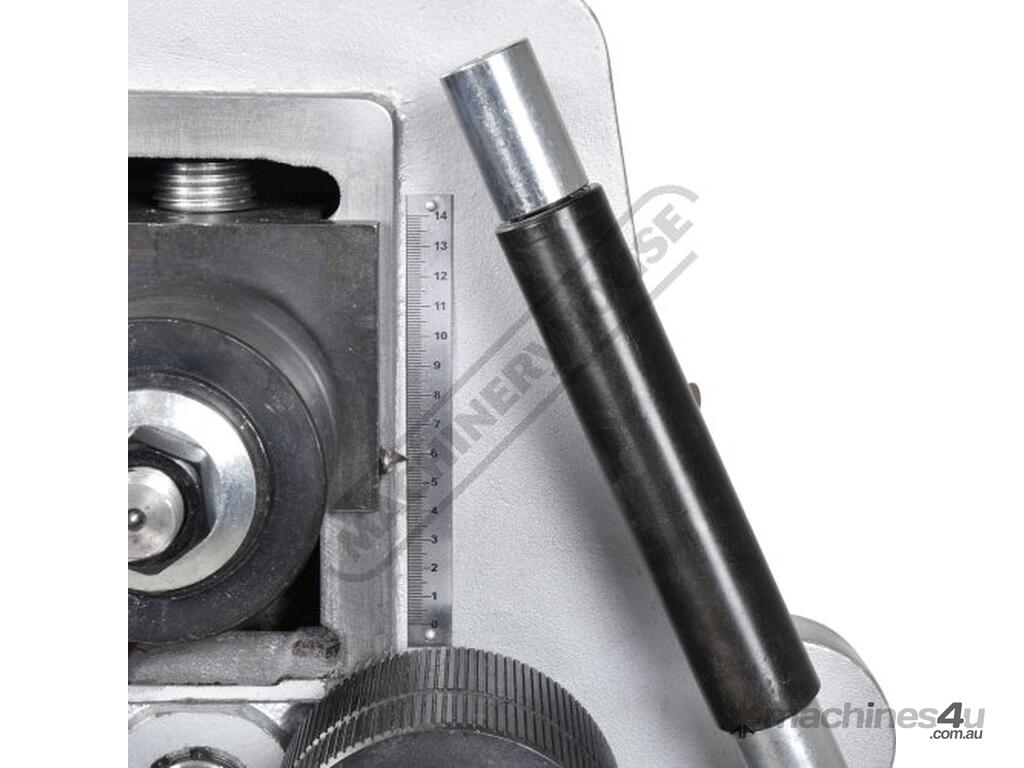

Manual screw adjustment of top roller
Adjustable side support guide rolls
Standard flat & angle rolls are included
One piece guiding mono block mounted on cross head
*Additional dies are required to roll round bar round pipe/tube square tube & angles


Specifications:
ORDER CODE: S681
MODEL: RR-10
Powered Driven Rolls (Qty): 2 x Manual
Bending Rolls (Type): Manual Top
Top Roll Shaft Diameter (Ø) (mm): ~
Lower Roll Shaft Diameter (Ø) (mm): ~
Top Roll Diameter (Ø) (mm): 98
Lower Roll Diameter (Ø) (mm): ~
Flat Bar Edge Capacity - MS (size / Ø) (mm): 30 x 10 / 500 - (20 x 5 / 190)
Flat Bar Capacity - MS (size / Ø) (mm): 50 x 10 / 400 - (20 x 5 / 160)
Square Bar Solid Capacity - MS (size / Ø) (mm): 20 x 20 / 500 - (10 x 10 / 160)
Rectangle Tube Capacity - MS (size / Ø) (mm): ~
Square Tube Capacity - MS (size / Ø) (mm): ~
Round Bar Solid Capacity - MS (size / Ø) (mm): ~
Round Tube Capacity - MS (size / Ø) (mm): ~
Round Pipe Capacity - MS (size / Ø) (inch / mm): ~
Angle Capacity - MS (size / Ø) (mm): ~
Motor Power (kW / hp): ~
Voltage / Amperage (V / amp): ~
Dimensions (L x W x H) (mm): 500 x 480 x 680
Note: Requires Additional Tooling (No / Yes*): No
Nett Weight (kg): 185
