RR-24 Section & Tube Rolling Machine Ø76mm Round Tube Capacity & 50mm Square Tube Capacity

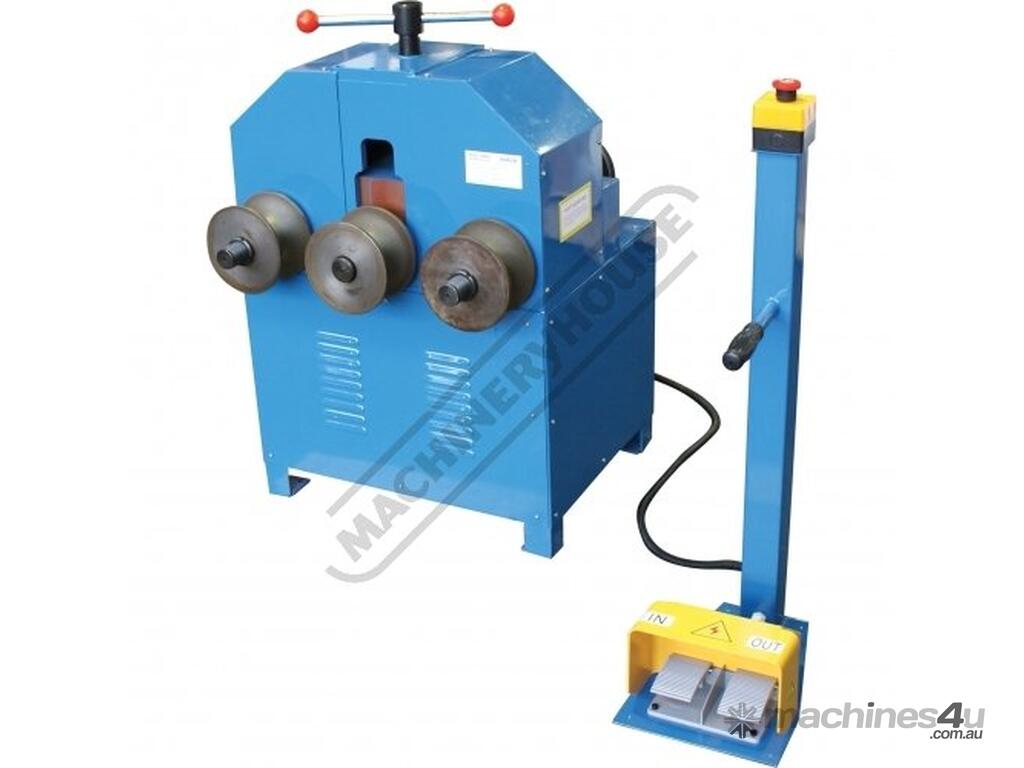

HAFCO-METALMASTER RR-24 Section & Tube Rolling Machine Ø76mm Round Tube Capacity & 50mm Square Tube Capacity
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: S682

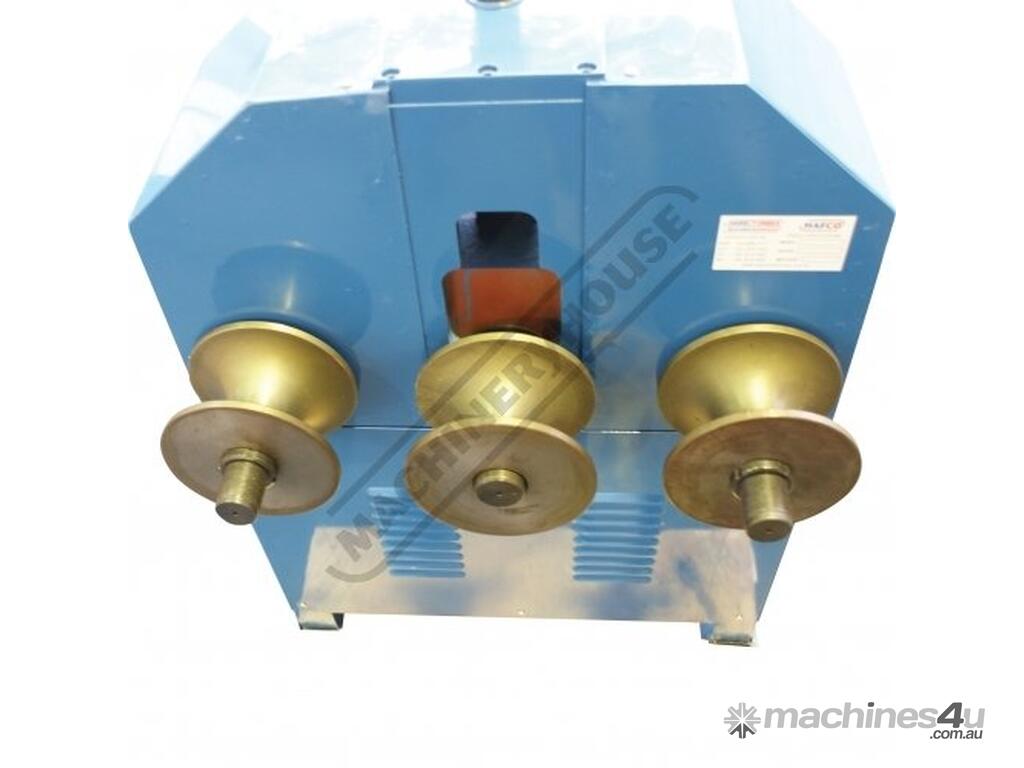

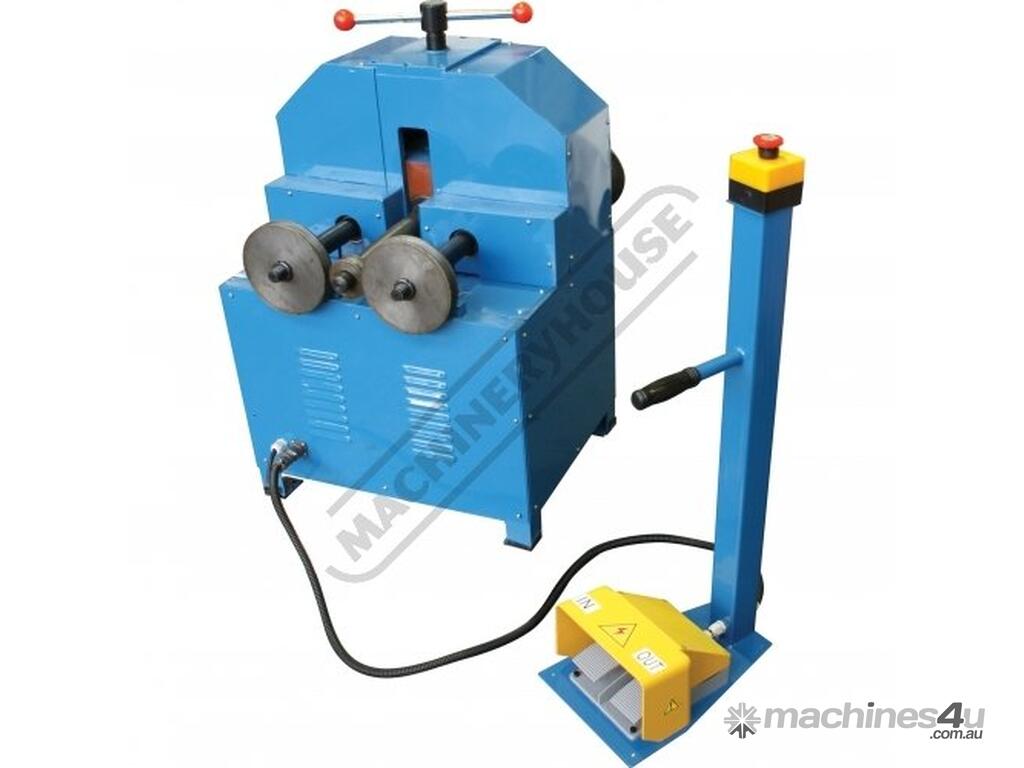

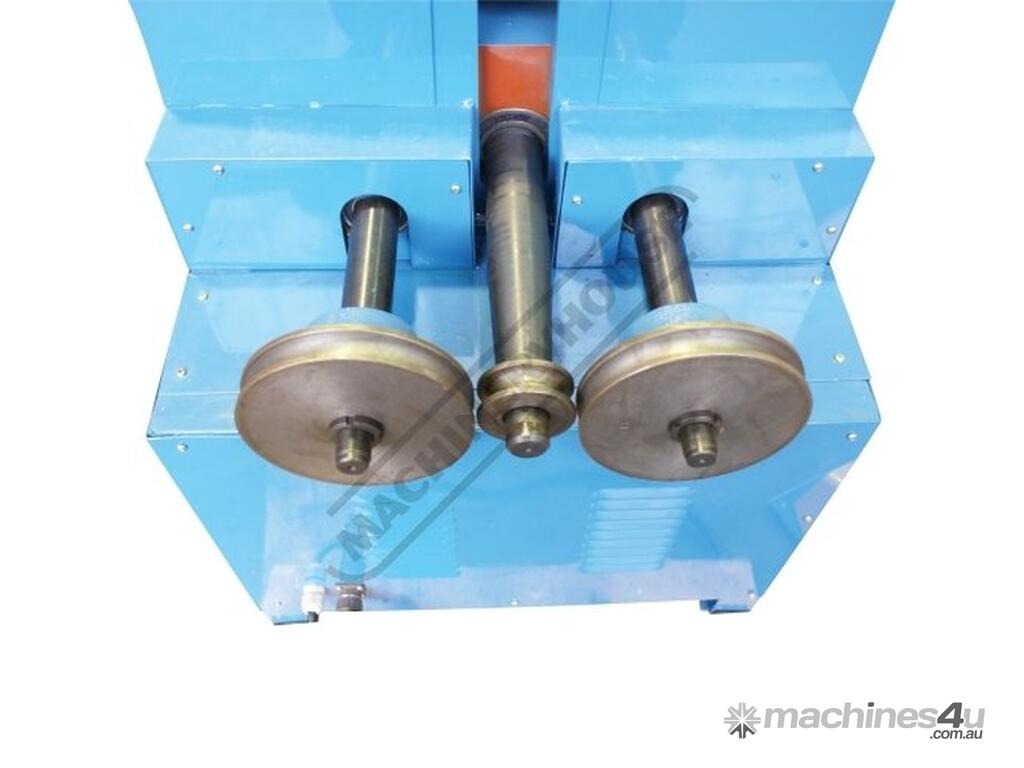

This specially designed section and tube rolling machine can be used on either side front or rear of machine, the front is designed to handle the larger tube as the rear is capable of rolling smaller tubes.

Features:
16 - 76mm round tube capacity
16 - 50mm square tube capacity
0.5 - 2mm round tube wall thickness
0.5 -1.6mm square tube wall thickness
Bends mild steel & thin wall stainless steel round square & rectangular tube into circular or radius curves
Roving foot pedal control with emergency stop
1.1kW / 1.5hp 240V motor

Includes:

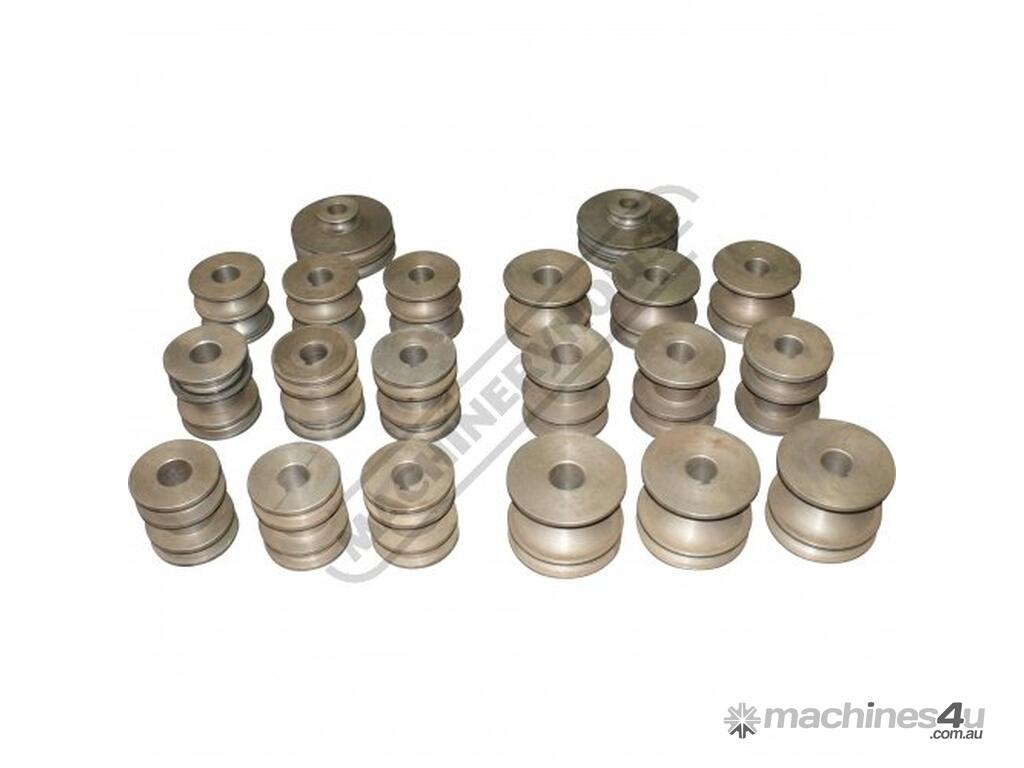

- 9 Round tube dies - Ø16 Ø19 Ø22 Ø25 Ø32 Ø38 Ø51 Ø63 Ø76mm
- 8 Square tube dies - 40 50mm



Specifications:
ORDER CODE: S682
MODEL: RR-24
Powered Driven Rolls (Qty): 2
Bending Rolls (Type): Manual Top
Top Roll Shaft Diameter (Ø) (mm): ~
Lower Roll Shaft Diameter (Ø) (mm): ~
Top Roll Diameter (Ø) (mm): ~
Lower Roll Diameter (Ø) (mm): ~
Flat Bar Edge Capacity - MS (size / Ø) (mm): ~
Flat Bar Capacity - MS (size / Ø) (mm): ~
Square Bar Solid Capacity - MS (size / Ø) (mm): ~
Rectangle Tube Capacity - MS (size / Ø) (mm): ~
Square Tube Capacity - MS (size / Ø) (mm): 50 x 50 x 1.6 / 1000
Round Bar Solid Capacity - MS (size / Ø) (mm): ~
Round Tube Capacity - MS (size / Ø) (mm): Ø76 x 2 / 1520
Round Pipe Capacity - MS (size / Ø) (inch / mm): ~
Angle Capacity - MS (size / Ø) (mm): ~
Motor Power (kW / hp): 1.1 / 1.5
Voltage / Amperage (V / amp): 240 / 10
Dimensions (L x W x H) (mm): 740 x 630 x 1030
Note: Requires Additional Tooling (No / Yes*): No
Nett Weight (kg): 287
