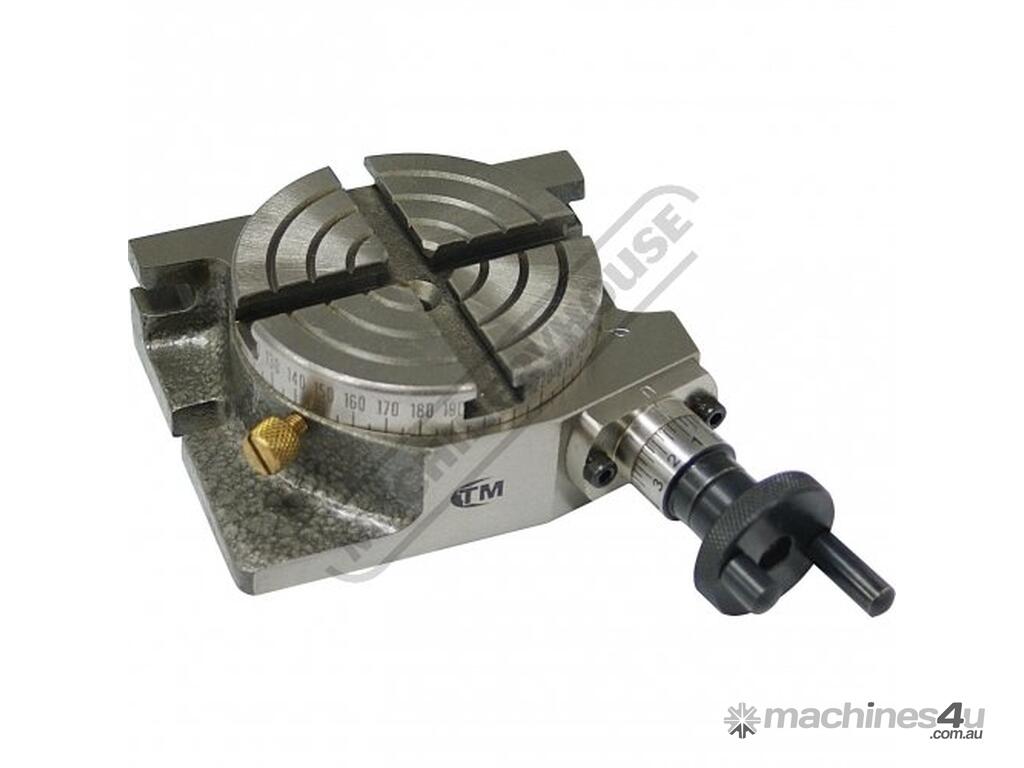

RT-3 Rotary Table Ø75mm

TOOLMASTER RT-3 Rotary Table Ø75mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: R001

Work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis.
Compact design for use on small mills, lathes and a drill press fitted with a compound table.
For instructions on how to fit dividing plates and instructions on how to use see "Brochures & manuals"

Features:
Gear ratio 36-1

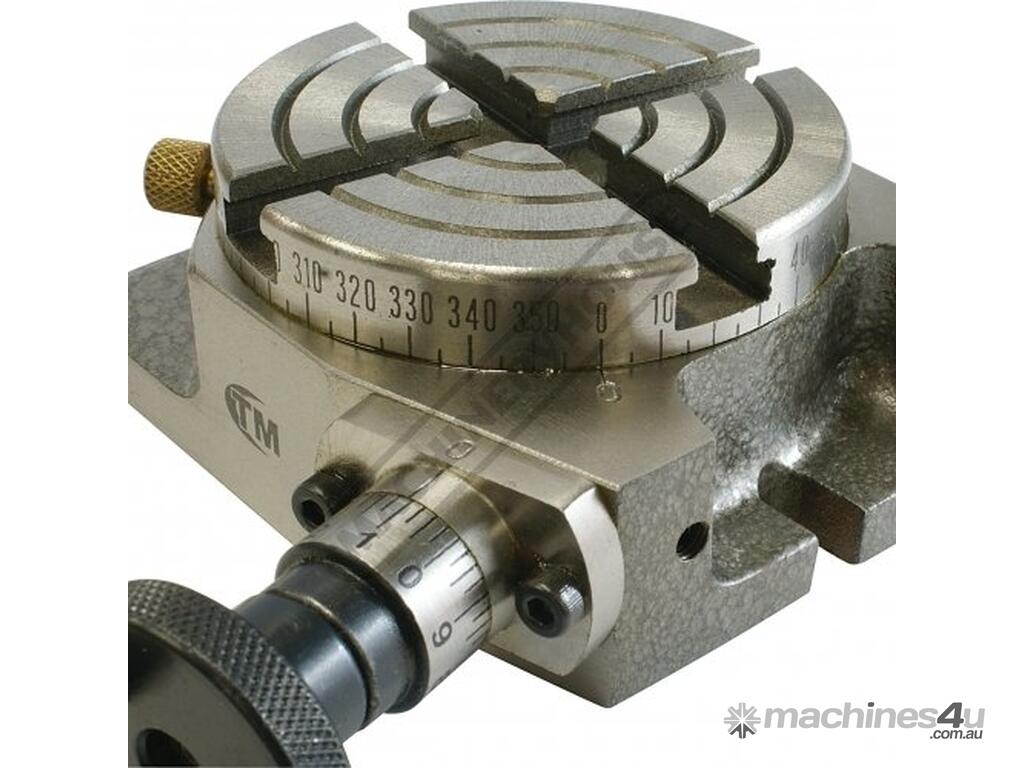

Graduations: 0-360º
Hand wheel can be set to zero

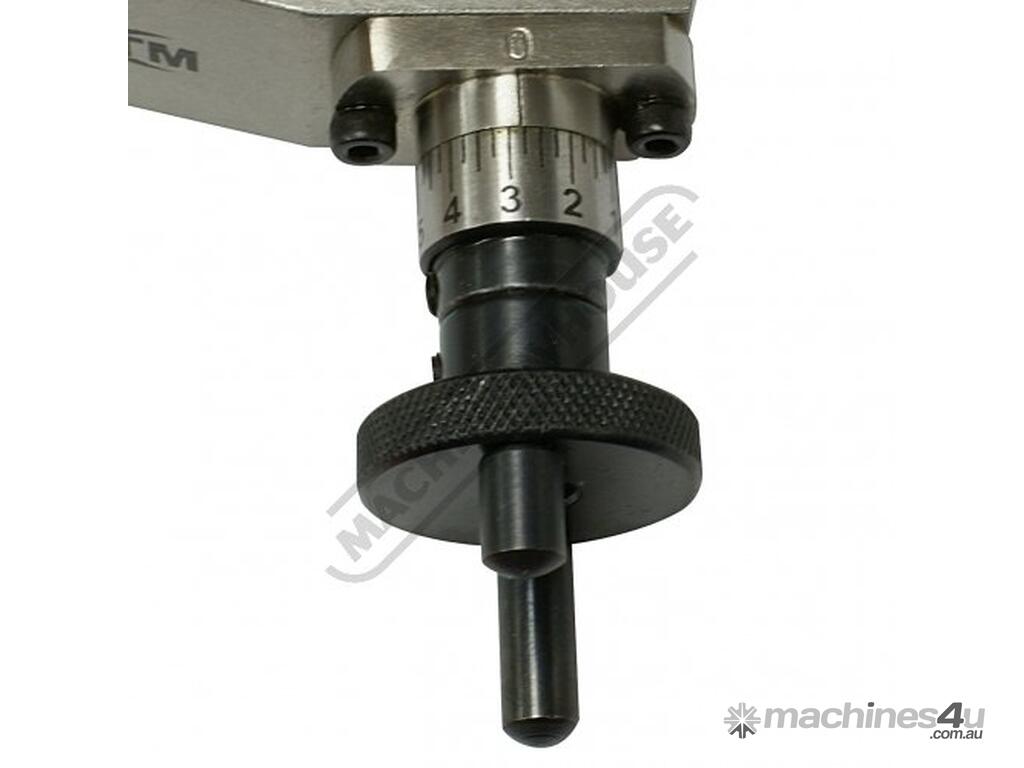

Hand wheel graduated in 10min divisions

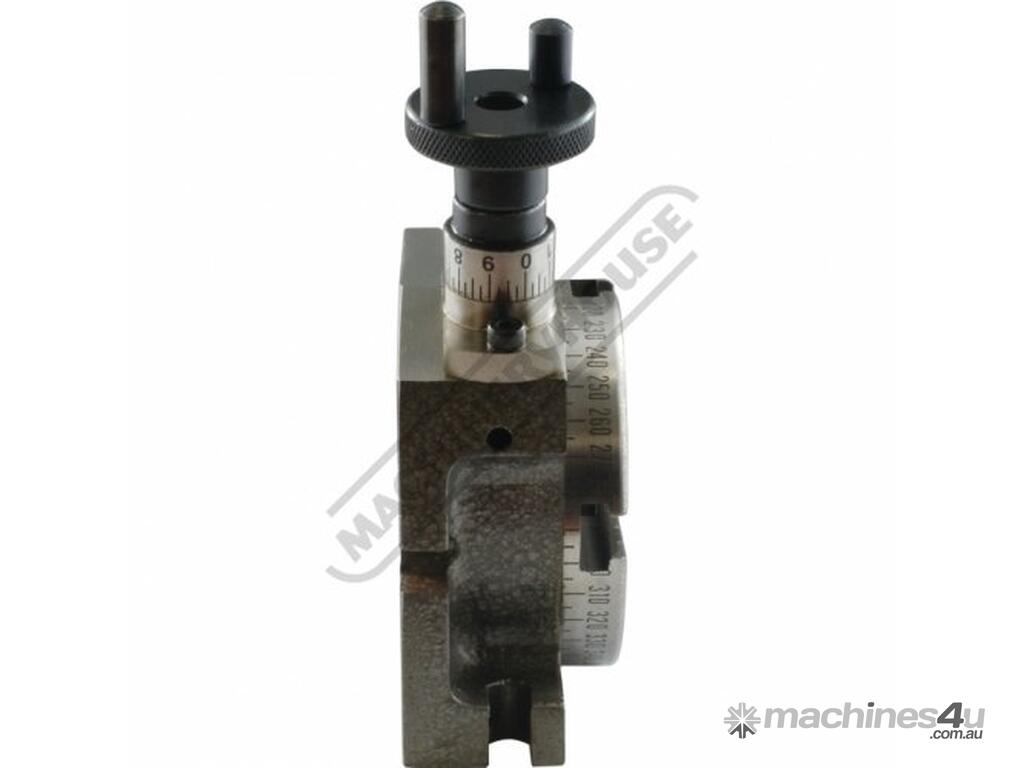

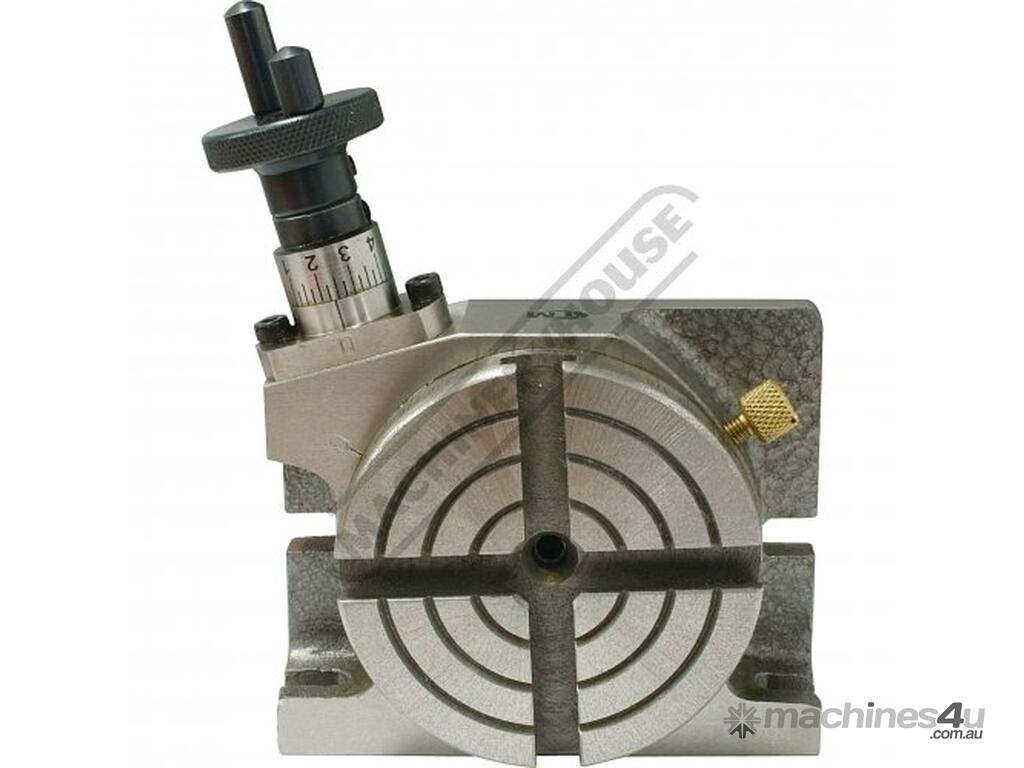

Can be used both horizontally and vertically
Height: 41.27mm
Note! No through bore


Specifications:
ORDER CODE: R001
MODEL: RT-3
Size (mm): 75
A1 (mm): ~
D (mm): 75
H (mm): 41.27
H1 (mm): ~
A (mm): ~
B (mm): ~
e (mm): ~
g (mm): ~
Number of T-Slots (No.): 4

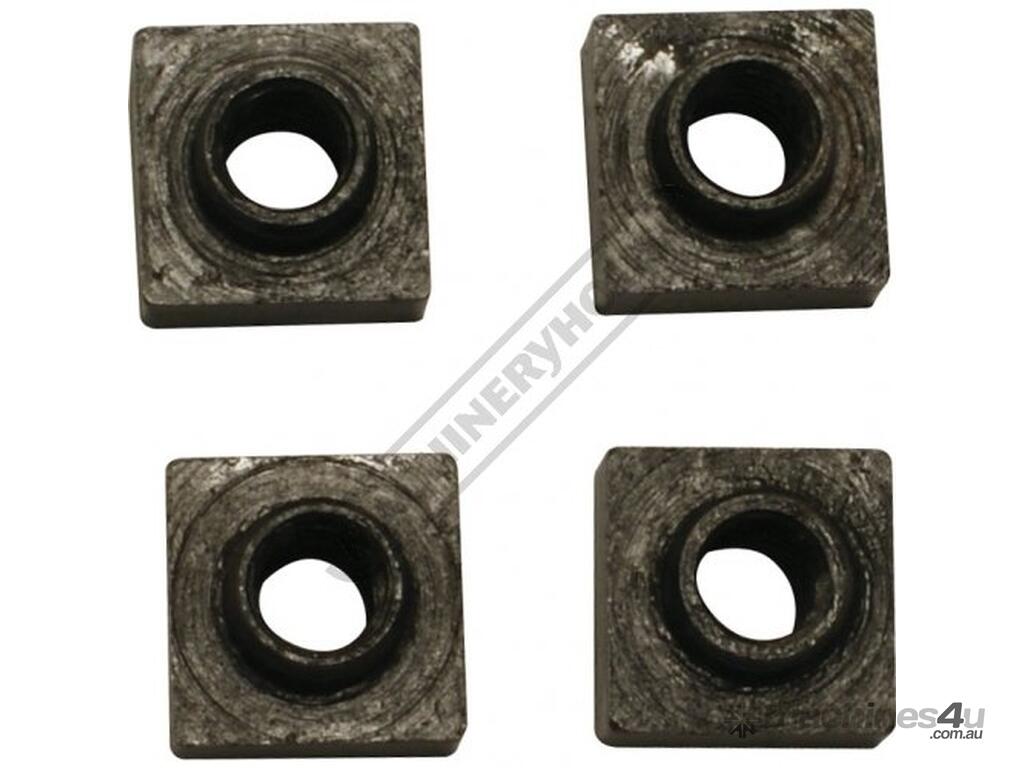

T-Slot Size (mm): 8
Taper In Centre (MT): ~
Nett Weight (kg): 3
