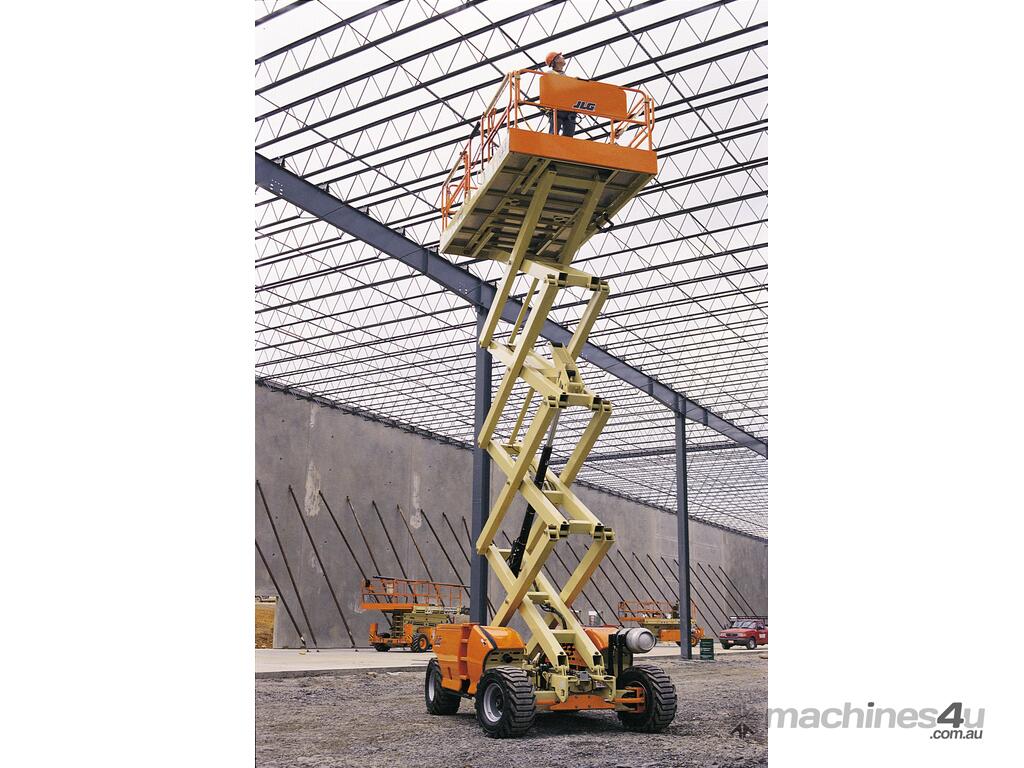

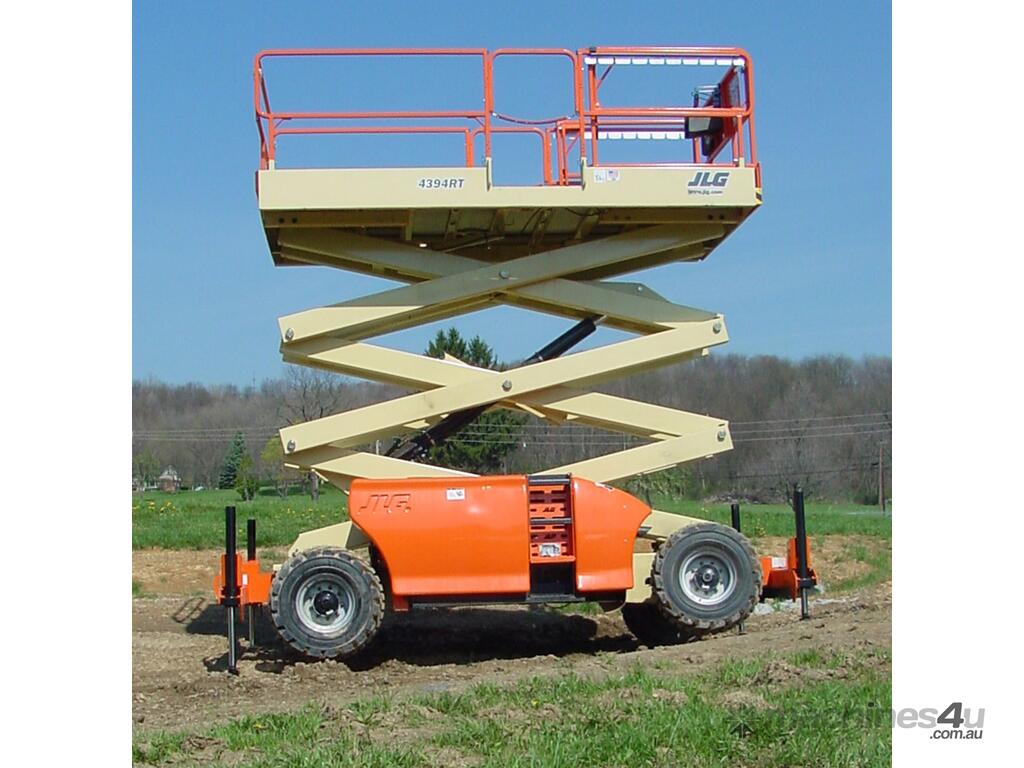

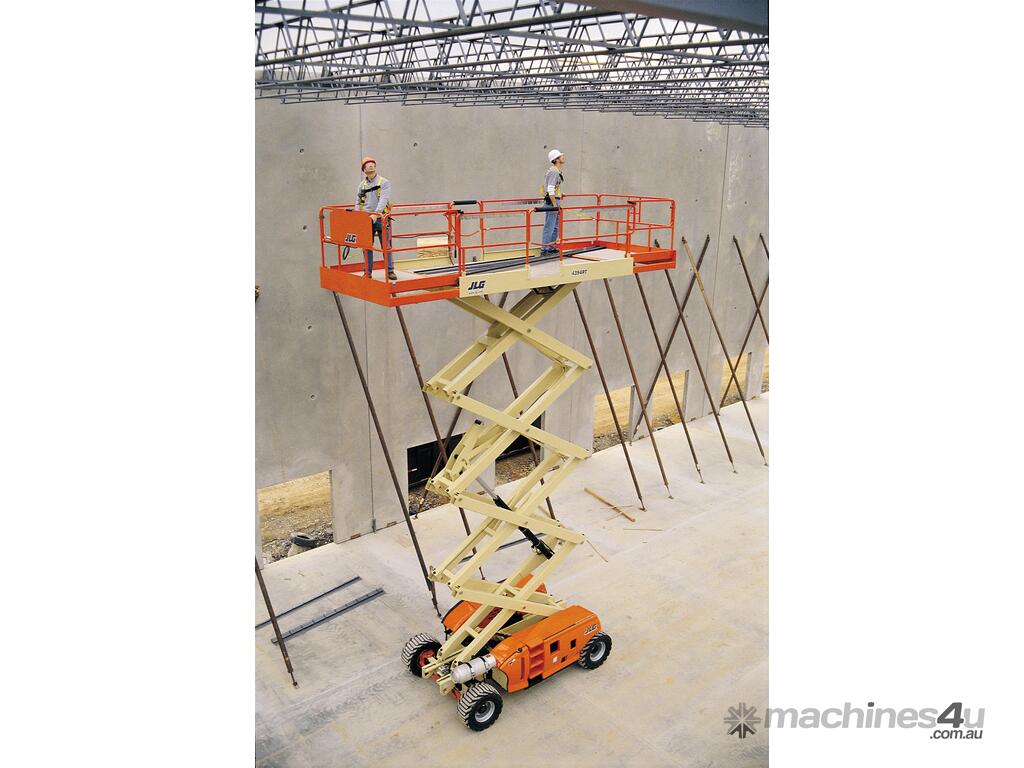

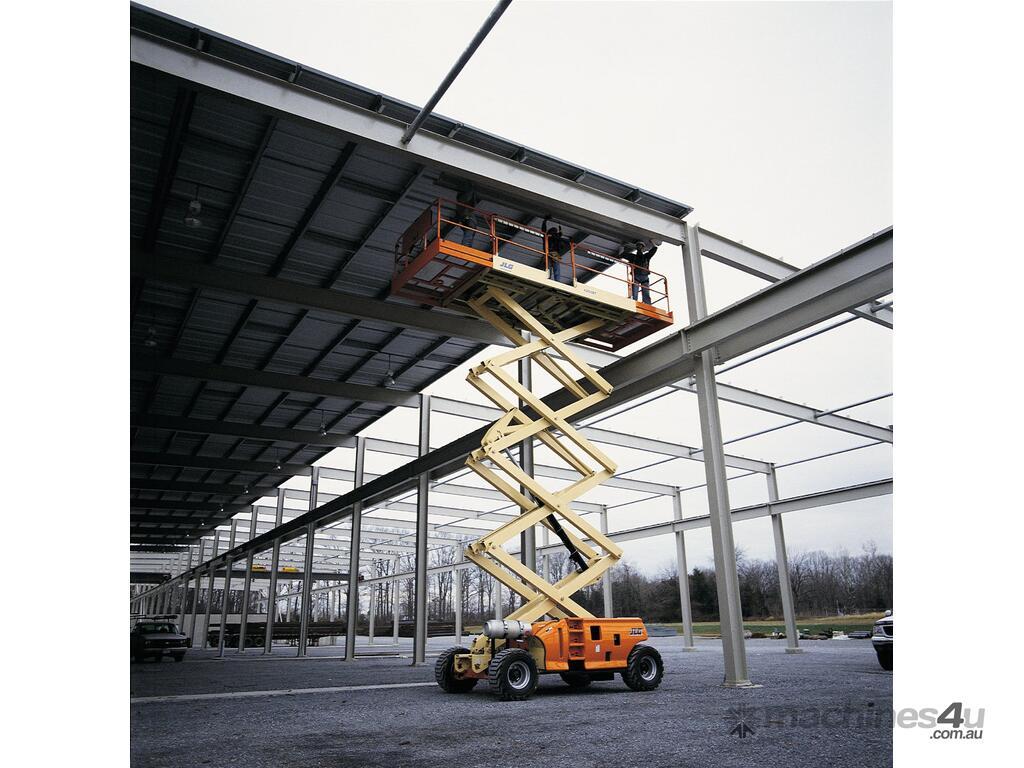

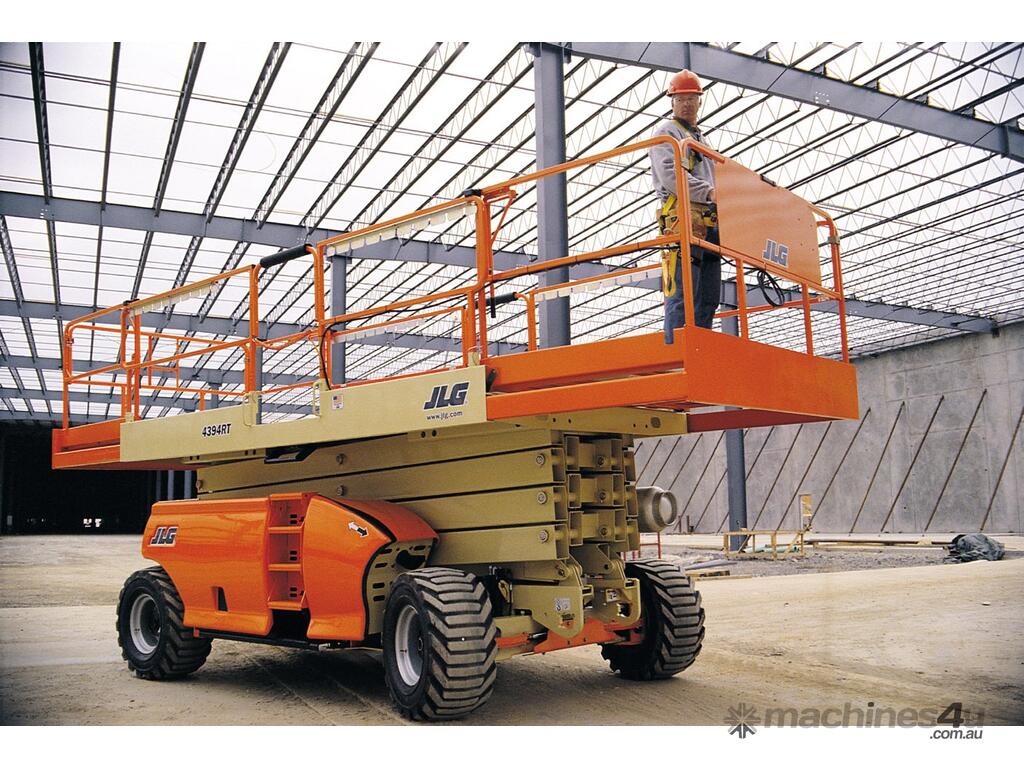

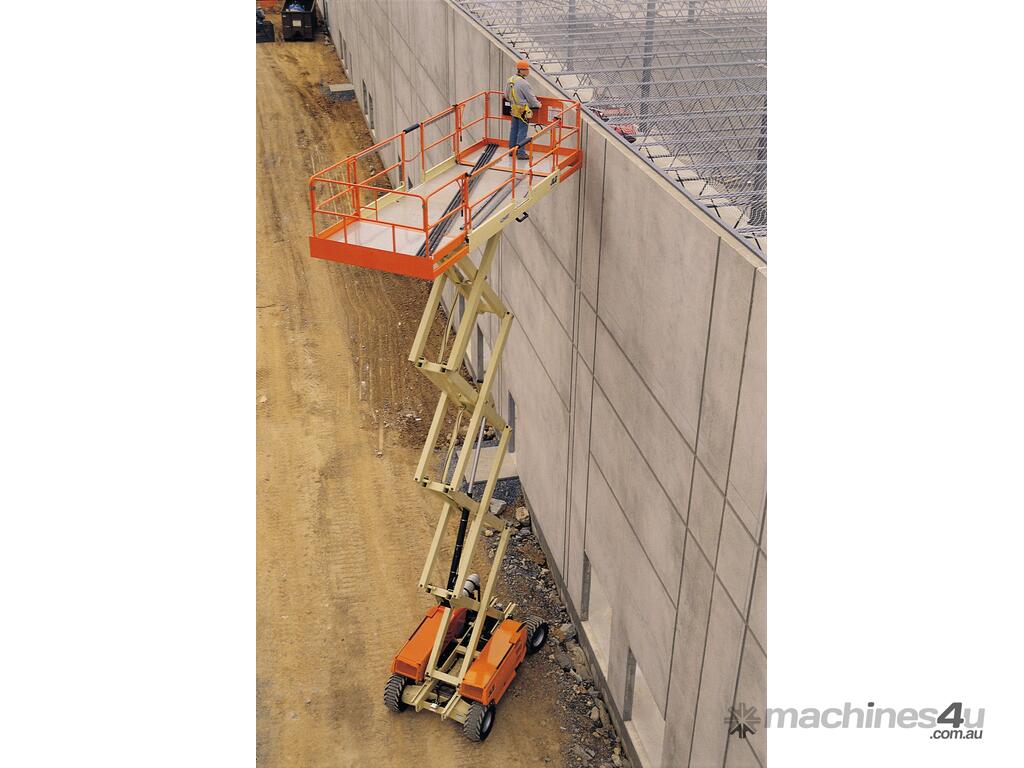

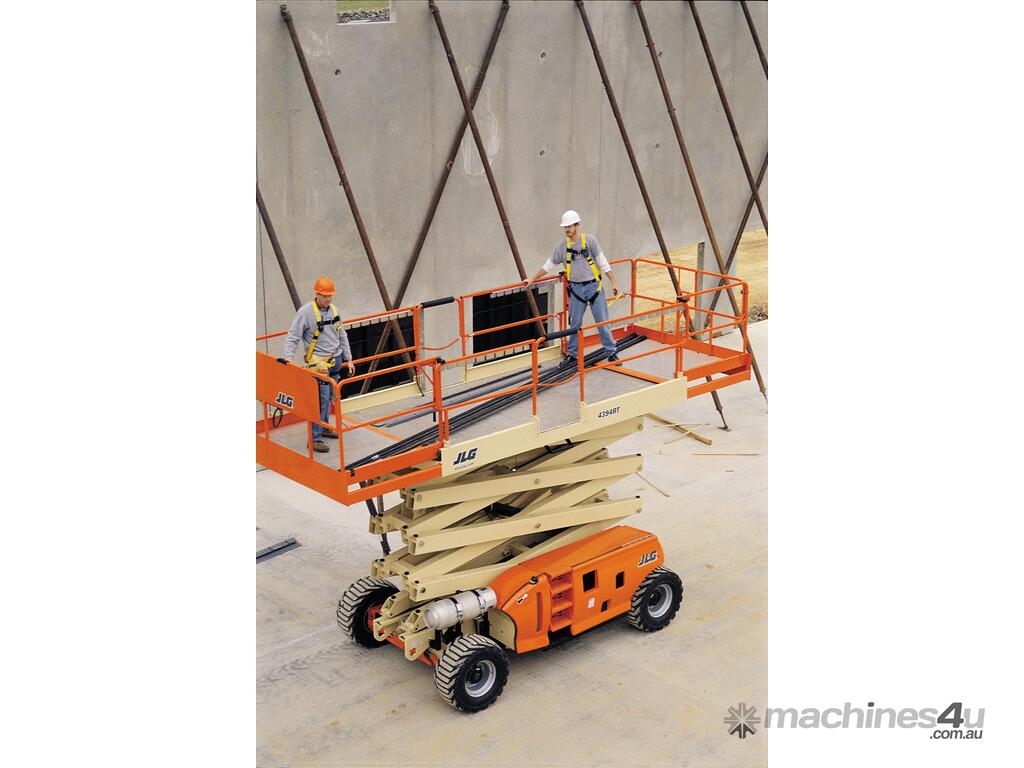

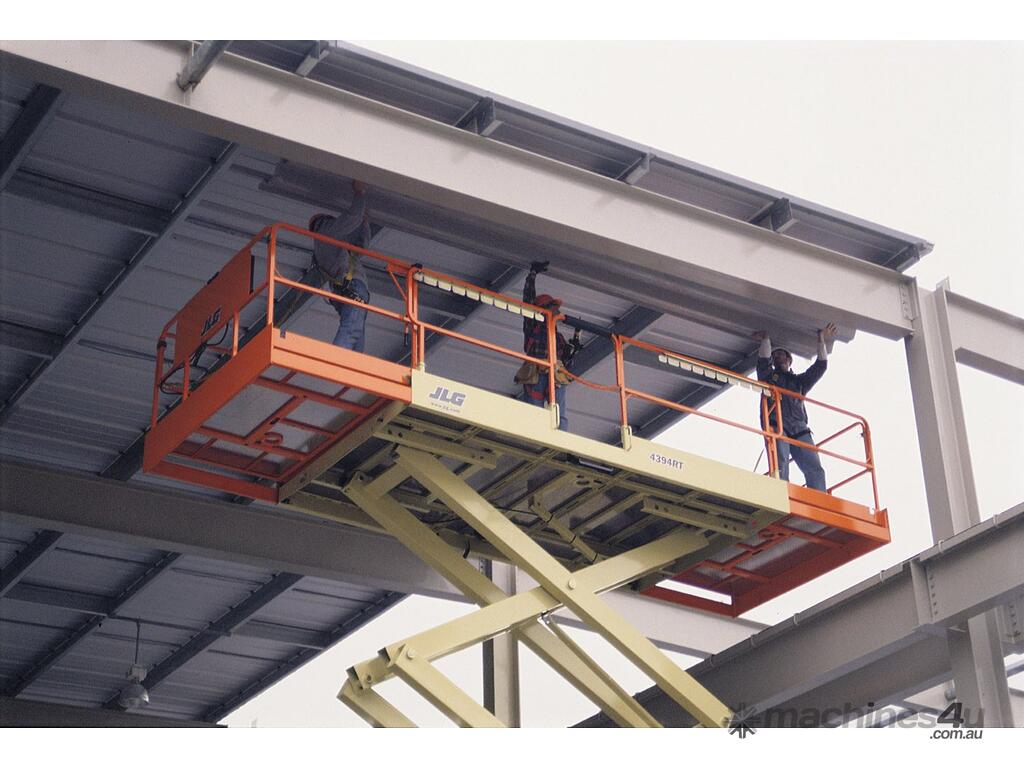

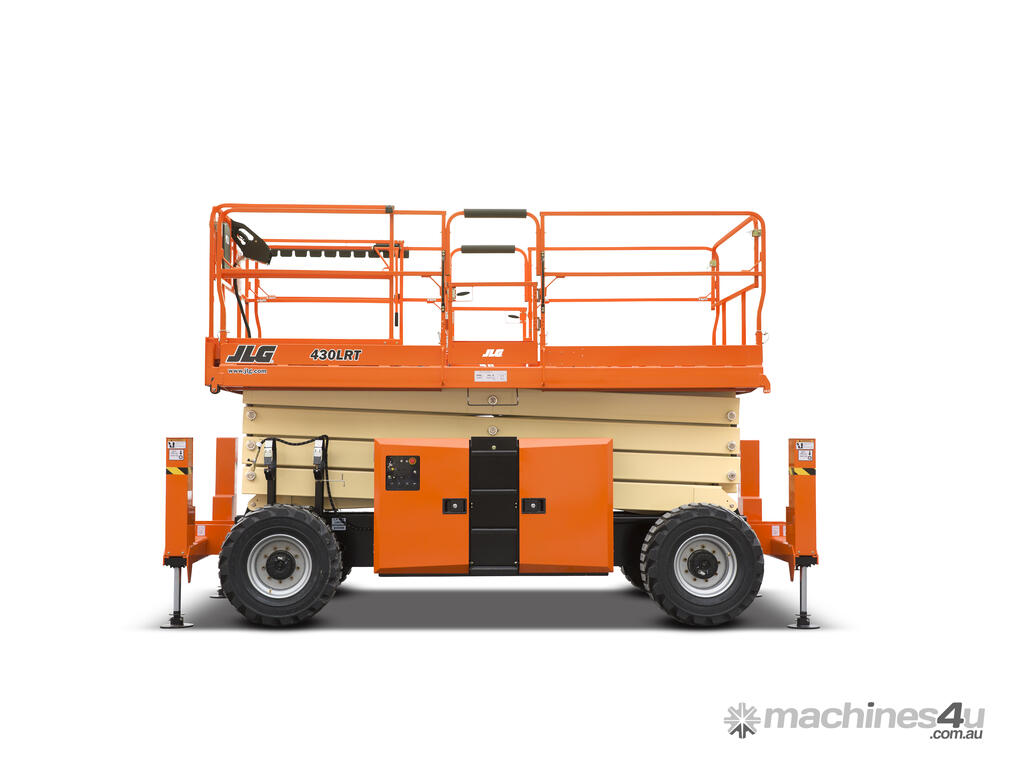

RT4394 Engine Powered Scissor Lift - 43 ft Platform Height, Enhanced 4WD Performance

RT Series Scissor Lift:

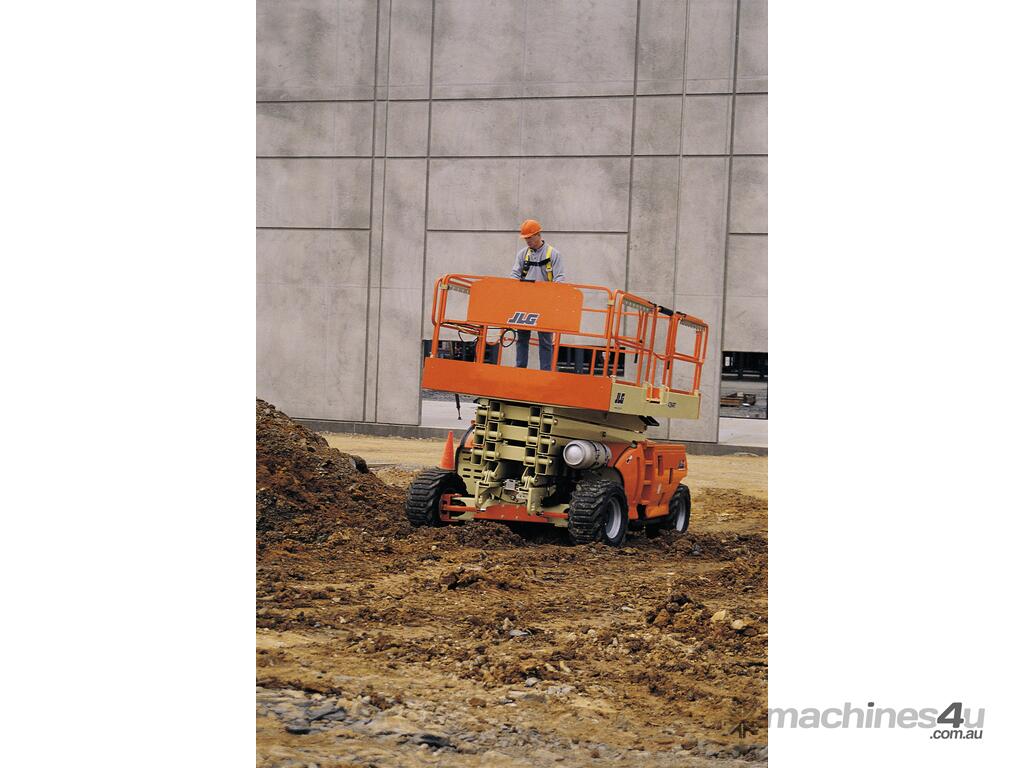

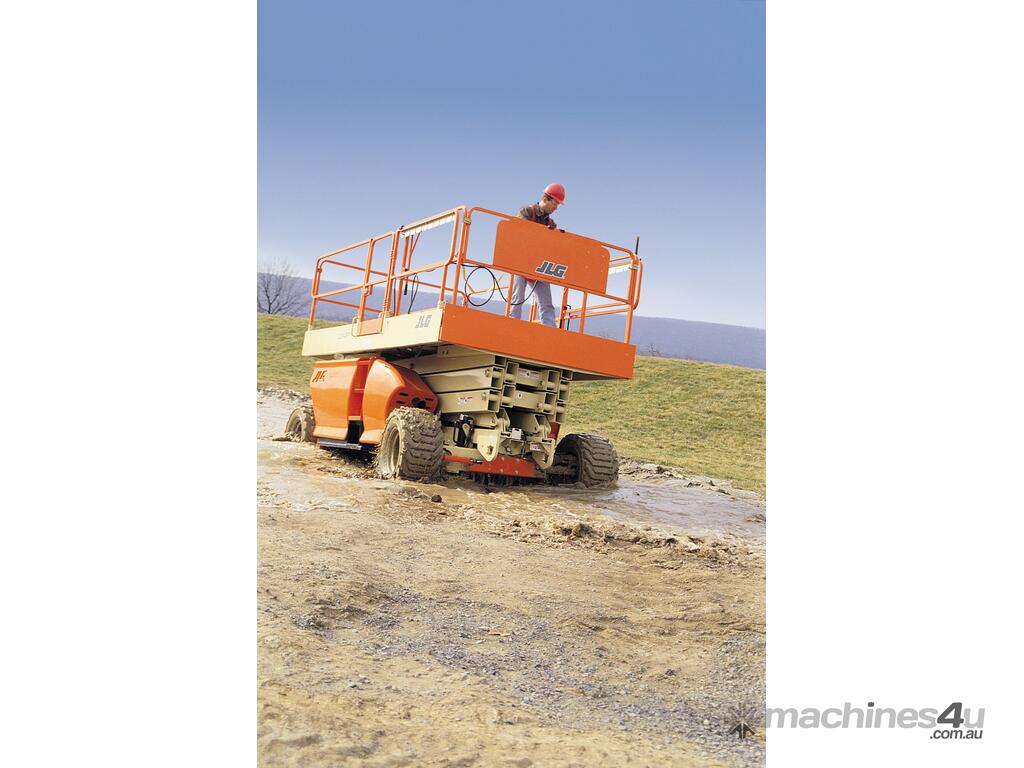

The JLG RT Series scissor lifts are built to handle tough job sites. With the power to tackle mud and ruts, these lifts provide you with the strength needed for demanding environments. The larger platforms offer over 20 feet of deck space and a capacity of up to 2,250 pounds.

Features:
Larger platform and increased lift capacity

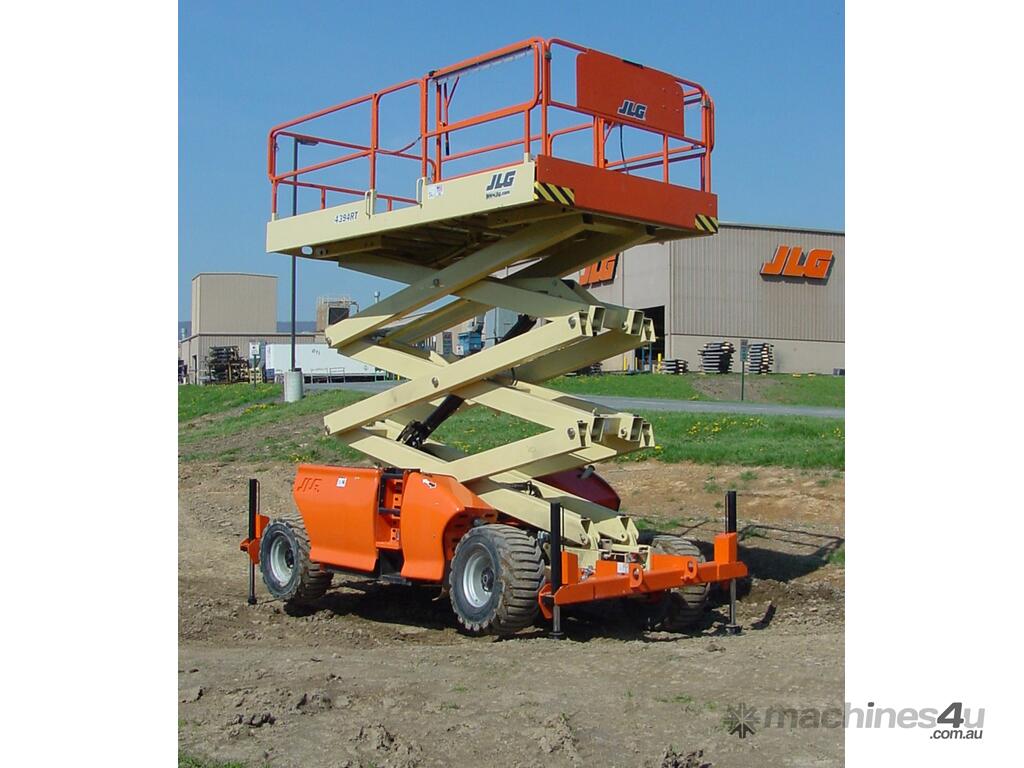

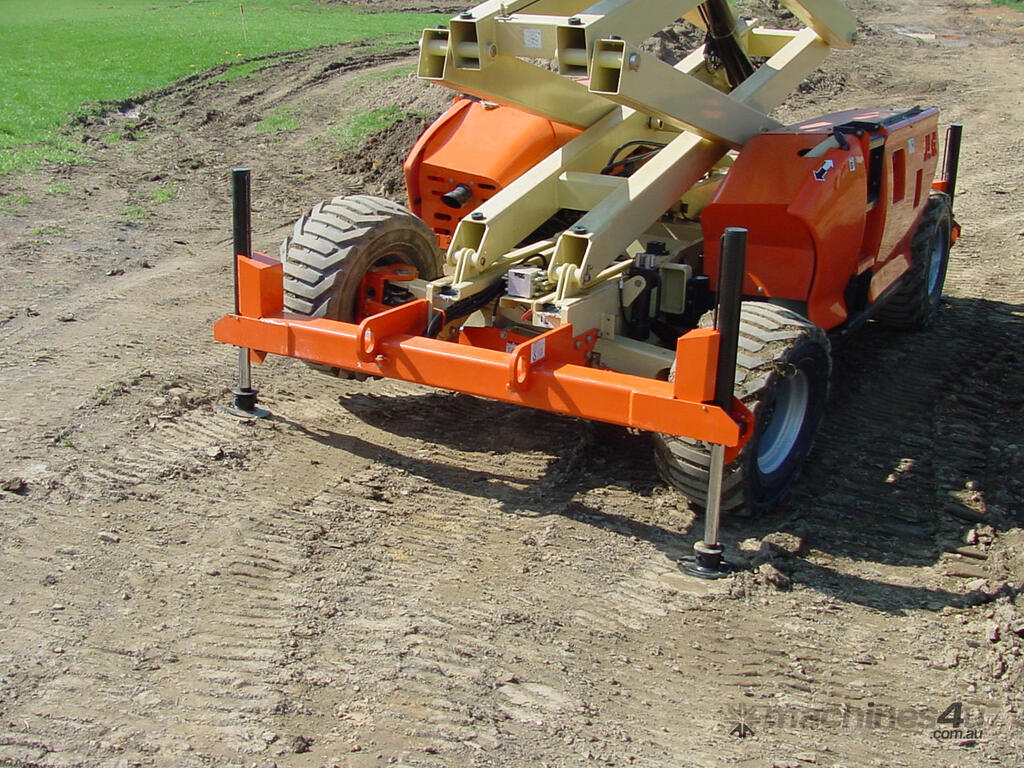

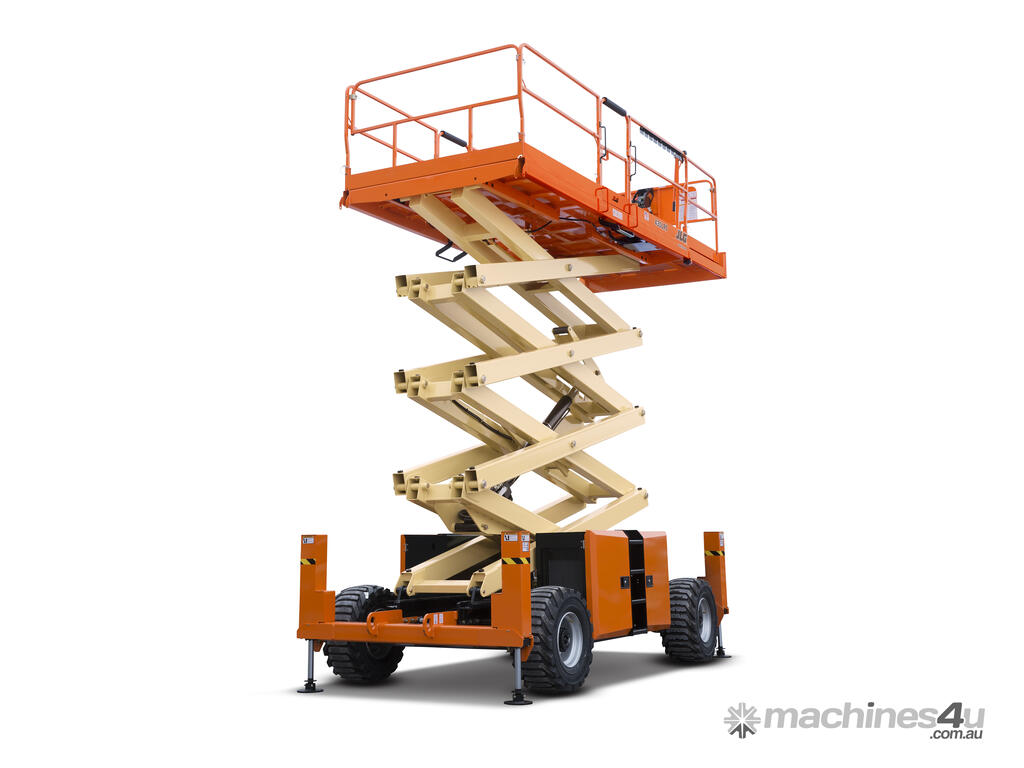

Optional one-touch leveling jacks for quicker setup
Maximum lift and lower time of 43 seconds for faster operations

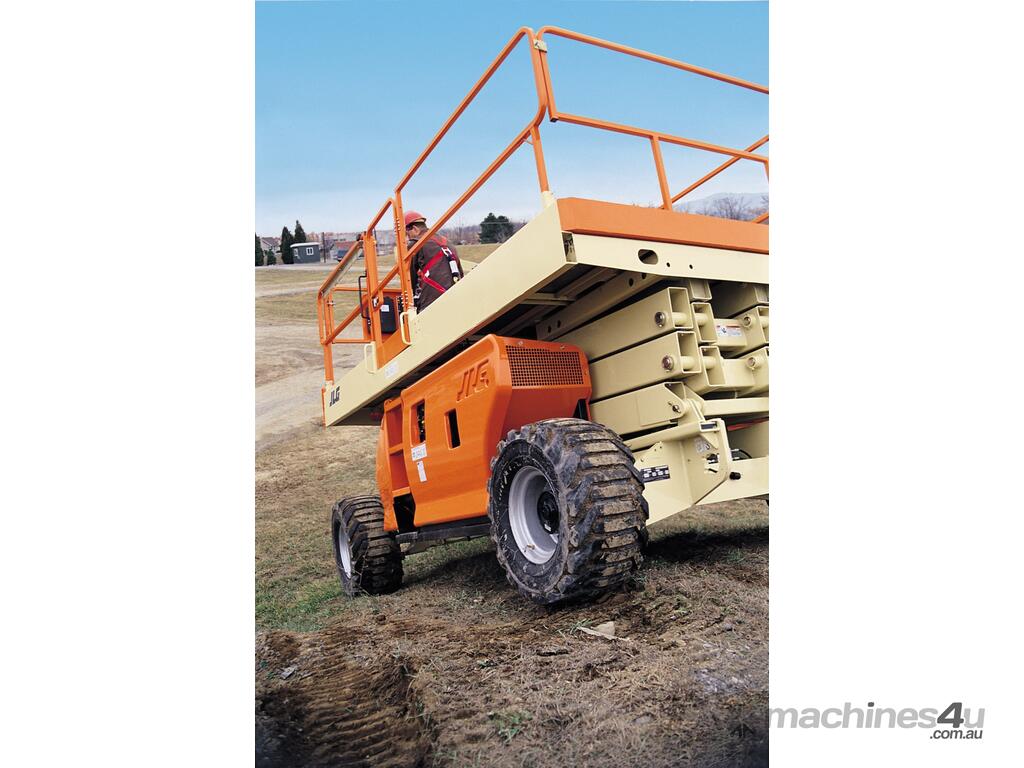

New twin-pump-powered 4WD for enhanced performance on rough terrain

Quick Specs:
Platform Height Elevated: 43 ft
Overall Width: 7 ft 10 in
Platform Capacity: 1,250 lb

Power System/Chassis:
Axle Oscillation (Optional): 8" / 20 cm
Brakes: Spring Applied

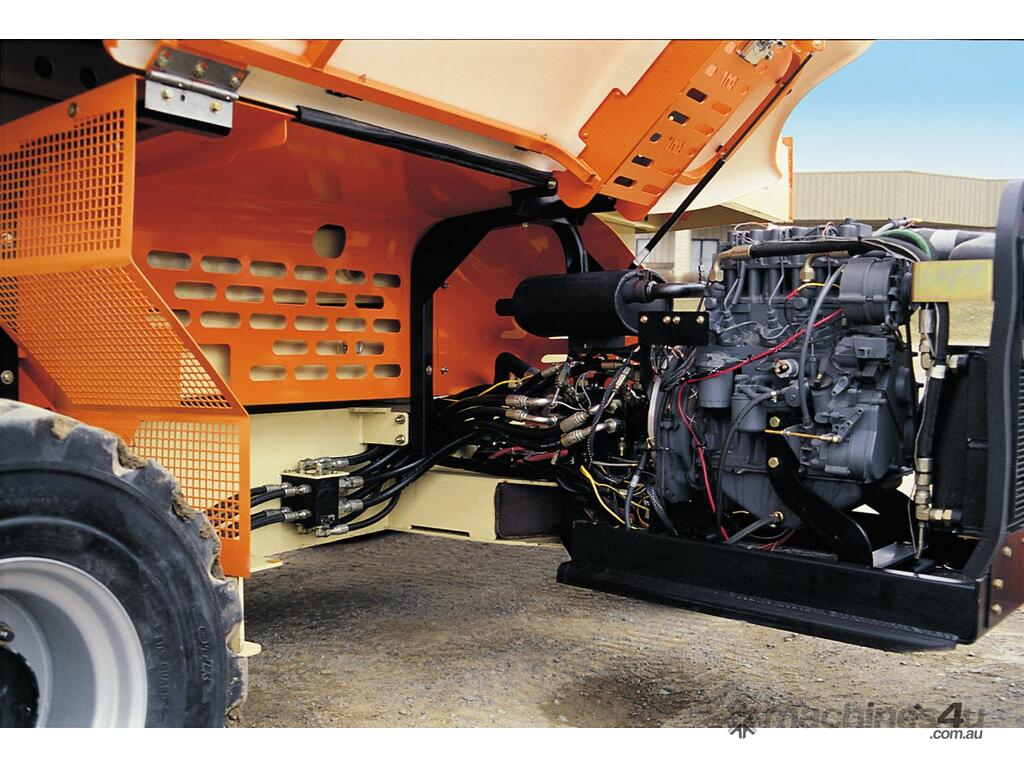

Diesel Engine: Kubota D1305
Fuel Tank Capacity: 30 gal. / 113.56 L
Hydraulic Reservoir: 40 gal. / 151.42 L

Performance Data:
Platform Capacity: 1,500 lb / 680 kg
Capacity on Extension: 500 lb / 227 kg
Capacity w/Dual Extensions: 1,250 lb / 567 kg
Lift/Lower Time: 40/43 seconds
Maximum Drive Height: Full Height
Weight* (ANSI/CSA): 15,300 lb / 6,940 kg
Ground Bearing Pressure**: 83 psi / 5.8 kg/cm²
Drive Speed (Lowered - 260MRT): 4 mph / 6.4 km/h

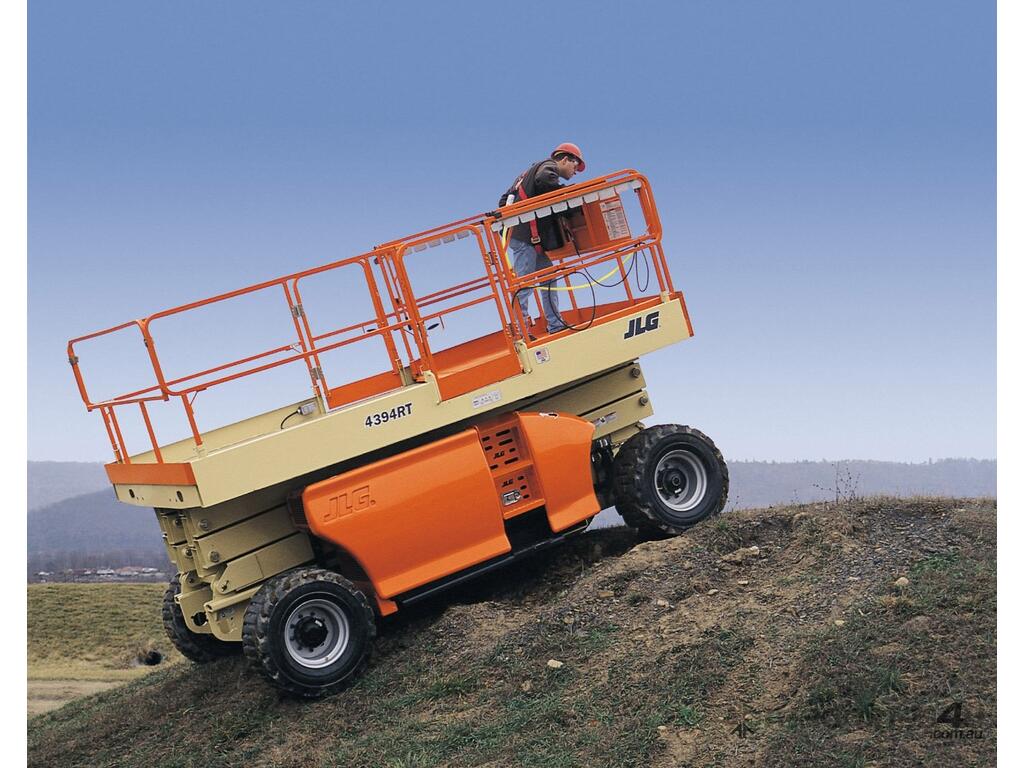

Gradeability: 45%
Turning Radius - Inside: 8' 10.5" / 2.71 m
Turning Radius - Outside: 19' 5.5" / 5.93 m
Tire Size: 33 x 15.5
Tyre Type: Superwide

Dimensions:
Platform Height (Elevated): 43' / 13.11 m
Platform Height (Lowered): 5' 10.4" / 1.79 m
Platform Railing Height: 3' 7.5" / 1.1 m
Overall Height (Rails Lowered - 3394RT & 4394RT): 7' 2.4" / 2.19 m
Stowed Height (Rails Folded - 260MRT)
Platform Dimensions: 86 x 150" / 2.18 x 3.81 m
Platform Extension: 4' / 1.22 m
Overall Length: 12' 8" / 3.86 m
Overall Width: 7' 10" / 2.39 m
Wheelbase: 9' 8" / 2.95 m
Ground Clearance: 12" / 30 cm

JLG Industries is dedicated to delivering top-tier, innovative, and sustainable access equipment that enhances productivity and guarantees safety on job sites around the world. With decades of expertise, a commitment to continuous improvement, and a focus on customer success, JLG stands as a trusted partner in the industry. Order now and experience unmatched quality and reliability with JLG!
