RTK-6 Rotary Table, Dividing Plates & 3 Jaw Chuck Kit Ø152mm

TOOLMASTER RTK-6 Rotary Table, Dividing Plates & 3 Jaw Chuck Kit Ø152mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: R0065

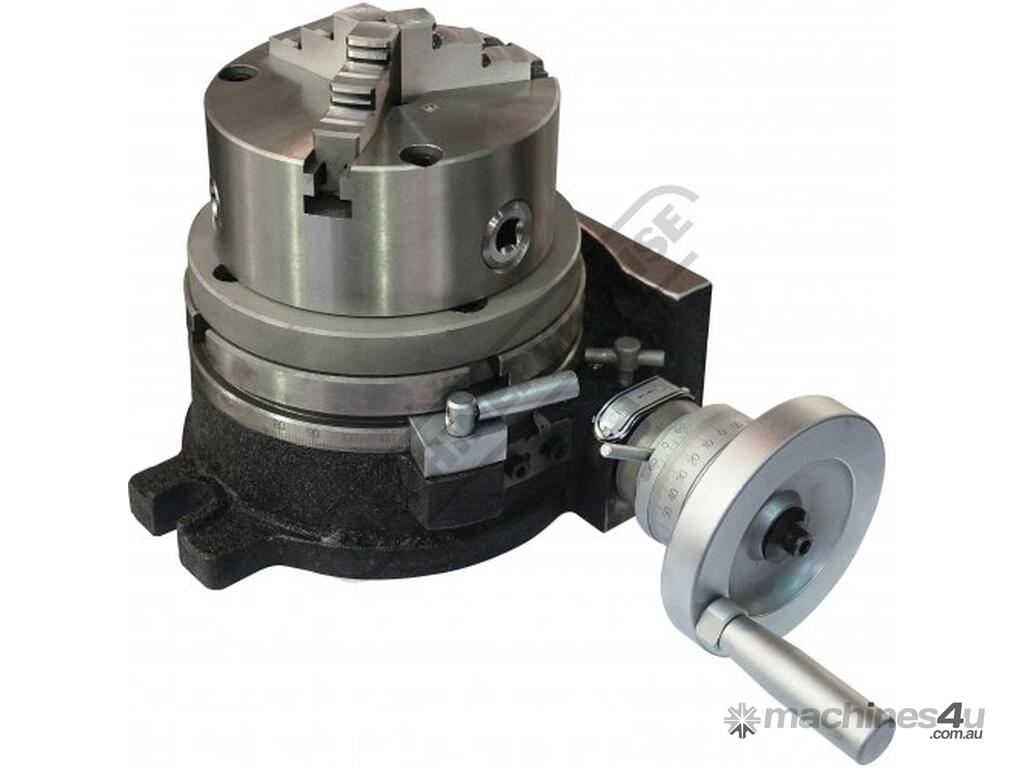

The Toolmaster Rotary Table is supplied with a 125mm 3 jaw chuck, backing plate & a set of dividing plates. Designed to be used where a precision work positioning device is required. It allows the operator to mill or drill components at exact intervals around a fixed axis.

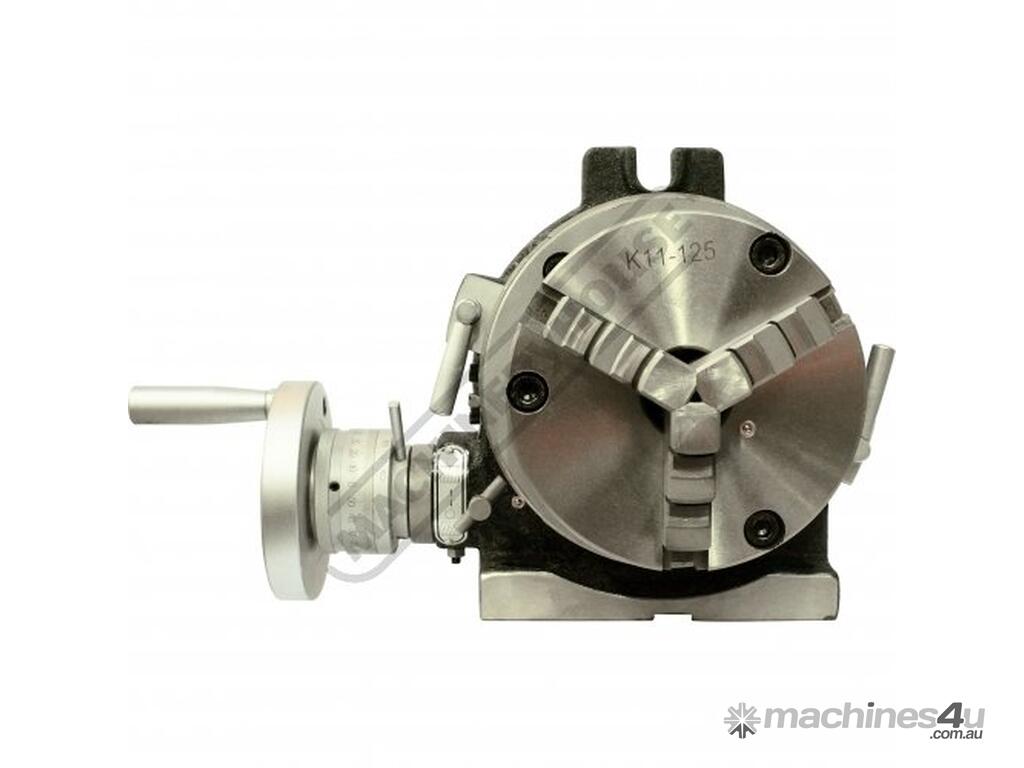

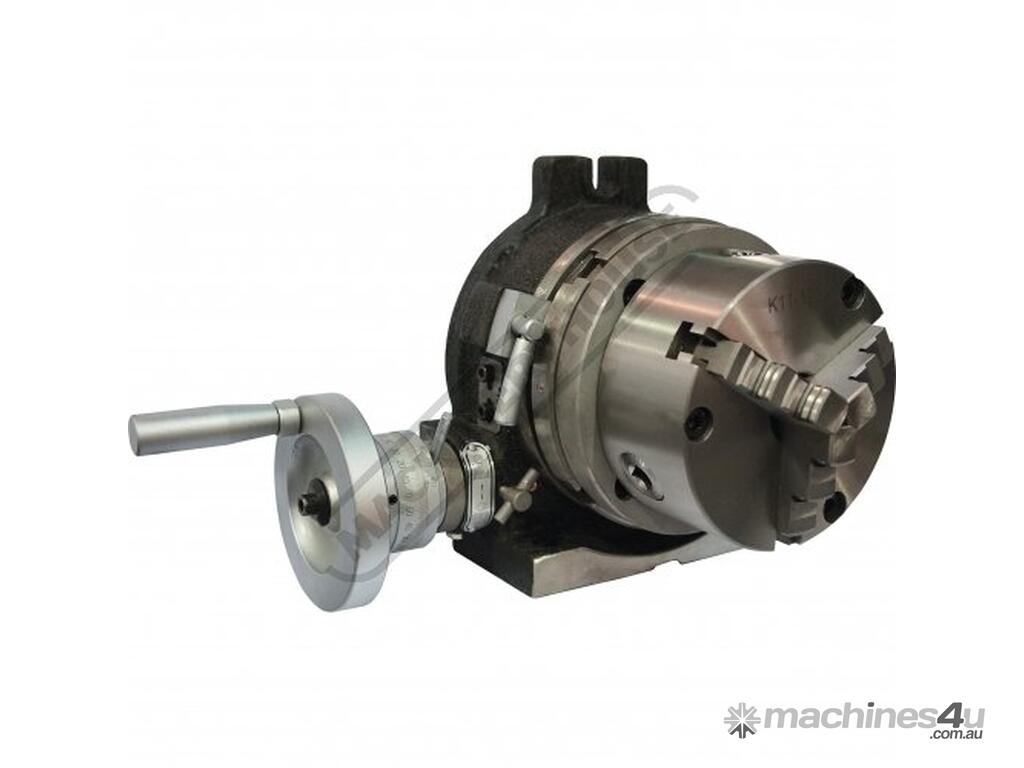

This Toolmaster Rotary Table can be used in both the horizontal or vertical plane.

Features:
The Toolmaster Rotary Table is manufactured from high-density Meehanite cast iron with ground surface areas on the table and body to ensure smooth rotation
Critical wear parts are hand finished for ultra precision
All tables are tested for accuracy using 'Heidenhain' electronic equipment to ensure continuing quality
Worm is hardened and precision ground with a ratio of 90:1
Table is graduated to a full 360º so one turn of the handle moves the table 4º
The collar on the handle is graduated with a vernier scale readings down to 10 seconds are possible

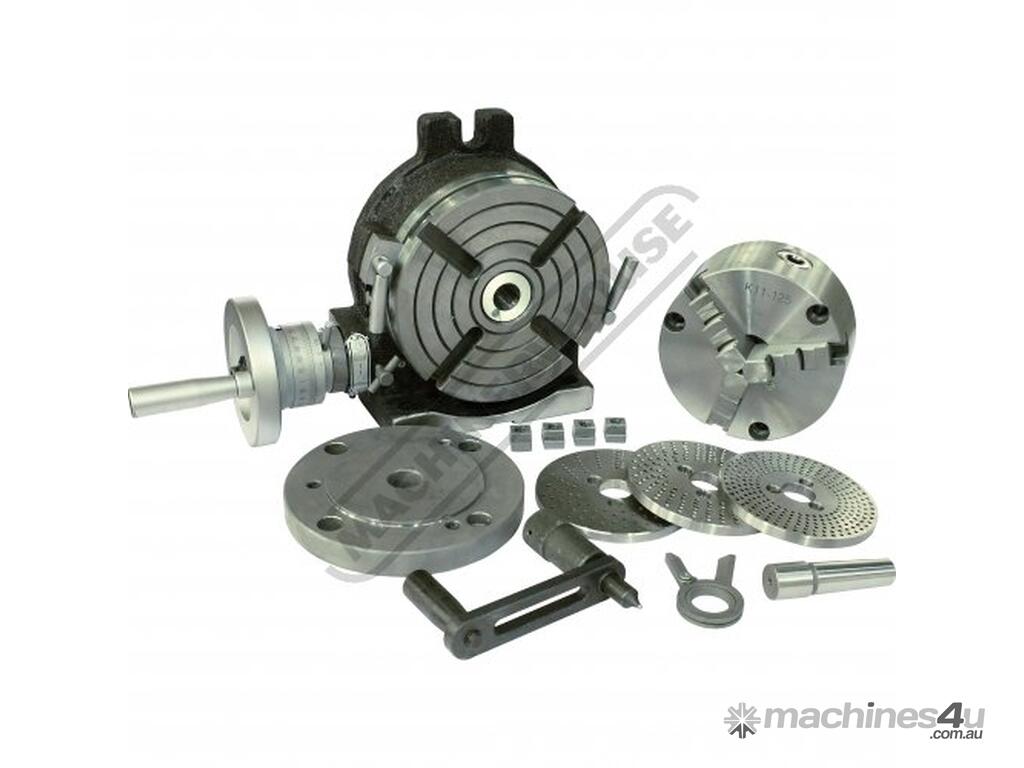

Includes:
- 152mm rotary table
- 127mm 3 jaw chuck with reverse jaws
- Adaptor plate to suit chuck
- Dividing plate set
- Chuck key



Specifications:
ORDER CODE: R0065
MODEL: RTK-6
Size (mm): 152
A1 (mm): 78
D (mm): 150
H (mm): 83
H1 (mm): 100
A (mm): 200
B (mm): 160
e (mm): 14
g (mm): 16
Number of T-Slots (No.): 4
T-Slot Size (mm): 12
Taper In Centre (MT): 2MT
Nett Weight (kg): 24
