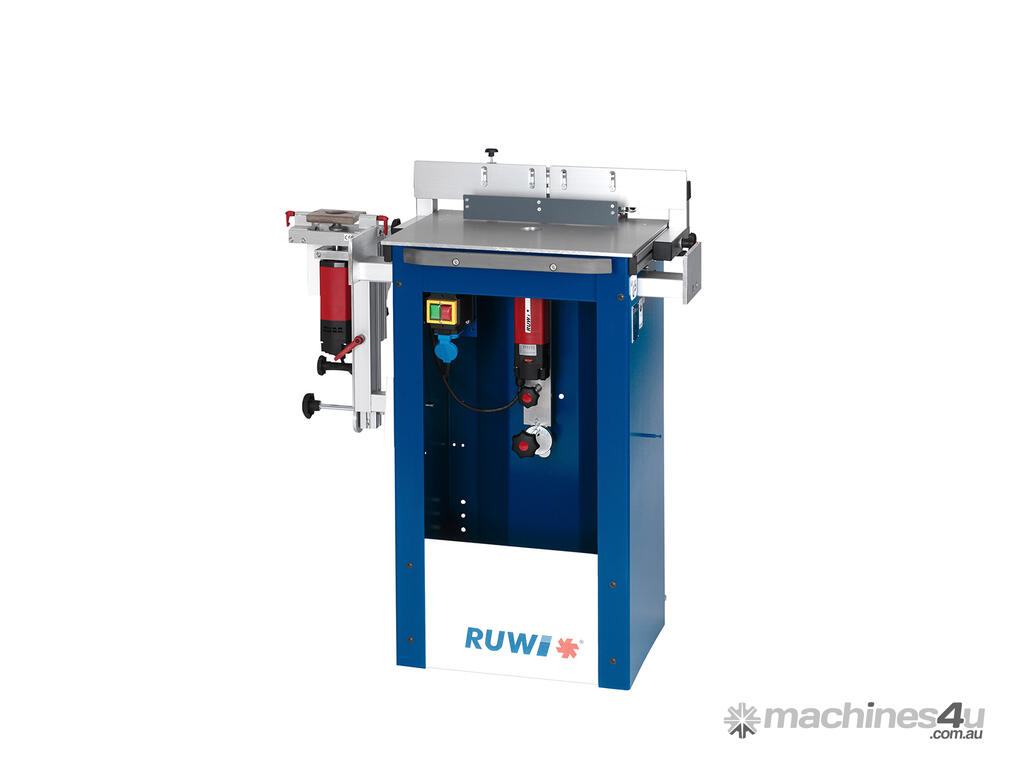

RUWI Router tables Made in Germany

RUWI are a German Manufacturer of the worlds best, accurate and streamline Router tables. If precision and accuracy is what you need then look now further. Tables available with 1 up to 10 router units in each table. Save working time with on-demand tools: Once equipped, the drive unit is always brought back to the preset position with a single movement. Mobile and flexible for use in industry and the building trade: Chamfering, grooving, flush milling.Supplement to table milling machines and CNC milling cutters. Quality and efficiency thanks to high-performance motor that can withstand continuous load

Function: Router / under router
Table length: 1070mm
Table width: 500mm
Table height: 910mm
Drive Units: 1-10
Power Consumption: 1050 watts
Voltage: 230 volts
Number of revolutions: 8000 - 25000 rpm step-less
Mobility: 4 castors
Collets: Standard ø8mm, optional ø6mm / ø6.35mm / ø10mm
Milling stroke: 43mm
Dust extraction connection: 120mm

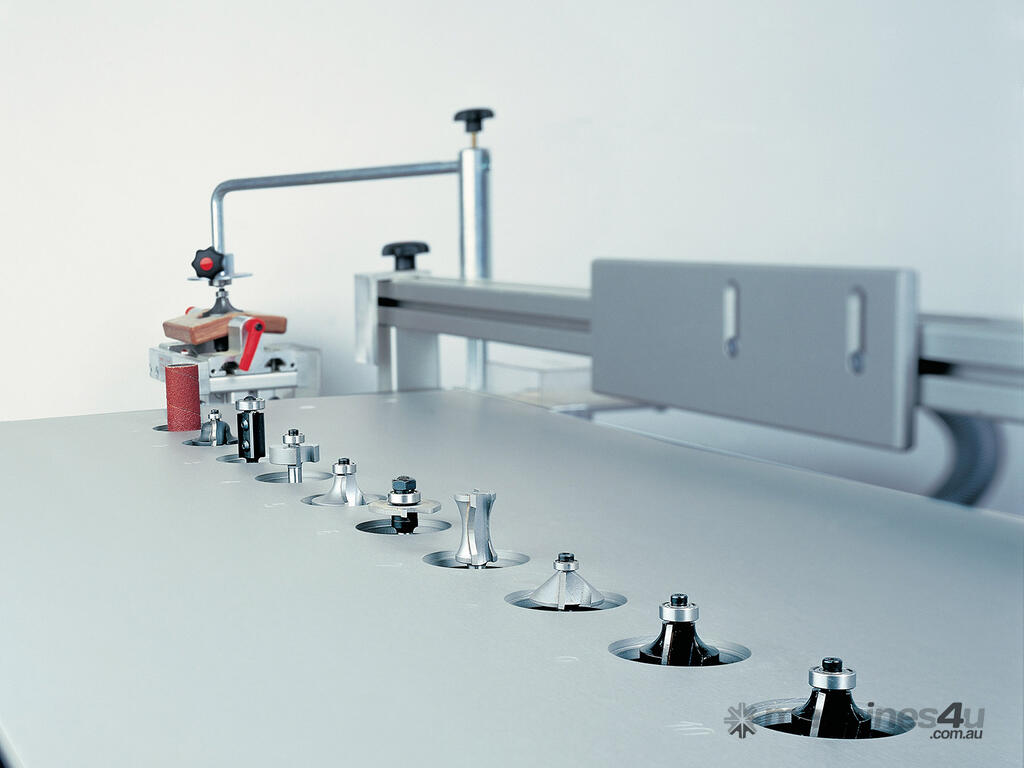

Tools on demand: 5-10
Tool height repeatable: Yes
Retrofittable drive units: Yes, expandable up to 5 pieces out of a total of 10
Weight: 130kg

– Completely pre-assembled RUWI units
– Controller can prepared for up to 10 drive units (L version only)

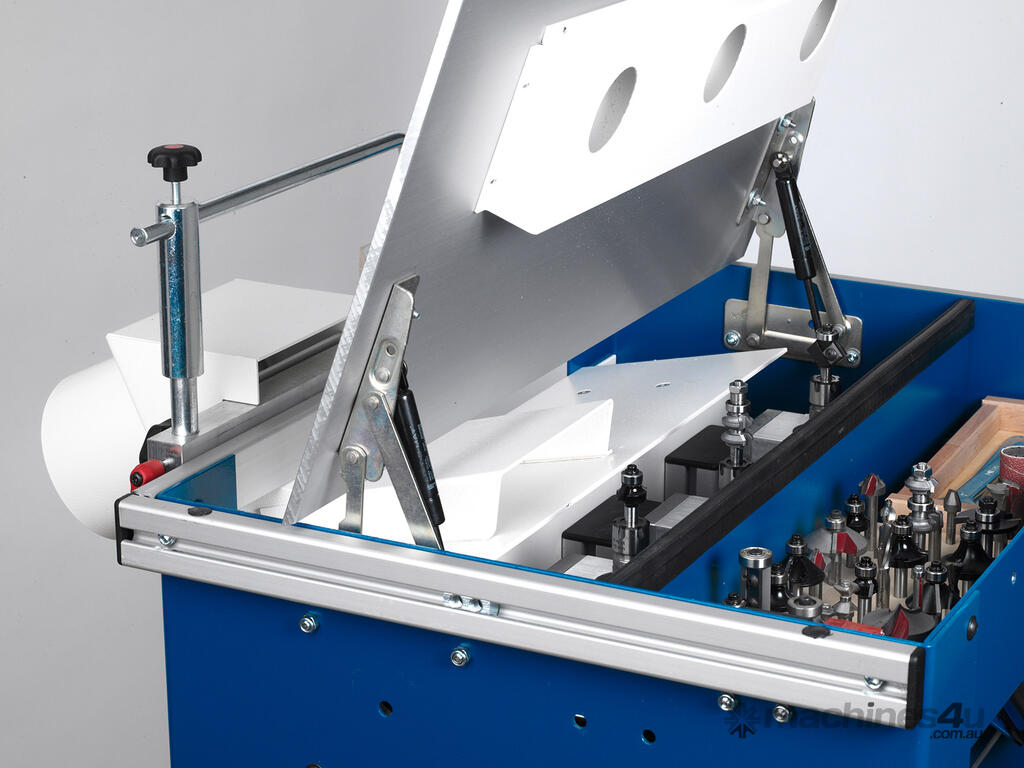

– Tool concealment
– Removable suction tunnel with suction socket ø 120 mm
- Operation manual
Advantages & Features:

High quality processing
Control electronics prevent speed fluctuations under load
Robust and heavy-duty motor
Motor with overload protection
Temperature monitoring with PTC resistor.
Soft start and starting current limitation
The counter-rotating return thread above the ball bearings reduces the penetration of dust and dirt
Quick tool change
Dust extraction above and below the table top
Tool change conveniently from above
BG and wood dust tested
Technical data:

Table size: 1070 x 500 mm
Table height: 910 mm
Drive units: 5 (optionally 10 motors)
Infinitely variable speed control: 8000 - 25000 rpm
Motor power: 1050 Watt for continuous industrial use
Voltage: 230 V
Milling spindle: 22 mm diameter
Cutting stroke: 43 mm
Collets: 8 mm (standard) optionally also 6 mm; 6,35 mm and 10mm
Extraction connection: 120mm
Mobility: 4 swivel castors
Weight: 130 kg
Scope of delivery:

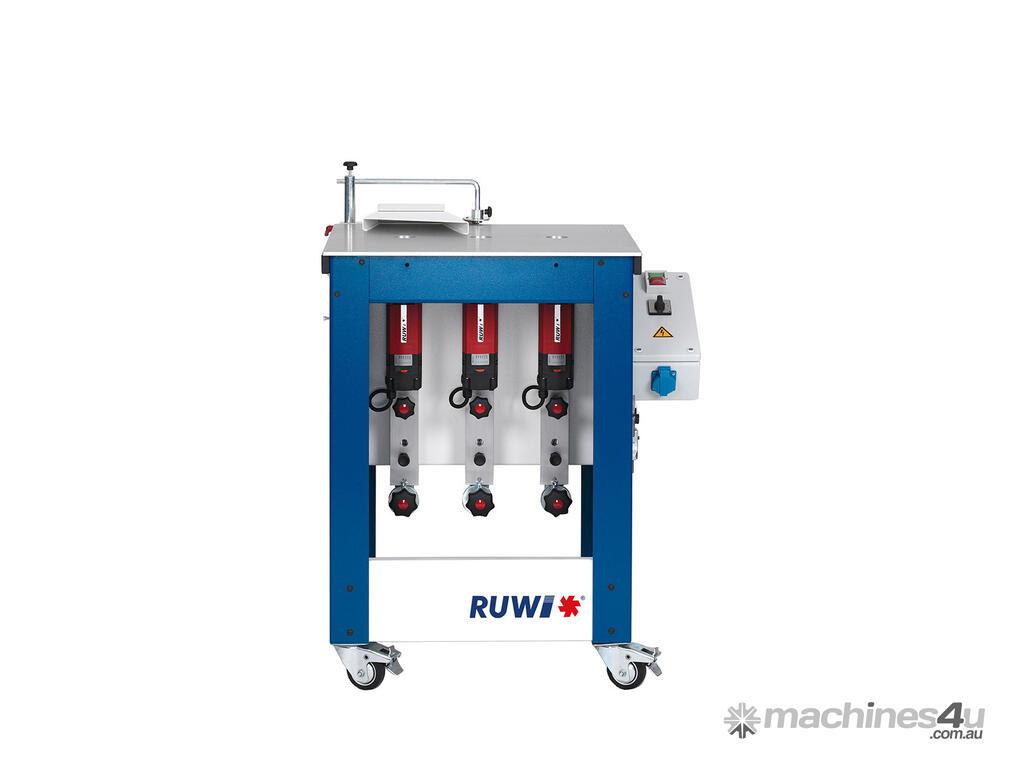

1x Table router completely pre-assembled with 5 drive units
control prepared for up to 10 drive units
workpiece cover
removable Extraction tube with connection Ø 120mm
