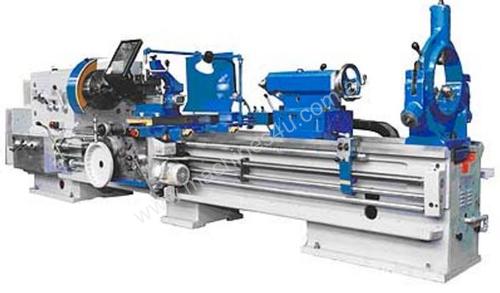

RYAZAN MODEL 16K40-3 Manual Lathe

This machine is heavy duty construction similar to the 1M63 series except with increased centre height and increased spindle main drive power with maximum diameter over the bed 830mm, maximum diameter over the carriage 490mm, distance between centres 3000mm. Gap bed optional.

FEATURES

This machine is a heavy duty Lathe built to toolroom standards and is very accurate both in diameter turning and longitudinal accuracy. The main speed box has 22 speeds ranging from 10 1250 rpm and is in a fully enclosed gearbox with its own lubrication system. All gears and spline shafts in the gearbox and feed boxes are hardened and ground and of course the bed is hardened and ground. The clutches are manual, one forward clutch and one reverse clutch actuated by a lever mounted just below the chuck on the side of the bed and another lever on the right hand side of the saddle.

The speed box is also fitted with an electro magnetic brake which is automatically applied when the lever controlling forward and reverse direction is put in the neutral position. The feed box is completely separate to the main gearbox and is located at the front of the machine below the main gearbox. It has its own separate lubrication system and oil reservoir and the controls mounted on the front of the feed box control the feeds, the number being 32 and also thread cutting changes of which there are a full range of metric, English and modular threads.

The machine can be started by an electrical switch gear mounted on two places, one on the headstock and one on the saddle. Two switches are supplied for convenience when using the lathe on long work.

The saddle is supplied with quick traverse which is driven through a separate motor mounted on the right hand lower end of the saddle and supplies drive through a gear box which has a separate lubrication system to drive the quick traverse longitudinal, cross slide, and compound slide. The quick traverse is controlled by a four way switch mounted on a panel above the quick traverse electric motor. The compound slide has a movement of 200mm. This can be set at any angle for use for machining tapers with the aid of a power feed. It is possible to use a combination of the top slide and longitudinal slide or a combination of top slide, longitudinal and cross slide feeds with the aid of a formula supplied in the manual to cut tapers of any angle using power feeds up to a maximum length of approximately 900mm.

The tailstock is fitted with a number 6 morse taper and is similar to all other tailstocks with one exception when undoing the four bolts that clamp it to the bed it raises up on spring loaded wheels making it very easy to slide down the length of the bed.

The machine is also supplied with two steadies, one fixed steady which will take a maximum diameter of 350mm and it is fitted with rollers, ideal for carrying very heavy work. The other is a travelling steady, maximum diameter approx. 150mm.

Machines with ‘G’ in the Model Number are machines with gap bed, for example 16K40G x 3000mm. Please refer to drawing number 06 1022 attached which gives details of the loads placed on the foundation of this machine. The foundation depth should be calculated by a Civil Engineer using this chart and the results of soil test.

SPECIFICATIONS

Maximum Swing – over bed 830mm
Over the cross slide 490mm
Maximum length of work accommodated 3000mm
Spindle bore diameter 105mm
Power of main drive electric motor 18.5kW
Electric motor starting system D.O.L
Overall dimensions – Length 5240mm
Overall dimensions – Width 1780mm
Overall dimensions – Height 1550mm
Machine mass with electrical equipment, kgs 6200
Dial Division value – longitudinal 1.0mm
Dial Division value – cross 0.1mm
Number of feed rates – longitudinal 32
Number of feed rates – cross 32
Range of Feed Rates, mm/rev. – longitudinal 0.060 – 1.400
Range of Feed Rates, mm/rev. – cross 0.024 – 0.518
Rapid traverse Feed meters/minute – longitudinal 5.2
Rapid traverse Feed meters/minute – cross 2
Range of thread pitches cut – metric, mm 1-224
Range of thread pitches cut – module, mm 0.25-0.5
Range of thread pitches cut – inches, t.p.i. 28-0.25
Maximum traverse 220mm
Dial Division Value,mm 0.05mm
Maximum swivel, degrees +/- 90
Swivel scale division value, degrees 1
Distance from tool bearing surface to centre line 50mm
No. of spindle speeds 22
Range of Spindle rotation frequencies 10-1250
Maximum quill adjustment 240mm
Quill socket taper No. 5 morse
Maximum offset +/-10mm
Swing in gap 1070mm
Length of bed gap from spindle flange face 450mm

STANDARD ACCESSORIES

Electrical equipment
Tool Kit
Stationery workrest
Coolant System
Travelling workrest
Centres (2 pieces)
Three Jaw Chuck 315mm
Service Manual
Four Jaw Chuck 630mm

OPTIONAL ACCESSORIES

400mm 3-jaw chuck
500mm 4-jaw chuck
Taper Turning Attachment
Extra large steady rest 200-410mm
Digital Readout System
Live Centre
