RYAZAN MODEL RT417RF3-3 CNC Lathe

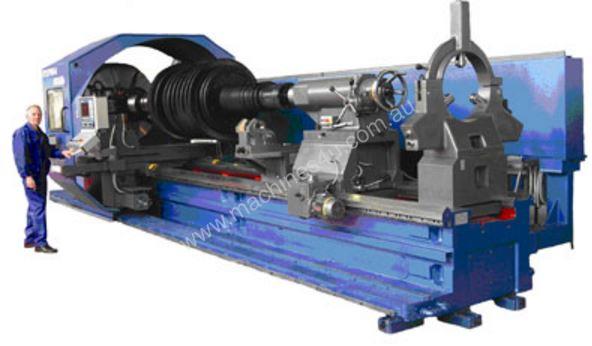

The teach-in heavy duty lathe model RT417RF3 has been specially designed for manual or CNC operation. It combines the technological features of a manual conventional lathe and the advantages of a heavy duty CNC lathe.


FEATURES

The bed of the RT417RF3 teach-in lathe has double V-type guideways for the carriage which maximises the rigidity, accuracy and life of the guideways. There is a third guideway at the base of the apron which has two roller guides. All guideways are hardened and ground.

To enhance the precision headstock of the lathe, it has 3 programmable speed ranges engaged automatically by the CNC system.. The four main drive speed ranges combined with powerful 60kW AC digital spindle drive provide a wide range of spindle rotation speeds making the machine suitable for both precision and powerful cutting jobs.

The carriage is fed along hardened and ground steel racks with automatic backlash compensation. Linear scales are provided for the longitudinal movement guaranteeing positional accuracy along the entire length of the machine.

The cross-slide feed is via ball screw transmission from an AC servo motor through gear link belt transmission on box guideways.

The machine is supplied with CNC controlled tool turret. There are two types of tool turrets available – one with horizontal axis (disc type) with 6, 8 or 12 tool positions or vertical axis with 4 or 6 positions. As an option, turrets can be supplied with milling spindles and C-axis

The heavy duty tailstock, giving the machine a maximum workpiece weight between centres of 20,000 kg is equipped with a live centre and a fixation force controlled and monitored by CNC system. The tailstock drive is mechanized.
The lathe is equipped with a number of rests of different designs. – Fixed closed rest with three rollers – An open roller rest with two rollers

The manual turn lathe is equipped with Siemens 840D, Fanuc Oi CNC and drives. All electrical equipment is certified and complies with CE standards.

Automatic lubrication system of the machine is provided.

Lathe conforms to the CE safety norms approved by CE committee. The RT417RF3 design features include cutting zone sliding cover, which protects all of the carriage. The CNC controls are mounted on an enclosure on the right hand side of the apron. The apron has control handles on it and the main CNC controls are to the right on a cantilever console. There are two electronic hand wheels on the front face of the apron providing crosswise x-axis and longitudinal z-axis.

The technical, ergonomic and accuracy related characteristics of the RT417RF3 correspond with those of the best machines produced by Wohlenberg (Germany), Safop (Italy) and Gurutzpe (Spain).

SPECIFICATIONS

Swing: mm – Set over bed 1900
Swing: mm – Machined over bed 1700
Swing: mm – Machined over carriage 1400
Workpiece maximum length, mm 3000
Spindle bore, mm 160
Workpiece maximum mass, kg 20000
Maximum spindle torque, kNm 25
Spindle speed range, rpm 2..600
Cutting feedrate – mm/min – X-axis 1..6000
Cutting feedrate – mm/min – Z-axis 1..6000
Quick traverse – mm/min- X-axis 7500
Quick traverse – mm/min- Z-axis 15000
Spindle power (10 mins./continuous), kW 60
Lathe dimensions, mm – Length 8750
Lathe dimensions, mm – Width 3445
Lathe dimensions, mm – Height 2475
Lathe dimensions, mm – Mass, kg 20550

STANDARD ACCESSORIES

1500mm 4-Jaw chuck
Steady rest
Centres (2)
Maintenance toolkit
Operation & maintenance manual

OPTIONAL ACCESSORIES

Chip conveyor
V-type supports
Automatic turret
C-axis with milling turret
Heavy duty closed roller steady 180-650mm
Heavy duty closed roller steady 600-1100mm
Heavy duty open roller steady 900-1300mm
Main spindle drive power 90 kW constant
Spindle bore option 250mm
Spindle bore option 320mm
Please note that the information shown above is subject to change without notice.
