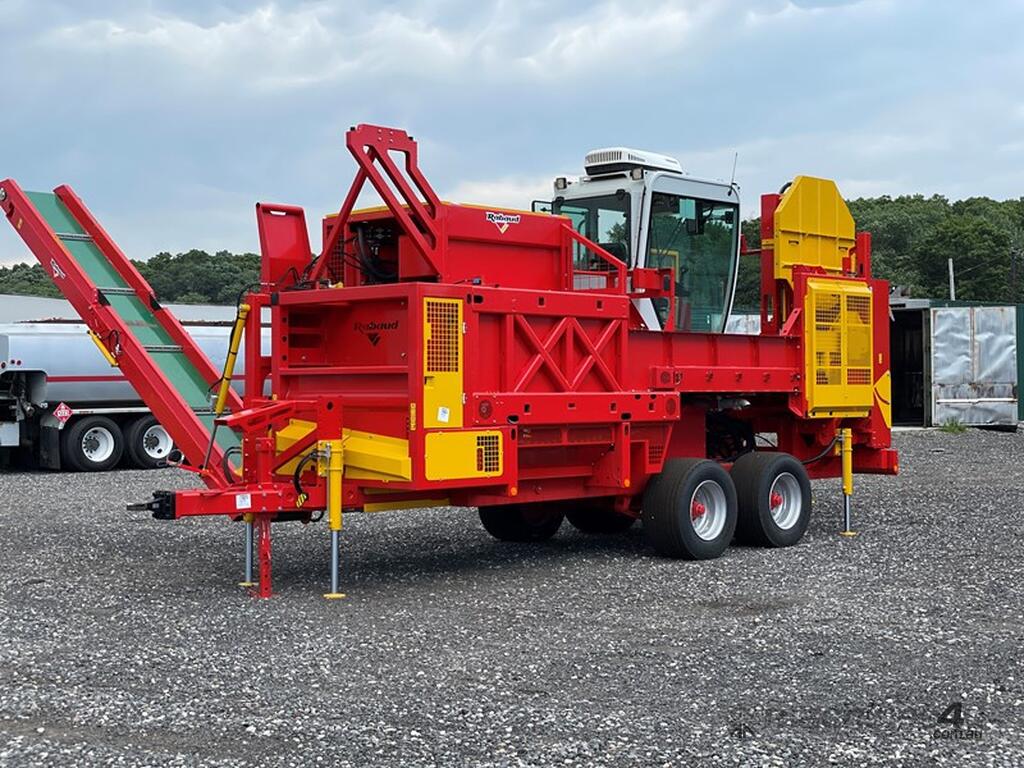

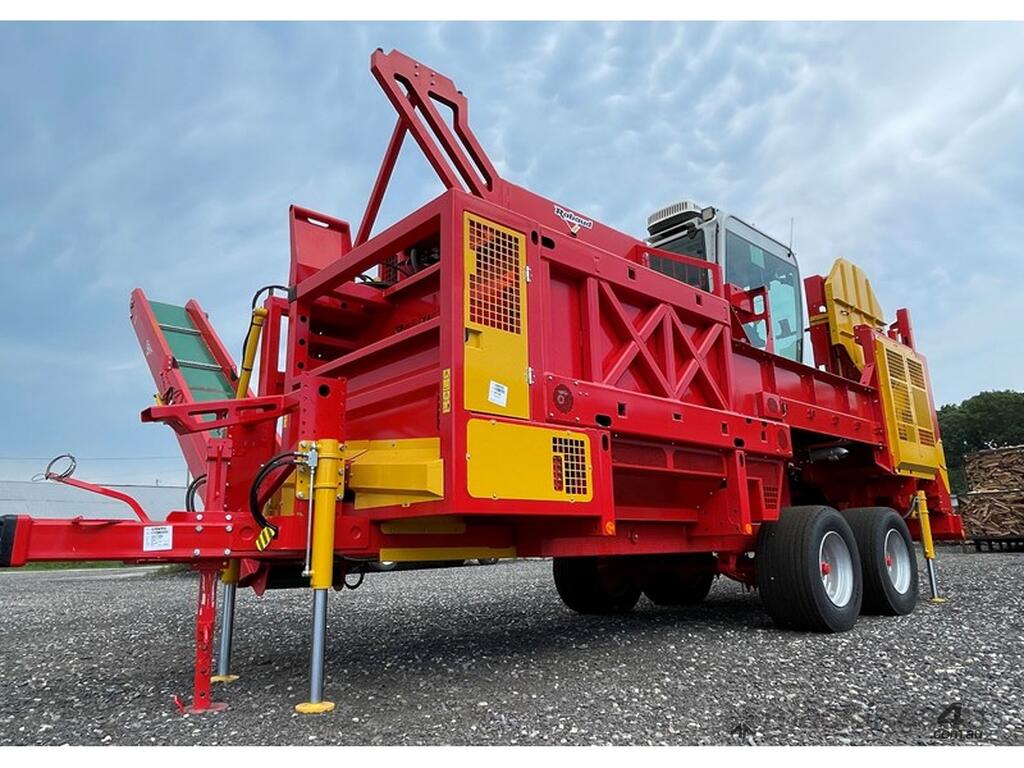

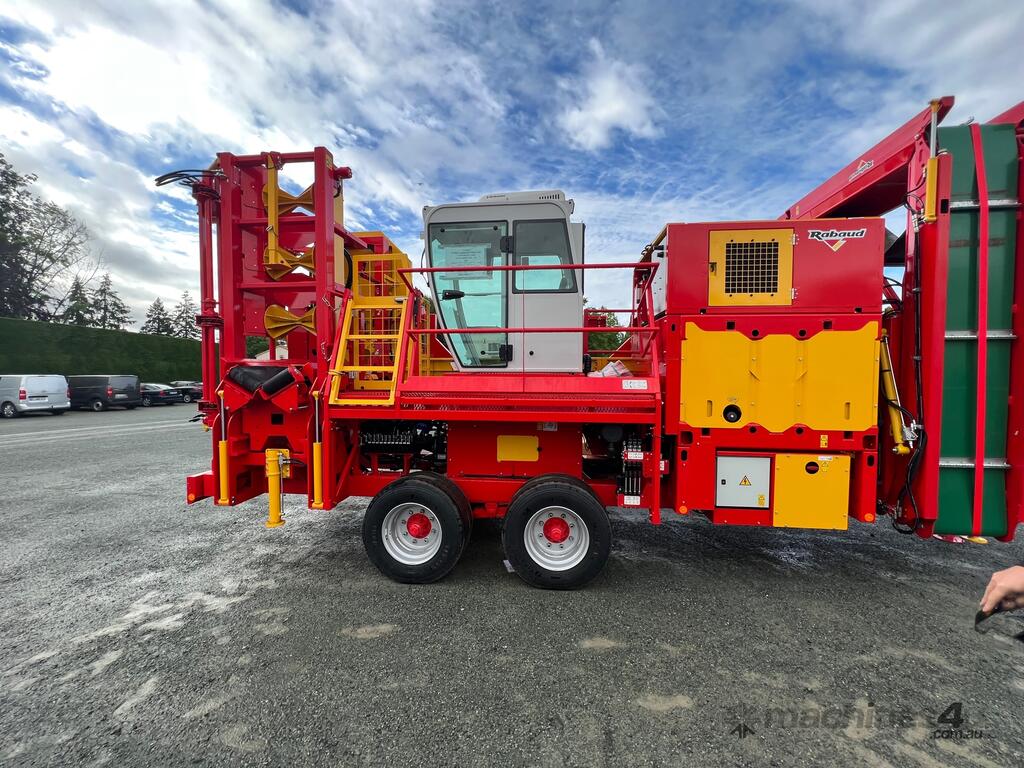

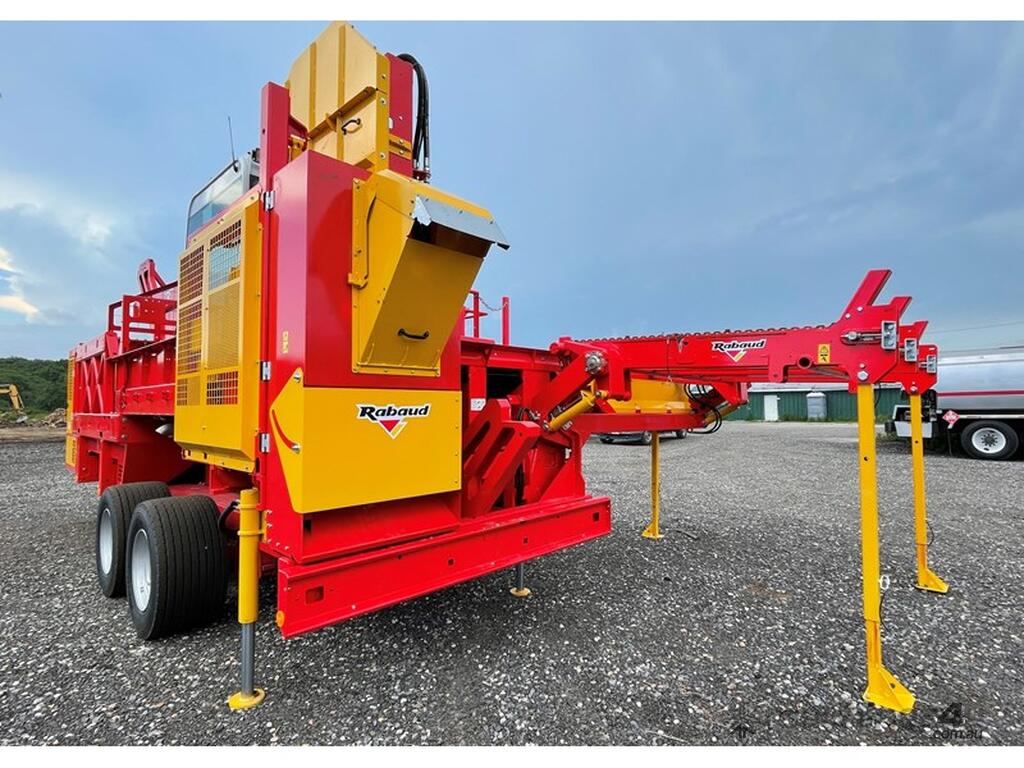

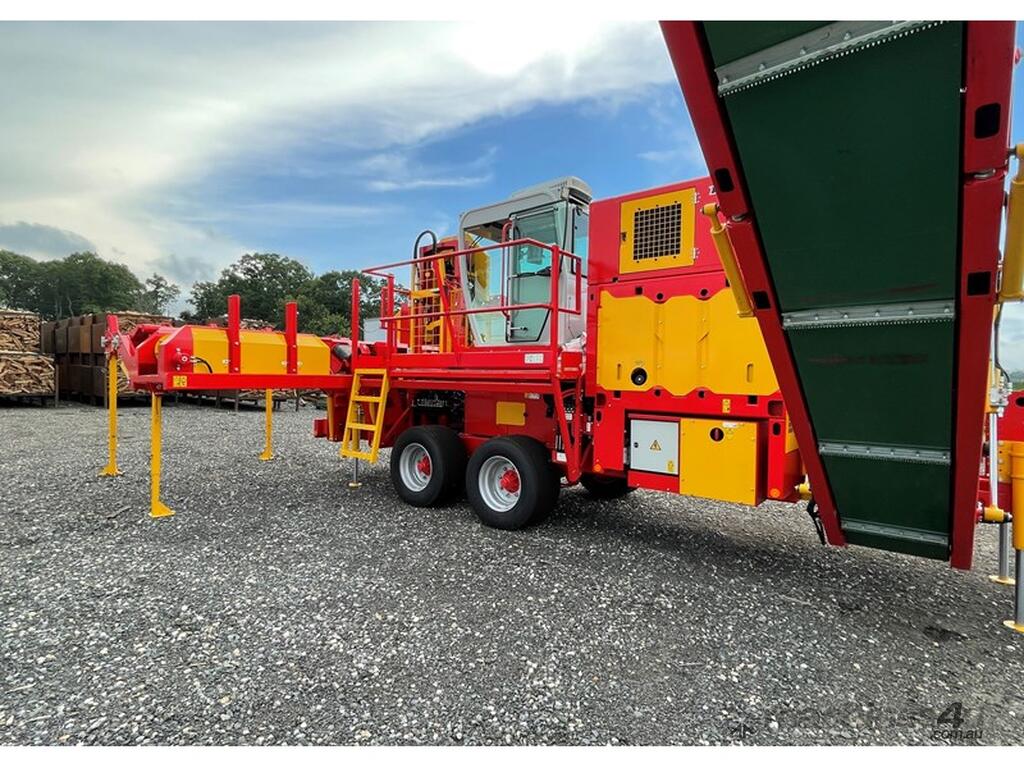

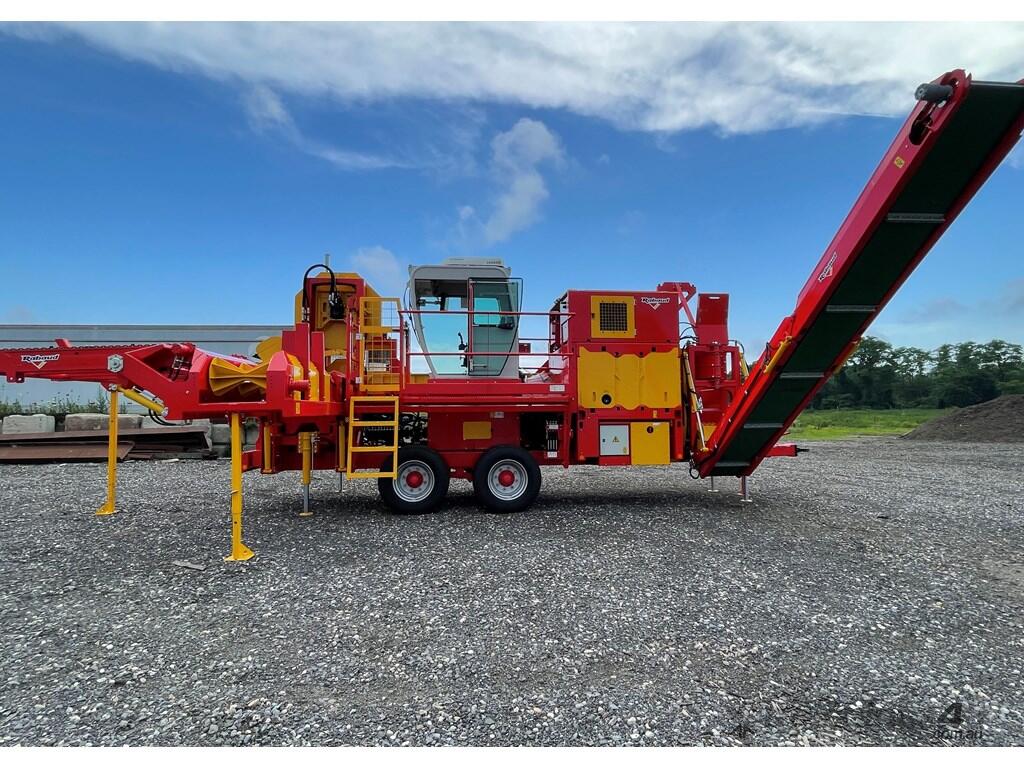

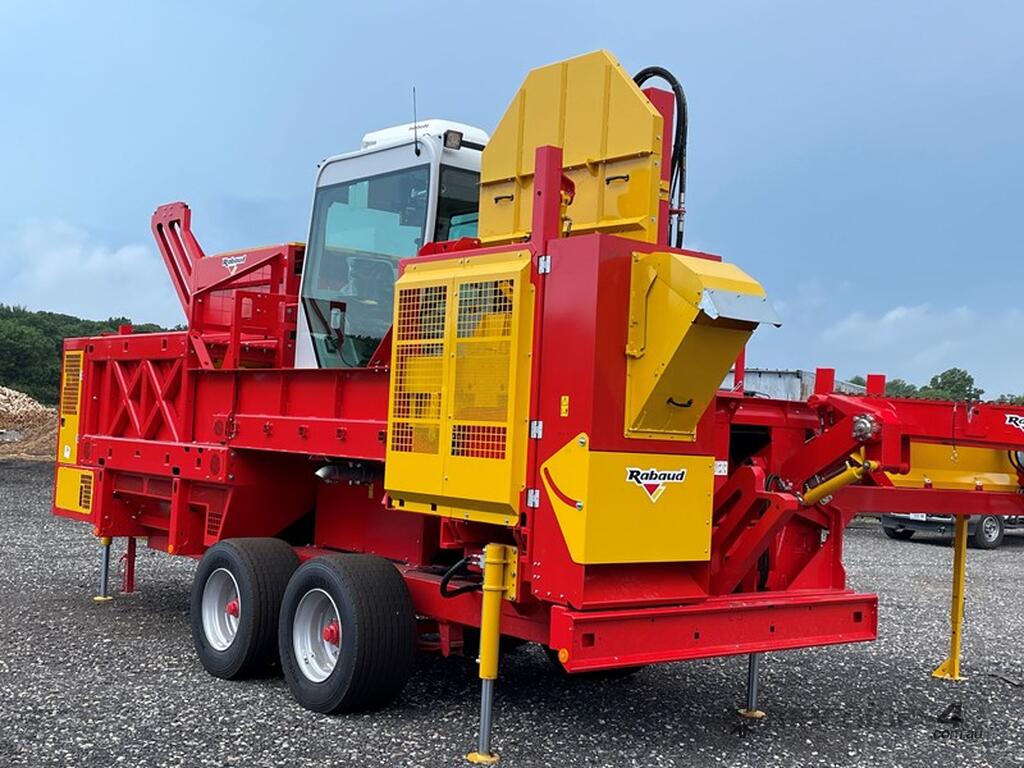

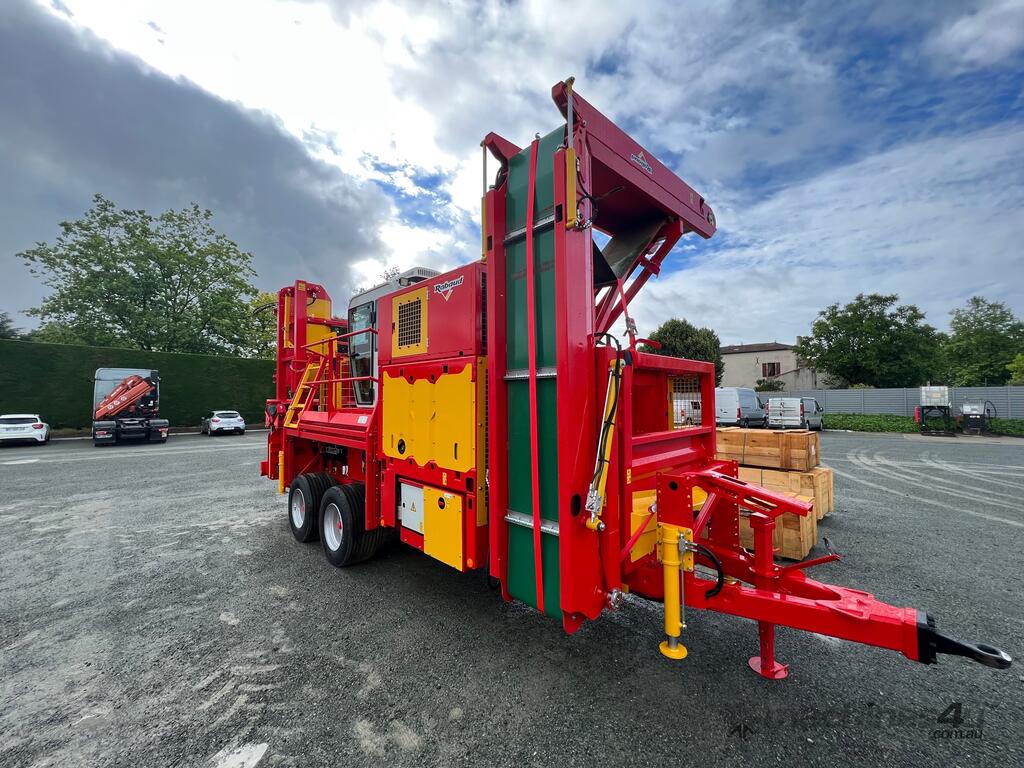

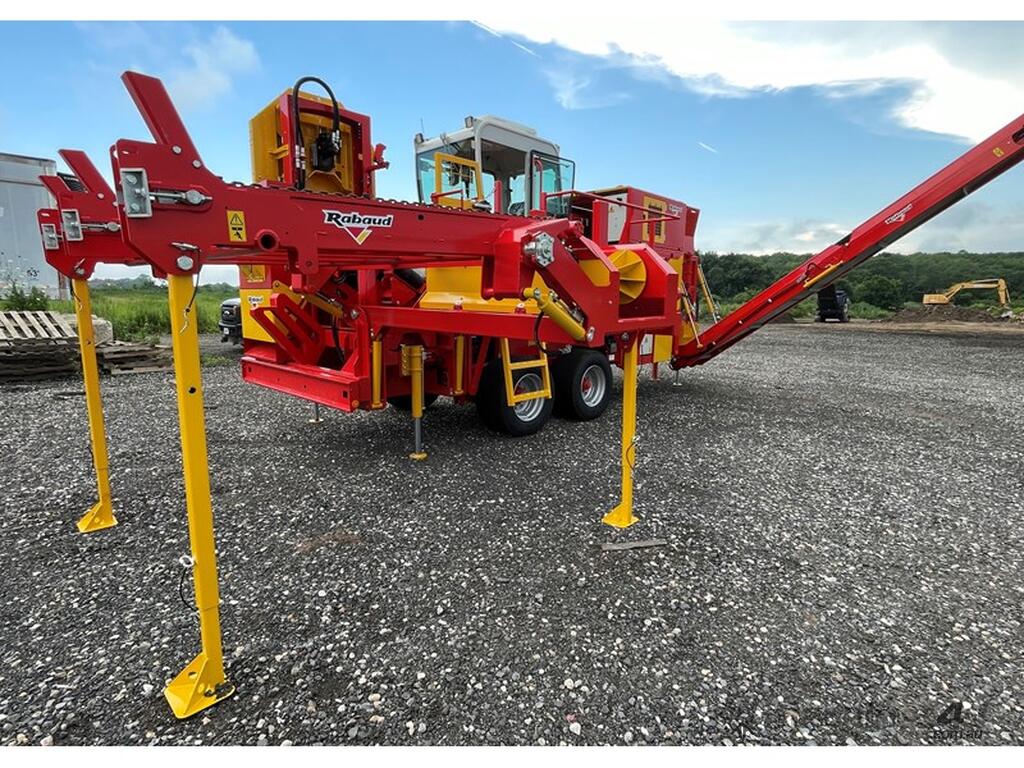

Rabaud Xylog 520 Mobile Firewood Processor

• Maximum cutting diameter: 520 mm (20”)
• Adjustable cutting length: 200 mm (8’’), 250 mm (10”), 330 mm (13”), 400 mm (16”) and 500 mm (20”)
• The cutting length is managed hydraulically with a lateral movement with sawing parts, including the 2 feeding conveyor in V shape.
• The length wood stop retracts itself hydraulically during the cut.
• Cutting system with a carbide teeth circular saw:
o Diameter 1300mm – 51’’
o 110 teeth
o Thickness: 6 mm – 0.25’’
o Carbide teeth width 8.5mm – 0.3’’
o Driven by a piston hydraulic engine and a gearbox
o Vertical linear motion control by 2 hydraulic cylinder

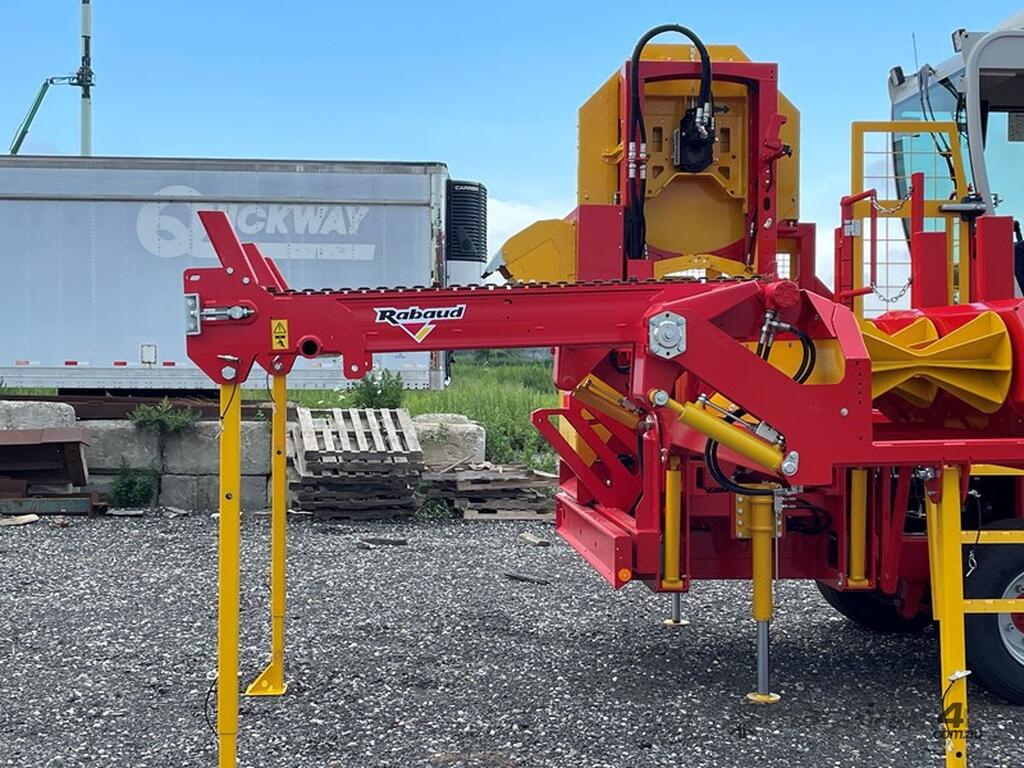

• Mixt feeding conveyor of the wood with V shape roller and V shape belt conveyor. Belt width 300mm – 11’’.
• 2 Independant clamps hold the wood during the cutting regardless of the wood form. The clamps are always in contact with wood.
• Hydraulic pallet for keeping the wood during cutting, with the possibility of managing the fall with ejection of it towards the outside, this same pallet evacuates cut wood on the transfer belt.
• The transfer conveyor for splitting, about 3 meters long, acts as a buffer storage and is hydraulically powered, which allows the transfer of large logs that are already split or not cylindrical. A hydraulically adjustable panel guides the wood according to the logs’ length.
• Splitting system through 2 V-shaped blades with 3 pressers to hold the wood properly.
• The pressers’ and blades’ position is adjustable depending on their cutting length, which means no dead travel during the splitting.
• 22 T splitting power.
• ISO POWER system on the blades to manage their speed according to the requested power.
• Machine fitted with a XYLOMETER (wood cube scaling system).
• Metal conveyor on the splitter with “step to step” progress, adjustable from 30 (1.2’) to 250 mm (10’’) for the logs dimension.
• Piston pump with closed center (107 L/min – 28 Gal/min. for the saw).
• 2 hydraulic piston pumps (LOAD SENSING type): the 1st one with 130 L/min ( Gal/min) and proportional valve for the splitting function, and another one with 54 L/min (14 Gal/min). with a proportional valve for the intake conveyor, the discharge conveyor, its cylinders, the ejector, the pallet, the clamps, the saw up and down, the wood stop, and the transfer conveyor panel’s setting.
• 17 L (4.5 Gal/min) gear pump for the cooler, the screener hydraulic motors, and the discharge conveyor.
• 200 L (52 Gal) capacity hydraulic tank.
• Launchpad with easy access for maintenance.
• Cooler mounted on hinges to ease the cleaning.
• Wifi hotspot to allow quick and efficient remote assistance (optional).
• Automatic sawing (optional).
• Machine meeting European requirements.
