Radial Arm Saw Maggi Big 800 CE

Standard radial-arm saw, max. cut width 705 mm - Adaptability, versatility, cutting precision, easy maintenance make this product line a necessary machinery for the daily use of each carpentry.

Maggi radial-arm saws guarantee maximum work safety.

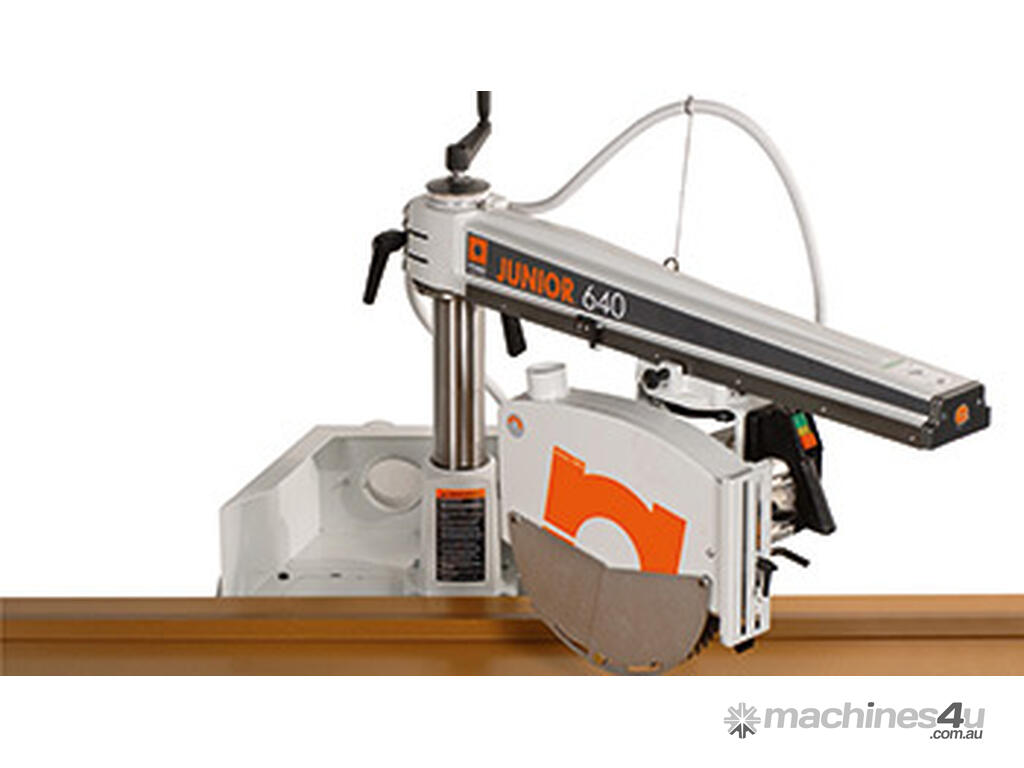

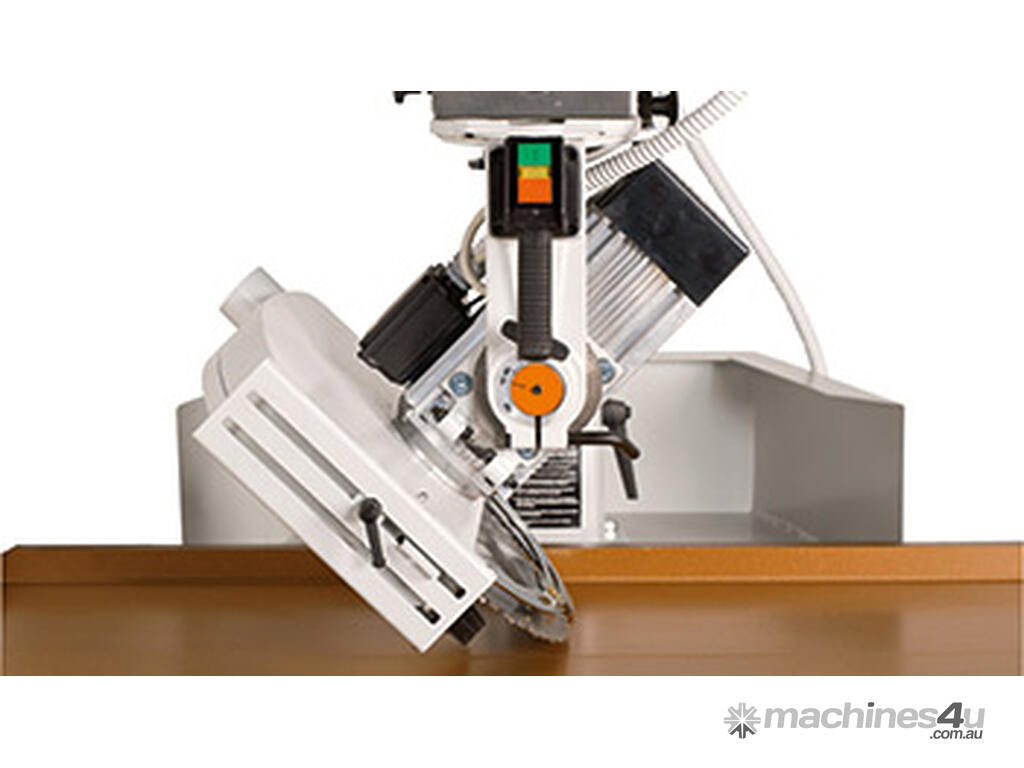

Articulated arm and head-unit for diagonal cuts, inclined cuts and trimming.

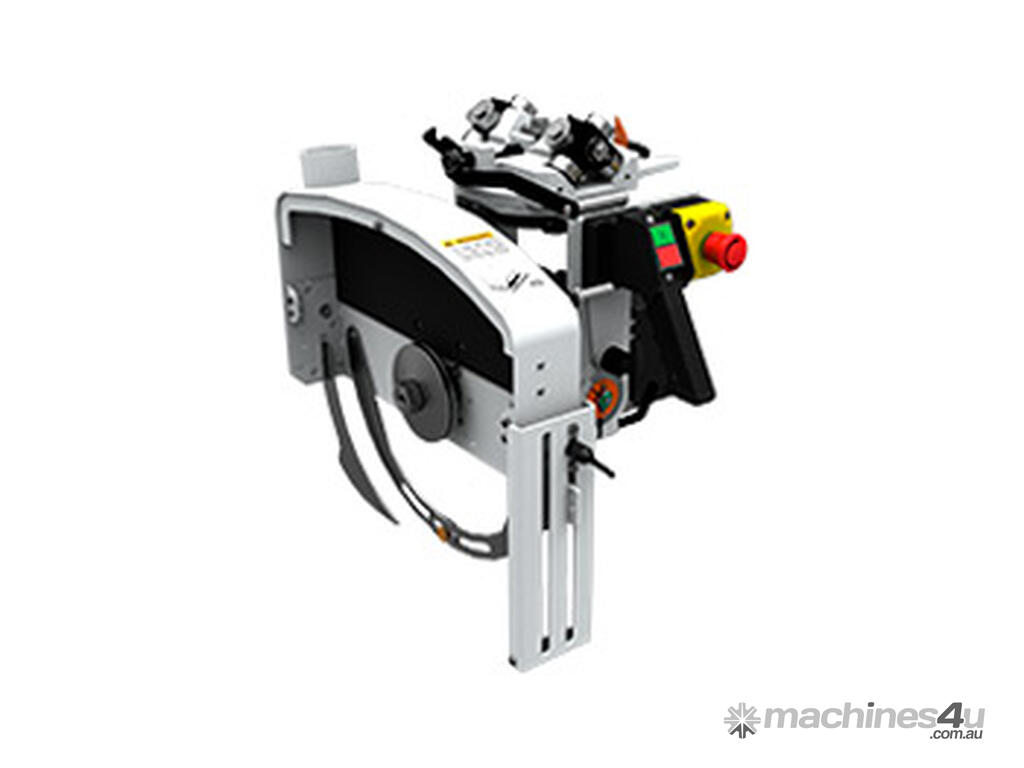

High precision in cutting thanks to the solid and stable head-unit.

Blade diameter: 400mm
Motor speed: 2800RPM
Max. cut height: 125mm
Motor: 4HP, 3PH or 3HP, 1PH
Blade bore diameter: 30mm
Table dimensions: 1145 x 1860mm
Max. cut width: 20 x 705mm , 125 x 610mm
Max. cut height at 45 degree (R)(20mm thick): 100 x 450mm
Max. cut height at 45 degree (L)(20mm thick): 100 x 260mm

Please contact us if you would like more info or for a quote
New 2024 stock arriving soon
