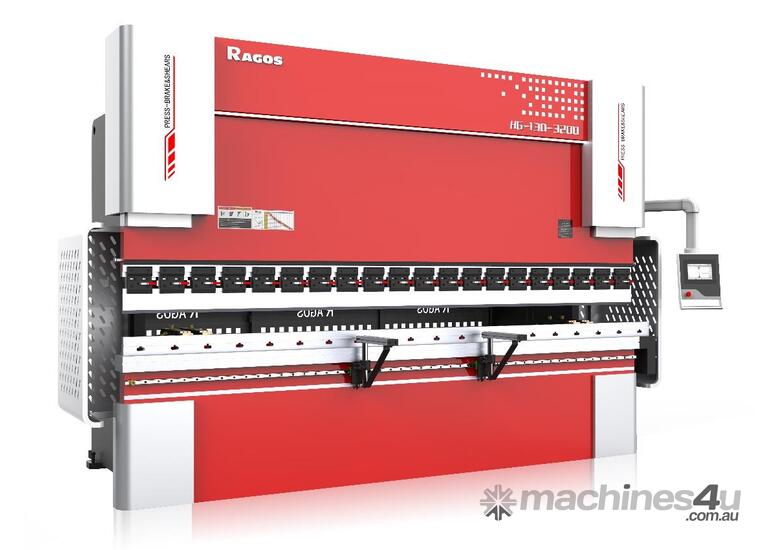

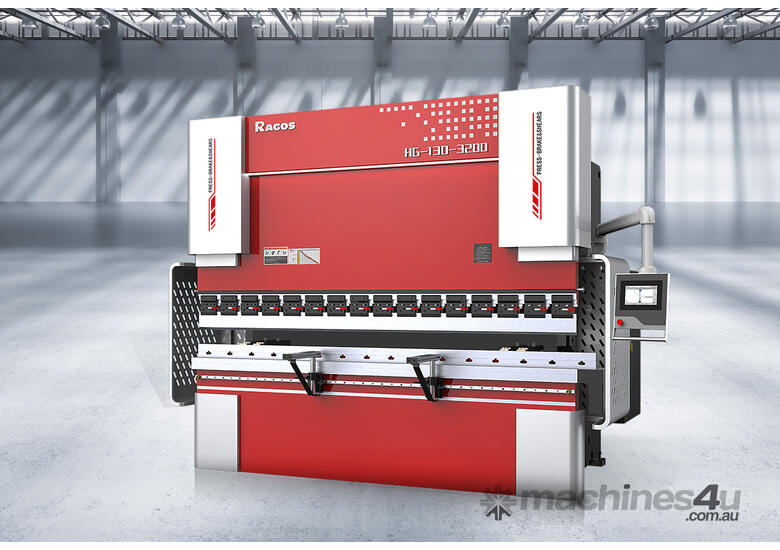

Ragos HG 130-3200 7 Axis Electric-Hydraulic HYBRID CNC Press Brake

The Ragos HG 130-3200 CNC Press Brake with advanced 7-axis control (Y1, Y2, X, R, Z1, Z2, V crowning) delivers unmatched precision and versatility for metal bending applications. Engineered with a hybrid electric-hydraulic system, it combines energy efficiency with powerful performance. The DELEM touchscreen controller ensures user-friendly operation and precise adjustments, while the V-axis crowning guarantees consistent bend angles across the workpiece. Ideal for complex and high-precision tasks, this machine is perfect for achieving superior bending accuracy and efficiency in modern fabrication environments.


FEATURES:

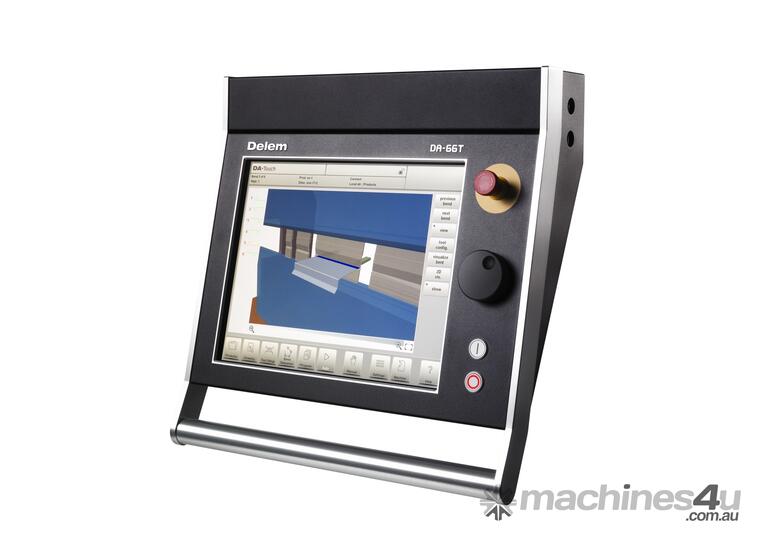

- Delem DA-66T CNC Press Brake Controller
- 7 Axis (Y1-Y2-X-R-Z1-Z2, V Crowning)
- Hybrid Electric-Hydraulic System
- CNC Automatic Crowning System
- 130 Ton Bending Capacity
- 3200 mm Bending Length
- High Precision Tool Clamping System


SPECIFICATIONS:

- Main motor power: 10.8 kW
- Return speed: 180 mm/s
- Distance between columns: 2700 mm
- Throat depth: 400 mm
- Length of workbench: 3200 mm
- Nominal force: 130 ton
- Fast forward speed: 200 mm/s
- Working feed: 10 mm/s
- Weight: 8000 kg
- Opening height: 500 mm
- Slider stroke: 200 mm
- L x W x H (mm): 3500 x 1800 x 2750
