The latest MG series machines from Ragos come equipped with a highly rigid, annealed machine frame and a modern CNC system for high-speed and high-precision bending.
Ragos has strictly controlled the quality of its products and, consequently, has experienced rapid global development of its brand.
The MG series is the best lower-drive CNC bending machine in the world. The working efficiency is three times higher than upper-drive bending machines. Maximum bending speed is 25 bends/min, and the positioning accuracy is less than 0.03 mm.
----------------------------------------------------------------------------------------------------------------------------------
MACHINE DIMENSIONS:
Length: 2180 mm
Width: 1350 mm
Height: 2160 mm
----------------------------------------------------------------------------------------------------------------------------------

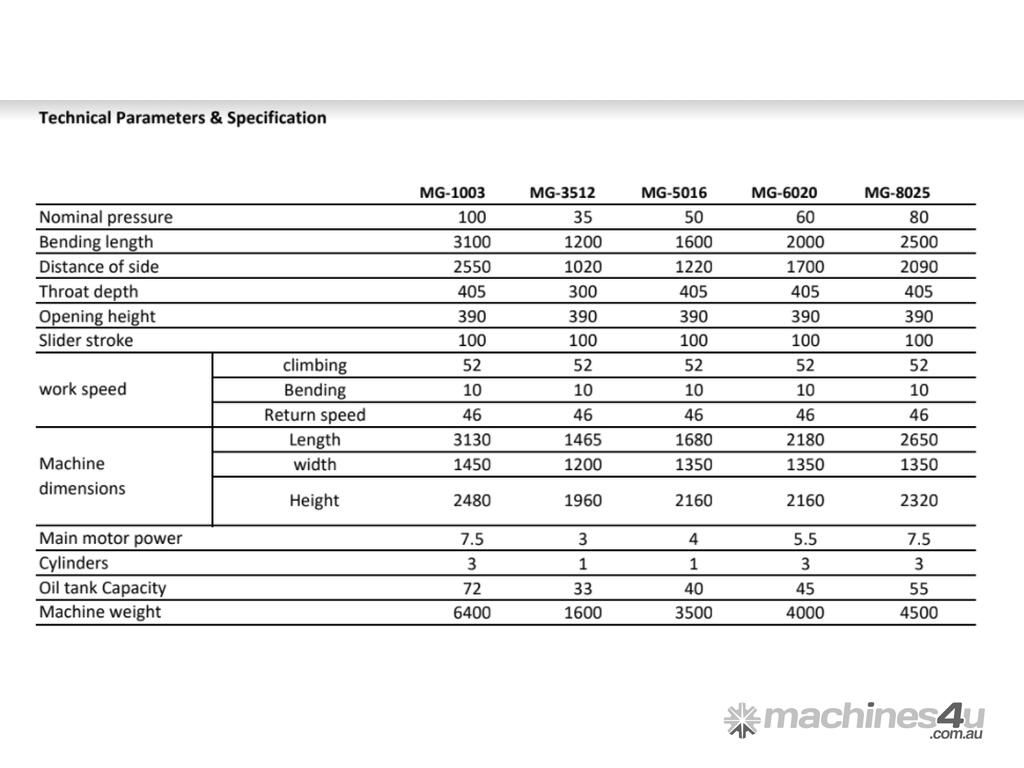

TECHNICAL PARAMETERS:
- Nominal pressure: 60 Ton
- Bending length: 2000 mm
- Distance of side: 1700 mm
- Throat depth: 405 mm
- Opening height: 390 mm
- Slider stroke: 100 mm
- Main motor power: 5.5 kw
- Cylinders: 3 pc
- Oil tank capacity: 45 L
- Machine weight: 4000 kg
----------------------------------------------------------------------------------------------------------------------------------
EQUIPMENT CONFIGURATION LIST:
- Control system | Japan ( Developed with NADIC )
- Mold clamping | Japan (AMADA)
- Oil pump | Japan (Nachi)
- Oil valve | Japan (YUKEN)
- Oil seal | Japan (NOK)
- Cylinder | Japan (AMADA)
- Guide rail | Taiwan (Taiwan HIWIN)
- Ball screw | Taiwan (TBI)
- PLC control | Japan (MITSUBISHI)
- Touch screen | Taiwan (WEINVIEW)
- Bearing | Japan (NSK)
- Plus much more
If you require additional product information, please download the attached PDF.
----------------------------------------------------------------------------------------------------------------------------------
Here at Intermach, we offer:
- FREE DEMOS of the machines we have in our showroom.
- FREE EXPERT CONSULTATIONS to help you select a machine that suits your operational and financial requirements.
- FREE INSTALLATION AND TRAINING upon purchase.
- CONSISTENT AND COMPETITIVE PRICING for our machines based on their capacity.
- AND A LOCAL SUPPORT TEAM OF HIGHLY EXPERIENCED ENGINEERS who are on call for swift repair of any issues that might arise with a machine.
As part of our mission statement, Intermach prioritises customer satisfaction. To that end, we have a growing wealth of references nation-wide who can attest to the high quality of our machines and service.
Phone our sales team now to book a demonstration or a consultation. We look forward to hearing from you!
----------------------------------------------------------------------------------------------------------------------------------
COMPANY BACKGROUND
Intermach is a family-owned company with over 40 years of experience in the industry. We supply both new and used machinery to a multitude of industries—including engineering, fabrication, plastics, recycling, and material handling.
We also sell a versatile range of quality brands to the discerning Australian customer. As the industry’s leading provider, we specialise in sheet metal cutting equipment, fiber laser cutting machines and press brakes.
Our mission is to supply high-quality solutions for all your machinery needs with a focus on versatility, reliability, and service excellence. Customer satisfaction is our top priority.
